Bronto fold up dino

Discussion in 'Puzzles' started by kram242, Jan 19, 2010.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Here's one for the Kidz! :D

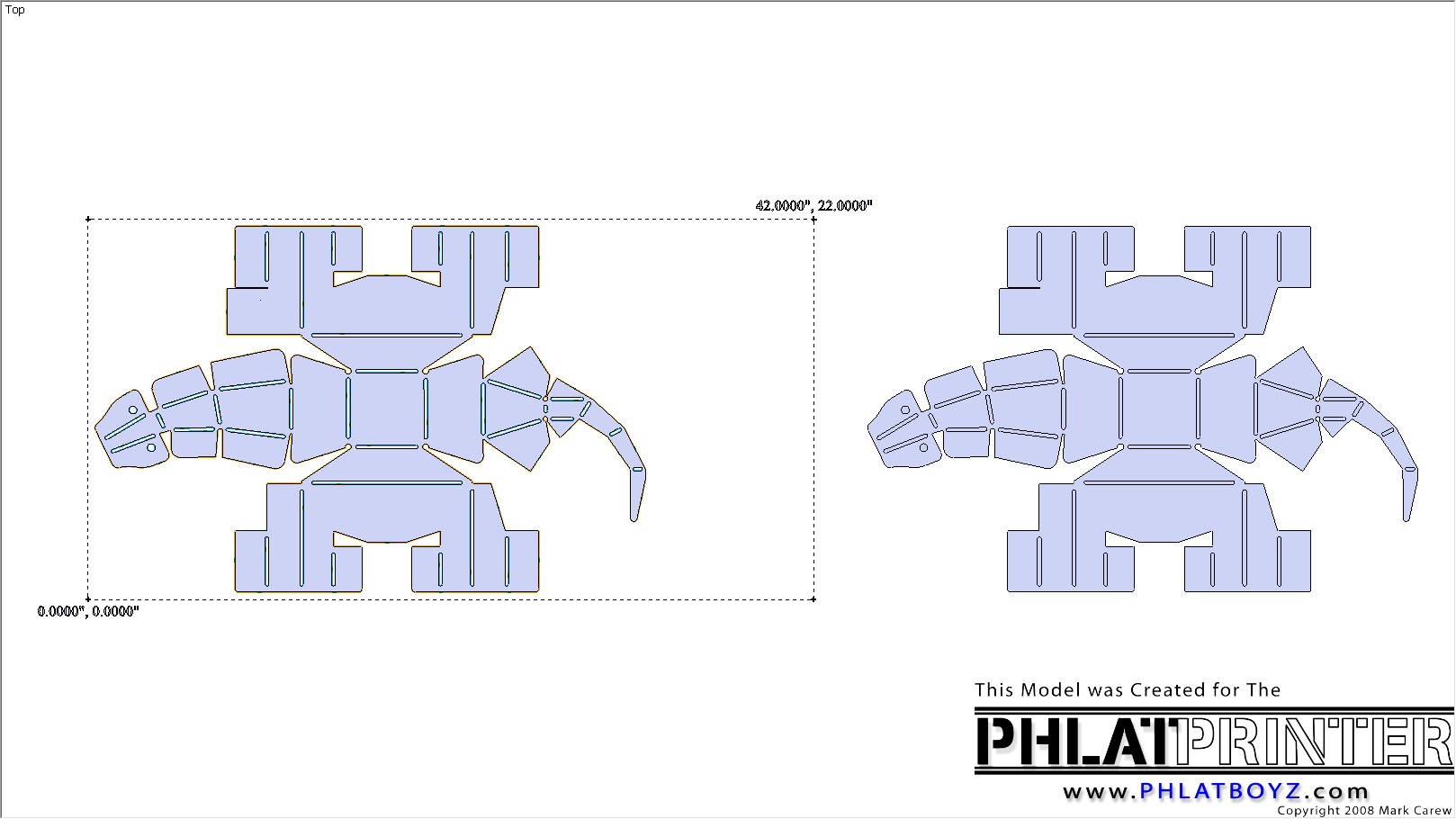

    This design was a dxf I found online. The way the fold technique is used is what caught my eye.

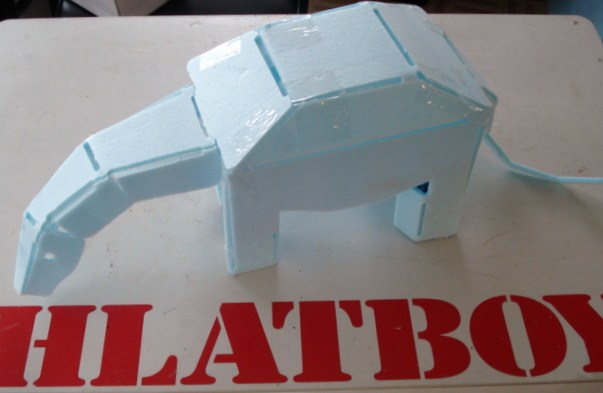

    I tired this out of 1/4" fan fold and it did not work very well because of these bends. I ended up taping the inside and I wish I had taped the outside to. So that it would have created a tape style hinge when the bends are.
    I think this one will have to be made from EPP to work right
    Have fun!
    Mark Attached files Bronto.cnc (60.7 KB)Â Bronto.skp (1.2 MB)Â [​IMG] [​IMG]

  2. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    I think for fanfold it would work a lot better if we did the normal fold lines like 50% instead.
    Cool idea though.

  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    There is such a small area for the actual be that it makes it easy to snap, that's why I was thinking maybe EPP?
    Mark
