Welcome to The Phlatforum PhlatPrinter III

cool designs

Discussion in 'What plans are you looking for?' started by yotamkaufman, Aug 8, 2010.

  1. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    Hi all

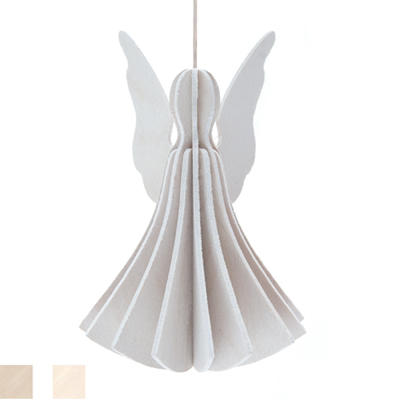

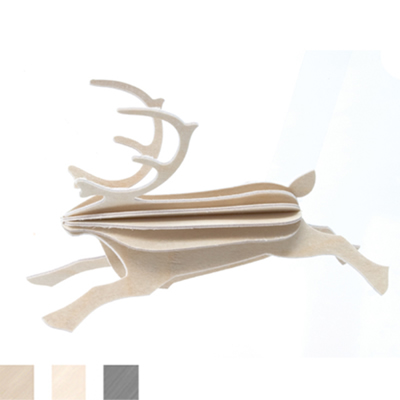

    Does anyone know how these models were made? the company name is LOVI.
    They come in a flat-pack. however, its a bit different slicing method then the ones i know.
    If someone have the palns i would love to have them

    10x Attached files [​IMG] [​IMG] [​IMG] [​IMG]

    yotamkaufman, Aug 8, 2010
    #1
  2. Gefahren

    Gefahren Member

    Offline
    Messages:
    205
    Trophy Points:
    16
    Ok, someone needs to make that pig out of some 1/2" pink foam and put a motor in it's nose. Landing might be tricky, but it'd be too cool flying around.

    Gefahren, Aug 8, 2010
    #2
  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Those are great! I would like to know how they make the connection for the pieces as well.
    It may be that they are actually two parts connected with a fold and glued at angles?
    That's my best guess :)
    Nice find yotamkaufman, these are cool
    Mark and Trish

    EDIT..
    Ok found this, it shows that it is a slotted design :)
    http://www.designboom.com/weblog/read.p ... IC_PK=2407

    kram242, Aug 9, 2010
    #3
  4. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0

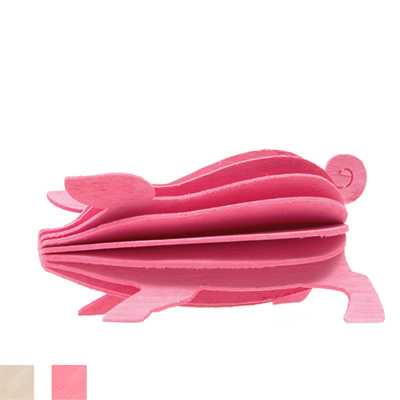

    I would guess they make 2 or 3 different stacked parts. For example, the pig would use 1 single-layer piece that is a full body (only) with the corkscrew tail. Then there would be a 5-piece stack with just the full body shape, and lastly a 2-layer stack shaped like the full body with ears and feet. The 5-stack would have a slot in the middle running from the back, halfway to the front. The other pieces would have a slot running from the front, halfway to the back. Then you insert the single piece with the tail between the others in the 2-stack, slide the pieces together (like interlocking your two hands making the "V" sign), glue and unfold them as needed.
    I hope that makes sense. ;)

    Anonymous, Aug 9, 2010
    #4
  5. Gefahren

    Gefahren Member

    Offline
    Messages:
    205
    Trophy Points:
    16
    Heres the companys website
    http://www.lovi.fi/
    On the first page that shows up it clearly shows how the pieces of their larger pumpkin fit together, which should be the way everything else goes.
    Dorsal was right about how they go together except the folding part if I am following his description correctly.

    Gefahren, Aug 9, 2010
    #5
  6. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Ah, you're right Gefahren, I am incorrect. It would be very tough to fold the birch plywood they use, so they intersect every piece, X-fashion. Very cool!

    Anonymous, Aug 9, 2010
    #6
  7. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

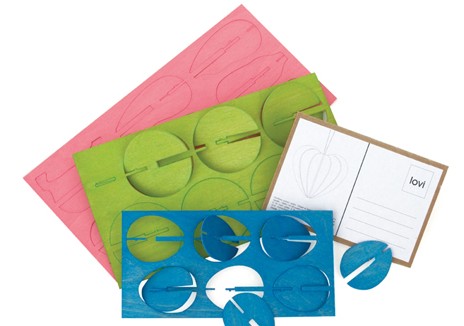

    Looking through the site I found this pic. If you notice you will see not only a double thick notch for the center outer most parts but there is also a small 'key way' tab that allows the puzzle to go together only one way.
    This could be a very cool way to build a foamie.
    Anyone working on one of these? or thinking about it?
    Mark and Trish Attached files [​IMG]

    kram242, Aug 9, 2010
    #7
  8. Gefahren

    Gefahren Member

    Offline
    Messages:
    205
    Trophy Points:
    16
    I would really like to build the Pig, but it'll have to wait untill I get a MKIII. Still hoping to at least order one before my birthday on the 18th...

    Gefahren, Aug 9, 2010
    #8
  9. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    :D Happy early Birthday! We hope so to, it will be so cool to see all the ideas you guys come up with!
    Mark and Trish

    kram242, Aug 10, 2010
    #9
  10. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    did you get the postcard?

    yotamkaufman, Sep 19, 2010
    #10
