Crash5050's 2x4 Flatbed build

Discussion in 'Types of CNC machines' started by crash5050, Dec 10, 2009.

  1. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas

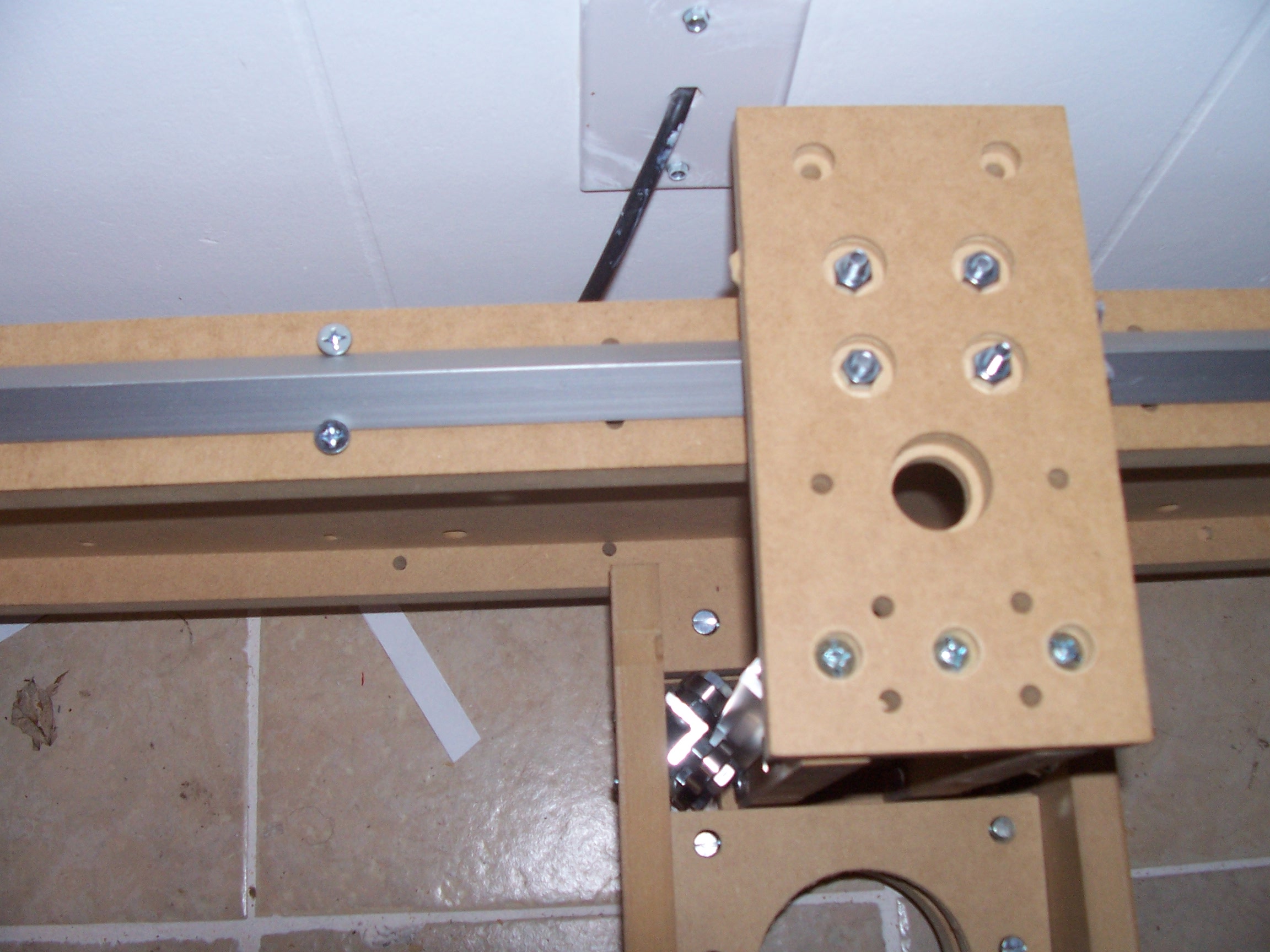

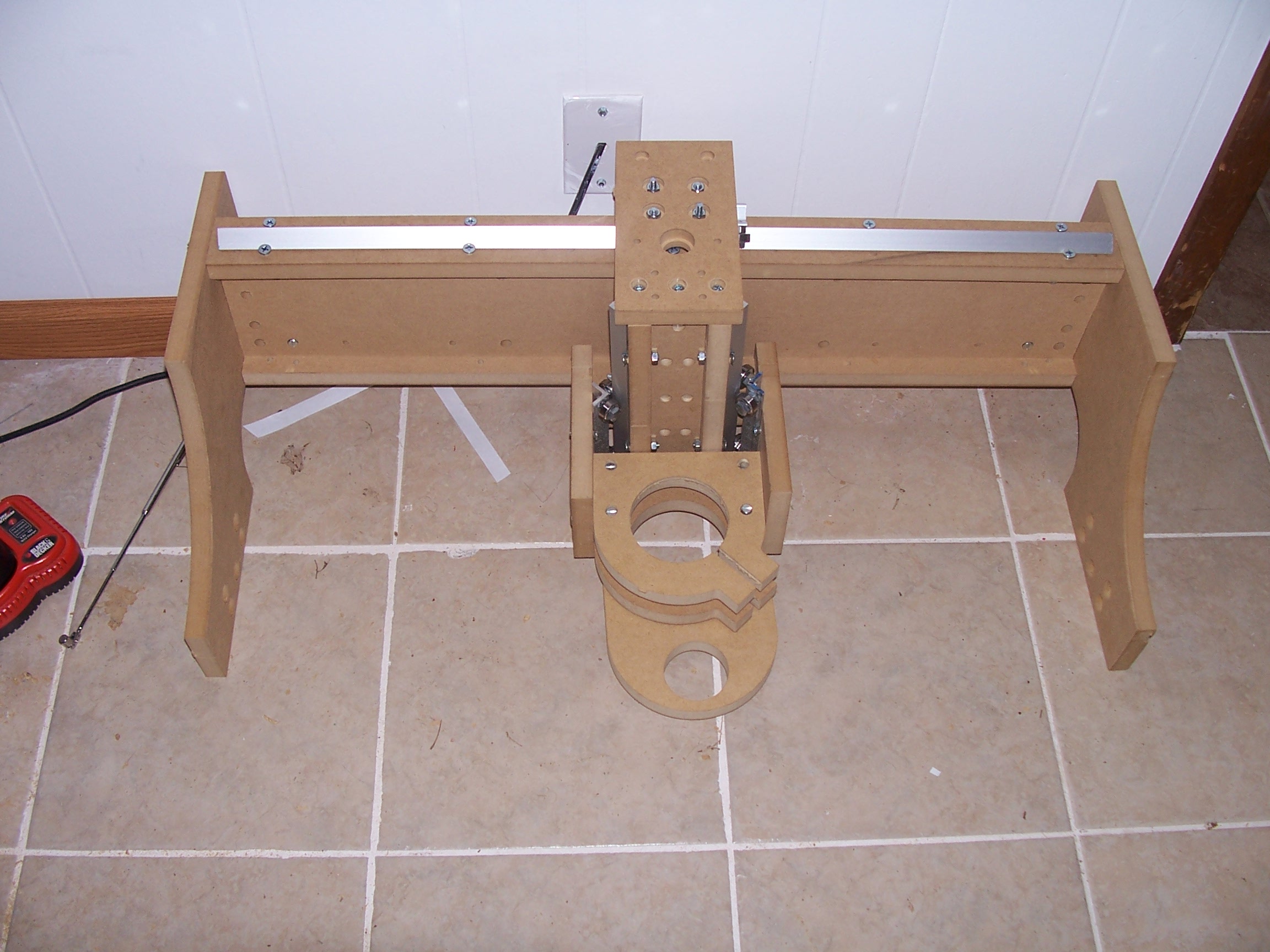

    Ok, I started building my 2x4 Flatbed CNC Router this evening. I have completed the Z axis, except for the alum. channel rails that I am waiting for.

    Here are some pics Attached files [​IMG] [​IMG] [​IMG]

  2. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Nice Crash5050!
    Looking forward to seeing the build as it progresses.

  3. ToxicToast

    ToxicToast Down in the weeds. Staff Member

    Offline
    Messages:
    483
    Trophy Points:
    18
    Location:
    Roseville, CA
    Yes, vrey cool indeed! Keep up the updates!

  4. frankrcfc

    frankrcfc New Member

    Offline
    Messages:
    381
    Trophy Points:
    0
    Location:
    Battle Creek, Mi
    Definitly will keep an eye on that project. Looking good 5050 :D

  5. almostthere

    almostthere New Member

    Offline
    Messages:
    52
    Trophy Points:
    0
    Location:
    Anna tx.
    are you building the the buildyourcnc v.1.3

  6. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas

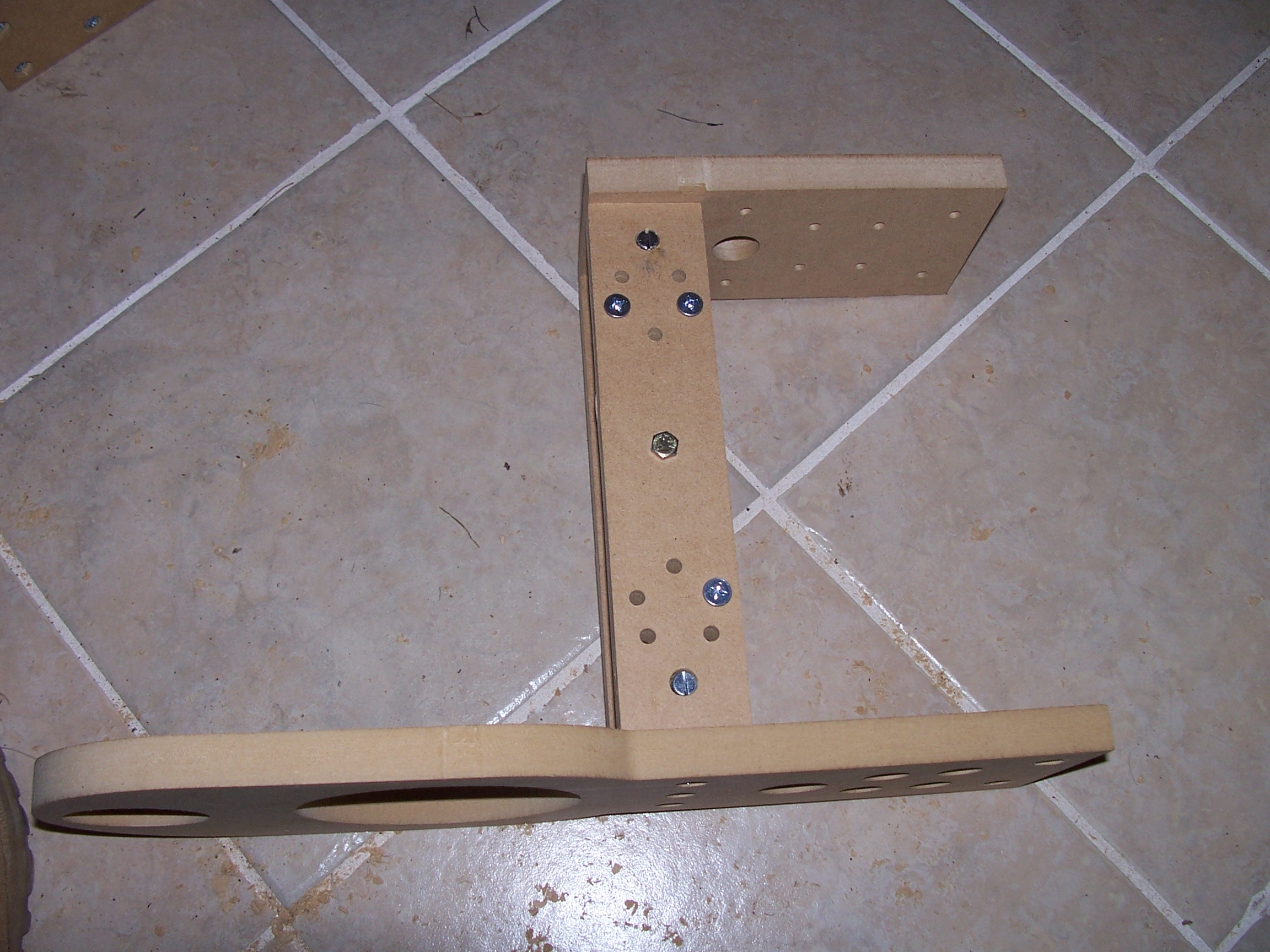

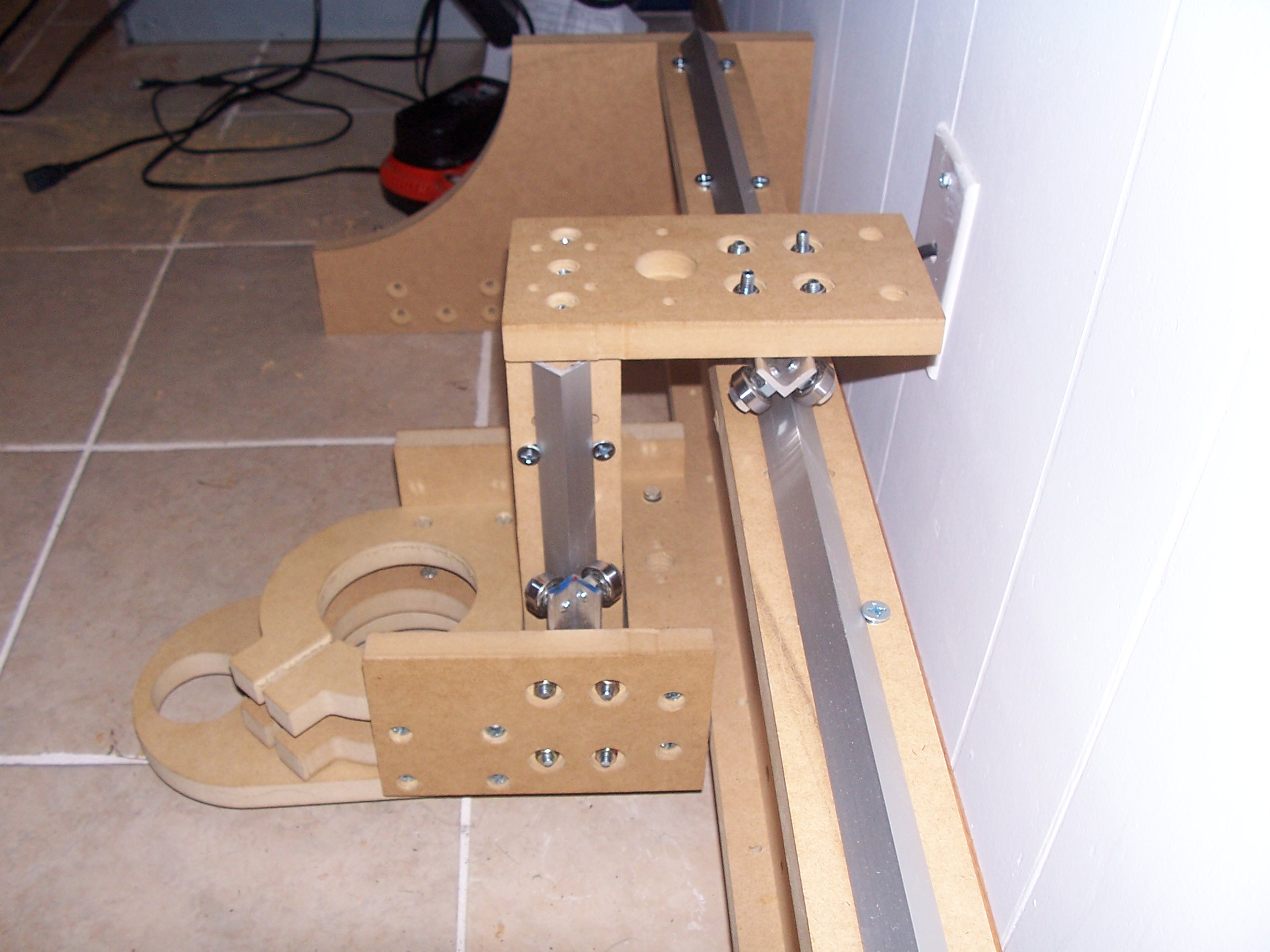

    Yes I am, here are some more pics

    Attached files [​IMG] [​IMG] [​IMG]

  7. almostthere

    almostthere New Member

    Offline
    Messages:
    52
    Trophy Points:
    0
    Location:
    Anna tx.
    looks good it goes together pretty easy just a lot of bolt when i did mine had to keep going to lowes for more bolt.

  8. Thewz

    Thewz Moderator

    Offline
    Messages:
    269
    Trophy Points:
    0
    Location:
    Temecula, CA
    Looks great Crash!

  9. mavacpjm71

    mavacpjm71 New Member

    Offline
    Messages:
    167
    Trophy Points:
    0
    Looking good Crash!

  10. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas

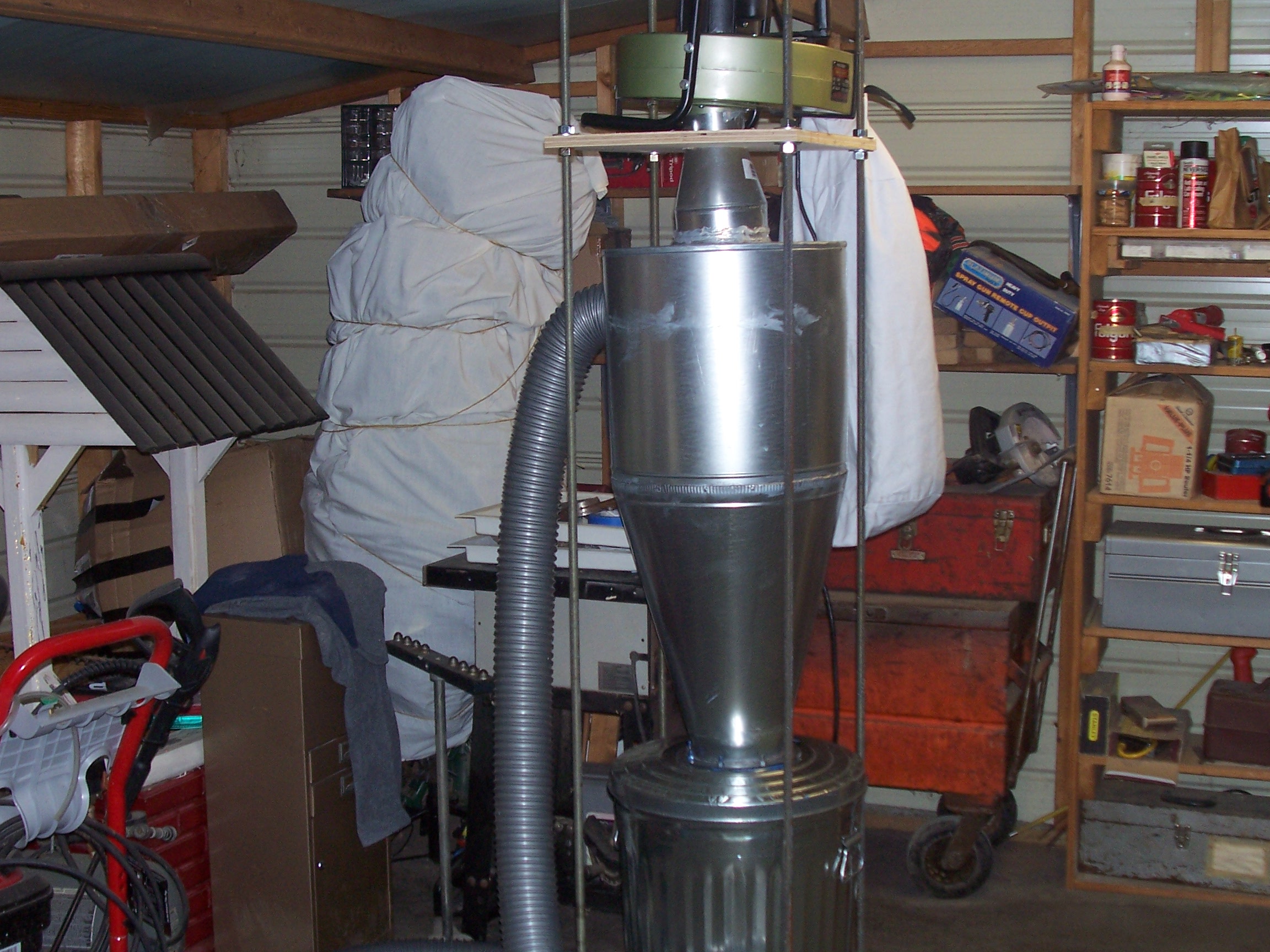

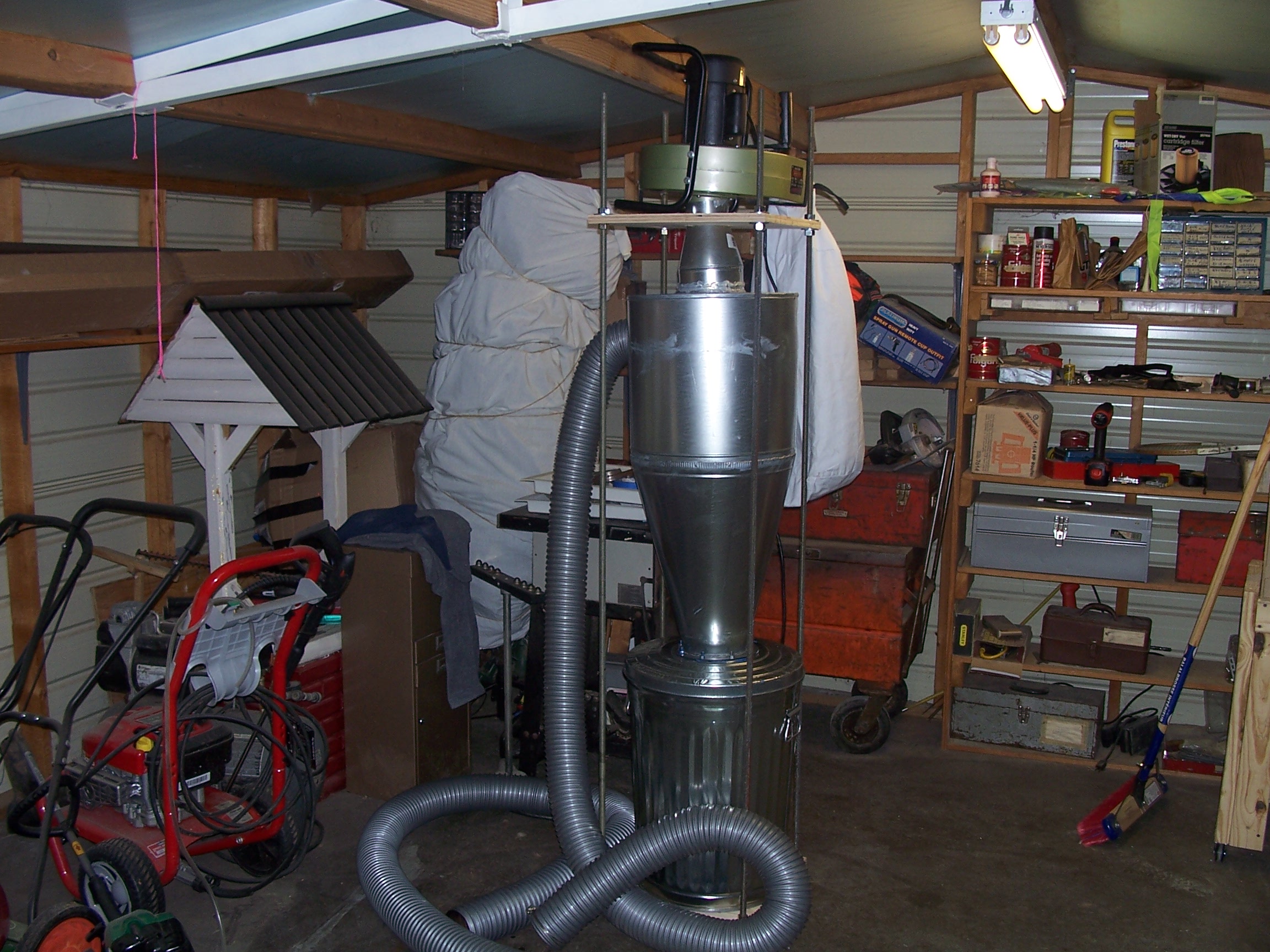

    I just thought I would post a couple of pictures of my cyclone Dust seperator system. I used 4 lengths of allthread, and 2 pieces of plywood to hold the weight, bolted the collector unit to the rafter of the shop.

    Check it out! Attached files [​IMG] [​IMG]

  11. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    That thing is BIG. Is it very noisy?

  12. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas
    Not really, about the same as a shop vac.

  13. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Looks great crash 5050! The cyclone separator is the best way to go in my opinion.
    Do you have an easy way to empty the can though? It looks like you would need to unbolt it to get to it from the pics.

  14. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas
    Details Details Details, hehehe two bolts from the rafter will allow the whole thing to pick up. It should take a while to fill up a 33 gallon can of dust though. The intital design was to use 1 1/4 x 1/8th angle to make a frame with slots so all I had to do was loosen the bolts in the slots and raise the entire thing. But the welding shop wouldn't do such a little job, they had bigger gas wells to fry. I am going to get a welder this weekend from Harbor Freight and try my hand at it, it has been 15 years since I Tig Welded.
    David

  15. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas

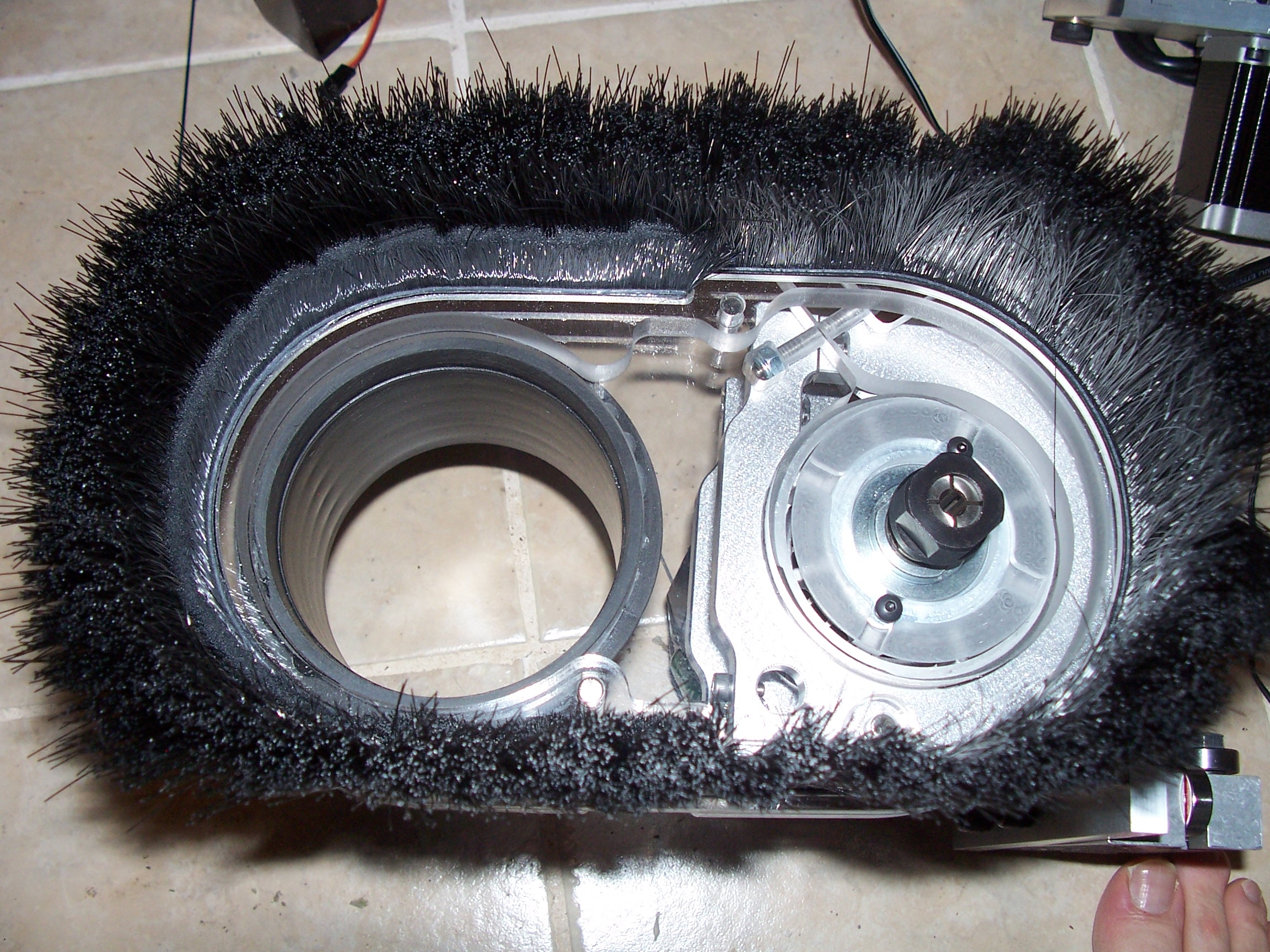

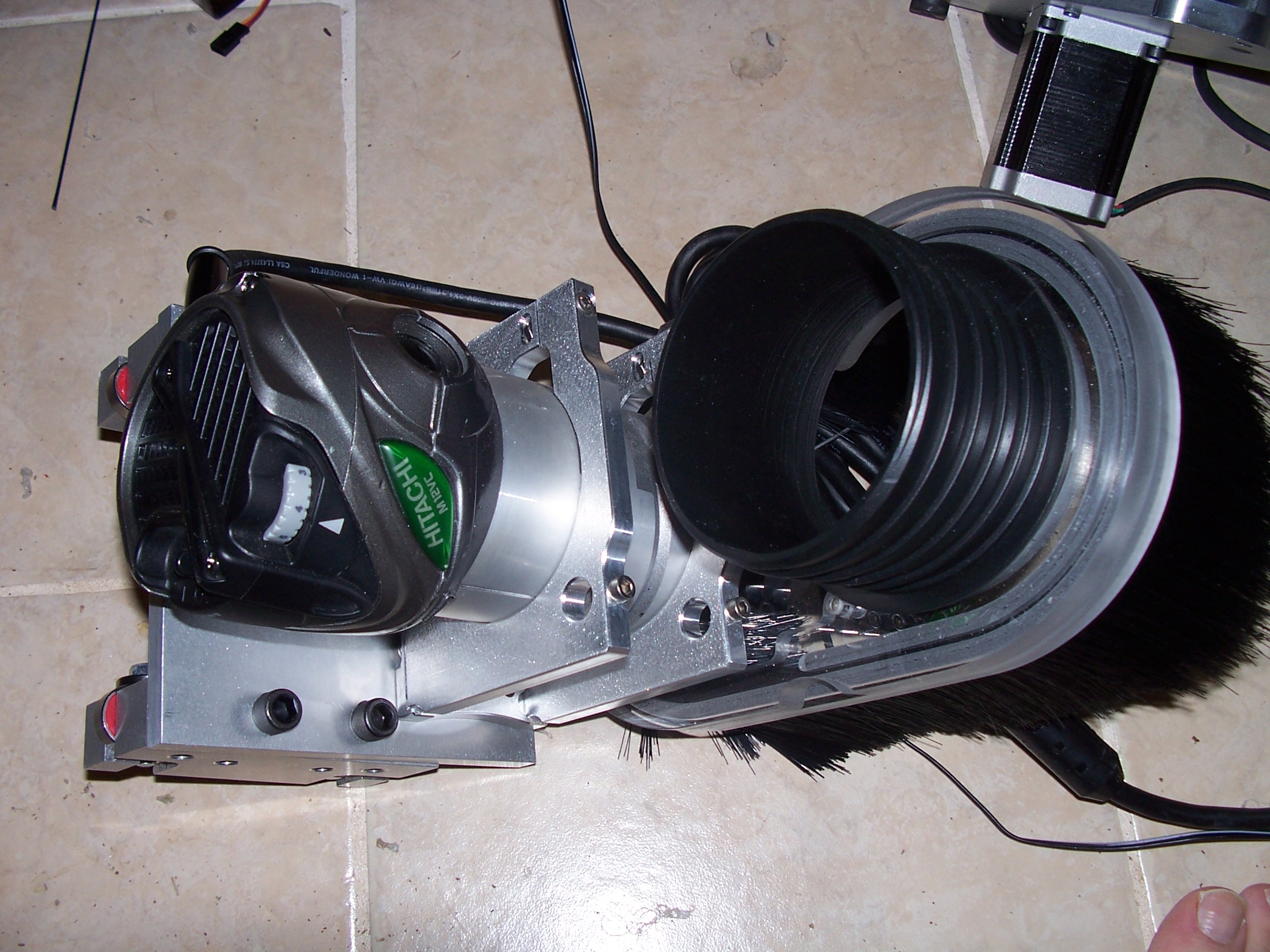

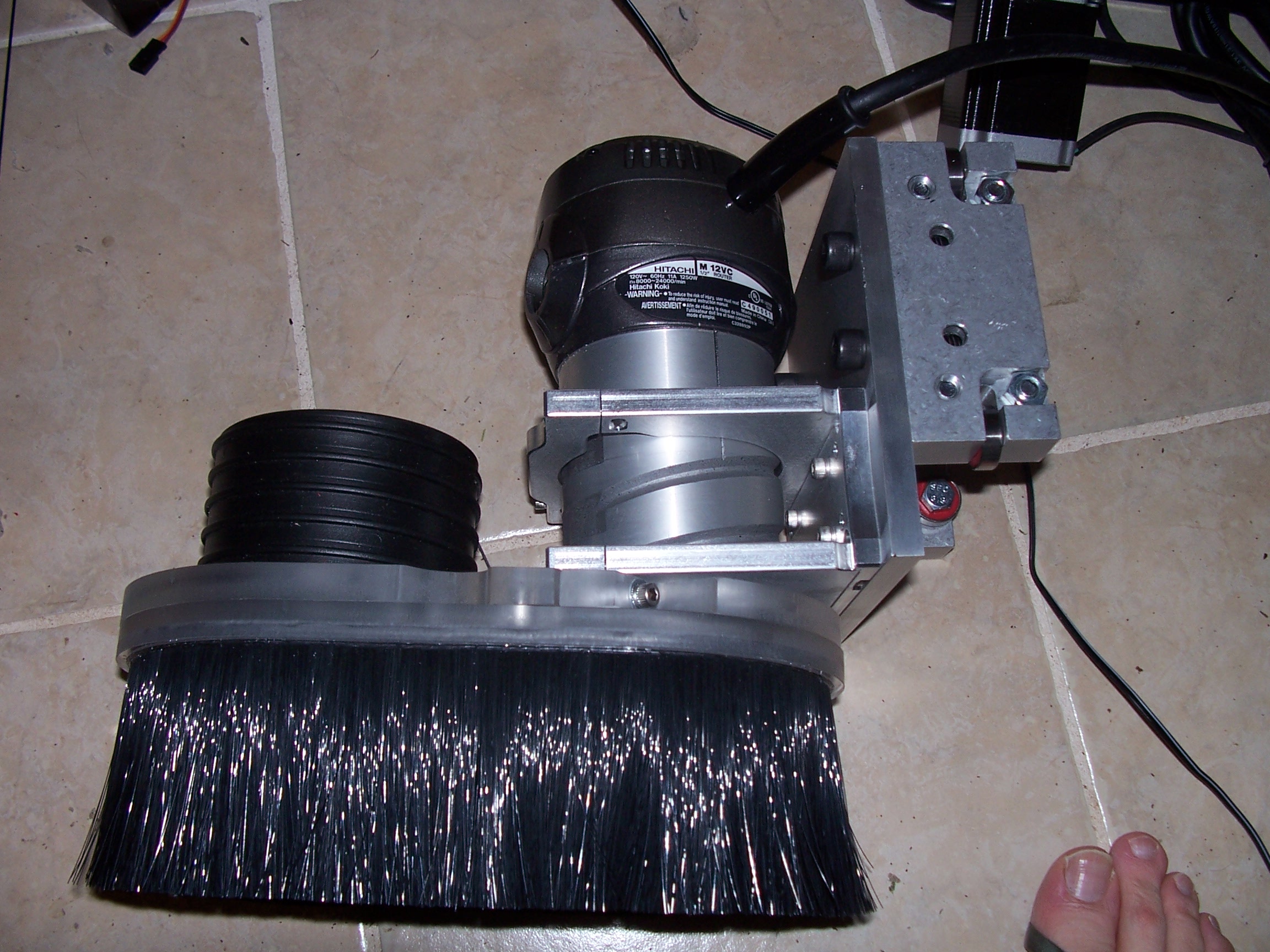

    Here is my Hitachi 12VC Router mounted to my K2CNC Alum. Router mount, attached to the new Z axis back plate and the CNCrouterparts Linear motion rails. And the dust shoe to connect to the big cyclone system.

    Attached files [​IMG] [​IMG] [​IMG]

  16. Orion13

    Orion13 Member

    Offline
    Messages:
    33
    Trophy Points:
    6
    Do you have any sketchup plans for this or pdfs to view? I'm curious to see how this thing will look once you are done.

    Orion13

  17. Orion13

    Orion13 Member

    Offline
    Messages:
    33
    Trophy Points:
    6
    I completely understand if you don't want or can't share that kind of information.

    I do have a question about your Y axis build. It looks like the Y axis is built with one vertical piece of mdf. The others that I've been looking at have a torsion box style Y axis. Is that over kill on their part?

    Orion

  18. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas
    Orion13,

    Sorry I did not see your question. I will send you the edrawings this afternoon when I get home.

  19. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas
    You know I have abandoned the MDF build and am now working toward an 8020 all aluminum build?

  20. travisc

    travisc Member

    Offline
    Messages:
    138
    Trophy Points:
    16
    Location:
    Louisville KY
    Do you have the cad files for that dust shoe?

  21. Orion13

    Orion13 Member

    Offline
    Messages:
    33
    Trophy Points:
    6
    how much is that 8020 material?

    I've been a carpenter for 20+ years so it hard for me not to build the mdf one. LOL I am going to start building the torsion box for the bed in may. Right now I am in the middle of a pop up camper remodel that has to be finished before mothers day weekend.

    Orion
