Design the Phlatprinter Cooling Fan Guard Contest

Discussion in '* Contests * Win Cool Stuff!' started by theothers, Sep 1, 2010.

  1. theothers

    theothers Administrator Staff Member

    Offline
    Messages:
    761
    Trophy Points:
    18
    Location:
    New Jersey
    Tonight on our LIVE Show, we announced a contest. We have asked that you all put your design skillz to good use by applying them to the Phlatprinter's cooling fan guard that is built right into the size of the Phlatprinter. We have created one model but aren't really happy with it.

    We would prefer that it fits in with the Phlatprinter design but doesn't actually say Phlatprinter or the number 3. We are looking for a family friendly, cool, unique design.

    We are using a square 80mm standard computer cooling fan. We will be using an 1/8" bit.

    The Rulez
    - Post as many design ideas as you would like.
    - We will either pick the winner or start a poll.
    - By entering the contest, you allow Phlatboyz, LLC to use this design without any compensation other than The Prize and bragging rights.
    All entries must be posted here in this thread no later than 3:00 pm EST on Wednesday September 8, 2010
    - We reserve the right to modify the winning design.

    The Prize

    A Phlatboyz Prize Pack which contains a Phlatboyz T-Shirt, a Phlatboyz Key Chain, a Phlatboyz Mouse Pad, a Micro PhlatStang and a Micro Flying Surfer Dude.

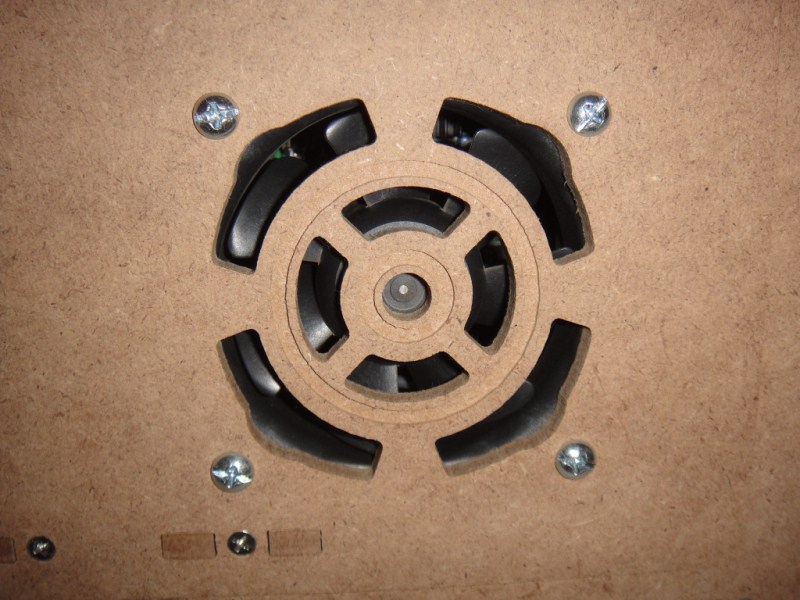

    Here is a picture of the one we came up with (for inspiration) :D
    [attachment=2]cooling fan guard [].JPG[/attachment]

    Here are the template file for the fan and the guard we came up with to get you going, if you have any questions post away :) Have fun with it and thank you all for your help :D

    Here is the SketchUp Model

    Attached files MK3_fanguard.skp (282 KB)Â [​IMG] .JPG][​IMG]

  2. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    We have some of these Dorsal :) they are cheap enough but really want the design to be part of the machine this time.
    Thanks
    Mark and Trish

  4. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Here's a simple tutorial that will help with sketchup arrays


    His way will work but you can also type Xa number for the amount of blades you want for instance x8 will give you eight blades spaced to the amount that you move the first blade
    Hope this helps
    Mark and Trish

  5. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Trish/Mark, you guys want the SU file file only? I imagine it will be imported into your door layout?

    Or do you need the gcode also for test cutting?

  6. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Hi Shaun
    No gcode needed, your right we will have to convert it to a dxf and work it into the door design.
    Thanks
    Mark and Trish

  7. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    OK Dennis... :lol:

  8. Crash

    Crash Moderator Staff Member

    Offline
    Messages:
    469
    Trophy Points:
    18
    Location:
    Waco, Texas, USA

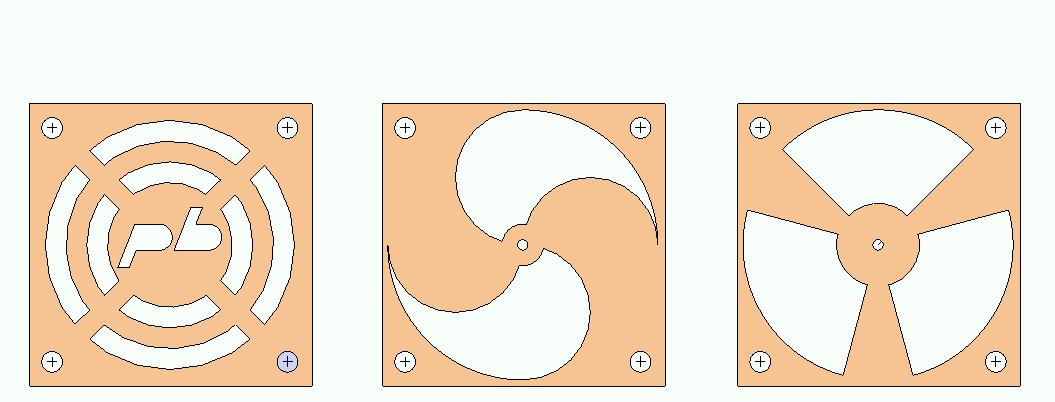

    Okay, so here's a few entries I thunk up. Please keep in mind that I do not have a creative neuron in my head, but I thought this would be a fun project to play with. I am kind of ashamed to post these, but I figured that someone should get the ball rolling on this project. :D

    From left to right...

    The first one is my attempt at a simple 'branding' to associate the cut out with the PhlatBoyz.

    The second and third ones are supposed to make you think of a propeller spinning. I had an idea of attaching a small colored spinner to the center to that it would complete the effect and maybe even offer a kind of handle for pulling the access door open.

    Anyway, I won't bother with posting my SU files since I know you guys will come up with something to blow this rudimentary stuff away.

    I am looking forward to seeing what all you guyz come up with! Attached files [​IMG]

  9. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Crash, I think those are pretty cool. In fact I designed one almost exactly like your third one.

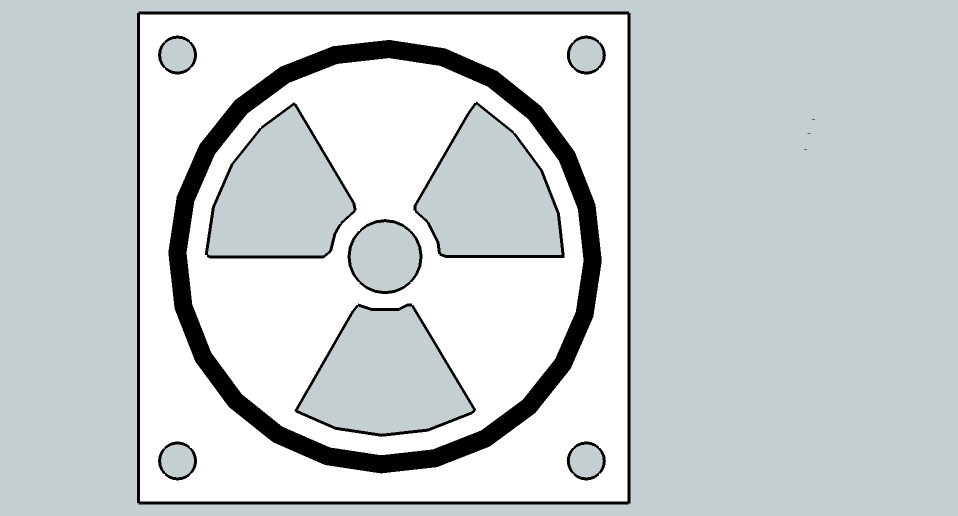

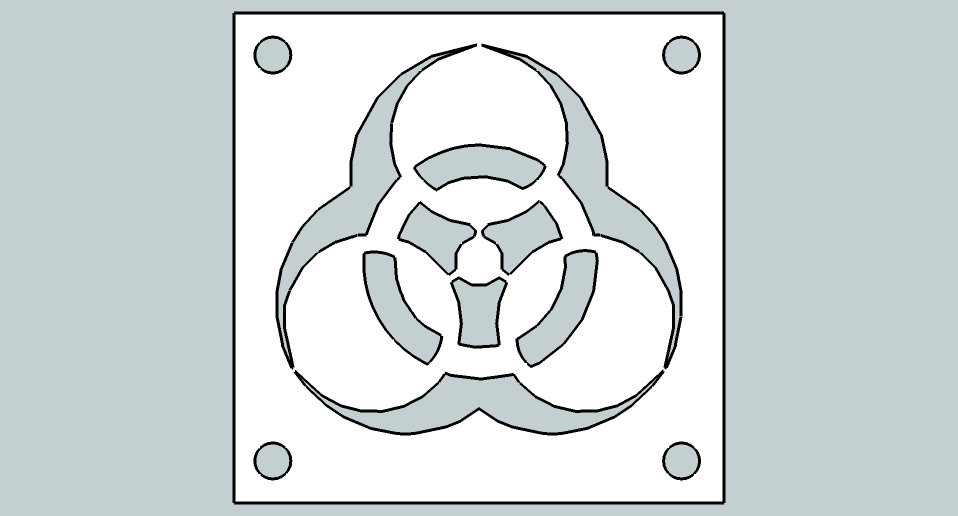

    Here are a couple...

    Attached files [​IMG] Door-1.skp (157.2 KB)Â [​IMG] Door-2.skp (83.4 KB)Â

  10. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    here is my submission....the MK-3 fan opening. this is scaled for a 120mm fan, but can be scaled down for a 80mm. all i got are 120mm fans, lols. peace, randy.
    [​IMG]


    [​IMG] Attached files 120mm mk-3 fan cover.skp (100.9 KB)Â

  11. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Mark, I figured you'd already found a source for inexpensive metal fan covers, but I remember a kid in Junior High School who took off the end of his finger with the blades of the fan on a jig-saw motor. Very messy!
    If you were seriously considering a nice design that might allow some 4-or-5-year-old's fingertip to get through, covering the design with a nasty-ol' metal guard might still be necessary.

  12. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    Dennis, im sure that was a very bad thing to witness....but any of the pc fans i have ever monkeyed with, are not powerful enough to hurt, ther rather wimpy.... any kids around the phlatty better keep the hands outta the way of the flesh eatin carbide burr cutters. and if not, they will only mess with it once ill bet, lols.
    http://www.youtube.com/watch?v=Dx5rjFwb92M

  13. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Randy, they're not powerful enough to hurt you or me, because we're tough old birds with calloused fingers. Youngsters have tender, thinner skin and they tend to SCREAM a lot when they get hurt. This design will expose the intake side of the fan to the outside of the PP, so the wimpy guillotine is traveling in the most hurtful direction.
    I'm just sayin' - - - - - -

  14. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    tough old birds..... :lol: :lol: man that is a very true thing to say...lols...

  15. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Keep them coming in guys they are looking great!
    One thing to keep in mind that I forgot to mention is you can also have your center line cuts go all the way through instead of or in combination with recessed lines so in other words you could have smaller holes @ 1/8th for a lot of the design.
    Great looking designs boyz!
    Thank you
    Mark and Trish

  16. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Y'know, you could use any of these designs as a handle, if the wire fan guard were mounted between the door and the designed cover. Just run a 3/32"-deep undercut pattern to allow for the wire to be trapped between the door and the cover, and Voila!
    I sure wish I had an artistic bone in my body. :oops:

  17. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Jeff, can I offer you one on my Prozacs? :D :D

  18. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    I was responding to a post by J_Mclovin, that he erased so my post makes no sense to anyone. any board mod can erase it if they wish

  19. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    :D no harm

  20. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky

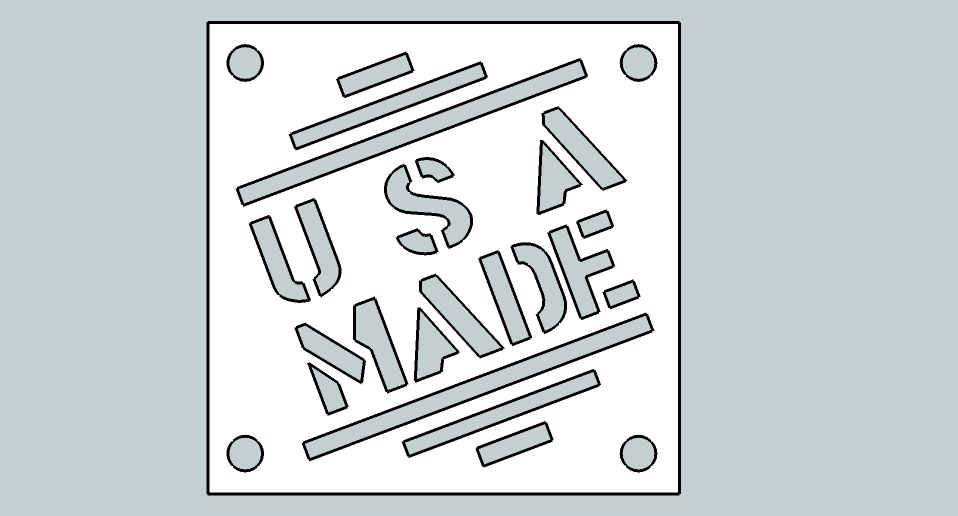

    Another one.

    Attached files [​IMG] Door-3.skp (154.8 KB)Â

  21. Norlas

    Norlas New Member

    Offline
    Messages:
    20
    Trophy Points:
    1
    Location:
    Colorado

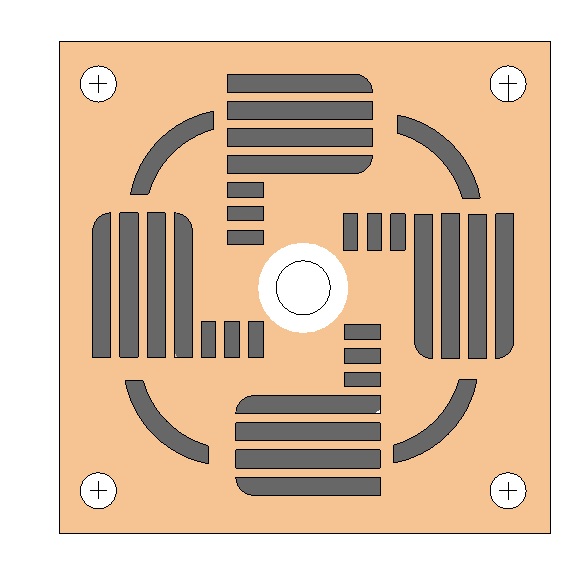

    This is my idea for the fan cover. I am very new to sketchup so bear with me, thanks. It incorporates your P for Phlatprinter and also kinda looks like a propeller spinning. The curved lines I thought make it look like you are looking a the front of a airplane with the cowling.
    Good job everyone, they all look great so far.
    Norlas

    Attached files MY FAN GUARDgood.skp (227.8 KB)Â

  22. Norlas

    Norlas New Member

    Offline
    Messages:
    20
    Trophy Points:
    1
    Location:
    Colorado
    Hope this works for a pic.

    Attached files [​IMG]

  23. theothers

    theothers Administrator Staff Member

    Offline
    Messages:
    761
    Trophy Points:
    18
    Location:
    New Jersey
    Ooooh! I like them. Great job guyz. It's going to be hard to pick a winner :)

  24. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I see, that's where quoting comes in handy. :D

    You're still welcome to one of my Prozacs, though, I have plenty to keep my half way sociable! ;) :D

  25. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0

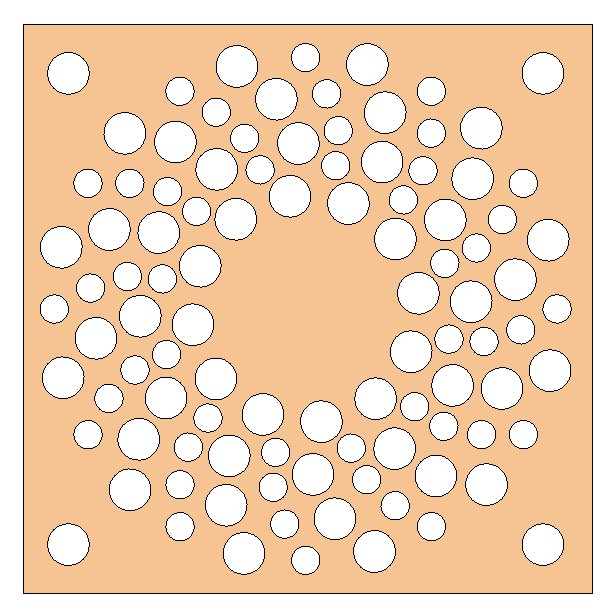

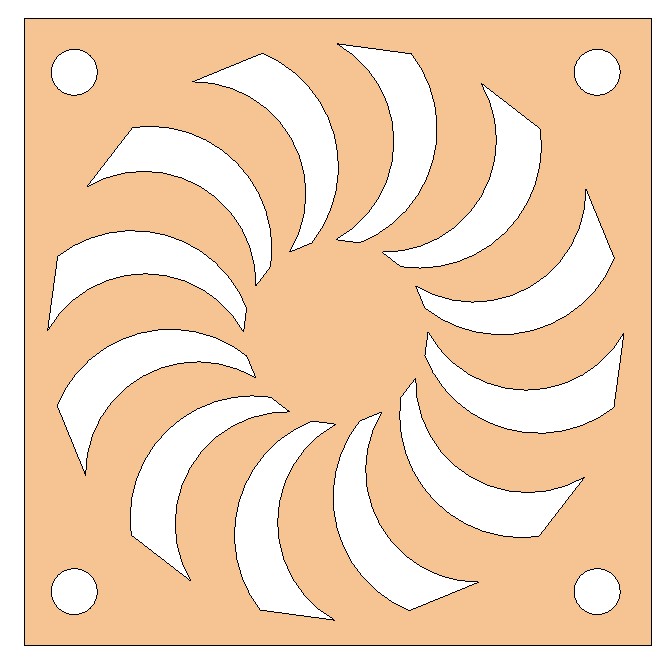

    I couldn't think of anything super creative because I have a cold lol but here are two finger safe designs.

    Attached files [​IMG] [​IMG]
