Ewolution MKII

Discussion in 'Single Wing Aircraft Plans' started by foamlvr, Jan 25, 2010.

  1. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
    Here's my version of Ewo's Ewolution, It is sized for E-flite's hollow shaft park 370 and showstopper variable pitch prop system. All 3mm depron except the nose, which is 9mm EPP. the wing spars are 5mm x .6mm carbon fiber, and there will be a truss of .050 carbon rods on the fuse. All the notches on the control surfaces are for a plywood and carbon rod hinge pull pull system I am working on. I have a few things to clean up with the parts files, then I'll post them.
    Attached files Ewolution MKII Sketchup.skp (963.1 KB)Â

  2. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
  3. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
  4. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
    I've cut 2 of these and the foam parts are perfect. For the ply parts I think I need a different bit, the one I am using looks like a diamond cut. I got useable ply parts by making 5 passes (Manglerized) at 15ipm, and it took a full hour to cut. The trouble with the double dipping leaves a slightly oblong hole, but the parts are very nice otherwise.

    Jeff

  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Jeff this is a top notch design! way to go..

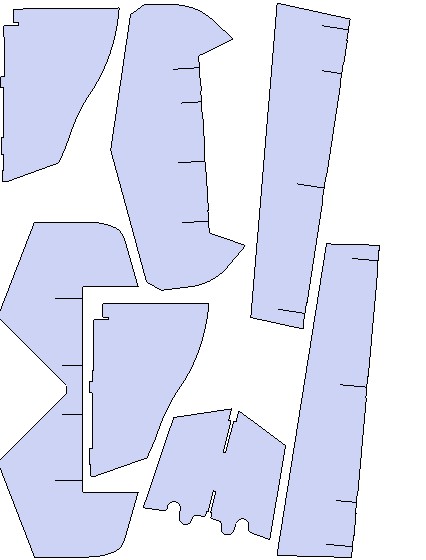

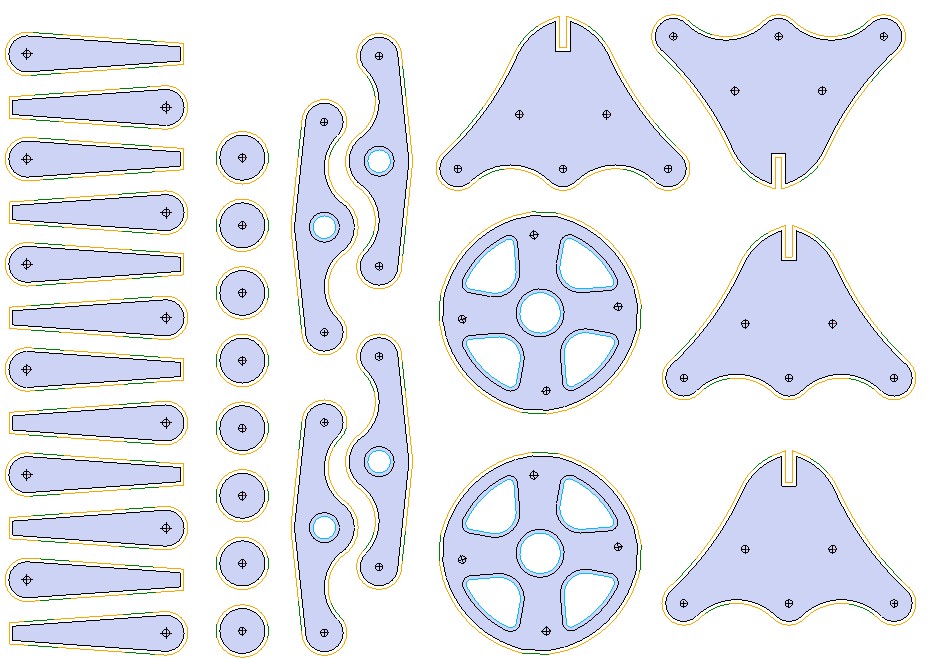

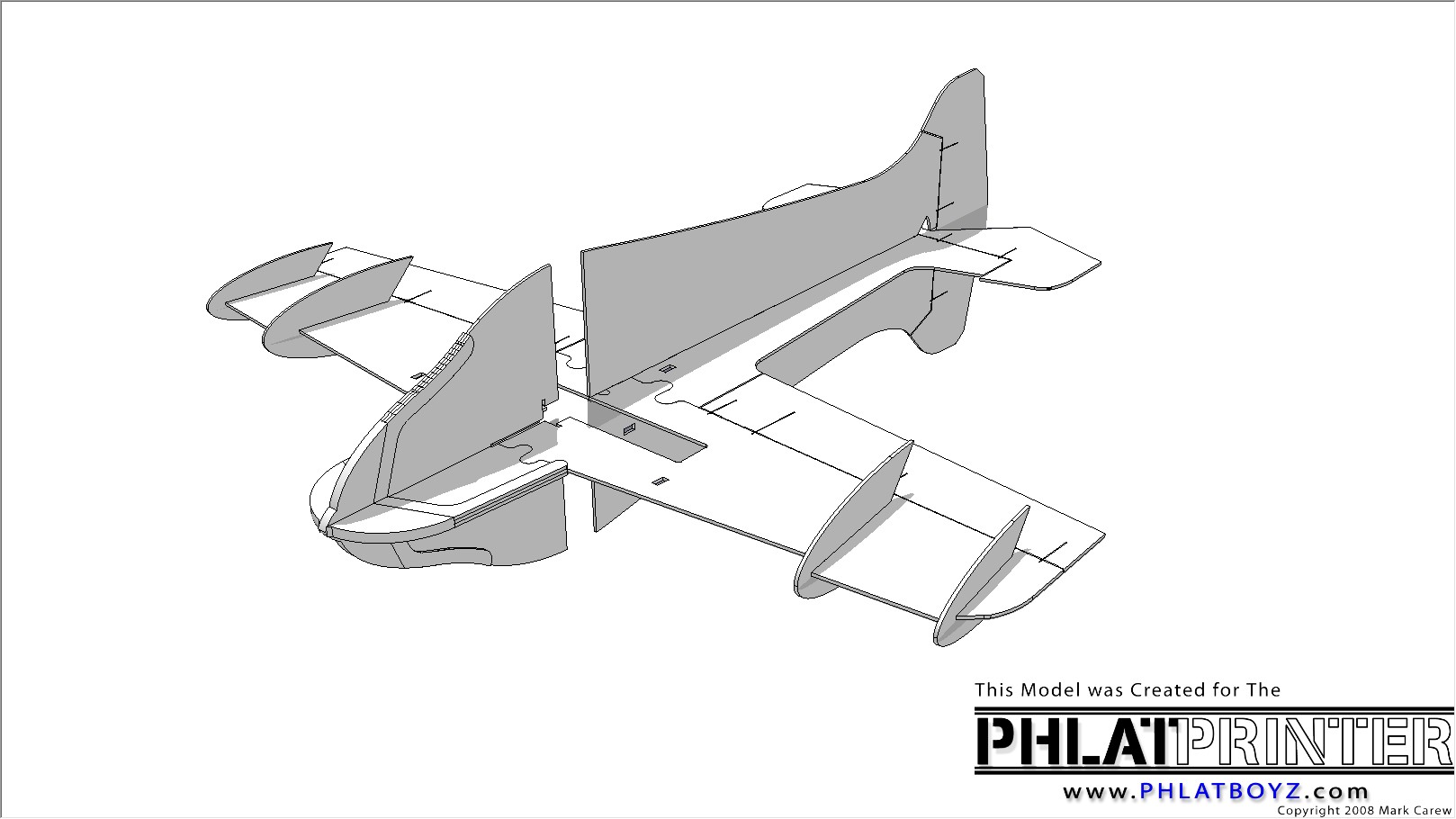

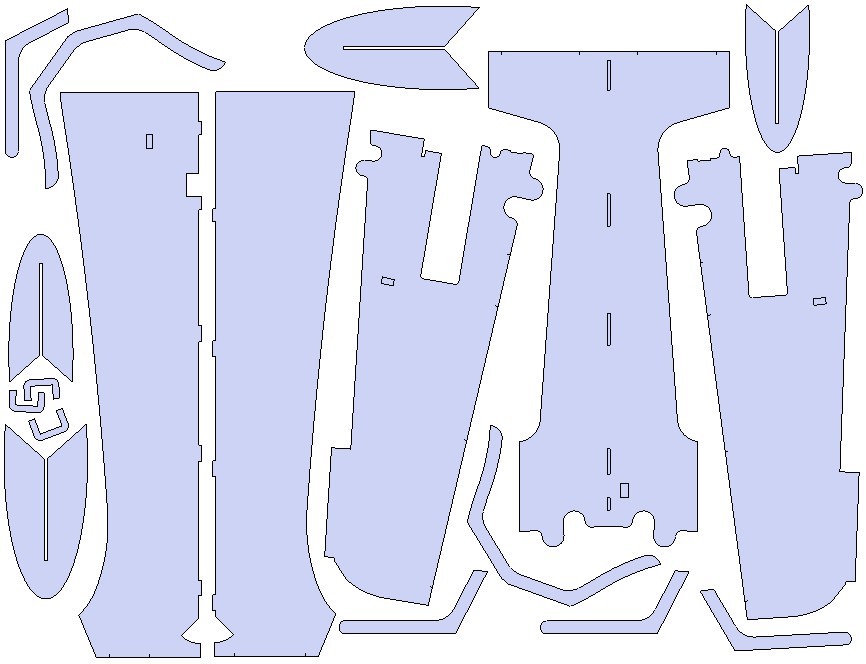

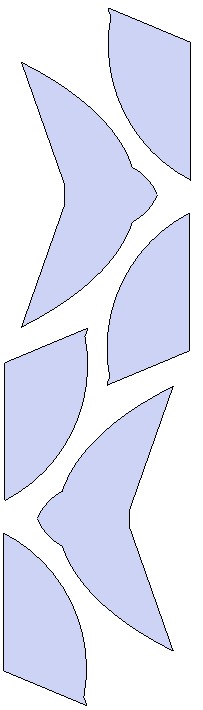

    I just wanted to share some of the screen shots of this bad boy to show off some of the awesome work you have done here :)
    Mark
    BTW what thickness ply are you using? Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  6. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
    Thanks Mark for the compliments and getting the pics on here, and Thanks Ewo for the isnspiration. The ply is 1/16 aircraft ply. I'll try to get some pics to show how the ply parts go.

    Jeff

  7. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Thanks Jeff :)
    Mark

  8. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    WOW ! Excellent work there brother.

    I will use these files and cut myself one of these for spring ~ ;)

    Thanks !

  9. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
    Thanks ewo.
    I'm painting and assembling right now. The rear of the prop slot needs a 1/4x1 1/2 notch to clear the pitch bridge, if you are using the showstopper vpp system. Pics are on the way.
