F-14 Build

Discussion in '* Scratch Built Section *' started by rescue911, Jul 28, 2012.

  1. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth

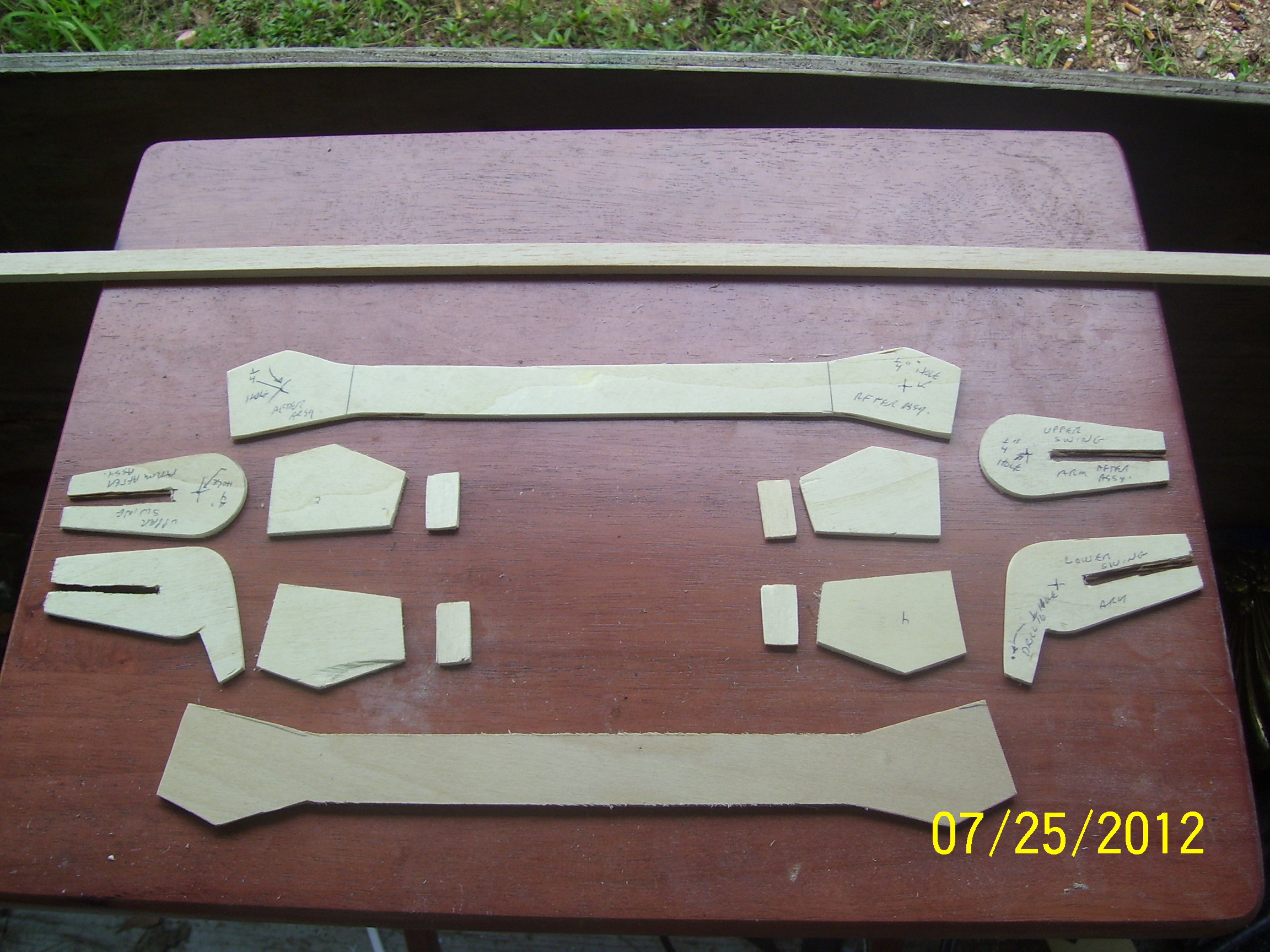

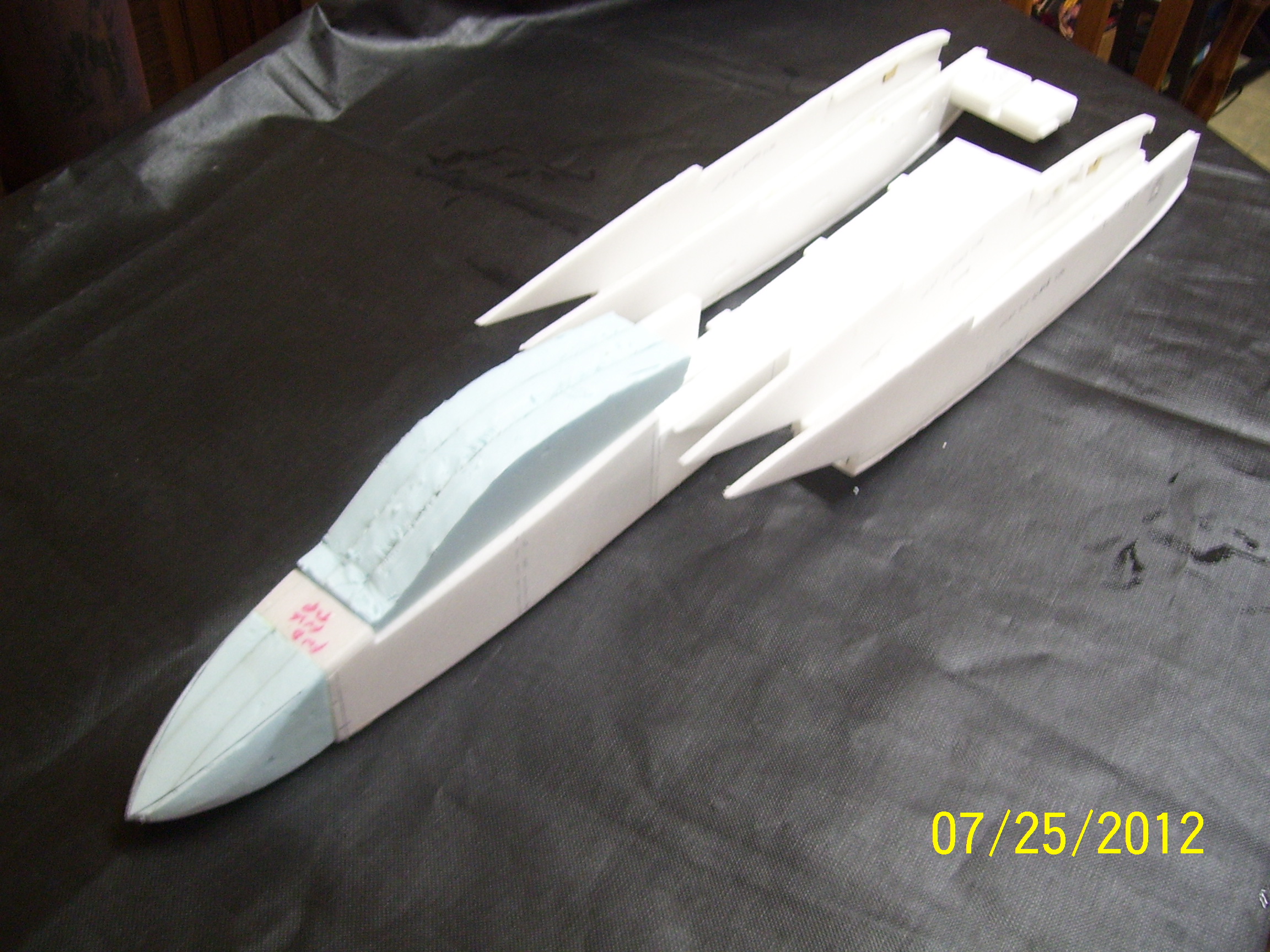

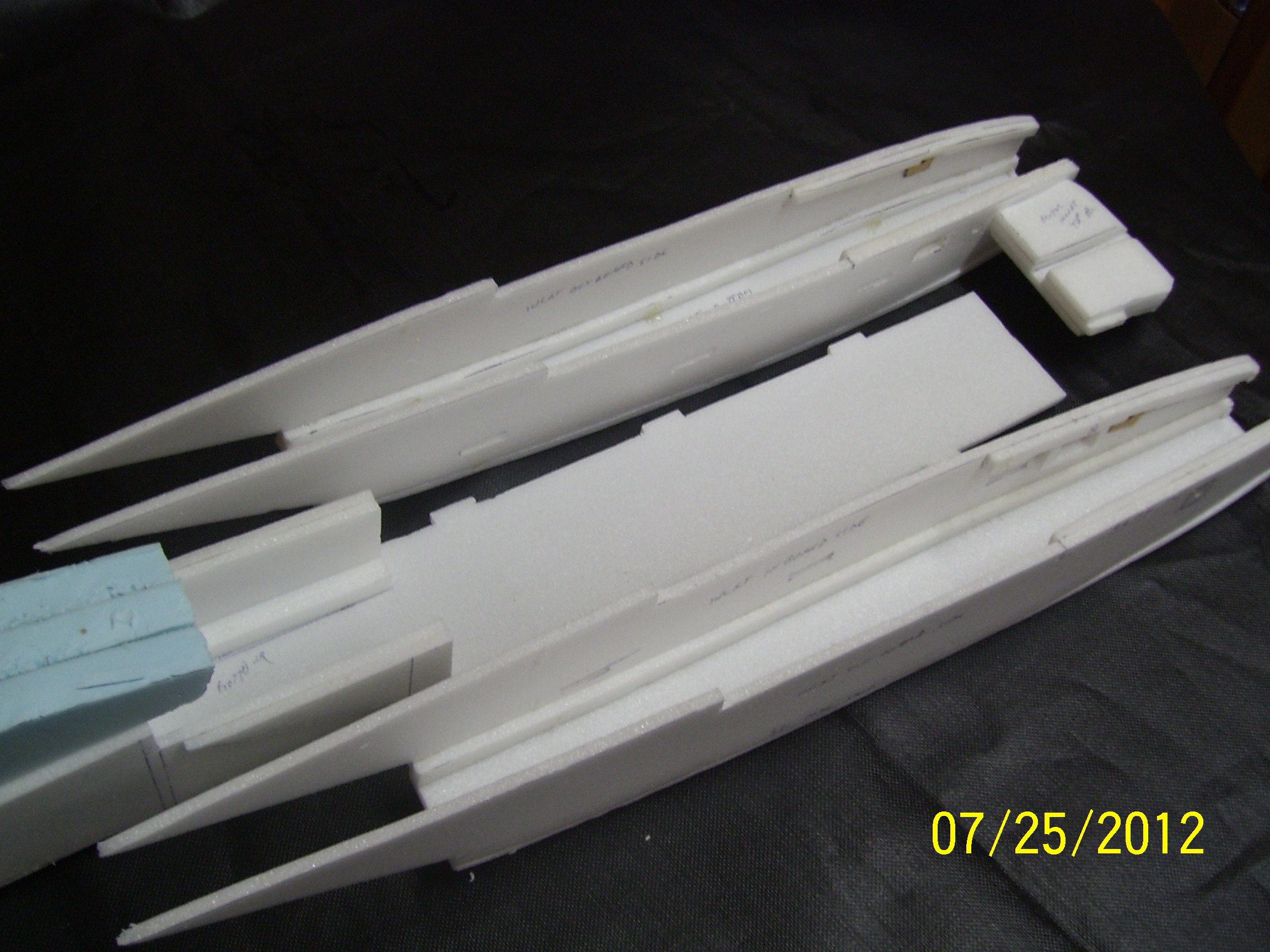

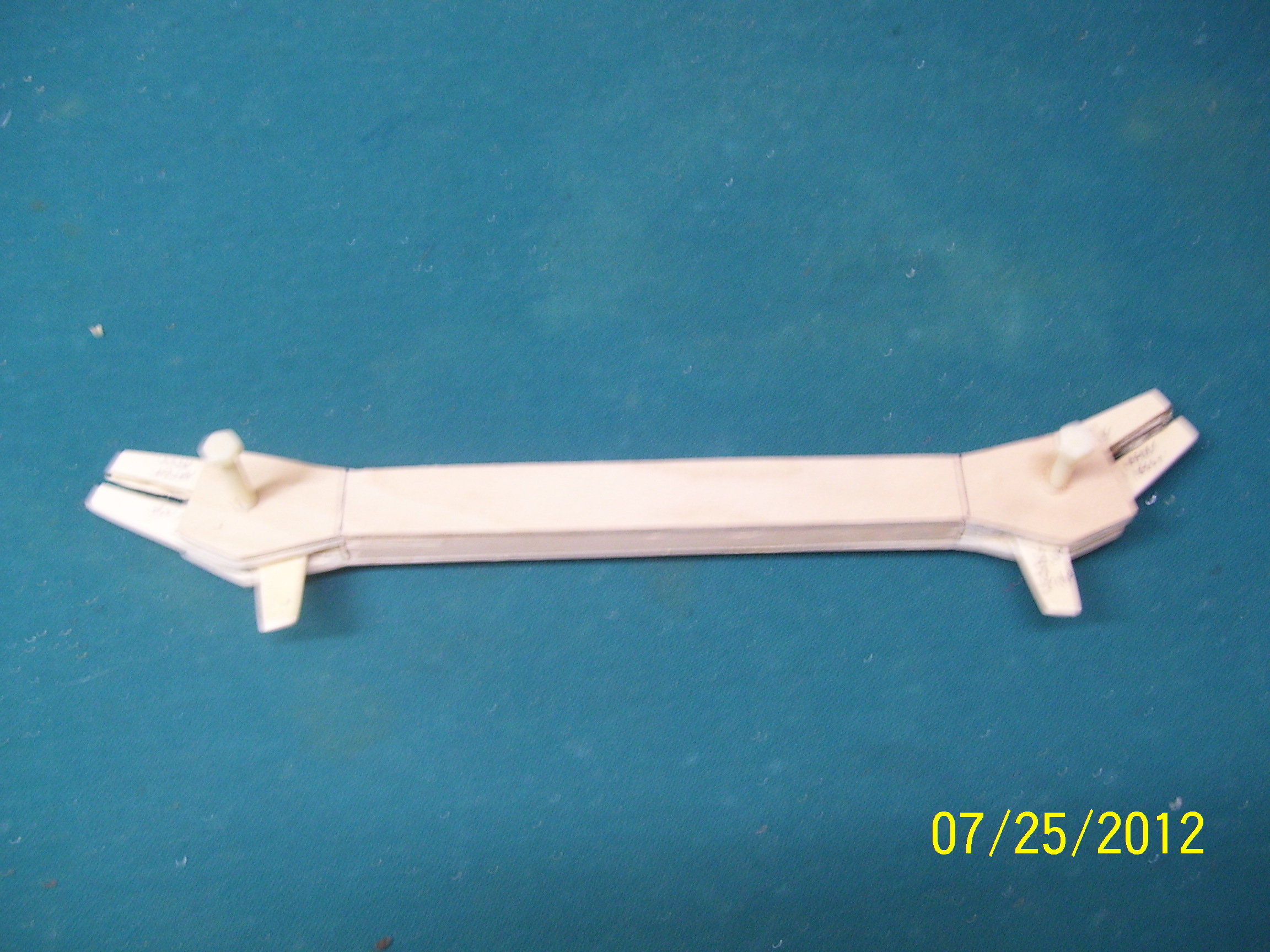

    Thought I would post my progress on the Steve Shumate F-14 ,with swing arm.

    Attached files [​IMG] [​IMG] [​IMG] [​IMG]

  2. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Wow you took on a challenge on this one. thats a tough build.
    Looking nice Gary :good: keep up the good work.
    Mark and Trish

  3. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    I have the wing sweep mechanism built and now I have to put the push rods on it.
    Will download the photos of it as soon as I can get my camera working.

  4. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Sounds good Gary I will move this into the scratch built section
    Mark and Trish

  5. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth

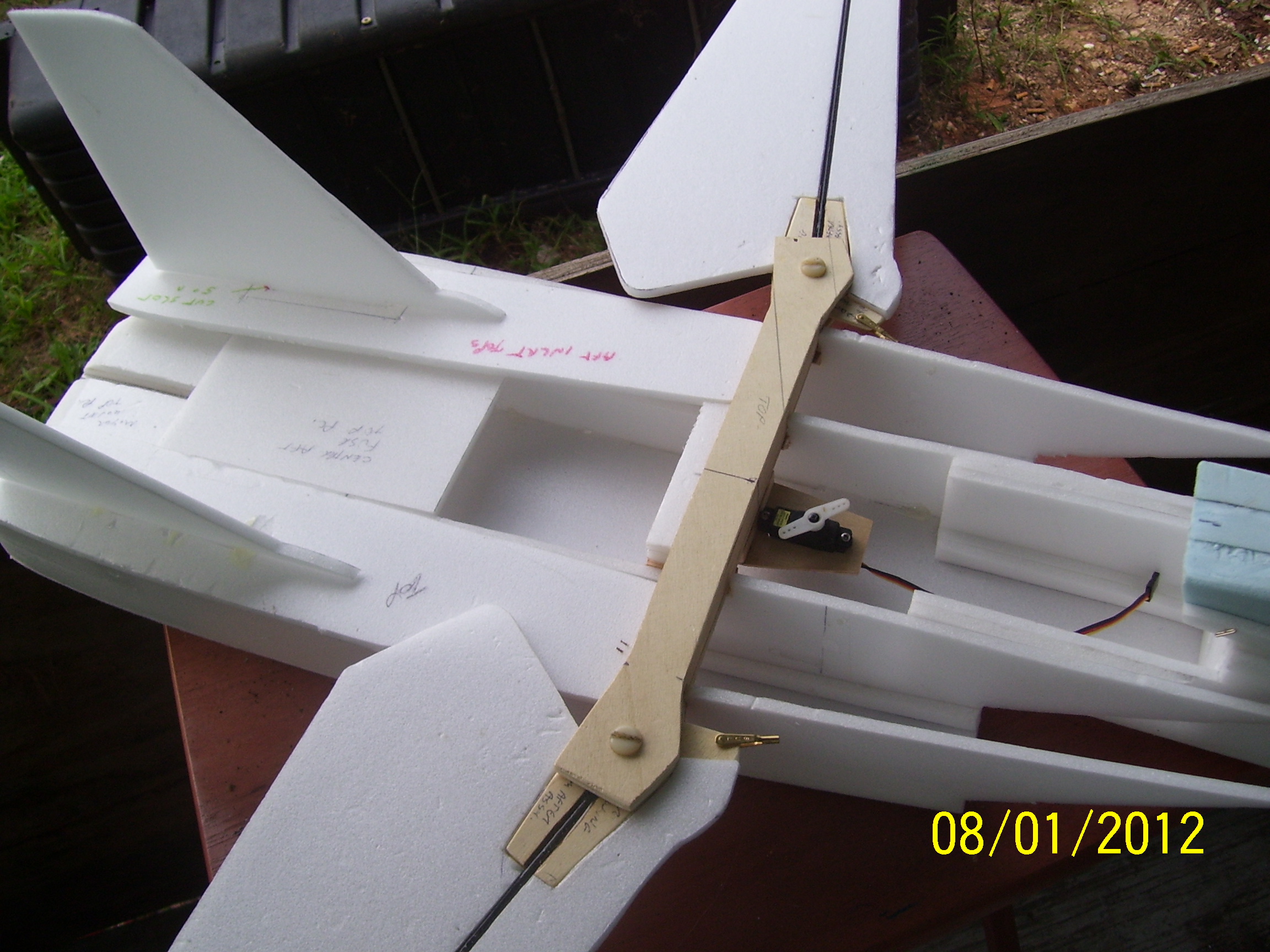

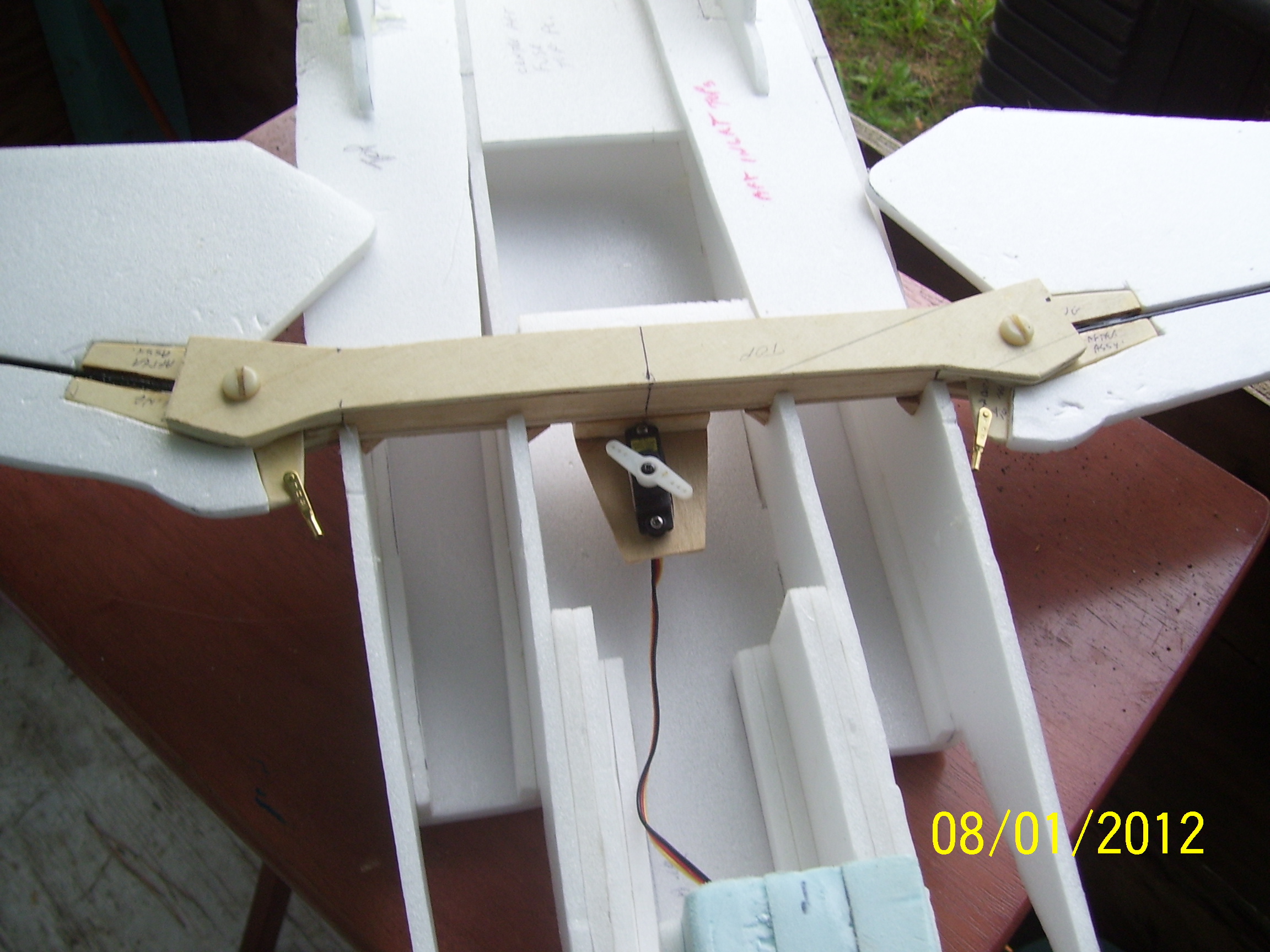

    Swing Arm is ready for the push rods.

    Attached files [​IMG] [​IMG]

  6. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Wow going together quick. Looks great
    Mark and Trish

  7. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    This is a video of the wing sweep working.

    Attached files Wing sweep..mov (6.3 MB)Â

  8. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38
    This is REALLY starting to take shape.... Can't wait to see it fly

  9. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    looking Good. :doubleup:

    What servo are you using for the Sweep?

    I love my Sweeping F-14 Profile from Mabyz :good:

    Cheers
    E-T

  10. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    I put a Hobbico High speed micro servo C5-12 to test with.
    The plans call for a Hitec HS-81MG servo.
    I have a HS-81 that I can use ,but I have to rip it out of my Mig-29 to use it.
    If the C5 will work I will leave it in there.

  11. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    Normal set up is.
    Himax 2015-4100 brushless motor.(Inrunner)
    4.4 Gearing
    APC 9x7.5 Prop
    Speed of about 50-55MPH

    High speed- set up
    Himax - 2025-5300 brushless motor.(Inrunner)
    2100 mAh 11.1 v Lipo
    APC 7x6 Prop
    25 amp ESC
    Will pull about 20 amps.
    About 70mph
    These are the setups that Steve Shumate posted for his.
    I do not have an inrunner motor,so I hope the 400 size outrunner will work.
    It is a park jet motor. :think:

  12. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Sweet! This one is going to be exciting to fly for sure
    Mark and Trish

  13. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    Forward strake is on now and going to start on the servo's for the elevons and rudder ,before I can put the rear strake pieces on it.

  14. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth

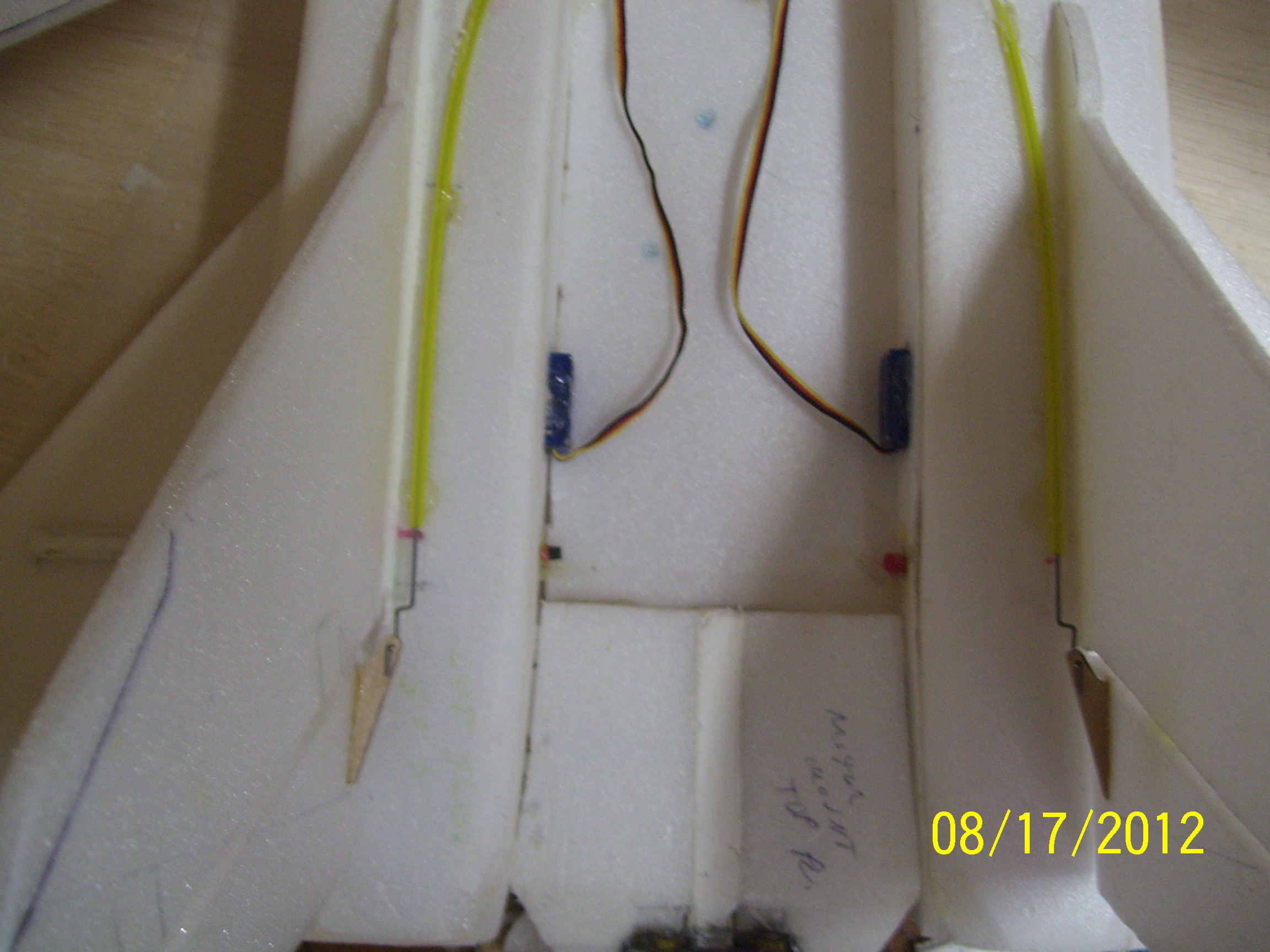

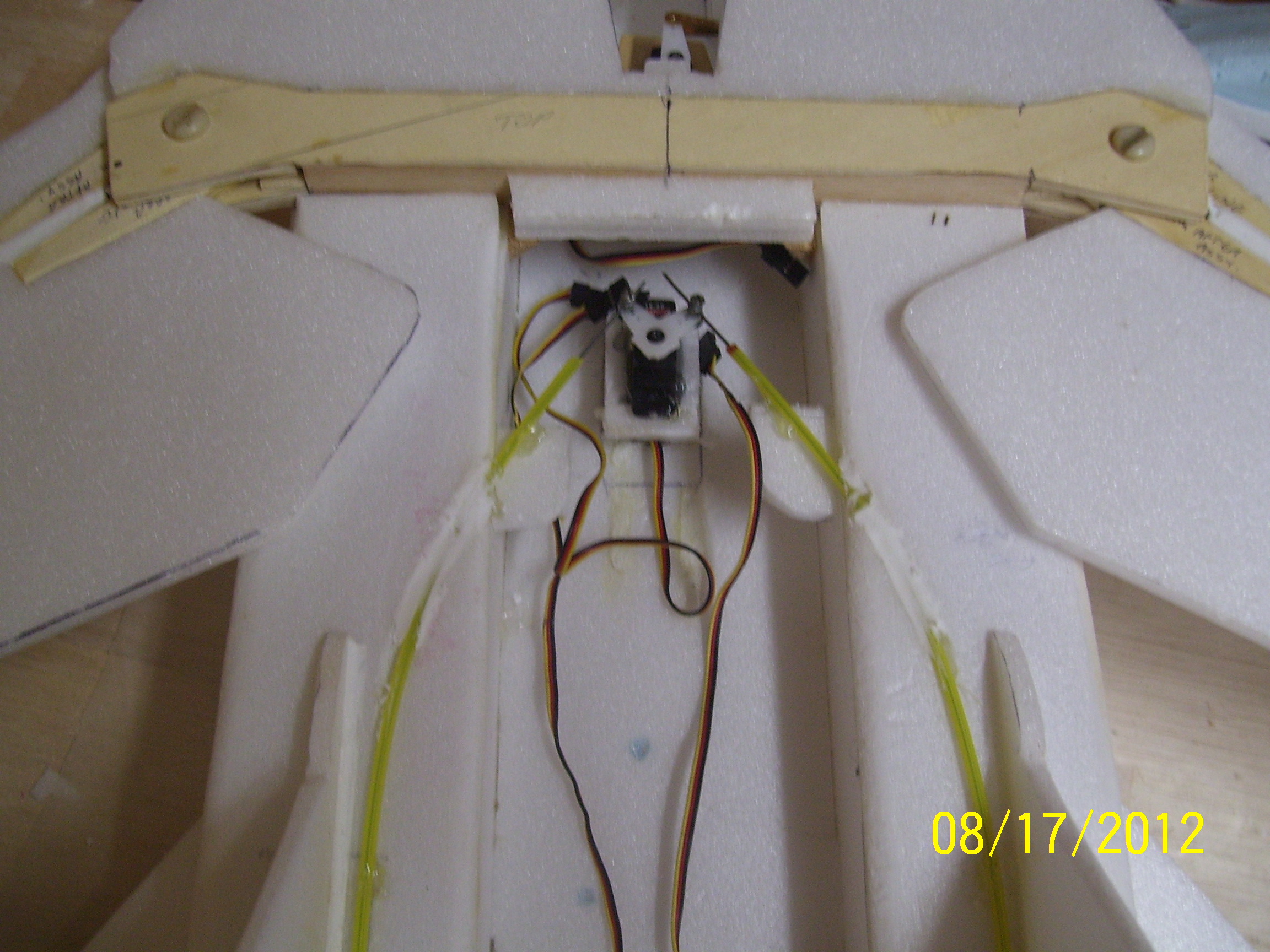

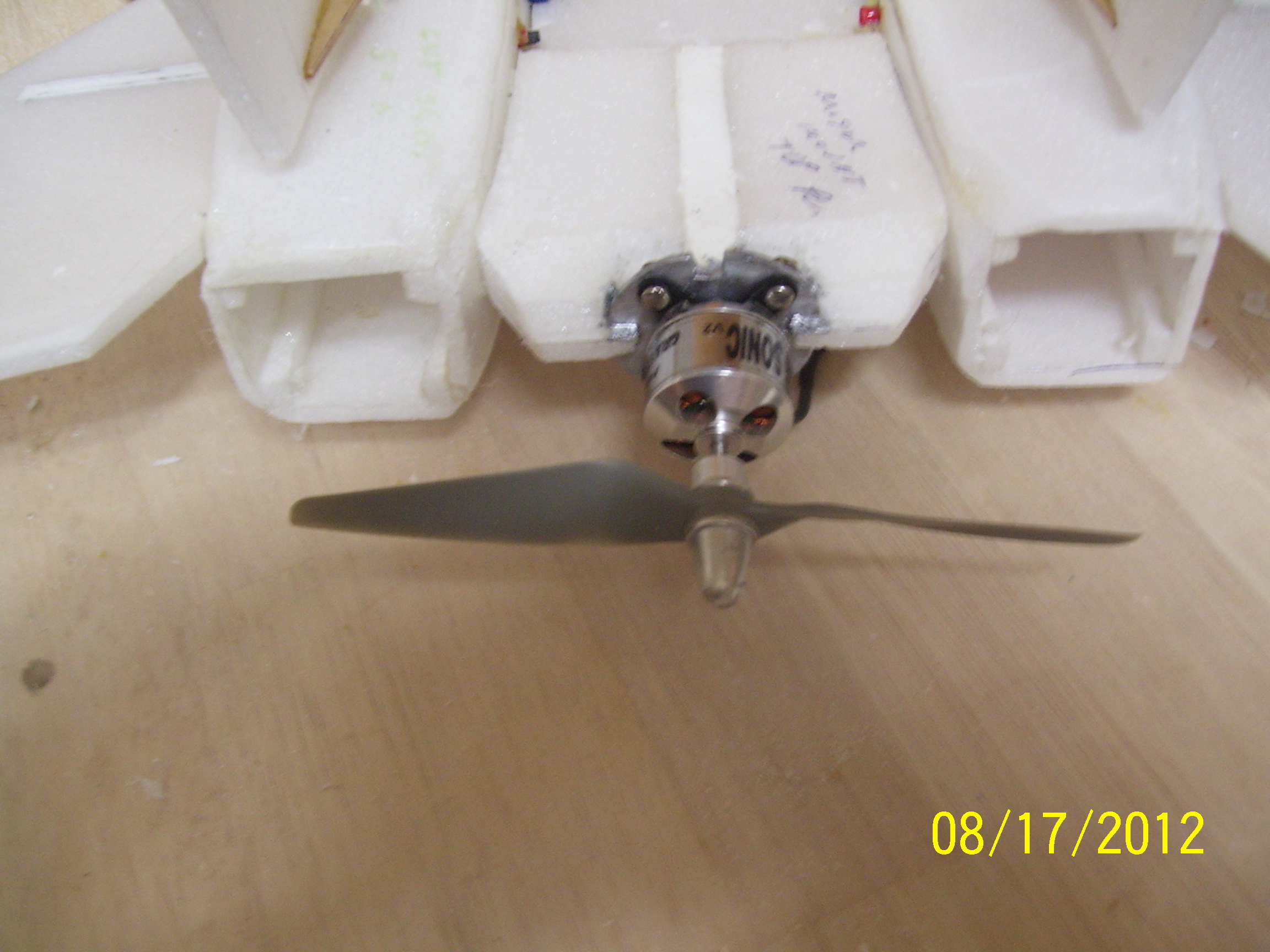

    Installed elevon servos,rudder servo and motor mounted.

    Attached files [​IMG] [​IMG] [​IMG]

  15. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth

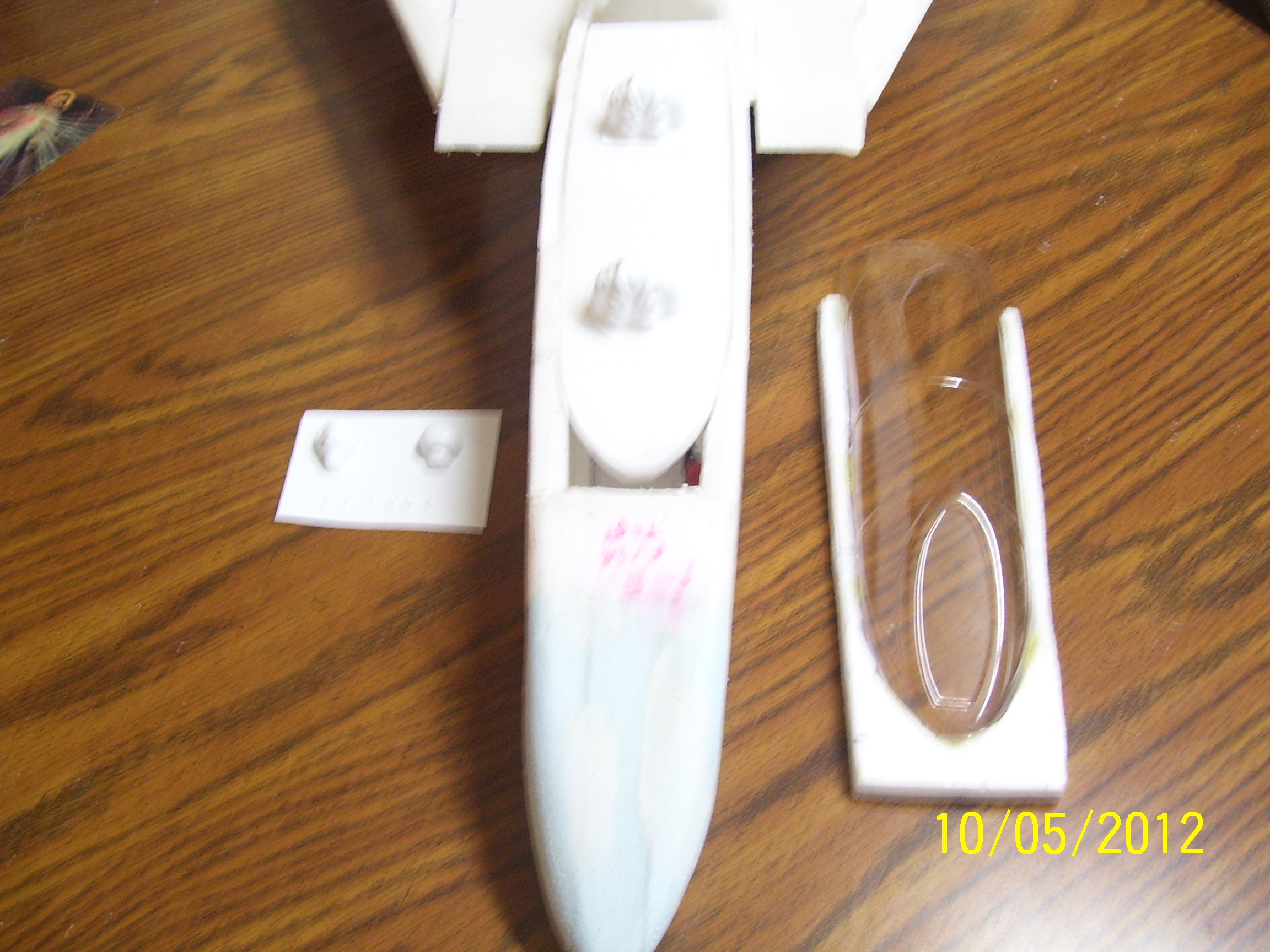

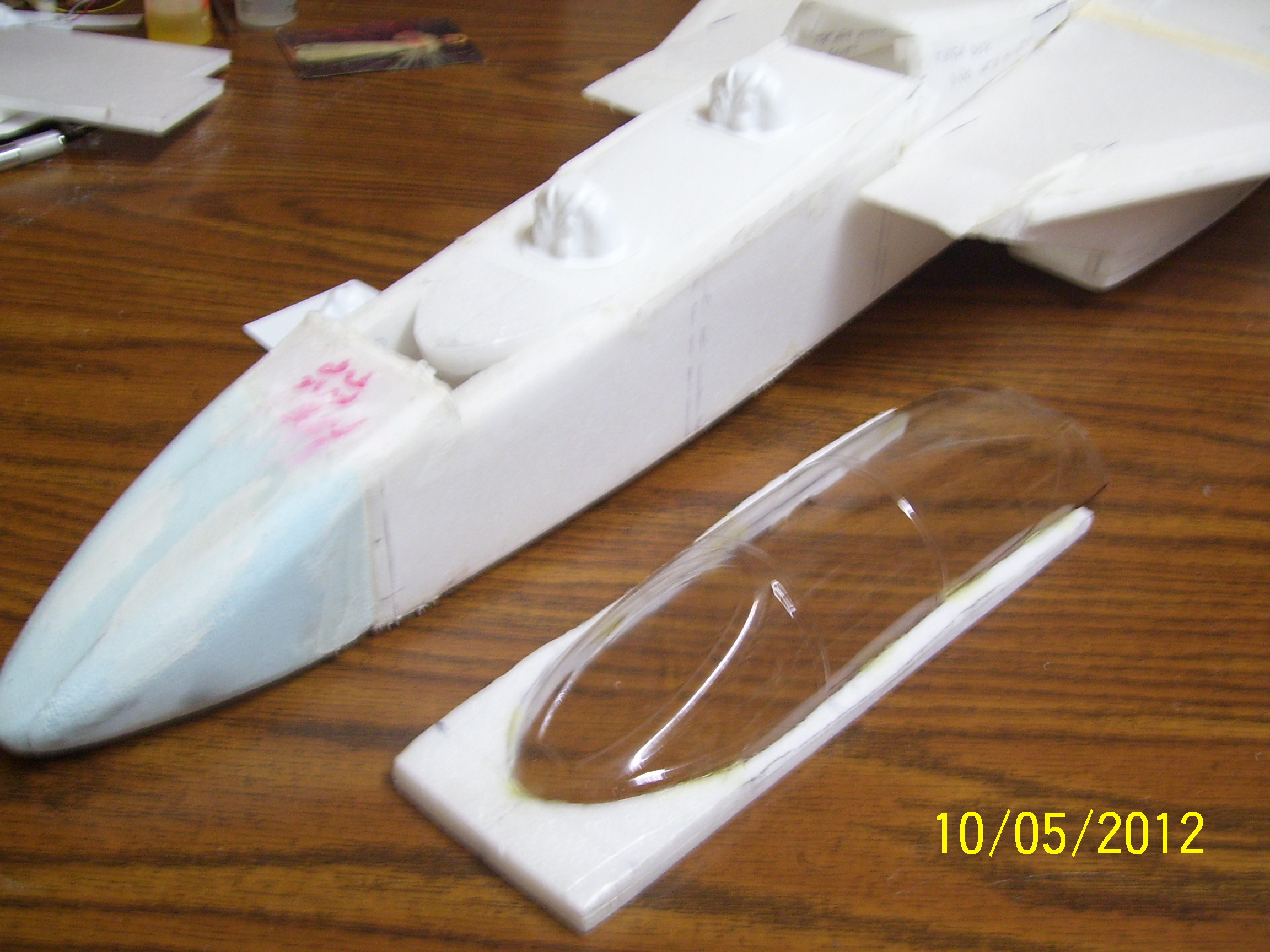

    Building the Canopy and pilates.

    Attached files [​IMG] [​IMG]

  16. PAULE

    PAULE Member

    Offline
    Messages:
    79
    Trophy Points:
    6
    Location:
    FL
    :flying: REALLY NICE(RESCUE) :doubleup: BUT I MUST ASK
    IM I THE ONLY PERSON DESIGNING THE PLANE AROUND THE MOTOR
    ALL MY DESIGNS HAVE THE MOTORS IN SIDE
    I HAVE NEVER FLOWN A RC PLANE YET
    SO MABE I AM GOING ABOUT THE WRONG WAY
    NOW I AM WONDERING IF THE PLANE DESIGNS WILL BE TO HEAVY
    :flying:

  17. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    This plane is a little heavy due to the plywood parts for the wing sweep.
    There is another plane that uses all foam for an F-14 wing sweep.
    Most of my planes are pusher style.My Mig 29 plane is a pusher plane but the motor is mounted on the elevator.You can design planes with the motor in the mid position as well on most
    park jets.Both of them are called thrust vectoring.There is even some of these design
    that are adapted for EDF use.I am not sure if you have seen My Planes section.
    Mark can find them for you.I started doing SKP files for most people on our forum.
    A lot of them are not finished ,but I figured I would do them so people would have a good start.

  18. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth

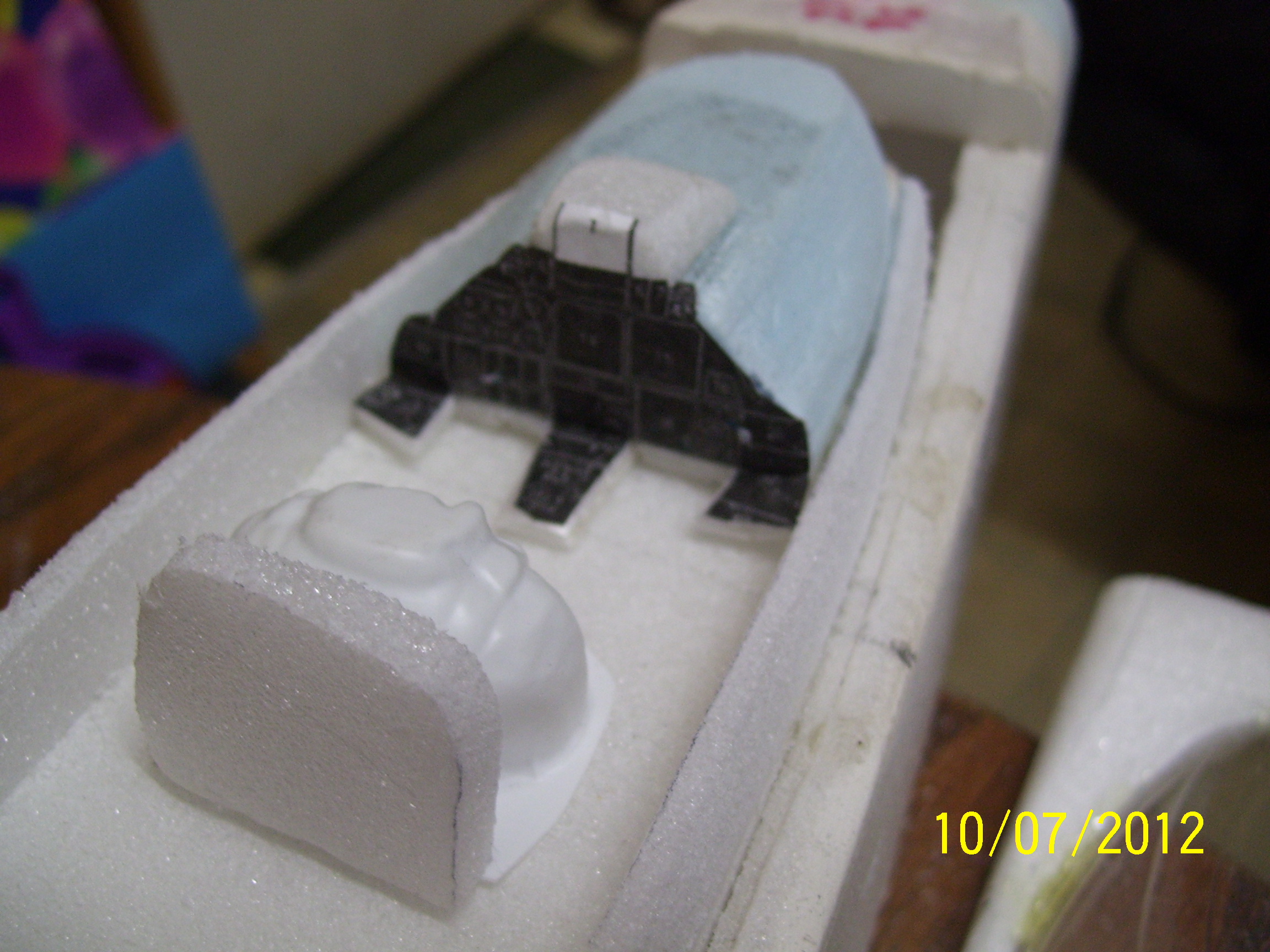

    The forward console is almost ready for paint.

    Attached files [​IMG]

  19. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Looking good Gary.
    Are you planning on painting all the dials and buttons on there?
    Mark and Trish

  20. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    I will do some of them.

  21. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    :doubleup: Awesome :doubleup:

  22. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Your builds are awesome, rescue91j1! :good: I'll be honest, I can't bring myself to the point where I'll make my planes like this detailed. All I think of is that I'm going to fly it and crash it and gone is all the work I put into it. Heck, on your Sbach I'm already into the third incarnation and yesterday I ripped the motor off.

    I admire your tenacity! :banger: :banger:

  23. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    Thank you Tiger Pilot.
    The F-14 is a PDF I downloaded from Park Jets.
    It is a Steve Shumate Model.I am not going to detail it the way the video build is.
    I guess you all want to know how and why I have the time to do all of these SKP .
    Plans and models.Because my medical condition,I am on disability.
    So I have a lot of time to do it.(When I am not taking all kinds of meds.that make me sick.)
    That's a story in it's self.

  24. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth

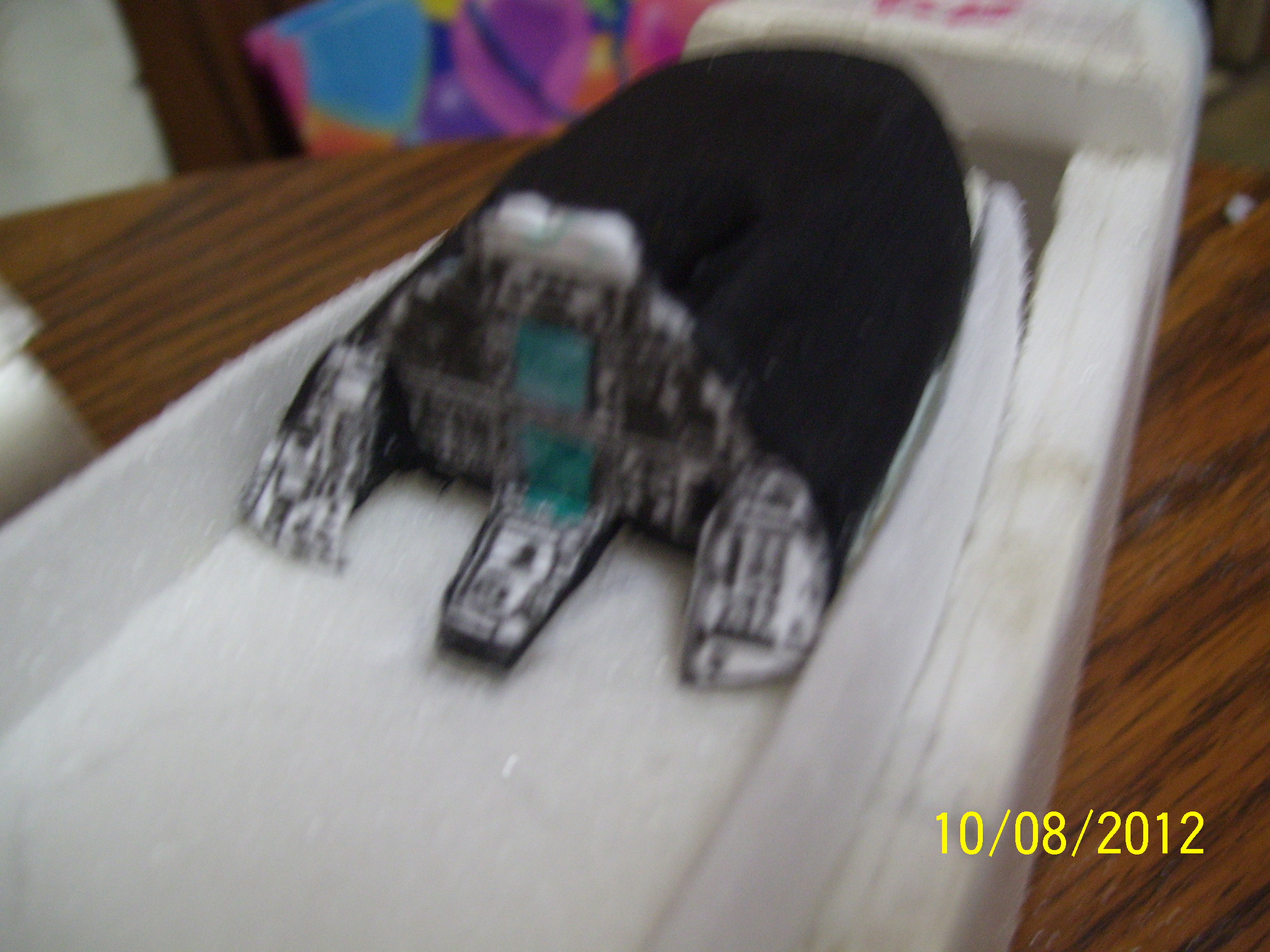

    This is the front console and it is almost finished.
    The picture is a little blurry. Attached files [​IMG]

  25. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    If anyone want's some of my PDF files ,just let me know.
