Fastenter up-grade for servo motor and handles

Discussion in 'Phlatprinter 3 MODS' started by Deoen, Dec 18, 2011.

  1. Deoen

    Deoen New Member

    Offline
    Messages:
    3
    Trophy Points:
    1

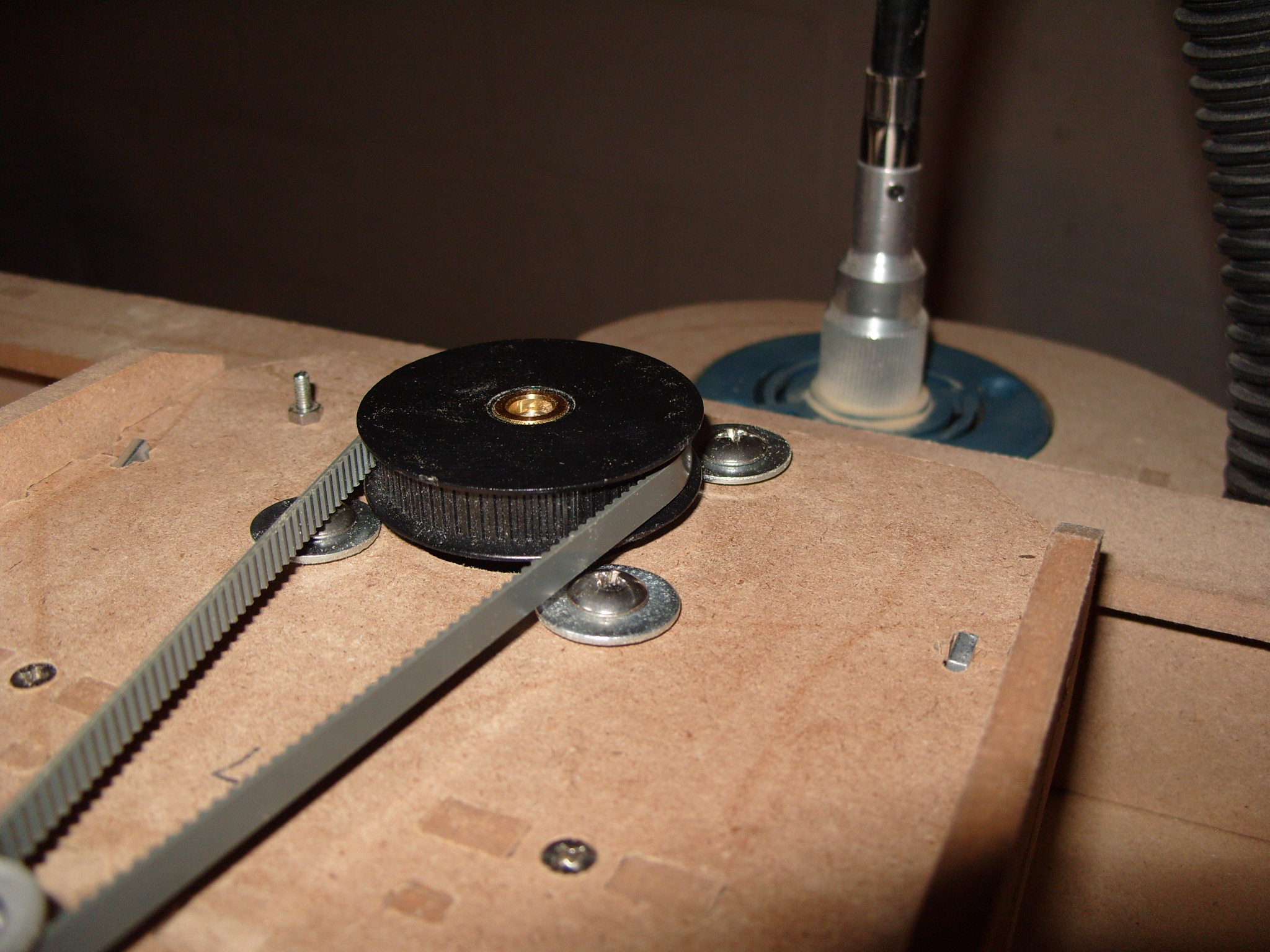

    I have been having problem keeping my belts tight and the pressure rolls handles staying on. I up-graded the fasteners on my system. For the servo motors I added a 3/16 X 3/4 fender washer, 1/4" Star lock washer and a Keps lock nut to the motor. This way I have grip into the MDF and the motor. For the Z-axis drive gear, I removed the 6-32 set screw and replace it with a 6-32 Head socket cap screw. This allow you to apply more torque when tightening down the screw.

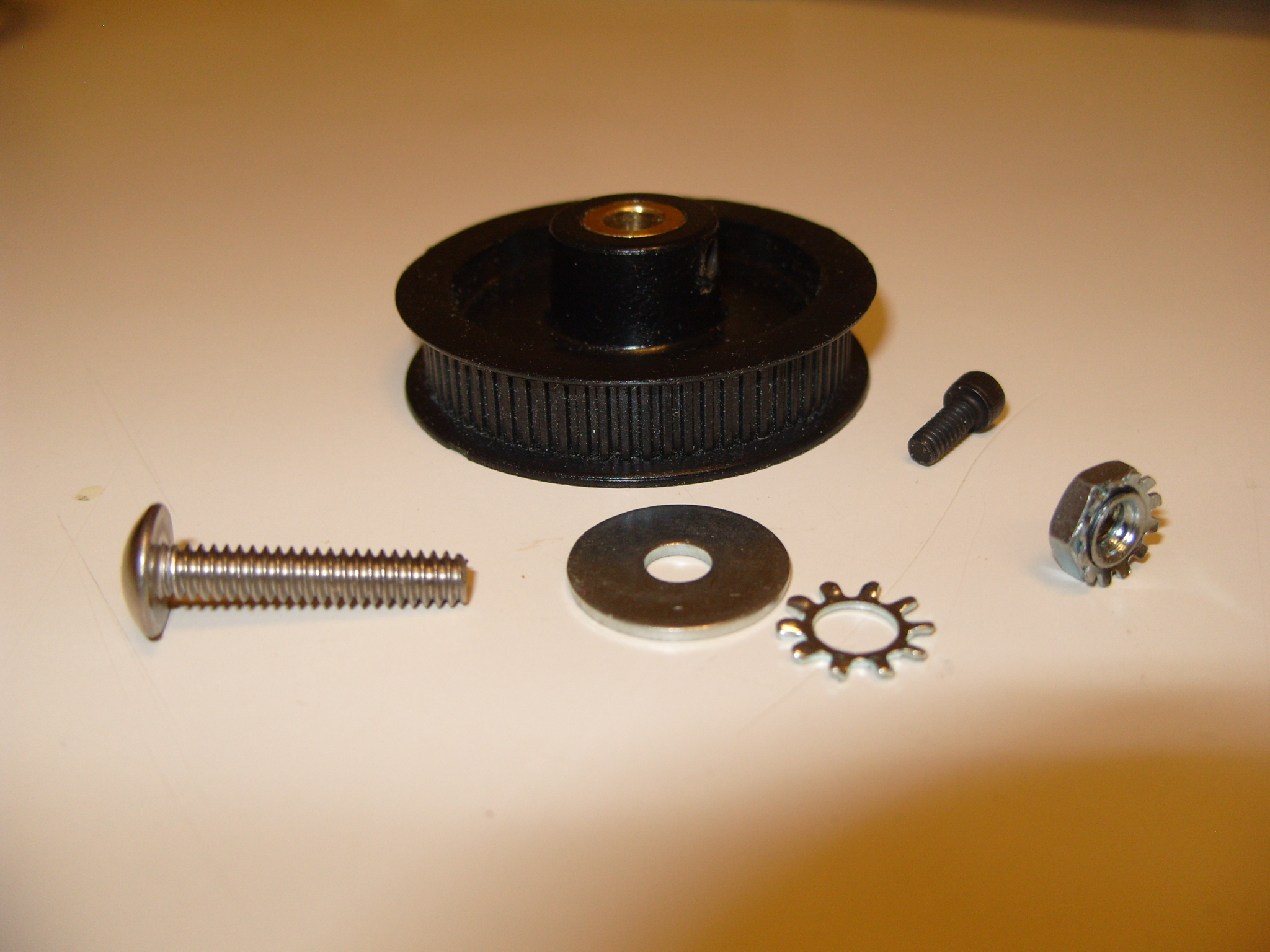

    Here is a pic with the fasteners and drive gear in place.

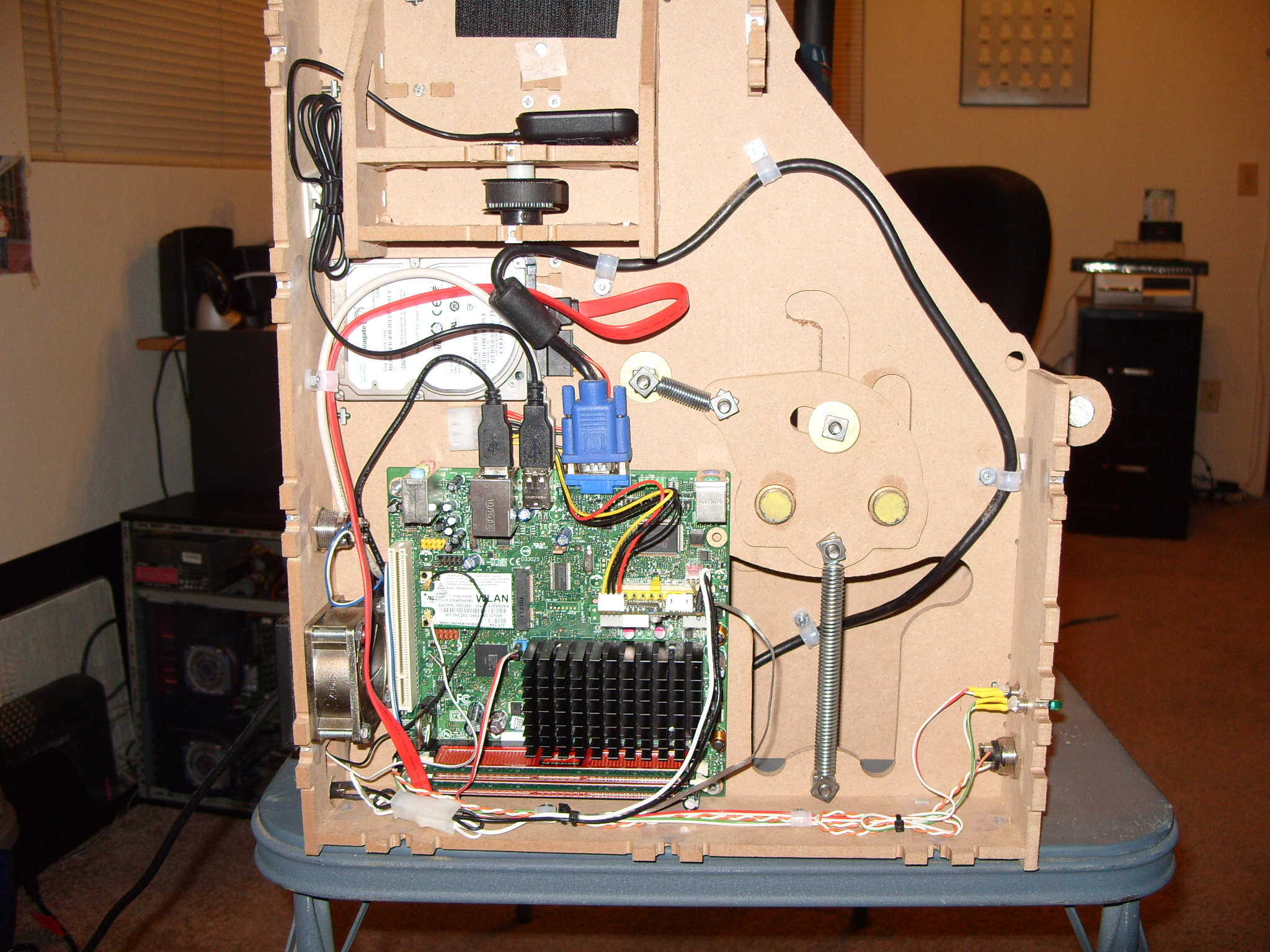

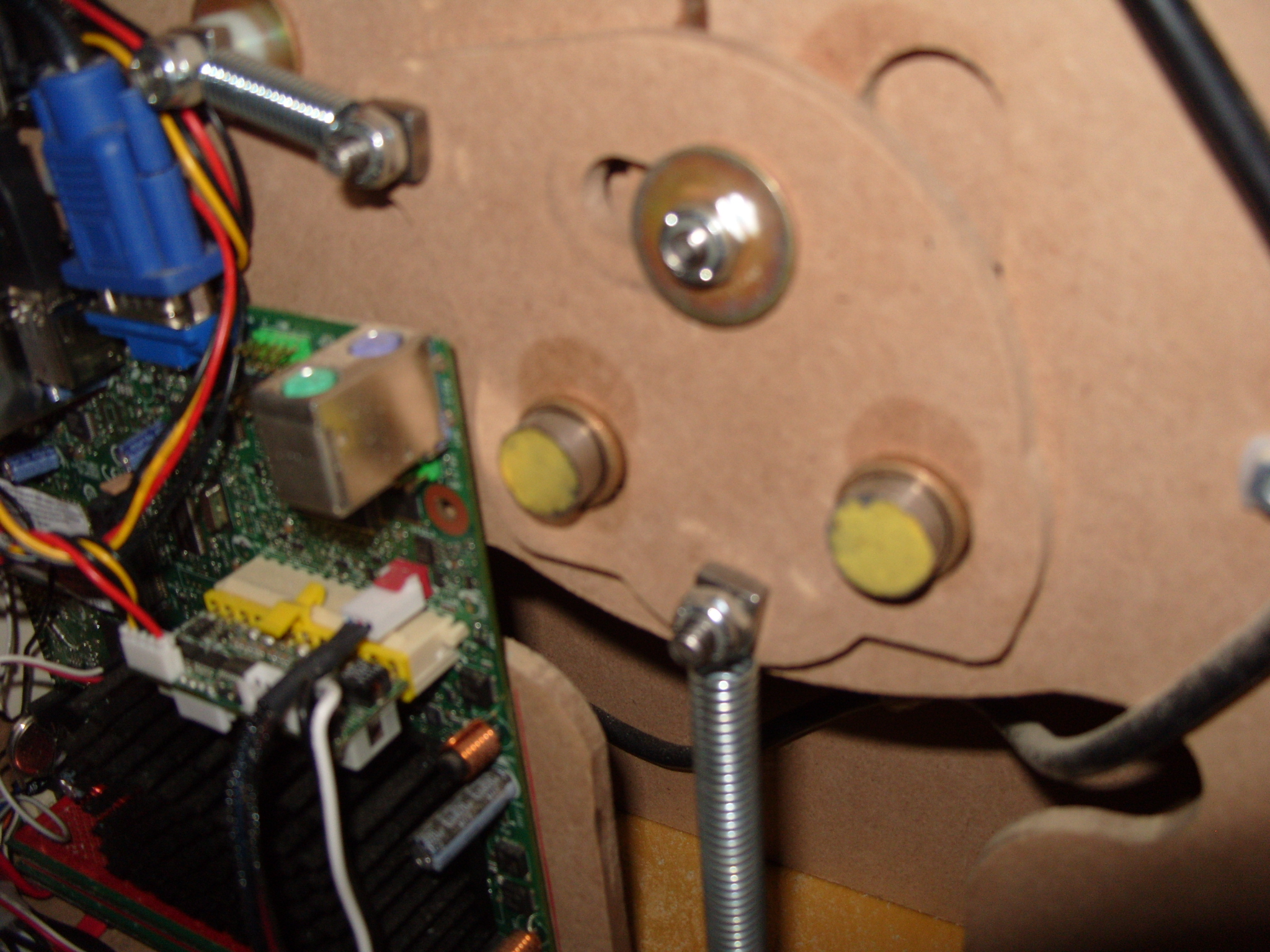

    For the handles I replaced all the outer square 1/4-20 nuts with 1/4-20 thin body nylon lock nuts. I got all the hardware from ACE Hardware. . Sorry for the blurry Picture. And yes mount a PC with 320Gb hard driver with wireless card in the cabinet.
