I have one I did up before the phlatprinter. I'll try to find it later and post it.



I have made a few Wings try the zagnut pages http://home1.gte.net/texhills/page3.html

and this calc will help alot also http://www.willhaney.com/zagnutz/


Cheers
E-T

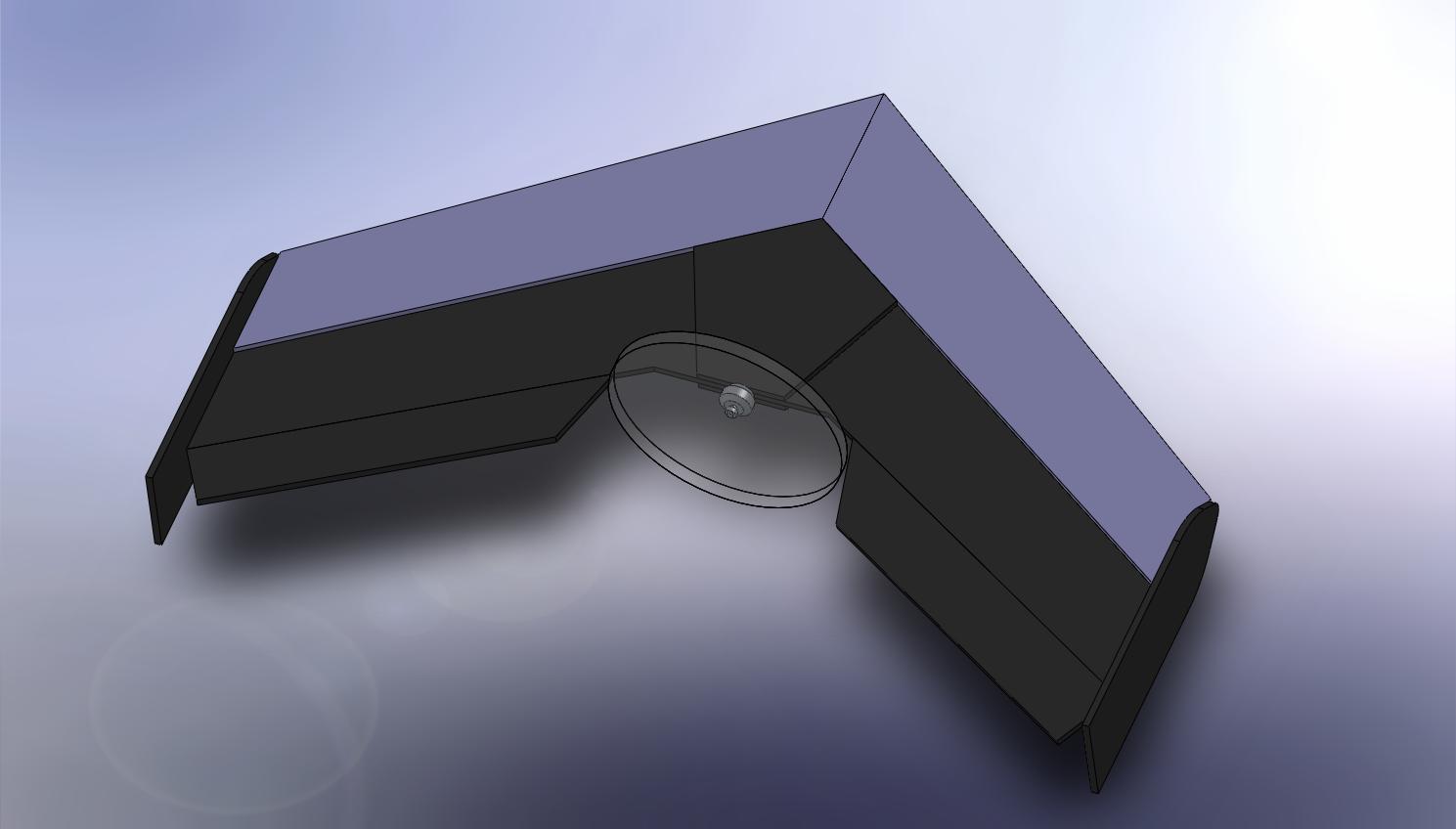

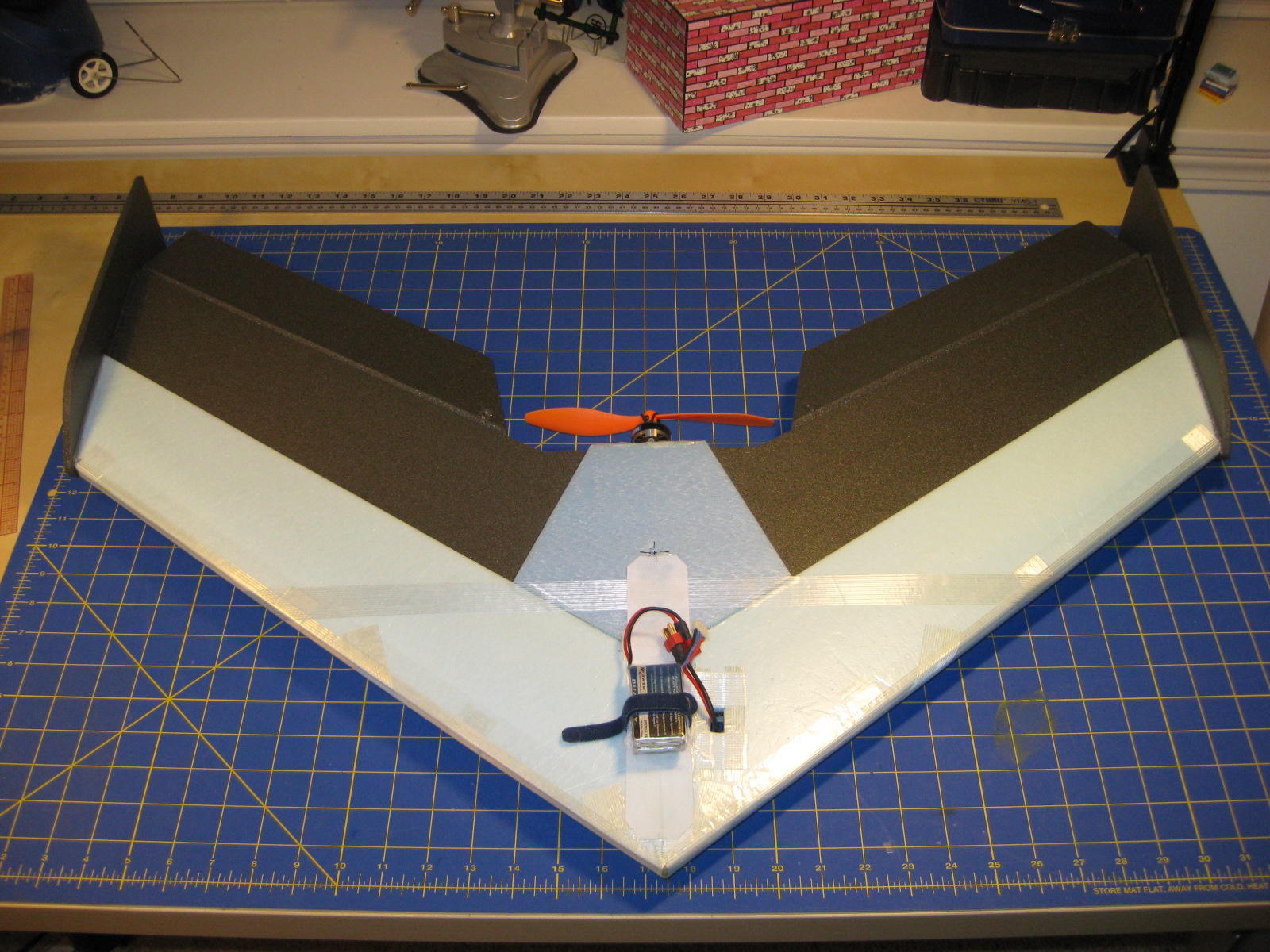

Here is the wing I designed a while back. It flew great.

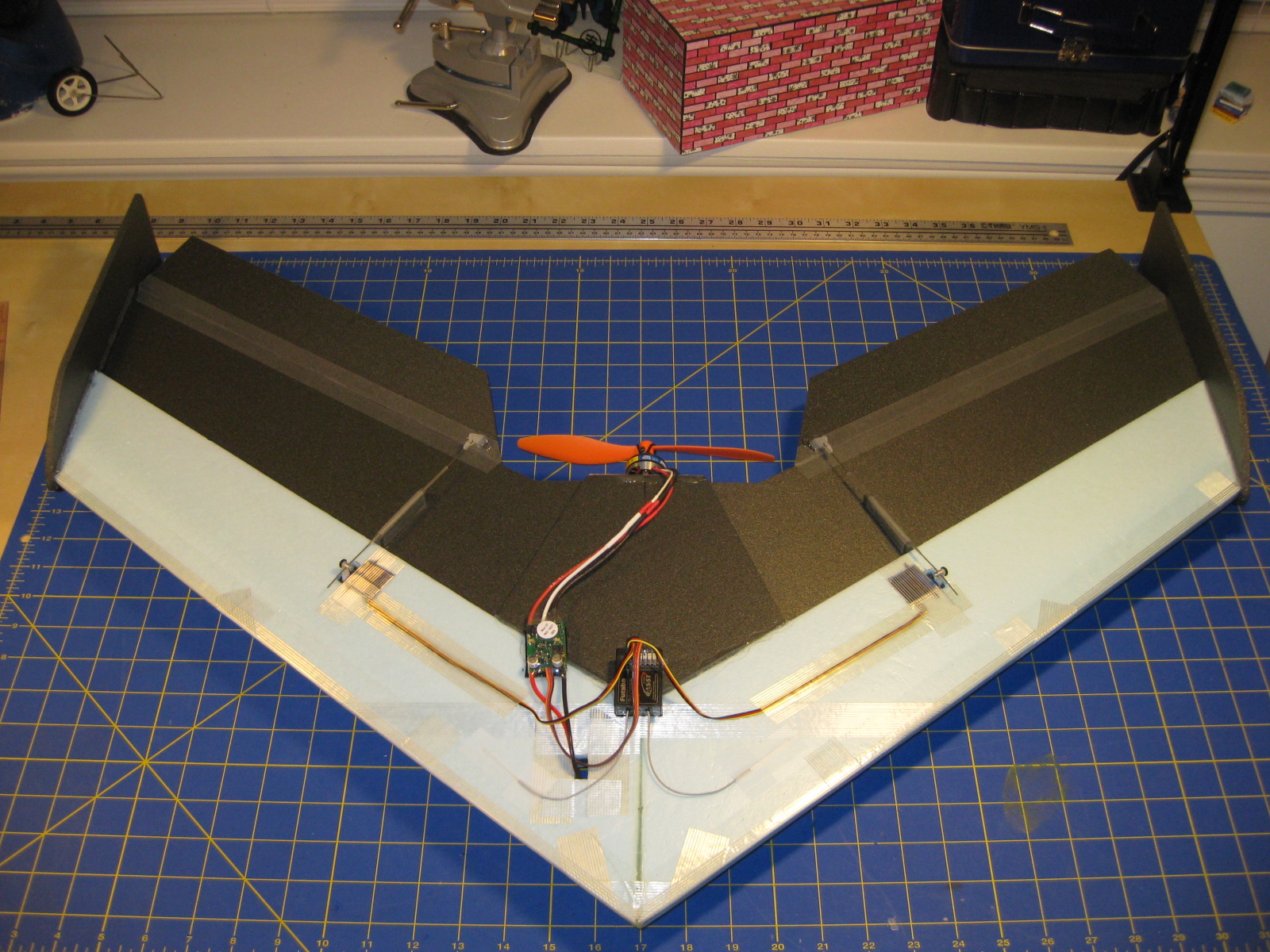

It's a pretty simple design. You just score the fold line with a screen roller, bend the wing halves over, glue the ailerons in, glue the winglets on, cut a hatch in the top for the battery, install electronics and go fly.
There is no need for ribs. The foam will keep its shape from the bend of the foam.

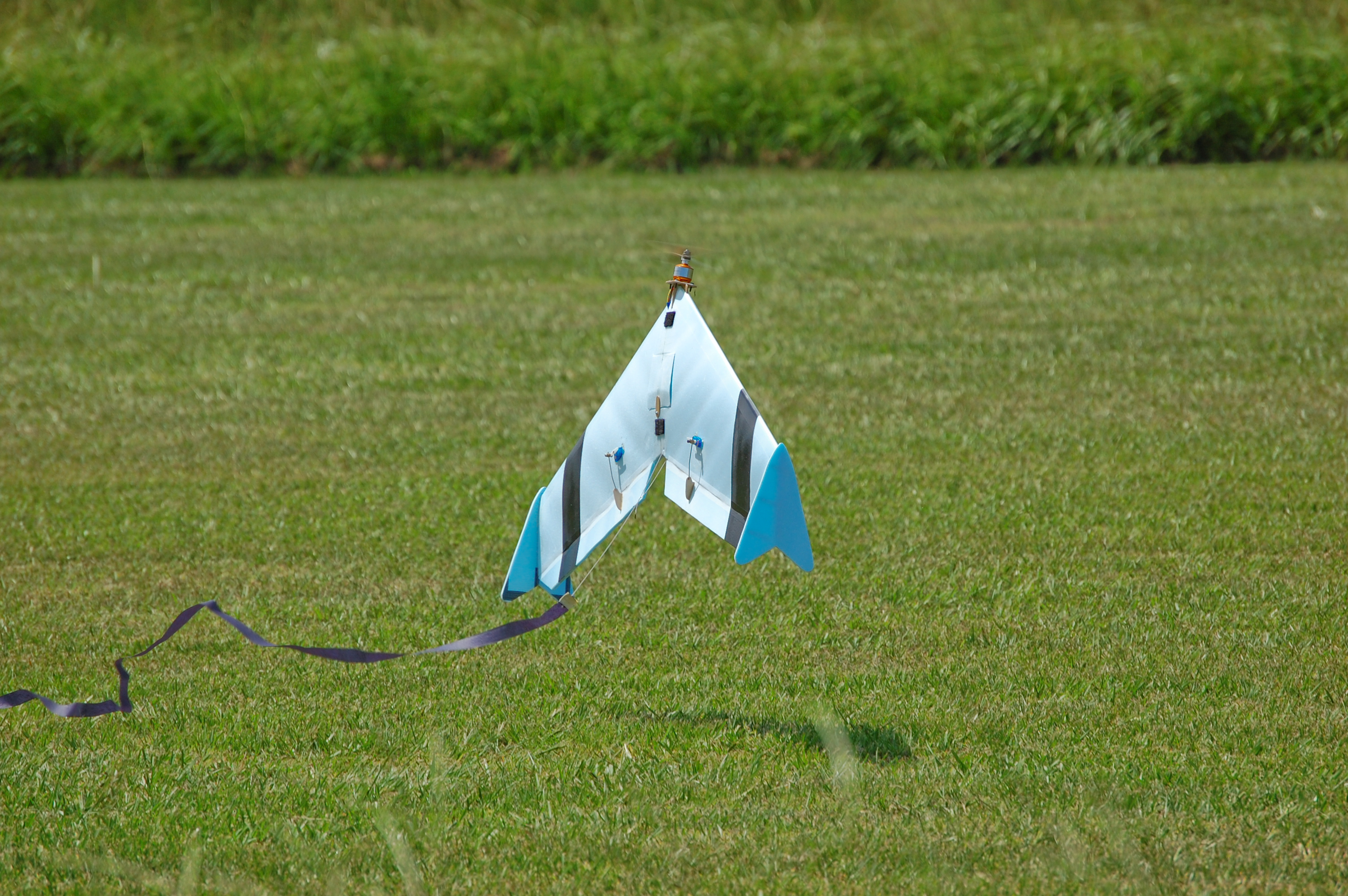

Motor can be mounted up front or in the back. I had mine in the front. The winglets will allow for vertical takeoffs as long as you have enough power.
I didn't do the platcode on this one yet, so you'd have to do that if you want to cut it out on the pp. Attached files 3DMON'S Blue wing.skp (282.5 KB)Â
