Gantry Issues

Discussion in 'Troubleshooting and Build Support' started by pezzer2003, Sep 28, 2011.

  1. pezzer2003

    pezzer2003 Member

    Offline
    Messages:
    66
    Trophy Points:
    6
    Location:
    Sydney, Australia

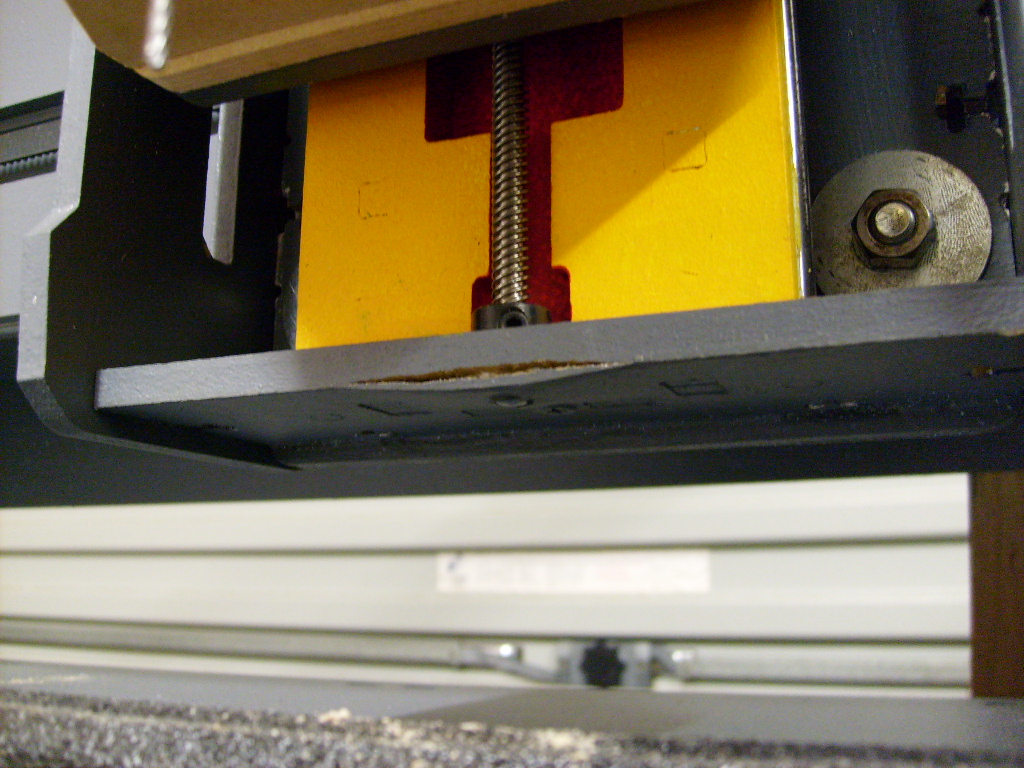

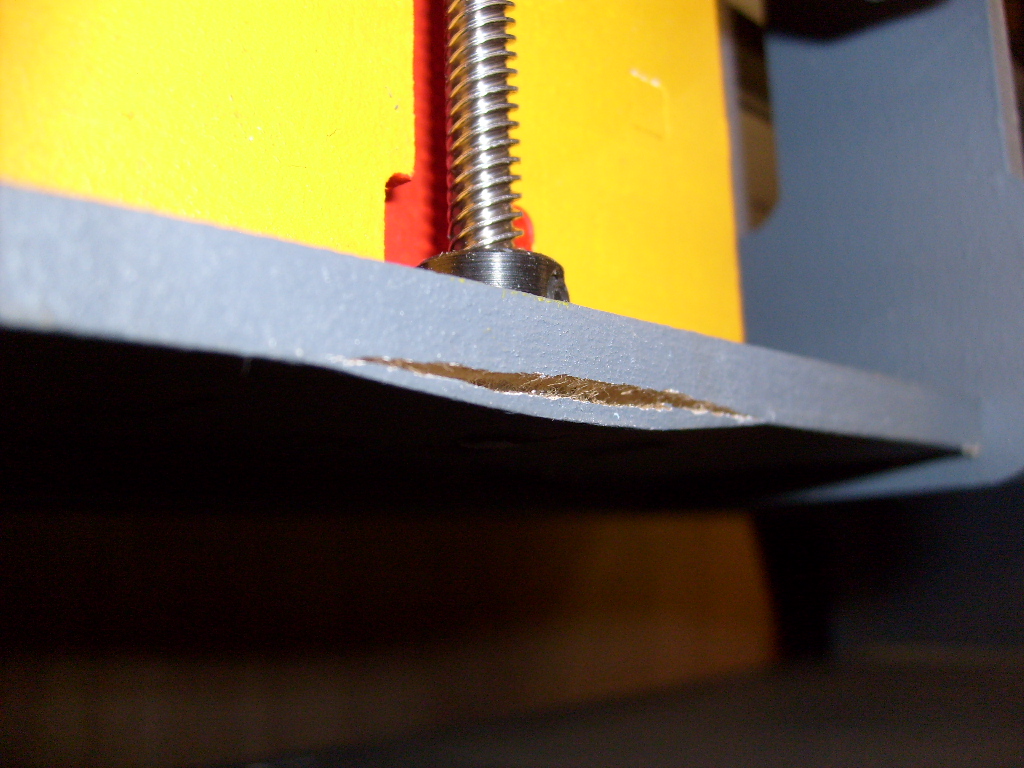

    I discovered this last night.




    I can see that pulling this apart will be a NIGHTMARE and I think some major surgery might be required to fix it.
    If anyone has a suggestions on a fix it would be much appreciated..

    Thanks,
    PEZ Attached files [​IMG] [​IMG]

  2. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Squirt some glue in there and clamp it together. Maybe use medium or thick CA.

    Did you forget to put your Z up before trying to lift the pressure rollers?

  3. pezzer2003

    pezzer2003 Member

    Offline
    Messages:
    66
    Trophy Points:
    6
    Location:
    Sydney, Australia
    Do you think I should re-enforce the under side? Or just glue it back together?

  4. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Reinforcing it isn't gonna hurt, that's for sure.

  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Sorry this happened PEZ, nature of the material sometimes since its pressed in layers.
    Like Shaun says I think that glue/clamping will work but if you find that you need a new piece just soot us a PM and we will hook you up.
    Mark and Trish

  6. pezzer2003

    pezzer2003 Member

    Offline
    Messages:
    66
    Trophy Points:
    6
    Location:
    Sydney, Australia
    Thanks Mark, but I don't think I will need a new piece, I will Glue it then Add some 2mm aluminium plate bolted to the underside just for extra strength..

  7. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    If it is for strength, the 2mm alu should be on top. :D

  8. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Sounds good PEZ :good:
    As Yoram mentioned some people have been adding an aluminium plate bolted to the top pf the gantry, because if you forget to raise the Z gantry up after a cut and lift the pressure rollers without having the gantry lifted out of the way. You run the chance of pushing the mdf apart on the top where the acme thread comes though.
    Mark and Trish
