    Phlatprinter III Guides Assembly Instructions
    Hey Guyz,

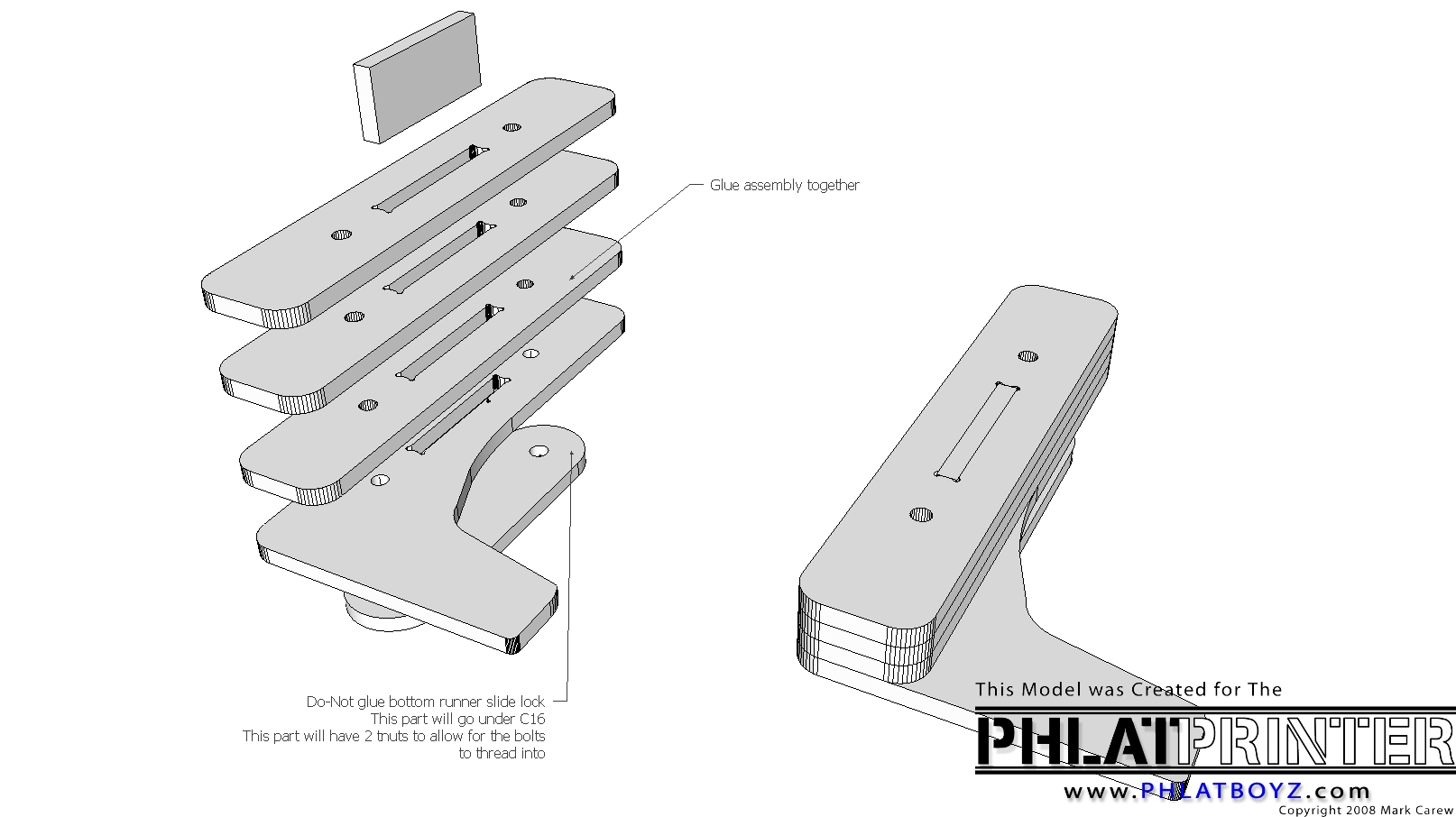

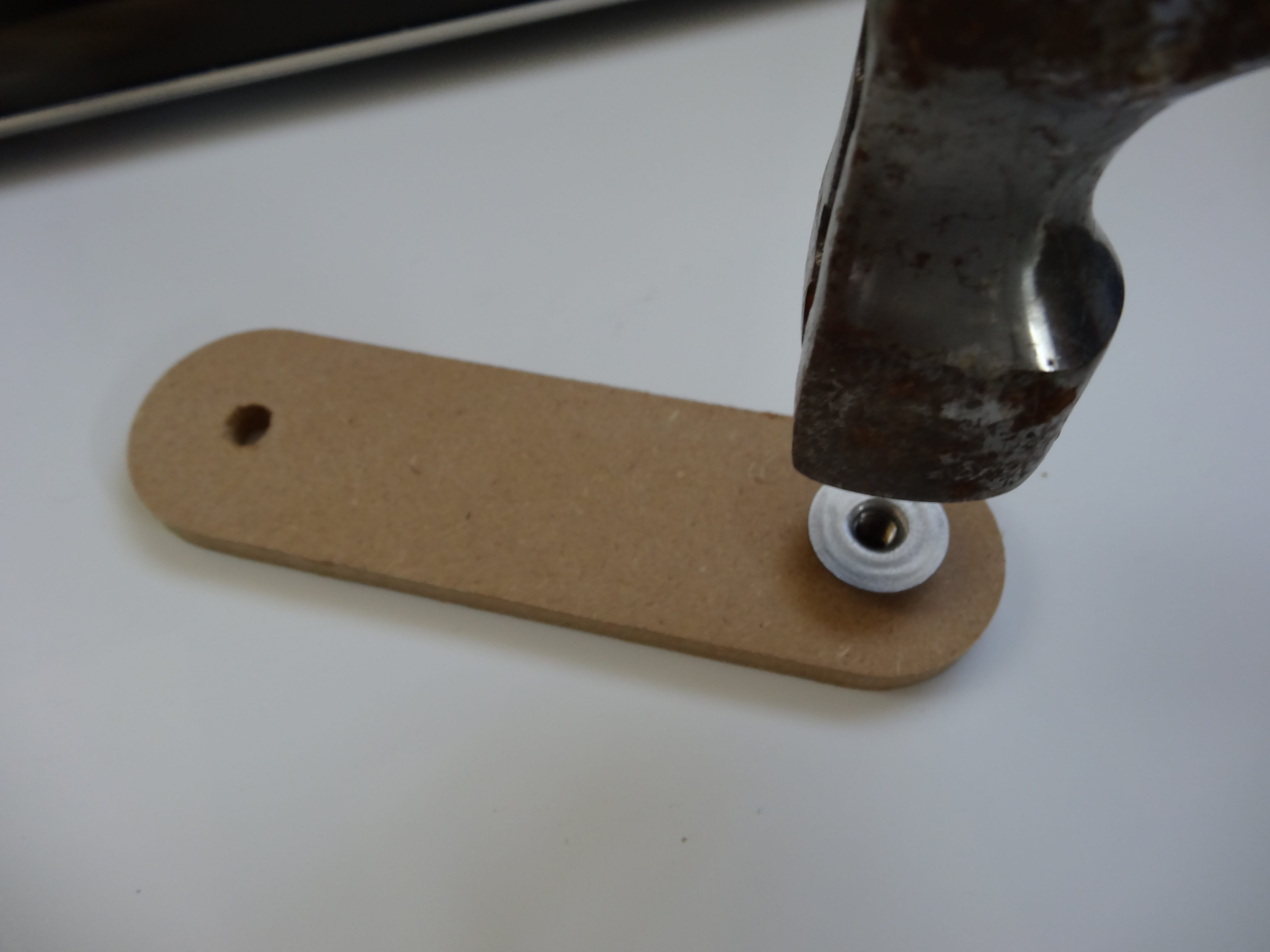

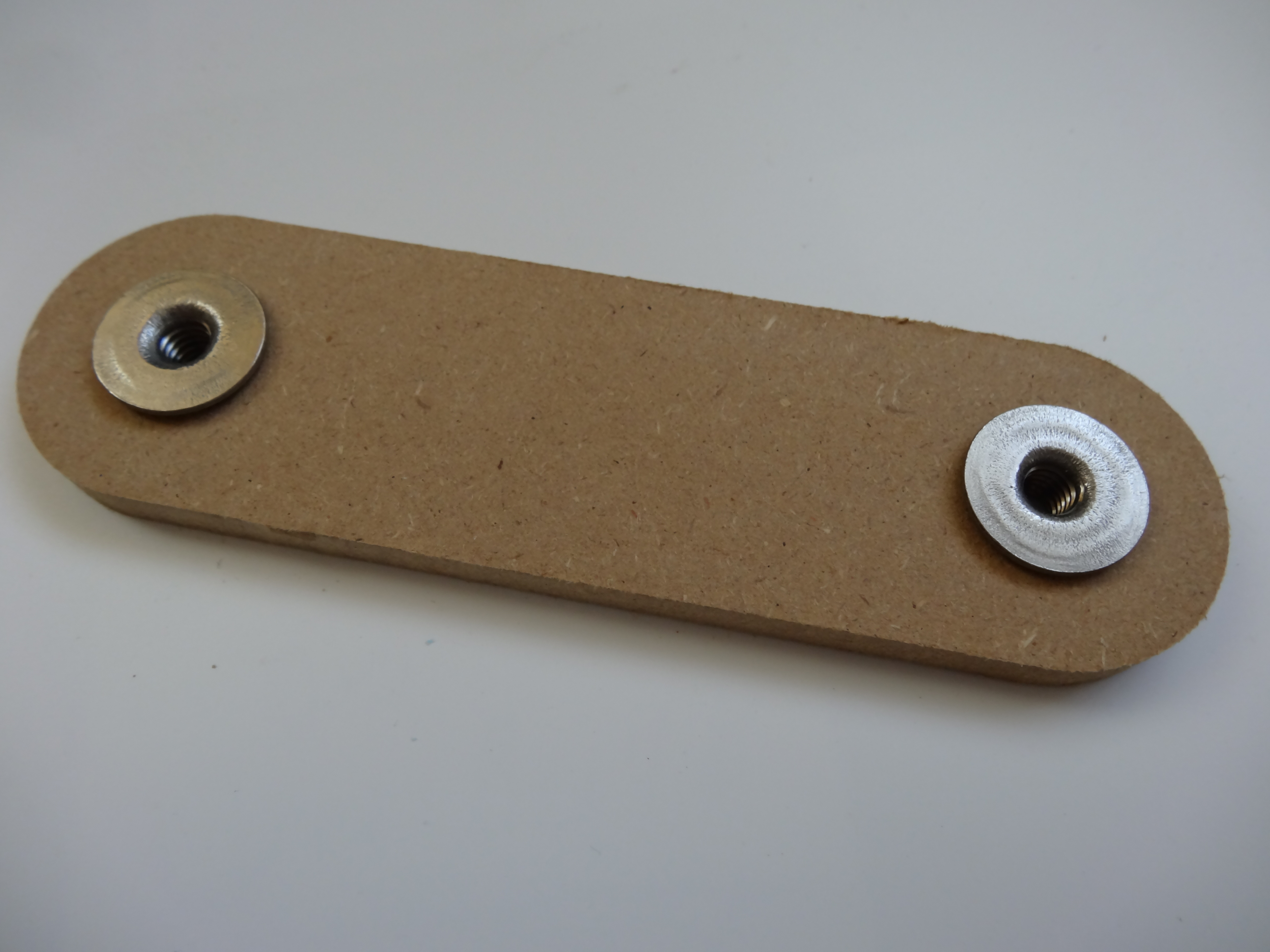

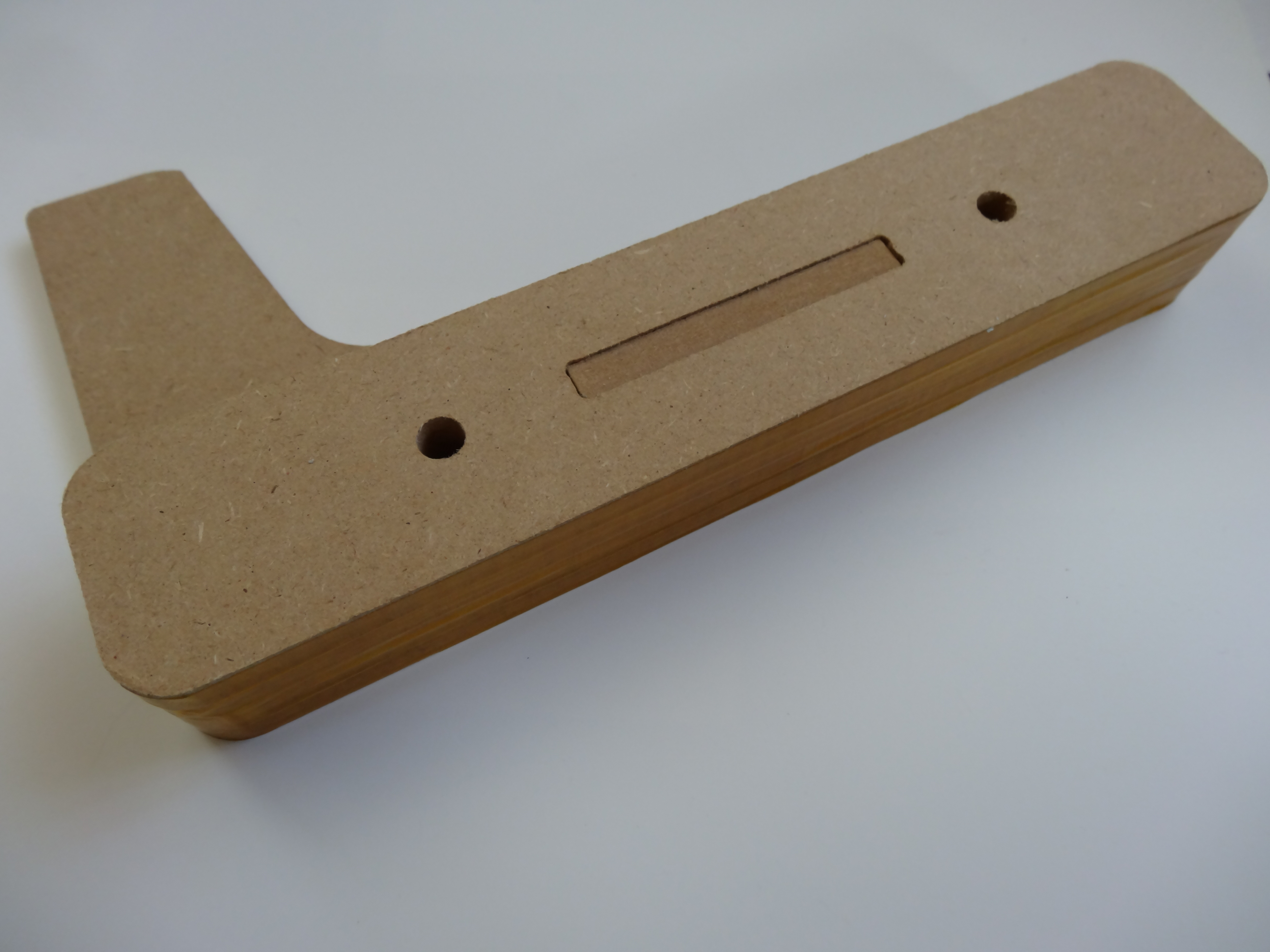

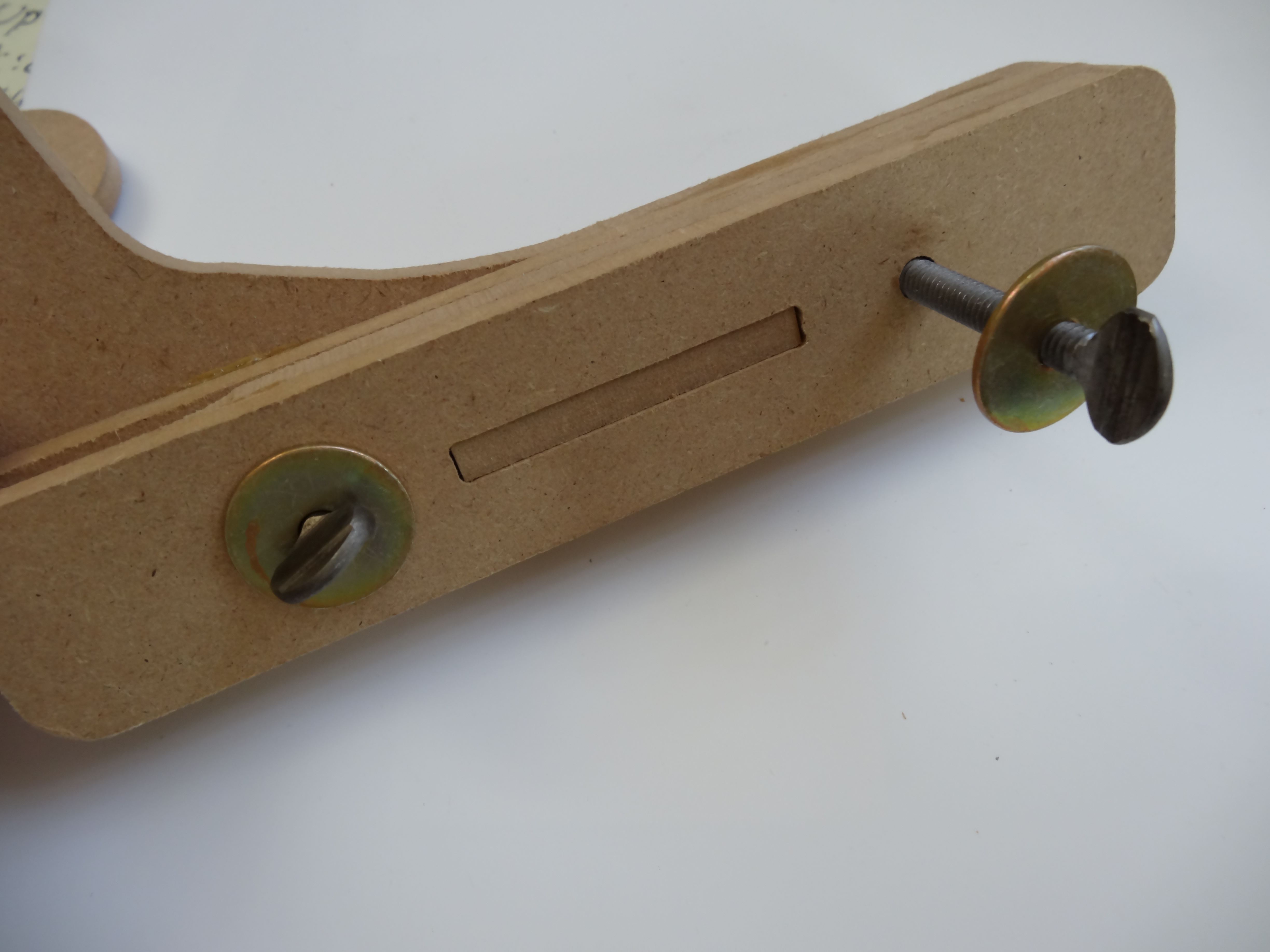

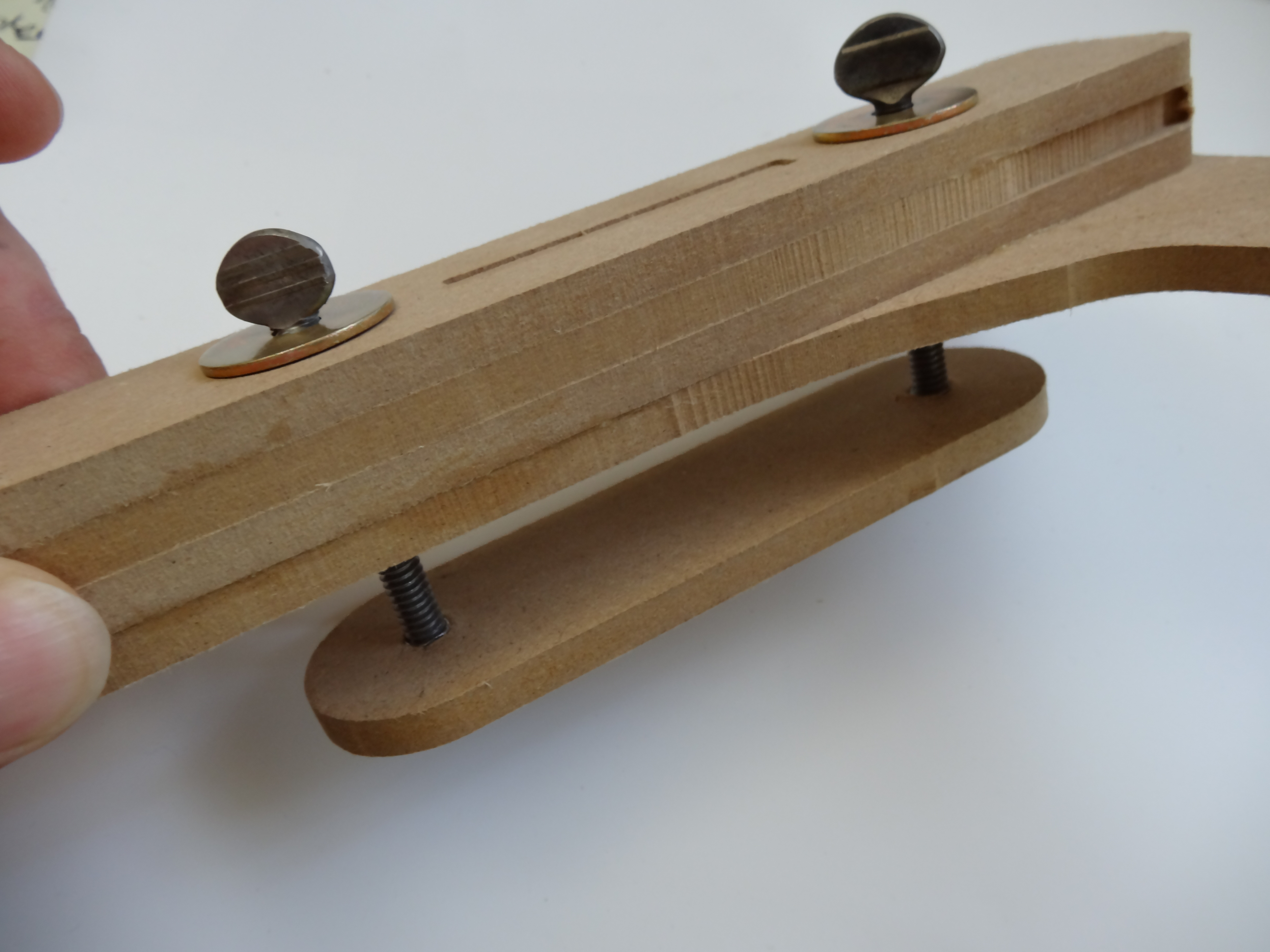

    As you may know some of the newer version of the Phlatprinter III incorporated a guide system that helps to align smaller materials like balsa wood strips. to the center of the machine. We did not have time to add the build instructions to the build videos but they are pretty straight forward to make. Here are a few pics and descriptions to help you out in making the Phlatprinter III guides.
    Hope this is a help
    Mark and Trish

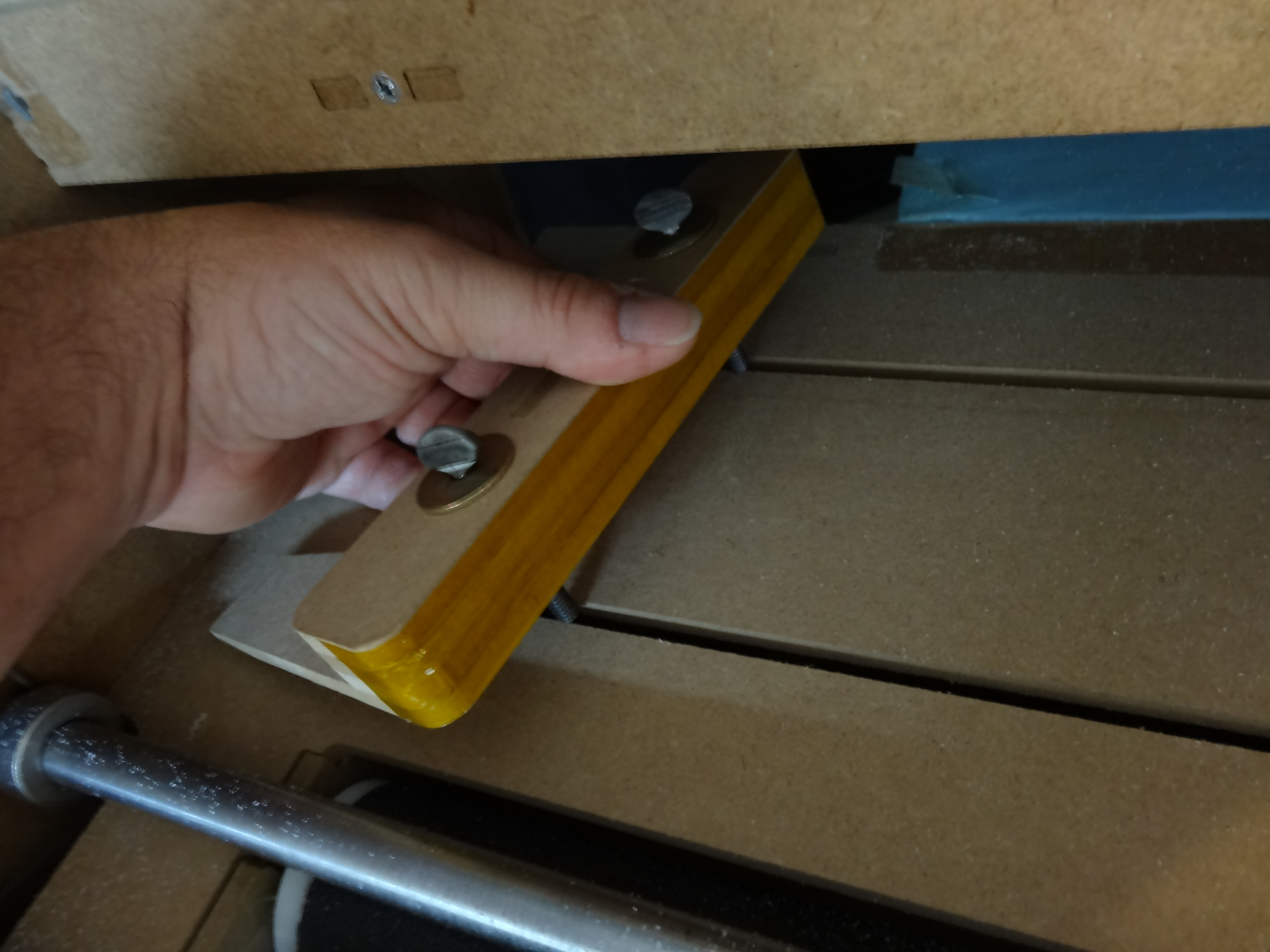

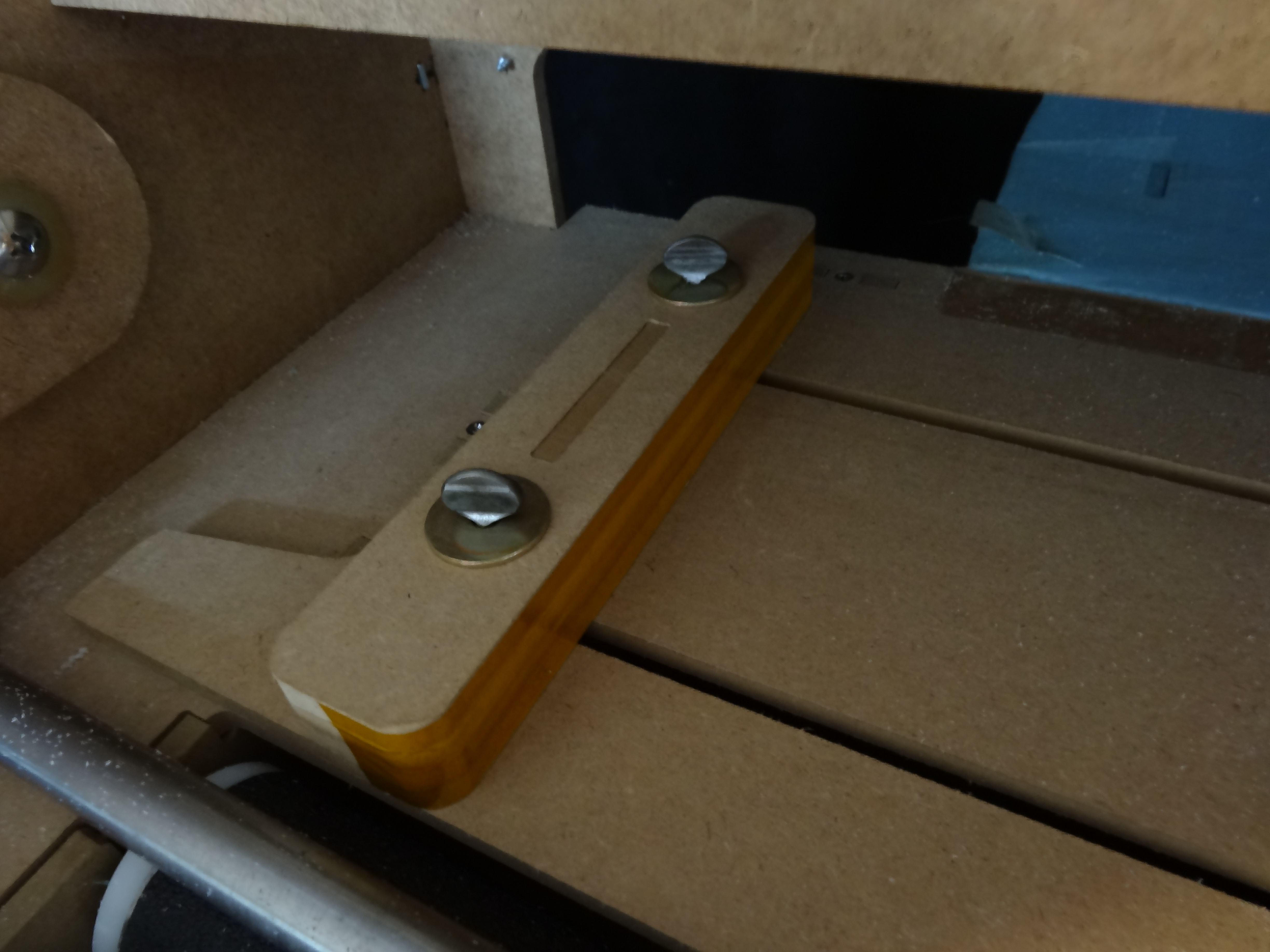

    Make sure that you run your material through (back and forth on the X axis) a few times to ensure there will be no binding through out the cut.
    NOTE: I do not use the guides on 1/4" foam but use it on thicker foam that has straight sides to ride on the guides. You may find it works for you
    .

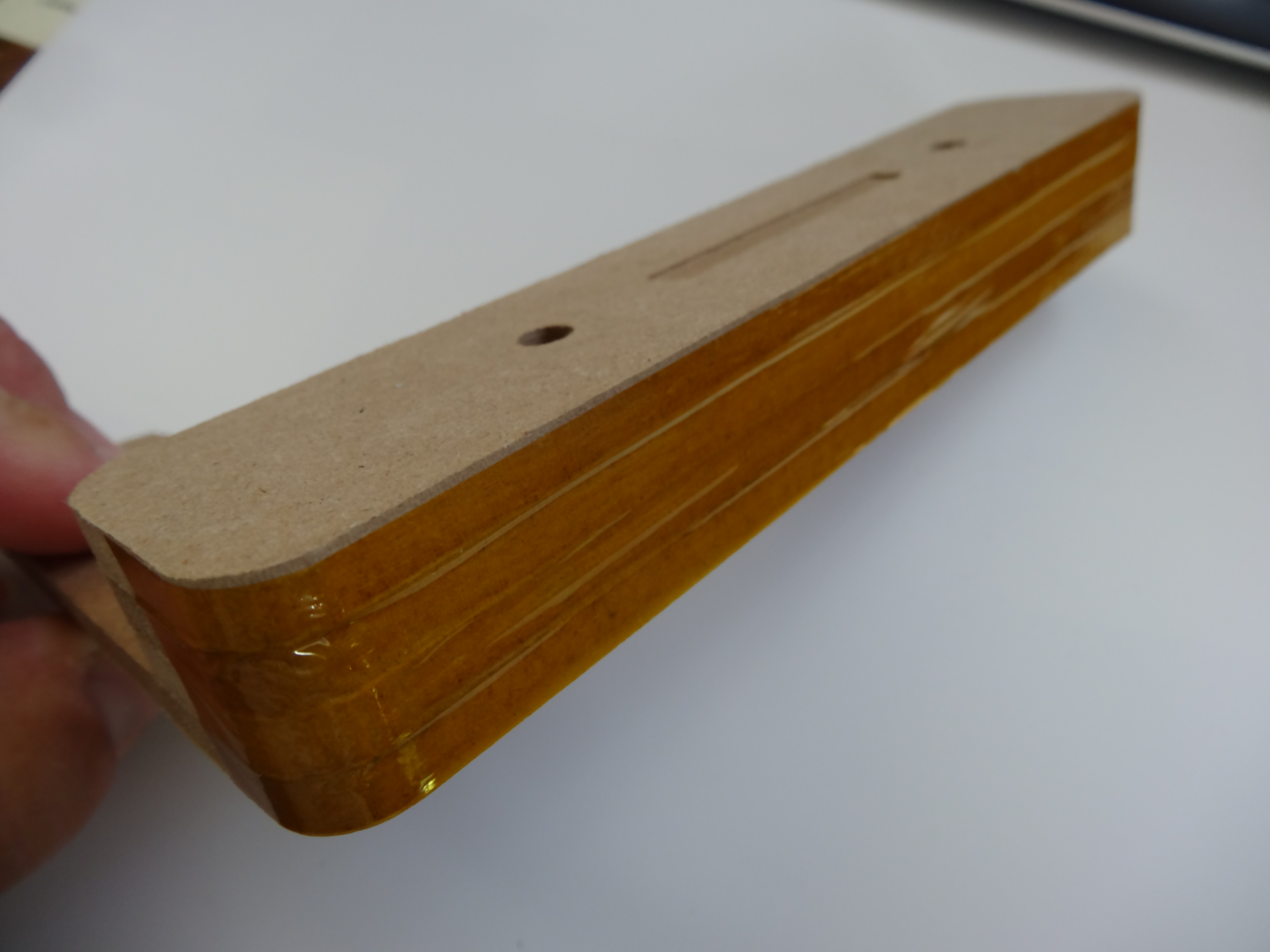

    *You can use Kapton tape but its expensive. If you do use this you may want to choose the 1/4" strips and stack the tape up the sides of the guides. Here is the 1/4" part number 7648A711
    Kapton Tape: http://www.mcmaster.com/#kapton-polyimide-tape/=jd0b9m


    *You could also use candle and rub it on the sides of the guides as well. The idea is to make a slippy surface for the material to slide against.


    Please read the text under the pictures for helpful hints
    Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  2. wlrman36

    wlrman36 New Member

    Offline
    Messages:
    17
    Trophy Points:
    1
    Location:
    Little Rock, Arkansas
    How difficult would it be for original mk3 users to retrofit these guides? I have been using the c-clamp trick lately.


    Jeremy

  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Hi Jeremy,
    We make a drop in upgrade. We were going to put this on the store as an upgrade for the guyz that wanted the guides for the MK3's. It comes with the guides and the C16 cutting surface with the slots. We just did not get the time to do it.
    If you or anybody else is interested in a guide upgrade kit let us know phlatboyz@phlatboyz.com
    The price is 35 bucks + shipping
    Thank you
    Mark and Trish

  4. jonquinn

    jonquinn Member

    Offline
    Messages:
    49
    Trophy Points:
    6
    Does the just sit on top of the original "plate" or flat surface, or do you need to replace that surface for this to work?

  5. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    You need to to replace your c-16 cutting surface with the one that comes with the guide kit.
    Just take out the old cutting surface and slide in the upgrade and you're good to go. :D

    Hope this helps.
    George. :good:

  6. PAULE

    PAULE Member

    Offline
    Messages:
    79
    Trophy Points:
    6
    Location:
    FL
    :flying: THANKS MARKTRISH I LOOKED EVERYWHERE FOR THESE GUIDES :flying:

  7. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    No problem Paule glad to help :)
    Mark and Trish

  8. wlrman36

    wlrman36 New Member

    Offline
    Messages:
    17
    Trophy Points:
    1
    Location:
    Little Rock, Arkansas
    Got mine in the mail today, but was finishing up my dollar tree tricopter...Might go out an play around with it tonight. Thanks Mark and Trish for the prompt delivery.

    Jeremy

  9. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Glad to hear it Jeremy, thanks for letting us know :good:
    Mark and Trish

  10. pezzer2003

    pezzer2003 Member

    Offline
    Messages:
    66
    Trophy Points:
    6
    Location:
    Sydney, Australia
    G'day Mark,
    I was wondering as I'm stuck here in Australia, could I get a set of plans for this upgrade? I'm willing to pay for the design. I just finished upgrading it to hold a tile router and is cutting through mdf like butter. But I'm having so many isssues with the skewing of the material..

    Cheers,
    PEZ

  11. sedpsouth

    sedpsouth New Member

    Offline
    Messages:
    24
    Trophy Points:
    3
    Location:
    chatom al
    how much and where can I get a guide kit ?

  12. 2xWhiskey

    2xWhiskey New Member

    Offline
    Messages:
    11
    Trophy Points:
    1
    I've been out of the game for a while. Did this turn out to be the solution for the skewing problems on the PP3?
