Harmonograph

Discussion in '* Scratch Built Section *' started by kram242, Dec 9, 2008.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

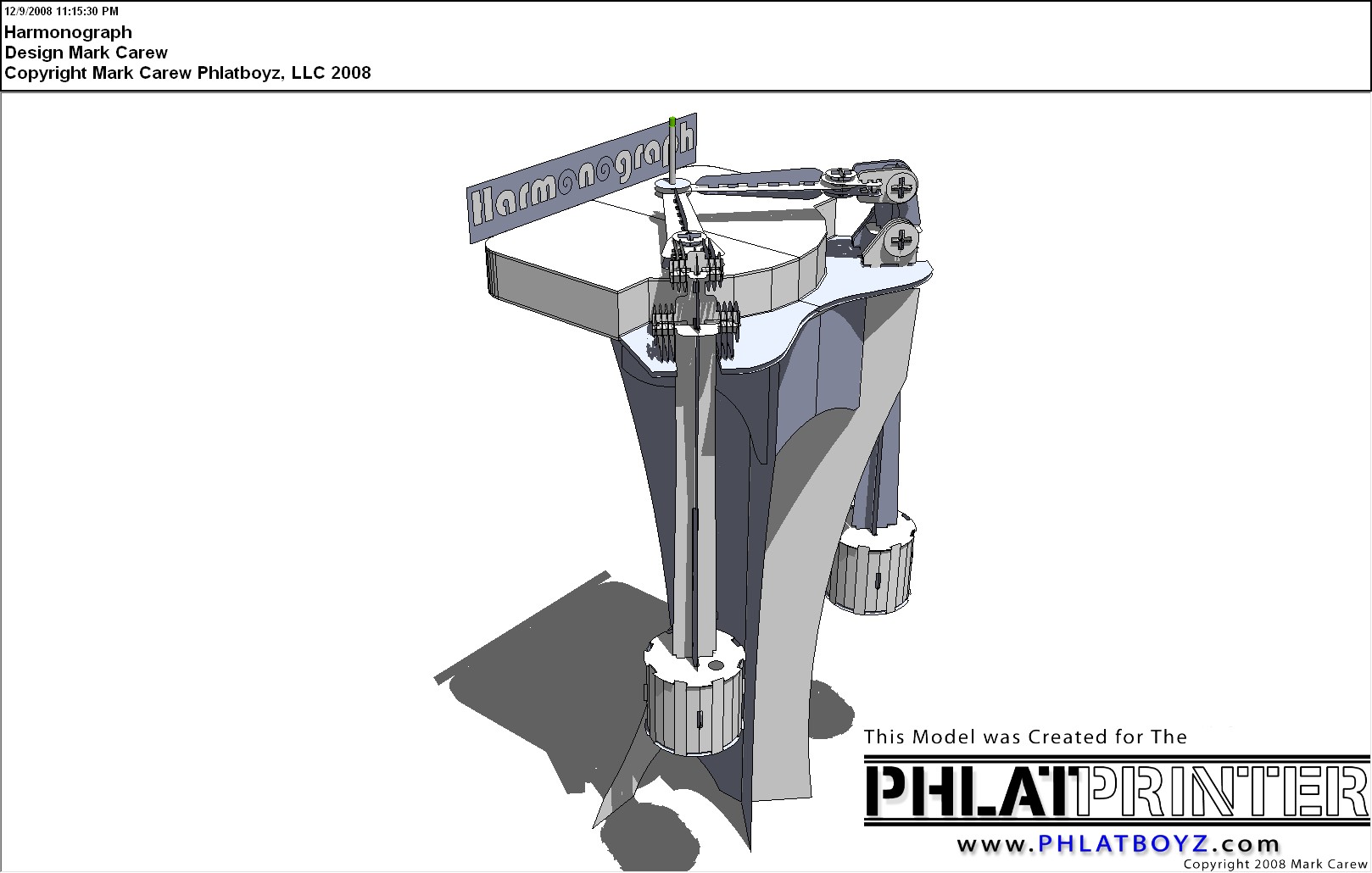

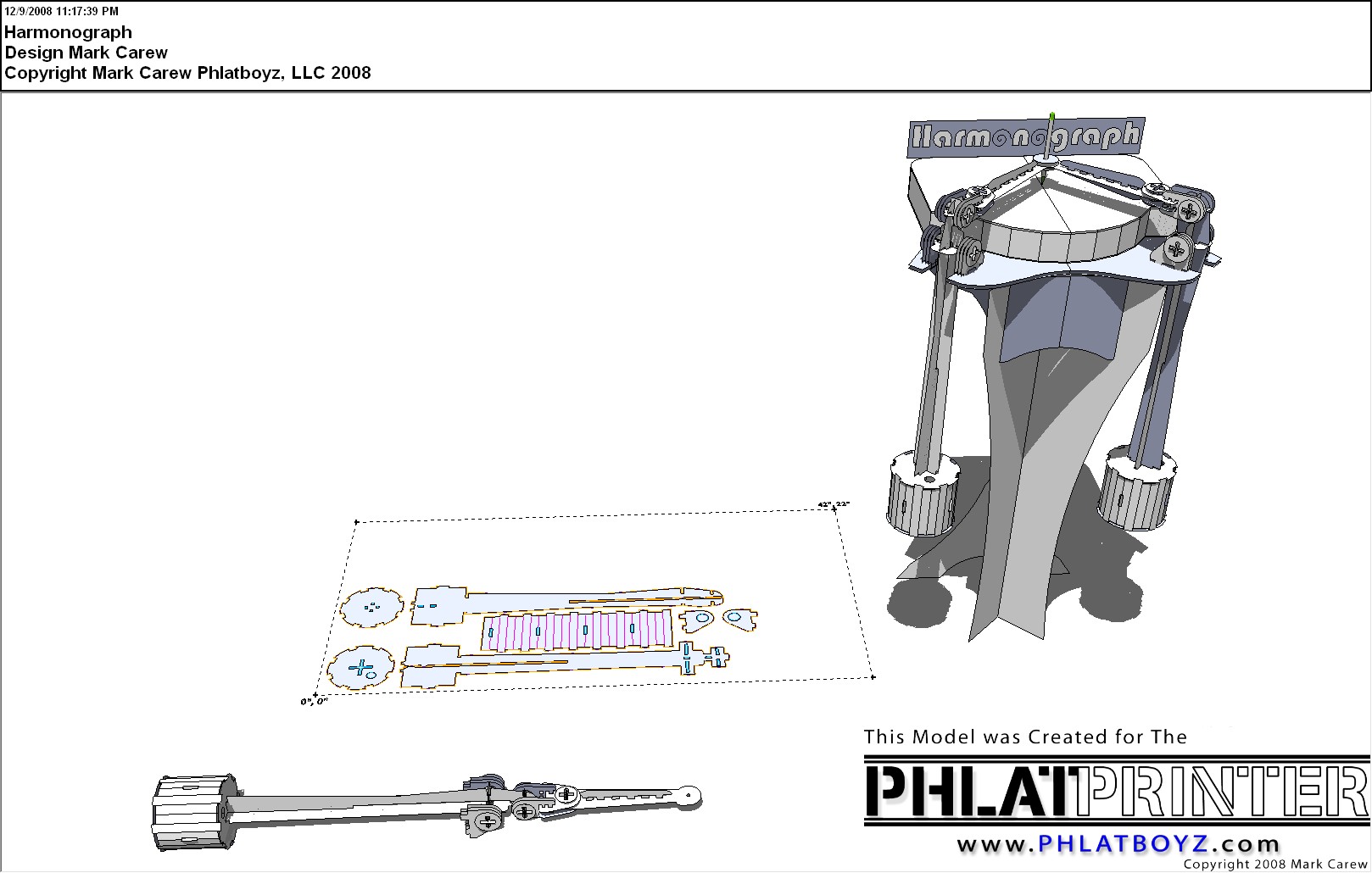

    This is fun little project I have been messing around with. Its called a harmonograph
    The machine will hold a pen and create sprials as you can see in the videos below.
    The weights for the legs will be water filled.
    Stay tunned :D
    I will plans in the free plans under the Crafts section when I am done :mrgreen:

    Attached files [​IMG] [​IMG]

  2. AnyAirRc

    AnyAirRc Moderator

    Offline
    Messages:
    227
    Trophy Points:
    0
    Oh man that is insane does the foam version work yet??

  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    I am not finshed with it yet but I will let you know when it's done I will post the plans here.
    I think its going to take a lot of foam to build the base so I need to set it up where you can just cut the top part out if you want and set it up on a table.
    Mark

  4. firetrappe

    firetrappe Member

    Offline
    Messages:
    192
    Trophy Points:
    16
    Location:
    England UK
    I used to have a Harmonograph when I was a kid. They make really cool patterns. Maybe I can leave it drawing designs on my foamies while i'm cutting another one out :lol:

  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    that would be cool! Rig it up with a spray can?!

  6. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Thats neat!
    First time I've seen one.

  7. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    I was kicking around on you tube one night and found that I was like I can make that out of flat parts! So I went for it. I hope I get the time soon to finsh up the plans and see if it even works. One of you guys might have to cut it out and build it for us all so we can see it in action.
    Mark

  8. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    I think you need to bring this back Mark. :good:

  9. dhc8guru

    dhc8guru Member

    Offline
    Messages:
    237
    Trophy Points:
    16
    Location:
    San Antonio
  10. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    I did finally build one of these, but never posted the plans because they were unfinished and rough.
    I will see if I can get some pics and the plans together
    Mark and Trish
