Welcome to The Phlatforum PhlatPrinter III

MXS

Discussion in 'Single Wing Aircraft Plans' started by Jnida63, Oct 13, 2009.

  1. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    As per Mark's request I did up the MKII version. Note I did not change anything, it is still drawn for 2mm and 6mm foam

    Attached files MXS MKII.zip (8.3 MB)Â

    Jnida63, Oct 13, 2009
    #1
  2. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Jeff super nice job! Thank you! I think the guys will appreciate this conversion, I know I will for sure.
    Thanks again Jeff looks great!!!
    Mark

    kram242, Oct 13, 2009
    #2
  3. HSV_Freak

    HSV_Freak Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    Thanks for the nice flyer. I will build it when my Printer is by me.

    Bye bye Alex

    HSV_Freak, Oct 13, 2009
    #3
  4. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Jeff, I have a question did you use cutePDF to convert this, like 3DMON has been using?
    No problems just wondering :)
    Thanks again
    Mark

    kram242, Oct 14, 2009
    #4
  5. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    I used a program called PDF 2 DXF 2. its a trial program but it has never expired for me.
    Then I use autocad to clean up the stray lines then import into Sketchup.

    Jnida63, Oct 14, 2009
    #5
  6. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Nice, thanks for the tip with cleaning the lines in Auto Cad. I never thought of doing it that way.
    I am working up an exploded model of this plane to make it a little easier for others to build. I think its a great looking plane and all the elements are there including the graphics and build log so this should be a nice build.
    I am thinking that we could use a 1/16" bit for the entire process including the wood parts. I will have all the speeds and feed for the Phlat code already set up and ready to print :)
    Its will take me a little while as I am doing it in the early mornings before the day starts (only time I can find right now) :D

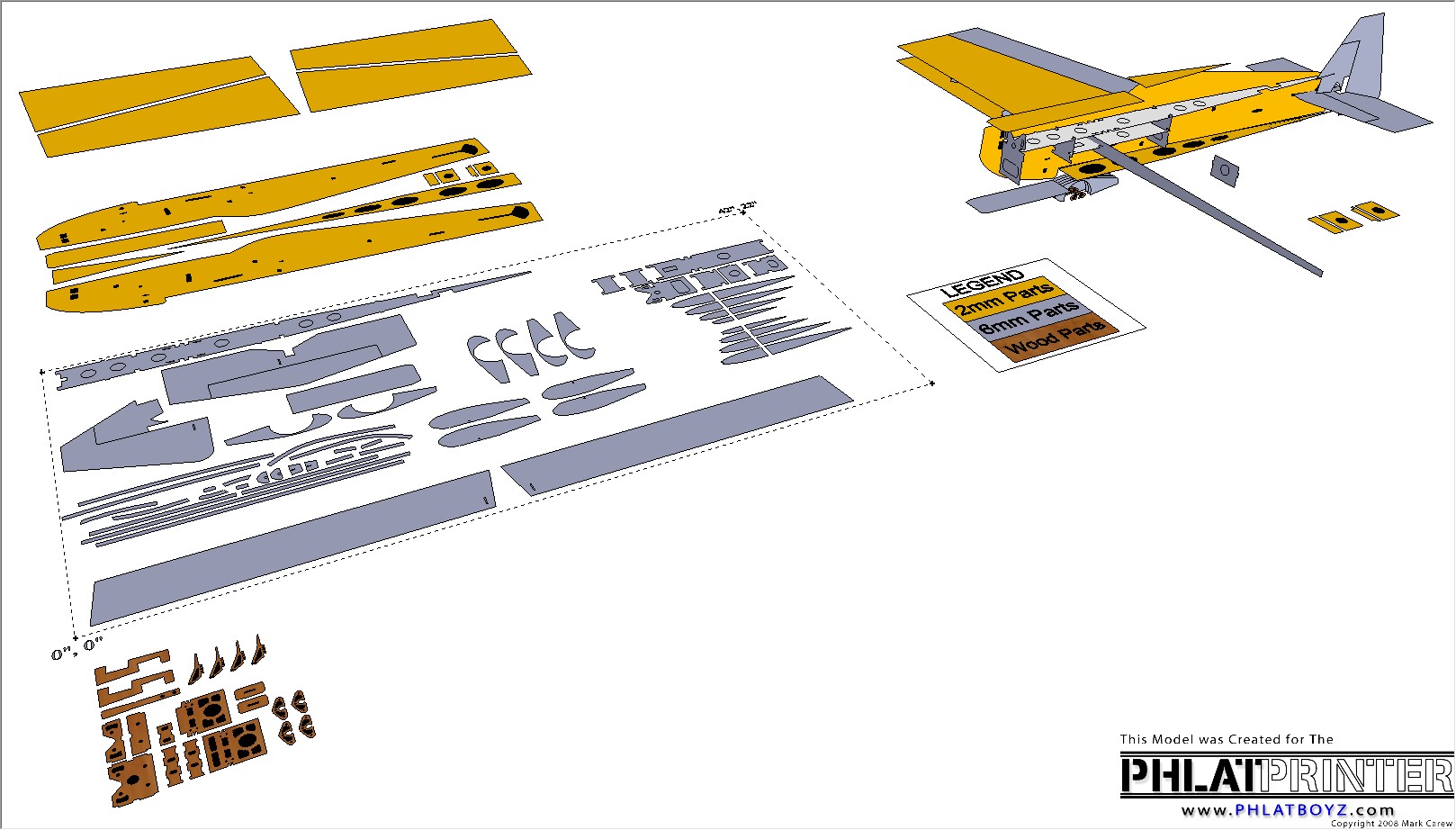

    Here's what I have so far this morning
    Mark
    Attached files [​IMG]

    kram242, Oct 14, 2009
    #6
  7. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    The only problem I see is with the wood parts, the holes are so small that a 1/16th bit may be too big for the control horns, I sent an e-mail to a guy that sells 1/32 bits but have yet to hear back from him

    Jnida63, Oct 14, 2009
    #7
  8. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Wow, that's done very professional. Thanks Jnida63. Did you do all that writeup?

    TigerPilot, Oct 14, 2009
    #8
  9. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    Ok, the guy at Ebay store named drill-bits is sending me some 1/32" router bits new for $2.90 each.
    They aren't listed on his website so if you are interested in them e-mail him thru Ebay.
    Hopefully they will handle the small wood parts that this kit requires.
    I am not sure how long it will take to get them but I will keep you informed.

    Tiger, no I did not do any writeup on it, those were the PDF instructions that came with the PDF files, They are very nicely laid out that's for sure. :)

    Jnida63, Oct 14, 2009
    #9
  10. Crazy Fast Fab

    Crazy Fast Fab New Member

    Offline
    Messages:
    1
    Trophy Points:
    0
    Mark, did you ever finish the phlat files for this or post the skp file from the above jog?

    thanks,

    Crazy Fast Fab, Jul 23, 2011
    #10
  11. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    CFF here is what I have, sorry I did not post it sooner. :)
    Its not complete (as far as the cut lines) but they can be added easy enough.
    Have fun! :good:

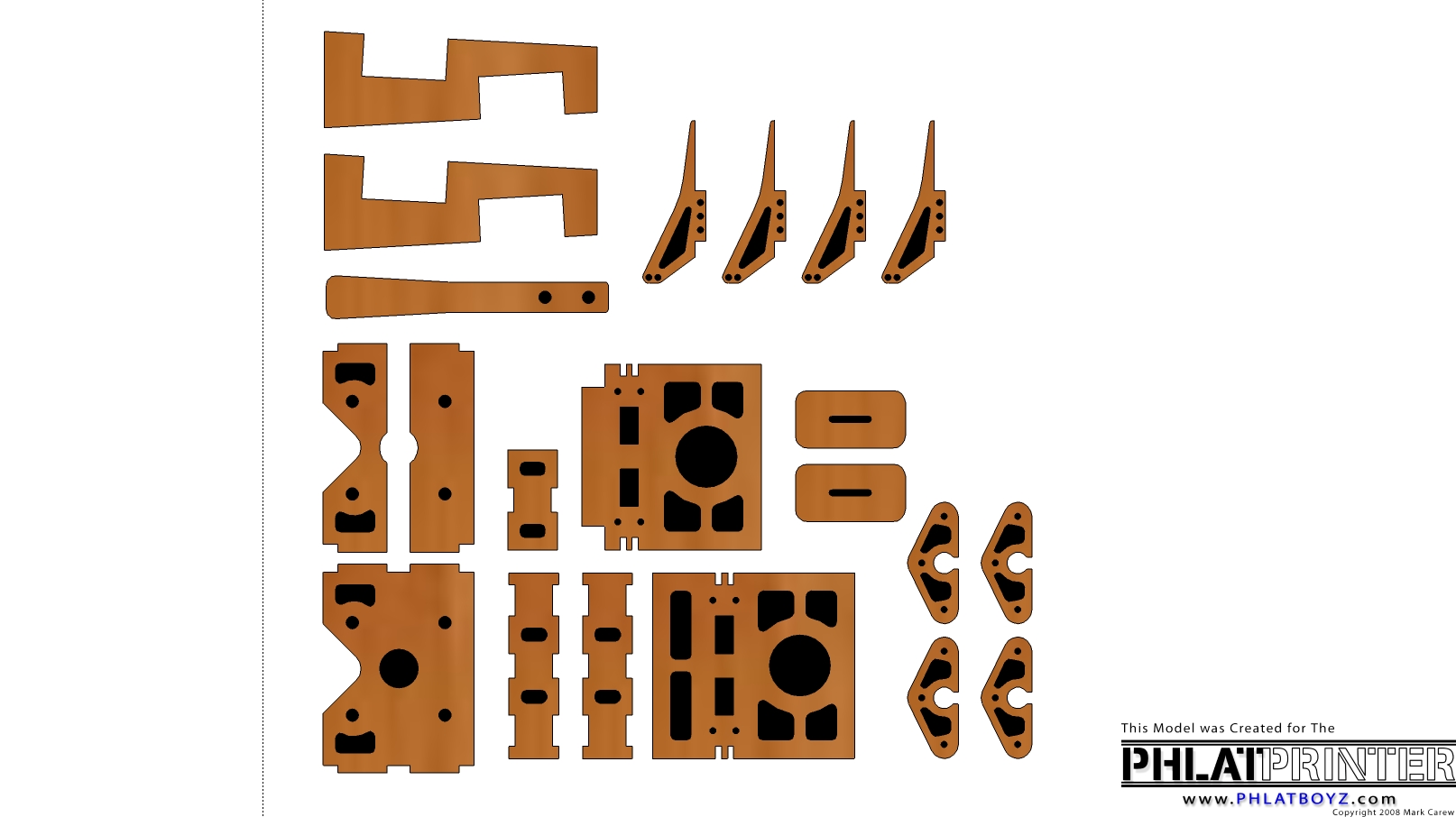

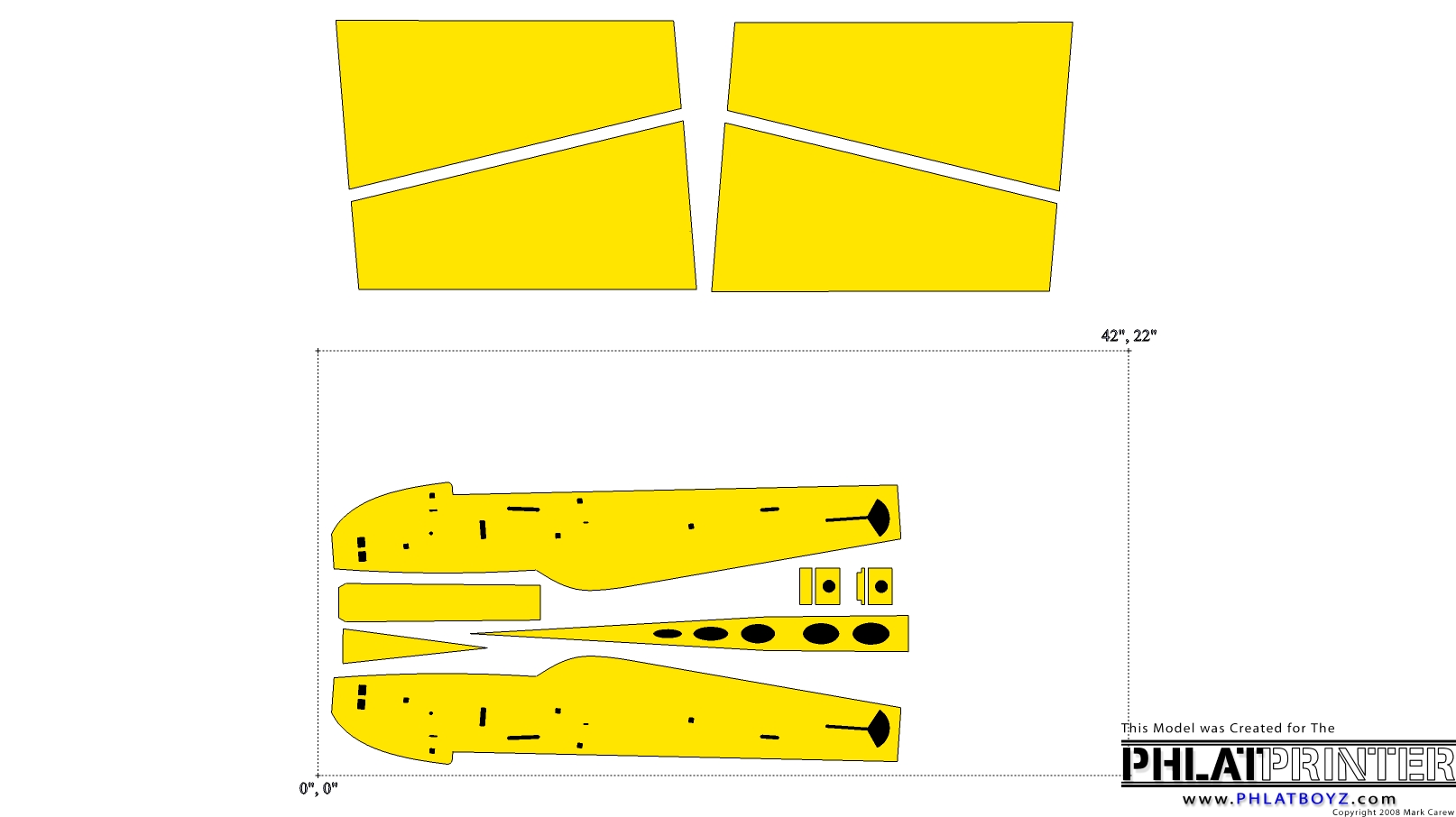

    Mark and Trish Attached files [​IMG] 2mmparts.skp (927.6 KB)Â 6mmparts.skp (1.6 MB)Â [​IMG] [​IMG] Woodparts.skp (587.6 KB)Â

    kram242, Jul 27, 2011
    #11
