Discussion in 'Strange Aircraft' started by rescue911, Dec 16, 2011.

  1. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    The Eagle I am working on .Put the control horns on,push rods,hinges.
    Im sure you SKP pro's can do the rest and get it flying .If anyone finishes it and makes a G-code,let me know if it will fly. :good:Not sure if the G Code is right so you Guy's set the Parameters and everything right. Attached files Eagle 2 Body Re-Scaled.cnc 2.cnc (36 KB)Eagle2-Full.zip (132.1 KB) Eagle2.skp (2.2 MB) My Eagle.skp (1.7 MB)

    rescue911, Dec 16, 2011
    #1
  2. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    That looks awesome Gary!
    Nick job
    Mark and Trish

    kram242, Dec 16, 2011
    #2
  3. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    It is something I just started working on.If you seperate the components ,you will see the notches in the tail section and the wing .I did them to accept 6mm foam.I will be working on the controls for it soon.

    rescue911, Dec 17, 2011
    #3
  4. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Very nice looking bird. I love RC birds! :doubleup:

    7up, Dec 17, 2011
    #4
  5. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    I love this one. Very well done :good:

    thunder hawk, Dec 17, 2011
    #5
  6. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Hows this Gary

    Edited for content

    ewo, Dec 17, 2011
    #6
  7. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Ok Gary.

    40" it is both full and tiled versions
    I did remove the color though so not to eat up as much ink :D

    :twitch:

    Edited for content

    ewo, Dec 17, 2011
    #7
  8. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    Thank you Bruce.I wish I knew how to do that. :doubleup:

    rescue911, Dec 17, 2011
    #8
  9. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    I fixed the PDF's Gary

    ewo, Dec 18, 2011
    #9
  10. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    Thank you Bruce.

    rescue911, Dec 18, 2011
    #10
  11. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    I did a rough fit of the Eagle.The body needs to be scale up more.
    I cut a pattern out of 6mm depron and put the tail section on the body.The body is 13" long and it looks mighty small for the looks.Im thinking 16 to 17" long for the body and scale the bottom of the body just a few inches down.

    rescue911, Dec 18, 2011
    #11
  12. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    Maybe just need to scale the wing down.

    rescue911, Dec 18, 2011
    #12
  13. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I like the longer wings. It will float with the motor off better and scare the heck out of the birds. Better scale the fuse up a little. :D

    TigerPilot, Dec 18, 2011
    #13
  14. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    With a lot of help from EWO(Bruce).I was able to post a zip (PDF) file with the Eagle body scaled up.Thank you Bruce for the help. :doubleup:

    Attached files Eagle 2 Body Re-Scaled.skp (2.4 MB)

    rescue911, Dec 18, 2011
    #14
  15. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Can we have the .skp for the stretched version too, please, pretty please? :D

    TigerPilot, Dec 19, 2011
    #15
  16. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    There you go TigerPilot.Seperate the Components and have fun.

    rescue911, Dec 19, 2011
    #16
  17. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    You're my man, Gary. :doubleup:

    TigerPilot, Dec 19, 2011
    #17
  18. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I'd like to into introduce myself! My name is Yoram and I'm a changeholic.

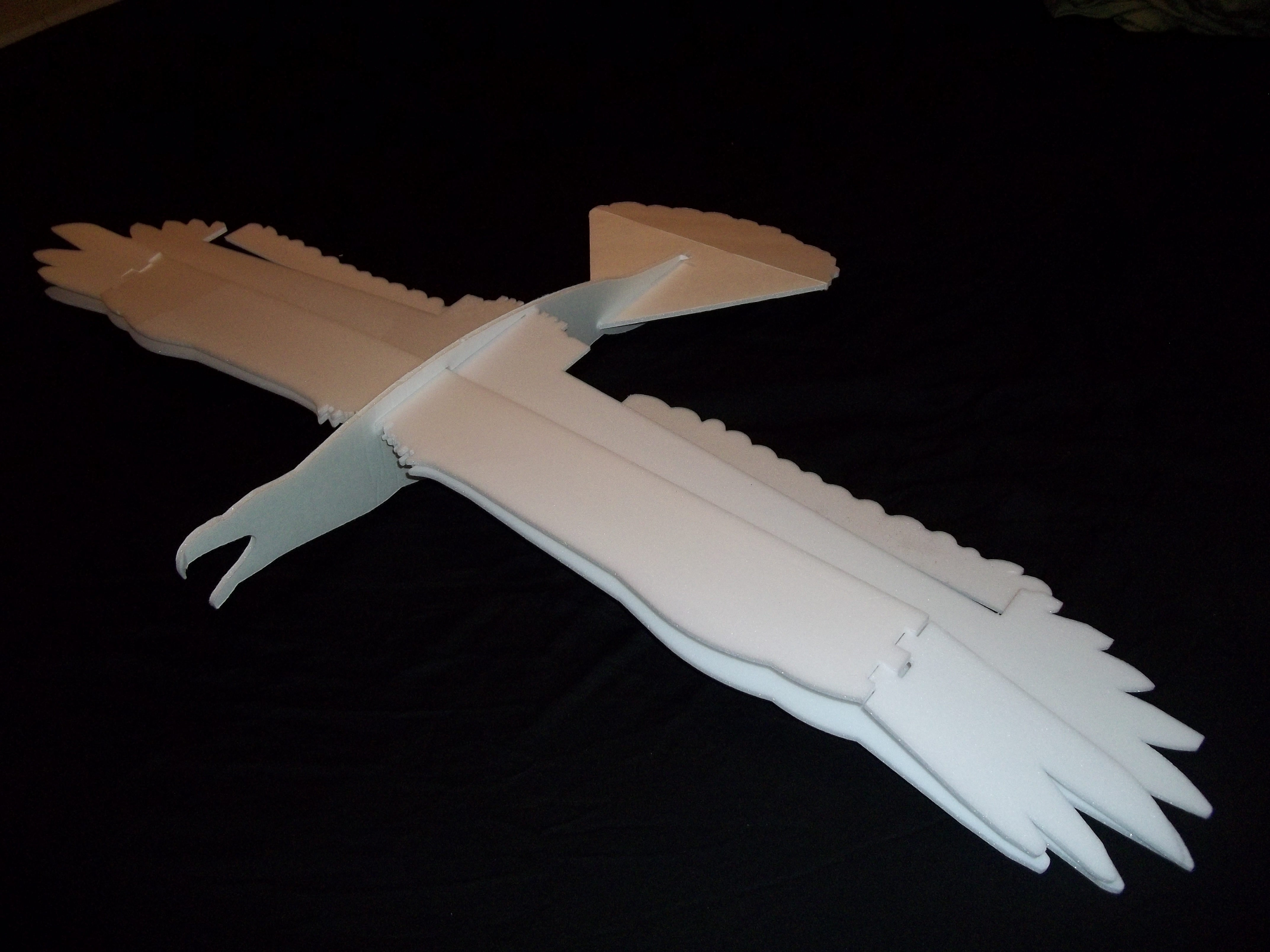

    I just can't help myself. I had to make some changes. I cut the file out of dollar tree foam. For the wings I removed the paper. Without paper they are very flimsy so I made a KF step. In the picture I'm just trying out the fit. Everything fits perfect so I may glue it all tomorrow but than maybe not. All up wight now is 50gr. The only thing missing, besides the electronic, is the carbon spar. Attached files [​IMG]

    TigerPilot, Dec 19, 2011
    #18
  19. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth
    You cut that out fast.Not waisting any time are you.Good job. :good:

    rescue911, Dec 19, 2011
    #19
