need help creating a pocket

Discussion in 'General Talk Forum' started by gerble1000, Nov 22, 2014.

  1. gerble1000

    gerble1000 New Member

    Offline
    Messages:
    8
    Trophy Points:
    3
    Location:
    Plymouth
    hey guys. new here
    need help creating a pocket.
    if i draw a rectangle inside a rectangle i would like to pocket the area inbetween. but the pocketing tool will only select the inner rectangle :(
    iany ideas

  2. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    The easiest way to do it will be using the offset tool and then using the 'center line' tool to mark the lines in the depth that you want.

    The first 'offset' should be half your cutting bit diameter and the rest should be offset by the diameter of the bit. The last offset should be half diameter too.

  3. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    I tried as well and can't get it to work either so it is a bug in the pocket tool or just a limitation of it.
    For now Tigerpilot's suggestion would be the easiest way.

  4. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    upload a skp of what you are trying to do
    If i understand correctly.
    I tried it and had no snag.
    The part you want to pocket needs to be split into 2 parts i think

  5. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida

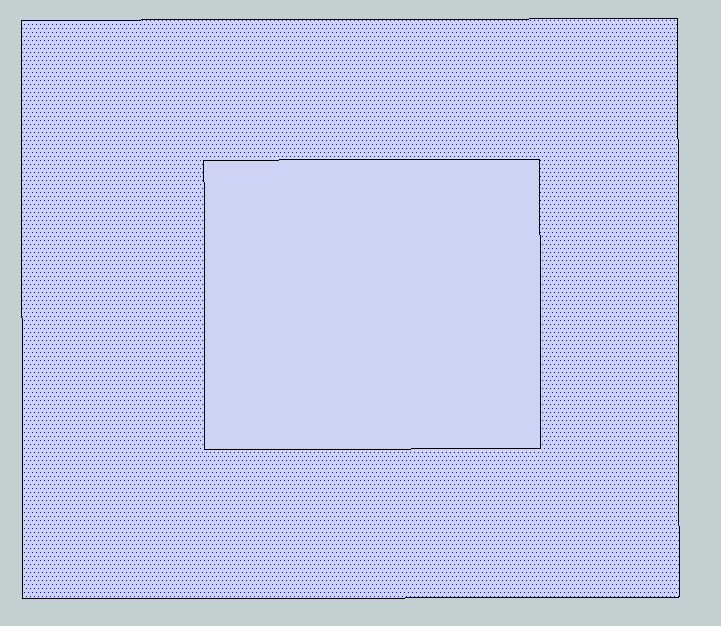

    The highlighted part.


    Attached Files:

    • 1.JPG
      File size:
      158.7 KB
      Views:
      207
  6. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana

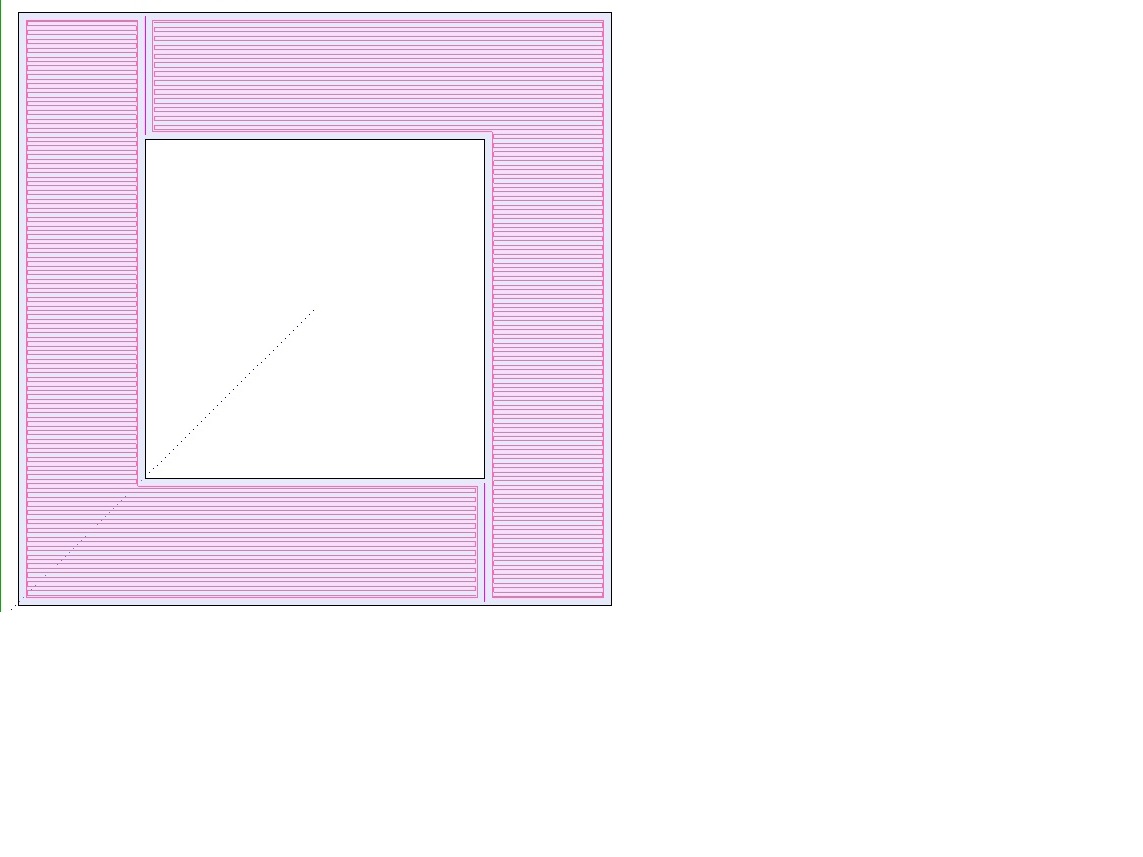

    Kinda hard to get the tool to go around corners HUH ?
    Not really.


    Attached Files:

  7. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Beats the offset tool to death :D

  8. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    That's another way to do it.

  9. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    the pocketing tool can only work on 'regular concave polygons', ie shapes that if you stand in the middle, you can see all the edges and corners.
    how you get around this is split the area into sub areas, possibly doing one manual 'offset' and then split the result. dont forget to remove the split lines before generating Gcode. Also helpful is using the CTRL and SHIFT keys to select either only the outline or only the zigzag, it is in the help and also all over the forums.

    kram242 likes this.
  10. gerble1000

    gerble1000 New Member

    Offline
    Messages:
    8
    Trophy Points:
    3
    Location:
    Plymouth
    thanx guyz, i will have a play. i think some more tutorial videos are needed :)

  11. gerble1000

    gerble1000 New Member

    Offline
    Messages:
    8
    Trophy Points:
    3
    Location:
    Plymouth
    yes i wish to pocket the highlighted part :)

  12. gerble1000

    gerble1000 New Member

    Offline
    Messages:
    8
    Trophy Points:
    3
    Location:
    Plymouth
    thankyou this will work great :)

  13. gerble1000

    gerble1000 New Member

    Offline
    Messages:
    8
    Trophy Points:
    3
    Location:
    Plymouth
    also i think it would be a lot better if i could enter mm or inch into the depth of the pocket as percentage is a little annoying. love the program though as i tried aver 20 different software and i think i have found the holy grail :)

    swarfer likes this.
