Parts not generating from sketchup to cnc usb gcode

Discussion in 'Sketchup Help' started by dcampbell, May 5, 2011.

  1. dcampbell

    dcampbell Member

    Offline
    Messages:
    54
    Trophy Points:
    6
    I am a newbie - this is my 3rd file - I have parts not showing up in the cnc usb g-code.

    I have a Mk III, and am using sketchup 7. Tried rearranging, making the sheet size larger, even redrawing some parts - no luck. All parts are grouped separately in skecthup. New to the terminology here - don't know what a "dogbone" is either from the other older post I read.

    This sheet size is 12 x 24 as I plan to cut these parts on lite ply

  2. navionflyer

    navionflyer New Member

    Offline
    Messages:
    220
    Trophy Points:
    0
    Location:
    Richland, MI
    Post the Sketchup file. I'm sure someone here can help figure it out.

    Tim

  3. dcampbell

    dcampbell Member

    Offline
    Messages:
    54
    Trophy Points:
    6
    Here you go. The long stringers on the top and bottom are missing in the g-code. I'll attach the g-code in the next post Attached files Thriftway_1-16th_ply_cut.skp (633.9 KB)Â

  4. dcampbell

    dcampbell Member

    Offline
    Messages:
    54
    Trophy Points:
    6

  5. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida

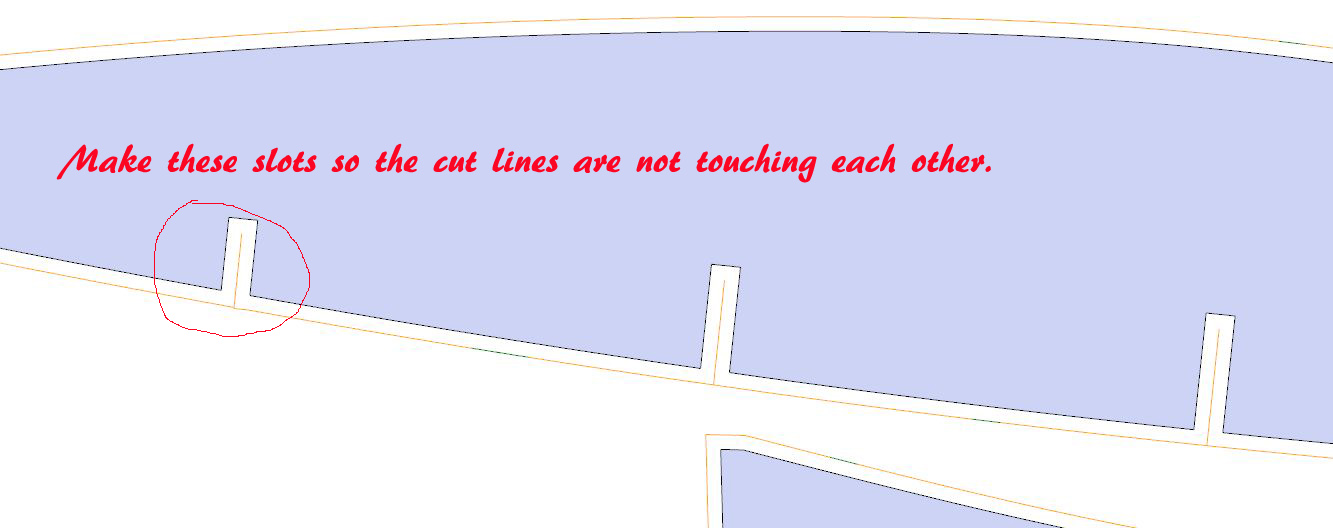

    The reason the gcode is not generating on the parts is because the cut lines are touching each other. If you make the slot a few thousands of an inch bigger they will not touch.

    Hope that helps. Attached files [​IMG]

  6. dcampbell

    dcampbell Member

    Offline
    Messages:
    54
    Trophy Points:
    6
    Thanks! I'll give it a change and see what happens.

  7. dcampbell

    dcampbell Member

    Offline
    Messages:
    54
    Trophy Points:
    6
    That did it! Thanks.
    Now question is can I do a 1/8" slot, or do I need to always make the slot slightly bigger? I'm planning 1/8 lite ply for this kit.

  8. dcampbell

    dcampbell Member

    Offline
    Messages:
    54
    Trophy Points:
    6
    Think I just answered my last question with one possible answer. Use a 1/16" bit instead

  9. dcampbell

    dcampbell Member

    Offline
    Messages:
    54
    Trophy Points:
    6
    Sorry, Need to read better. Just make the slots a few thou wider. Thanks!

  10. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    A 1/16" bit would be the best option in my opinion. I figured you might only have the stock bit at the moment and is why I suggested making the slot just a little bigger.

    Glad you got things working.

  11. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Another way of using the 1/8" bit without making the slot bigger would be to use the fold or centerline tool. The only thing about that is one side will have a cleaner cut than the other.

  12. navionflyer

    navionflyer New Member

    Offline
    Messages:
    220
    Trophy Points:
    0
    Location:
    Richland, MI
    Where can I get a 1/6" bit and wouldn't it be bigger than the 1/8" bit? ;) :lol:

  13. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    :D :lol: :D I guess the same place you could get a 1/5" and a 1/7"

  14. dcampbell

    dcampbell Member

    Offline
    Messages:
    54
    Trophy Points:
    6
    Just looked at my new Bosch Colt router and realized I need special bits just for it? It was recommended for wood cutting. Looks like the collet is 1/4" ID. Got the Phlat attachment for it.

    Also picked up some Dow 1/4 Blucore ff at the local Allied building products for $47 :eek: You get it from behind the desk-at least they bring it to you. Hope it beats the heck out of the Lowes green ff. When I was there the guy who brought it up to me said "yeah, there was a guy in here before who bought this stuff for model airplanes!" I said "me too".

    Cut drawings are good now. Thanks 3dmon. Thinking of maybe light spraymounting some cheaper ff to the back of the 12x24 wood for better grip. Any thoughts on cutting 12x24 1/8 lite ply and 1/16 aircraft?

  15. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    You should be able to get an 1/8" collet for the bosch at Lowes or Home Depot but Precisebits.com have the better ones with practically no runout.

  16. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    hey guys here where I got my collet and its very nice looking
    http://www.gpcollets.com/bsch_cross.html
    Part number BRT-1250 1/8" Price is $15.50
    [​IMG]

    dcampbell you will love the blue core compared to the green guard! As for the wood just tape the edges to a piece of 1/2" green guard (Lowes) and you should be fine. Use multi-pass set to about 1/16" so you will get 1/8" mater cut in about 3 passes depending on what your over cut value is set to. Keep the federates set to about 20-40 (Also remember to check overhead to)
    Have Fun!
    Mark and Trish
