Pocket contour on outer side

Discussion in 'SketchUcam Help' started by risros, Nov 19, 2016.

  1. risros

    risros New Member

    Offline
    Messages:
    3
    Trophy Points:
    1
    Location:
    SLOVENIA

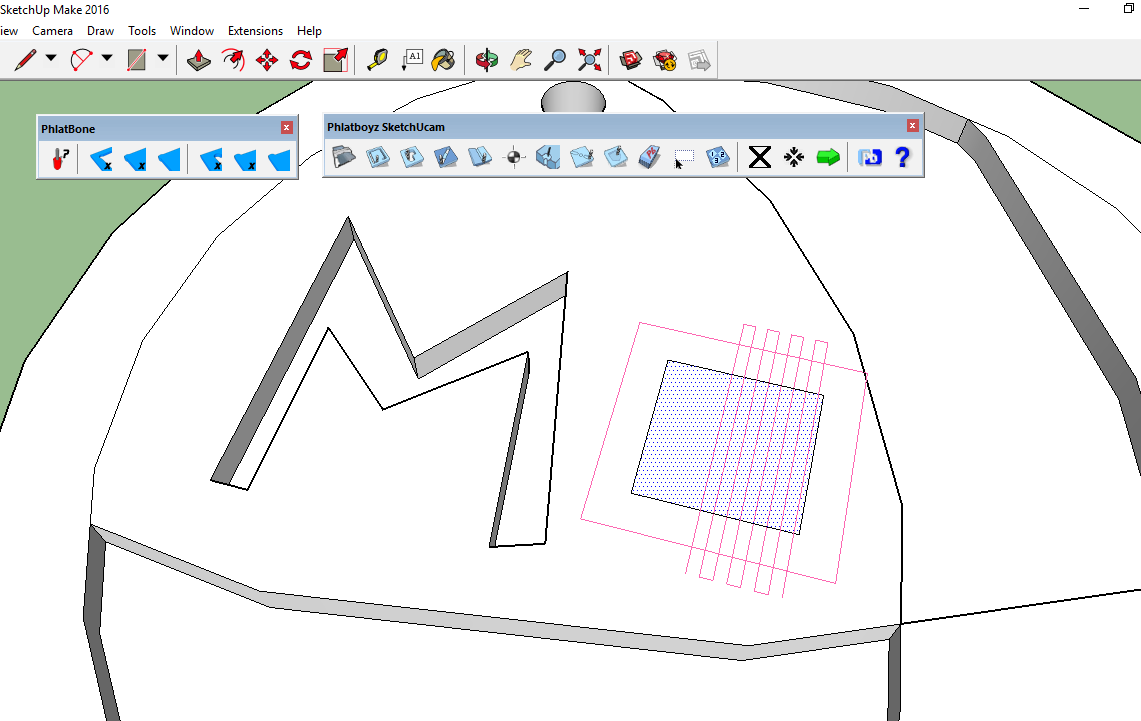

    I'm trying to create a pocket, but the contour is always generated on the outer side of the face.
    On your help video, it generates correctly on the inner side.
    Is this a bug pr am I doing it wrong?

    BTW, noticed that outside and inside cut are also swapped. The outside cut makes the contour on the inner side and vice versa.


    Attached Files:

    Last edited: Nov 19, 2016
  2. risros

    risros New Member

    Offline
    Messages:
    3
    Trophy Points:
    1
    Location:
    SLOVENIA
    Update: seems like a bug. Happens for smaller faces.

  3. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Maybe you have the faces reversed? Try reversing them by right clicking on the face and choosing 'reverse face' or what ever it is called and report back here if it helped.

    swarfer and risros like this.
  4. risros

    risros New Member

    Offline
    Messages:
    3
    Trophy Points:
    1
    Location:
    SLOVENIA
    Wow, that was it! I reversed the faces and it works now as it shuld. Many thanks!

  5. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    You want to watch some video?
    If you do, you will see that the 'blue' side is always up (-:
