Welcome to The Phlatforum PhlatPrinter III

Pressure roller spring mounts (Inspired by rjarois)

Discussion in 'Original Phlatprinter MODIFICATIONS' started by 3DMON, Feb 27, 2009.

Page 1 of 2
  1. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    3DMON, Feb 27, 2009
    #1
  2. Flashsolutions

    Flashsolutions Active Member

    Offline
    Messages:
    1,123
    Trophy Points:
    38
    Location:
    Leesburg, Florida
    COOL! Thanks for posting this.

    Flashsolutions, Feb 27, 2009
    #2
  3. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    very cool shawn....thats what i wanted to make from the start. when my machine is back up runnin, i think i will cut me a nice wood one. randy.

    rjarois, Feb 28, 2009
    #3
  4. 66tbird

    66tbird Moderator Staff Member

    Offline
    Messages:
    431
    Trophy Points:
    18
    Location:
    Deserts of Arizona
    Nice, mind if I offer it through my SmallPlyParts cnc service? I had just drawn up the same basic thing.

    66tbird, Mar 1, 2009
    #4
  5. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Fine with me.

    3DMON, Mar 1, 2009
    #5
  6. 66tbird

    66tbird Moderator Staff Member

    Offline
    Messages:
    431
    Trophy Points:
    18
    Location:
    Deserts of Arizona
    Thanks, I added it to the offerings on the BST

    66tbird, Mar 1, 2009
    #6
  7. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida

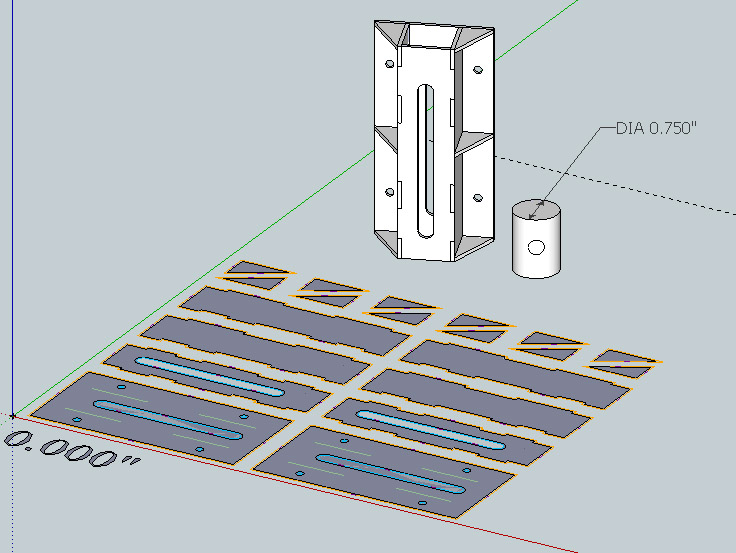

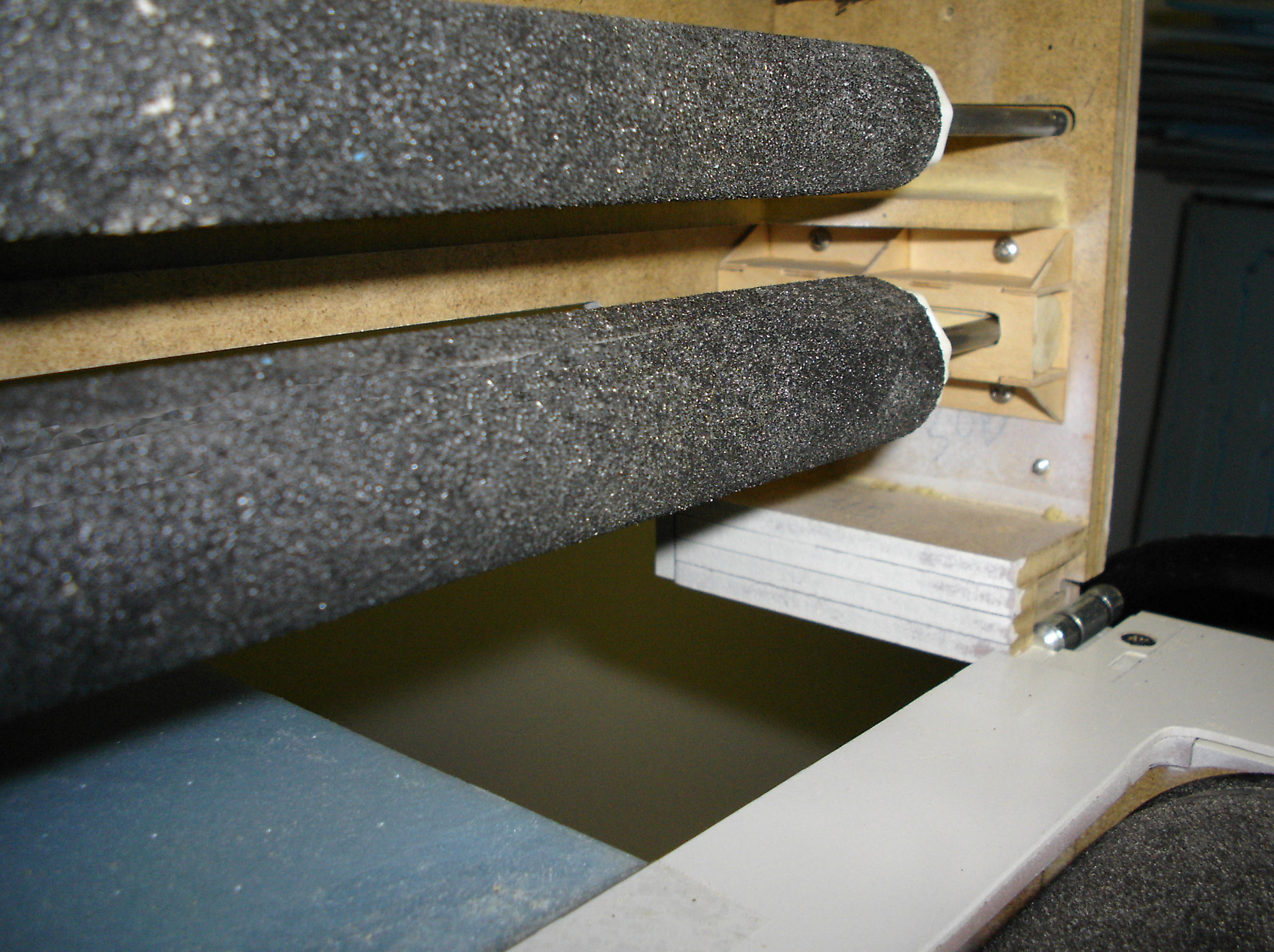

    I cut and installed my mounts today. I had to tweak them a little to make them work right without any binding with the original slots. I also added triangles to keep things square and add strength.
    I edited my first post with the new Sketchup and gcode files with the additions and tweaks I had to make.
    They work great. Attached files [​IMG]

    3DMON, Mar 2, 2009
    #7
  8. rayclark

    rayclark Member

    Offline
    Messages:
    134
    Trophy Points:
    18
    Location:
    Center of Michigan
    What is BST?

    RC

    rayclark, Mar 2, 2009
    #8
  9. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    nice job shawn...yea they work great. tried mine lastnite. hey did you use the cabinet latches on it, of do something different?. randy.

    rjarois, Mar 3, 2009
    #9
  10. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan

    rjarois, Mar 3, 2009
    #10
  11. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Cut files are on post one, been there the whole time.

    3DMON, Mar 3, 2009
    #11
  12. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    You guys are amazing thanks 3DMON!
    Mark

    kram242, Mar 3, 2009
    #12
  13. rayclark

    rayclark Member

    Offline
    Messages:
    134
    Trophy Points:
    18
    Location:
    Center of Michigan
    Yeah I already downloaded the the cut files... I just didn't know what BST meant. Thanks for telling me.

    Now I have to find some 1/16 plywood. The hobby shop has some but it is only 12" long. Not long enough to feed through the printer. :(

    RC

    rayclark, Mar 3, 2009
    #13
  14. Flashsolutions

    Flashsolutions Active Member

    Offline
    Messages:
    1,123
    Trophy Points:
    38
    Location:
    Leesburg, Florida
    You can always tape some foam or posterboard to the plywood to extend the length for feeding....


    Flashsolutions, Mar 3, 2009
    #14
  15. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    shawn, i was looking at your photo agian, and i noticed you didnt install the bushings right, unless you like it that way. when i first built it i was going to do square bushings. but decited round would not bind, as it piviots like a indepent suspension....if you did that on purpose, well disregard this post...peace, randy.
    sleeve orientation
    [​IMG]

    rjarois, Mar 3, 2009
    #15
  16. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    I used a 3/4" dowel. I put it in perpendicular to your red cylinder in your pic. It works perfect, no binding whatsoever.
    Thanks,
    Shaun

    3DMON, Mar 3, 2009
    #16
  17. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    ok, cool shawn...i just wanted you to know what i did. peace, randy.

    rjarois, Mar 3, 2009
    #17
  18. Thewz

    Thewz Moderator

    Offline
    Messages:
    269
    Trophy Points:
    0
    Location:
    Temecula, CA
    What about the front roller? This is where I see the most good for this mod. If I press down on the roller while cutting it eliminates the wave issues (high and low points....hate it when I have to dig foam out by hand to get a spar in place....). It will also help when cutting ply or balsa....mine tends to push the material up just before it plunges through....

    Thewz, Mar 17, 2009
    #18
  19. rayclark

    rayclark Member

    Offline
    Messages:
    134
    Trophy Points:
    18
    Location:
    Center of Michigan
    I was thinking the same thing. In fact I posted a simialr statement in the other thread. I went ahead and did it. It does seem to help with wavy foam.

    RC

    rayclark, Mar 17, 2009
    #19
  20. Thewz

    Thewz Moderator

    Offline
    Messages:
    269
    Trophy Points:
    0
    Location:
    Temecula, CA
    Cool! I'm going to give it a try too....

    I did find that I need to add the adjustable fence in order to cut the 1/16 ply....the bit bushes the ply around rather than just cutting it....


    Thewz, Mar 20, 2009
    #20
  21. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    Shaun, i was wondering if you ever installed the top lid latches....and was wondering what you came up with??.....also some were down the road, i think i am gonna do the dennis roller lead bb-shot mod, and your fence mod. i tried to cut some wood lastweek, and had it move on me....randy.

    rjarois, Apr 2, 2009
    #21
  22. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    I still haven't got around to putting the latches on yet LOL. I got the same types as you, it's all home depot had. If the lid raises up on me I've just been sticking some weight up there :roll: .
    Make sure you put masking tape along the edges. It shouldn't move then. I don't have any problems with wood moving anymore.

    3DMON, Apr 2, 2009
    #22
  23. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    3DMON, come on man....quit being so lazy and install them latches....only took me like 15 mins. :p randy.

    rjarois, Apr 2, 2009
    #23
  24. rayclark

    rayclark Member

    Offline
    Messages:
    134
    Trophy Points:
    18
    Location:
    Center of Michigan
    I did the spring mod to the front and back roller but have not found it necessary to instal the latches ...yet. I have not had an issue with the lid lifting so far. Maybe the springs I'm using are lighter. They seem to work great at keeping the foam down though.

    Ray

    rayclark, Apr 2, 2009
    #24
  25. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    cool ray...glad its working for you.. i must have stronger springs in mine. randy.

    rjarois, Apr 2, 2009
    #25
