Rotozip RZ1 Attachment

Discussion in 'Phlatprinter 3 Attachments' started by 3DMON, Jan 25, 2011.

  1. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Hey Guys!

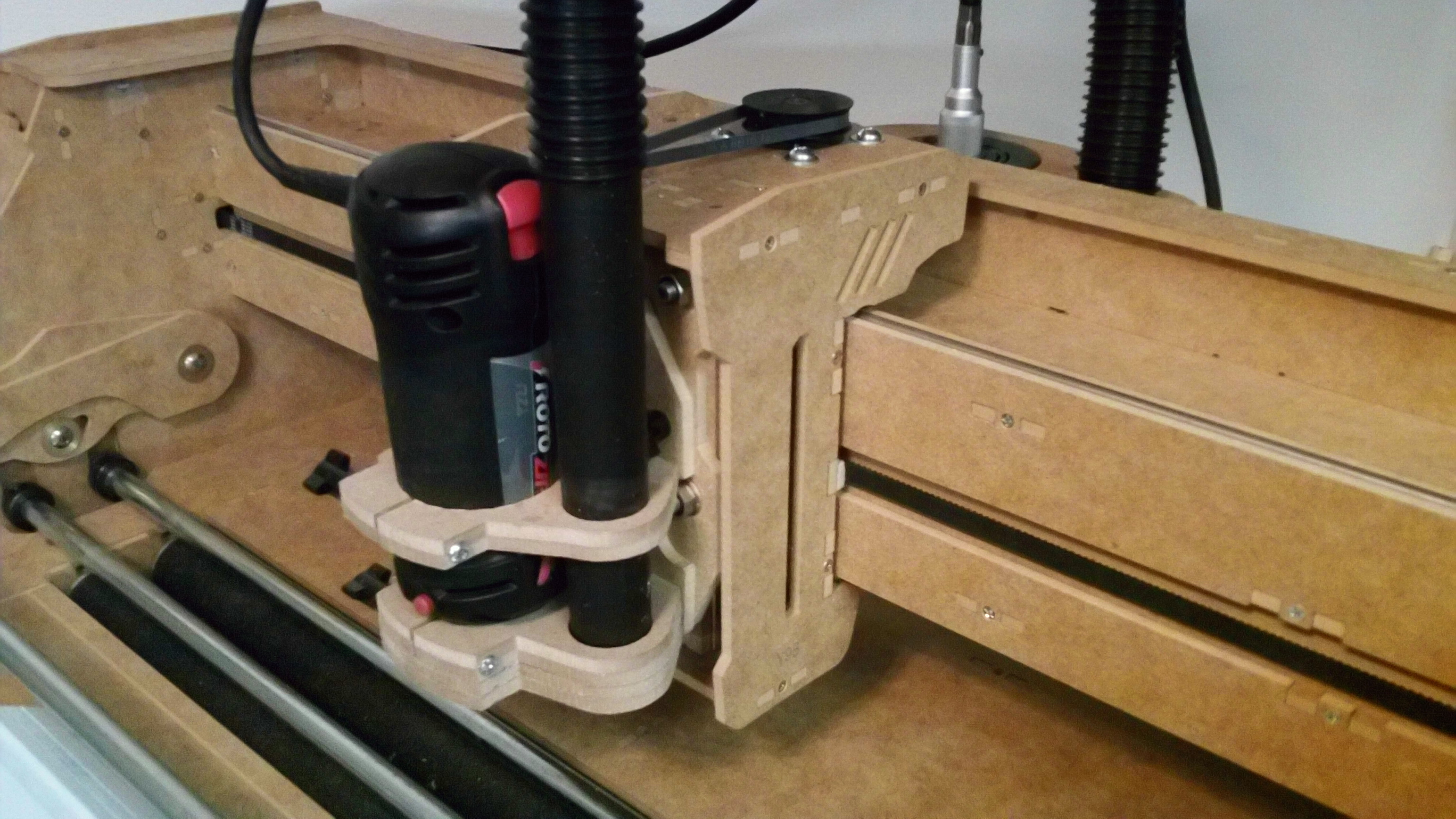

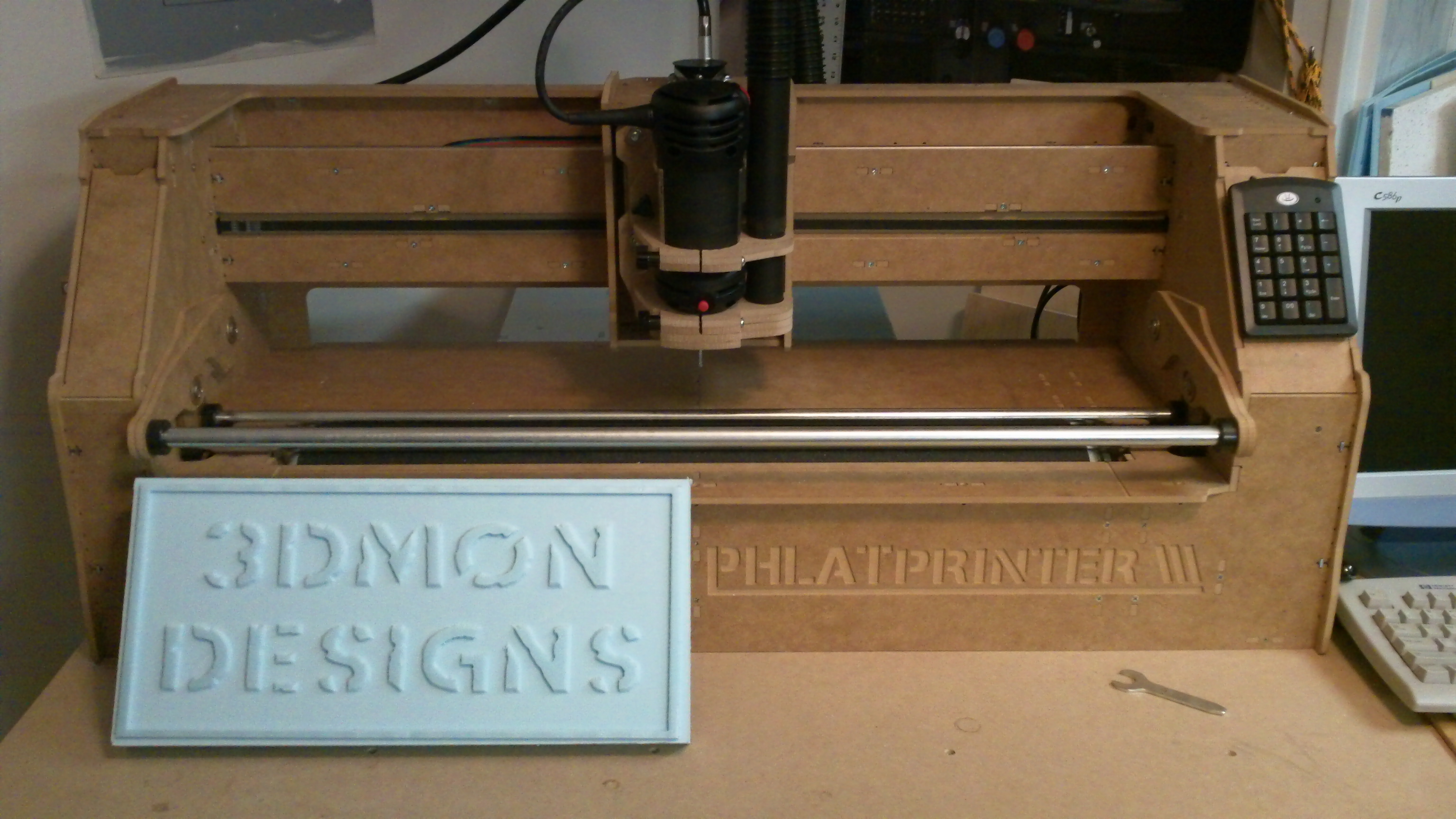

    Here are the files for a Rotozip RZ1 attachment. All the parts fit very well and should not require much sanding if any. I kept the layout the same as the original spindle attachment to allow the vacuum to still be around the bit.

    As Mark has stated, this router is no toy and with the right bit will rip your fingers to shreds so please be careful and do not think you can predict the machines next move. It will surprise you every time. In other words please don't reach in to try and remove a part that is sticking up, keep a stick close by and use that as a pusher. The best thing to so is have a spoiler (foam) under your material so that you do not get little chunks that want to stop the X in between the rollers.
    Guys please be careful and USE AT YOUR OWN RISK
    .

    You will need (2) 3" long 8-32 bolts to clamp the Rotozip in place.

    The pieces are a little tricky to put together as the Rotozip can't just slide into place after the parts have been attached due to the taper of the Rotozip. What I did was kind of put the parts onto the Rotozip and then put the back plate on the pieces.

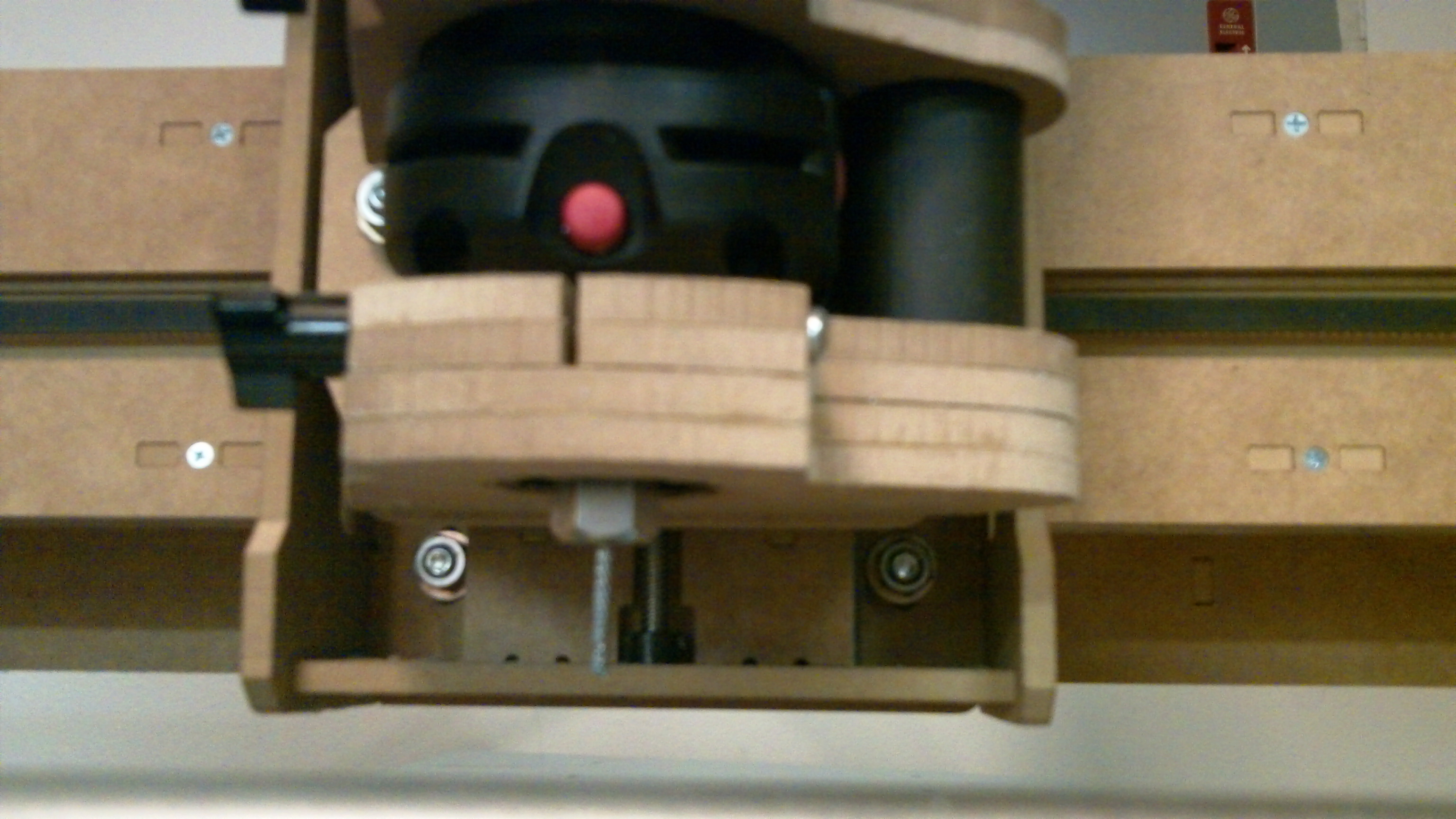

    One more thing I did was trim the first potion of the Rotozip plastic back to the line(~1/4") where the collet is to allow more clearance in the vacuum chamber.







    Attached files [​IMG] [​IMG] [​IMG] [​IMG] Rotozip attachment.cnc (982 KB)Â [​IMG] Rotozip attachment.skp (5.5 MB)Â

  2. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    :good: Shaun, Thank you for sharing another cool attachment for the the Phlatprinter ! :friends:
    Mark and Trish

  3. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    shaun, looks sweet bud!! good work, randy..

  4. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I think the router that I have is the RZ1. I'll have to check it out once I move to my new house. If it is not, it's very similar and I'll need only to make a little changes. Thanks for doing most of the work for me, Shaun. :doubleup:

  5. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Shawn , I dont have and cant easily get 1/4" mdf so im cutting the backplate out of 1/4" Birch ply right now :) Thanks for the files. :D

    Ok Now its done cutting


    Well then....... Not to brag but LOOKY HERE :dance3:
    The small part is from 1/4" Basswood just to check ! :D Attached files [​IMG] [​IMG] [​IMG]

  6. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    Thank you 3DMON,

    I have a Rotozip tool. This will help me work with harder materials.

    :doubleup: :doubleup: :doubleup: THANK YOU!! :doubleup: :doubleup: :doubleup:

  7. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Glad you guys are finding it as useful as me.

    Bruce that's turning out great. That birch should work great.

  8. theothers

    theothers Administrator Staff Member

    Offline
    Messages:
    761
    Trophy Points:
    18
    Location:
    New Jersey
    Hey guyz. You should all have 8 short mystery screws that were included with your Kit. They were intended to allow you to store up to two spare Phlatprinter attachments. I call them mystery because I don't recall mentioning them in the build log video but we may have. In any event, just thought I would mention it because it looks like you guyz are going to need them :D

  9. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    I didnt get no extra screws?
    Oh well that dont matter :)


    Anyways , i cut the vaccume cover out of Basswood, again just to test...
    Hummm. Something seams to be missing in my eye . can you see it too?
    or is it just me? it has been a really long day here ! :think: Attached files [​IMG]

  10. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Nothing is missing. Look again. :D It turned out nice though.

  11. kyyu

    kyyu Active Member

    Offline
    Messages:
    1,183
    Trophy Points:
    36
    Location:
    Maryland
    Shaun, how did you do that pocket, manually?

  12. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Yep. I use the inside cut tool to get the offsets right but then I have to phlatten those lines to get rid of the blue lines. After that I weld each offset line and make sure it has a face on it (this seems important to make sure the bit follows the path of the line). A little work but the results are nice. I would love to see a pocket plugin that uses the offset algorithm of the inside cut tool. For that matter I'd like to see Sketchup use the inside cut tools offset algorithm for their offset tool as theirs stinks .

  13. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    I got the parts cut and assembeled.
    I decided to keep and use the basswood parts as there not stress related parts.

    And my trusty old Dust shoe fits the attatchment too! :dance3:

    Let the wood chips fly :good: Attached files [​IMG]

  14. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Looks like you found what was missing....the rest of the parts. :D
    It turned out nice. :good:

    A little tip. I found if you put the bottom thumb screws in the holes before attaching it, it will make things easier for ya. Also the vacuum port will work a lot better if you cut the front section of the Rotozip off to the line.

  15. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Well Thanks again Shawn ....

    I thought i would post a picture or 2 of a 3d cut i did tonight useing your rotozip attachment.
    It worked and cut right at 5/16" deep in 1/2" white pine.
    I used jovians 3d plugin to generate the code for a 3d mesh file i picked up from somewhere


    Only problem is with the 3d file itself , or im not using the right bit as the file finished with some really bad raged edges. Now how can i clean this up ? you can see all the plunges of the 1/16 " bit .......


    Its gonna work for me just great :doubleup: Attached files [​IMG] [​IMG]

  16. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Nice Bruce!
    I just bought a nice piece of pine to do some carving as well. I just haven't figured out what I want to carve in it yet.
    As far as the plunges showing. That is where a pencil line cleanup option would help in this situation. Meshcam has this option. It is where the bit follows the perimeter to clean up the jagged edges.
    The only other thing would be to do a finer step over percentage, but those lines will still show up a little.

  17. pluto26

    pluto26 New Member

    Offline
    Messages:
    3
    Trophy Points:
    0
    Hey, nice attachment I just cut one out.

    does anyone know the sizes of the mystery screws and nuts.

    I seems to have misplaced my extras :-(

    thanks

  18. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    8-32 x 3"
    First post has been edited to reflect this now.

  19. pluto26

    pluto26 New Member

    Offline
    Messages:
    3
    Trophy Points:
    0
    I really was looking for the siz eof the 6 little screws and square nutes

  20. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    They are #6 machine screws
