Welcome to The Phlatforum PhlatPrinter III

Sharpie Mod

Discussion in 'Original Phlatprinter MODIFICATIONS' started by kram242, Jan 28, 2009.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Here is a little mod I tried the other night.
    I wanted to be able to add a sharpie to the PP and draw with it.
    It had mix results because of the unevenness of my drive roller. I later added a rubber band to keep it always springing up to the material and that worked :D

    Now all we need is the ability to pocket and it would fill in areas.

    I think it was pressing up really hard on the material because I can feel the dent it left behind so it came out sloppy but you get the idea.
    You have to be careful because it will want to press right into the material
    Here are the files for the cutout. I used 1/16" plywood and cut it at around 5 to 3 Inches per Min. Using the 1/16th bit that Evil-Tunes gave me. You can read more about it here
    viewtopic.php?f=77&t=261&start=0

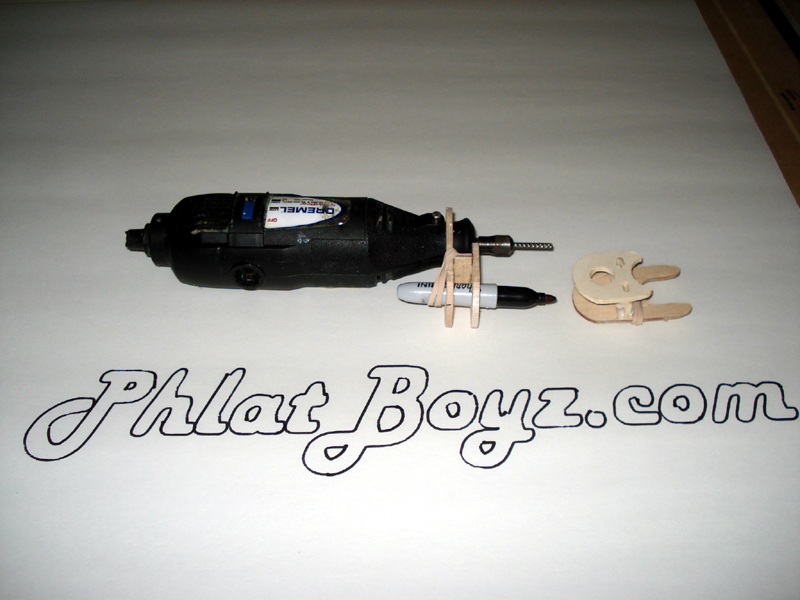

    Here are the files the sharpie holder and the Phlatboyz text for drawing(mainly to show the setup with the PhlatscripT) Also included is the gcode for that file.



    As for the graphics in the PhlatscripT parameters I used 1/16th bit width and 1/16th material thickness and the thickness may have to be turned down as well maybe to 1/32? So that it does not press so hard on the material.




    Its not perfect but its getting there :D
    Maybe you guys have some better ideas for this type of Mod?
    Mark Attached files [​IMG] [​IMG] SharpieMod.wmv (20.6 MB)Â Sharpieholder.zip (394.4 KB)Â

    kram242, Jan 28, 2009
    #1
  2. rayclark

    rayclark Member

    Offline
    Messages:
    134
    Trophy Points:
    18
    Location:
    Center of Michigan
    That's very cool Mark.

    rayclark, Jan 28, 2009
    #2
  3. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    It would seem like you need a controlled 1/8" of spring under the pen, to push it up AND provide a springy cushion. Then the writing program would (nominally) move Z up by 1/16" for writing and drawing. That would allow for +/- 1/16" of BlueCor waviness before the pen would come off of, or sink into, the surface of the foam.
    And Ray is right - That is very cool Mark. :geek:

    Anonymous, Jan 28, 2009
    #3
  4. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Nice mod!
    I think a spring like dorsal said would help alot.
    I might have to play with this one.

    3DMON, Jan 28, 2009
    #4
  5. Edge5foamy

    Edge5foamy New Member

    Offline
    Messages:
    4
    Trophy Points:
    0
    Nice!

    Edge5foamy, Jan 28, 2009
    #5
  6. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Thanks you guys I wonder if just a tube mounted to the z gantry with a spring inside at the bottom would work? Looking forward to it 3DMON
    Mark

    kram242, Jan 29, 2009
    #6
  7. rayclark

    rayclark Member

    Offline
    Messages:
    134
    Trophy Points:
    18
    Location:
    Center of Michigan
    That's exactly what I was thinking about. Certainly seems like that would work

    rayclark, Jan 29, 2009
    #7
  8. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Anonymous, Feb 13, 2009
    #8
  9. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    That is pretty much what I was thinking of.
    I bought some springs to try, I just haven't got around to it yet.

    3DMON, Feb 13, 2009
    #9
  10. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    It seems like the most logical way to go about it and it should work fine.
    I just wish we could find a very short spring loaded marker with 1/8th inch tail we could slide right into the dremel :D
    Oh yeah it has to be super cheap too! :)
    Mark

    kram242, Feb 13, 2009
