SketchUCAM 3D The Phlatprinter !

Discussion in 'Projects on your Phlatprinter 3' started by kram242, Nov 21, 2010.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Ok guys, your not going to believe this but I just cut a 3D file from the Phlatscript on the Phlatprinter ! :mrgreen:
    I am so excited I can hardly stand it! This is HUGE!
    I stand here looking upon what I believe is the first 3D file to be milled from the Phlatscript. My mind is flooded with ideas. I am truly humbled and honored to be a part of this fantastic project with all of you and it continues to surprises me everyday. This ROCKS! :D
    Jovian here on the Phlatforum has been working on this and in a matter of days it seems he had something to show us. We as you guys know have been so busy with the packing of the Phlatprinter 's we have not had the time to explore what he had done so far. I was really anxious about trying this out and could not wait to see what he had. So I woke up early this morning with the intent to check it out.
    Well, I have to tell you guys I was blown away! It works!
    We had been out of the loop for so long (which really is not that long around here :) ) Kwok had to help me get up and running so that I could try it out. Thank you Kwok, also wanted to mention that Kwok has been working with Jovian to help him beta test while he was trying to get it right.
    You guys ROCK!!!! Its awesome to see team work in action produce such awesome results.

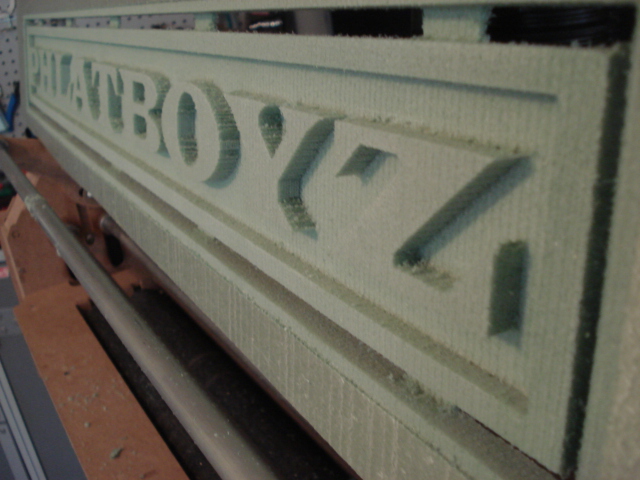

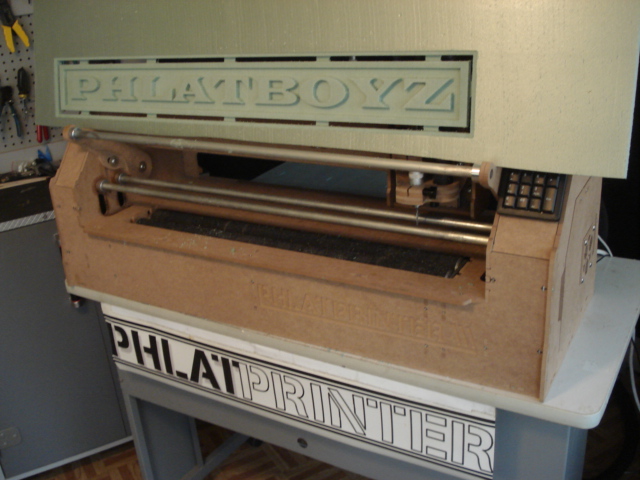

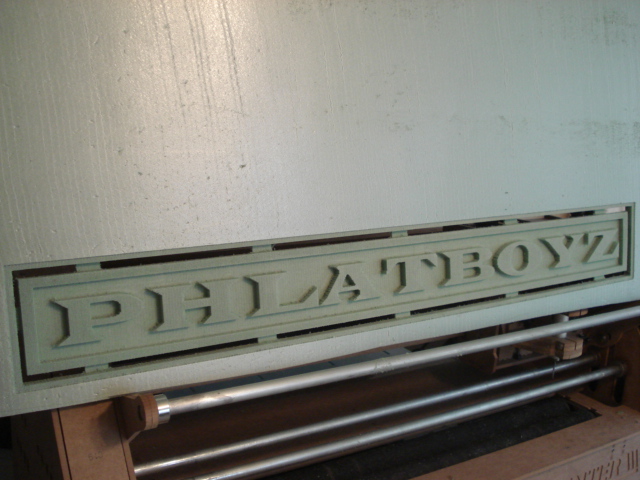

    I have a few pictures of the plaque that Jovian made for a test. AWESOME!!!! is all I can say
    Way to go Jovian you have started a whole new begining and opened doors to an amazing future for us all. I know there is still a lot of work to do to incorporate it into the Phlatscript but its well on its way.
    Now that the Phlatscript can do 3D and will be no longer limited to flat objects in Sketchup, I think its safe to say we can change the name to SketchUCAM as we move forward!
    This is going to be so unreal guys I can't wait to start making molds right in Sketchup!
    Thank you all
    Mark and Trish Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  2. kyyu

    kyyu Active Member

    Offline
    Messages:
    1,183
    Trophy Points:
    36
    Location:
    Maryland
    Cool! Looks good. :) Mark, how long did that take to cut?

  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    52 min @ 100 ipm :D
    I had to do a few things to get it to work right, but it is really close! I will tell you guys my findings tonight when I get in from working out here in the PhlatShop.
    Mark and Trish

  4. blindflight

    blindflight Moderator Staff Member

    Offline
    Messages:
    361
    Trophy Points:
    16
    Location:
    CA
    Hey Mark,
    That's pretty KOOL!!!...Really sharp.. :D

  5. Darwin

    Darwin Member

    Offline
    Messages:
    44
    Trophy Points:
    6
    Continuous improvement and addition of capabilities are the ingredients to a long and successful product run. Congrats!

  6. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    WOW! :D

  7. Norlas

    Norlas New Member

    Offline
    Messages:
    20
    Trophy Points:
    1
    Location:
    Colorado
    I think 7up said it very well.

    WOW!

    Great work to everyone envolved,

  8. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Sorry , But i dont see 3D. I see simple milling ? :shock:

  9. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

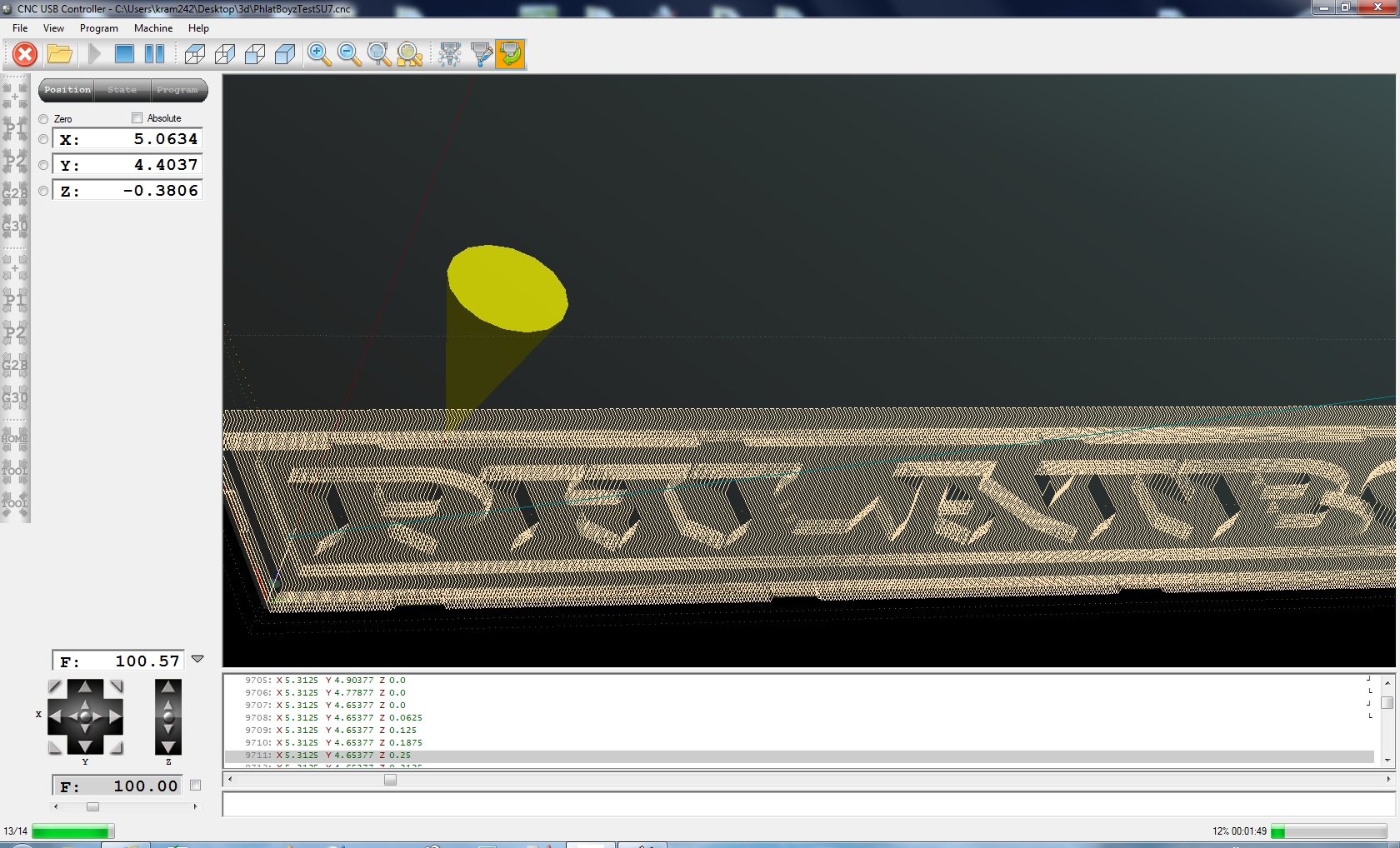

    Picture #6 shows that the tool path is true 3D :D
    I should have used an example I had of a dome, but I was partial to this one :)

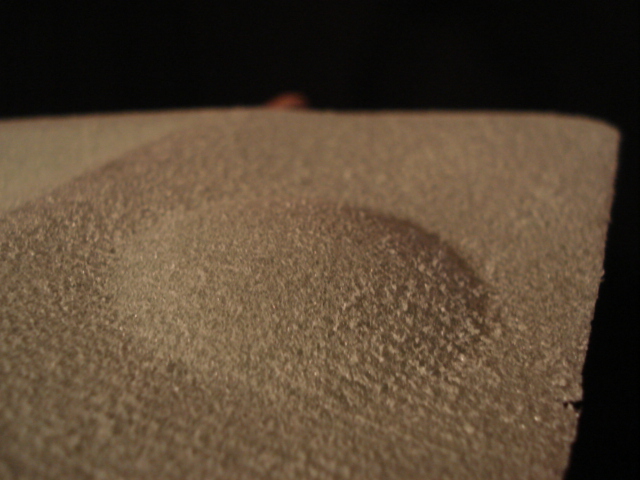

    I made a smiley with dome shape eyes and it worked in the code! :D
    Mark and Trish

  10. janbjorn

    janbjorn Member

    Offline
    Messages:
    130
    Trophy Points:
    18
    Location:
    Sweden
    This is seriously awesome! Great work! When will this be released? I can't wait to give it a go!

  11. jovian

    jovian Member

    Offline
    Messages:
    208
    Trophy Points:
    16
    Sweet, I can't tell you guys how happy that I am able to contribute to the effort here. I am sure everyone will put this to great and imaginative uses. I am also quite happy that the first cut with the script was a success given it was my first thing ever using Ruby, sketchup api, and g code. Things almost never go that smoothly. My god I am so happy almost literally bouncing up and down.

  12. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Same here my brother! :D

  13. xtremeRCpilot

    xtremeRCpilot Member

    Offline
    Messages:
    736
    Trophy Points:
    16
    Location:
    Cleveland, Ohio
    This is amazing guys!! My mind is already churning with ideas :D

    Thanks
    John

  14. kyyu

    kyyu Active Member

    Offline
    Messages:
    1,183
    Trophy Points:
    36
    Location:
    Maryland
    This should make it clear.

    Attached files [​IMG]

  15. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38
    Man this stuff just keeps getting better and better, and.... Amazing work guys!!

  16. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Yes!!!!!
    This is so awesome!
    I can't wait to try this out.

    Thank you Jovian!

  17. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    I got to make a sign like that. :cool:

  18. jay1st

    jay1st New Member

    Offline
    Messages:
    6
    Trophy Points:
    0
    That'll be cool for making wing molds !
    Exactly why I want a Phlat !

  19. 66tbird

    66tbird Moderator Staff Member

    Offline
    Messages:
    431
    Trophy Points:
    18
    Location:
    Deserts of Arizona
    Wing molds was my first thought also. Look forward to the release.

  20. firetrappe

    firetrappe Member

    Offline
    Messages:
    192
    Trophy Points:
    16
    Location:
    England UK
    I'm with Buk on this one....WOW!

    I think we all knew that someday this might be possible but I didn't expect it so soon! :shock:

    Jovian, for your first attempt at coding in Ruby this is truly unbelievable, I don't know what else to say. I've been struggling with 2D pockets for 2 years and now we've got true 2.5D on the horizon.

    I think I need to go and lie down :lol:

    Si.

  21. topflight36

    topflight36 Member

    Offline
    Messages:
    32
    Trophy Points:
    6
    Very Nice This will make molding work for some projects I want to a like easier. :D Now I wont have to cut layers and shape.

  22. leggazoid

    leggazoid New Member

    Offline
    Messages:
    1
    Trophy Points:
    0
    How much code is in the file compared to the 2d script? Is it a lot more complex?
    Thank you jovian for your contribution.

  23. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    OOOooooo! I want one too! :mrgreen:

  24. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

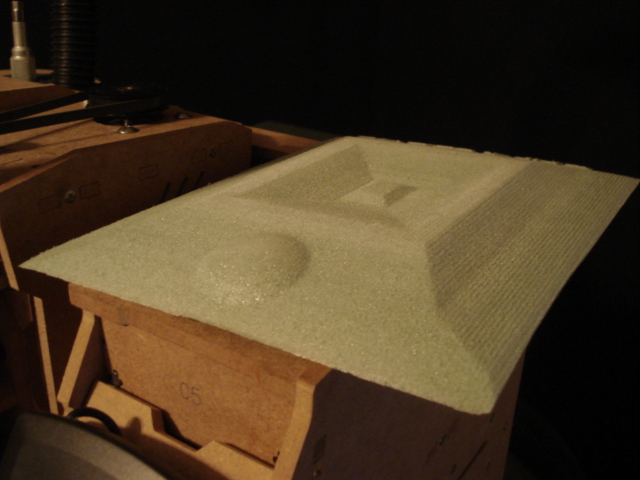

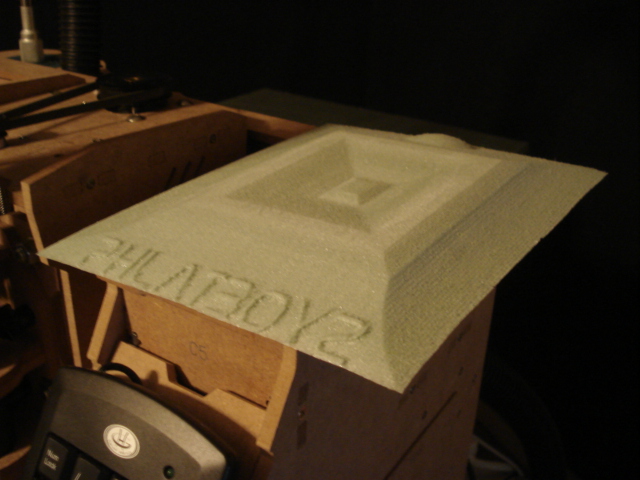

    Hi guys, just tried some things out tonight and ran into a few errors but I was able to get this design done to show you more of the 3D aspect.

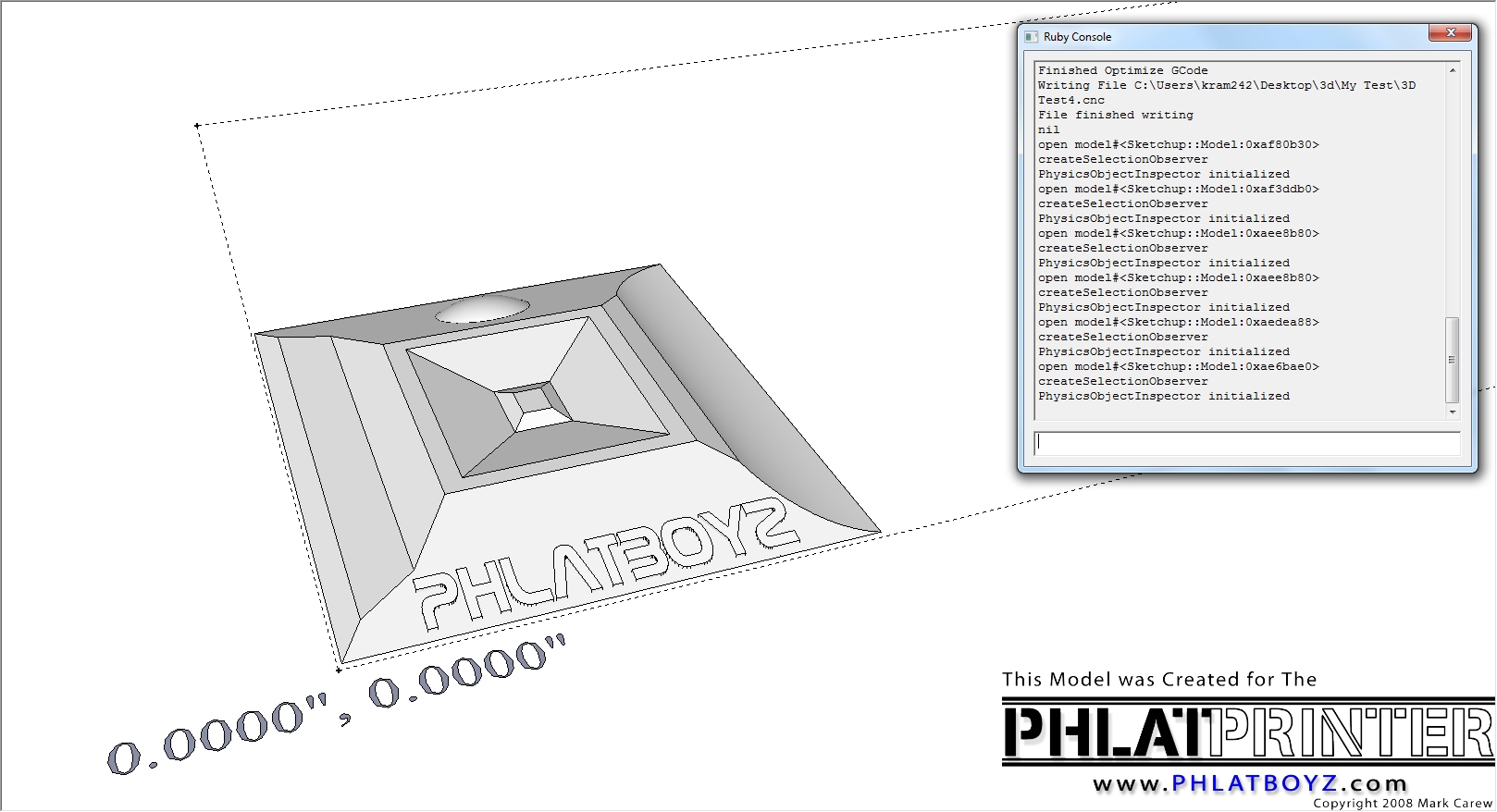

    Right now the script is setup to only run through the Ruby API of Sketchup so is really only in testing mode, there is still work to get it integrated into the Phlatscript completely. We are planning a few different ways we think this would work and want to talk these over with Kwok and Jovian to see if they think it is doable :)
