Sloroller

Discussion in 'Double Wing Aircraft Plans' started by sdparkflyers, Mar 12, 2010.

  1. sdparkflyers

    sdparkflyers New Member

    Offline
    Messages:
    77
    Trophy Points:
    0
    Location:
    San Diego
    The New Sloroll biplane is based on the World famous Slofly28 made famous by Sloper steve and Gene bond, for years now I had started this project only to be side track with other builds and projects, I decided yesterday to revisit my project And the Sloroll was invented.

    I came up with my Name after testing here indoor and the fact that she rolls slow and smooth.

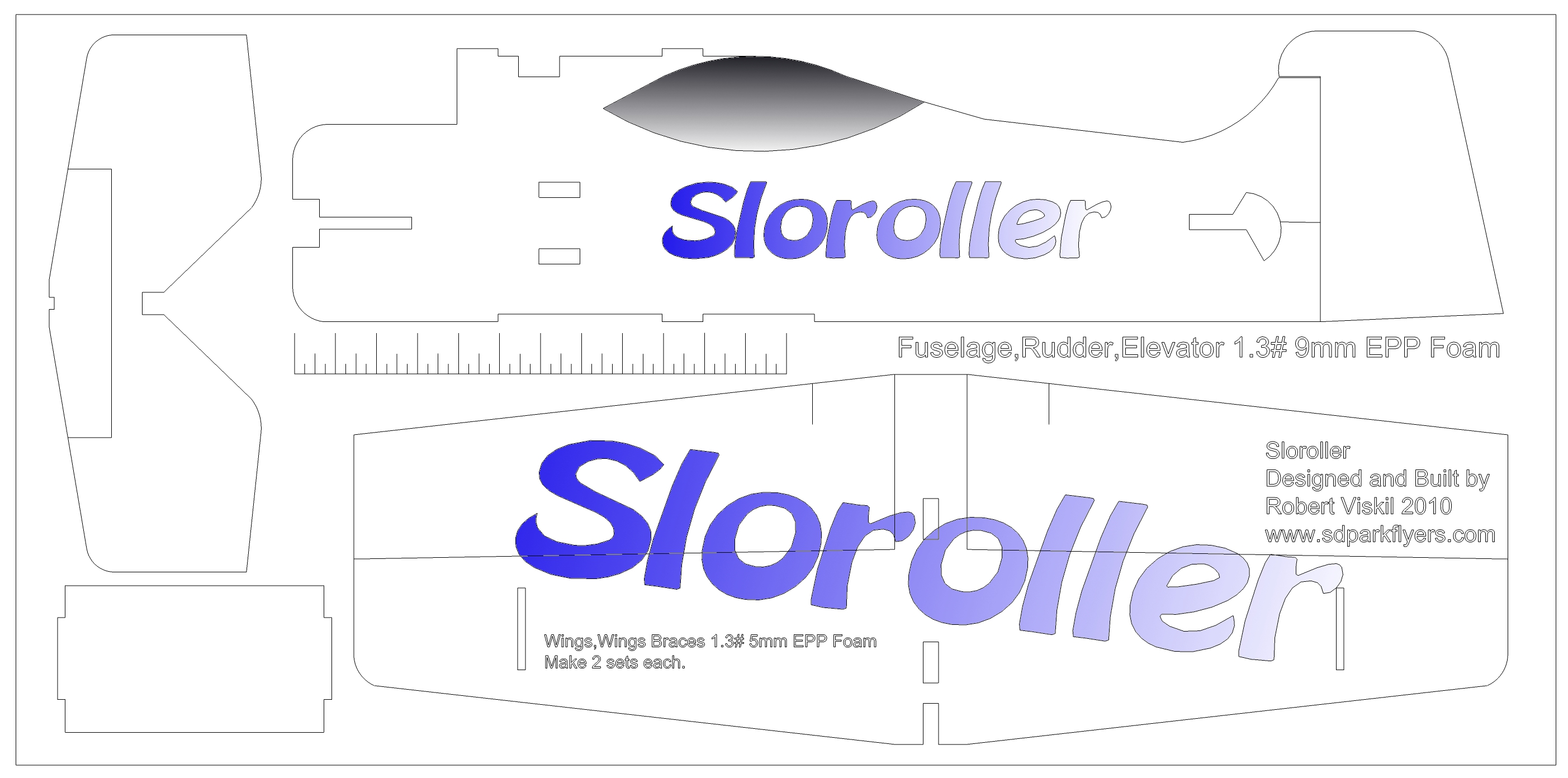

    Download the free PDF and build yours today.

    Make sure that when you print the file you check
    these two boxes under print the page scaling option.

    Fit To Printable Area
    Auto-Rotate And Center



    Ok Fist off the items I had planed on using for the plane were simple items for the pilot and the builder on a budget.

    1. Motorfly 2205-1350 http://www.sdparkflyers.com/motrofly.html
    1. 10 amp brushless esc
    2. 5 gram bluebird 306 servos for the Rudder + Elevator + 1. 9 hxt900 gram for the Ailerons
    I would be using a gws tyrp 4 channel receiver
    gws 9050 prop
    9mm 1.3# epp foam for the fusealge + Rudder + Elevator
    5mm 1.3# for the wings since there are now 2
    and 5mm for the new wing braces.
    3mm carbon was used for the fusealge + elevator
    5mm flat carbon was used in both the wings
    a motor mount the kind I sell on my site was used
    I also went with 2mm carbon rods for the x bracing for the wings
    and the control rods and Aileron linkage,
    grabed some stir sticks from starbucks for the control horns for the ailerons

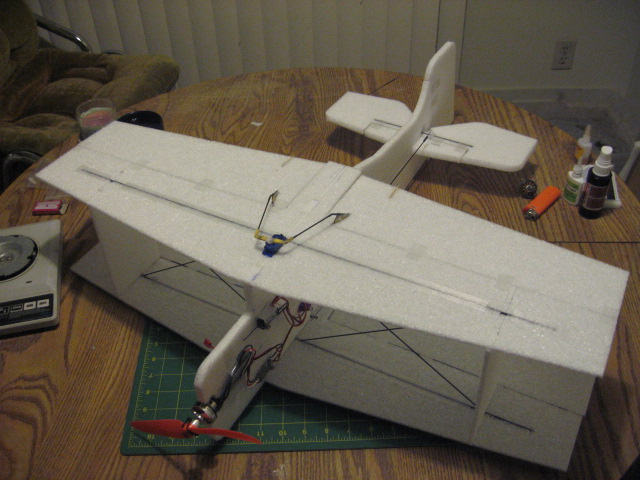

    This plane can be built using all the plans from the original sloyfly28 with a few minor mods I will post pictures so you can see how I did what I did!

    Pictures speak volumes so as soon as I get home I will upload..

    First Look Video

    I will add the google sketch file later

    VIDEO VIDEO VIDEO

    Attached files [​IMG] fullslorollpdf.pdf (61.1 KB)Â newbipe.skp (448.8 KB)Â [​IMG] sloroller.pdf (378.9 KB)Â

  2. sdparkflyers

    sdparkflyers New Member

    Offline
    Messages:
    77
    Trophy Points:
    0
    Location:
    San Diego
    I just added the google sketchup file for those of you who might want to convert it for your printer
    All I ask in return is if you cut and fly this Kit please let people know where you got the plans

    You can post pictures and stuff about this in the vendor section on RCGROUPS under my

    sdparkflyers section also.

    If anyone wants to cut kits for sell using EPP foam send me a email so we can talk first

    Thanks

    Robert sdparkflyers.com

  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Robert,
    Welcome to the Phlatforum! :)
    I have to say this is a GREAT first post!
    Awesome job and thank you for sharing. You Rock
    We will do our best to support www.sdparkflyers.com for future projects! :)
    Mark and Trish

  4. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Thanks for the plans Robert, nice job.

  5. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Hey Robert,
    Good looking plane man.
    Welcome to the forum!

  6. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas
    I love sdparkflyers. That is where I got the notion to start making planes out of foam. It was back in the day when it was slofly. I cut many of the slofly kits by hand, even bought my blue wonders and motor mounts from them. Robert has always been a tremendous source of information and inovation.

    Crash5050

  7. theothers

    theothers Administrator Staff Member

    Offline
    Messages:
    761
    Trophy Points:
    18
    Location:
    New Jersey
    Hello Robert. Welcome to the Phlatforum. Thank you for posting the plans for the Sloroller. Very nice looking plane. It's looks really light. What's the AUW?

    Mark and Trish

  8. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas
    Has anybody put the phlat to this one yet?

  9. sdparkflyers

    sdparkflyers New Member

    Offline
    Messages:
    77
    Trophy Points:
    0
    Location:
    San Diego
    WOW Everyone thanks for the Hardy Welcome :) I have Designed all my plans that I build using EPP with Google sketchup so I have much to share with the group :)

    Frank and Brian over at rcflightcast are the ones that told me about the Phlatforum and since Im all about giving back to the hobby I will share what I can with you all.

    And Again thanks for making me feel Welcome :)

  10. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    That new video you posted really shows what a great flyer this is!
    Nice job
    Mark

  11. frankrcfc

    frankrcfc New Member

    Offline
    Messages:
    381
    Trophy Points:
    0
    Location:
    Battle Creek, Mi
    I love the full plan files. Thanks Rob. I got that in my email and am already messing with it further. Copme on Spring time!

  12. sdparkflyers

    sdparkflyers New Member

    Offline
    Messages:
    77
    Trophy Points:
    0
    Location:
    San Diego
    For those of you who dont know me I will only post stuff here on the boards once I have built and tested it :)

    I dont want to waste anyones time and effort in posting a set of plans that only results in a plane that wont fly! or is so out of control that you feel cheated or pissed after you spent all your time building.

    I hand cut many of my original designs and then tear them down and convert them to a google file once I know they fly well enough to meet my standards, My research team "Me myself and I" Just does not want to cheat anyone into seeing a video or building a plane that does not work!

    If you have a design even if its a sketch and you would like me to run your idea through Google sketchup let me know And I will do my Best to help!

  13. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

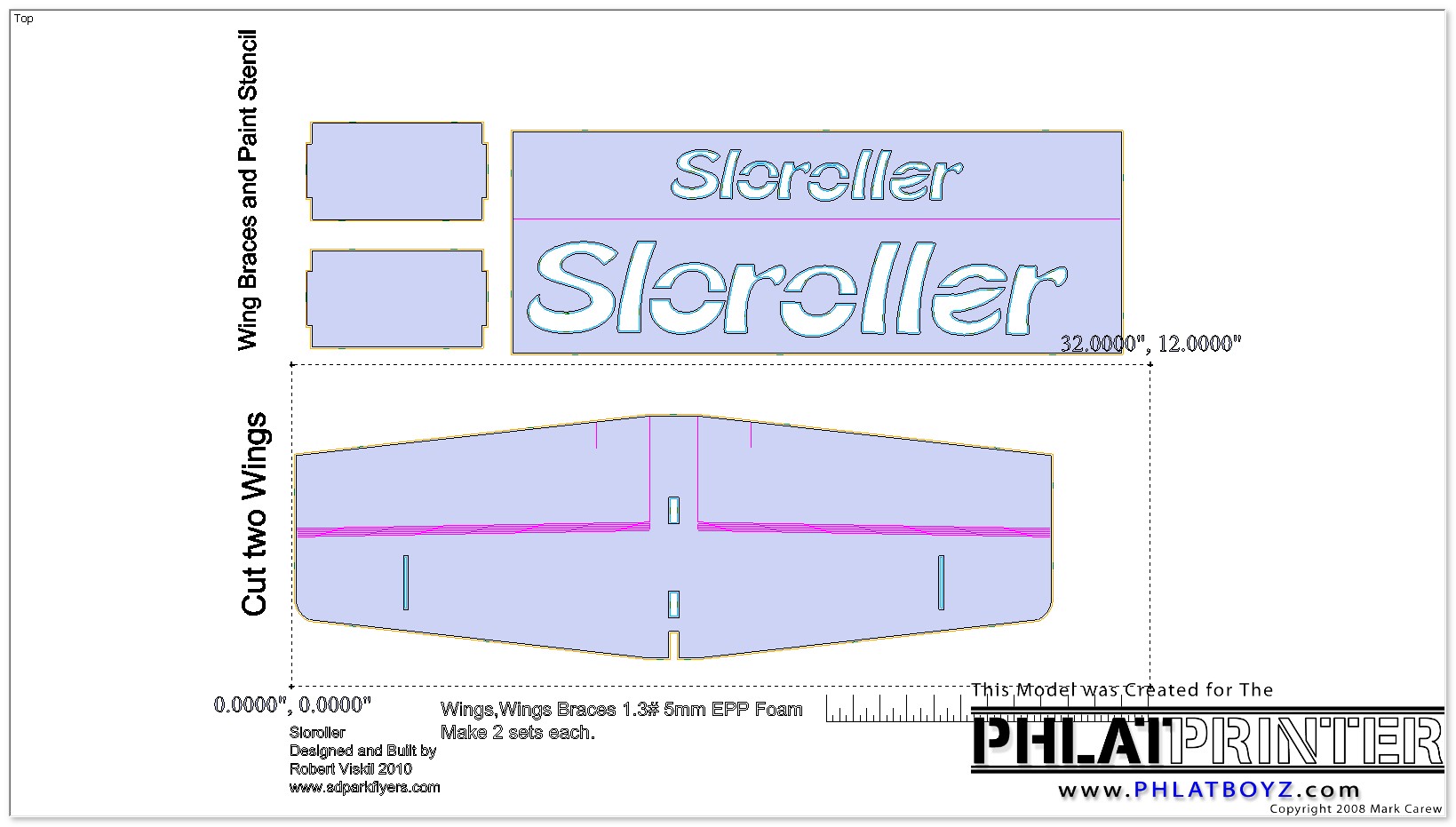

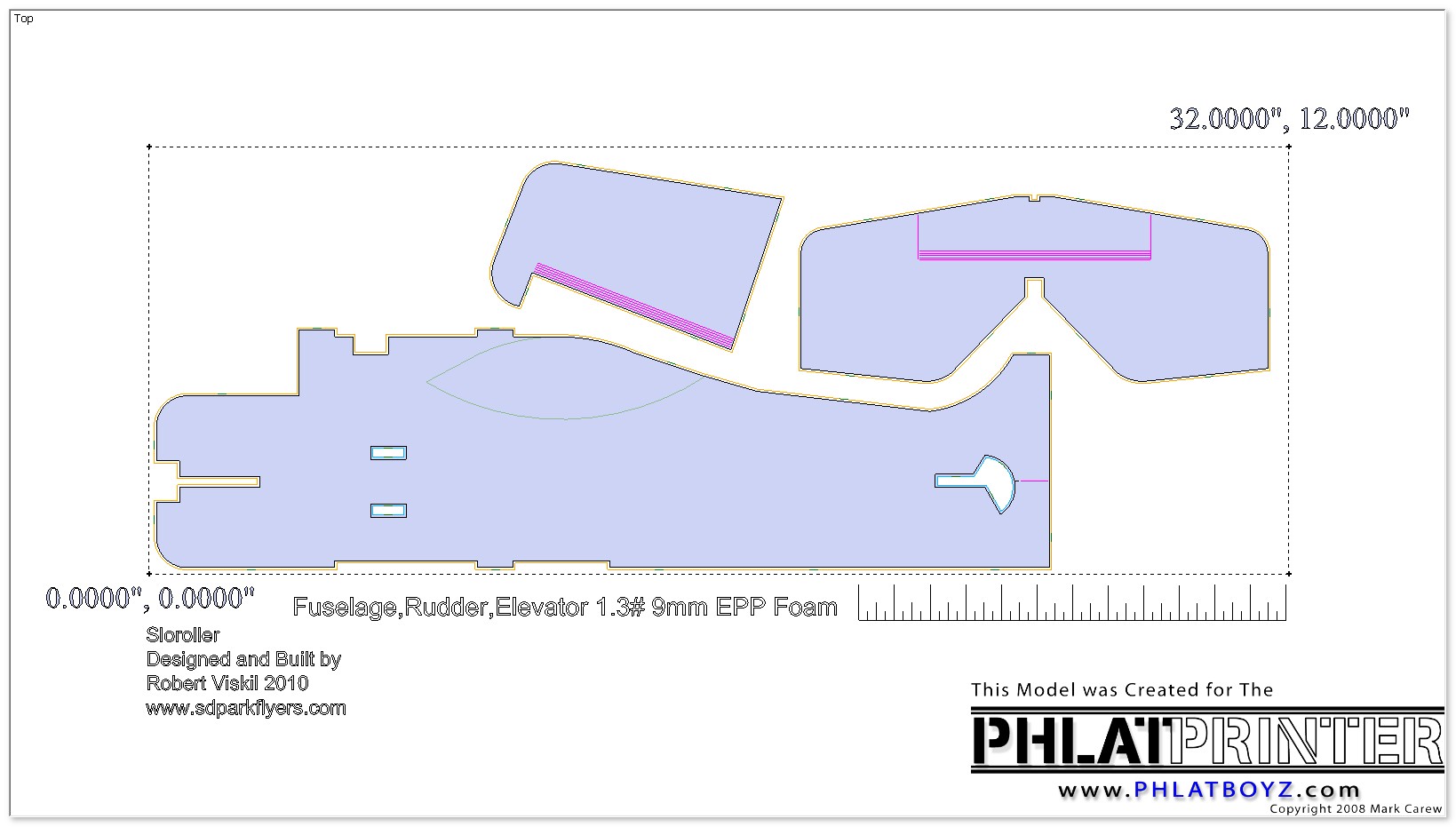

    Ok guys I have upgraded this awesome plane for the PhlatscripT :mrgreen:
    I only have 12" wide EPP so that is the size I made the safe cutting area, but if you have wider sheets and a Phlatprinter MKII you should be able to get them all on one sheet.
    I also added stencils for the logo :)
    Have fun let me know how it cuts
    Thank you Robert this looks like a winner!
    Mark and Trish






    Attached files [​IMG] Sloroller_5mmWings.cnc (6.9 KB)Â Sloroller_5mmWings.skp (819.6 KB)Â Sloroller_5mmWingsBraces.cnc (40.3 KB)Â Sloroller_9mmFuse.cnc (15.7 KB)Â Sloroller_9mmFuse.skp (562.7 KB)Â [​IMG]

  14. xtremeRCpilot

    xtremeRCpilot Member

    Offline
    Messages:
    736
    Trophy Points:
    16
    Location:
    Cleveland, Ohio
    WOW, this is a cool little plane, Thanks Robert and Mark for the plans!!! I always loved the slofly 28 and this bipe will be a great addition to the hanger :)

    John

  15. mavacpjm71

    mavacpjm71 New Member

    Offline
    Messages:
    167
    Trophy Points:
    0
    I will print this one tomorrow evening after work, thanks Mark and thanks SD!!! :mrgreen:

  16. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    I am moving this from Kits into Aircraft plans now that there is Phlatcode for it :)

  17. sdparkflyers

    sdparkflyers New Member

    Offline
    Messages:
    77
    Trophy Points:
    0
    Location:
    San Diego
    Mark and Trish thanks for taking the time to showcase my Little plane :)

  18. theothers

    theothers Administrator Staff Member

    Offline
    Messages:
    761
    Trophy Points:
    18
    Location:
    New Jersey
    No problem sd. Thanks for sharing it.

  19. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    Bleh started cutting one last night and the EPP skewed all over the place, gues I am going to need a fence mod or something to keep it straight

  20. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
  21. Chuck

    Chuck New Member

    Offline
    Messages:
    260
    Trophy Points:
    0
    I have been looking this project over. Very neat. One question tho...SketchUp drawing shows wings as 5mm EPP and the Phlatcode shows them as 3mm. Is this a typo or has it been decided 3mm works okay?

    Chuck
    ...somewhere in Indiana...

  22. sdparkflyers

    sdparkflyers New Member

    Offline
    Messages:
    77
    Trophy Points:
    0
    Location:
    San Diego
    The plane in the Video has 5mm epp wings it might just be a mistake!

  23. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Good eye Chuck! :)
    I am sorry guys, it was my mistake. I have been working with so much 3mm depron it just came natural! :D
    The files have been updated
    Mark

  24. Chuck

    Chuck New Member

    Offline
    Messages:
    260
    Trophy Points:
    0
    After my post, I jumped into RCFoam to see what they had in 5mm EPP. They do not list any 5mm EPP. I recalled sdparkflyers saying he bought his stuff from RCFoam in 12" widths. RCFoam lists 9mm, 6mm, 3mm, but I don't see any 5mm.

    Chuck

  25. sdparkflyers

    sdparkflyers New Member

    Offline
    Messages:
    77
    Trophy Points:
    0
    Location:
    San Diego
