Strange Plane

Discussion in 'Strange Aircraft' started by rescue911, Nov 13, 2014.

  1. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth

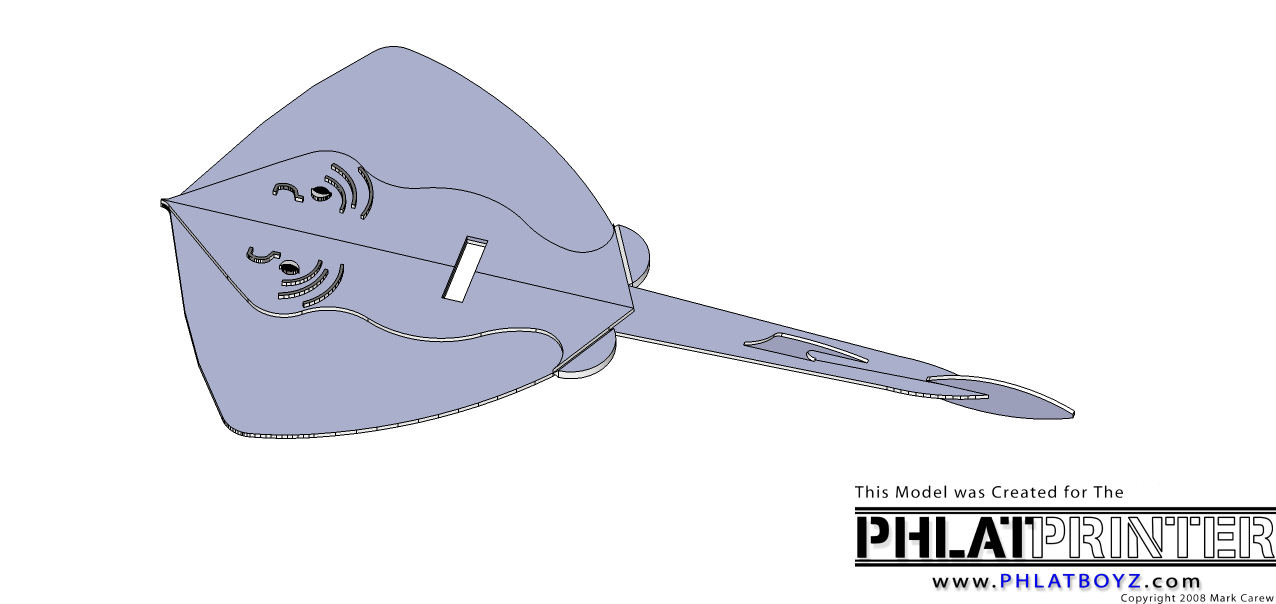

    This is my strange plane.


    Attached Files:

    ewo and swarfer like this.
  2. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    That's different. You gonna try to make it fly?

  3. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    I like it a lot ! I would give that one a go :)

  4. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth
    Will give it a try 3D.Been working on my Cessna .

  5. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    It should fly no problem, I think, but needs to have bigger control surfaces.

  6. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth

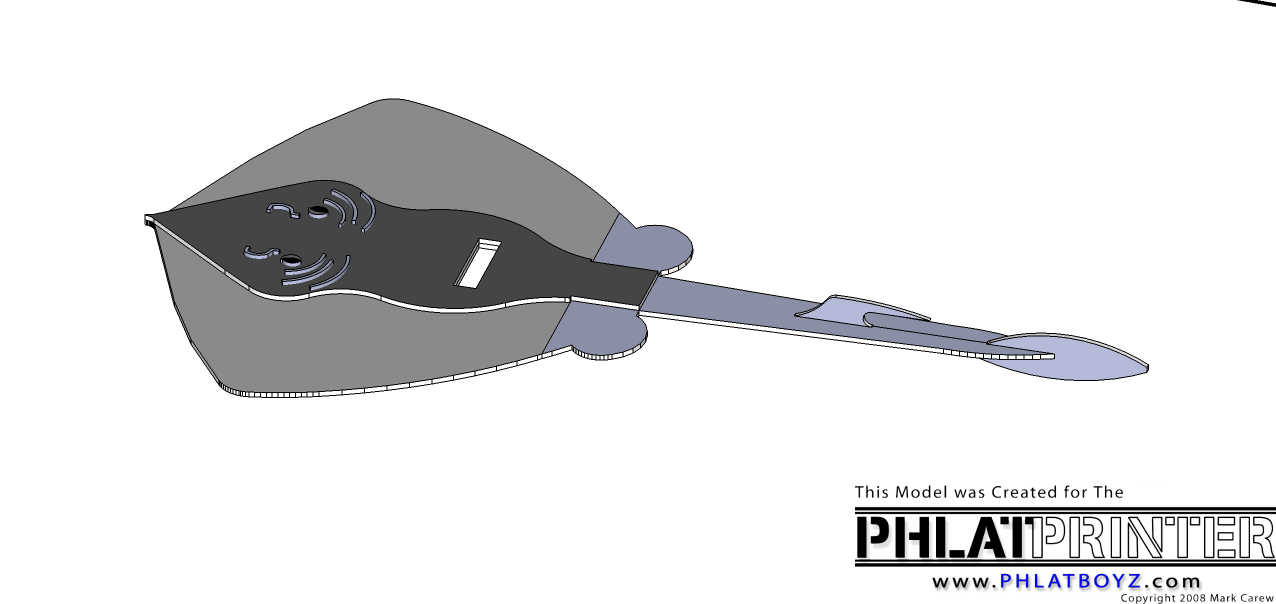

    More progress and larger control surface.


    Attached Files:

    kram242 likes this.
  7. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Looks better, rescue911. :good:

  8. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth

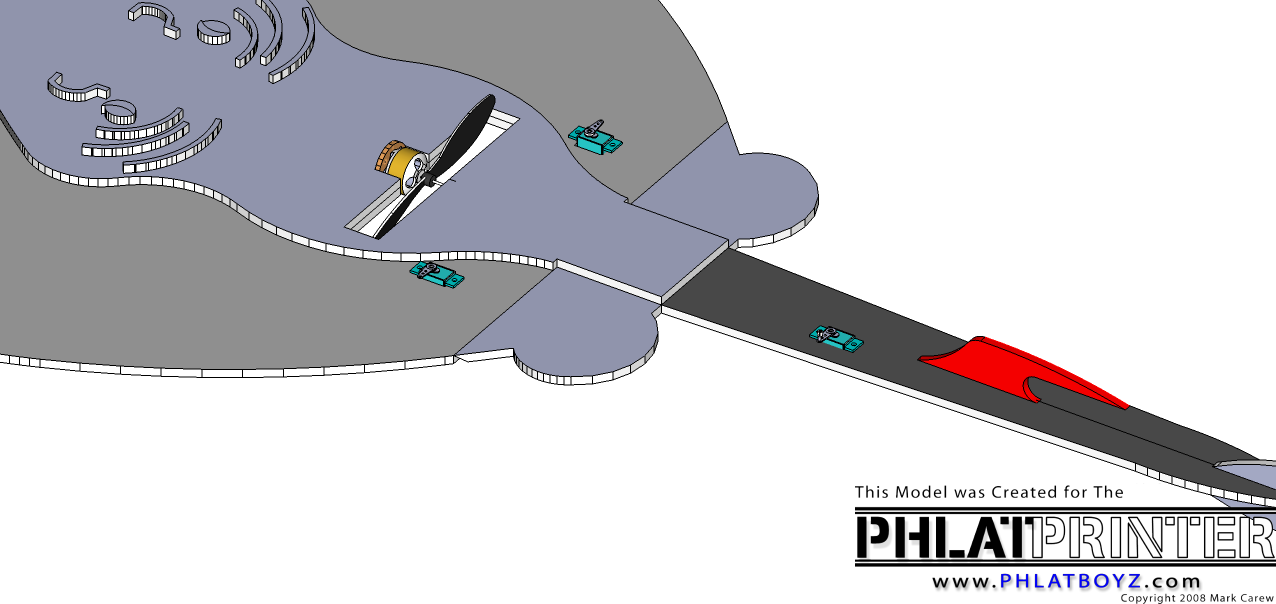

    Some more details on the stingray.Servo placement.


    Attached Files:

  9. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth

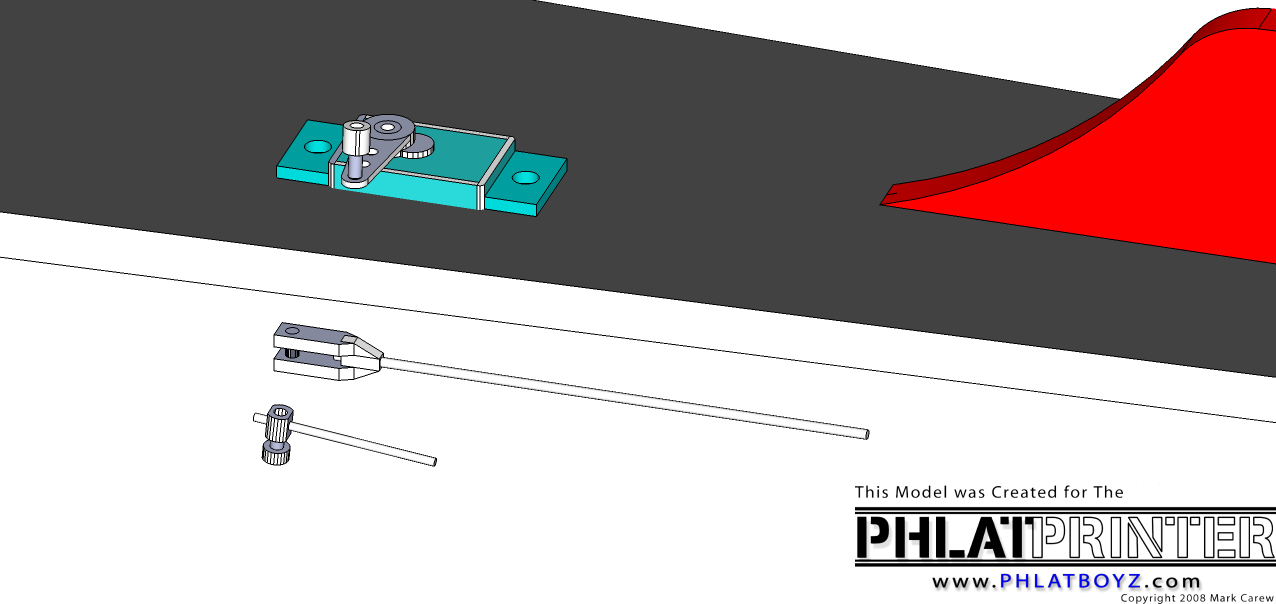

    Made the servo and servo arm.
    Made the clevis.
    Made quick connect.


    Attached Files:

  10. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth

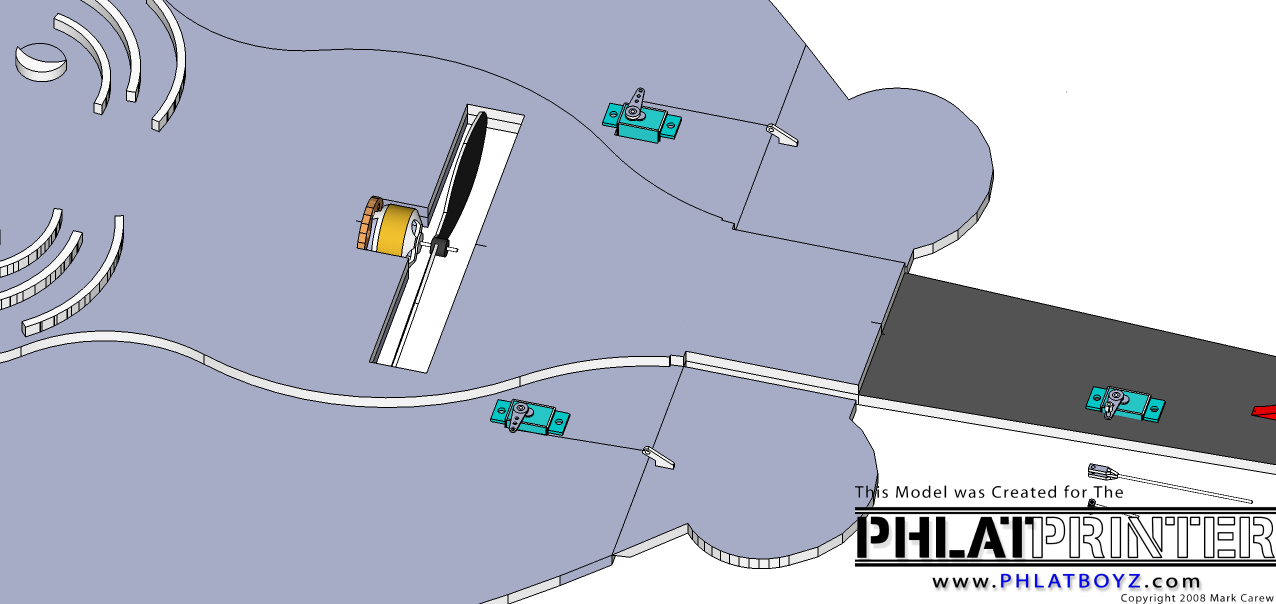

    Finally got that fixed. SRay.png

    kram242 and ewo like this.
  11. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth

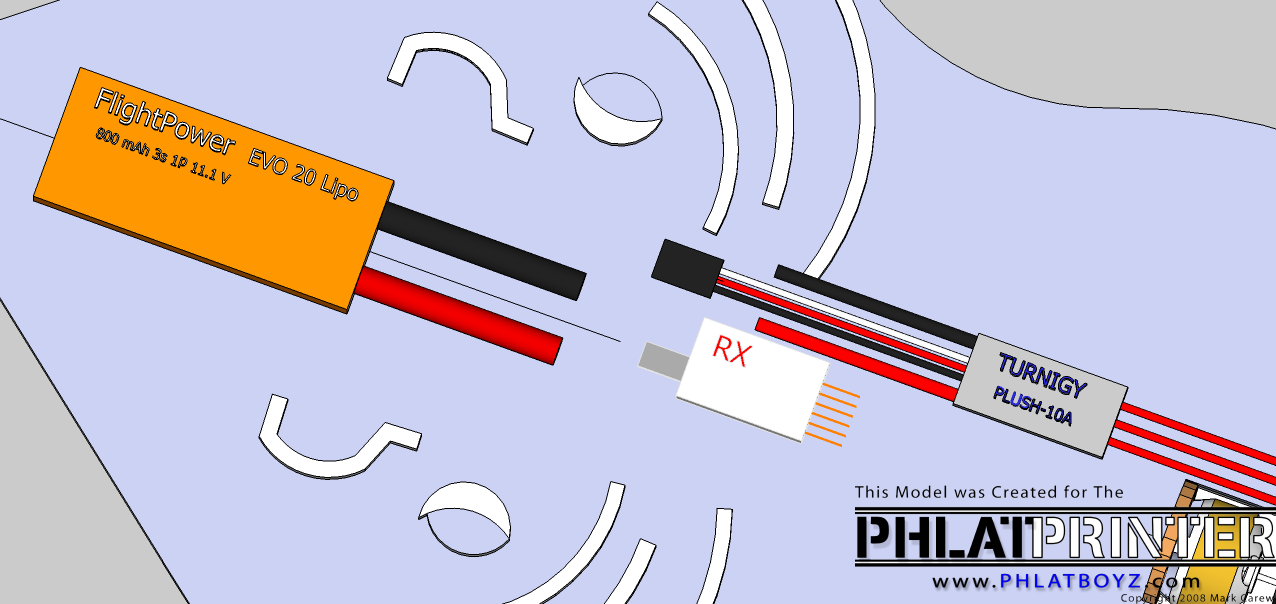

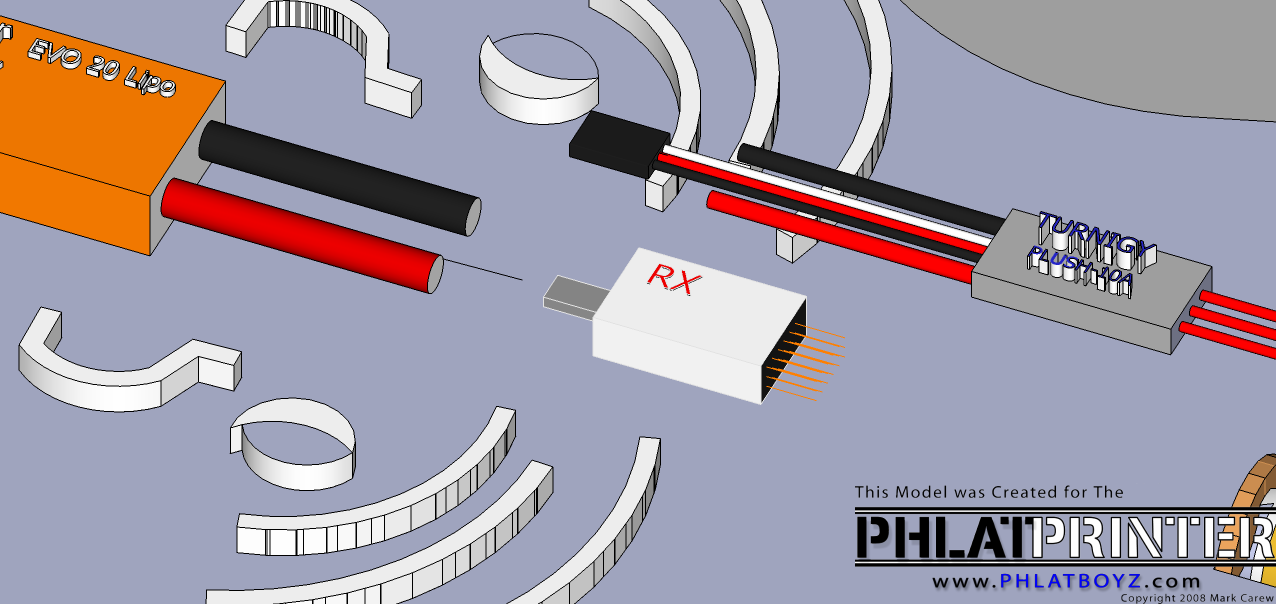

    Imade the battery,speed control and receiver.


    Attached Files:

  12. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Nice job Gary! :doubleup:

  13. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth
    Lets see if this works.
    This is the SKP file for the StingRay.
    Just something to play around with.


    Attached Files:

    TigerPilot likes this.
  14. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth
    The eyes and gills are made from 2 6mm depron glued together to make 12 mm.
    That gives the 6mm sticking up for a 3d look.

  15. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth
    Phlattened parts.


    Attached Files:

  16. Ringo Davis

    Ringo Davis Member

    Offline
    Messages:
    60
    Trophy Points:
    8
    In the icon sized version it looks like a guitar :)
    Have you flown it yet?

  17. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth
    No Ringo. Just posting SKP files for others to try out.I used to have a LOT of plans posted for other members to play with.

  18. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth

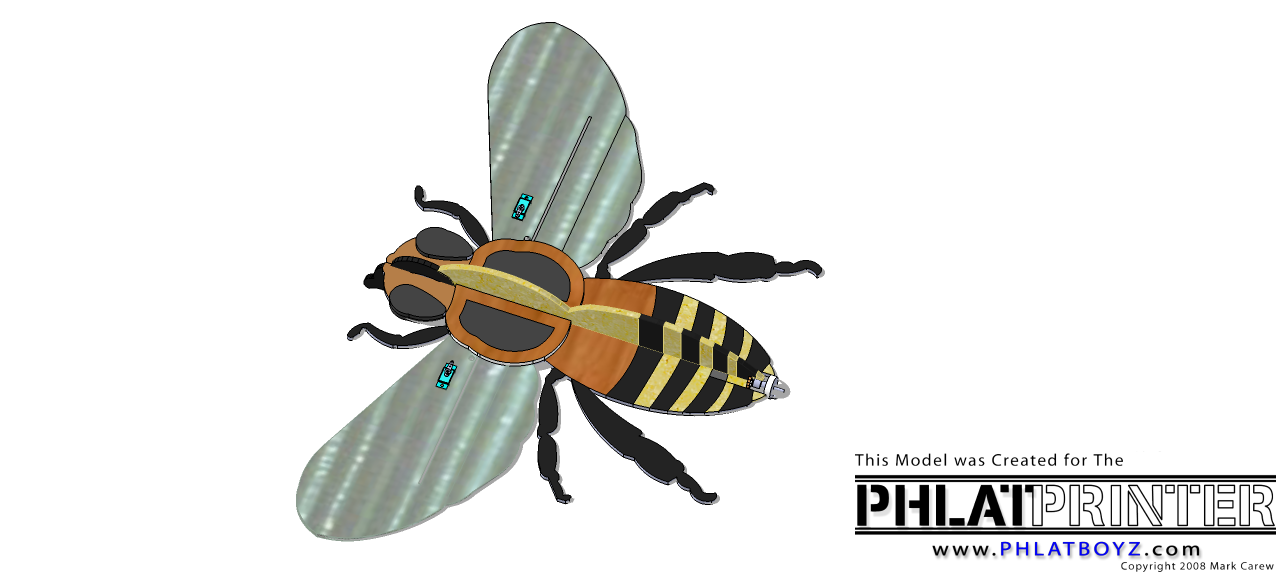

    Just to play around with colors . Honey Bee Colored..png

    mb3987, marcomartim and TigerPilot like this.
