Swift2 Delta SKP

Discussion in 'Single Wing Aircraft Plans' started by rescue911, Dec 1, 2011.

  1. rescue911

    rescue911 Active Member

    Offline
    Messages:
    418
    Trophy Points:
    28
    Location:
    earth

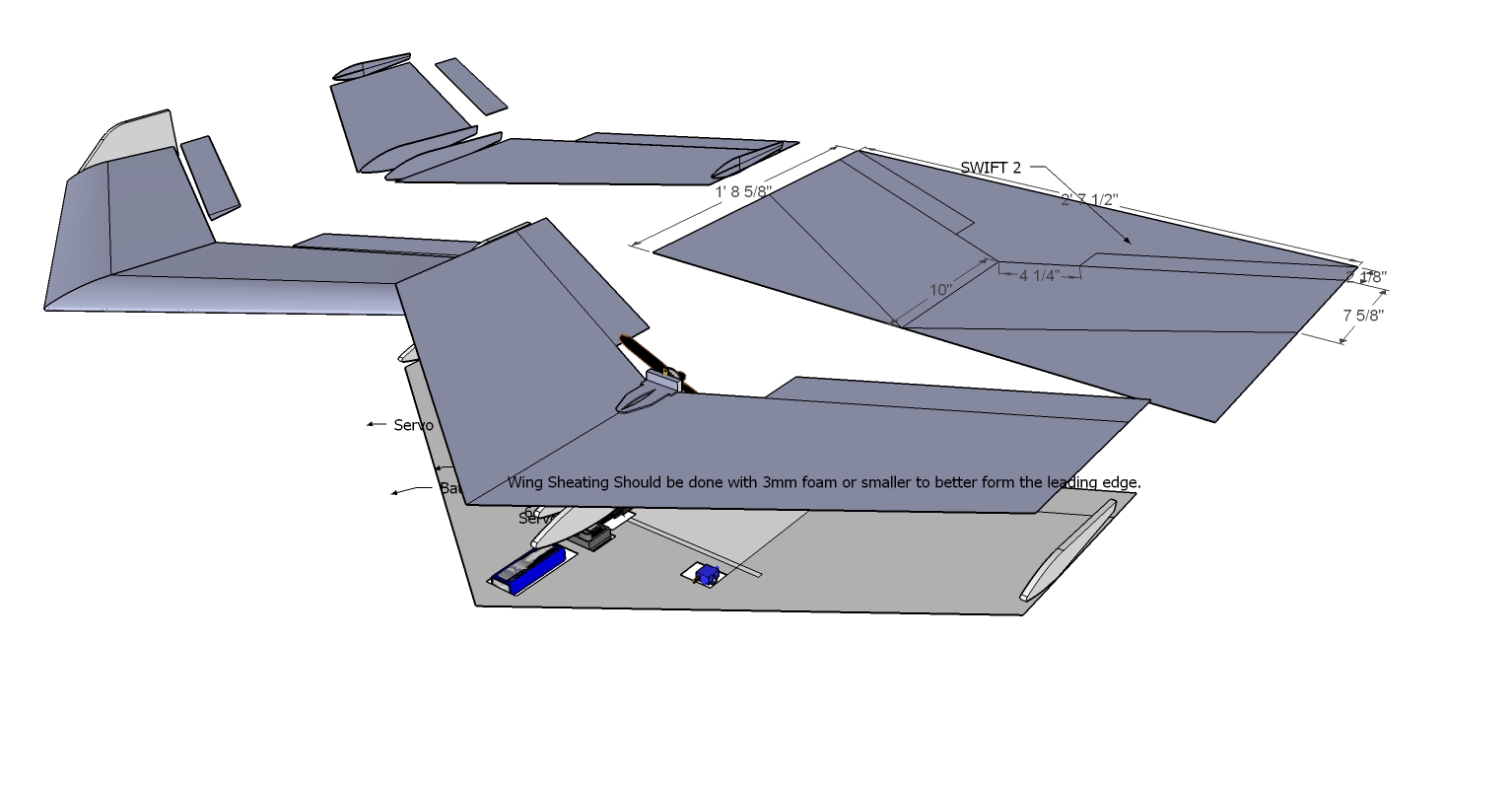

    This is just a SKP file.Modify it any way you want.Added some of the ribs in one of them.You can add more on your buid for stability.The wing sheating is 3mm or smaller so the leading edge can be formed.Sometimes I use a damp towel and a 1/2" or 1" wood dowel to roll over the leading.
    Place the foam over the dowel and the damp towel over it.Use a (STEAM IRON) and roll the foam over the dowel to get the shape of the leading edge. Attached files SWIFT 2.skp (3.3 MB)Â SWIFT 2.skp (3.2 MB)Â Swift.cnc (9 KB)Â Swift2 Instruction.pdf (244.2 KB)Â [​IMG]

  2. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Looking good Gary! :doubleup:

    Thank you for sharing
    Mark and Trish Attached files [​IMG]
