Whats wrong with this drawing

Discussion in 'General Talk Forum' started by Ringo Davis, Jul 16, 2014.

  1. Ringo Davis

    Ringo Davis Member

    Offline
    Messages:
    60
    Trophy Points:
    8

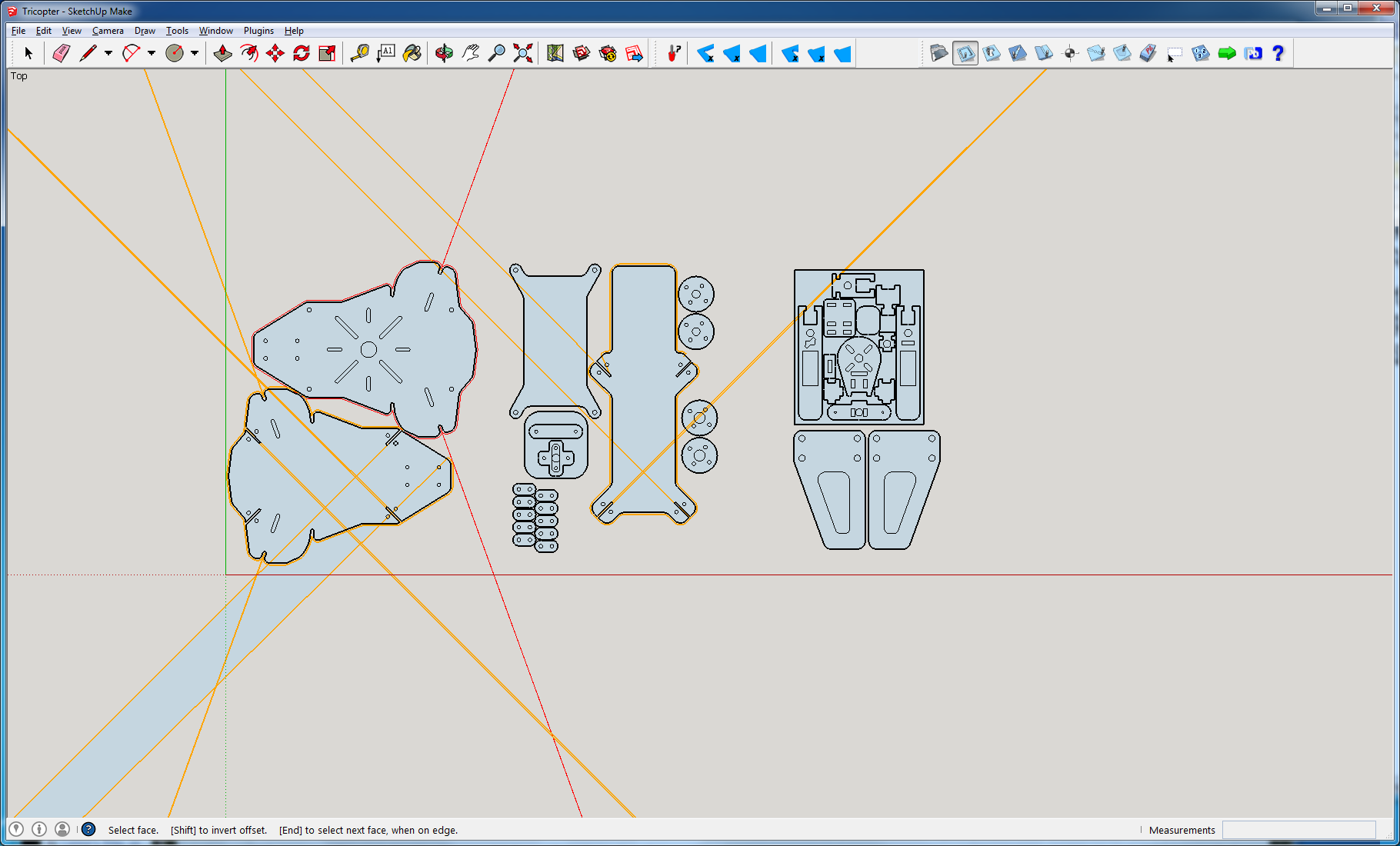

    THis started as a PDF. Brought it into inkscape and exported a dxf.
    when I do an outside cut I get this funkyness. any thoughts?


    Attached Files:

  2. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    what bit diamiter and what is the size of the slot your trying to cut in those parts?
    also look for stray or broken lines
    I dont have sketchup installed on this computer so i cant open your file to check

  3. Ringo Davis

    Ringo Davis Member

    Offline
    Messages:
    60
    Trophy Points:
    8
    It is the bit size. I changed the bit from 1/8 to 1/16 and the wierdness went away.
    Thanks
