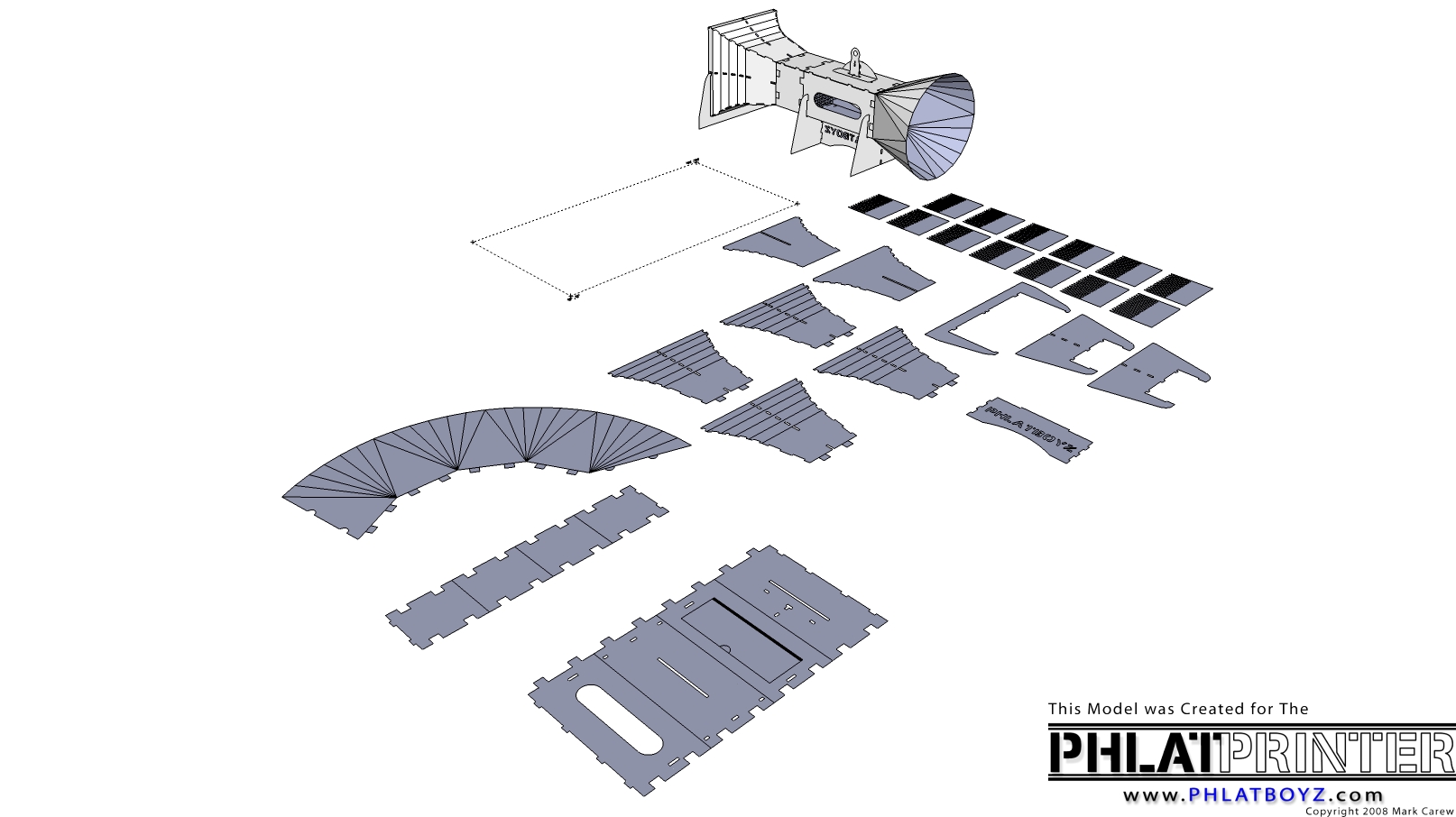

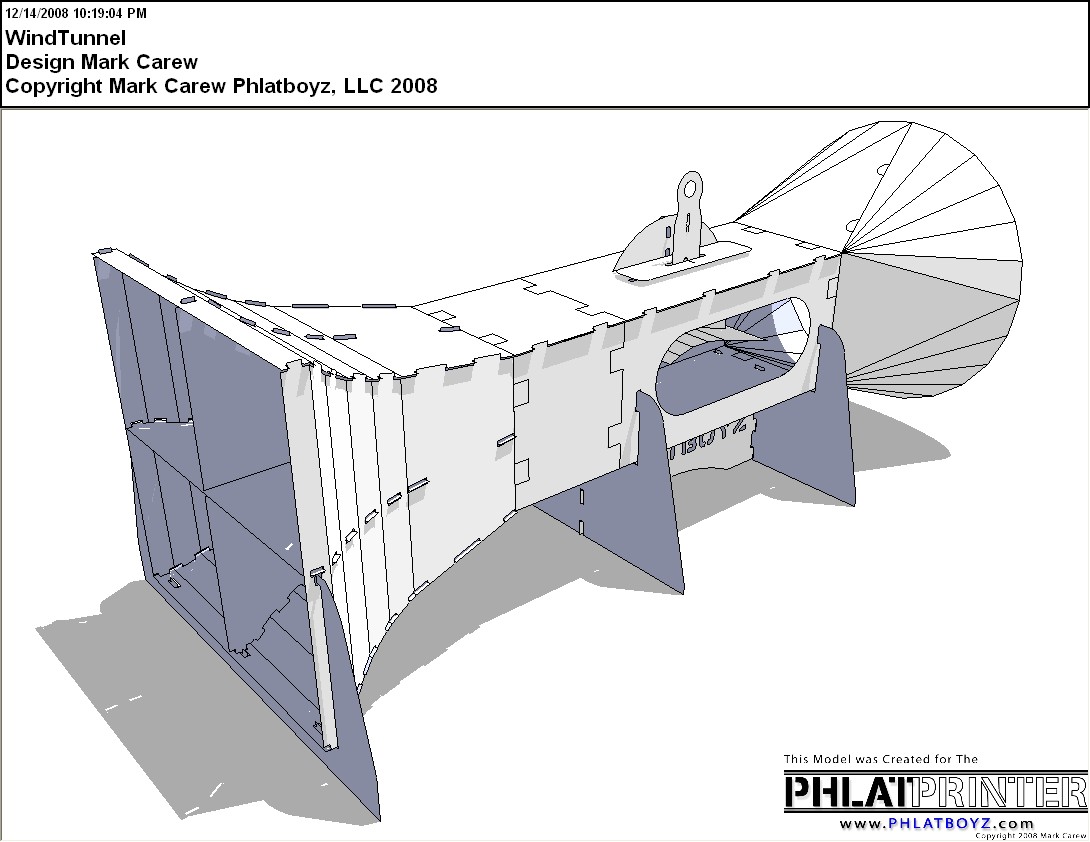

This is a wind tunnel model I am working on to test out airfoilz
It should turn out nice.
I must find the time to complete this one. All I really need to do is lay out the parts and work them.
I had an older version that I made, but this one will be nice.
I was using a normal box fan for power and I did make a diffuser out of foam but I think that straws would work much better. Now all we need is smoke!
Wish I would have known about the 'Skin' plugin whan I was making this one :mrgreen:

NOTE: The files were worked up once but I can't seem to find them. I did build one a while back and it worked with a fan on the back.
If someone has the time to work this one up, that would be very helpful.
Thank you
Mark and Trish



Attached files windtunnel.skp (638.9 KB)Â



Not really I just put a fan behind it and it seems to work
