I was doing some testing of 3D cutting
One time I left marked to mult step
The plugin failed, even clearing the mult step, I could not make cuts in 3D
Installed over the new beta version, still the problem continued.
the only way to make cutting in 3D, was to delete the files and reinstall
after clean install, everything went back to normal, 3D cut works perfectly

This was a bug?
There is forecast to make cuts in mult step 3D?



I understand the difficulties and the challenge of putting new features
There is forecast to implement mult step in 3D?
hugs



Thank you for listening

I would like to make 3D gcode with mult step of Figure
But I can only generate 3D without mult step



Eureka! I discovered my mistake
as always cut 1/4 plates "(6.35 mm) forgot to mark the correct thickness in the model
Increased the number of details to force the test



There was an error with the tool back into the material

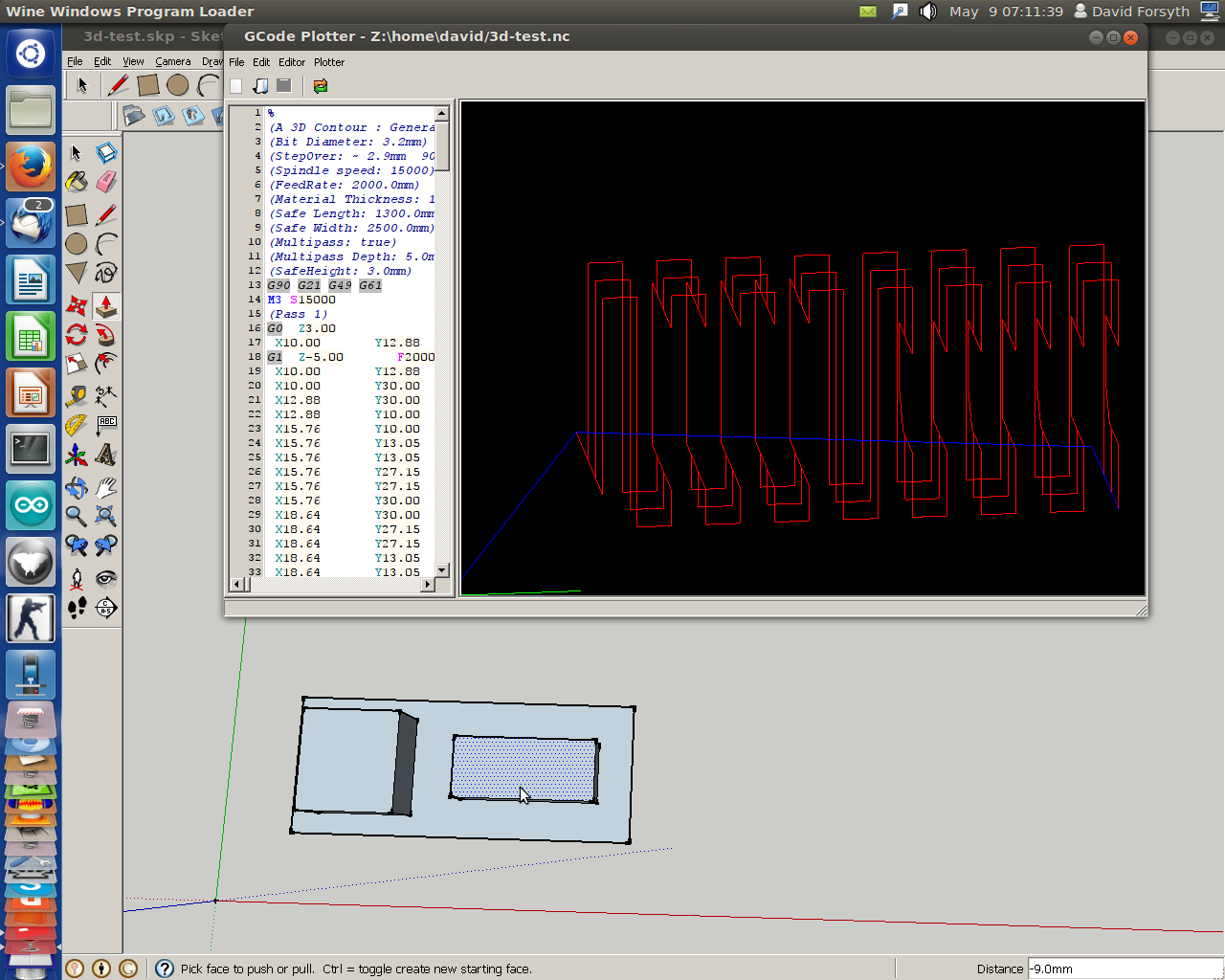

Attached, the Skp and gcode

Thank you for listening and detachment.



While generating the gcode correctly, this was not the result I wanted
The square base, I did not want to cut, just cut the part profile

I solved the problem by placing the settings a greater height than the model
The piece has 30mm, 31mm configured with
this solved partly because I needed take an extra step on the material (waste of time). put the gcode exited properly.

Many pieces already have the lateriais the material in the correct measure
Just need to cut the top

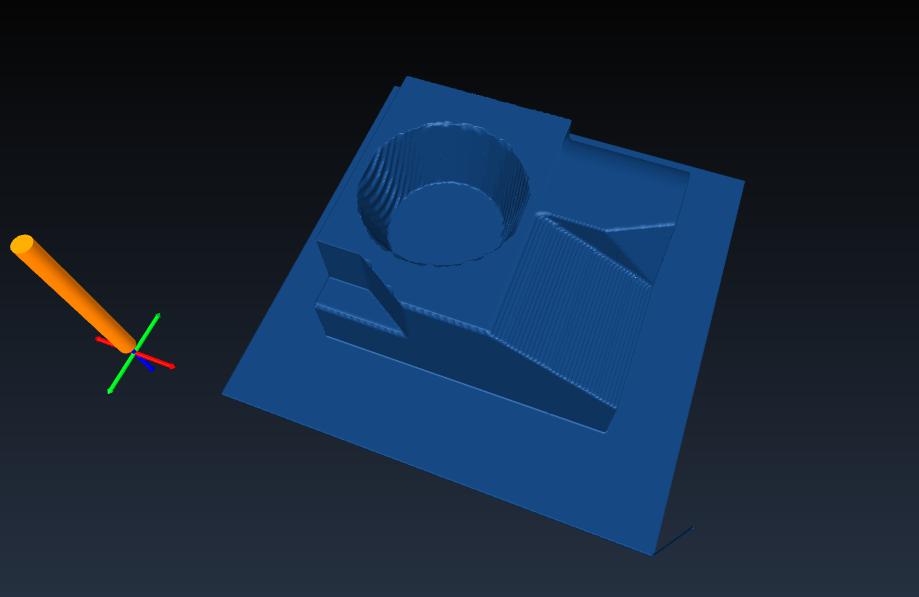

result:



Despite having to take an extra step
I am very pleased with the result
If encounter other difficulties, I report
I hope this topic can help someone and show 3D capability
congratulation, this wonderful plugin

Thank you very much.
hugs
