Welcome to The Phlatforum PhlatPrinter III

Z access interference

Discussion in 'GENERAL Phlatprinter MKII Talk' started by Ringo Davis, Mar 25, 2014.

  1. Ringo Davis

    Ringo Davis Member

    Offline
    Messages:
    60
    Trophy Points:
    8

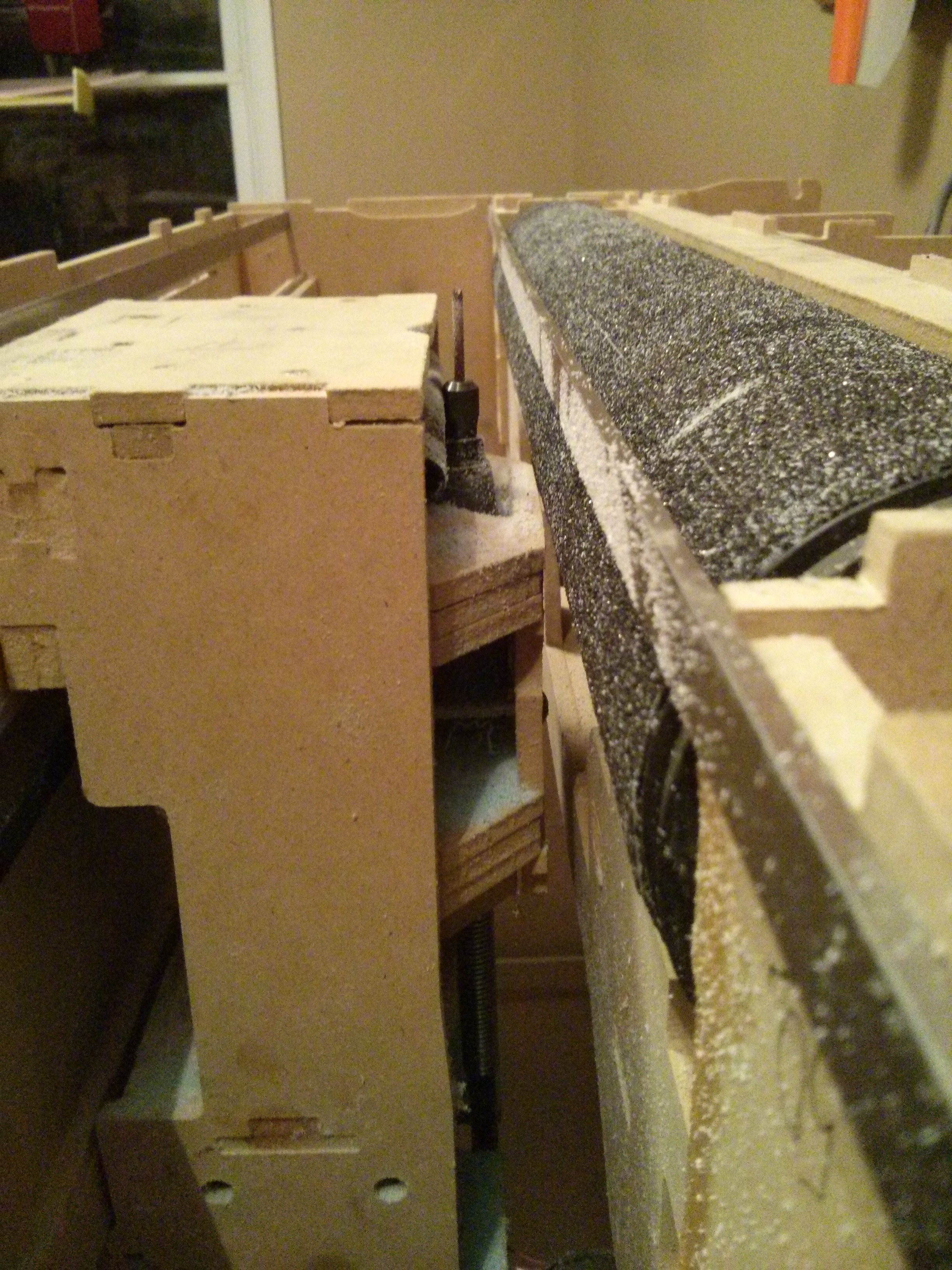

    I bought a used MK2 and I'm trying to get it running. ! thing I noticed is that when the bit is raised to cutting height the Gantry (not sure of terminology here) hits the big drive roller. I attached a pic not sure if it is clear or not. It is almost touching in the pic. If I raise it anymore it rubs. So what happens is if I set Z to zero, then cut out even something small that takes about a minute, at the end the bit is too low at the end. It is hitting and missing steps.
    Is there adjustment somewhere that I'm missing?I guess I can sand the back of the gantry until it is clear but there must be something I can do or the previous owner could not have used it in this condition. It said for a couple years before I got it and then it was delivered by truck so I'm hoping something just got bumped along the way. Any thoughts would be appreciated.


    Attached Files:

    Ringo Davis, Mar 25, 2014
    #1
  2. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    you are going to have to fix that (-:
    @kram242 is the one to ask though, he designed the machine

    swarfer, Mar 25, 2014
    #2
  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    That is a tight area for sure and it may be that the MDF is a little swollen or even that the face plate for the tool holder is sticking out a little. One other thing to try out is to make sure the bearings are seated on the rods for the Z this could cause it to be out a little as well. Other then that if the function of the Z is good an all is working I would sand it down if need be. Hope this helps.

    kram242, Mar 25, 2014
    #3
  4. Ringo Davis

    Ringo Davis Member

    Offline
    Messages:
    60
    Trophy Points:
    8
    I did not think about it swelling, good point. The machine sat for a few years before I got it so that makes sense. I'll get to sanding.

    Ringo Davis, Mar 25, 2014
    #4
  5. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Just a thought , I wonder if the tool can be raised in the holder??
    I don't own one , Just a thought

    ewo, Mar 25, 2014
    #5
    kram242 likes this.
  6. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana

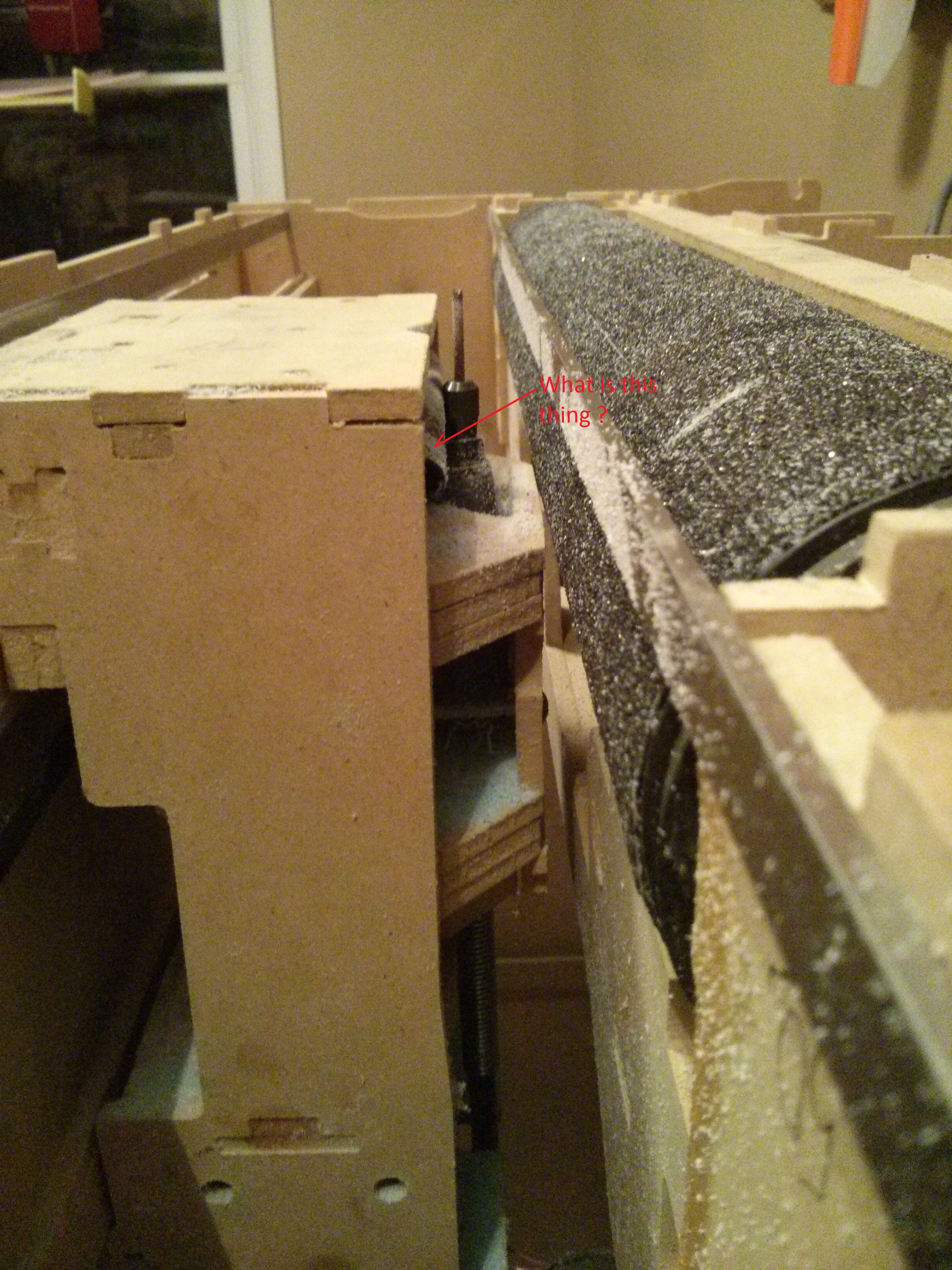

    Awh I see something....... What is it ? what is this.jpg

    ewo, Mar 25, 2014
    #6
  7. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Just a thought , I wonder if the tool can be raised in the holder?? - Good thought Bruce maybe.
    In the pic above is the dust cover

    kram242, Mar 26, 2014
