    I was working on this Jet before the PP.

    So I converted It from the parkjet plans to SU. The page is here and has a link to the rcgroups build log. http://www.parkjets.com/fantrainer.html

    My friend built and flew it once and the batt. was smashed as far FWD as he could get it so I revamped it W/ longer fuse and I think 1" around the side and back of the wing.


    The rebuilt FanTrainer flys like a dream. I would Suggest putting Squewers or CF from T tail down to fuse. Ours dosen't have them and flys fine but the tail is floppy The next one will have CF.

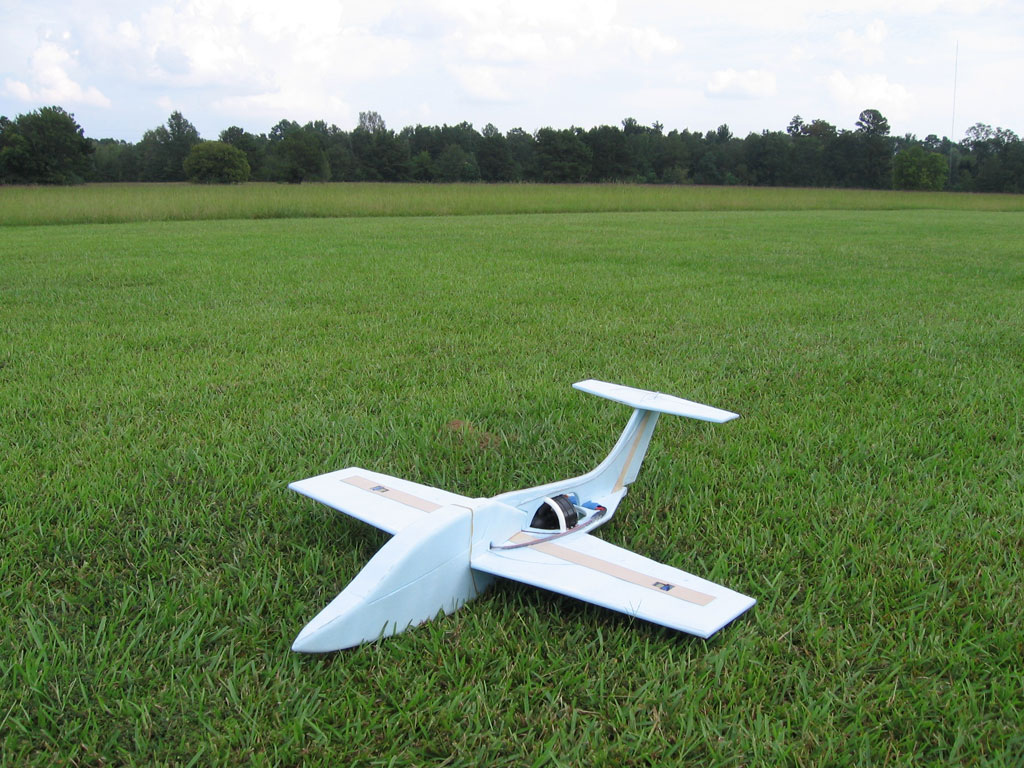

    You will have to do the G-code and make the Holes for your size fan. she dosen't need lots of thrust. I think this one is setup for 56mm with a 24-45-3790kV Brushless. It's out of my Diablo. The CG is on the spar and have been flying it just in front of as my friend is a new flyer. Hopefully will have Video soon. Still cold here in Southern NJ.

    Cheers
    E-T Attached files Fantrainer E-T rdy gcode.skp (474.8 KB)Â [​IMG]

    Evil-Tunes, Mar 8, 2009
    #1
  2. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    I love it, great job!!

    Jnida63, Mar 8, 2009
    #2
  3. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Yea ET, that's cool. Thanks for the file.

    -

    7up, Mar 9, 2009
    #3
  4. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Good job E-T

    3DMON, Mar 9, 2009
    #4
  5. Gefahren

    Gefahren Member

    Offline
    Messages:
    205
    Trophy Points:
    16
    This is the plane I used for my contest entry picture. The one I build had a 36" wingspan (needed about a 46" to be more scale) and carried a 1.1kw 3.5" fan. It flew basicly at one speed in any direction and power off even with the flaps it was a brick.
    I didn't use any carbon in it, just 1/32 plywood on both sides of the wings and tail.
    Attached files [​IMG]

    Gefahren, Aug 12, 2010
    #5
  6. Helno

    Helno Member

    Offline
    Messages:
    86
    Trophy Points:
    6
    I just finished uilding one of these.

    Hopefully the weather will be good enough for me to test fly it tomorrow.

    Helno, Sep 6, 2011
    #6
  7. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    [​IMG] and thanks for reminding me of this one. I have a EDF that is looking for a home. :D

    TigerPilot, Sep 6, 2011
    #7
  8. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Nice one Glen! thank you for making this. I always liked the one you have in your shop. :good:
    Mark and Trish

    kram242, Sep 7, 2011
    #8
  9. Helno

    Helno Member

    Offline
    Messages:
    86
    Trophy Points:
    6
    Well my test flights didnt end well. Even with two spars the wing was to floppy. I had a 1/8" spar and then a smaller rod forward of that and the wing flexed enough to cause uncrontrollable roll as soon as you pulled back on the elevator.

    I'll cout out a new nose and try beefing up the wing.

    Helno, Sep 9, 2011
    #9
  10. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48

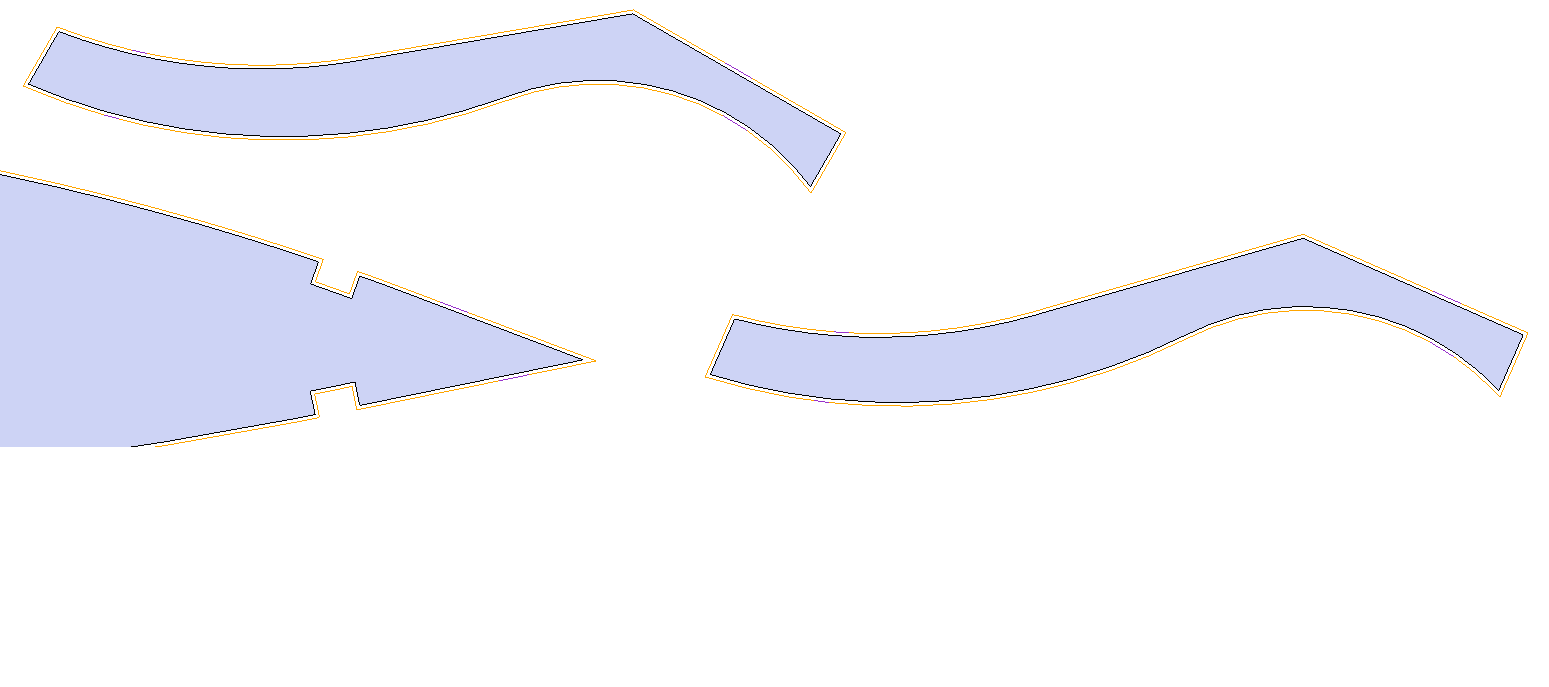

    In the .skp file are two strips that I couldn't figure out where they belong to, see attached picture. Any idea?

    Attached files [​IMG]

    TigerPilot, Sep 10, 2011
    #10
  11. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    I thinl they are for the tail to try and stop some wiggle. I never did use them just a bamboo stick. :doubleup:

    Attached files [​IMG]

    Evil-Tunes, Sep 10, 2011
    #11
