Christmas Wreath

Discussion in 'Christmas' started by Jnida63, Nov 11, 2012.

  1. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18

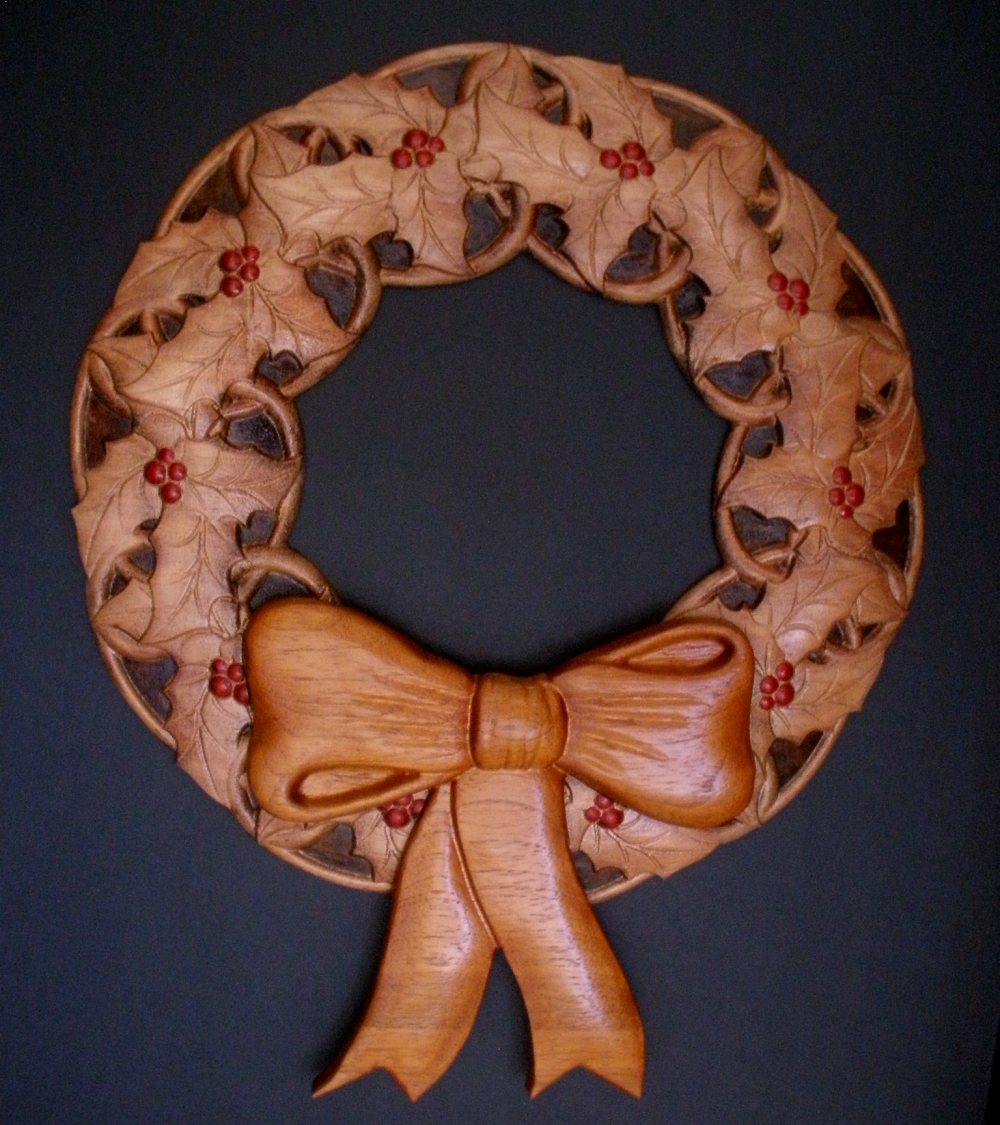

    I found a nice wreath on Vectrics website and will post the G-code if anyone wants it.
    You will need to be able to mill 3/4 inch wood and able to use a 1/4 inch endmill.
    This thing take hours and hours to cut out but it is looking pretty awesome.
    It was free on their website and I couldn't find any disclaimers about posting it so do you think it would be alright Mark? Attached files [​IMG]

  2. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Looks awesome!
    That would be great if you don't mind sharing the code Jeff :good:
    Nice job
    Mark and Trish

  3. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    Here are the files, I had a friend who has Aspire to make the G-code for me, be sure to read the PDF enclosed first

    Attached files Christmas Wreath Files.zip (9 MB)Â

  4. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18

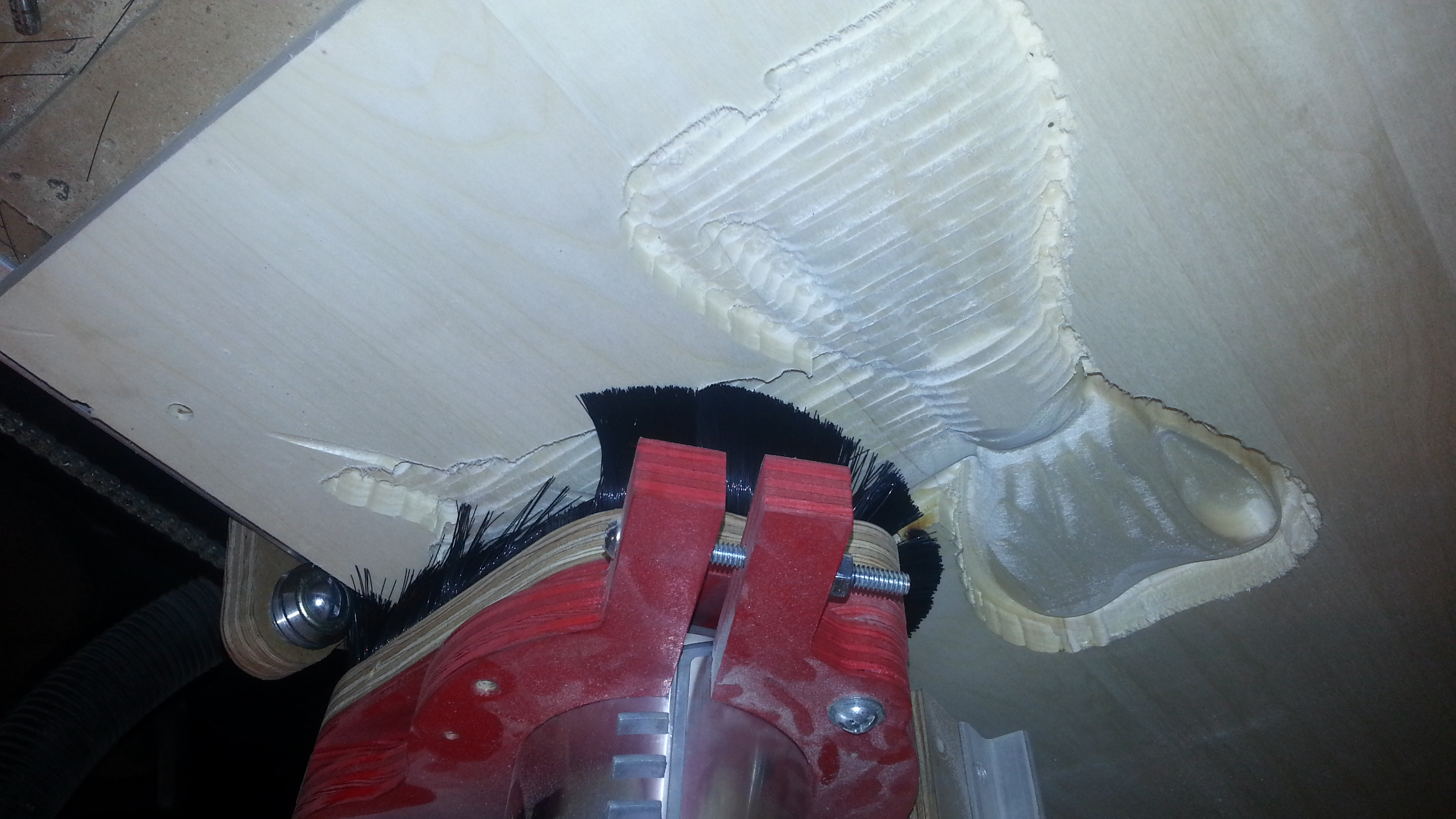

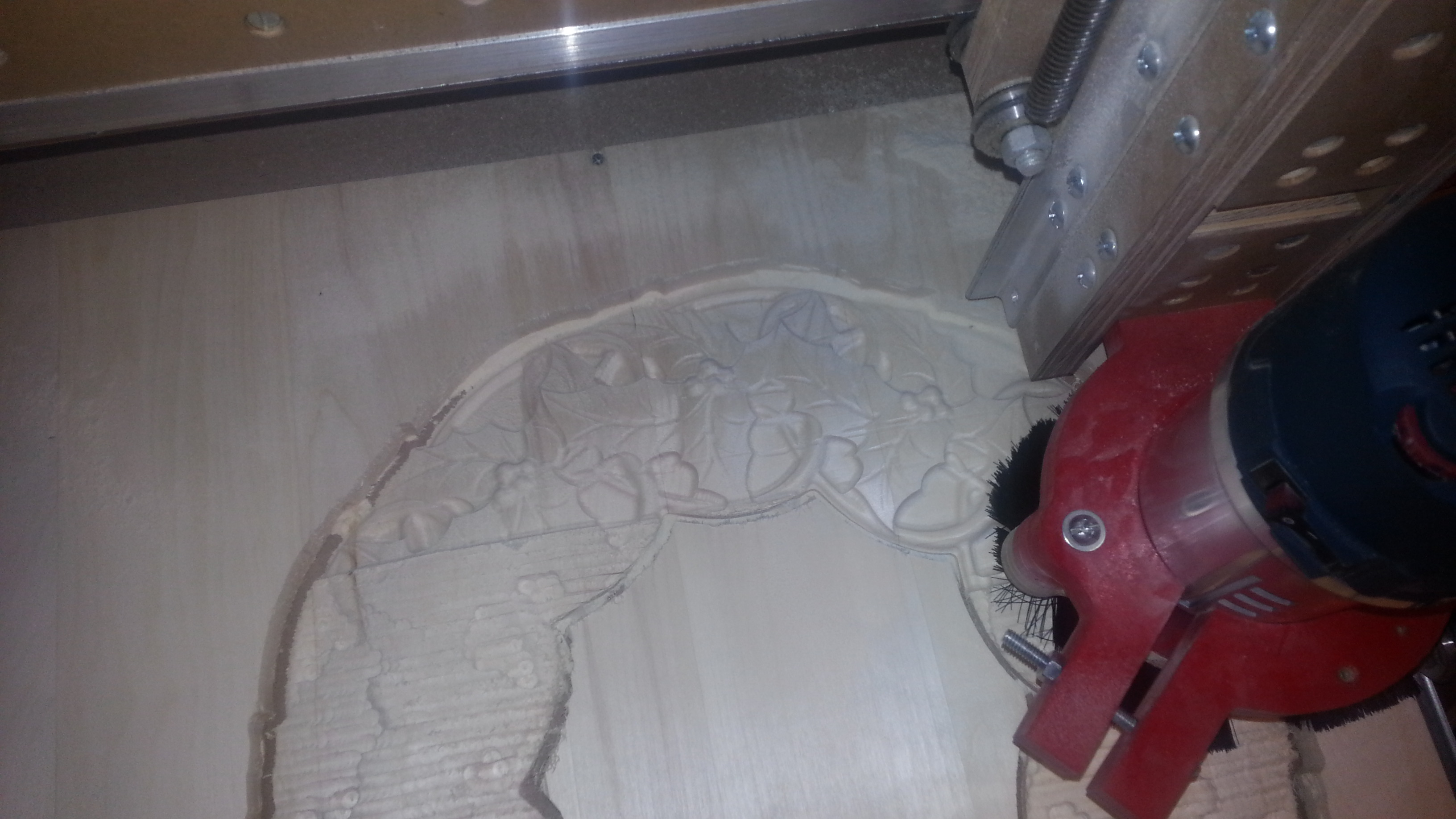

    Here are some pictures of the process on my machine, you can see the difference of the rough cut with the 1/4" bit and the finish pass with the 1/8" ballnose bit

    Attached files [​IMG] [​IMG]

  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Thank you Jeff :doubleup:
    Cool roughing and finish pass pics!
    Mark and Trish

  6. PAULE

    PAULE Member

    Offline
    Messages:
    79
    Trophy Points:
    6
    Location:
    FL
    VERY COOL :D NICE JOB

  7. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18

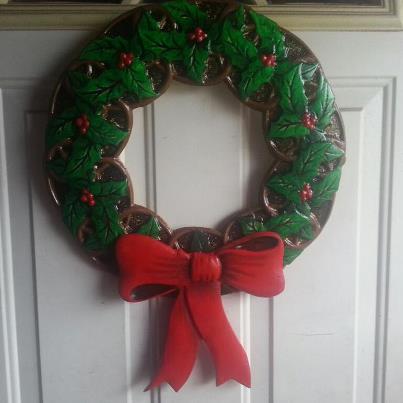

    Forgot to post a picture of it finished, decided to paint it instead of staining

    Attached files [​IMG]

  8. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    AWESOME JOB :good: :good: :good: :good: :good:

    That looks like a BlackFoot 4 x 8 CNC machine. I am building one of those.
    I am going to use Open Rail and 3/4" steel angle instead of the aluminum
    that came with the Black Foot kit.

    Happy Holidays. :D
    GHB :cool:

  9. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    It's the blackfoot 2X4 machine my wife got me for my birthday :D
