Welcome to The Phlatforum PhlatPrinter III

F15 Display

Discussion in 'Slice forms/Sculptures' started by kram242, Feb 15, 2010.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Here is a cool F-15 Puzzle with stand

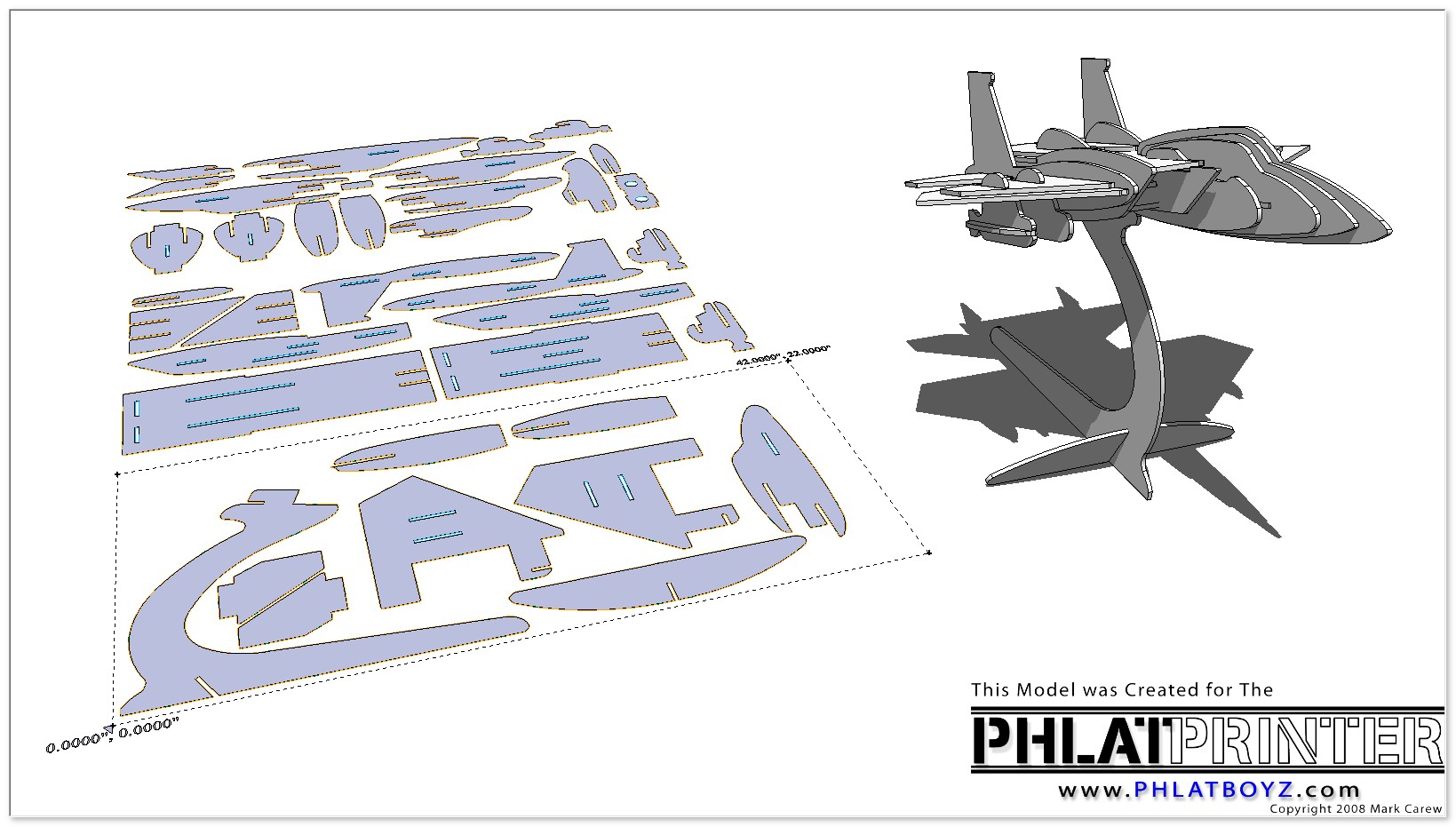

    The file was shared by Bozikovine as a DXF ready to be upgraded. Kwok then brought it into Sketchup and did and awesome job building the virtual model and laying out the parts to make it easy for us to build! :)
    I then added the cut codes for 3 sheets of 1/4" foam.
    Feel free to rescale and organize the parts to fit the material you have available
    Great job guys thank you for sharing.
    Mark

    Original DFX thread with the file is here viewtopic.php?f=221&t=1642&start=0





    Attached files F15_Display.skp (5.1 MB)Â F15_Display_Sheet1.cnc (32.4 KB)Â F15_Display_Sheet2.cnc (54.4 KB)Â F15_Display_Sheet3.cnc (73.3 KB)Â [​IMG]

    kram242, Feb 15, 2010
    #1
  2. kyyu

    kyyu Active Member

    Offline
    Messages:
    1,183
    Trophy Points:
    36
    Location:
    Maryland
    Woo hoo, great team effort! -Kwok

    kyyu, Feb 15, 2010
    #2
  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    :D I agree guys super work!
    This is how its done..
    Mark

    kram242, Feb 15, 2010
    #3
  4. mavacpjm71

    mavacpjm71 New Member

    Offline
    Messages:
    167
    Trophy Points:
    0
    Way to go Kwok and Mark!!!

    Printing this now!! :mrgreen:

    mavacpjm71, Feb 16, 2010
    #4
  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Cool mavacpjm71!
    Please post pics when you get a chance :)
    BTW I am thinking that the stand may need some more side support with all the weight of the plane up there.
    Mark

    kram242, Feb 16, 2010
    #5
  6. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    http://www.universalsupply.com/ Is where Mark and I get our FFF foam. We told them we make R/C Airplanes with the Foam. They looked somewhat confused :? So we made the F-15 display to drop off and show what we were talking about. The stand was somewhat flimsy so Mark cut it out of 1/4 MDF. I Think it looks GREAT :D The Guys at the Store did also. :mrgreen:

    Cheers
    E-T Attached files [​IMG] [​IMG]

    Evil-Tunes, Apr 27, 2010
    #6
  7. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    That came out looking great!

    3DMON, Apr 27, 2010
    #7
  8. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    :mrgreen: That was a lot of fun! and they sure loved it..
    Thanks for posting Glen
    Mark

    kram242, Apr 27, 2010
    #8
  9. PAULE

    PAULE Member

    Offline
    Messages:
    79
    Trophy Points:
    6
    Location:
    FL
    :fugly: NOW THAT SUPER COOL MARKTRISH
    I THINK THIS WILL BE IN ONE OF MY FISRT CUTTS :nervous:

    PAULE, Nov 16, 2012
    #9
