Gplot generates only rectangles even when part is a circle

Discussion in 'SketchUcam Help' started by abiodun Ogunribido, Feb 14, 2017.

  1. abiodun Ogunribido

    abiodun Ogunribido abi

    Offline
    Messages:
    1
    Trophy Points:
    1
    Location:
    manchester U. K.

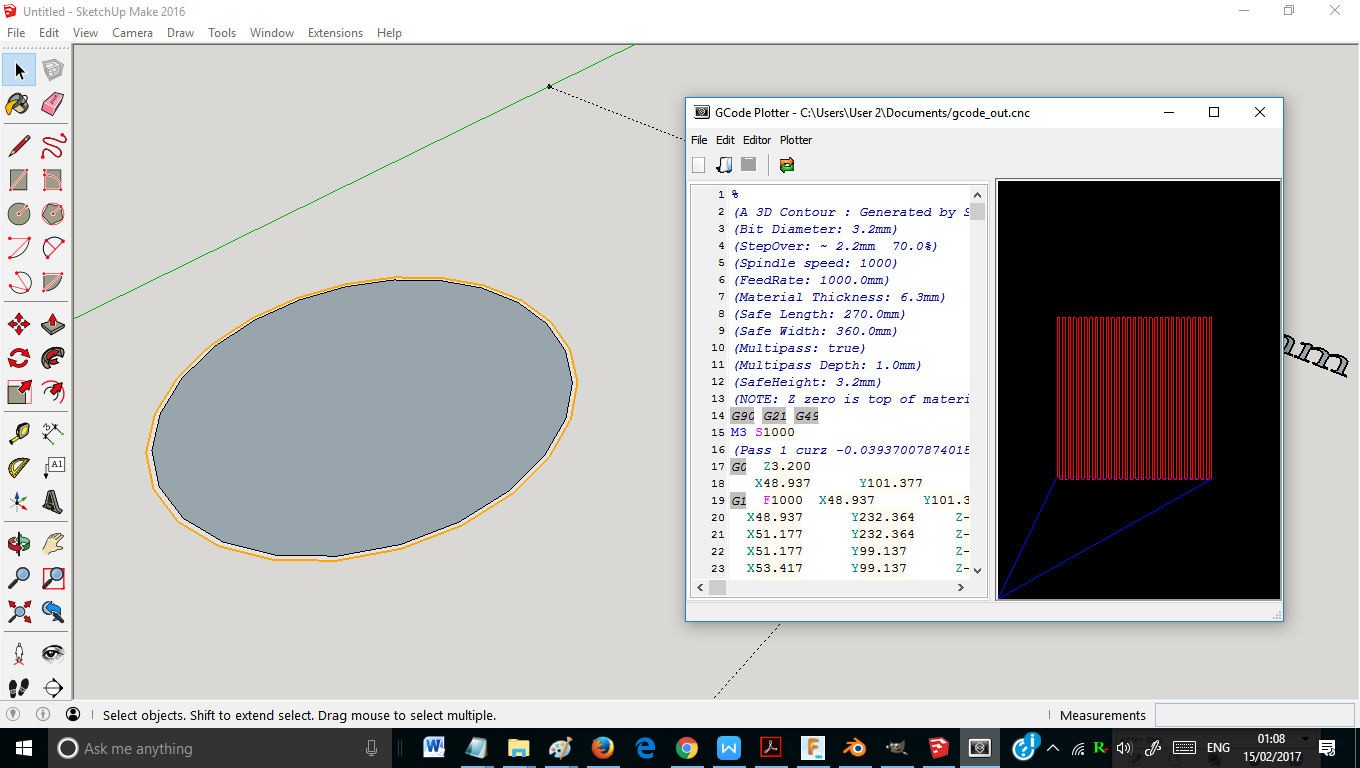

    I am having problem with the g code outputted by Sketchupucam. I only get rectangular profiles no matter the shape of the actual design. I have attached a screen shot of a circular profile and the GPLOT that shows up as a rectangle any help will be appreciated please


    Attached Files:

    abiodun Ogunribido, Feb 14, 2017
    #1
  2. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    Hi
    What you have drawn is a 2.5D drawing, but you have turned on '3D' code generation on the parameters dialog.
    You need to turn it off for that drawing.

    You can read the help/manual by clicking the big blue question mark on the toolbar.
    You can also watch the instruction videos starting at...

    swarfer, Feb 15, 2017
