While checking the pre-drilled pattern against the hinges I noticed that the holes did not line up. I am guessing I should just go ahead and pre-drill my own holes according to the hinge hole patten I have.

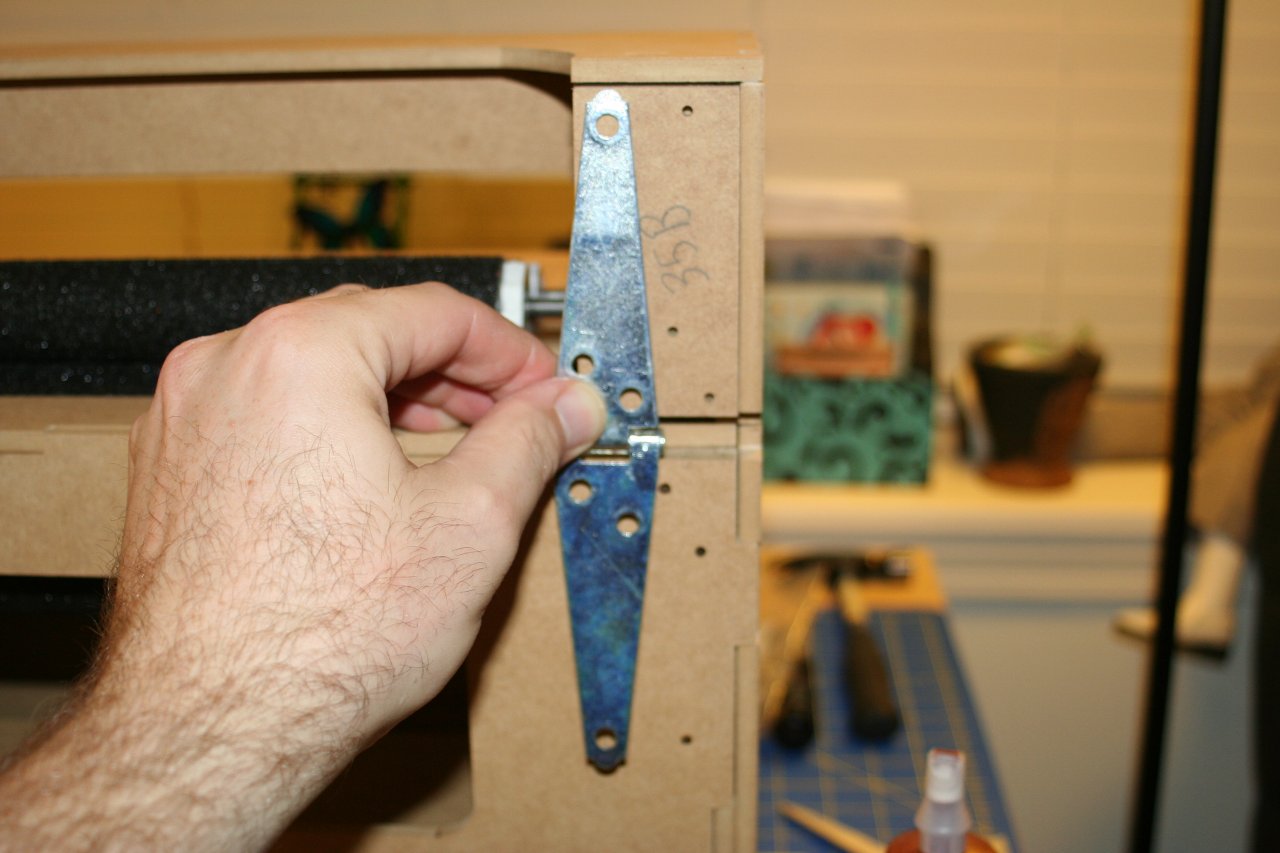

I am wondering if the hinge supplier changed the hinge to one with a differnt pattern and now the holes don't line up. I attached the hinge bag label and hinge over hole photos for reference. Attached files



I've noticed the same issue with my hinges. I think my hinge was stamped Stanley, I'll have to look at the bag to see if it is identical to yours.
Dave



My hinges are stamped "National". I wonder if I stopped by Lowes and took a look at some different hinges if I could find some with the right pattern. I'll transfer the wood hole pattern to a piece of paper and go to check it out.

It's probably not a big deal, but it would be nice to line up with wood hole pattern. On the other hand the pre-drilled holes are only in the first layer.



I had the same issue, so I just went with beefier hinges...

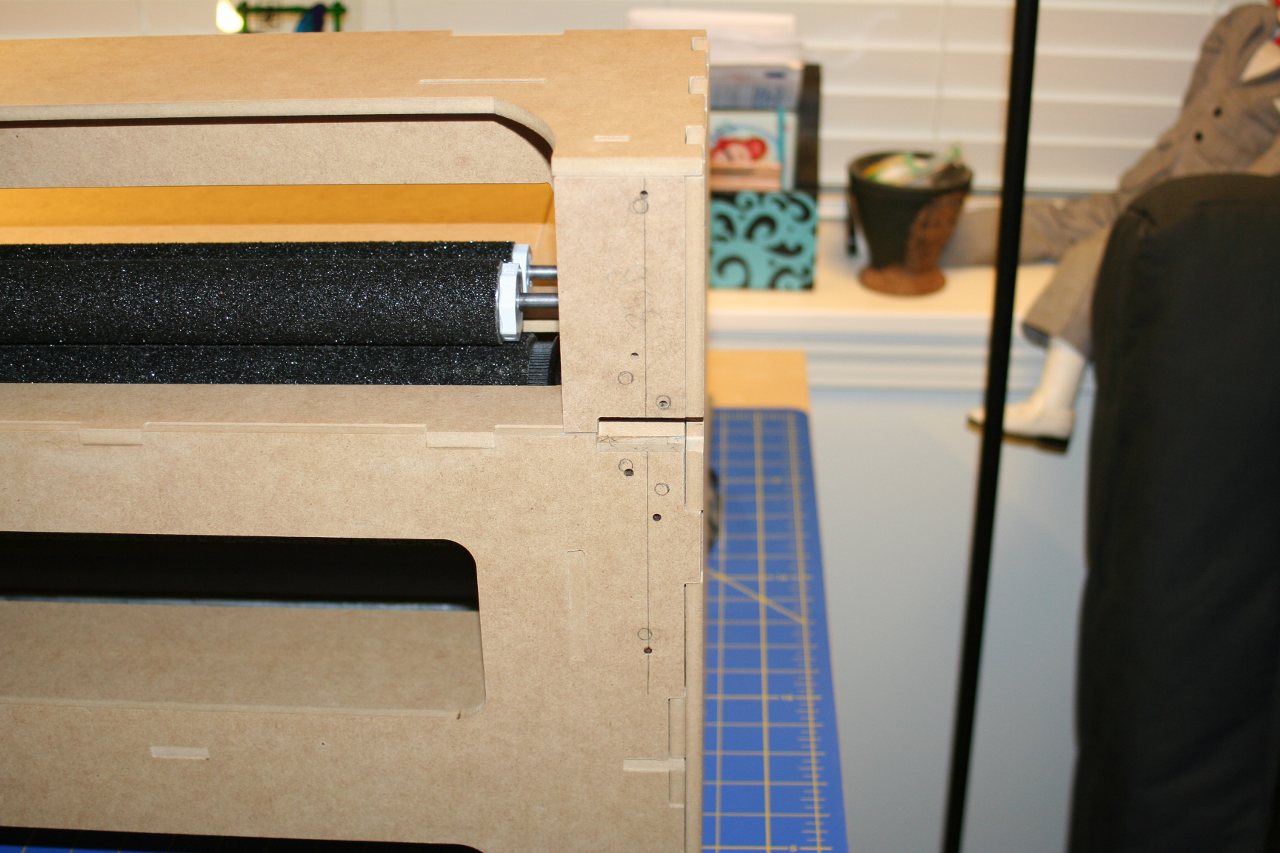

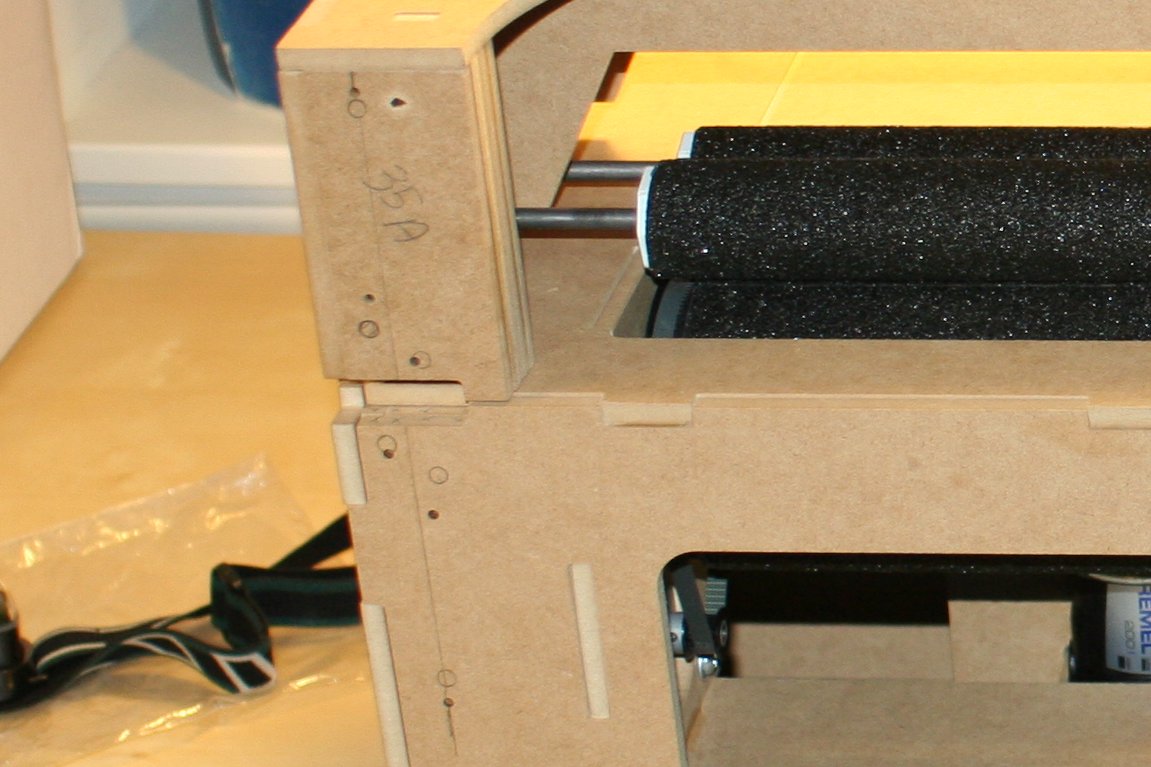

Thanks for the feedback guys! I decided to go ahead and fill in the pre-drilled holes with super glue. Now that the glue is dried I will drill in the new hole pattern as shown in pencil in the attached images.

Interstingly when I went to Lowes to look at the hinges I found a hinge that matched the existing phlatprinter hinge hole pattern glued to the wooden display board in front of the hinge box. So this makes me believe that the hole pattern of the hinges was changed by the company that supplies Lowes with hinges.

Maybe future phlatprinters can be updated for this new hinge hole patern. Attached files

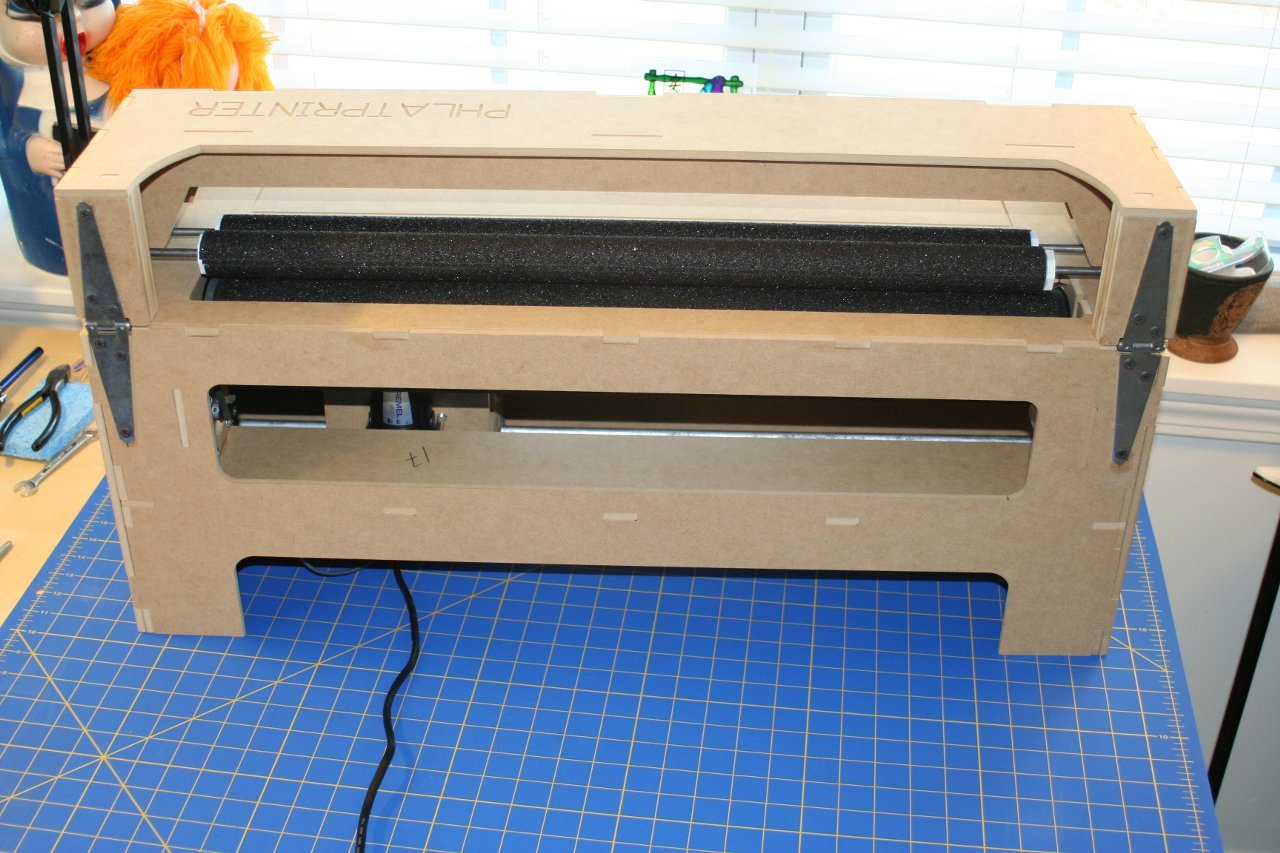

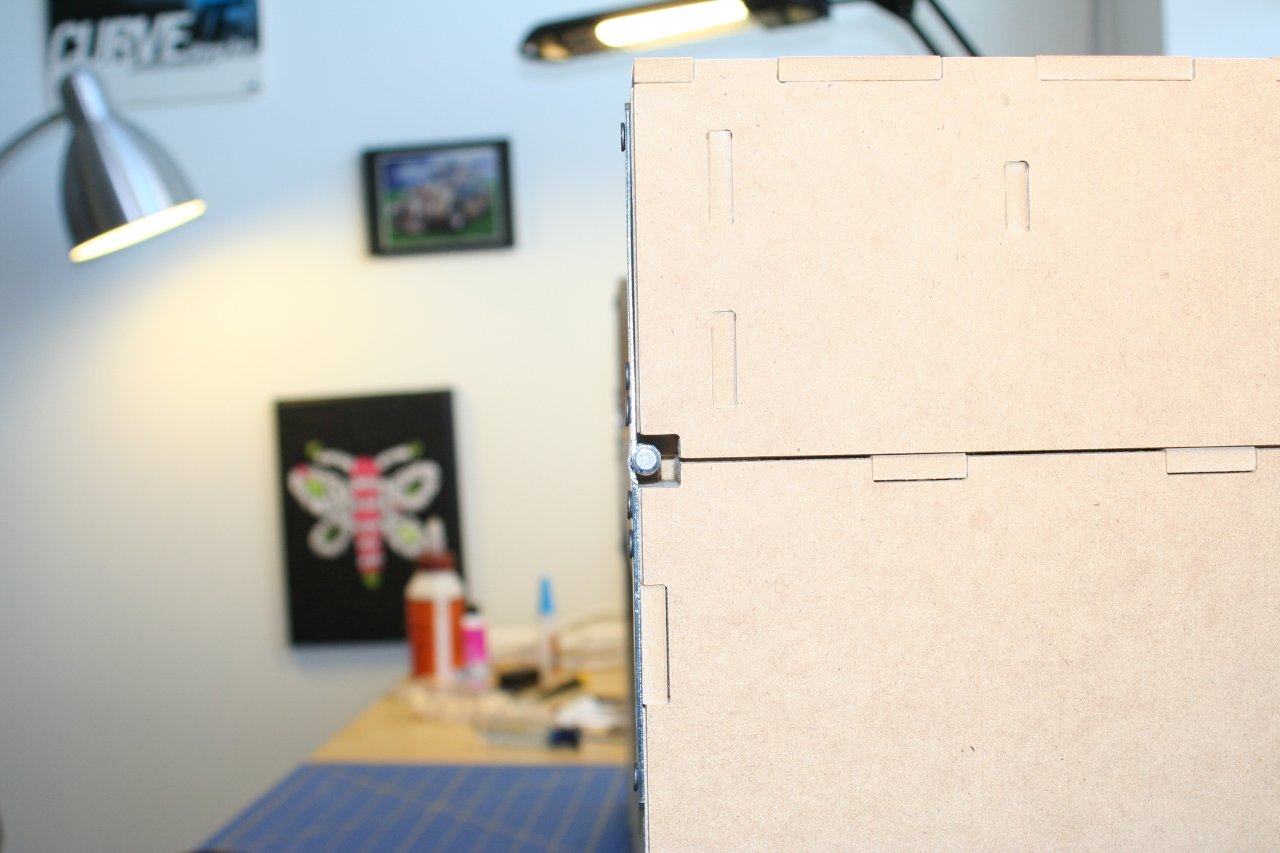

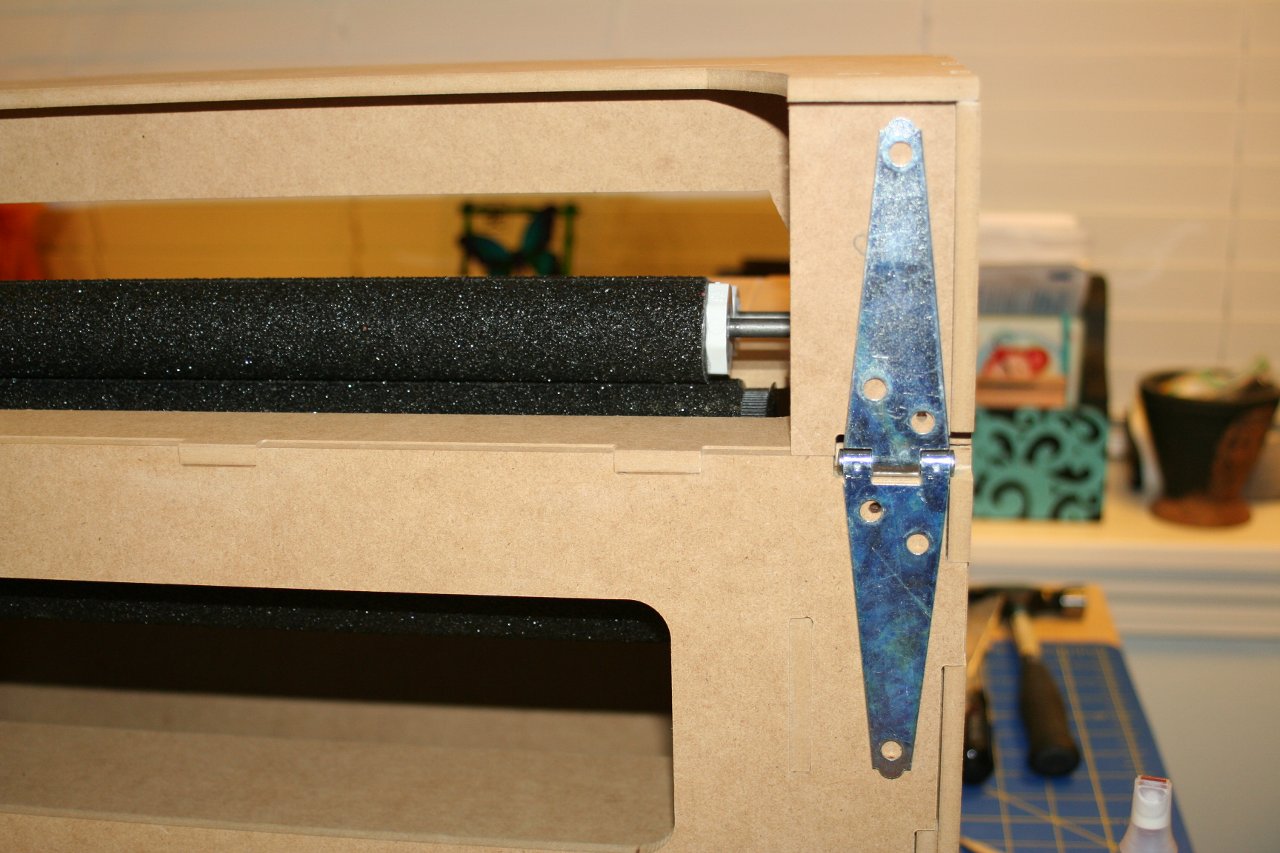

Now that the super glue is dried in the pre-drilled holes I went ahead and drilled the new hole pattern to match the hinge pattern. I am glad that I super glued the existing holes first as my drill bit would have walked over right into a couple of them. I also predrilled all my new holes with a 3/32" diameter drill bit and it was much easier to screw in the drywall screws by hand (my electric screw driver batteries were dead!). Even with the larger pre-drilled holes the hinge mounting is very secure and strong.

Attached files



My vote is to leave the hole pattern out all together, that way if an unexpected hole pattern change happens I does not matter since the holes will be drilled to the hinges pattern that is available at the time of the build.

I am guessing getting rid of the hole pattern will probably eliminate a tool change in the mfg process of these two parts also!



I'll "third" or "fourth" that vote. My holes didn't match either, but I just drilled new holes and kept on building - I never even thought about filling the old holes.
