Welcome to The Phlatforum PhlatPrinter III

How to do a Bevel Edge(45*) tut

Discussion in 'SketchUcam Help' started by RC of the North, Dec 27, 2008.

  1. RC of the North

    RC of the North Member

    Offline
    Messages:
    37
    Trophy Points:
    6
    Maybe this would be a good additional feature for the Phlat Script?
    Wanting to do a bevel edge for rudder/elevator, ect @ a 45* angle.
    Could someone walk me/ future others through.
    Much thanks,
    RC of the North

    RC of the North, Dec 27, 2008
    #1
  2. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky

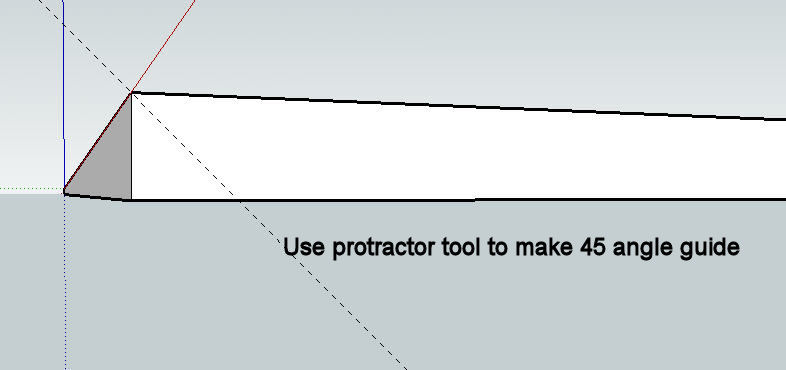

    I'll try again. :D Here is one way to do it...

    Attached files [​IMG] [​IMG] [​IMG] [​IMG]

    7up, Dec 27, 2008
    #2
  3. RC of the North

    RC of the North Member

    Offline
    Messages:
    37
    Trophy Points:
    6
    Thank you 7up ;) , my question how will the Phlat Printer (script)handle it?
    Centerline tool?
    Man a have so long to go on Sketchup :cry:

    RC of the North, Dec 27, 2008
    #3
  4. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    I used to use the TAB tool. Now I use the Centerline one

    sides are 99% and then I step the hinge ones 70%-50%-25%- tape the top and a light sand on the bottom and they are good to go.





    E-T Attached files [​IMG]

    Evil-Tunes, Dec 28, 2008
    #4
  5. RC of the North

    RC of the North Member

    Offline
    Messages:
    37
    Trophy Points:
    6
    How far apart are the lines?, a bit width apart?
    Thanks for all the help, I can't be the only one want this info :oops:

    RC of the North, Dec 28, 2008
    #5
  6. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    I have done both 1/16 and 1/8 on a 1/8 bit I like the 1/16 better less sanding and the 1/8 more sanding but a little wider.



    E-T :D

    Evil-Tunes, Dec 28, 2008
    #6
  7. RC of the North

    RC of the North Member

    Offline
    Messages:
    37
    Trophy Points:
    6
    OK E-T so maybe 1/2 bit width?
    Looks like I have the info I need to begin playing with it.
    Just running low on foam right now :cry:

    RC of the North, Dec 28, 2008
    #7
