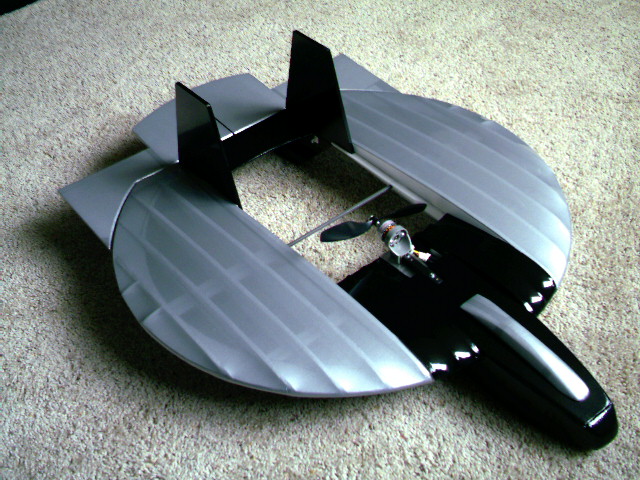

Hello. First I want to thank all you who have posted help material relating to the PhatPrinter, SketchUp, and PhlatScript. They have been very helpful. I would like to know if there is any interest in flying saucer type planes. My goal is to further the development of saucers. I would like to submit my KX-5.24 as an entry into this type of plane. This is a symmetrical ribbed 24" diameter saucer. It has an impressive "Cool Factor" when in the air. This is a completed plane that does fly. This is the first forum that this plane has been submitted to. Please take a look and let me kwow what your thoughts are.

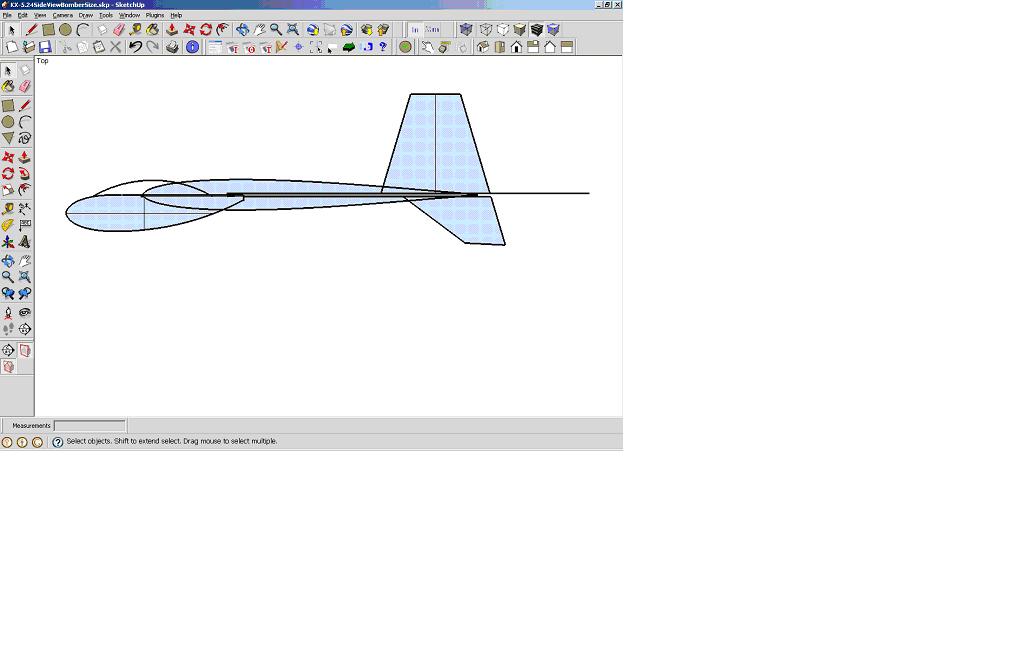

Attached files FSP-6.24Disc_WithScoop.skp (979.6 KB)Â FSP-6.24R3-R7_WithScoop.skp (970.5 KB)Â KX-5.24 Udated Construction File.pdf (3.6 MB)Â KX-5.24Disc.skp (1.6 MB)Â KX-5.24R3-R7.skp (1.2 MB)Â



That is a really cool plane! Looks really high tech with the semi transparent grey covering.
What type of controls do you have (elevons, RET..)?
Is that a carbon spar you have for strengthening?
Do you have some more stats on the plane(weight, power setup etc)?

Oh, that turned out to be alot of questions. Well, welcome to the forum!

/Jan



Thanks for the comments. Here are the specs:

24" diameter disc
AUW = about 16oz
A $16 dollar motor/ESC combo (B2208/14 and 18 amp ESC) from RCHotDeals.com is a perfect match for this plane. About 100 watts is what you’re looking for. I prefer at least a 1:1 thrust to weight ratio.
APC 8x4.3 (or smaller) prop
1320 to 2200 mah 3 cell lipo
2 servos (about 15 oz torque) in elevon configuration (like TowerPro 9 gram servos)
four 3 mm carbon fiber tube/rods for support spars.



Shaun, thanks for the comment. I have tried several film coverings. The best to work with is called 21st Centery MicroLite Film. TowerHobbies.com is a source.
