Discussion in '* Completed Phlatprinters *' started by ewo, Jan 26, 2014.

  1. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    o_O . Yea you read right .

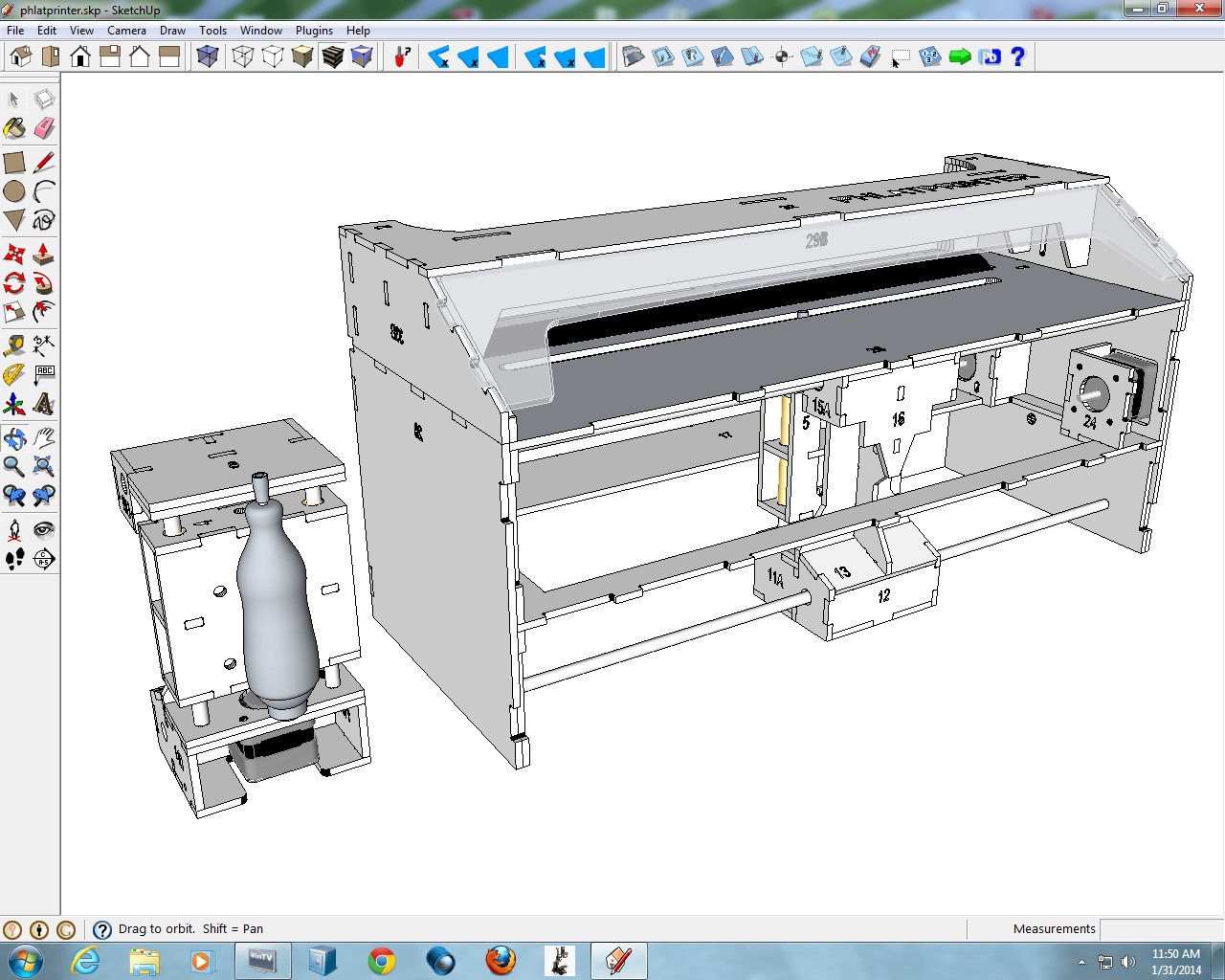

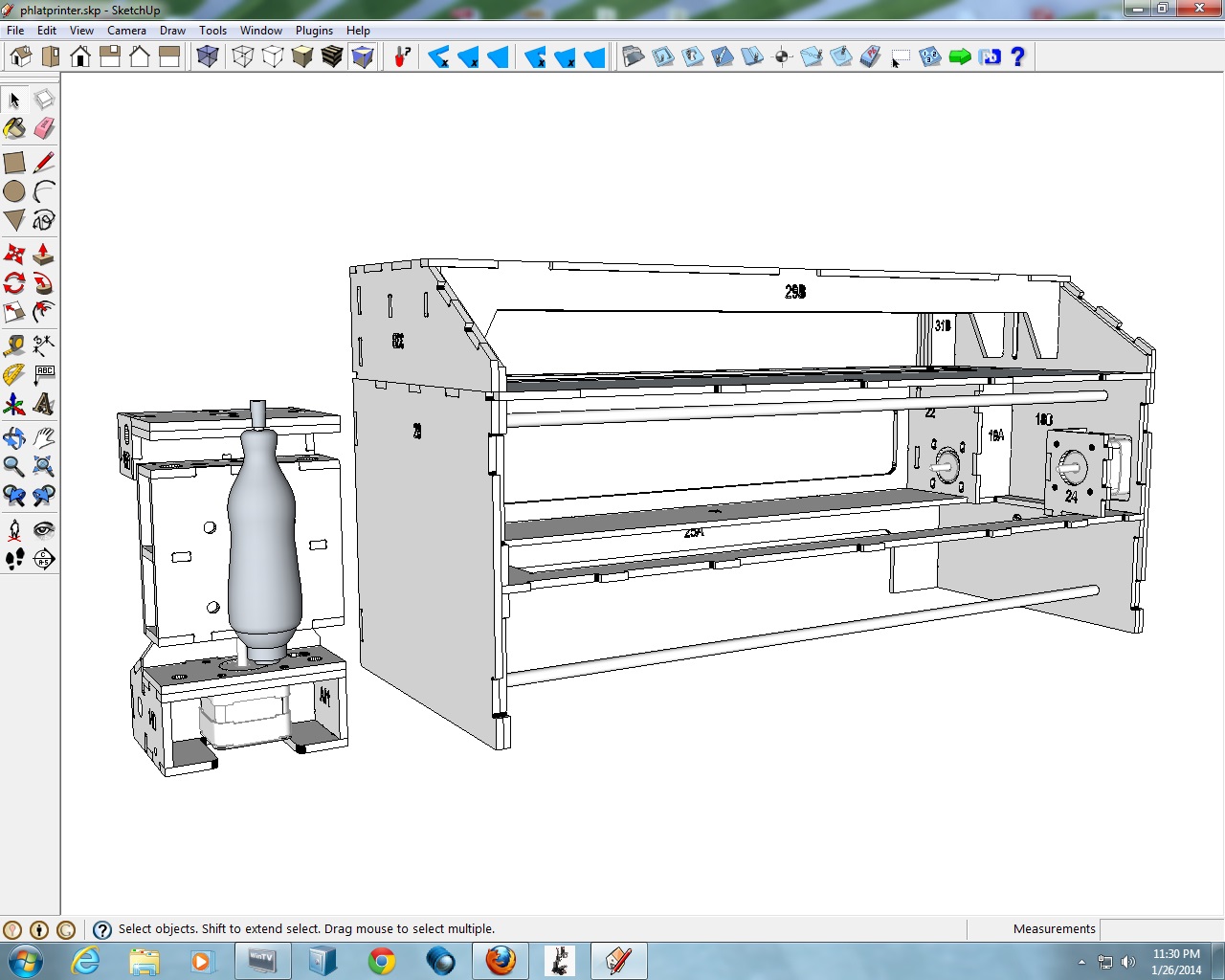

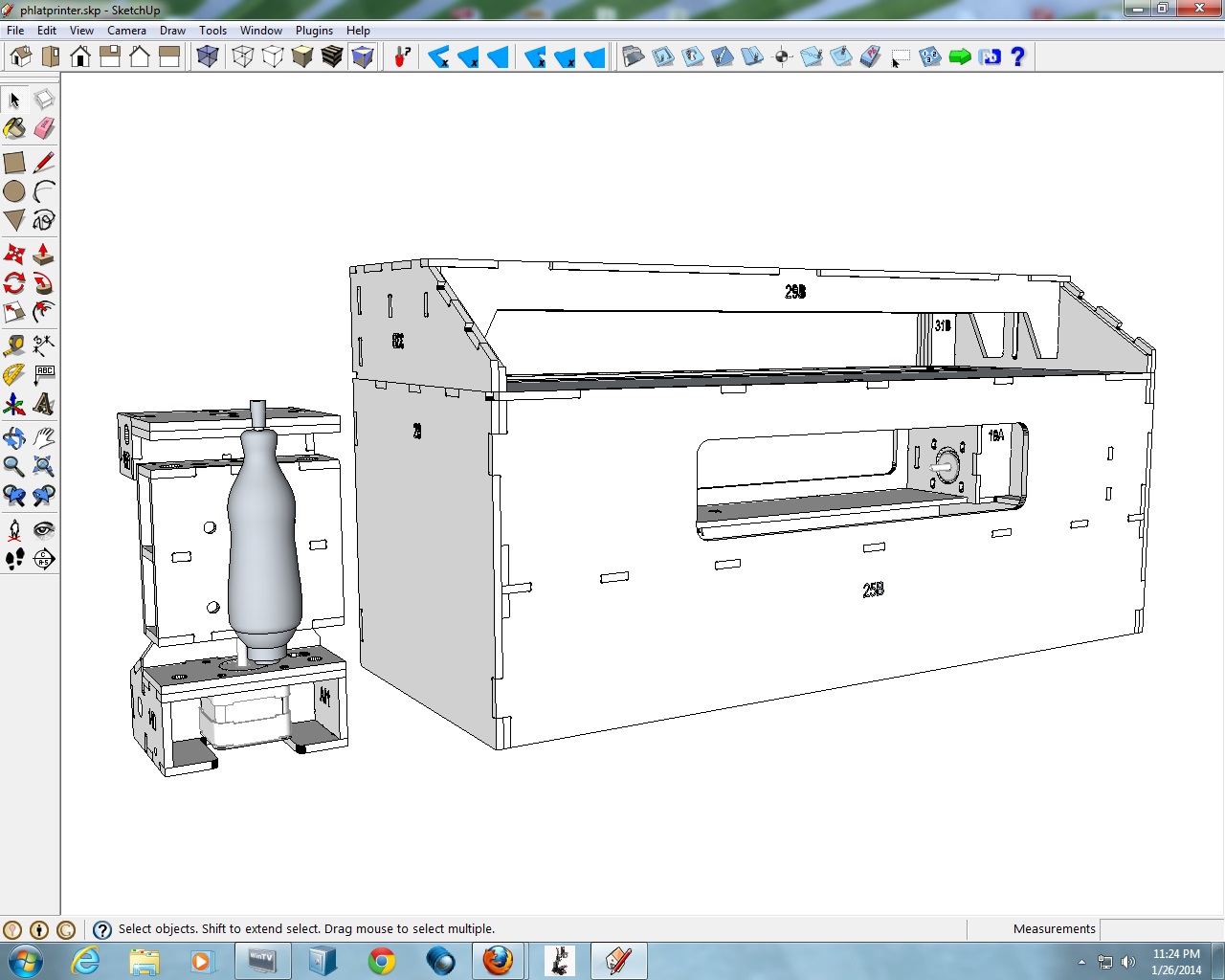

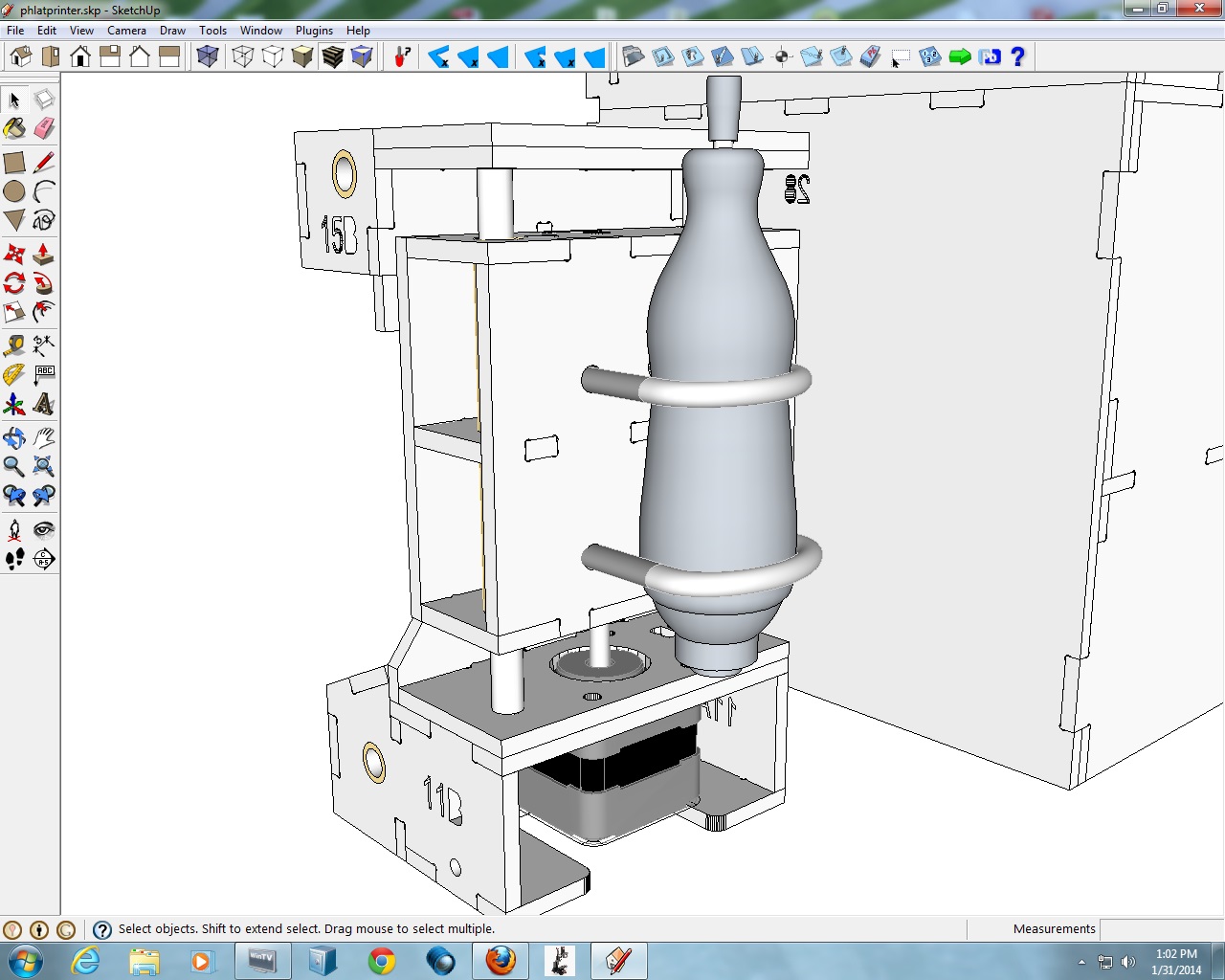

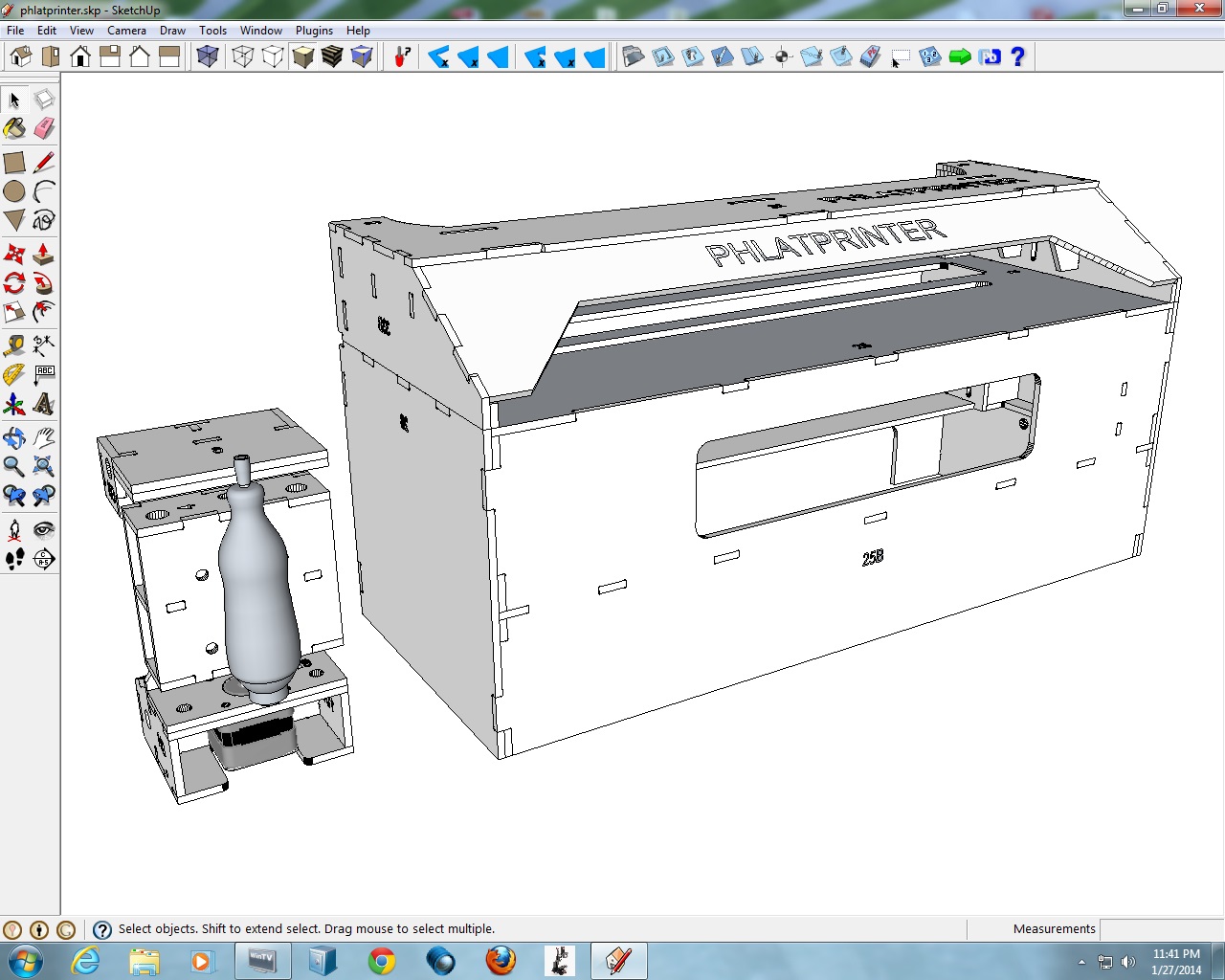

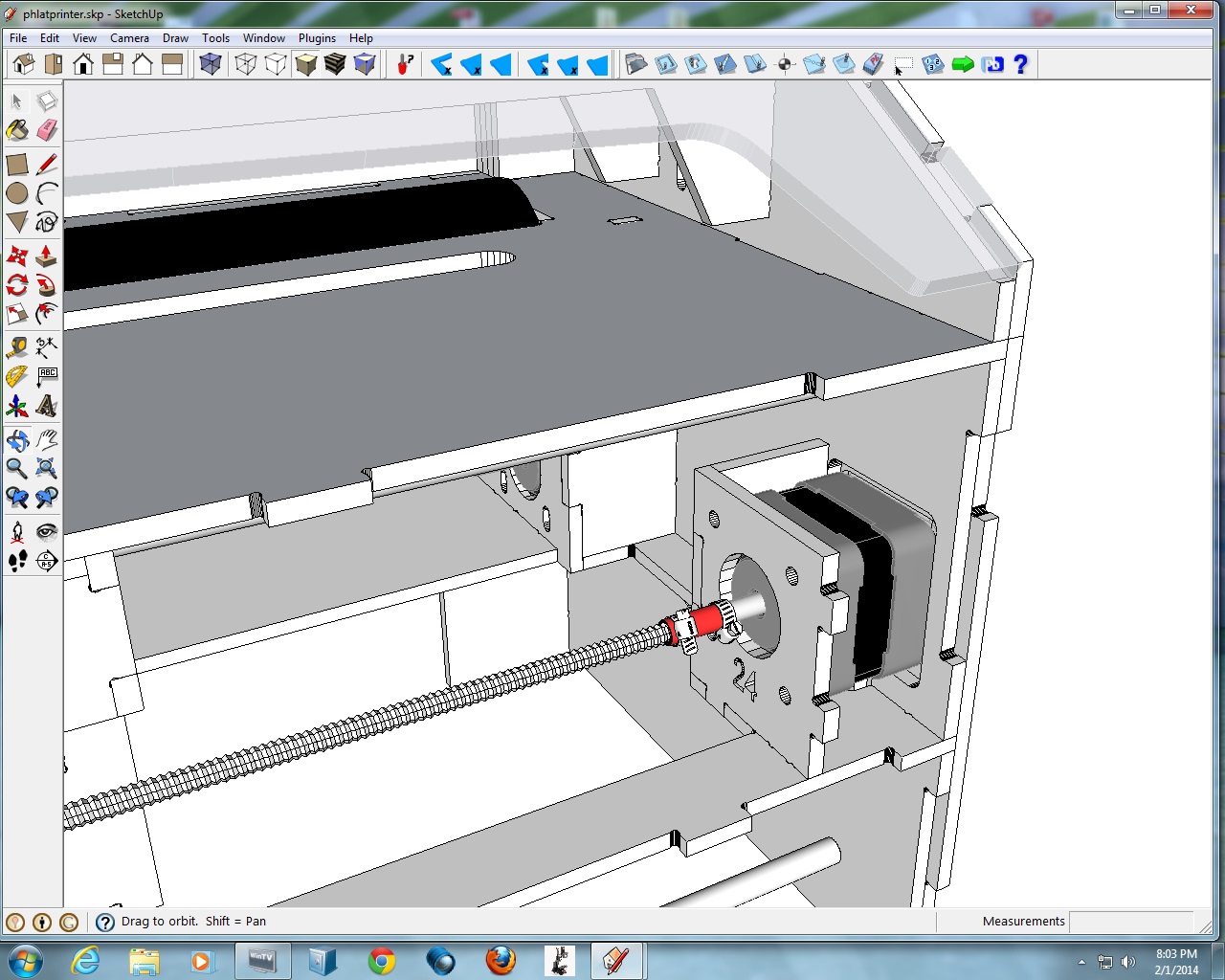

    Here is a couple pictures of my build.
    Built all in one day :)..... Its definatly been a challange,​



    Attached Files:

    kram242 and swarfer like this.
  2. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Just sharpening my skills.
    Mark did tell me to stay buizy :D

  3. ToxicToast

    ToxicToast Down in the weeds. Staff Member

    Offline
    Messages:
    483
    Trophy Points:
    18
    Location:
    Roseville, CA
    Very nice model, indeed. I think the ultimate irony would be a phlatprinter making a phlatprinter.

    kram242 likes this.
  4. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    wow! I downloaded the dxf a couple of weeks ago, imported into Sketchup2013, and gazed in wonderment at the many pieces, realizing I had no idea where they go, so put it on one side 'for now'. the router available to me can cut them all out of one sheet in one go, but that doesn't help without some indication of what joins to what.
    Since then I had some new ideas and am probably not going to build a phlatprinter in this form....

  5. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Did you do it from the file that Mark posted on Openbuild forum? I saw it there but I didn't realize it was the PP I. For some reasons I thought it was the PP III. May be just my wishful thinking. :D

    Maybe Mark will be kind enough to post the PP III too. I could use it if I need to replace a part on mine.

  6. Rowedent

    Rowedent Member

    Offline
    Messages:
    75
    Trophy Points:
    8
    ive been hoping he would post the phlatformer...someday

  7. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Yea , the parts came from the DXF file Mark posted on openbuilds.
    I just made them all 1/4" thick and started building the model..
    The thing is , the further along i got the more i thought this model could be really usefull for someone building one. You could take the parts and kinda like hold them , rotate them and take them apart to see how the real thing is built..

    I gotta admit though. The y/z axis did stump me quite a bit to start with . and i looked at Crash's build pictures and figured it out . .....................and the part for the plexiglass wasnt in the file

    What do you guys think ? could this model help someone with there build ?

    Yea i would love to get my hands on the PP3 and the Phlat former files myself . to also put togeather in 3d . :)

  8. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Kinda made a quick and dirty plexiglass window and uploaded the pic.
    Maby mark will supply the file for that part too ?? Hint , Hint... :)

  9. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth
    I know where they go.

  10. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth
    What DXF file did Mark post.I guess I missed something.

  11. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
  12. rescue911

    rescue911 Active Member

    Offline
    Messages:
    417
    Trophy Points:
    28
    Location:
    earth
    Got it .Thank you swarfer.

  13. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    The model is almost done . Im trying to draw the drive roller right now but i dont remember what size the pex pipe was exactly , I seam to think it was 3" od . but im really not sure ?

  14. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana

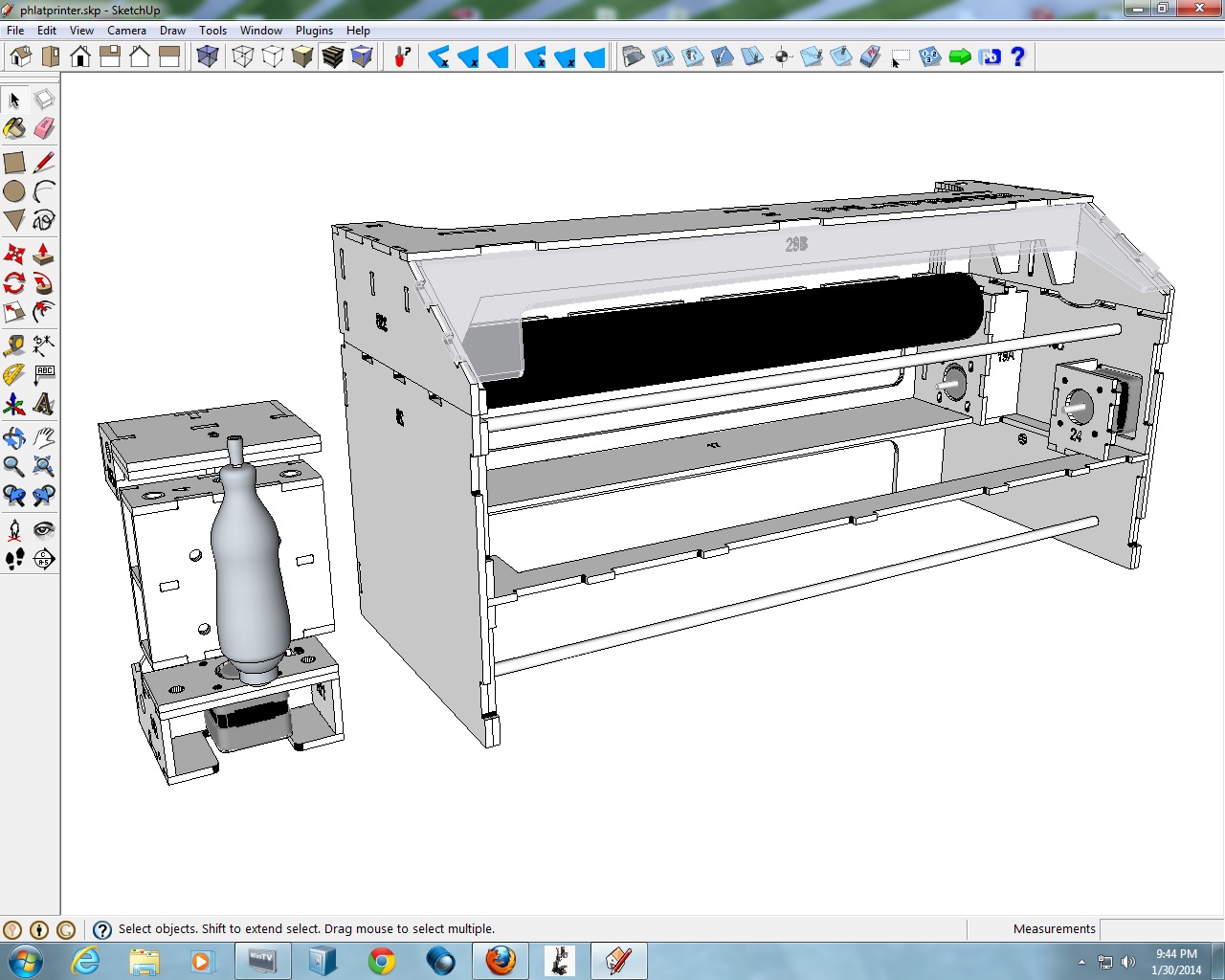

    I think i got the drive roller right "I THINK "

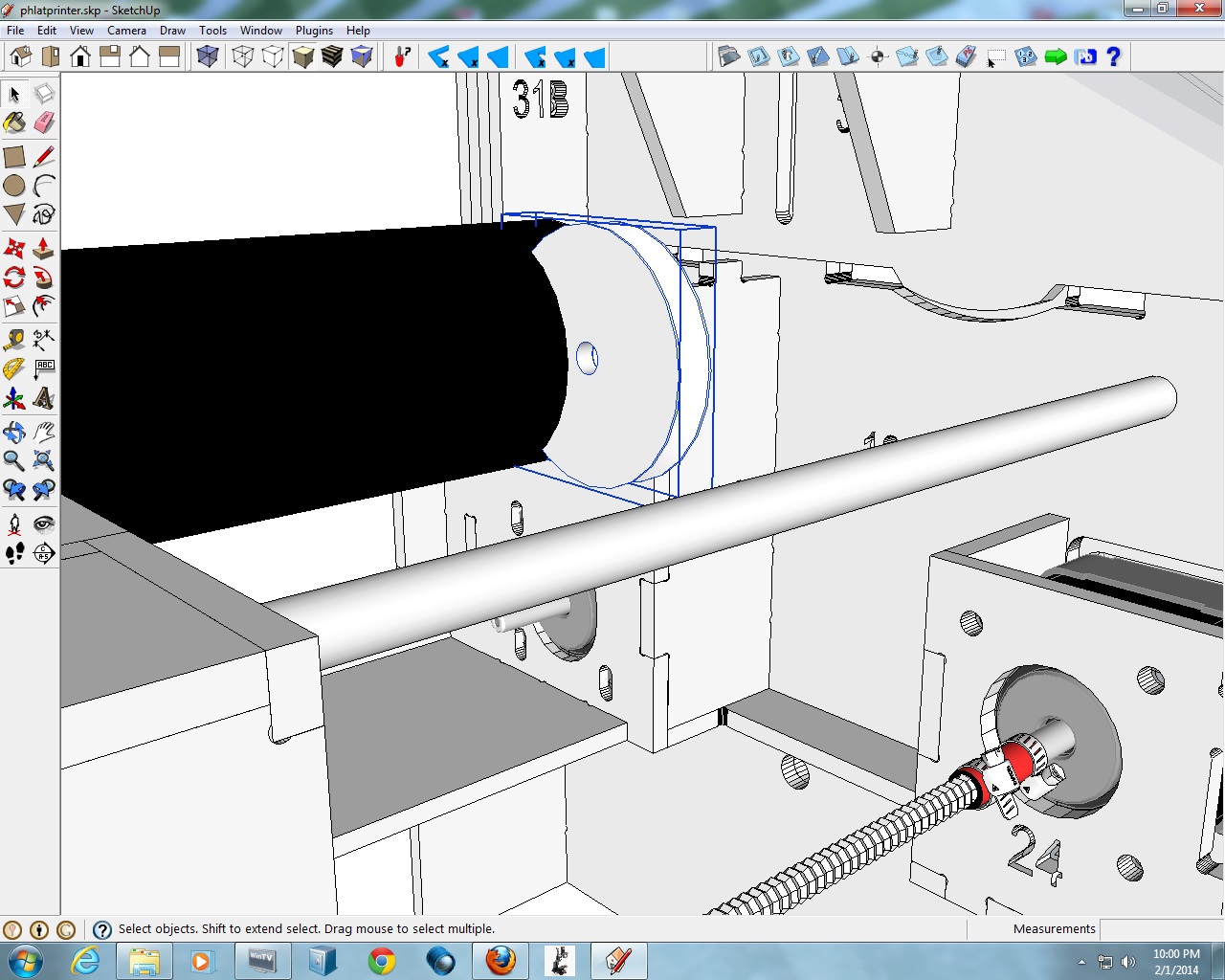

    uploaded the picture

  15. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana

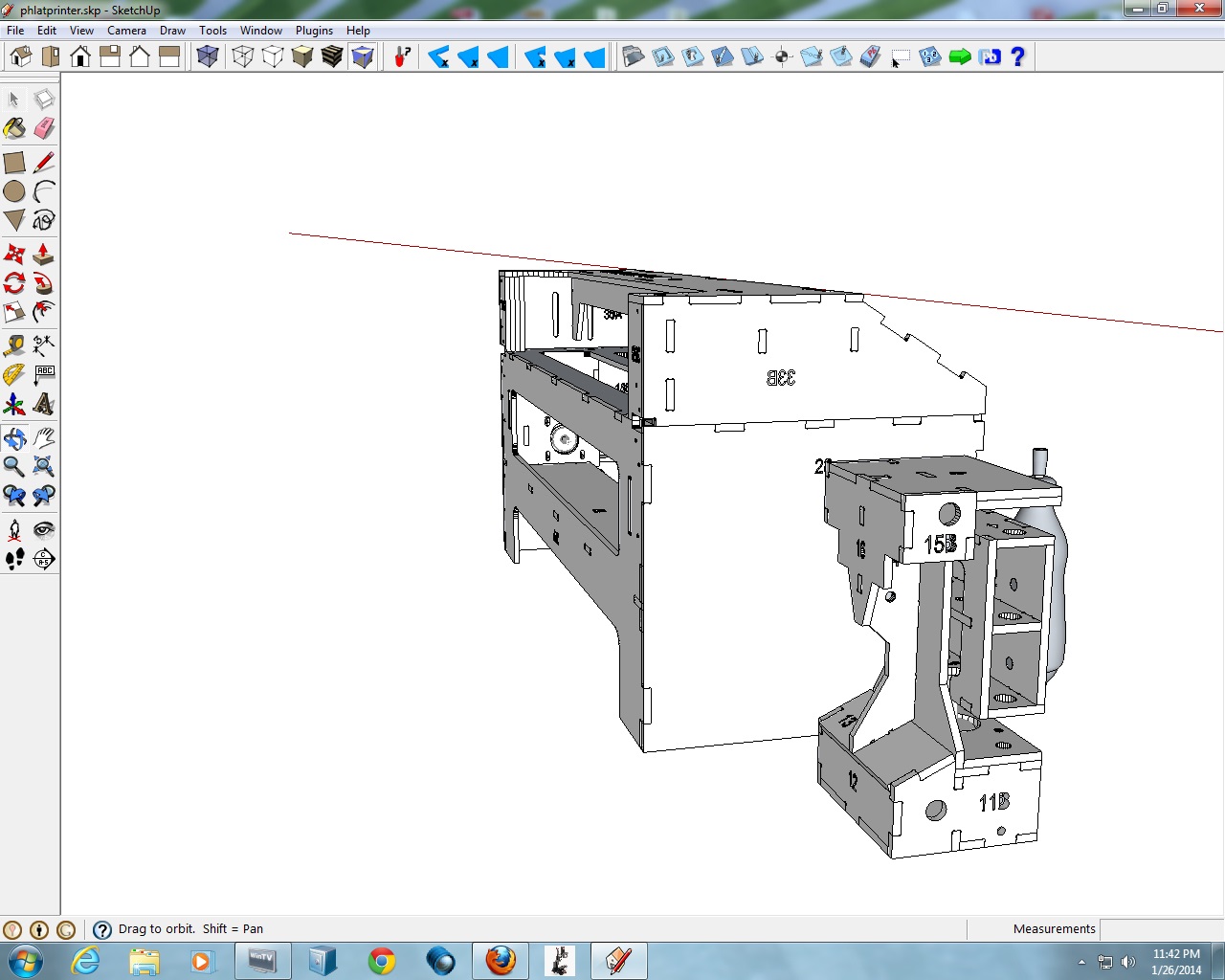

    Added the y/z carriage to the case this morning .
    Just realized i forgot to add the pvc guides for the gantry . No biggie.
    I will add them now. :)

  16. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Added some pretty ugly u-bolts to hold the dremel tool to the carriage

  17. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Sketchup is getting really kinda slow now the more parts i add.

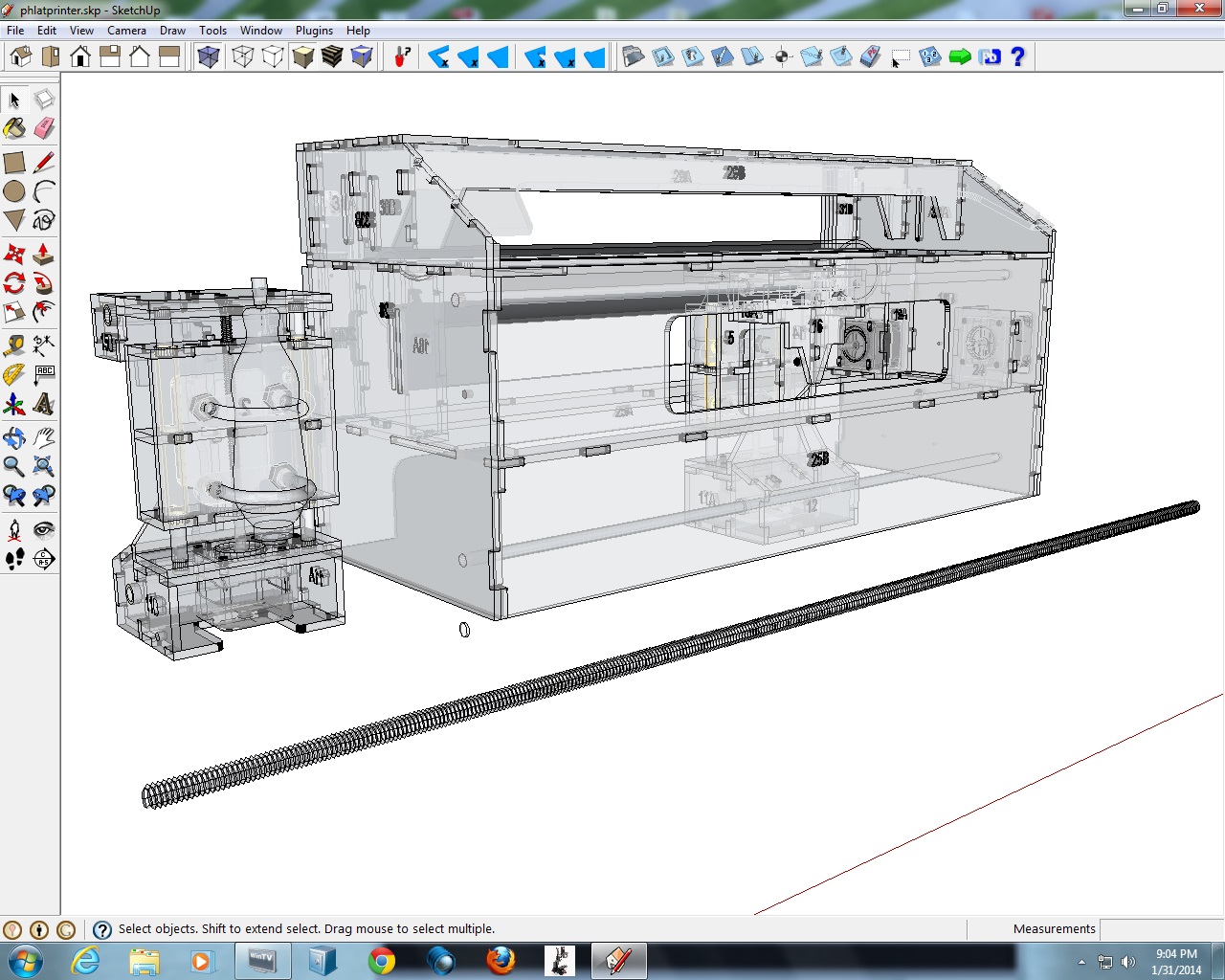

    Made up some all tread . picture added

  18. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Great job, Bruce. Now, of course, you'll have to do the same for the PP III. :rofl:

  19. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    I would love to take on that challange Yoram :)
    But " The 1/4 million nuts and screws " just kinda scares me .
    I might not have enough years left to get it done :oldman:

    EDIT: I really didnt mean to take this thing as far as i have
    I was only going to put togeather the wood parts "BUT" i keep telling myself
    just one more part :( Its turning into a real experience .........:cry:

  20. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Nice work Bruce! Not sure how I missed this post but very cool my friends :D
    I will be posting the rest of the Phlatprinters (II & III) as well as the Phlatformer once I complete the Phlatprinter post on OpenBuilds :good:
    You think this one had a lot of crazy parts? :) wait till you see the MKII!

    ewo likes this.
  21. Rowedent

    Rowedent Member

    Offline
    Messages:
    75
    Trophy Points:
    8
    i am not so patiently waiting for the phlatformer!

    kram242 likes this.
  22. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    I will get the plans up asap Rowedent :doubleup:

  23. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    If you'll put the PP III up maybe I'll tackle it and do what Bruce did the the MK I.

    kram242 and ewo like this.
  24. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Dang straight Bro .:good:

  25. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    That would be cool guys and your more then welcome to however they are already put together as models. You could grab the DXF (once they are up) and do it for fun just to see if you can figure out the puzzle :D
