Welcome to The Phlatforum PhlatPrinter III

need some help

Discussion in 'SketchUcam Help' started by Jnida63, Mar 13, 2011.

  1. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    on the previous versions of the phlatscript i went into the phlamill.rb file and was able to change the retract depth to compensate for my overhead mod.
    Now when i start a cut, the Z backs off well over an inch before it starts cutting, I cannot seem to figure this out, on thicker materials the Z hits the top of the gantry.
    I only want it to come up about a quarter of an inch, any help would be appreciated

    Jnida63, Mar 13, 2011
    #1
  2. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    The first cut line showing in Mach is
    G0 Z2.0

    Jnida63, Mar 13, 2011
    #2
  3. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Jeff,
    you shouldn't need to change anything in the phaltmill file if your using the latest version of the script.

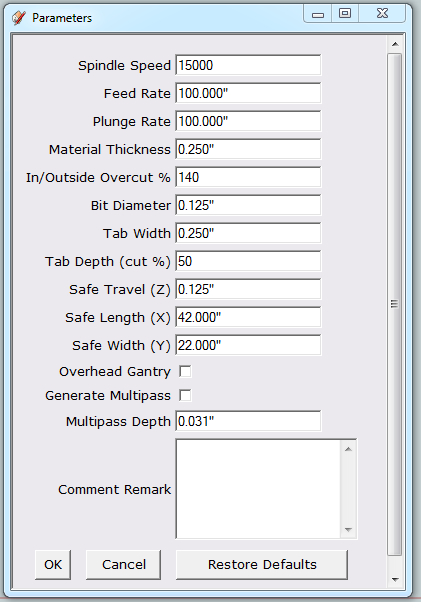

    The safe travel (z) in the main parameter box is your retract depth. Just change that number to what you want. Attached files [​IMG]

    3DMON, Mar 13, 2011
    #3
