Discussion in 'SketchUcam Bugs' started by alexeiv, May 29, 2018.

  1. alexeiv

    alexeiv New Member

    Offline
    Messages:
    4
    Trophy Points:
    1
    Location:
    spain

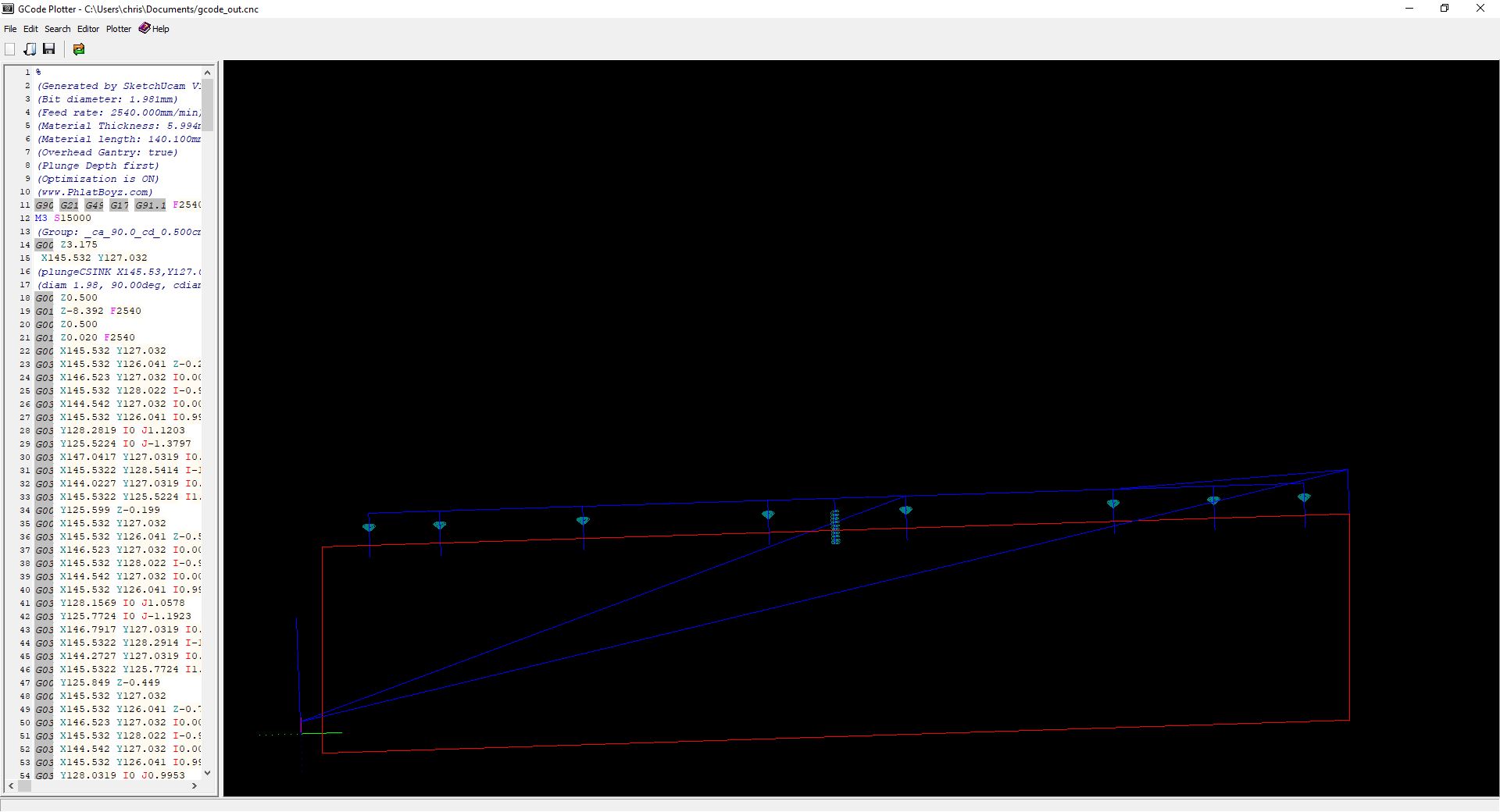

    Hi everyone, I m recently new with CNC and I have a trouble that I cant resolve. I make the draw in Sketchup and after making the gcode and see it in Camotics,...there is imposible to make countersinks and plunge. Is like it have no tikness.
    Thanks

  2. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,576
    Trophy Points:
    48
    Can you post the g-code file or maybe the SketchUp file that gives you the problem or maybe both? It will help to solve the problem.

  3. alexeiv

    alexeiv New Member

    Offline
    Messages:
    4
    Trophy Points:
    1
    Location:
    spain
    Thats only and example, only a shape and a countersink and a hole

    %
    (Generated by SketchUcam V1.4d-80c0152)
    (File: extrusio tapasfetCNC.skp)
    (Bit diameter: 2.0mm)
    (Feed rate: 2540.0mm/min)
    (Material Thickness: 8.0mm)
    (Material length: 110.0mm X width: 100.0mm)
    (Overhead Gantry: true)
    (Multipass enabled, Depth = 0.5mm)
    (Plunge Depth first)
    (Optimization is ON)
    (www.PhlatBoyz.com)
    G90 G21 G49 G17 F2540
    M3 S1500
    G00 Z3.000
    (Pass: 1)
    X14.001 Y36.058
    (plungeboredepth DEPTH=8.000 DIAM=2.000)
    G00 Z0.500
    G00 Z3.000
    (plungebore end)
    (Group: _ca_90.0_cd_5.0mm)
    (Pass: 1)
    G00 X13.762 Y31.921
    (plungeCSINK X13.76,Y31.92,zs 0.00,zo -8.000)
    (diam 2.00, 90.00deg, cdiam 5.00)
    G00 Z0.500
    G01 Z0.020 F2540
    G00 X13.762 Y31.921
    G03 X13.762 Y30.921 Z-0.250 I0.000 J-0.500
    G03 X14.762 Y31.921 I0.000 J1.000
    G03 X13.762 Y32.921 I-1.000 J0.000
    G03 X12.762 Y31.921 I0.000 J-1.000
    G03 X13.762 Y30.921 I1.000 J0.000
    G03 Y33.1706 I0 J1.125
    G03 Y30.4206 I0 J-1.375
    G03 X15.2619 Y31.9206 I0.0 J1.5
    G03 X13.7619 Y33.4206 I-1.5 J0.0
    G03 X12.2619 Y31.9206 I0.0 J-1.5
    G03 X13.7619 Y30.4206 I1.5 J0.0
    G00 Y30.497 Z-0.199
    G00 X13.762 Y31.921
    G03 X13.762 Y30.921 Z-0.500 I0.000 J-0.500
    G03 X14.762 Y31.921 I0.000 J1.000
    G03 X13.762 Y32.921 I-1.000 J0.000
    G03 X12.762 Y31.921 I0.000 J-1.000
    G03 X13.762 Y30.921 I1.000 J0.000
    G03 Y33.0456 I0 J1.0625
    G03 Y30.6706 I0 J-1.1875
    G03 X15.0119 Y31.9206 I0.0 J1.25
    G03 X13.7619 Y33.1706 I-1.25 J0.0
    G03 X12.5119 Y31.9206 I0.0 J-1.25
    G03 X13.7619 Y30.6706 I1.25 J0.0
    G00 Y30.747 Z-0.449
    G00 X13.762 Y31.921
    G03 X13.762 Y30.921 Z-0.750 I0.000 J-0.500
    G03 X14.762 Y31.921 I0.000 J1.000
    G03 X13.762 Y32.921 I-1.000 J0.000
    G03 X12.762 Y31.921 I0.000 J-1.000
    G03 X13.762 Y30.921 I1.000 J0.000
    G03 X14.7619 Y31.9206 I0.0 J1.0
    G03 X13.7619 Y32.9206 I-1.0 J0.0
    G03 X12.7619 Y31.9206 I0.0 J-1.0
    G03 X13.7619 Y30.9206 I1.0 J0.0
    G00 Y30.997 Z-0.699
    G00 X13.762 Y31.921
    G03 X13.762 Y31.171 Z-1.000 I0.000 J-0.375
    G03 X14.512 Y31.921 I0.000 J0.750
    G03 X13.762 Y32.671 I-0.750 J0.000
    G03 X13.012 Y31.921 I0.000 J-0.750
    G03 X13.762 Y31.171 I0.750 J0.000
    G00 Y31.247 Z-0.949
    G00 X13.762 Y31.921
    G03 X13.762 Y31.421 Z-1.250 I0.000 J-0.250
    G03 X14.262 Y31.921 I0.000 J0.500
    G03 X13.762 Y32.421 I-0.500 J0.000
    G03 X13.262 Y31.921 I0.000 J-0.500
    G03 X13.762 Y31.421 I0.500 J0.000
    G00 Y31.497 Z-1.199
    G00 X13.762 Y31.921
    G03 X13.762 Y31.671 Z-1.500 I0.000 J-0.125
    G03 X14.012 Y31.921 I0.000 J0.250
    G03 X13.762 Y32.171 I-0.250 J0.000
    G03 X13.512 Y31.921 I0.000 J-0.250
    G03 X13.762 Y31.671 I0.250 J0.000
    G00 Y31.747 Z-1.449
    G00 X13.762 Y31.921
    G00 Y31.921 Z3.000
    (Group complete: _ca_90.0_cd_5.0mm)
    G00 Z3.000
    G00 X0 Y0 (home)
    M05
    M30
    %

  4. alexeiv

    alexeiv New Member

    Offline
    Messages:
    4
    Trophy Points:
    1
    Location:
    spain
    this the g code and the skp


    Attached Files:

  5. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,378
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Alexeiv,
    You really need to read the manual.

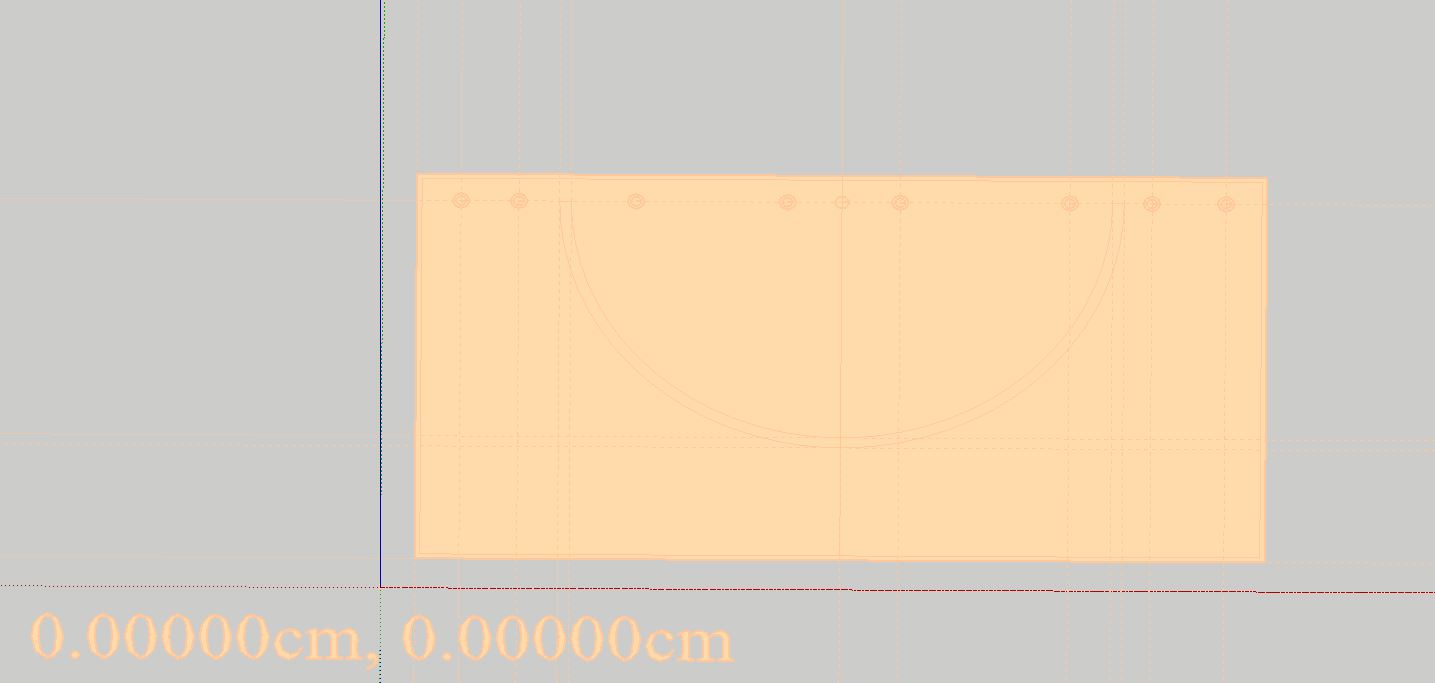

    Your sketchup colors and styles made it impossible for me to see what you had going on so I copied your part and pasted it into a new sketchup file and used my default parameters and got it to show up correctly.
    Your Sketchup and gcode file shows you have a setting most likely wrong in the parameters menu and I don't know where it is exactly.
    The manual is very well written and you should read it all the way through. Once you do this I bet you will understand what you did wrong.
    This is what your default template shows.

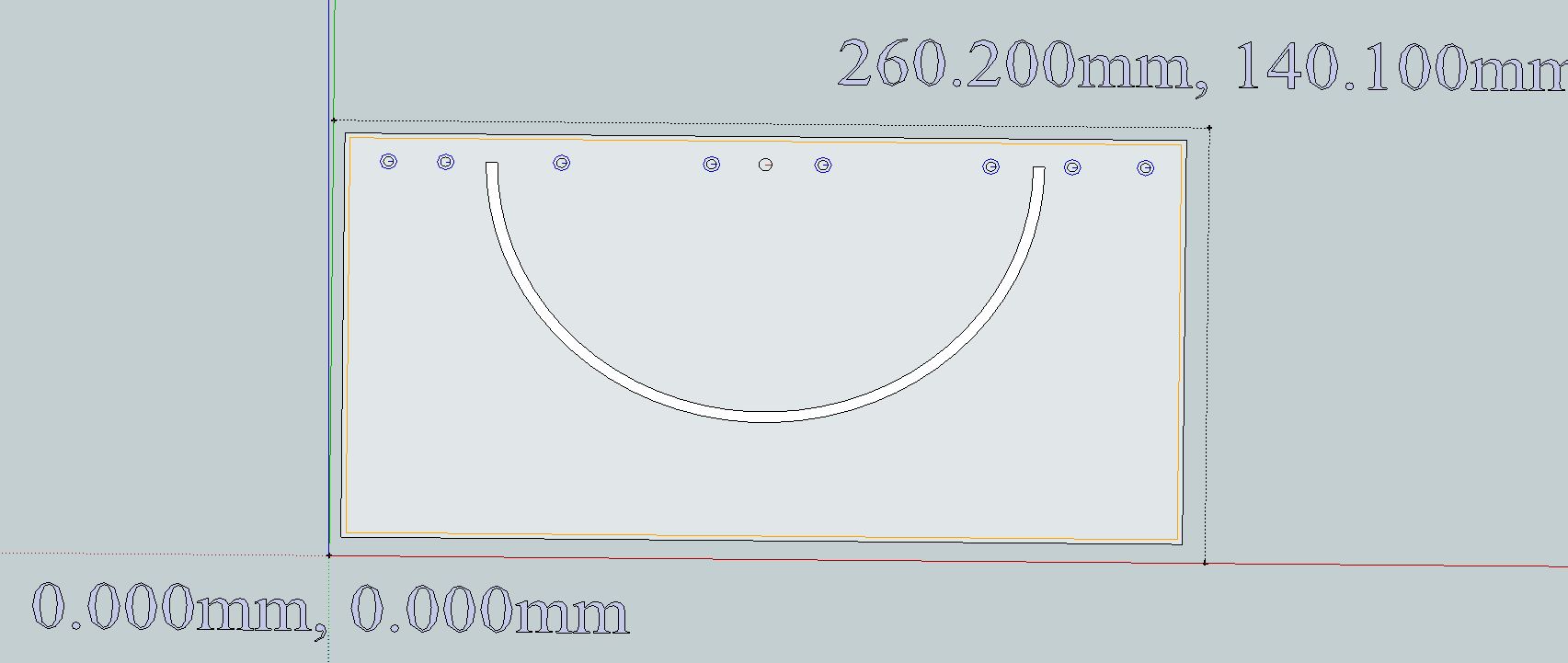

    This is what my default template shows.
    This is the gcode that I got using my default settings.

    Hopefully you get it figured out.

  6. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    803
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    Because you have a strange color set selected you cannot see that your face is the wrong way up.
    If you select the 'architectural design' style and
    'color by materials' then you see that you have the white side up, but it must be blue side up for SketchUcam to work correctly.

    Please check that in the parameters dialog the setting for 'Inside/outside overcut' is set to 100 (and read the manual to understand why)

    You can also watch the howto videos:


    Attached Files:
