I'm working on a flying Super, I mean Phlat Man. Here is the Preview:

More to come Soon :mrgreen:

Nate Attached files

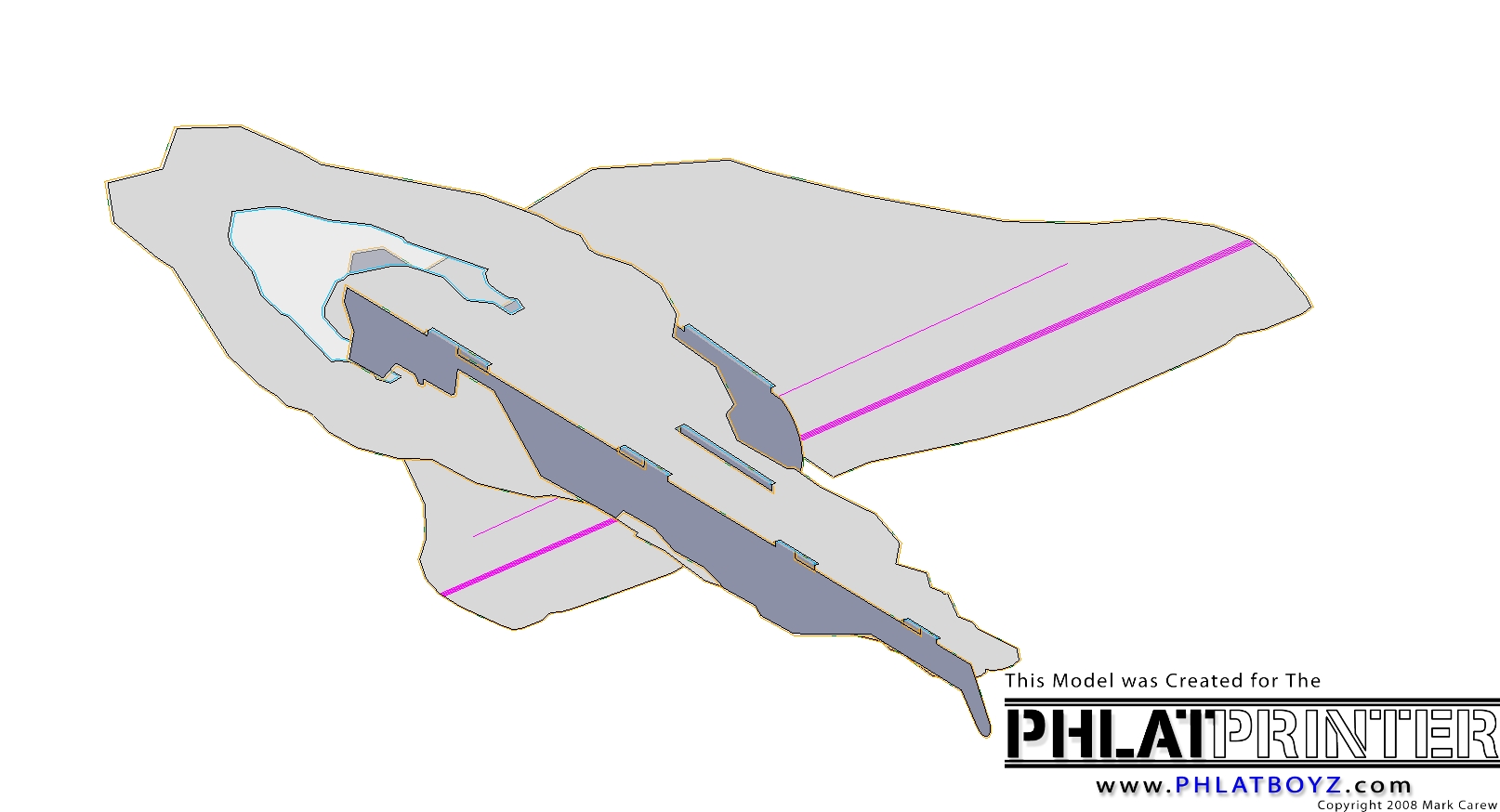

Thinking of 32" wingspan with either tailerons or elevons on the cape. Electronics: 1500 KV Blue Wonder, 360 mAh 3S Battery. Thinking 6mm EPP Or Depron

Plans and build available here: http://www.rcgroups.com/forums/showthread.php?t=1243490



plans and .skp soon. this is just the BETA version.


Happy Landings,


Nate Attached files



Mark,

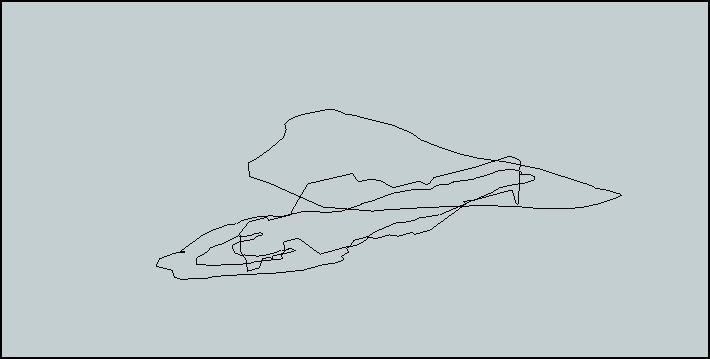

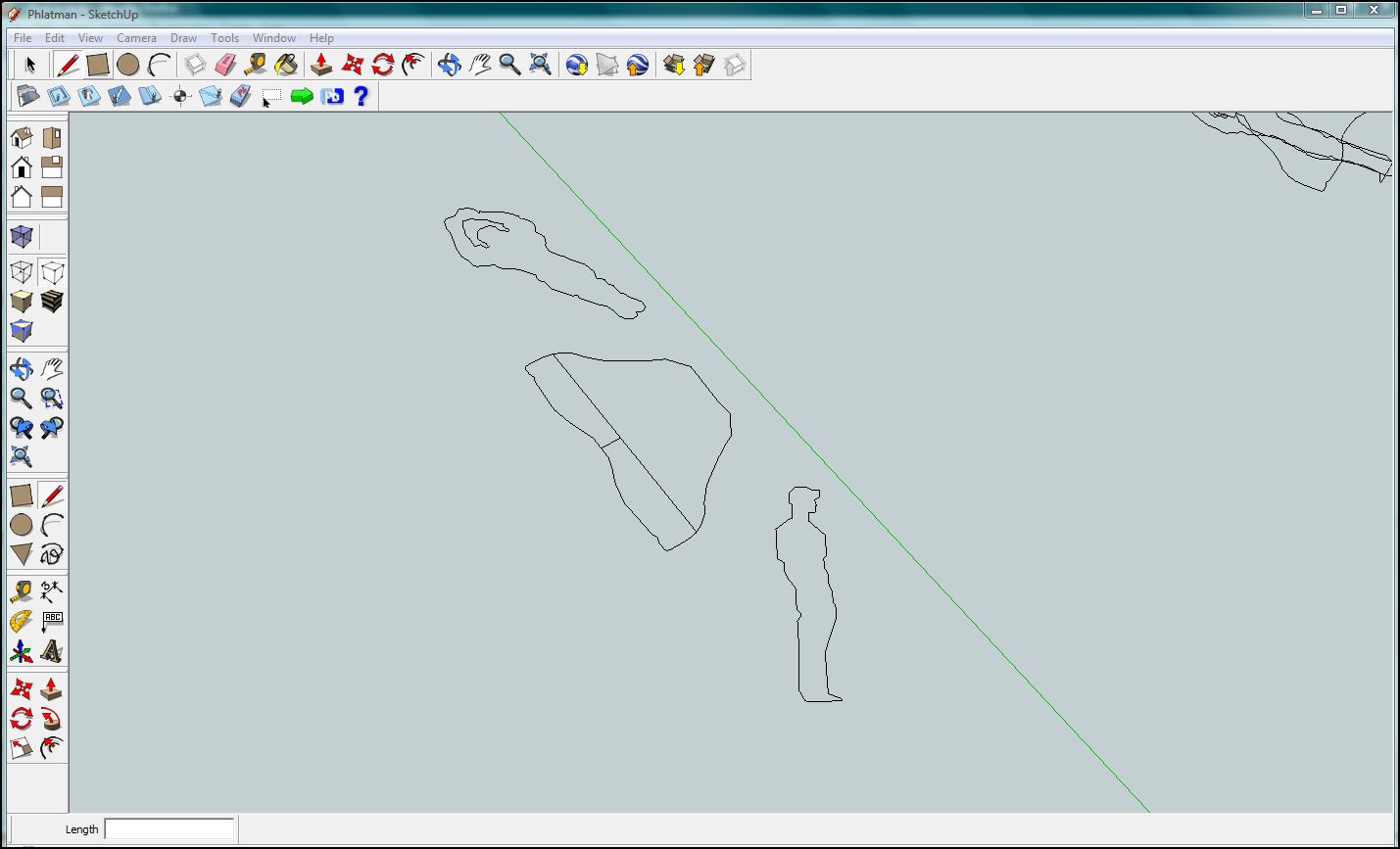

I have the .skp file done, no tabs yet, and am just trying to make .pdf plans. I am going to use 9 mm 1.3 Lb EPP and a Blue Wonder moor.

Plans and .skp soon!!

Nate



Do you think Depron would be better or EPP?

I think either one will work.

I am sending the plans to Ken on RCGroups tomorrow to be pdfized so I can provide a fully functional airplane.

Thanks,

Nate



Nate - If you download CutePDF, it will give you the ability to make your own pdf's. http://www.cutepdf.com/



http://www.ustream.tv/recorded/6681283

Here is a bit from where I was finishing up the prototype plans. Does anyone know how to get higher quality on screencast? :?:

Thanks,

Nate



Thanks!



Mark,

What webcam are you using and do you have a separate mic? I would like to try to broadcast live the construction of Phlat Man.

Thanks,

Nate



http://www.ustream.tv/recorded/6751943

UPDATE! Waiting for time to tape together the plans. probably this weekend!

Nate

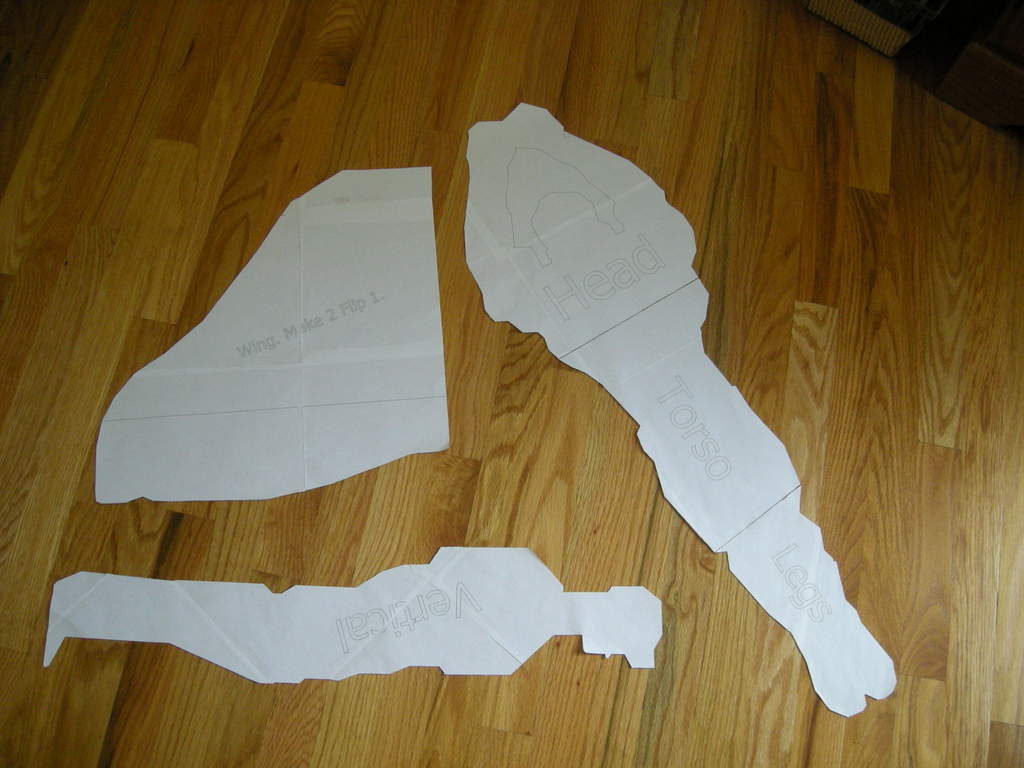

photo of the plans. I will start working on the G code. It is my first one, so it might not be perfect.

Attached files



I still need to build this and make sure it flys, but I wanted someone to get a head start on the G Code. The horizontal body will have to be cut in half and the wing might have to be 2 pieces. Foam thickness is 9 mm Standard EPP. I am still working on the tab and slot construction. this is the PRE RELEASE VERSION! I doon't know if it flys; so if you want to cut it out and test, go ahead. The plans are going to be free as the Phlat code. I just that you so noy make excessive copies to sell. The CF Slot still needs to be added; I need to look and see when I cut it out to see where it would go and how long it is. as for the wing placement, refer to the 3D model. Thanks for all of the support!

Nate

BTW

I will post PDFs later when the design is proven! Attached files Phlat Man Printer.skp (101.6 KB)Â



looks like fun!! ! Here is a code I made for 9mm epp 24" x 36" sheets !! I modded it a little to make it symmetrical !! I imagine you can take the SKP file and make it for any size foam thickness!! ENJOY!!

"Hey guys, just a quick note... I had depron on the brain so before you waste a piece of 24" x 36" epp, Please make sure you glue an extra 4" strip in the x axis making the sheet 24" X 40", as my parameters on the file was set to 35" and this was the minimum size to fit this cool ship!! You will need the extra for the offset of the cut!! Hope this helps!! "

John Attached files Phlat Man Body.cnc (13.8 KB)Â Phlat Man FFF.skp (307.6 KB)Â Phlat Man FanFoldFoam.cnc (17.4 KB)Â Phlat Man Wing.cnc (4.5 KB)Â Phlat Man.skp (316.1 KB)Â



That is WICKED! Thanks so much! I will have to update the plans with this file! If you need to, ad a ruder once it is cut out!

Thanks so much,



Nate



My pleasure Nate!! This will be alot of fun, I just have several other builds on the table first
Let me know if you get one up and running, I cant wait to mess with it and a Rudder will help for sure!!! Although elevons will do the trick for a super fast bird!!

John



Hey guys, just a quick note... I had depron on the brain so before you waste a piece of 24" x 36" epp, Please make sure you glue an extra 4" strip in the x axis as my parameters on the file was set to 35" and this was the minimum size to fit this cool ship!! You will need the extra for the offset of the cut!! Hope this helps!!

John
