Welcome to The Phlatforum PhlatPrinter III

Phlat-Universial Joint

Discussion in 'Functional Designs' started by kram242, Dec 9, 2008.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    [pre]<iframe src='http://sketchup.google.com/3dwarehouse/mini?mid=3419d49cd555823ceed03cf817273764&etyp=sw&width=400&height=300' frameborder='0' scrolling='no' marginheight='0' marginwidth='0' width='400' height='300'></iframe>[/pre]

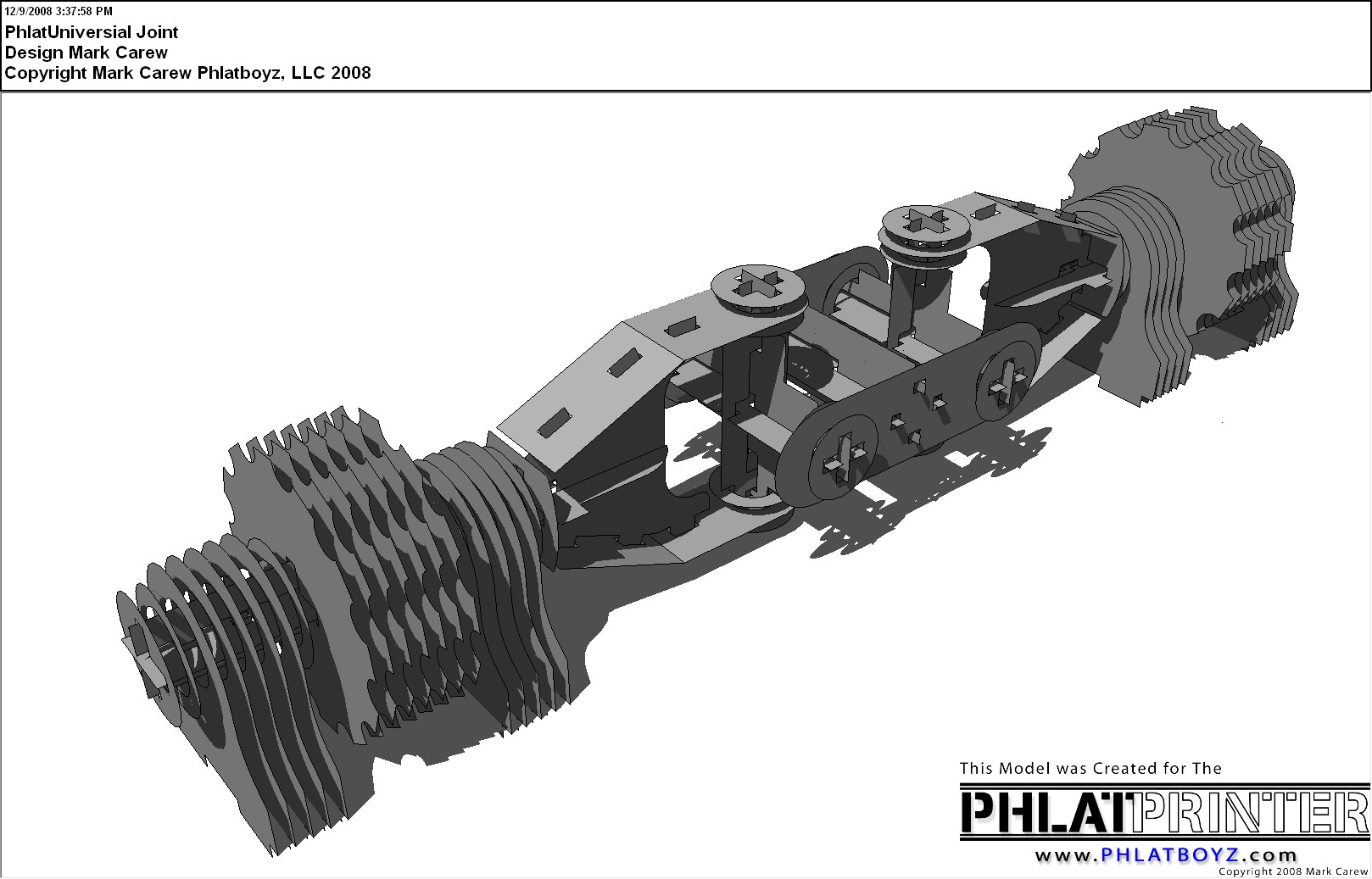

    Here is a universal joint made from 1/4" material .
    It works and you could hook up a small motor to have it run on its own.
    I made it as a proof of concept idea. Would be neat out of plexiglass
    Looks great just hanging on the wall. Maybe in a shop class?
    Hope you like it Enjoy :mrgreen:
    Mark
    The video below will show you it in motion.
    Attached files [​IMG] Universial_Joint.zip (219.4 KB)Â

    kram242, Dec 9, 2008
    #1
  2. garyg

    garyg New Member

    Offline
    Messages:
    1
    Trophy Points:
    0
    This is really cool, the more I look the more I want , cant wait to try this out!!

    garyg, Dec 29, 2008
    #2
  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Hi Gary welcome to the Phlatforum :)
    Enjoy yourself and have fun!
    If you need anything just ask, we will all do our best to help you out.
    Mark

    kram242, Dec 29, 2008
    #3
