Phlatprinter MKII Mach3 Settings

Discussion in 'GENERAL Phlatprinter MKII Talk' started by kram242, Nov 25, 2009.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

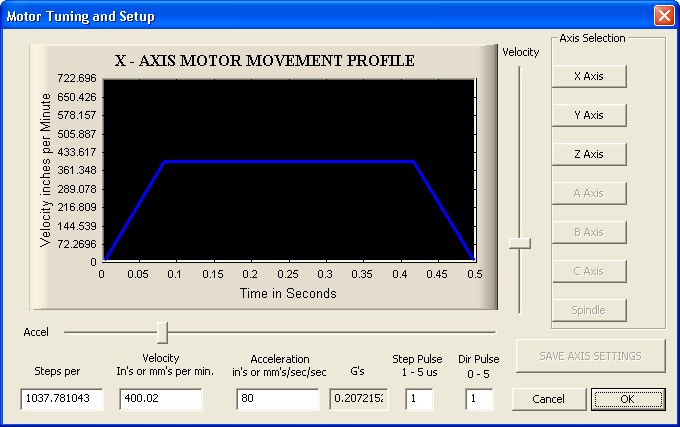

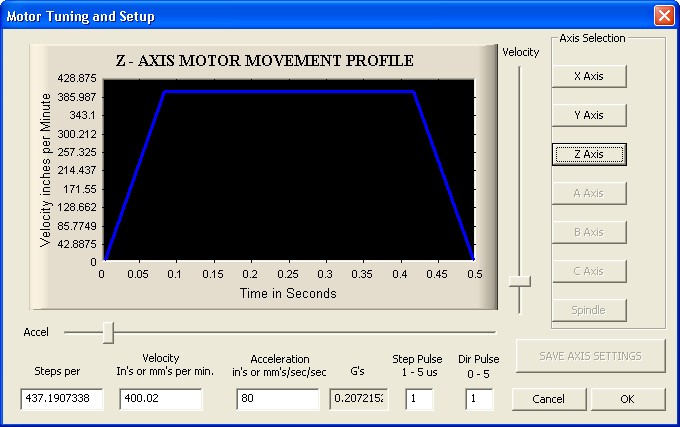

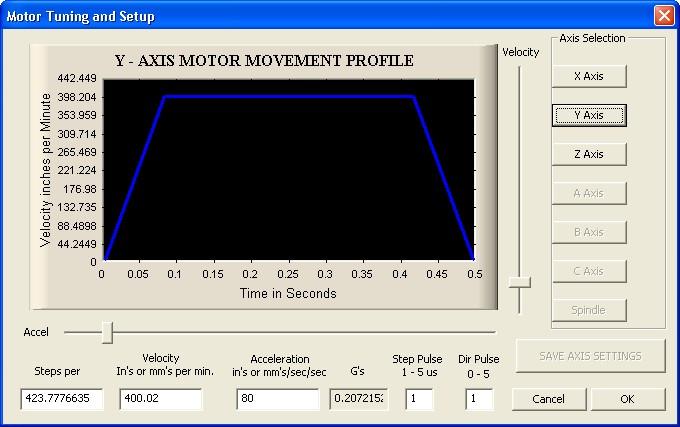

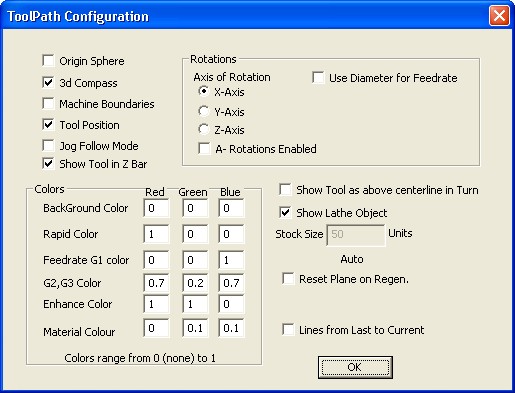

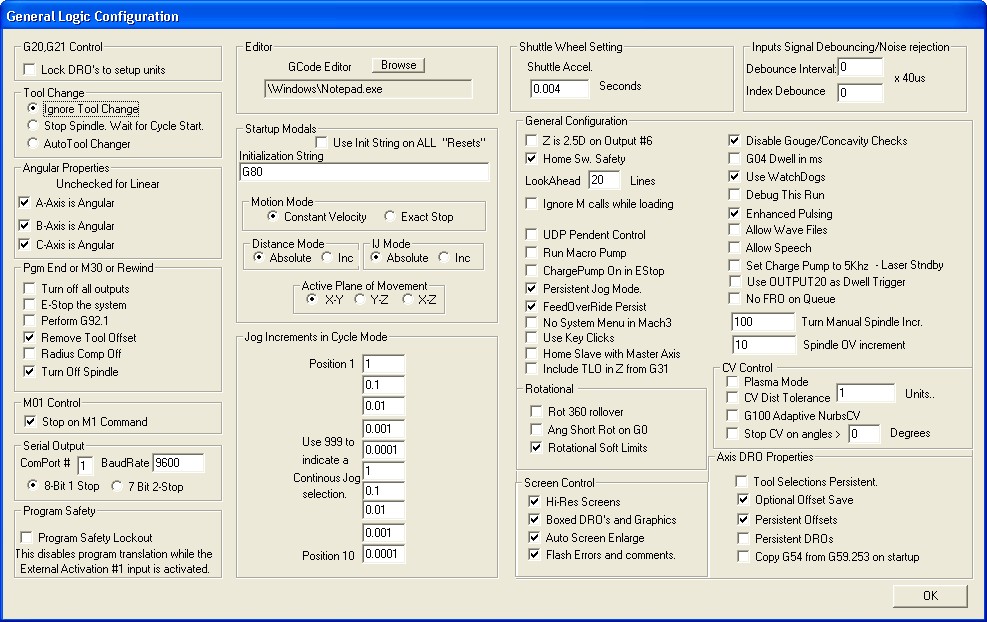

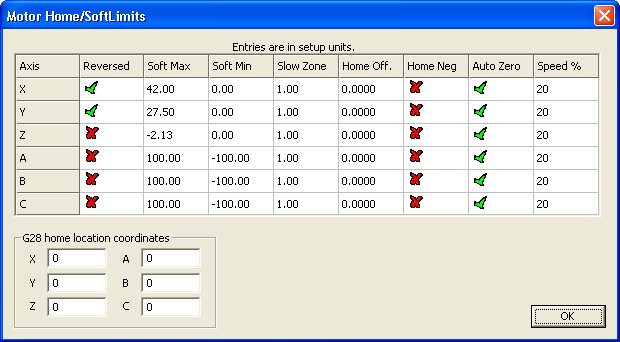

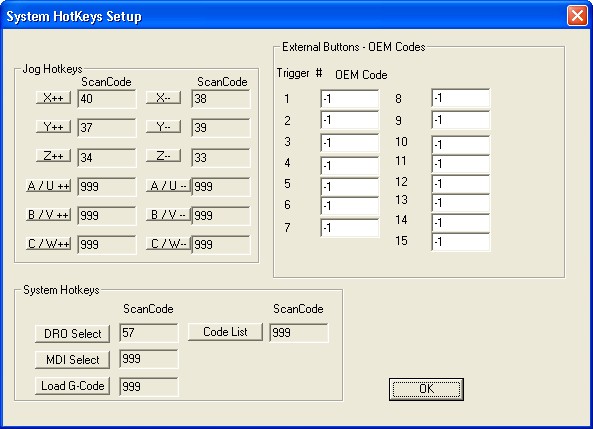

    Hey guys I thought it may be helpful to post some of the main settings for Mach3 That I use for my MKII. These settings are always changing as I am always experimenting with it. But I they work fine and should help you get a start.
    These settings can be accessed from the Config menu at the top of the Mach3 screen
    Mark Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  2. HSV_Freak

    HSV_Freak Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    Can you update the Ports and Pins Pics please???

  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    I am no longer using Mach3 and the screen shots are on a computer that is not hooked up at the moment.
    -So if some one using Mach 3 could upload these that would be very helpful.
    Thanks
    Mark and Trish

  4. HSV_Freak

    HSV_Freak Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    I have buy from Planet CNC the Mk2/4 driverboard. With the old Parallelboard i have massive problems. I hope the new USb CNC Driverboard will work better. Thanks

  5. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
    What are the problems? Be specific, some of us have built several CNCs and probably have had the same problems. Setting one of these things up is a step by step process. There are way too many variables for it to be plug and play. The planet-cnc board works very well, but both boards have to be set up right, to get started.

  6. HSV_Freak

    HSV_Freak Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    My problem is i have a sepperat Parallelport Card, and this Card doesnt work with my Phlatprinter. The settings from this side i have 100 checkt all right. The Printer becomes no signal from the card. In my old PC i have the Port Onboard and it works. My old pc is sold i dont have it more. Can i use the same Stepper settings from here for the MK2/4 Card from Planet CNC???

  7. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
    Do you have the MK2/4 card installed? Activate license with card plugged in. Do you have movement?

  8. HSV_Freak

    HSV_Freak Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    The Board is on the way. I wait

  9. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
    Did you get the adapter cable, that goes from the usb board to the driver board?

  10. HSV_Freak

    HSV_Freak Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    I switch the Board not combine all two. I built in the MK2/4 and the Easy CNC Driverboard flyes away.

  11. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
    The MK2/4 does not drive the stepper motors. It replaces the parallel port card in your computer, or gives you the option of using a computer that has no parallel port (like most laptops). You still have to use the driver board.

    To learn more about your new MK2/4, go to http//forum.planet-cnc.com . The software is very different to Mach3.

  12. HSV_Freak

    HSV_Freak Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    Why have the Board 4 Motor Mounts??? I have think that was a Motrodriver Board too.

  13. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I'm not familiar with the planet-cnc board but generally breakout boards have an outlet for each motor that connects to the motor drivers. Each outlet, or mount, connects to it's own driver.

  14. HSV_Freak

    HSV_Freak Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    I need a Printerkabel between Easy CNC and PlanetCNC board i wrote with Andrej. He think that works.

  15. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
    Here's a manual for the easycnc board. It has the ports and pins


    Attached Files:

  16. HSV_Freak

    HSV_Freak Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    Card are here and printer have movement. My problem is the Stepper Settings i dont understand the system.
    My measure dont work at mm, and the measure from the DXF when i run the printer runs over the limits. What is wrong??? Sorry i dont good to articulate my problem. My Y Axes and Z Axes makes drollity sounds. My Vref is 2.4 Volts, Dipswitch is 1.8 Steps On/On. My Z Axes runs in overspeed and makes grrrrrrr sounds. My Y Axes loses moevement. I am to despair. I have put all Settings files from here to bring it work, doesent functional. Sorry my english is so bad.

  17. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    HSV_Freak, try setting the velocity of your motors (mm/sec) to really slow and see if you still get the noise, which I suspect is missing steps. If the noise goes away try raising the speed little by little until you get the noise again.

  18. HSV_Freak

    HSV_Freak Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    Thanks i will test it.

  19. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
    Which Phlat printer do you have?

  20. HSV_Freak

    HSV_Freak Member

    Offline
    Messages:
    40
    Trophy Points:
    6
    Mk2 and i think one Stepper Motor are damaged. I have bye 3 one from the MK3 Steppers i hope will work done.

  21. foamlvr

    foamlvr Member

    Offline
    Messages:
    234
    Trophy Points:
    18
    Location:
    northwest Ohio
    you can try 1/4 step or 1/2 step on the X stepper. Make sure all power is off before connecting or disconnecting any wires to the driver board. Check for loose wires.

    HSV_Freak likes this.
