Piaget 3D

Discussion in 'Single Wing Aircraft Plans' started by 7up, Jul 23, 2011.

  1. dugd1013

    dugd1013 Member

    Offline
    Messages:
    135
    Trophy Points:
    16
    Location:
    Air Capital of Kansas
    Last winter I worked up a variation of this plane in 9mm 1.3lb EPP. It's a 32" wing with carbon fuse bracing, larger control surfaces and I incorporated duel carbon wing spars. The spar configuration using one flat and one tube created a virtual I-Beam spar. I really like the strength of the wing using this configuration. Great for outdoor and indoor flying.

    I use this plane for mostly precision hovering practice. My flying buddy and I play pass the transmitter while the plane hovers in front of us at eye level. This plane hovers that well! Rolling circles are quite simple to work with this plane as well. We really like it a lot!

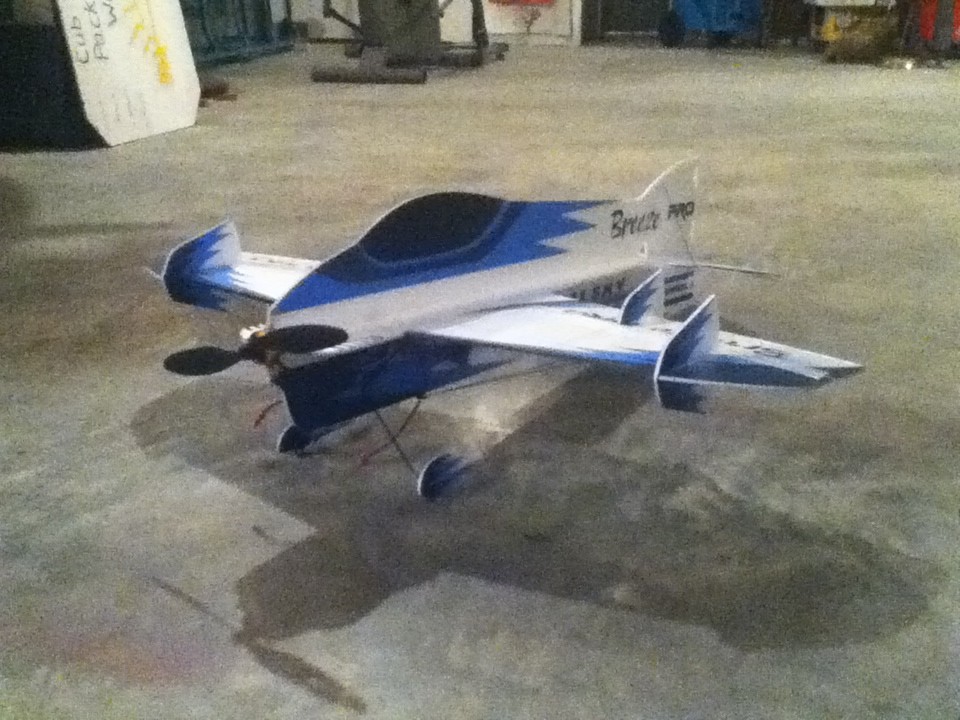

    Here are a couple of our backups we are getting ready for this years indoor season. Still need to add electronics and control rods. We have been busy flying helis and our big planes, need to get back to the foamies! Attached files [​IMG] [​IMG]

  2. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Very cool and awesome paint jobs. Thanks for the pics.

    :doubleup:

  3. nstaller

    nstaller Member

    Offline
    Messages:
    52
    Trophy Points:
    6
    Heres one I cut out this morning, gotta test some covering materials.

    Attached files [​IMG]

  4. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    :twitch: NICE!
    Way to go nstaller and dug these look fantastic! :doubleup:
    Mark and Trish

  5. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Wow nstaller! That looks ultra-light. Have you weighed it?

  6. SilverFox

    SilverFox Member

    Offline
    Messages:
    103
    Trophy Points:
    16
    Location:
    Charleston, SC
    Looks great. What is your setup? motor/prop/etc

    Thanks

  7. nstaller

    nstaller Member

    Offline
    Messages:
    52
    Trophy Points:
    6
    not yet, its made of dollar tree foam only because I was out of 3ml depron. I am hoping to fly it on the equipt. from a micro 4 site.

  8. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Can't wait to see it finished. What will you be covering it with?

  9. nstaller

    nstaller Member

    Offline
    Messages:
    52
    Trophy Points:
    6
    gonna try to use some plastic wrap, if that dont work probably a mylar baloon.

  10. rcav8r

    rcav8r Moderator Staff Member

    Offline
    Messages:
    1,193
    Trophy Points:
    38
    There's that Saran Wrap that is self stick. Sticks tenaciously and shrinks nicely with just a hint of heat from an iron . Don't go wild with the iron though as it will warp the structure.

  11. crash5050

    crash5050 Member

    Offline
    Messages:
    190
    Trophy Points:
    16
    Location:
    Greenwood/ Fort Smith, Arkansas
    It would be awesome if somebody came up with a sharpie pattern to draw those graphics on there. I have a ton of 9mm 1.3 epp.

  12. nstaller

    nstaller Member

    Offline
    Messages:
    52
    Trophy Points:
    6
    :doubleup: thats what I needed,thanks

  13. ewo

    ewo Moderator Staff Member

    Offline
    Messages:
    701
    Trophy Points:
    18
    Location:
    Indiana
    Hello all .
    I had mark look at my files and he was able to get the code to do what it was supposed to do.
    So- Here are the files that He sent back .
    Thanks Mark for fixin my mess up :D


    Attached Files:

  14. dugd1013

    dugd1013 Member

    Offline
    Messages:
    135
    Trophy Points:
    16
    Location:
    Air Capital of Kansas

  15. ToxicToast

    ToxicToast Down in the weeds. Staff Member

    Offline
    Messages:
    483
    Trophy Points:
    18
    Location:
    Roseville, CA
    Thinking I want one of these to replace an aging Clik......

  16. Helno

    Helno Member

    Offline
    Messages:
    86
    Trophy Points:
    6
    I cut one of these out today and it flys great.

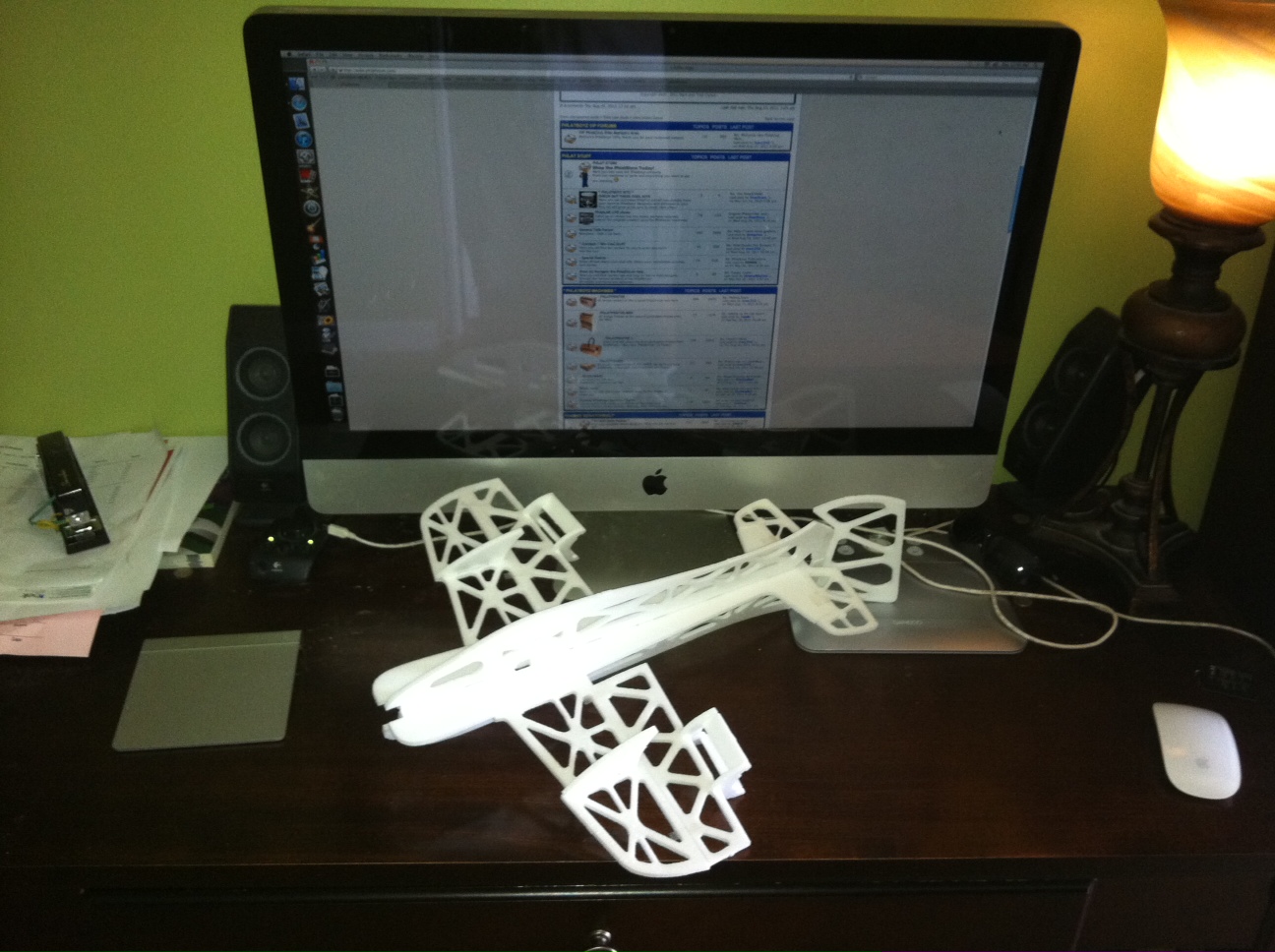

    Now that my machine is cutting well I think ill work up a hollowed out version of this and maybe make some sharpie files for the top surface.

  17. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    That would be great Helno, please share with us when completed. :doubleup:

  18. rcflyboynj

    rcflyboynj Member

    Offline
    Messages:
    112
    Trophy Points:
    16
    Location:
    Somewhere in Kansas.....
    If it flies like this plane, the lighter the better. Also, I have found pull/pull on the rudder and elevator to very effective for the depron build. :02cents:

    Happy landings,

    Nathan Attached files [​IMG]

  19. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Nate, thanks for the pull/pull tip. Good info. :good:

    It may be on my end, but the pic you posted is not showing up here. Only a place-holder. :questions:

  20. rcflyboynj

    rcflyboynj Member

    Offline
    Messages:
    112
    Trophy Points:
    16
    Location:
    Somewhere in Kansas.....
    Had problems with the link, direct upload now. Should be fixed. My bad.

    ~ Nathan

  21. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Yep, that done it. :good:

  22. nstaller

    nstaller Member

    Offline
    Messages:
    52
    Trophy Points:
    6

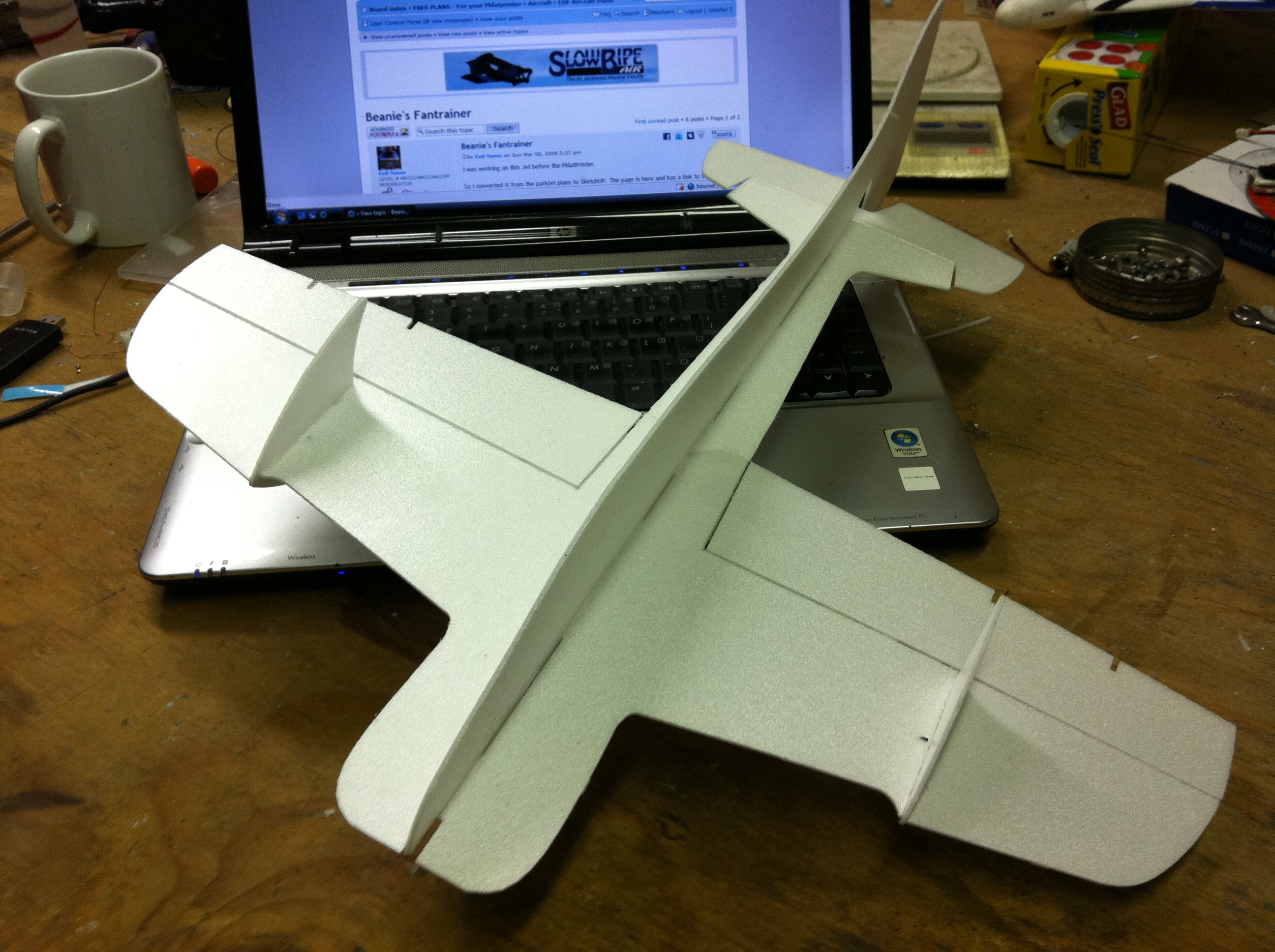

    Heres another one I built, 2mm depron. Just have to add the gear.So far its about 1/4 ounce

    Attached files [​IMG]

  23. nstaller

    nstaller Member

    Offline
    Messages:
    52
    Trophy Points:
    6

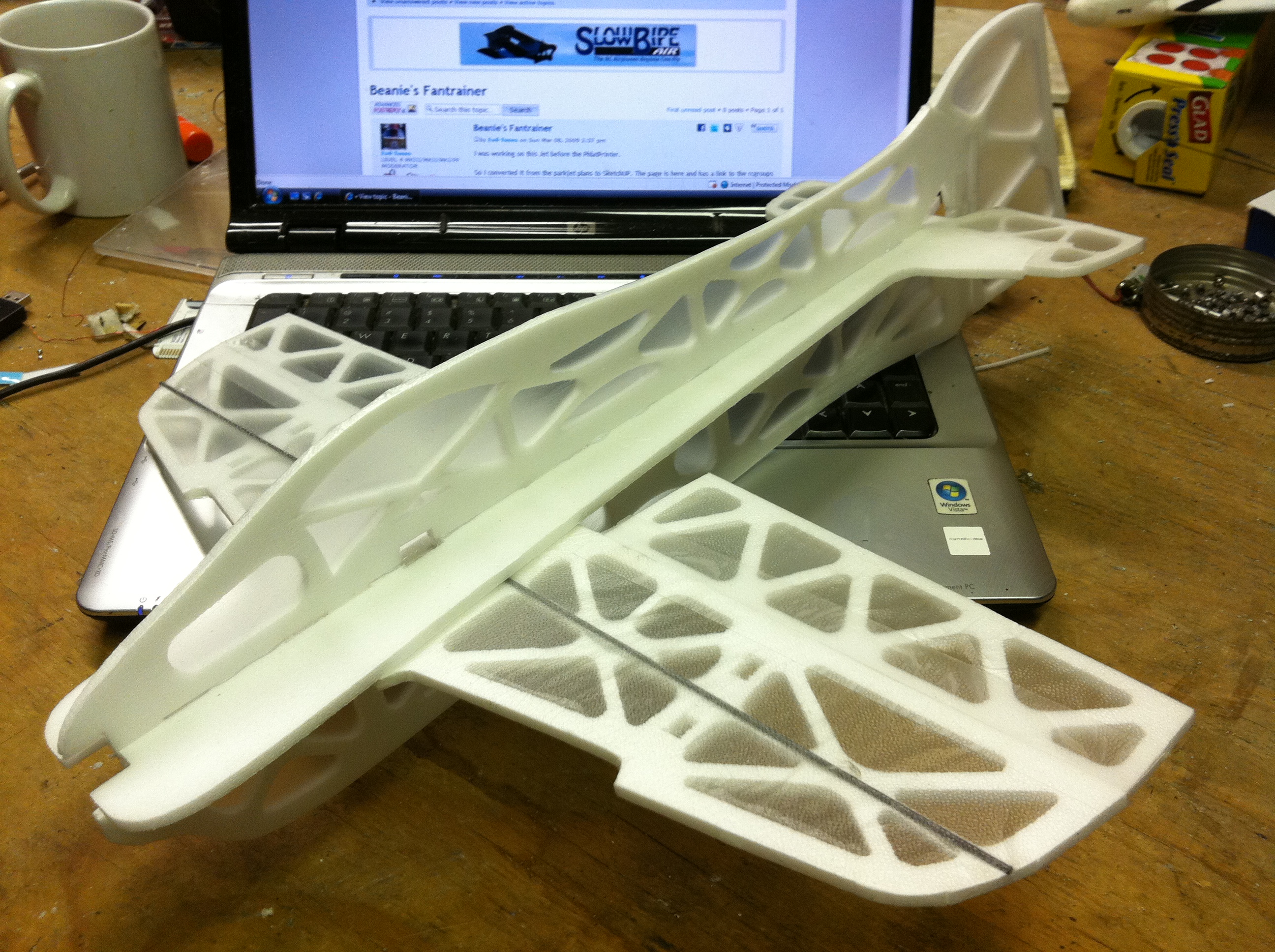

    Need to re-think this one. As it sits it weighs a porky 1oz :eek: Its covered with press and seal.

    Attached files [​IMG]

  24. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky
    Wow, those are real heavy weights, lol... :doubleup:

  25. Honza C

    Honza C New Member

    Offline
    Messages:
    4
    Trophy Points:
    0
    Location:
    Brno, Czech Republic
    Hi guys, two micro-Piagets being built here - one by my son and one by myself.
    nstaller, any flight reports with the micro version ? What is the CF that you placed in the wing - dimensions, square or round, did you cut for it or just glued it on the wing ? Any other carbon needed ? Do you really need to cut all these holes in wing/fuse and cover it, or is the 3mm Depron just fine ?

    I have ordered the following gear from HK:
    - OrangeRx R415 Spektrum DSM2 Compatible 4Ch Micro 2.4Ghz Receiver
    - HK-282 Ultra-Micro Servo 2.2g / 0.2kg / 0.08sec
    - ZIPPY Flightmax 180mAh 2S 15C
    - HobbyKing AP05 3000kv Brushless Micro Motor (5.4g)
    - TURNIGY Plush 6A /.8bec/6g Speed Controller
    - GWS EP Propeller (DD-4540 114x102mm)
    - Mini Ultra-light Horns 23x14x6mm
    - Tiny Wheel for indoor / ultra light 10mm Diam (10pcs)
    do you think it will take off with this (and be able to do some 3d ???)

    Sorry guys for all these naive questions, this is my 1st scratch-build foamy, so far I always had kits (and bigger planes ;-), many thanks, Honza
