Welcome to The Phlatforum PhlatPrinter III

Pocketing Help

Discussion in 'SketchUcam Help' started by andy dochterman, Feb 18, 2015.

  1. andy dochterman

    andy dochterman New Member

    Offline
    Messages:
    7
    Trophy Points:
    3

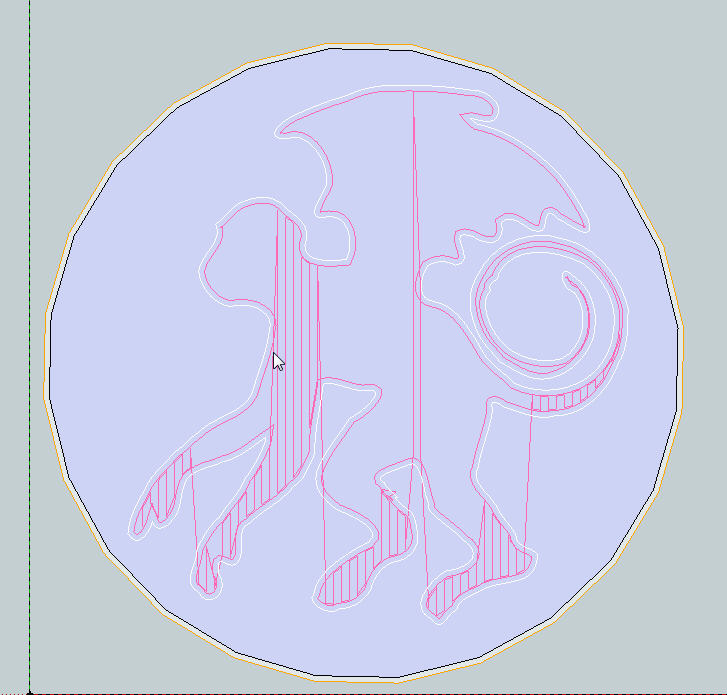

    See attached Pic. wondering what is going on with trying to pocket the face...looks funny and doesn't work. I have played with it and can manually modify the tool path to make it work, but wondering what you guys thoughts of what I need to do better...

    Thanks...AndyDoc Snap7.jpg

    andy dochterman, Feb 18, 2015
    #1
  2. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Unfortunately the pocket tool is not very good part of the SketchUcam. It makes a great job of simple pockets but if the pocket is a bit more complicated, it fails.

    You can try a work-around. Divide the part into many, smaller and more regular, segments and make the pockets in the segments. In the above pic the tail is good so make a line where the pocket fails. Do the same for the legs and eventually you'll have the whole thing pocketed.

    TigerPilot, Feb 19, 2015
    #2
  3. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    hold down CTRL and add only the boundary to the shape.
    then split it into simple shapes that the pocket tool likes (simple concave shapes, though it does manage some convex shapes if simple enough).
    then hold down SHIFT and zigzag each subarea
    now remove the split lines, you can leave them but the outline will cut as one piece if you remove them, takes less time.

    and yes, this is mentioned in the help

    watch this for an example of the splitting process


    the math for Minimum Convex Decomposition, which would solve the pocket problem, is still beyond me (-:
    I am a programmer not a mathematician. ;)

    swarfer, Feb 20, 2015
    #3
