Welcome to The Phlatforum PhlatPrinter III

Puma (Layered)

Discussion in 'Functional Art/Craft Designs and Others' started by kram242, Nov 19, 2010.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

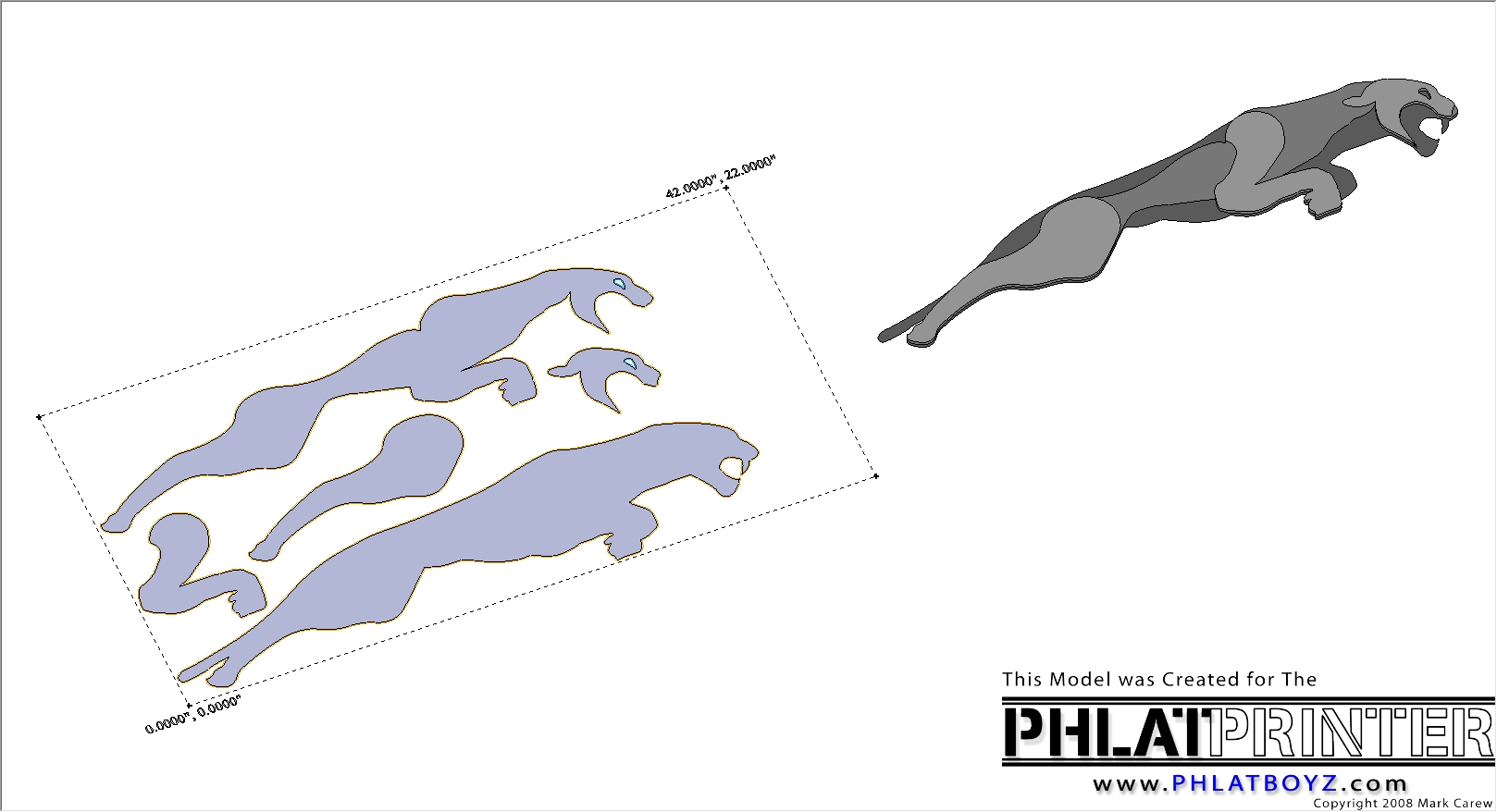

    Here is a layered Puma I made just for fun. I thought it would look nice hanging in the shop.
    I used tab-less cutting on the Phlatprinter and it came out great. You may want to add tabs to the Sketchup file and regenerate the code to suit your wants.
    The original file was an outline of a Puma cat (I think) drawn by MarcoMartim
    This is set up for 1 piece of 1/4" fanfold foam using an 1/8th" bit
    'Enjoy
    Mark and Trish Attached files Puma Phlatprinter 1 & 2.cnc (314.3 KB)Â Puma Phlatprinter 3.cnc (314.3 KB)Â Puma.skp (4.4 MB)Â [​IMG]

    kram242, Nov 19, 2010
    #1
  2. marcomartim

    marcomartim Member

    Offline
    Messages:
    195
    Trophy Points:
    18
    Location:
    São Carlos - SP - Brasil
    That's cool.
    I really enjoyed.

    I'm having various designs under construction (a snail's pace)
    When getting ready, I will make available on my page 3DWarehouse (some drawings copied Forum)

    http://sketchup.google.com/3dwarehouse/ ... revstart=0

    I hope colleagues forum to enjoy them.

    Hugs.

    marcomartim, Nov 20, 2010
    #2
  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    I see all the cool designs you have there nice job!
    Thank you for sharing these with everyone here.
    Mark and Trish

    kram242, Nov 21, 2010
    #3
