Discussion in 'Phlatprinter 3 MODS' started by kram242, Dec 9, 2010.

  1. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ

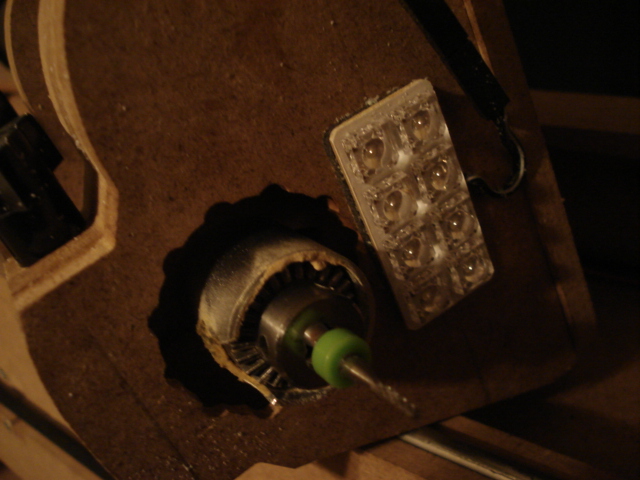

    Here's a Mod I did to light up the cutting area
    Its an LED block from pep boys
    It even comes with a little JST style plus so that I can easily remove the spindle attachment and connect it to another 12v attachment if needed
    I used a 12v power supply plugged into the power strip. so now when my machine is turned on so is the light :)

    Here are a few pics Attached files [​IMG] [​IMG]

    kram242, Dec 9, 2010
    #1
  2. Tweakie

    Tweakie Member

    Offline
    Messages:
    233
    Trophy Points:
    18
    Location:
    UK
    Very neat ;)

    Tweakie.

    Tweakie, Dec 9, 2010
    #2
  3. blindflight

    blindflight Moderator Staff Member

    Offline
    Messages:
    361
    Trophy Points:
    16
    Location:
    CA
    Nice light there Mark... :D

    blindflight, Dec 9, 2010
    #3
  4. Flashsolutions

    Flashsolutions Active Member

    Offline
    Messages:
    1,123
    Trophy Points:
    38
    Location:
    Leesburg, Florida
    This one is from Sears... two clip on battery operated LED's in the package. 50 hrs battery life each. $19.99 in the tools department.

    Inserted a piece of 1/8th inch balsa into the lower slot on the gantry and clipped the LED there. Also has magnets on the clip. No wires. Attached files [​IMG]

    Flashsolutions, Dec 9, 2010
    #4
  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Nice one Larry! ... wait a sec is that MDF your cutting! :D
    Mark and Trish

    kram242, Dec 9, 2010
    #5
  6. Flashsolutions

    Flashsolutions Active Member

    Offline
    Messages:
    1,123
    Trophy Points:
    38
    Location:
    Leesburg, Florida
    Yep! Sure is! Got the new parts in this afternoon and had it back up and running in no time!

    Think my X axis stepper current is borderline though. Tomorrow I will bump it up just a bit. I got the Micro Kenetic Energy parts cutout and was on the last 2 passes of the last cut when my X axis missed some steps and the bit started gouging into the MDF forcing me to shut it down.

    Almost there!!!! What a sweet machine! This is going to be so awesome with all the possibilities it brings!



    Flashsolutions, Dec 9, 2010
    #6
  7. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Yeah I thought that it may be a little much for that flex shaft spindle I think its better kept with foam. I am hoping with the laminate routers (attachment) speeds an bit choices we will see less load and better results. can't wait for that. So much to try and experiment with there's just not enough time in a day :lol:
    Thank you for the kind words
    Mark and Trish

    kram242, Dec 9, 2010
    #7
  8. gben

    gben Member

    Offline
    Messages:
    57
    Trophy Points:
    6
    Location:
    Southern California

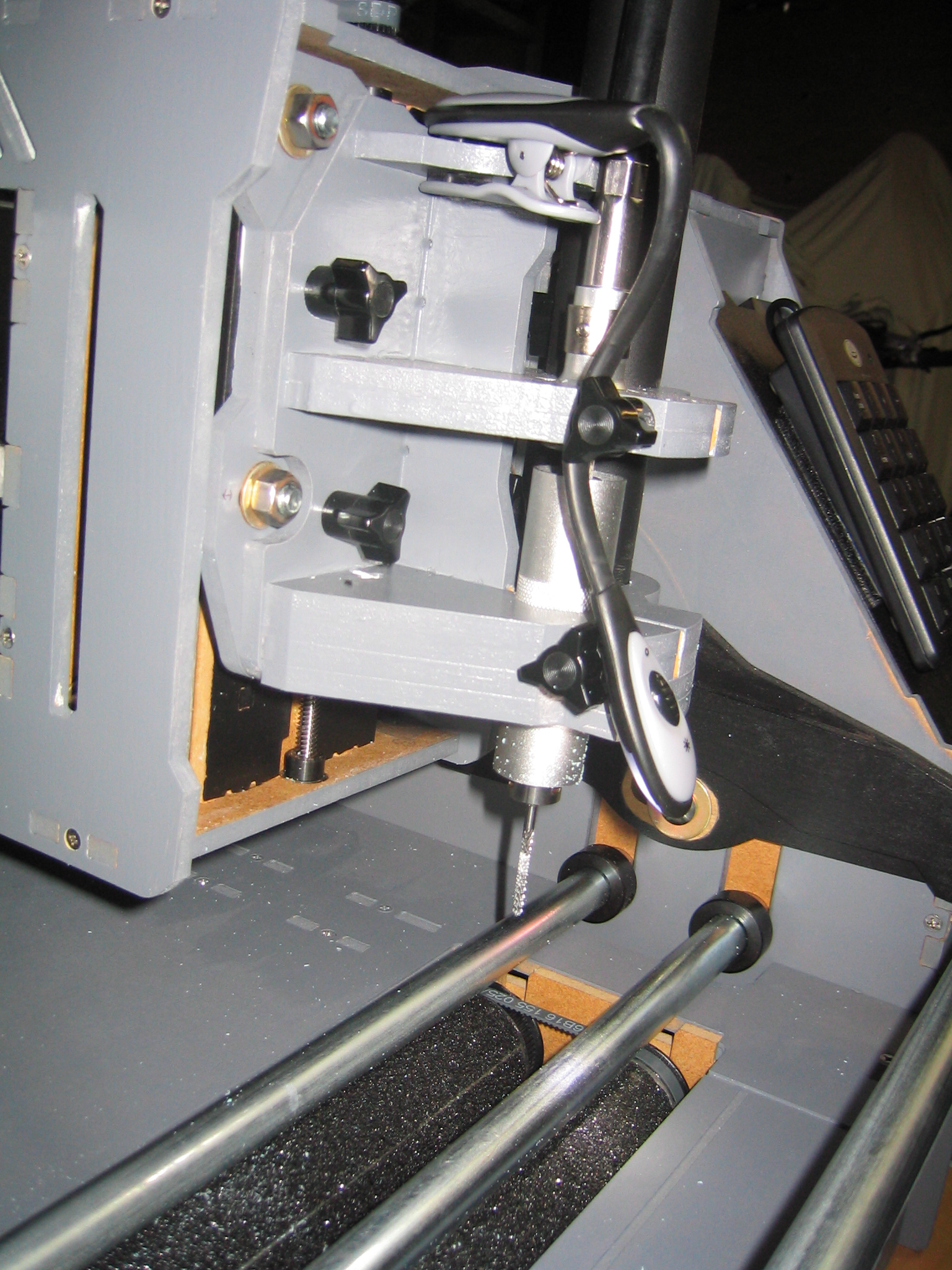

    I've been on the lookout for an easy bit light and found something that is workable at Target today. I think it is intended to be a battery operated LED reading light. It has a flexible shaft and a clip to attach. Seems to work OK. It was around $5 I think.

    [​IMG]

    [​IMG] Attached files [​IMG] [​IMG]

    gben, Jan 2, 2011
    #8
  9. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Looks great Ben! I like that you can move it around to get a better view if need be :)
    Thanks for sharing
    Mark and Trish

    kram242, Jan 3, 2011
    #9
