Rats just blew another chip

Discussion in 'Easy CNC Driver Card' started by frankrcfc, Jan 31, 2009.

Page 2 of 2
  1. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    yea, dennis thanks man....i didnt think of that.. i will try. randy.

    rjarois, Feb 26, 2009
    #26
  2. Evil-Tunes

    Evil-Tunes Moderator Staff Member

    Offline
    Messages:
    659
    Trophy Points:
    16
    Location:
    Southern N.J.
    Make sure the board is off. I lost a chip that way!!

    Hope I'm not too late!!!



    Cheers
    E-T

    Evil-Tunes, Feb 26, 2009
    #27
  3. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    fellas, the electrical idiot is back....i was just trying to pry the heatsink off, and the whole chip poped out. i didnt mark, or get any orientation the way it poped outta the socket...my question is when i get my new chip, is ther a certain way it will install?? is it directional like a cpu in its socket?. man i know nothing about the electrical stuff end of the phlatty. thanks, randy.

    rjarois, Feb 27, 2009
    #28
  4. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Yes there is,(I have done the same thing)
    Here are couple pictures to show you

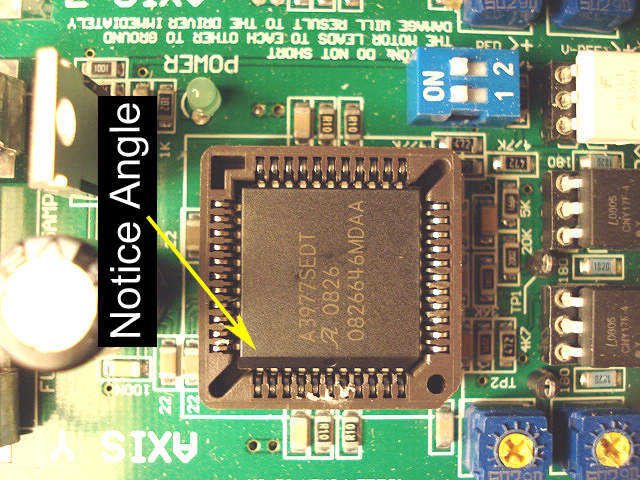

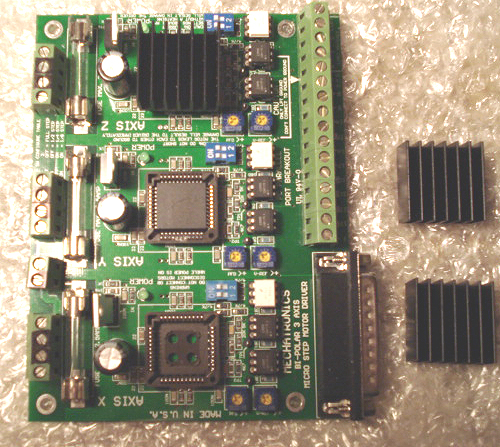

    The first pic just shows the orientation of the board so you can see how I have it setup for the picture and the next picture is zoomed in. The main thing to look for is that little angle and that will help you line it up.
    Hope this helps
    Mark

    Attached files [​IMG] [​IMG]

    kram242, Feb 27, 2009
    #29
  5. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    thanks mark...man the village idiot would have messed something up. lols, randy.

    rjarois, Feb 27, 2009
    #30
  6. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    If you look closely at the lower photo above - in the lower right corner of the socket there is a chamfer across the corner (the round hole in the socket marks the corner) (not a pointy corner like the other three). Now look at your chip - it also has a single chamfered corner.
    Put on your good glasses and line up the chamfered corners when you re-install the chips. :geek:

    Anonymous, Feb 27, 2009
    #31
  7. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    great, i got it fellas. thanks for the help. i got them hi temp chips coming someone was talking about.....hope ther the right ones and work ok. randy.

    rjarois, Feb 27, 2009
    #32
  8. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    hey mark, i just wanted to report in to tell you i got my phaltty back up and runnin...the high-temp version of the stock chip works great. dennis, mark thank for the chip orientation answers....man i would of been cookin, lols.randy.
    high-temp version part number...
    [​IMG]

    rjarois, Mar 2, 2009
    #33
  9. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Just wanted give you an udpated. If you are looking for chips for the easy-cnc board, you can find them here. Just wanted to post the high temp version that Randy gave us. Thanks Randy

    Need a new driver chip for your Easy-CNC driver card?
    Go here http://search.digikey.com/scripts/DkSea ... 20-1078-ND
    Go here for the Hi-Temp version of this same chip     http://search.digikey.com/scripts/DkSearch/dksus.dll?Detail&name=620-1076-ND
    Both chips are reported to work fine. The Hi-Temp version cost a little more but may be your choice for a driver chip as these chips do heat up. If you have more question about the Hi-Temp version ask around the forum some of the guys here are using them and can let you know how they like them.

    kram242, Mar 3, 2009
    #34
  10. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    mark, this is the fella, that posted that info....im just the monkey that tried them, lols. they work great.... randy.

    rjarois, Mar 5, 2009
    #35
  11. frankrcfc

    frankrcfc New Member

    Offline
    Messages:
    381
    Trophy Points:
    0
    Location:
    Battle Creek, Mi
    Just ordered some more chips for the control board a few minutes ago from Digikey. Going with the hi temp ones as stated in this post. There is another updated number (according to the tech I talked to there) to use for the hi temp version. 620-1144-1-ND. the other numer has been discontinued at least through them I was told. This new number reflects a tape and roll number. That just means they have rolls of these chips and will be cut off that roll. ;) I grabbed 5 what the heck :D

    frankrcfc, May 24, 2009
    #36
  12. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    frank, make a foam fan cooler, it works great .....a lil foam a 120mm pc fan quick ans simple...get some thermal epoxy for the heatsinks, dont use the cheezy tape....randy.

    rjarois, May 24, 2009
    #37
  13. frankrcfc

    frankrcfc New Member

    Offline
    Messages:
    381
    Trophy Points:
    0
    Location:
    Battle Creek, Mi
    I actually have a 12" fan right on them. It actually goes up under the printer also. Y chip gets just warm the reas are cool. The Steppers all stay cool to touch. The Y is the one that has blown 2 chips. Voltages are are fine. The Y is the more powerful of the steppers.
    http://i291.photobucket.com/albums/ll30 ... G_0001.jpg

    frankrcfc, May 24, 2009
    #38
  14. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    cool frank....looks like your all set man....if you still have trobs, you can gat more robust heat-sinks to draw the heat away...but with the high temp chips you problems should be gone, randy.

    rjarois, May 24, 2009
    #39
  15. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    @Mark - When you get a chance, you really ought to fix this photo, because the arrow doesn't point to the corner of the chip and socket that actually have the "angle".

    Anonymous, May 24, 2009
    #40
  16. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    Dennis, the photo is rite...he was pointing to the angle along the entire edge for me. he knew the little corner angle would be something the old monkey could not even see, lols...

    rjarois, May 24, 2009
    #41
  17. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Eh? I've had my chips out and back in and never noticed a chamfer along the entire edge - but I sure noticed that lower-right corner where the chamfer of the chip matches the chamfer of the socket. Well, they tried to make the orientation marks doubly fool-proof, didn't they? It worked! :eek:

    Anonymous, May 24, 2009
    #42
  18. frankrcfc

    frankrcfc New Member

    Offline
    Messages:
    381
    Trophy Points:
    0
    Location:
    Battle Creek, Mi
    That's what I'm hoping for ;) Royal oak huh. I have to run around there on my daily route. Lately through Romulus off Middlebelt road though.

    frankrcfc, May 24, 2009
    #43
  19. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
    Hey frankrcfc, you got some of those chips back in February, right? Just how many of those poor little innocent chips (violins playing gently in the background) have you fried? :?:

    Anonymous, May 24, 2009
    #44
  20. frankrcfc

    frankrcfc New Member

    Offline
    Messages:
    381
    Trophy Points:
    0
    Location:
    Battle Creek, Mi
    argh...can't believe I am admitting this....I'm on my 4th one actually. I did a no no on one of them and did just what was explained earlier I put the chip in wrong. It slid right into place but what a nasty little bit of fireworks I had for a brief moment :roll: But this was happening when I was trying to get the default steppers to perform. Then I got the stronger motors and pushed them a bit and the chip got hot while trying to get more speed.

    frankrcfc, May 25, 2009
    #45
  21. Anonymous

    Anonymous New Member

    Offline
    Messages:
    1,280
    Trophy Points:
    0
