Welcome to The Phlatforum PhlatPrinter III

rhino head needed

Discussion in 'What plans are you looking for?' started by yotamkaufman, May 10, 2010.

Page 2 of 3
  1. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I tried it and it too doesn't give me anything. Might be some setting on my computer but I don't think that that is the problem. I still think that the problem is that the whole thing is a picture and not a vector image.But what do I know! :D

    TigerPilot, May 14, 2010
    #26
  2. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    The penguin file. Needs the pdf, on page 1, to go along with it. For 1/4" material. No Phlatlines.

    Attached files Penguin.skp (2.8 MB)Â

    TigerPilot, May 14, 2010
    #27
  3. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Wow nice job Yoram! Did you do this one by tracing? It came out nice and clean
    Mark

    kram242, May 14, 2010
    #28
  4. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Yap, I traced it.

    TigerPilot, May 14, 2010
    #29
  5. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Nice work! :)
    Thank you for sharing this
    Mark

    kram242, May 15, 2010
    #30
  6. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    perfect!!!!! can you please post dxf?

    yotamkaufman, May 15, 2010
    #31
  7. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    no worry, got it :p
    gonna' cut it soon, very soon... Attached files Penguin-1.dxf (1.7 MB)Â

    yotamkaufman, May 15, 2010
    #32
  8. JamesRS

    JamesRS New Member

    Offline
    Messages:
    24
    Trophy Points:
    0

    JamesRS, May 15, 2010
    #33
  9. navionflyer

    navionflyer New Member

    Offline
    Messages:
    220
    Trophy Points:
    0
    Location:
    Richland, MI
    For raster to .dxf I use Wintopo http://www.wintopo.com/ It works pretty well, but you usually need to do quite a bit of clean up. Still, it's faster than tracing (at least in Autocad).

    Tim

    navionflyer, May 15, 2010
    #34
  10. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    this software is very useful. i used the "gamma" slider inside the image tab in order to make the lines darker. the results are pretty awesome.

    yotamkaufman, May 15, 2010
    #35
  11. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    yotamkaufman, May 15, 2010
    #36
  12. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    here is the "ibo" dxf. some clean up is still necessary.

    Attached files ibo145.dxf (442.7 KB)Â

    yotamkaufman, May 15, 2010
    #37
  13. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I downloaded the WinTopo program and tried it. I found that the end results needs just as much work, if not more, than just tracing it in SU. Don't know about AutoCAD.

    TigerPilot, May 16, 2010
    #38
  14. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0

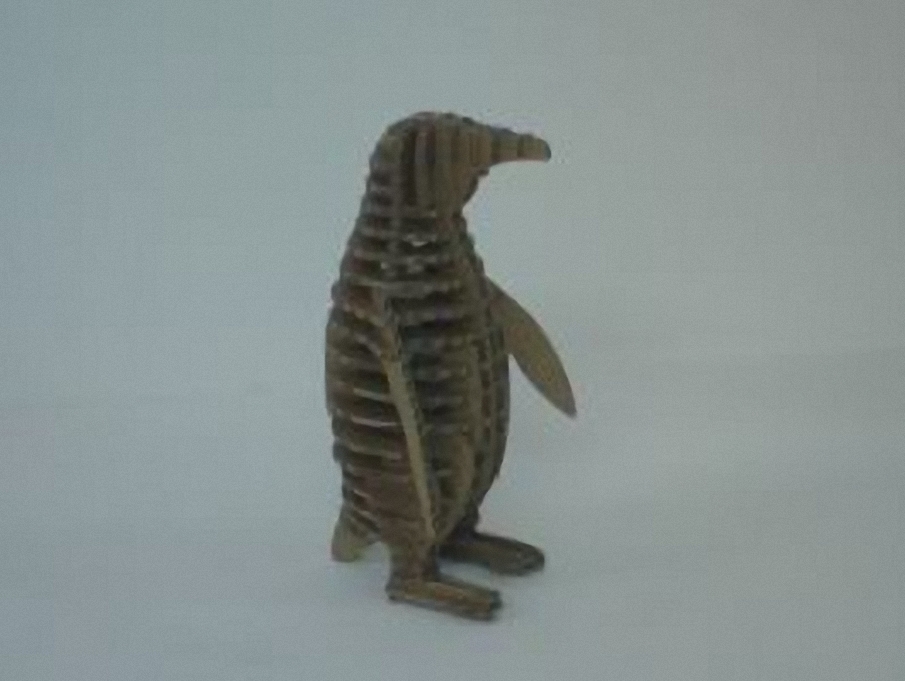

    the penguin (cell phone camera)!!! i made it from cardboard. about 30 cm high. needed some minor changes.
    does anyone working on any of the pdf files i posted? Attached files [​IMG]

    yotamkaufman, May 17, 2010
    #39
  15. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Yotam, was that made from the file I've posted?

    TigerPilot, May 17, 2010
    #40
  16. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    not really :?
    I did it on my own. it still not perfect but it looks pretty good.

    yotamkaufman, May 17, 2010
    #41
  17. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    how's the cat going?

    yotamkaufman, May 18, 2010
    #42
  18. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    It's getting there, slow but sure. After the model is made then I have to tweak all the connection spots to get them right.
    There are 80 pieces to trace and tweak, it stinks but I am too far to quit now Attached files [​IMG]

    Jnida63, May 18, 2010
    #43
  19. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    looks like it's going to be mind blowing!

    yotamkaufman, May 18, 2010
    #44
  20. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Looking good Jeff! It looks like your almost there.
    Mark and Trish

    kram242, May 19, 2010
    #45
  21. RobotHacker

    RobotHacker New Member

    Offline
    Messages:
    3
    Trophy Points:
    1

    RobotHacker, May 19, 2010
    #46
  22. RobotHacker

    RobotHacker New Member

    Offline
    Messages:
    3
    Trophy Points:
    1
    Never mind. A quick Google search and I found more.

    Thanks,
    Aaron "Robot Hacker" Shaw

    RobotHacker, May 19, 2010
    #47
  23. 7up

    7up Moderator Staff Member

    Offline
    Messages:
    1,090
    Trophy Points:
    38
    Location:
    Kentucky

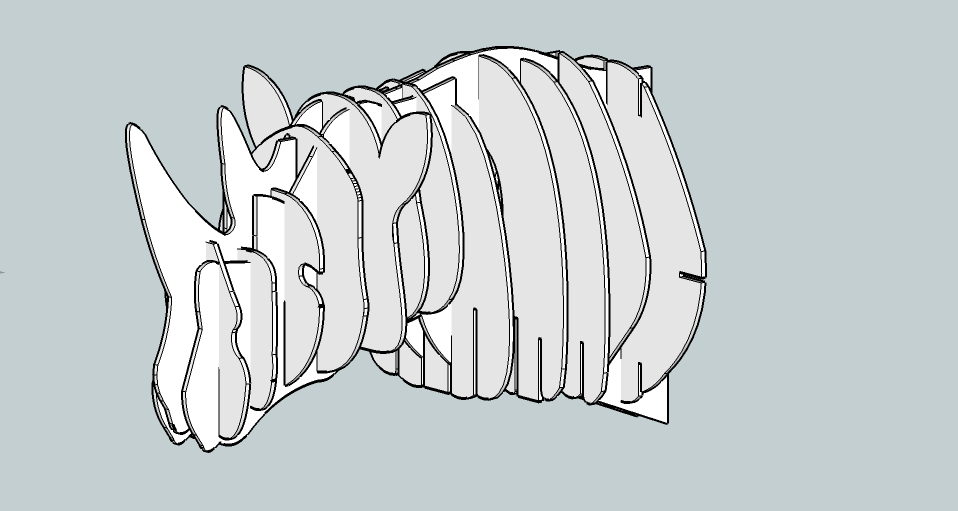

    Here is the Rhino head done for 1/4" material. if anyone decides to apply the Phlatscript please post the code and I'll add it to this post.

    Attached files [​IMG] [​IMG] Rhino head rdy.skp (1.3 MB)Â

    7up, May 19, 2010
    #48
  24. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Good idea, 7up, didn't think of it, to just take the head from the rhino post.

    TigerPilot, May 20, 2010
    #49
  25. yotamkaufman

    yotamkaufman New Member

    Offline
    Messages:
    45
    Trophy Points:
    0
    thank you!!! it's nice to meet good people that are willing to help with pure helping-cause.

    yotamkaufman, May 20, 2010
    #50
