Shumate S.U.-37 EDF Build

Discussion in 'EDF Aircraft Plans' started by vicentel, Jun 16, 2011.

  1. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6
    I've modified Steve Shumate's (jetset44) S.U.-37 plans to allow for twin 64mm edfs. Currently the plane has the following specs:

    wingspan: 35.5"
    edf: 2x 64mm EDFs
    motor: 2x 3500KV
    ESC: 2x 45Amp
    Battery: 4S 3300 mAh 35C (actually with this power setup the current draw is 63Amps, so at 3300mA a 20C is fine)
    Servos: ail (2), elv (2), rud (2) thrust vector (3 servos, yaw, pitch, roll on 2 TV nozzles)

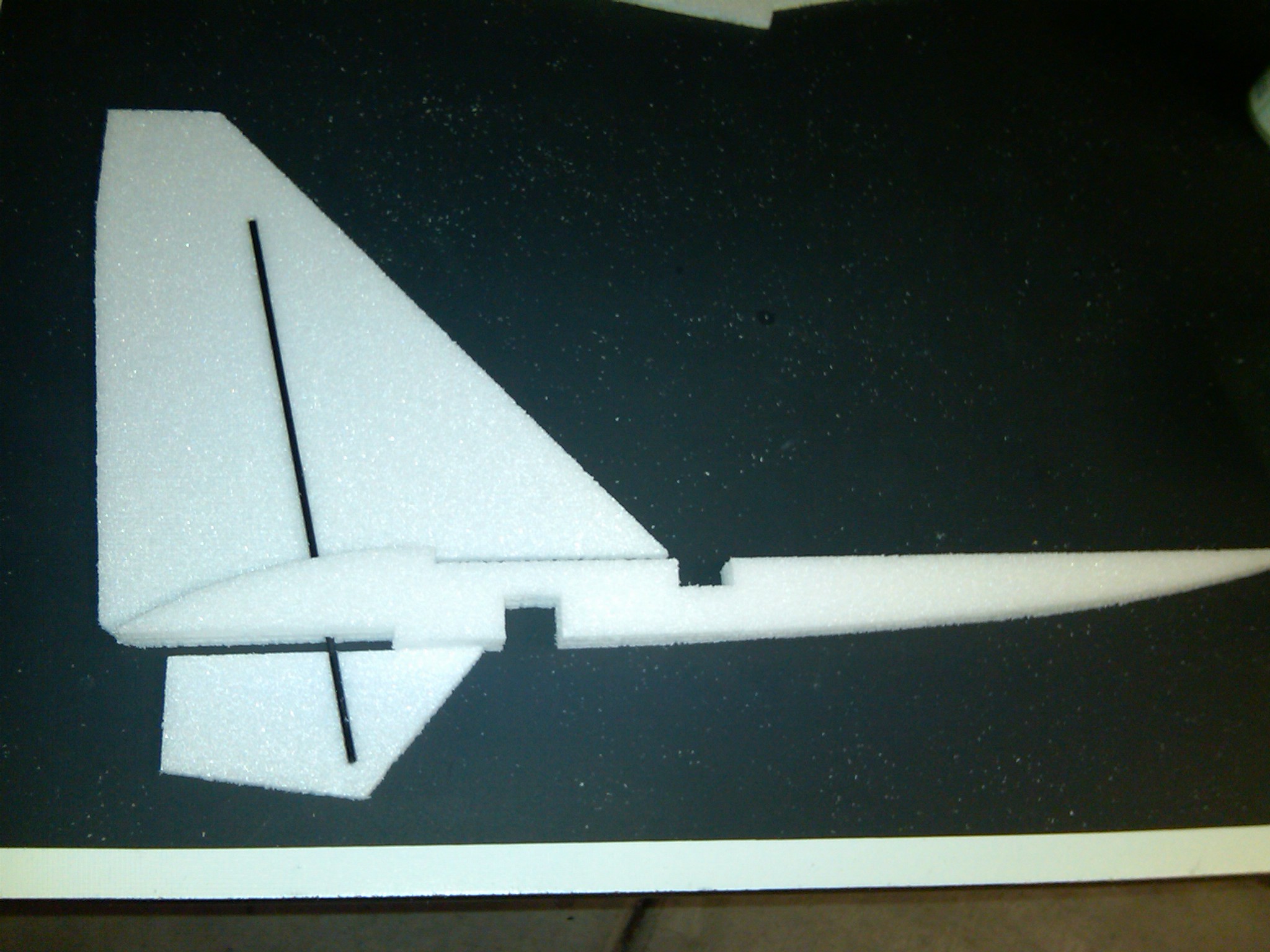

    Here are some pictures: Attached files 64mm_210mm_57mm_TT.dxf (92.4 KB)Â [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] Su-37 EDF Plans 120% canopy and nose.pdf (61.7 KB)Â Su-37 EDF Plans 120%.skp (4.5 MB)Â

  2. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6
    This is the prototype I was working on. This particular design uses a 28" wingspan (not big enough) but used the same power system. Plenty of power and speed but the wing loading was very high. I've included video on some flying as well as the working TV system.

  3. GasPipe

    GasPipe New Member

    Offline
    Messages:
    43
    Trophy Points:
    0
    Beautiful plane and an excellent flyer too!!!!

    Really nice sound. :fantastic:

  4. ToxicToast

    ToxicToast Down in the weeds. Staff Member

    Offline
    Messages:
    483
    Trophy Points:
    18
    Location:
    Roseville, CA
    Awesome plane! The 'Terminator' has been my personal favorite modern plane for quite some time. Ever since I saw videos back in the 90's of the Pugachev maneuvers defying gravity and aerodynamics, I've been hooked on it.

    I've got a Shumate Su37 that's about 60% finished but sitting on a shelf waiting for me to find the time to work on it.

    Lovely design. You've taken it significantly further with the TV nozzles and EDF. Did you do anything special to clean up the airflow in the efflux tube area? The TV nozzles-did you fab them yourself or are they like the Hobby Lobby ones?

    TT

  5. SilverFox

    SilverFox Member

    Offline
    Messages:
    103
    Trophy Points:
    16
    Location:
    Charleston, SC
    Looks and flies great. Nice job with the thrust vectoring. :good:

  6. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6
    Thanks for the kind words. The elevators do not go through the nacelles unlike jetset44's design, they are more like tomhe's flat foamie design. The TV-nozzles are from the Hobby Lobby SU-34 fullback. I modified the design to be able to use them.

  7. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

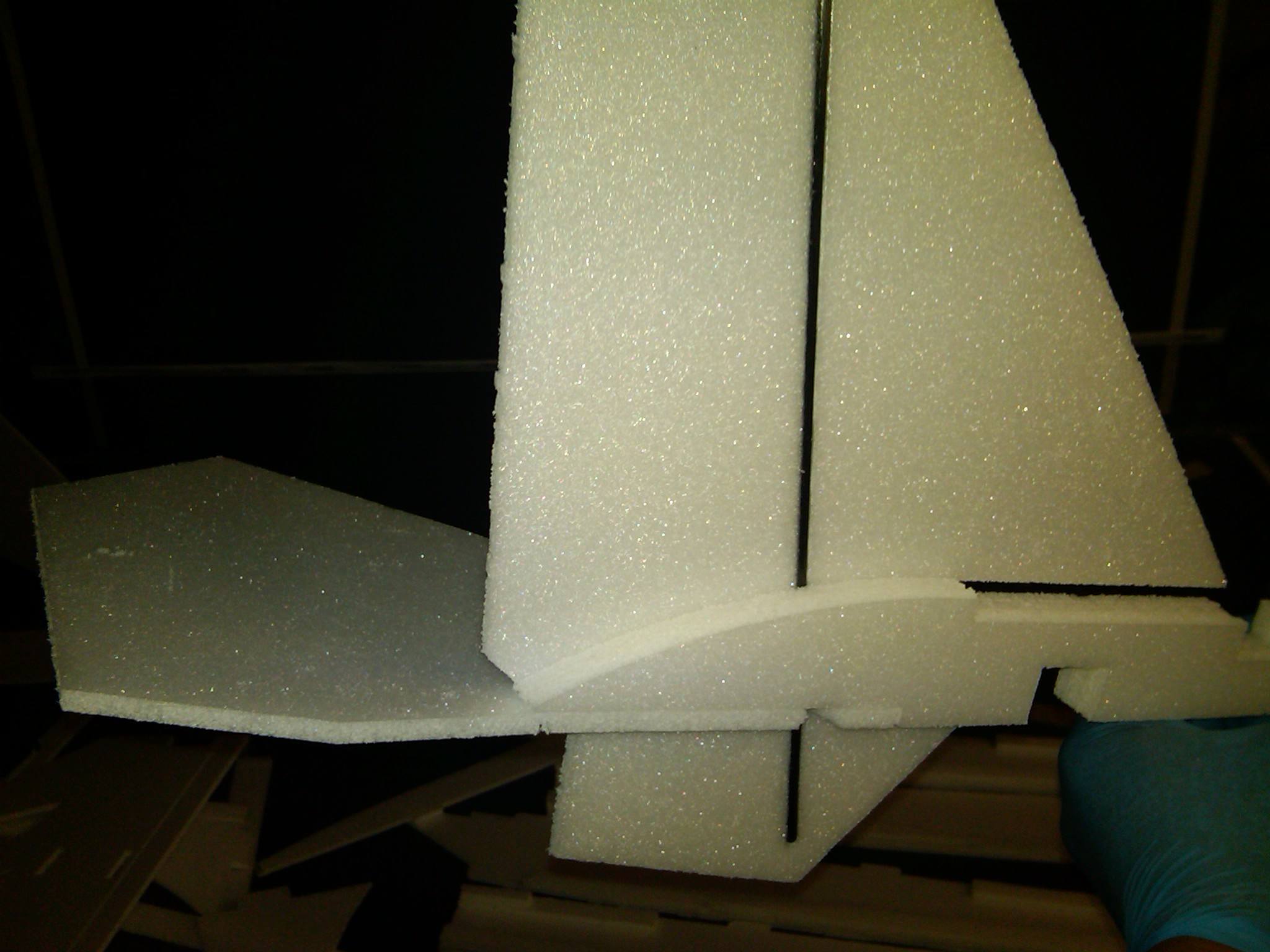

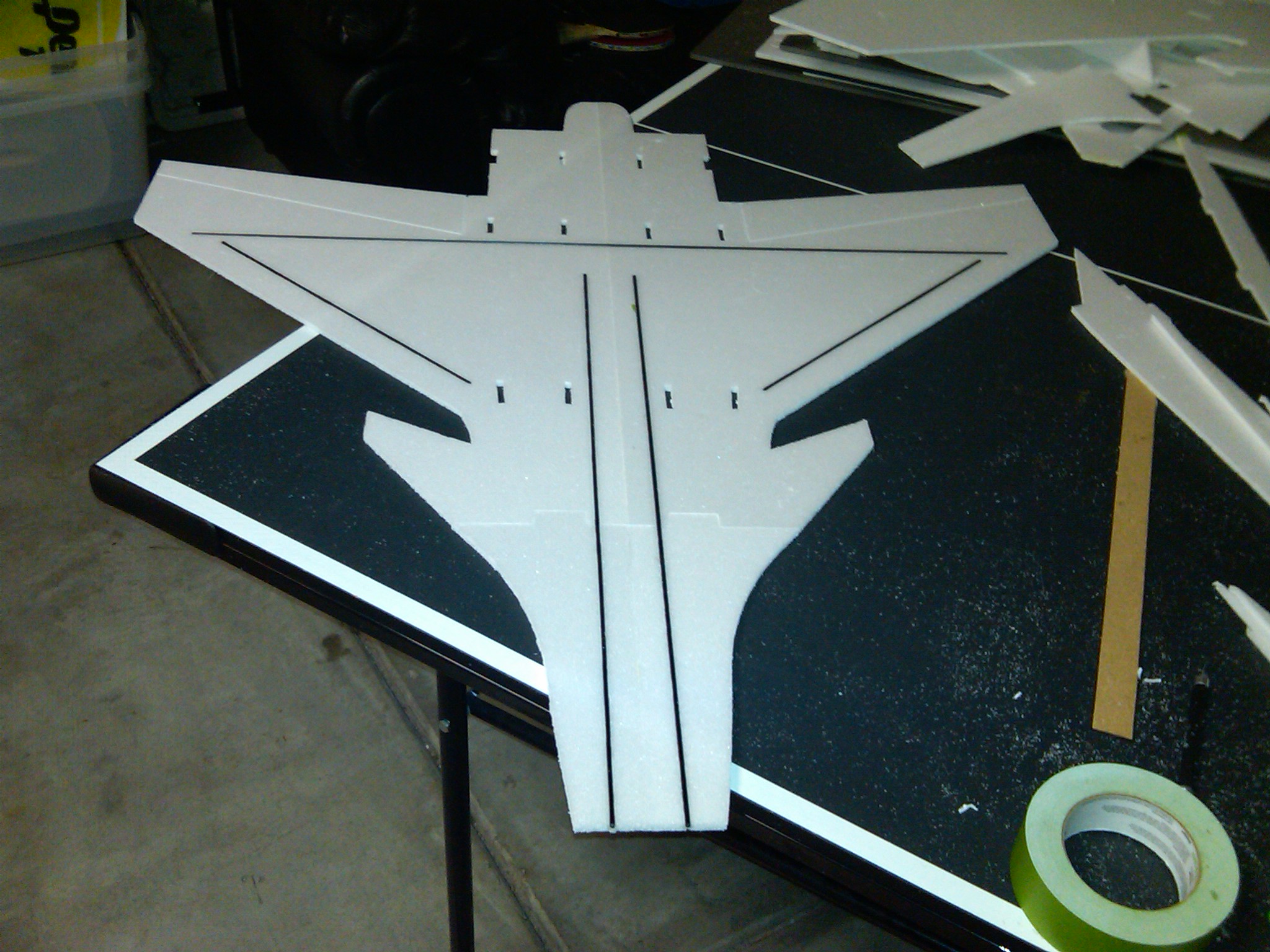

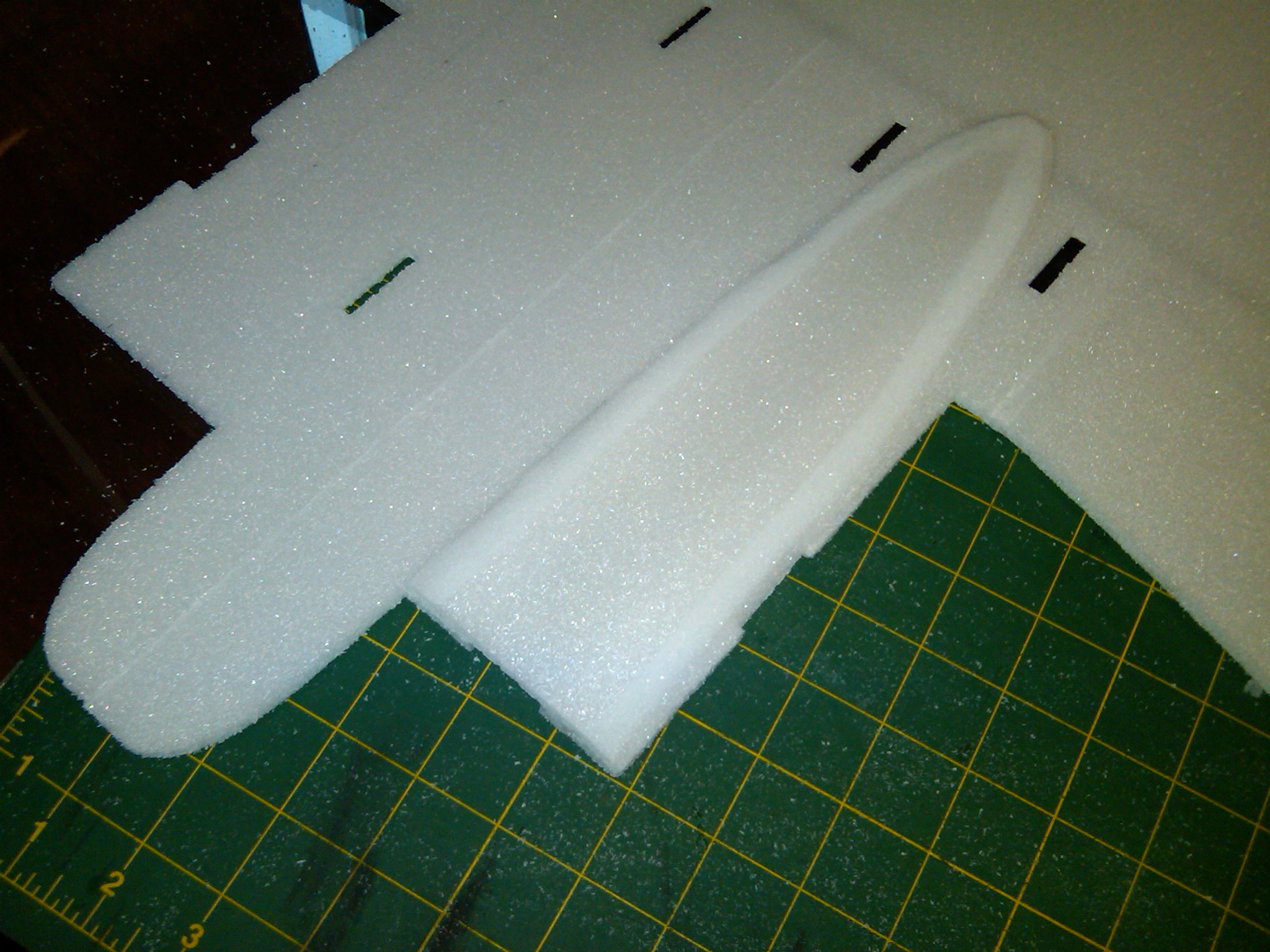

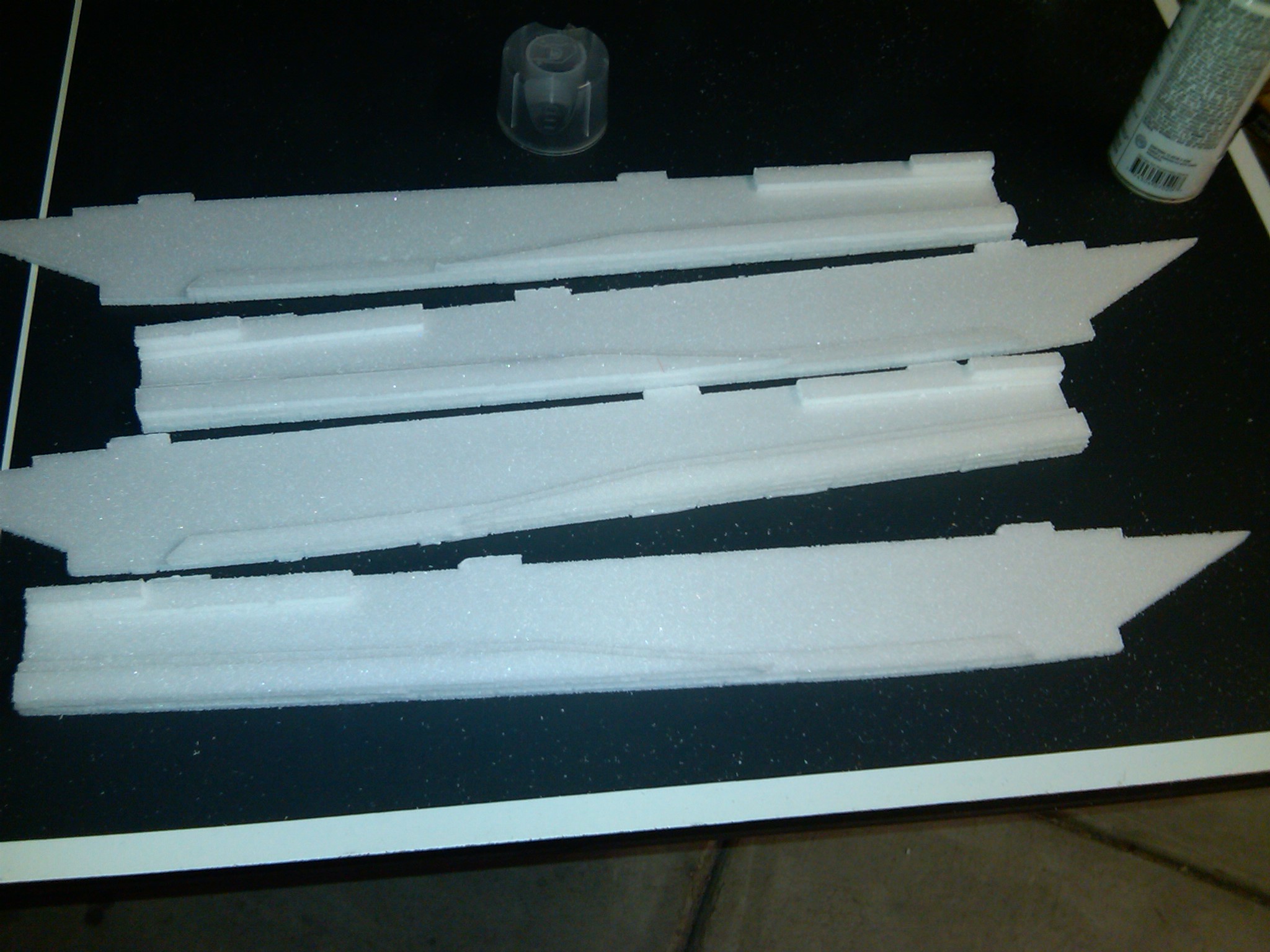

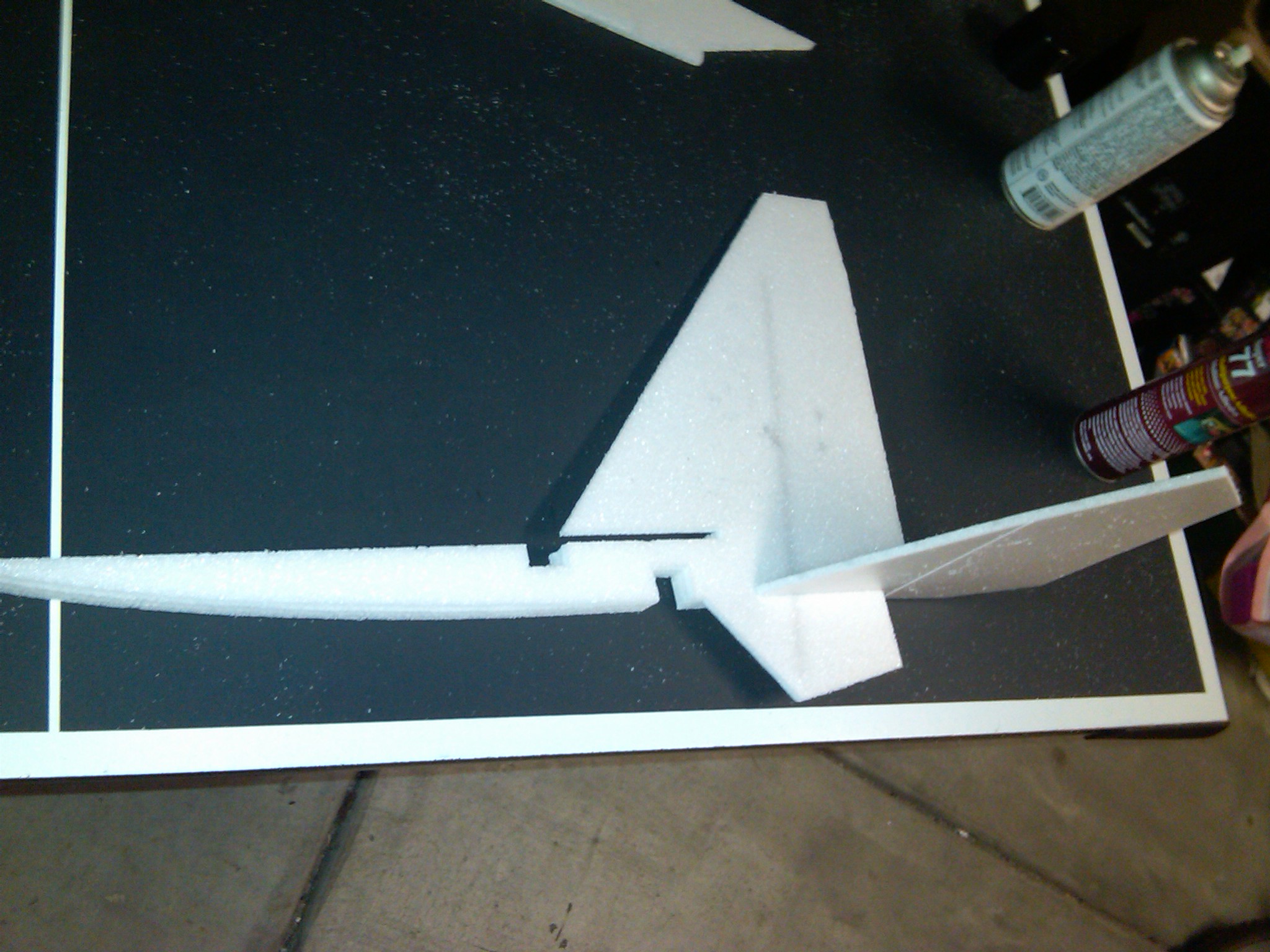

    Some more pictures of my progress. Going real slowly, trying to figure it out as I go. Lots of test fitting.

    Attached files [​IMG] [​IMG] [​IMG] [​IMG]

  8. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

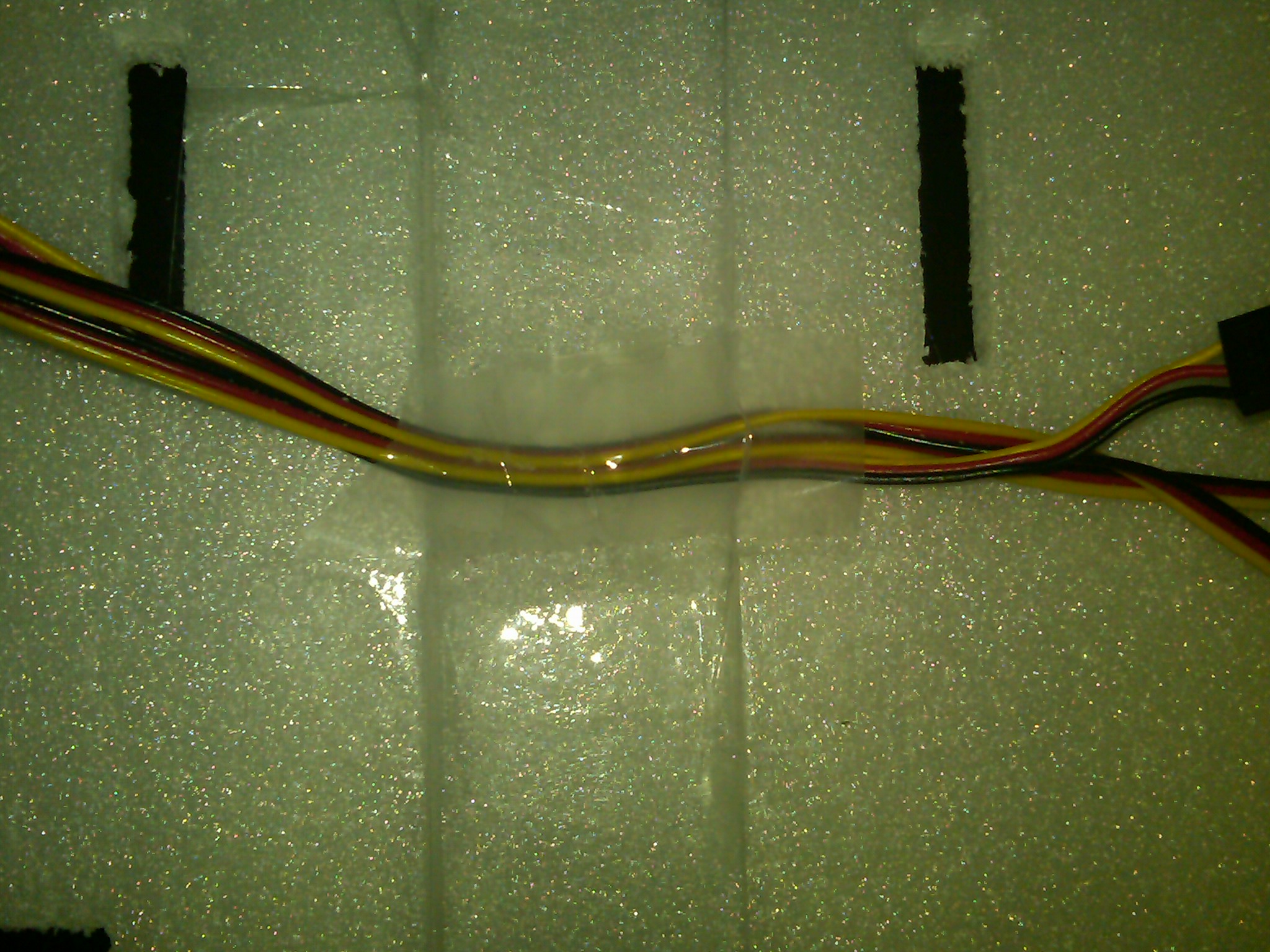

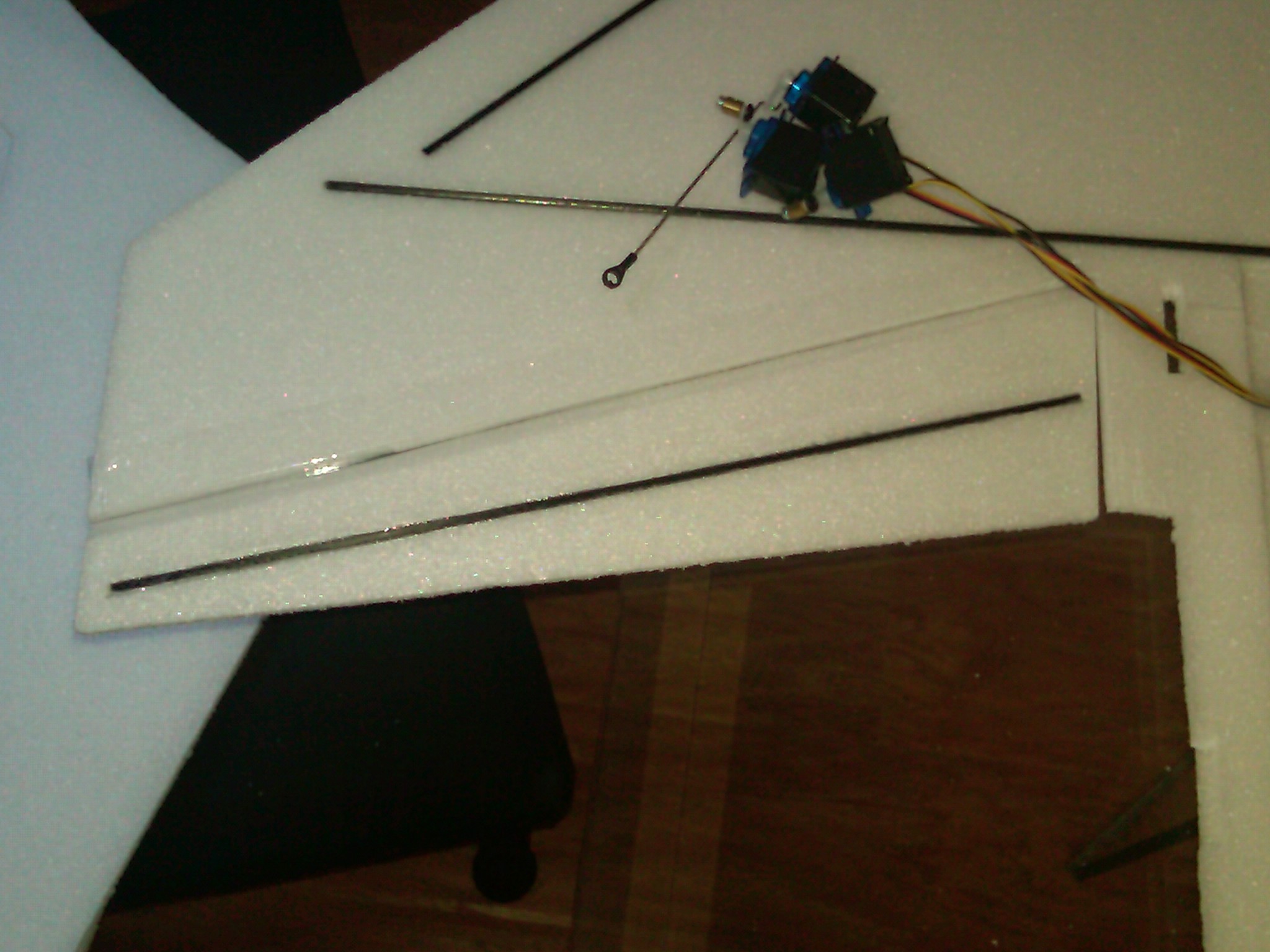

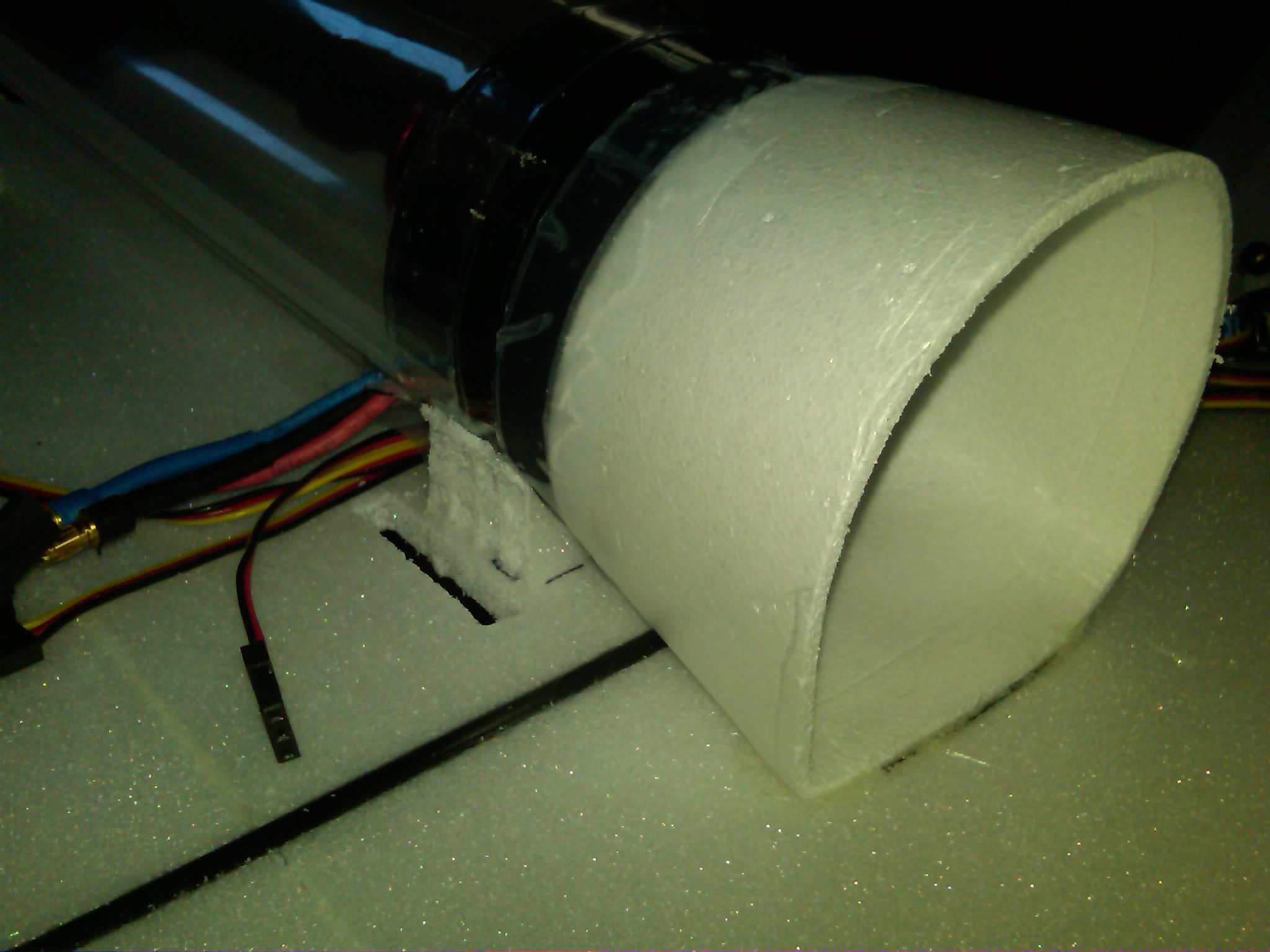

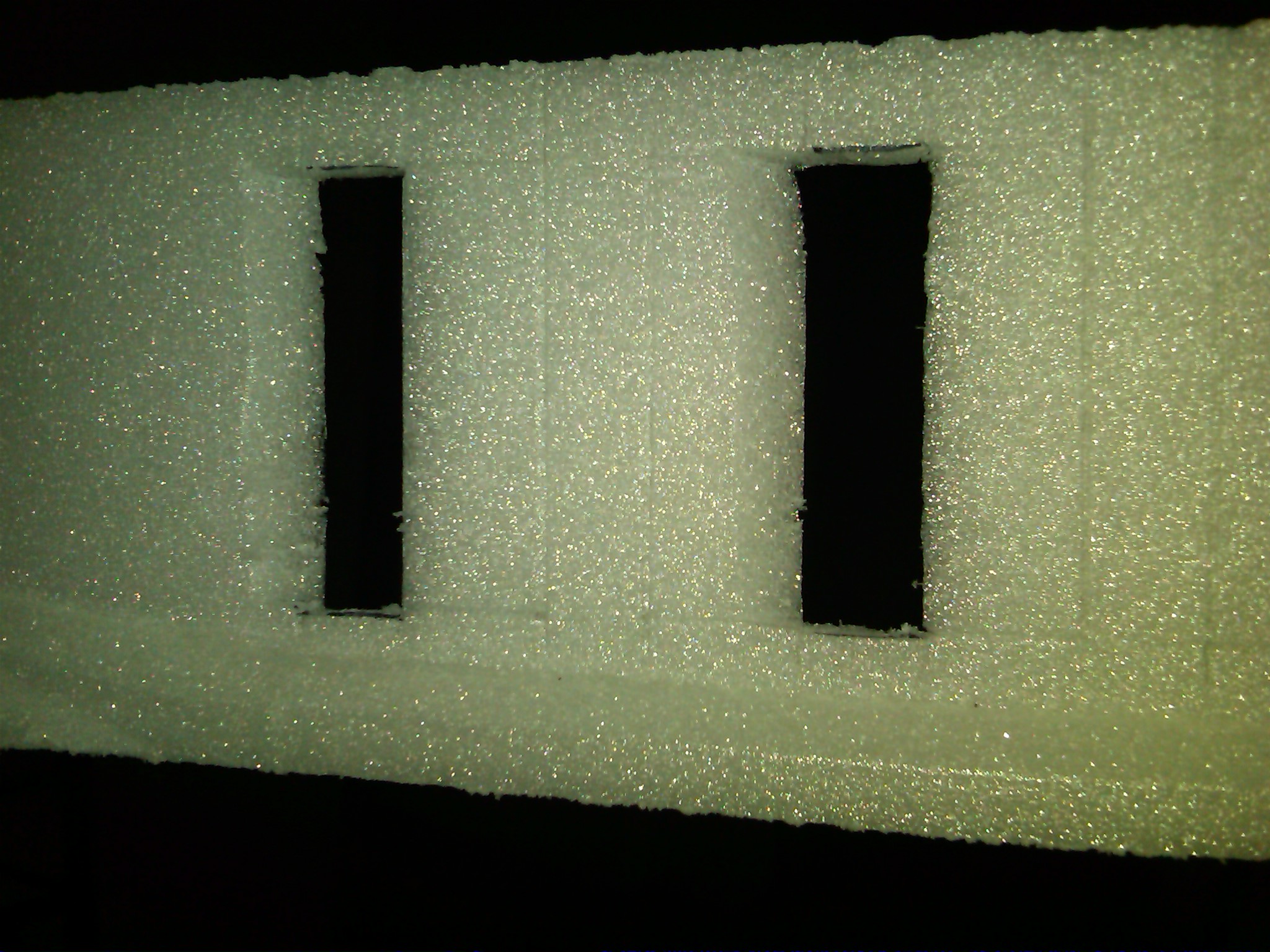

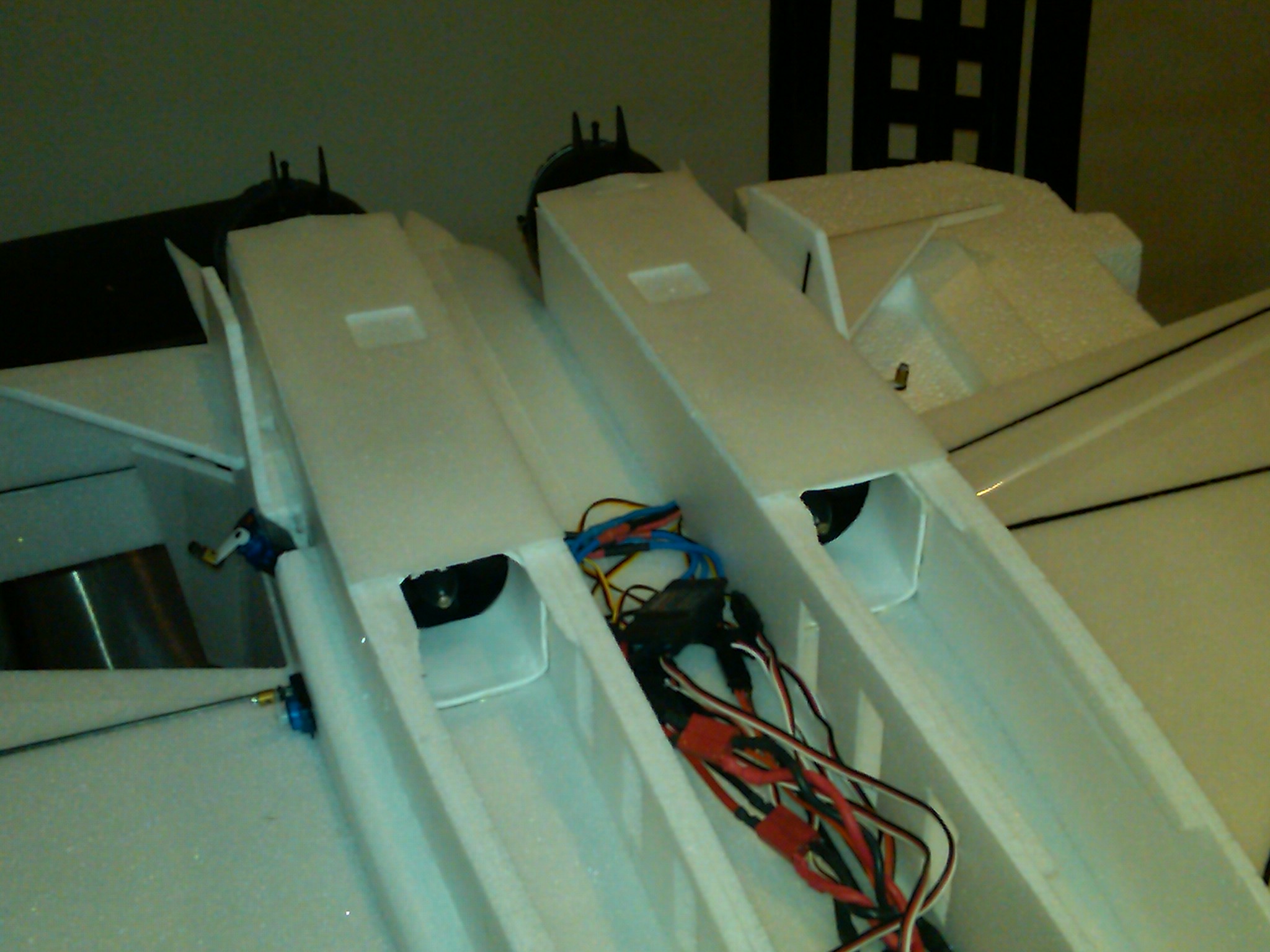

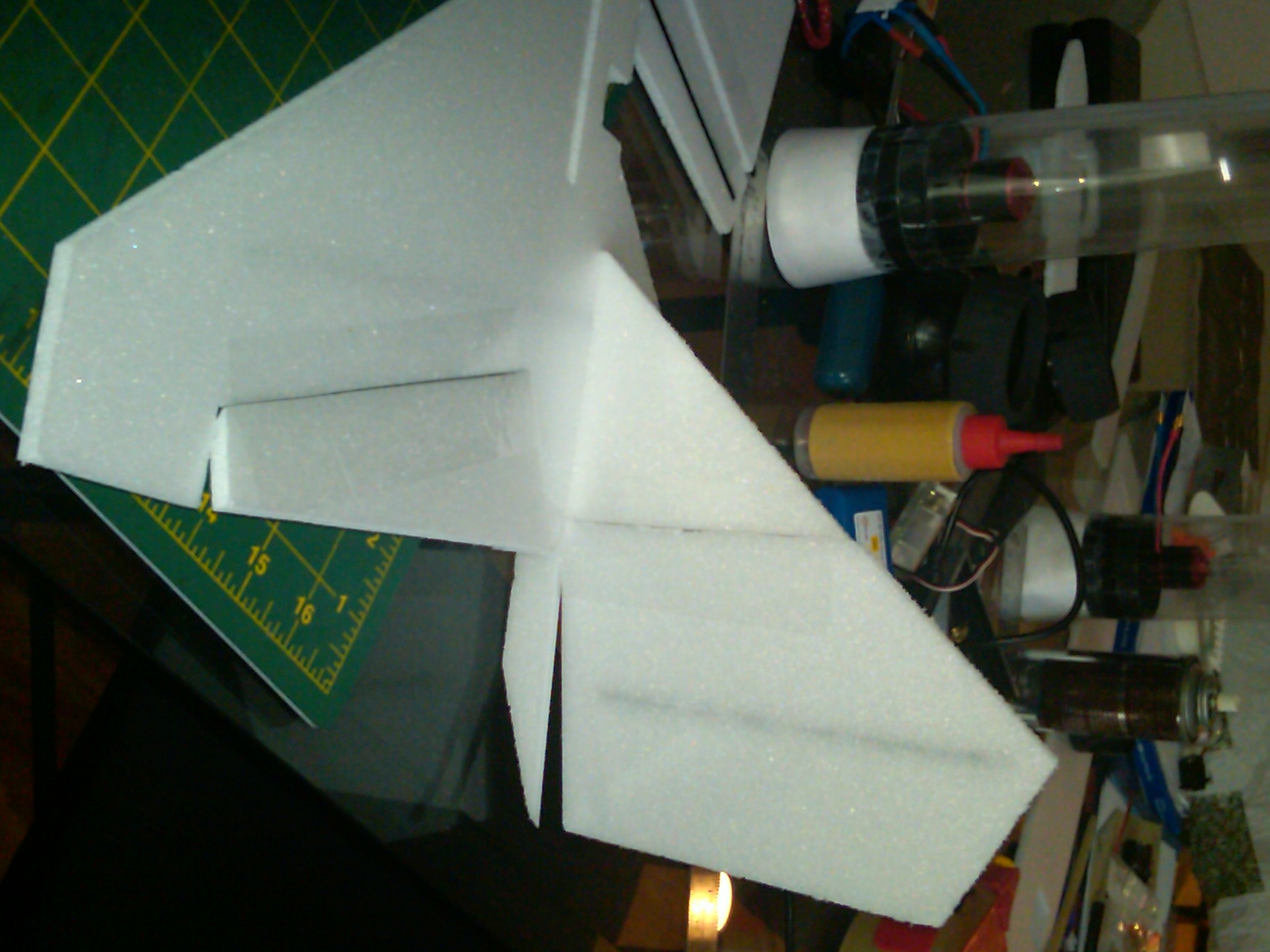

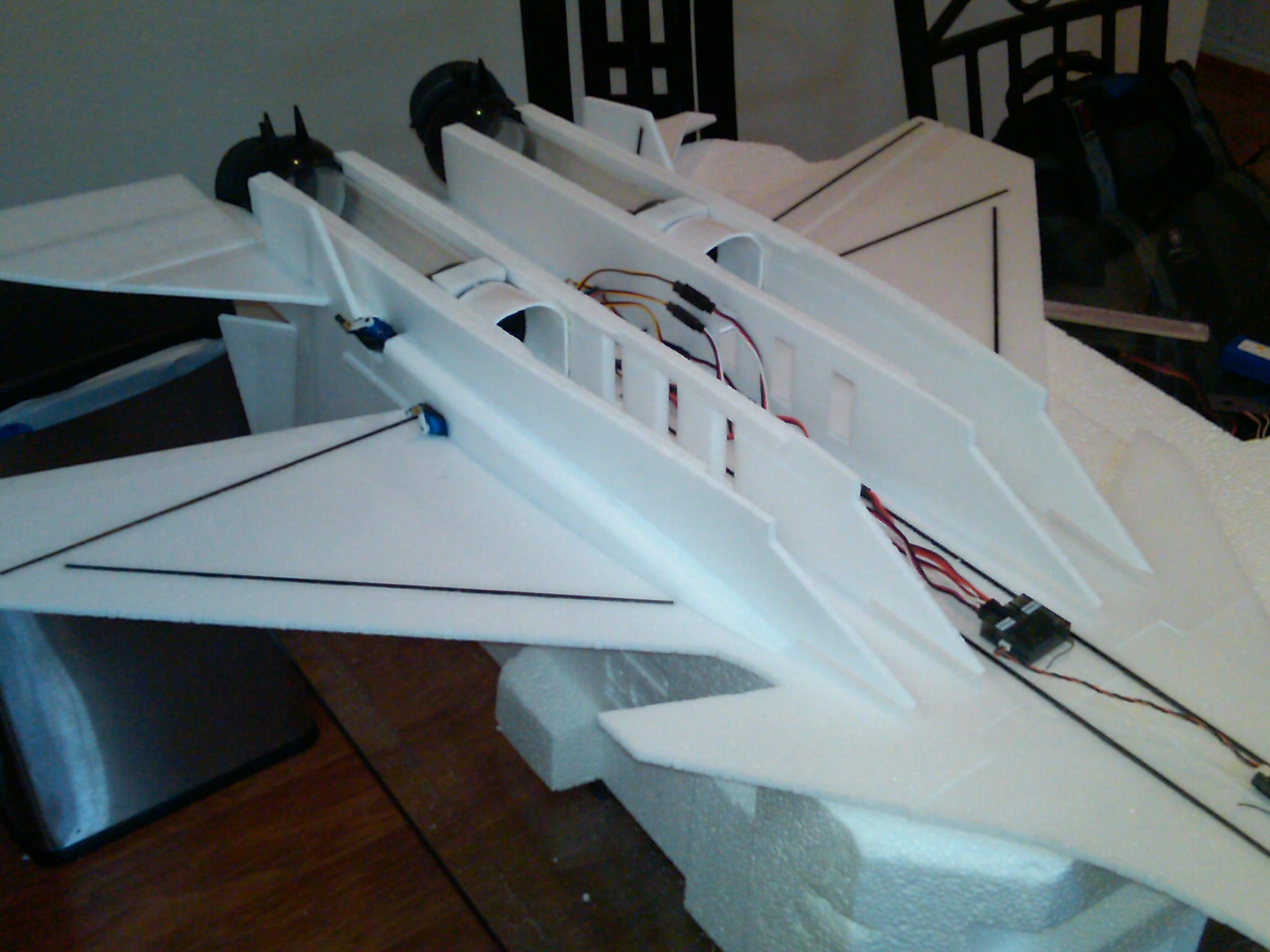

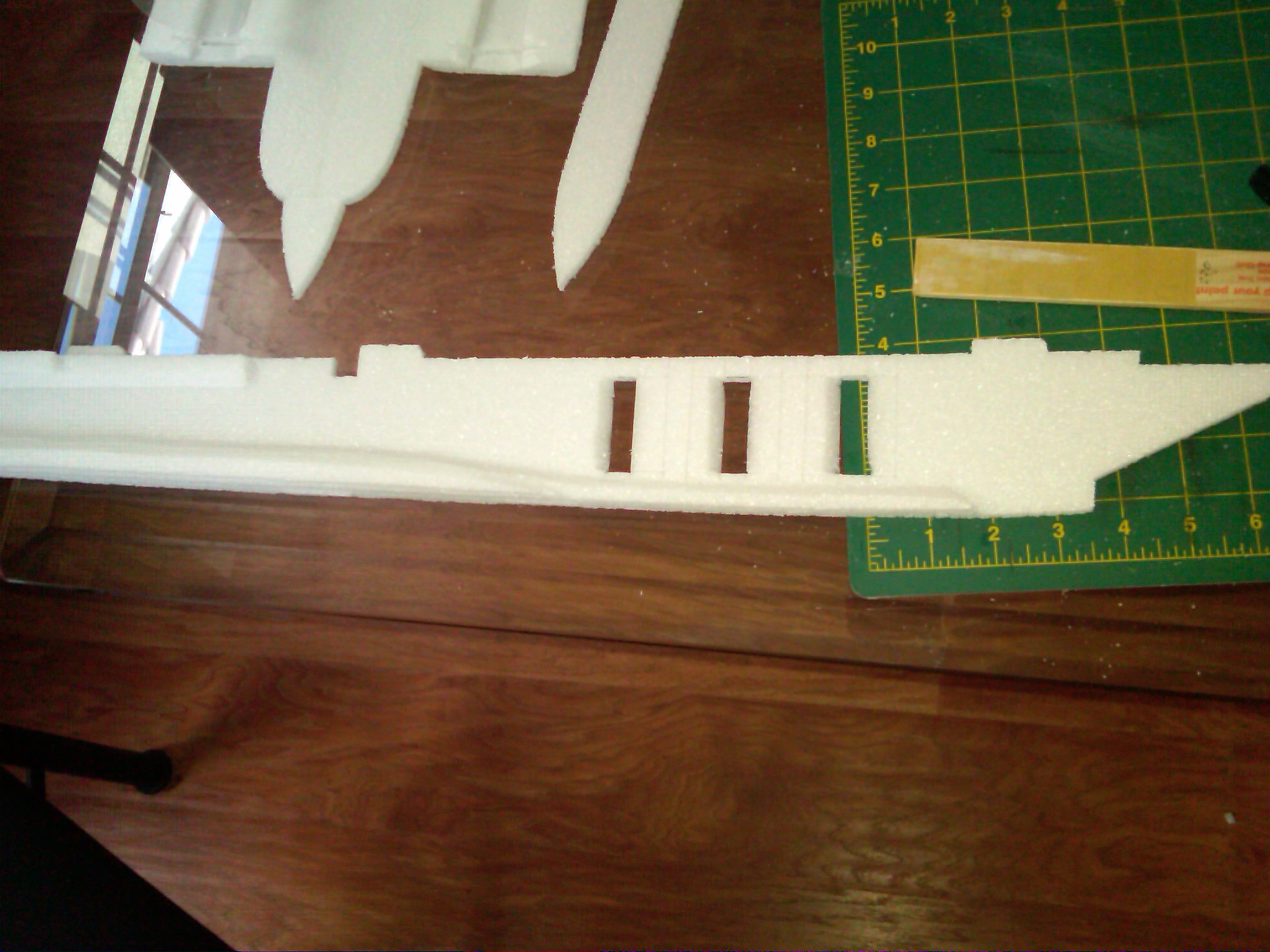

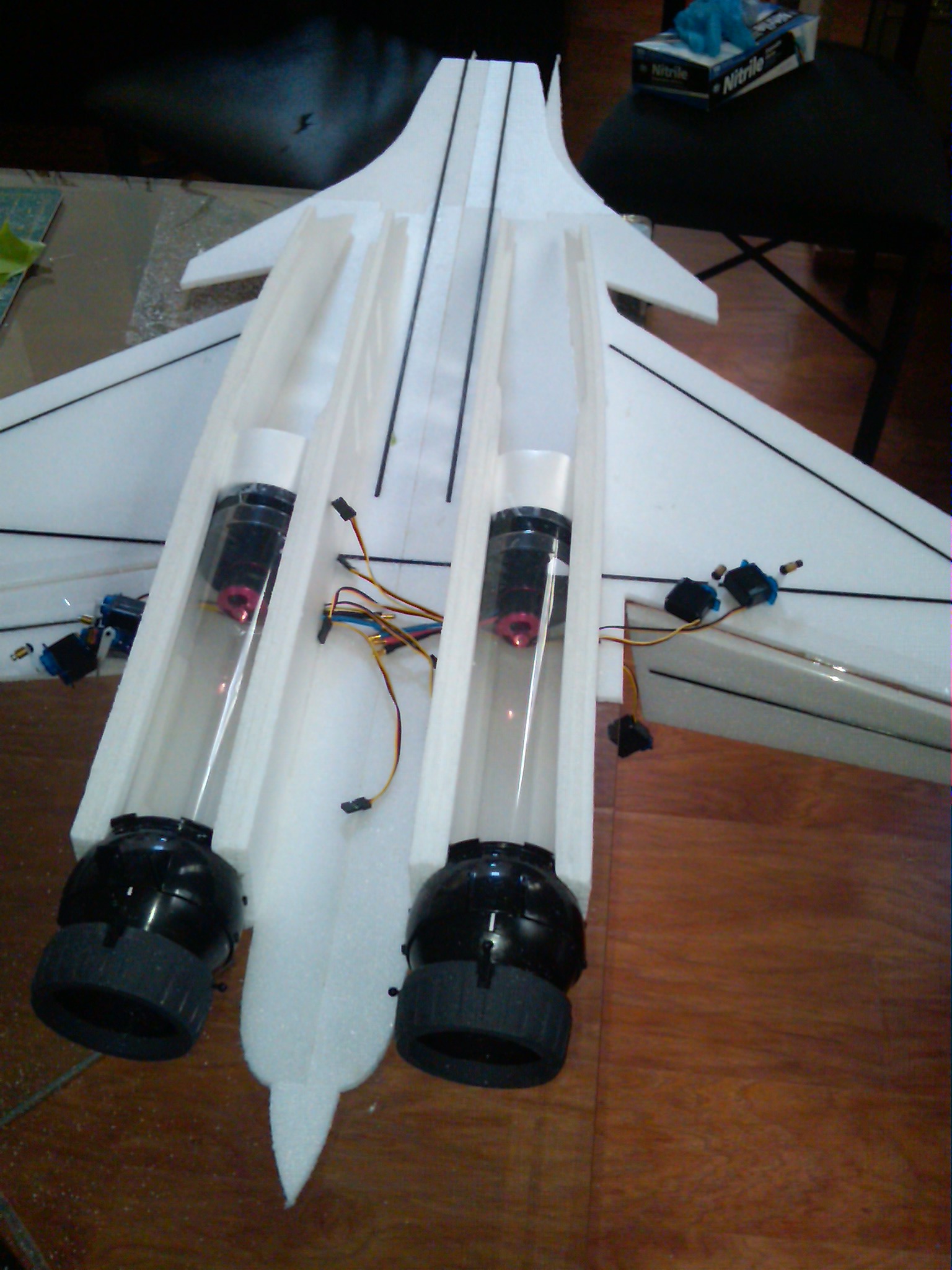

    some more photos of my progress.

    Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  9. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

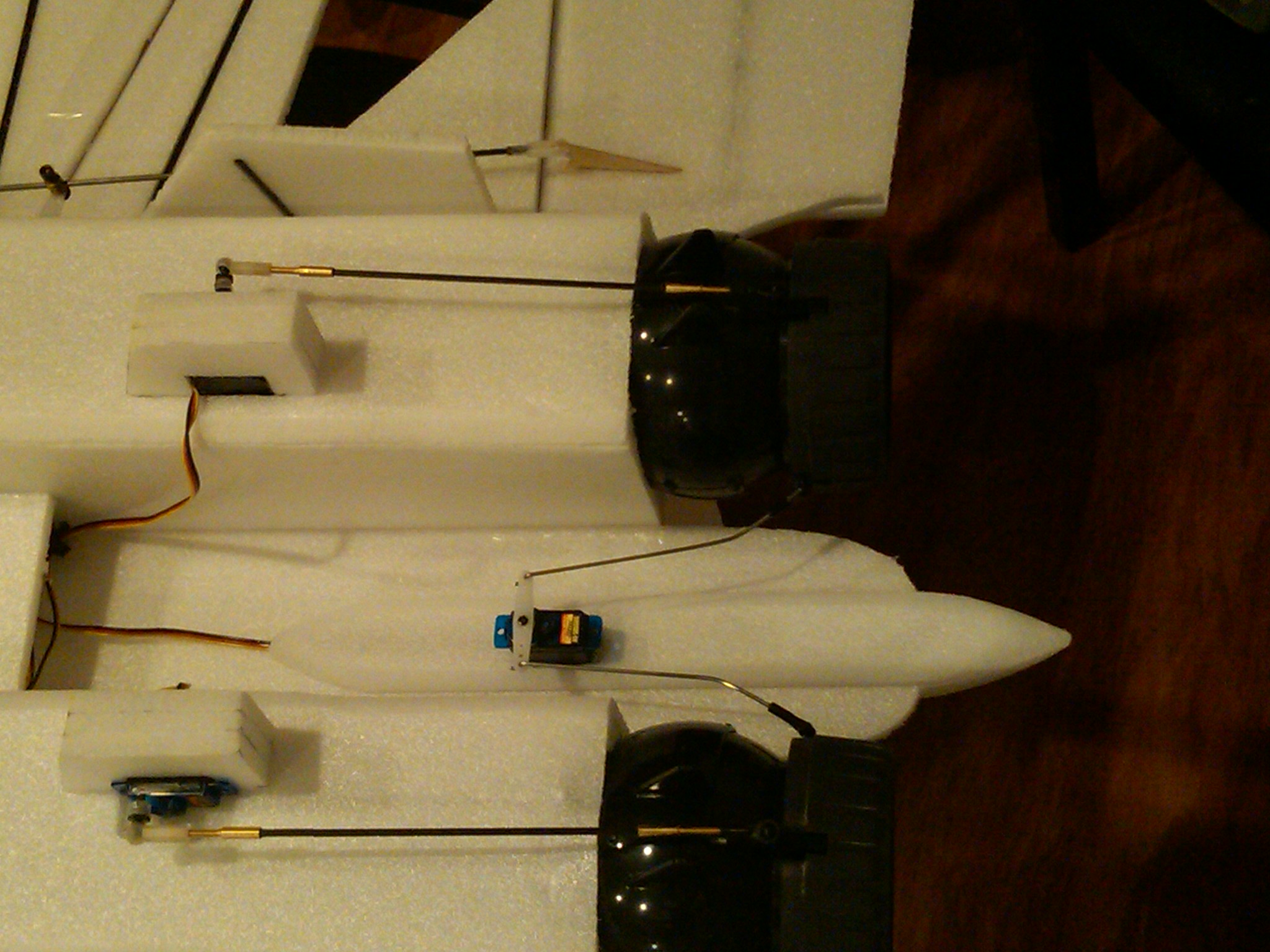

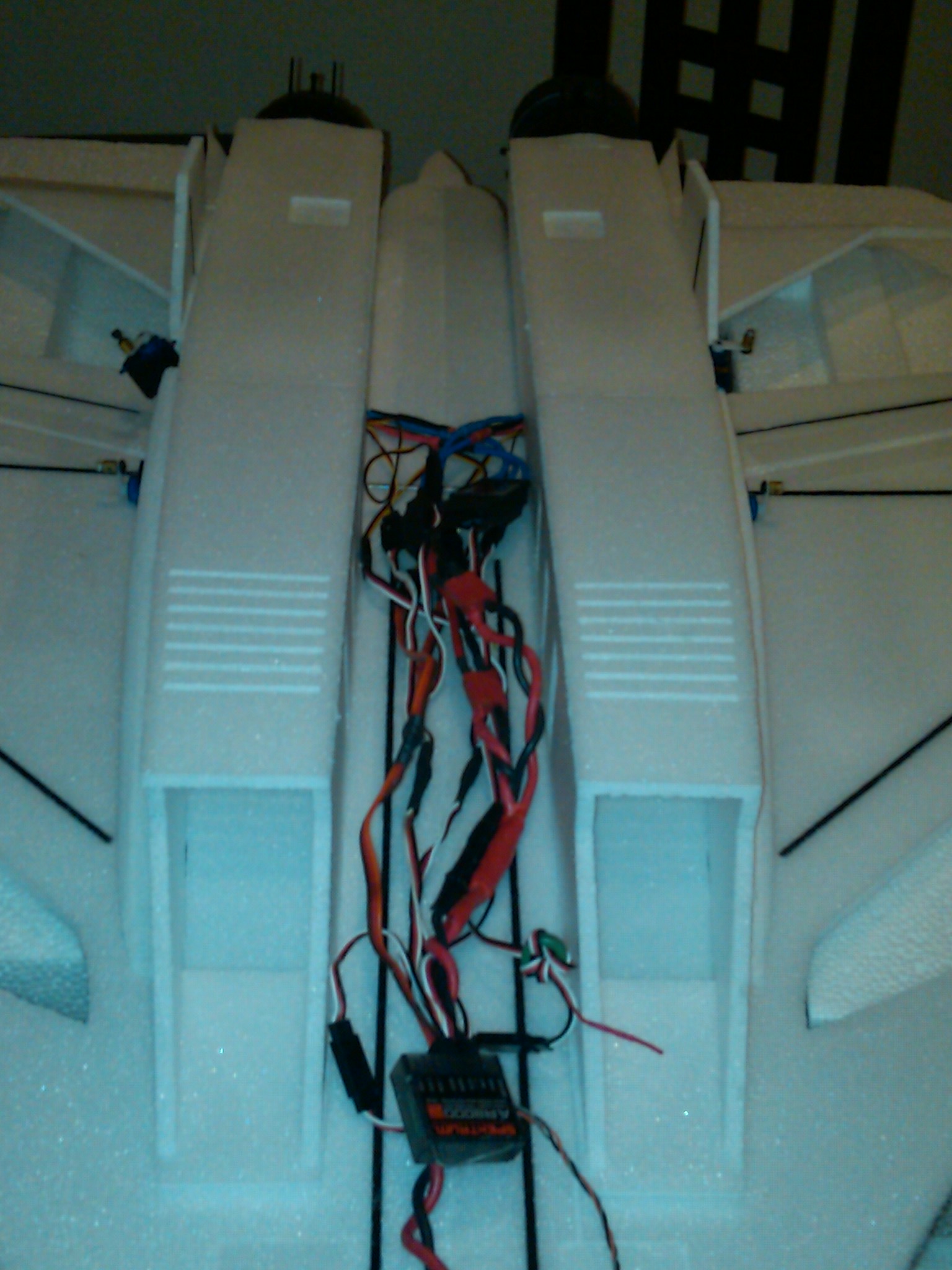

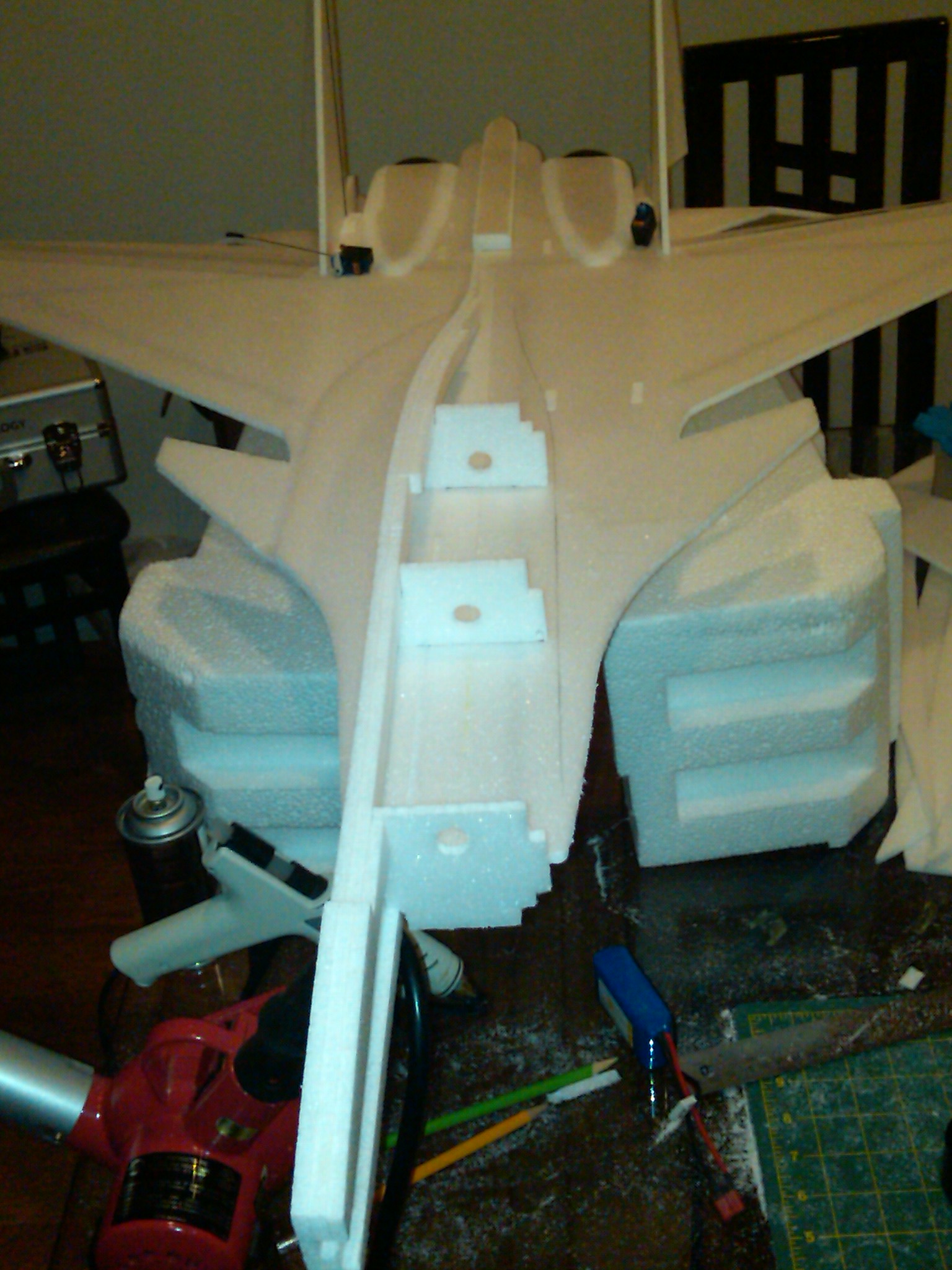

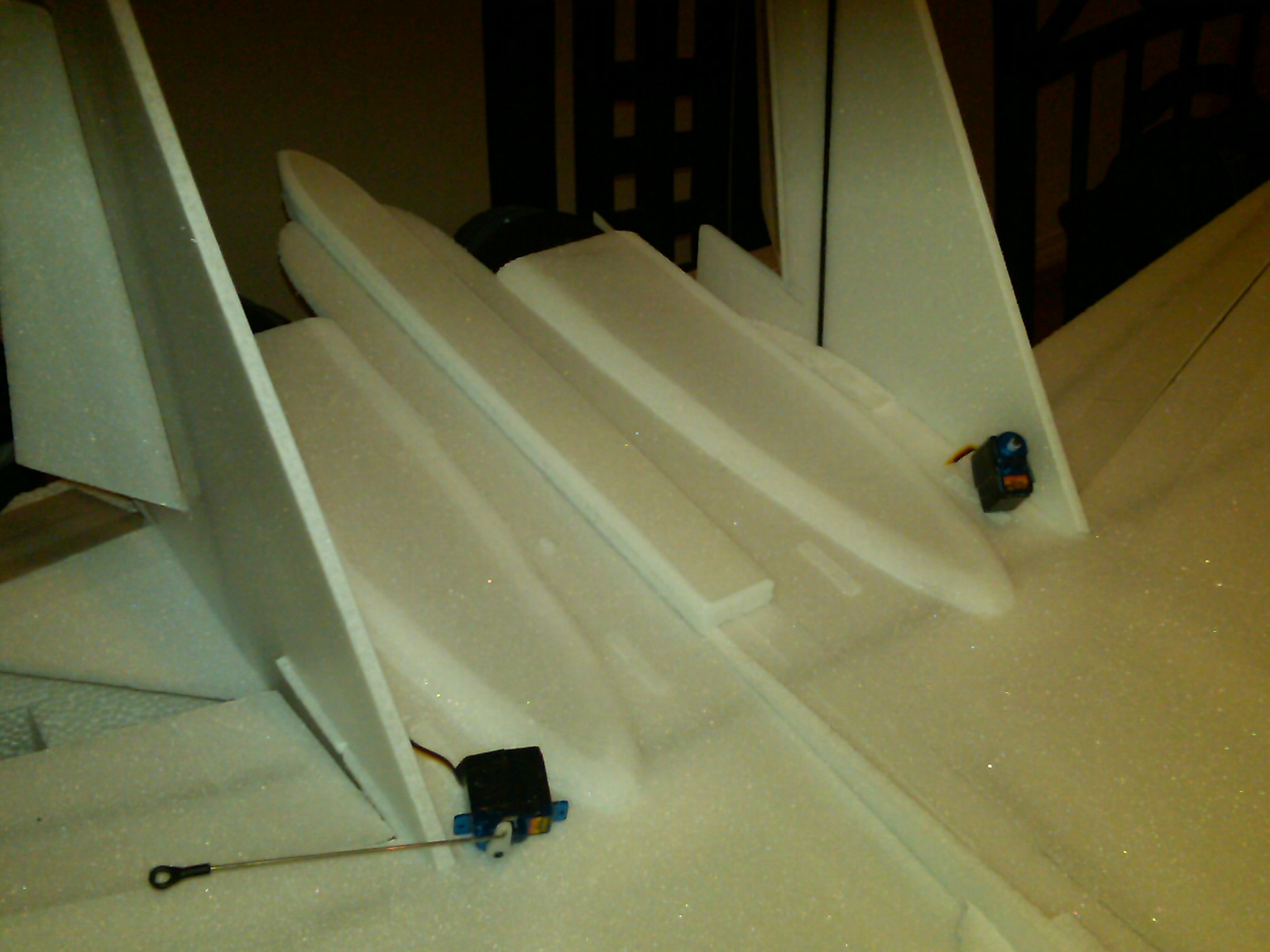

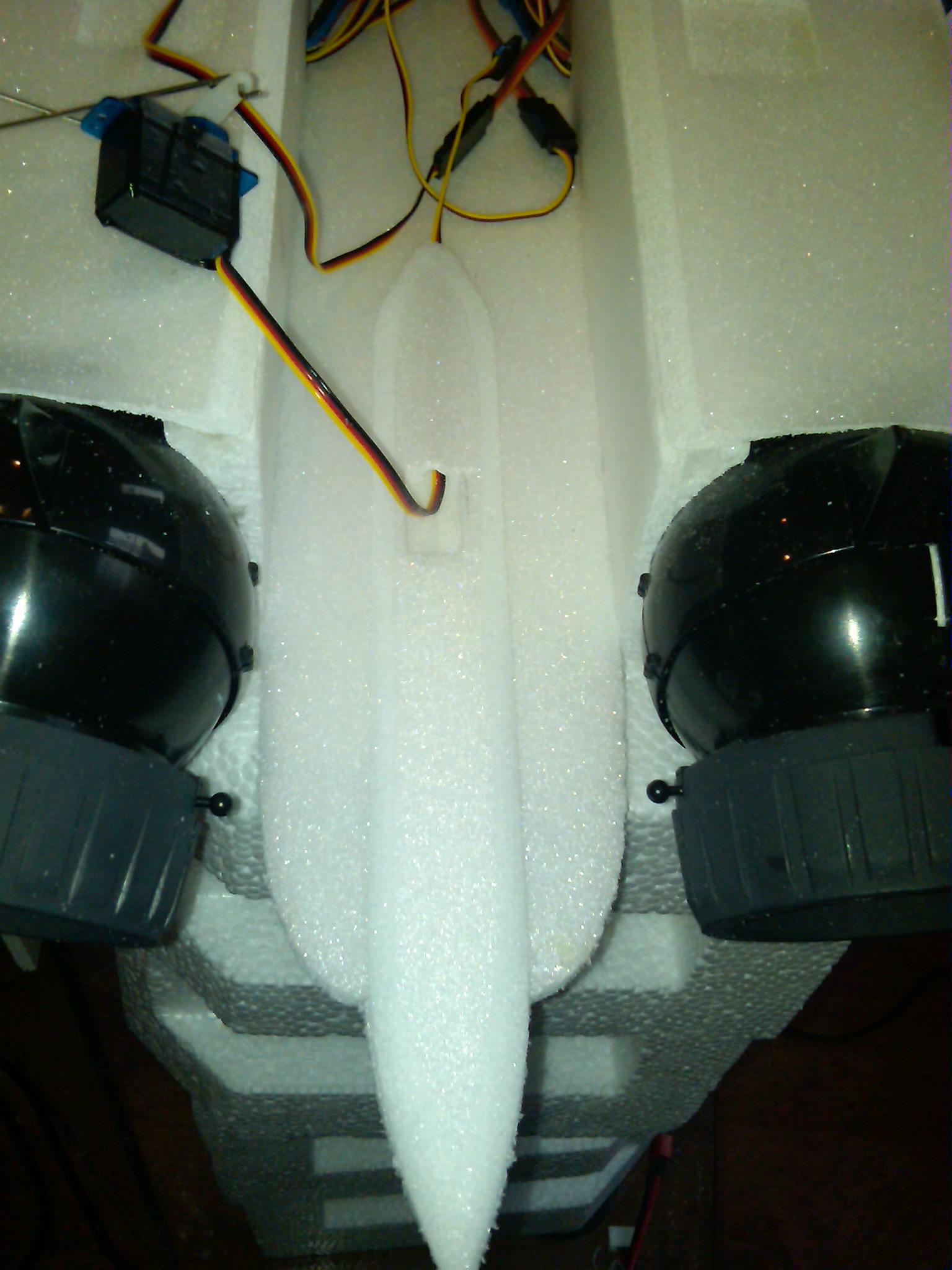

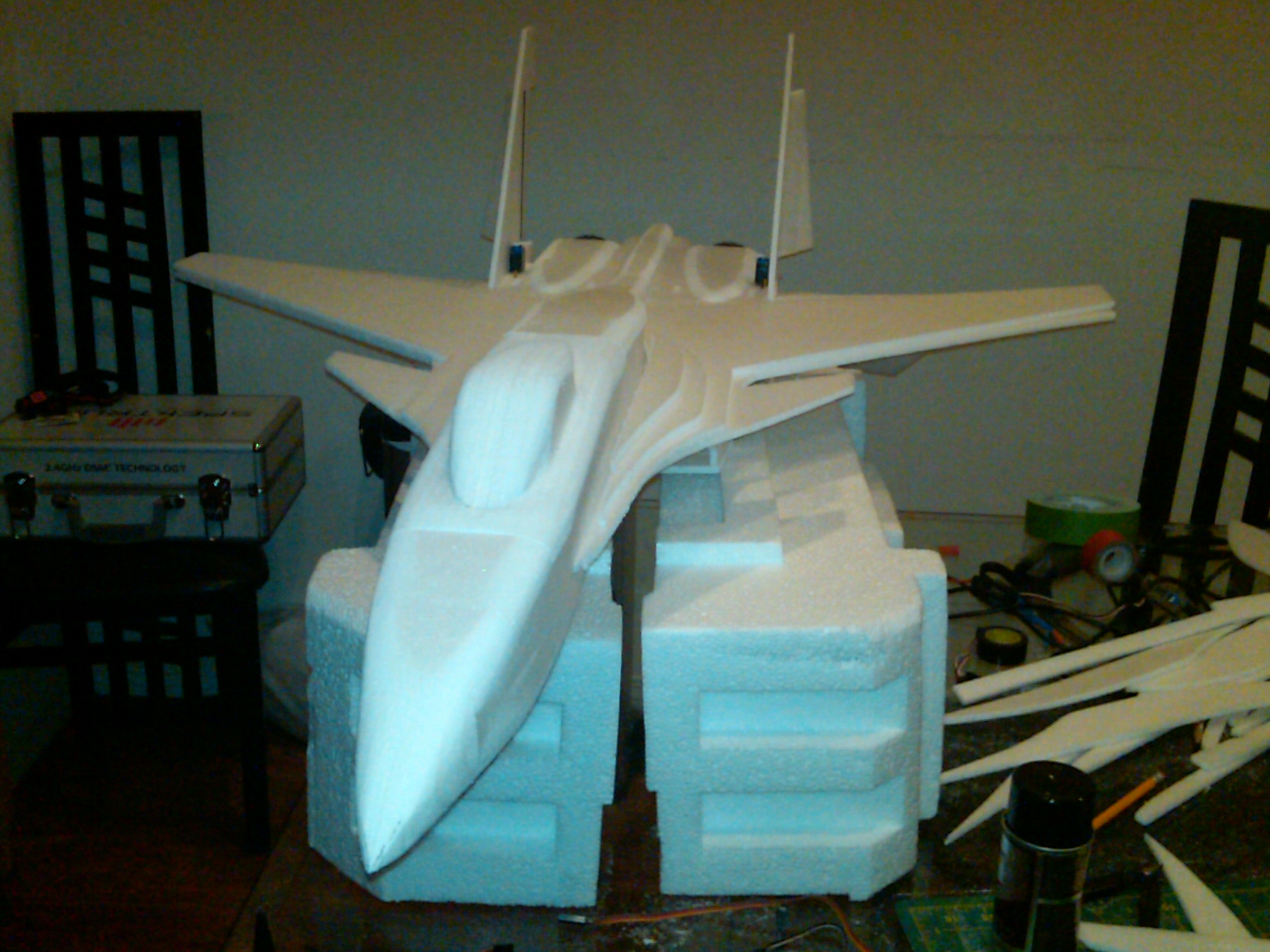

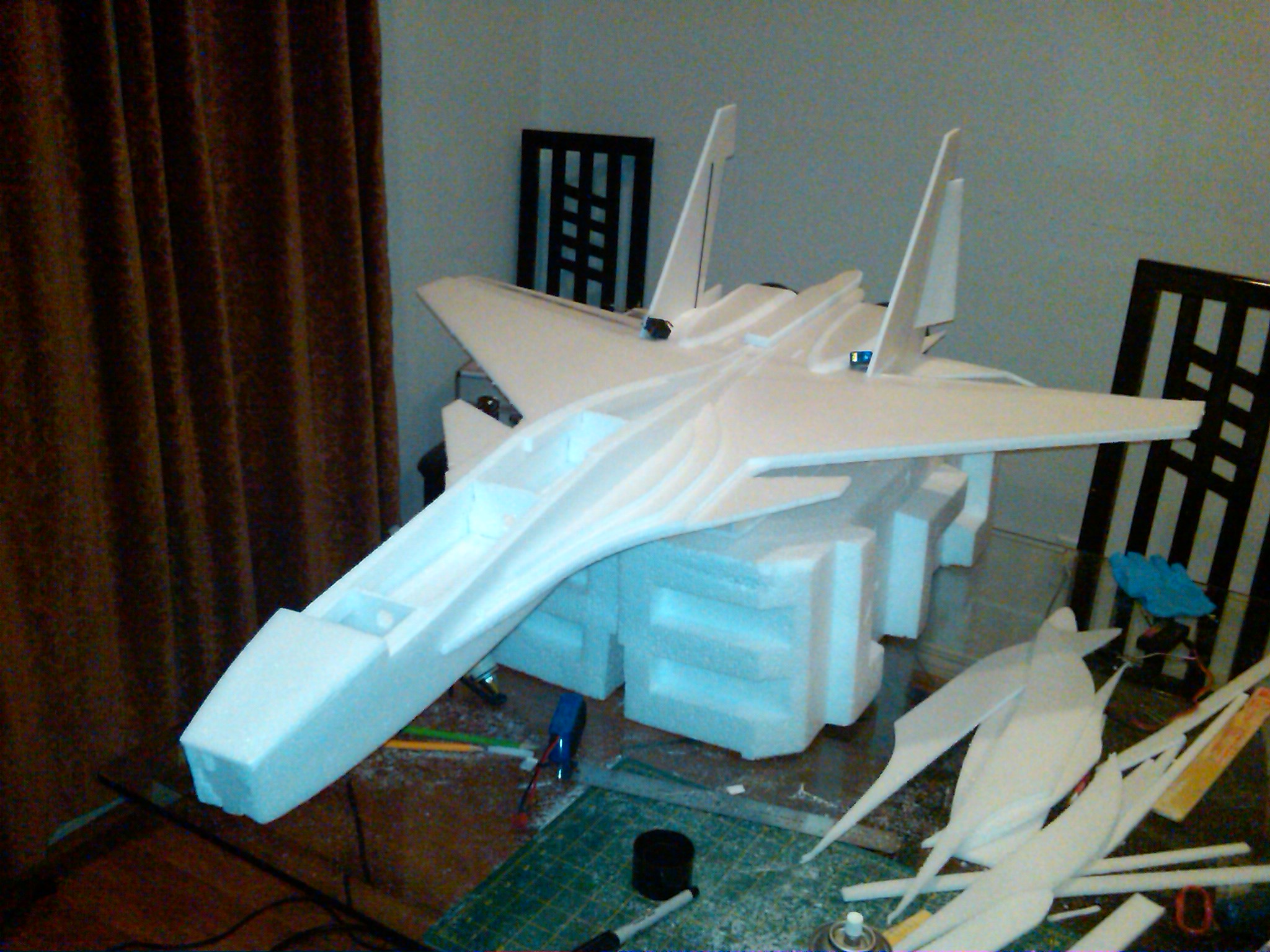

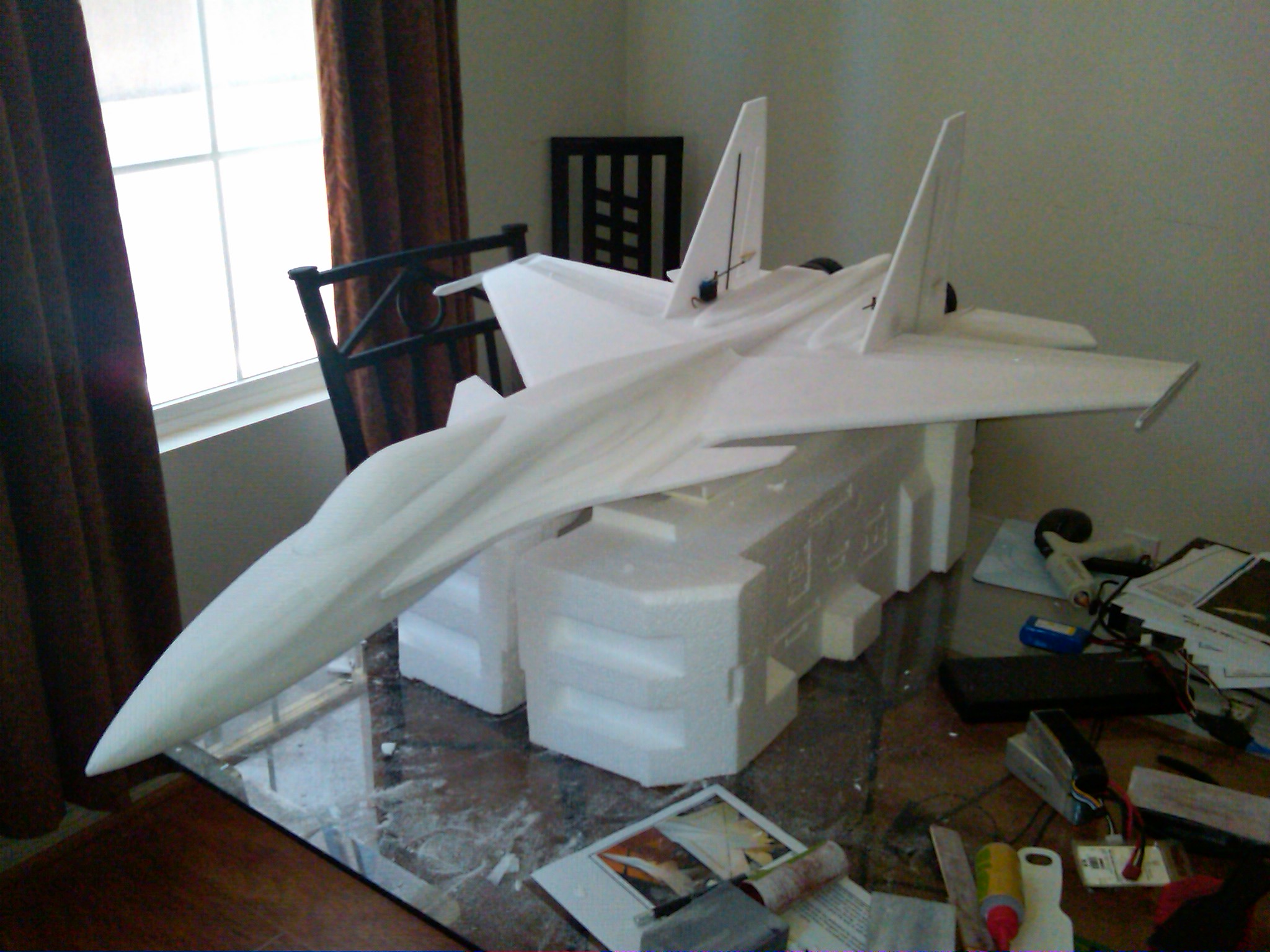

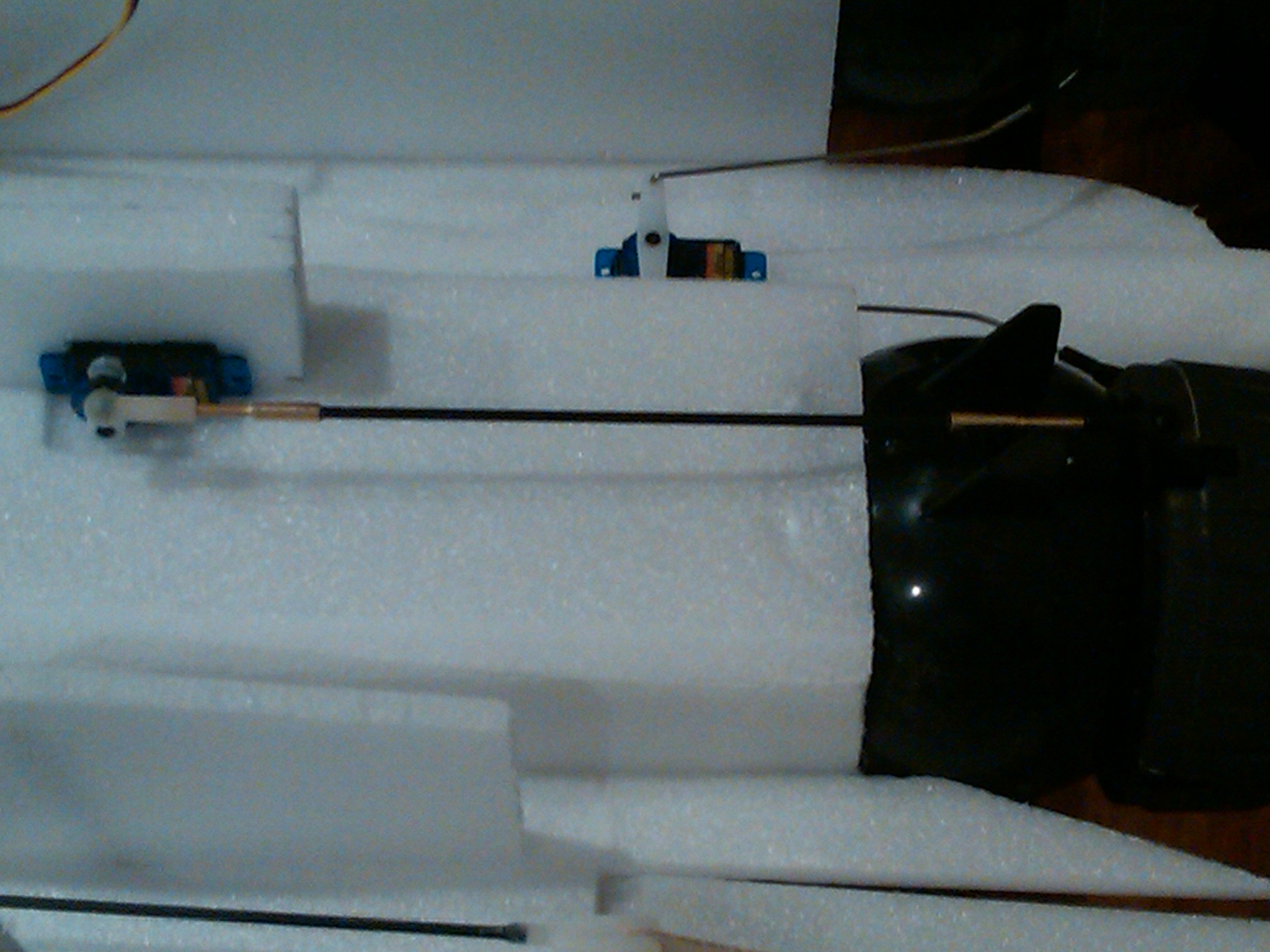

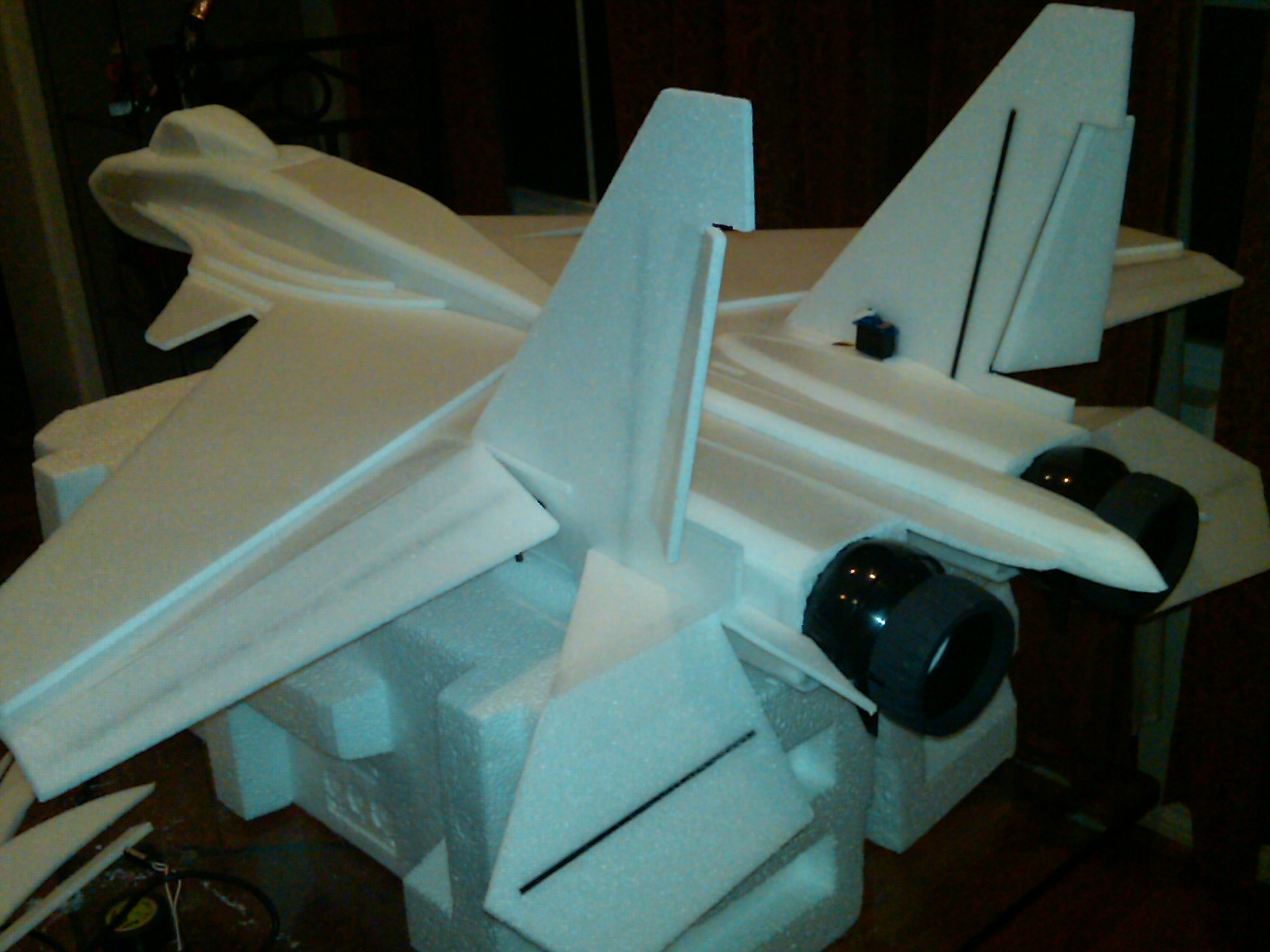

    Even more pictures of the progress.

    Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  10. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Man, this plane sure is looking great! :doubleup:

  11. GasPipe

    GasPipe New Member

    Offline
    Messages:
    43
    Trophy Points:
    0
    Very nice build so far, two thumbs up :doubleup:

  12. dugd1013

    dugd1013 Member

    Offline
    Messages:
    135
    Trophy Points:
    16
    Location:
    Air Capital of Kansas
    The cool meter is pegged out on this project! :doubleup:

  13. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6
    I finally got it to a point where I can maiden it. AUW is 53oz, but it has more than its weight in static thrust. The final specs are:

    9 servos - 2 Ail, 2 Elv, 2 Rudder, 3 TV servos
    Battery - 4S 3300mAh 35C
    wingspan - 35"
    edf - 2x 64mm EDFs
    motor - 2x 3500KV
    ESC - 2x 45Amp
    AUW - 53oz

  14. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Awesome! I hope to we get to see some awesome thrust vectoring maneuvers.

  15. GasPipe

    GasPipe New Member

    Offline
    Messages:
    43
    Trophy Points:
    0
    Perfect maiden, you rock :banger:

  16. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

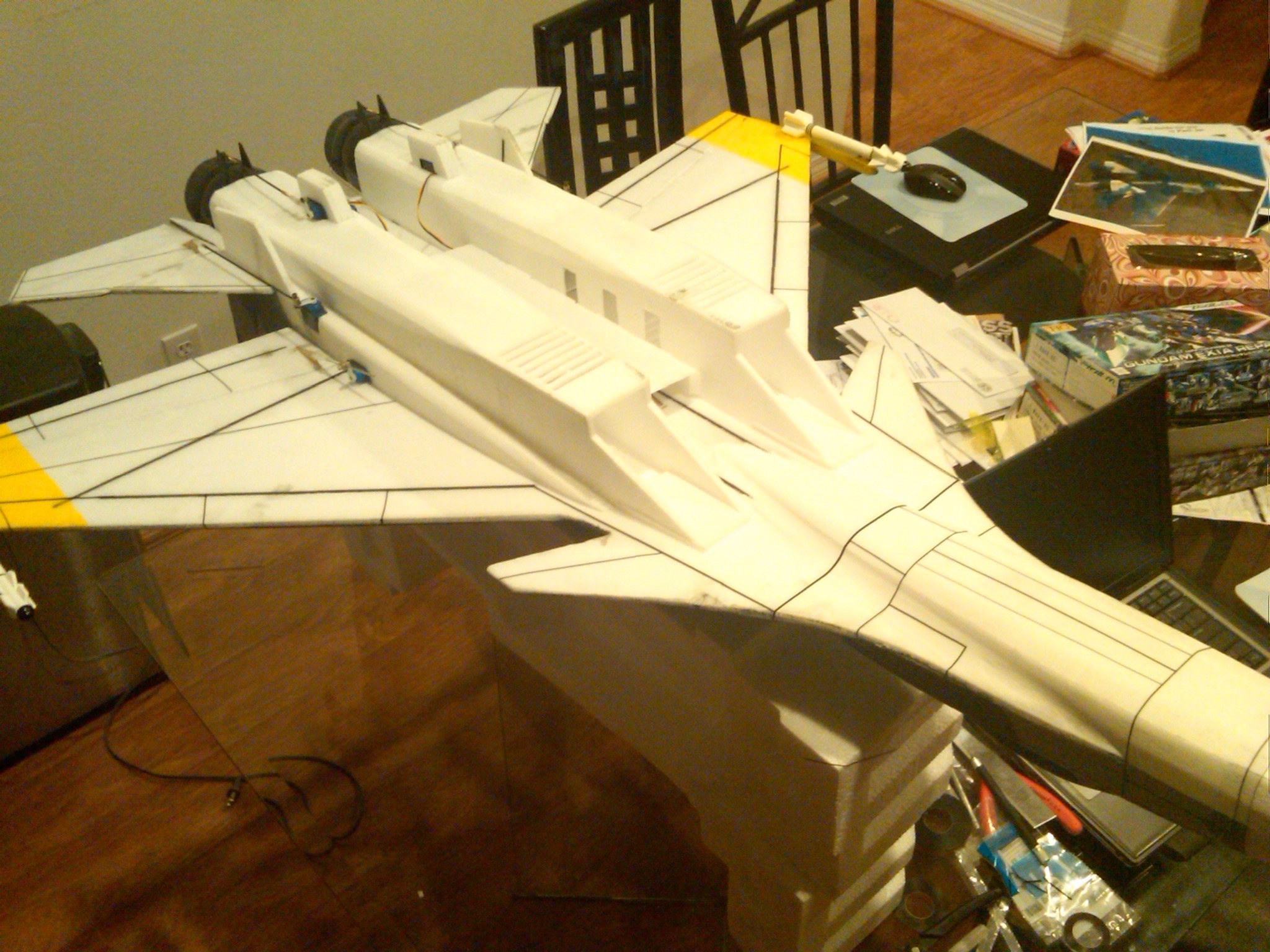

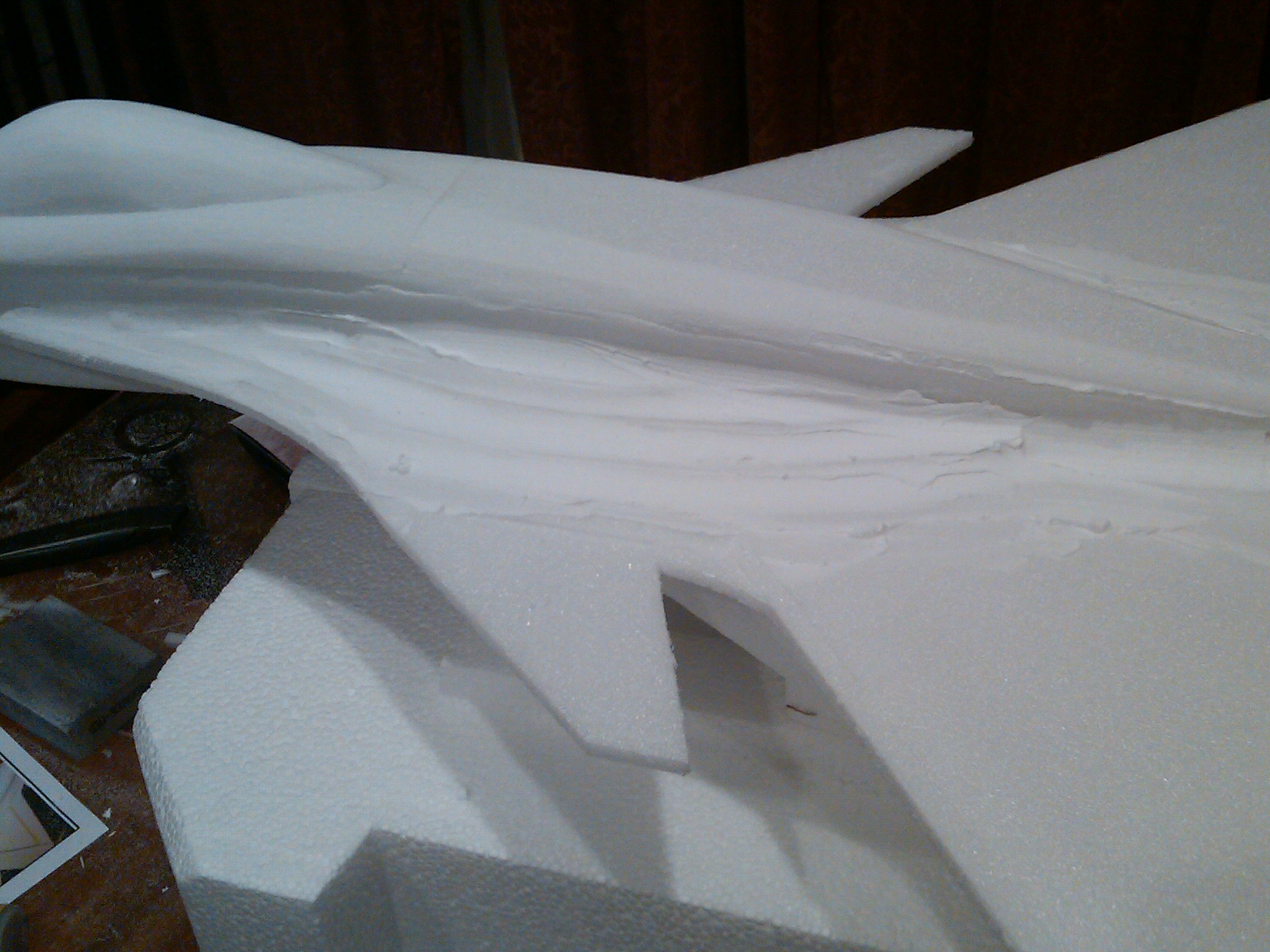

    Here some more pictures. I finally started to spackle it sand, sand, sand and sand some more. I love the shape of this plane, it looks so menacing. I'm so blessed to be given the opportunity to modify it and convert it into an edf. The design, and build was all made possible by people like you in forums like this. Thank you all. I'm still not done. It still needs to be painted.

    Attached files [​IMG] [​IMG] [​IMG] [​IMG]

  17. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6
    I've uploaded the plans for those that are interested.

  18. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

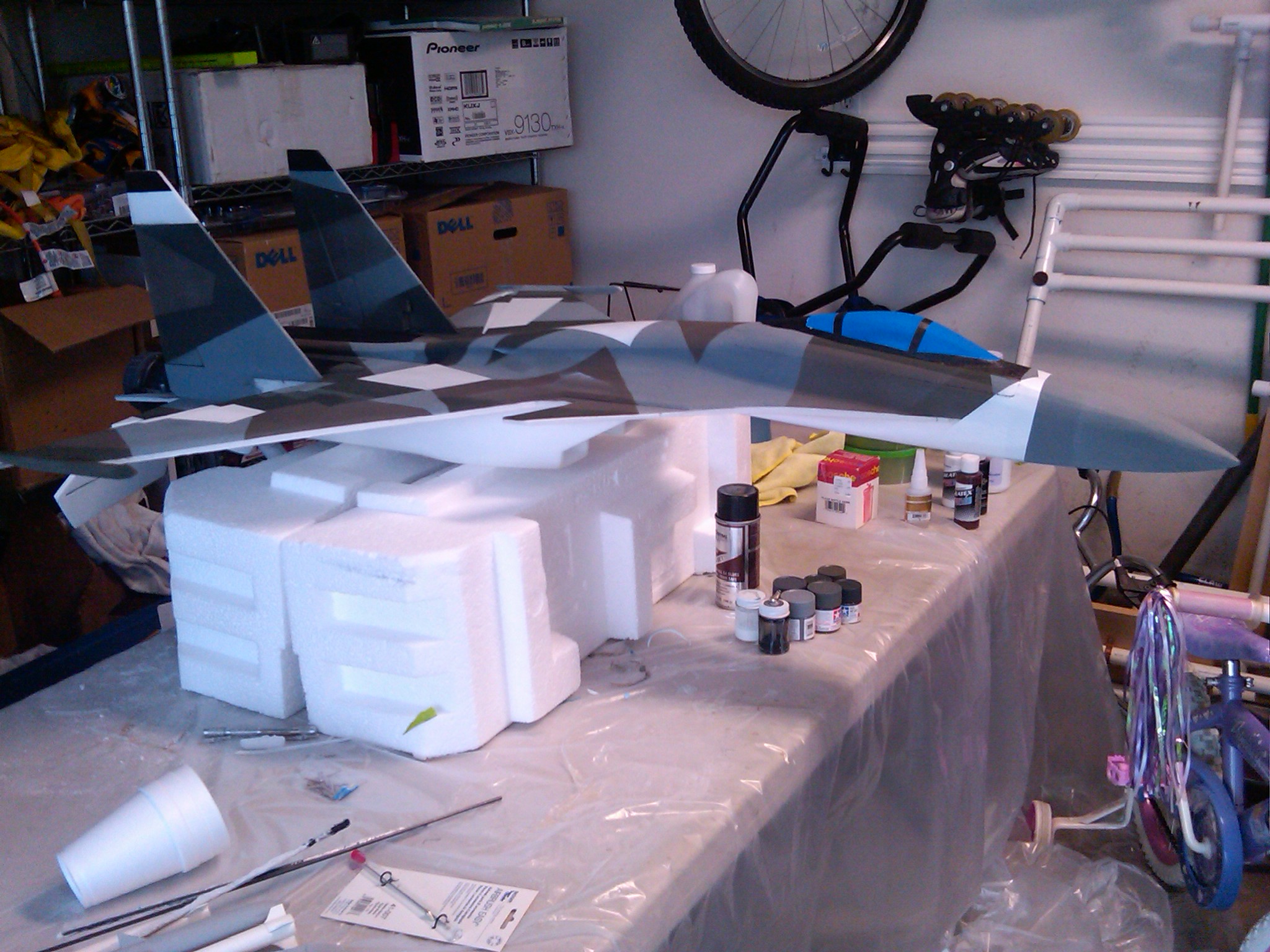

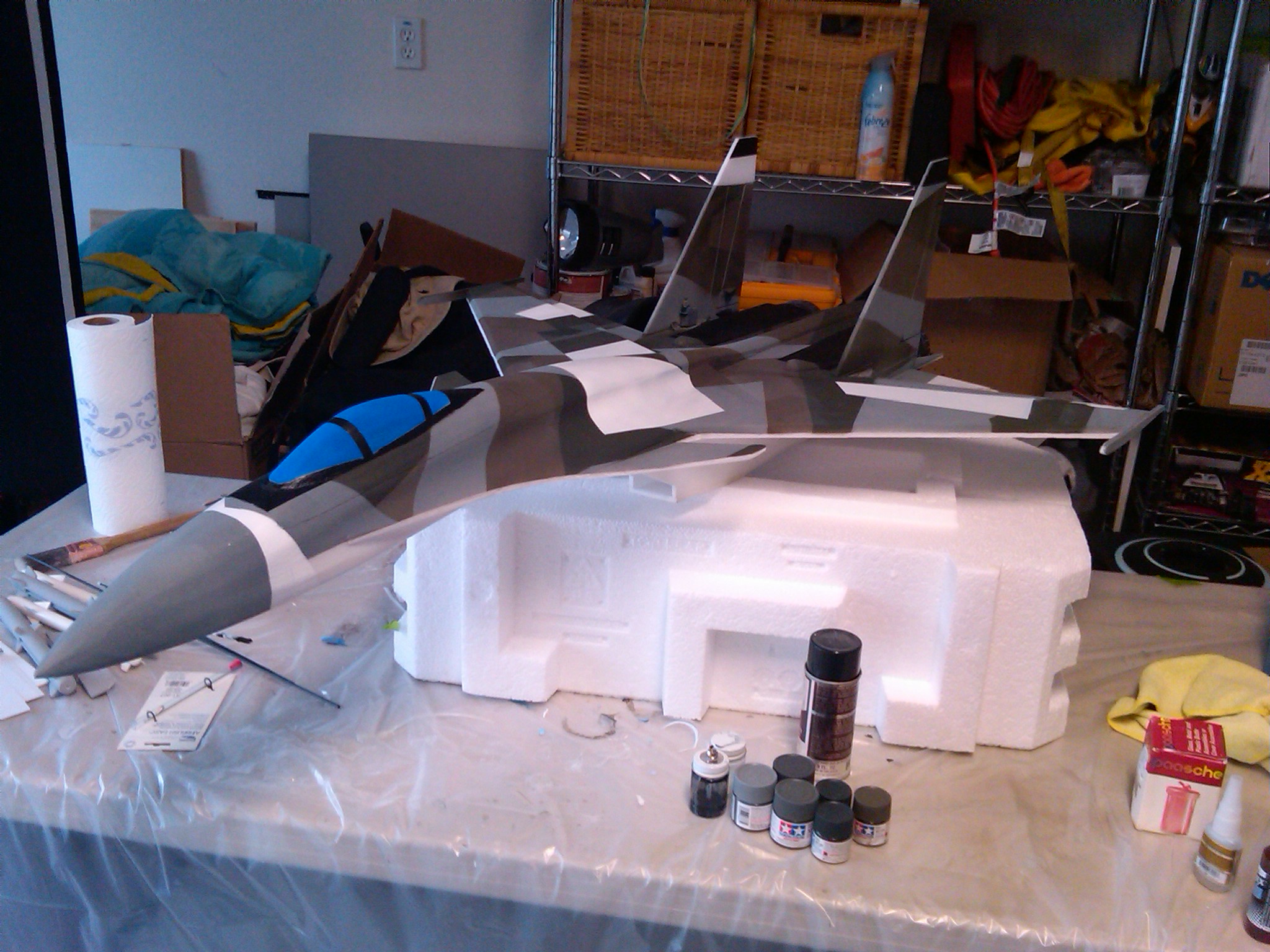

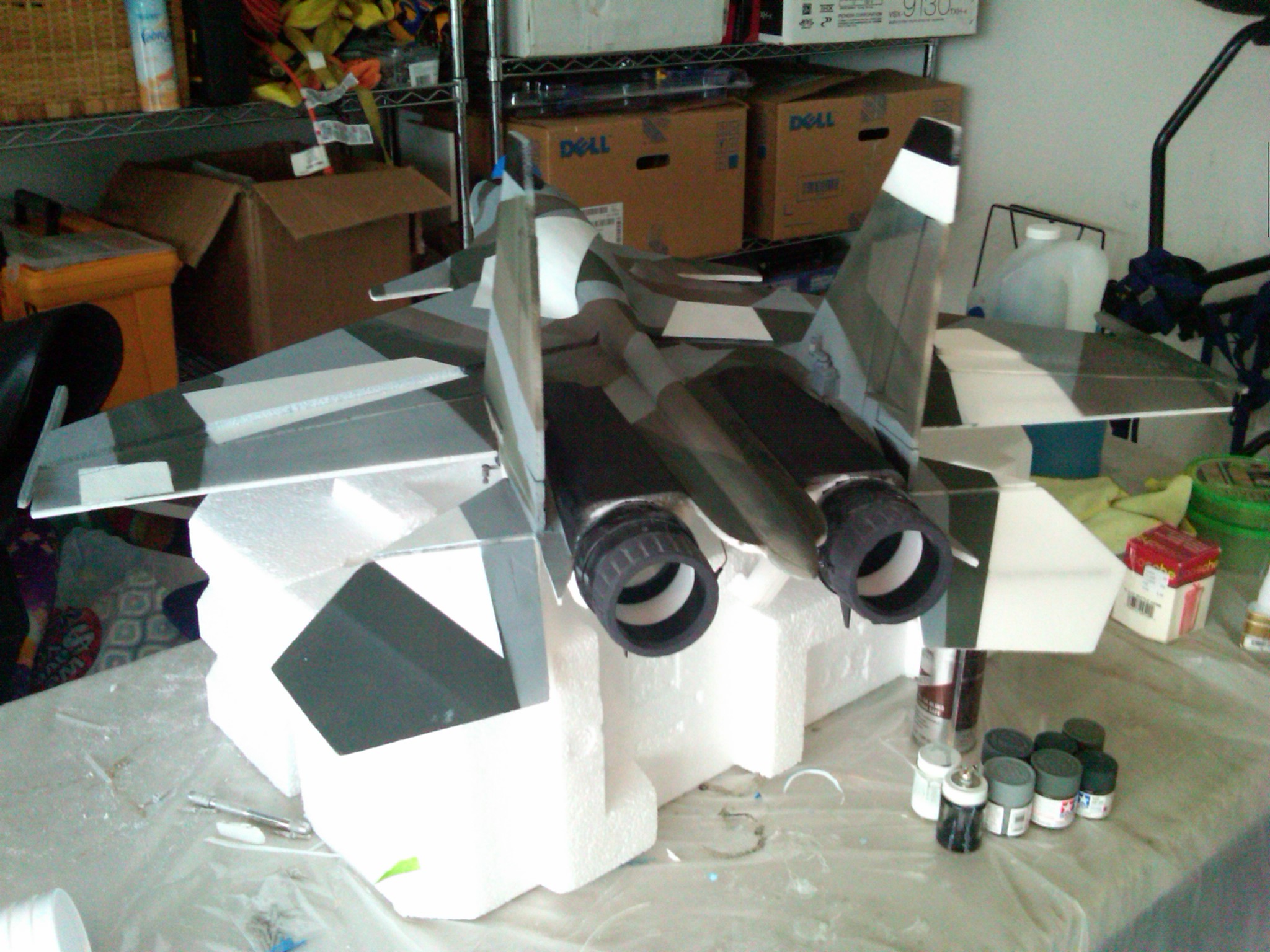

    I finally started painting this monster.

    Attached files [​IMG] [​IMG]

  19. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

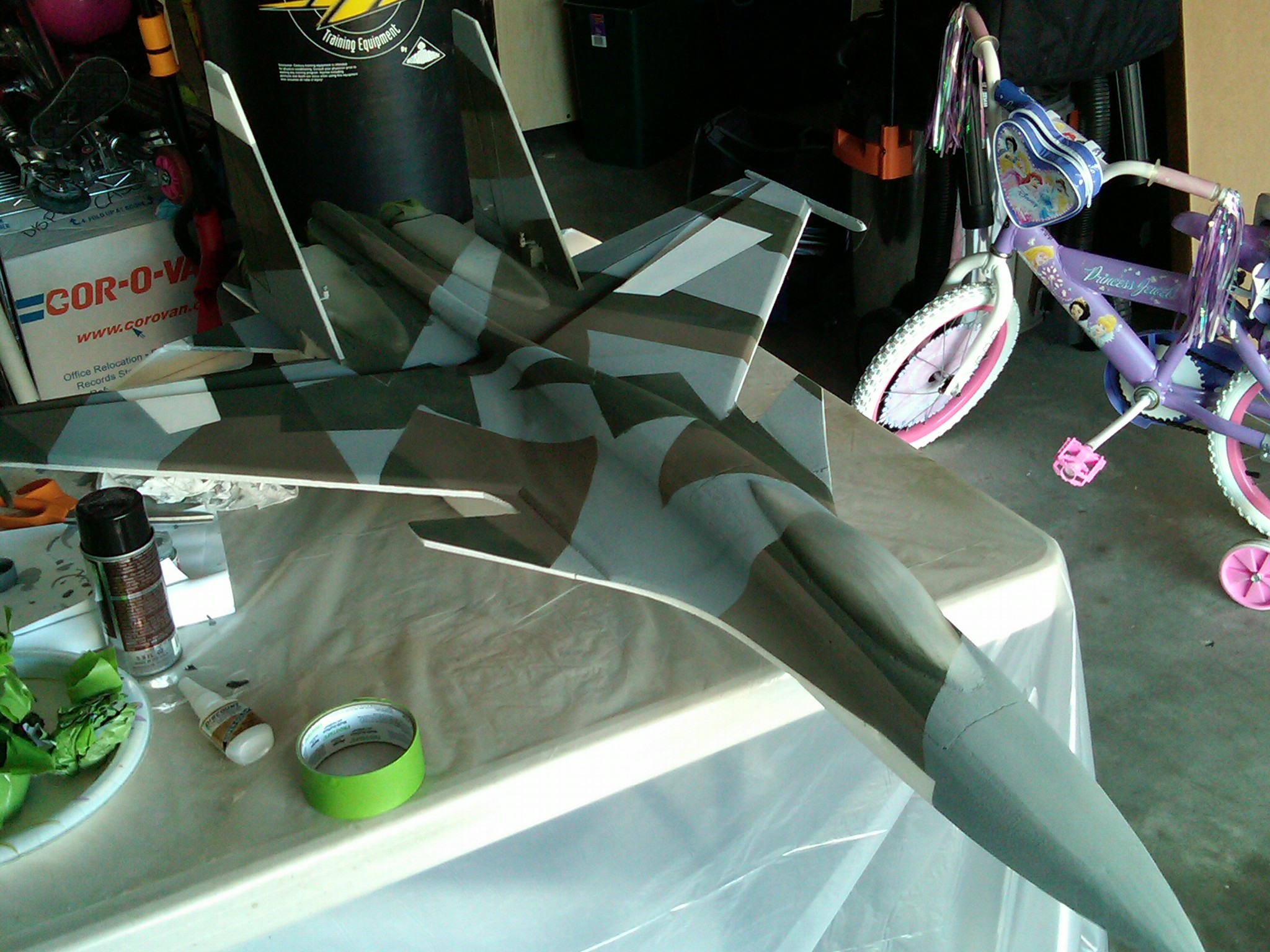

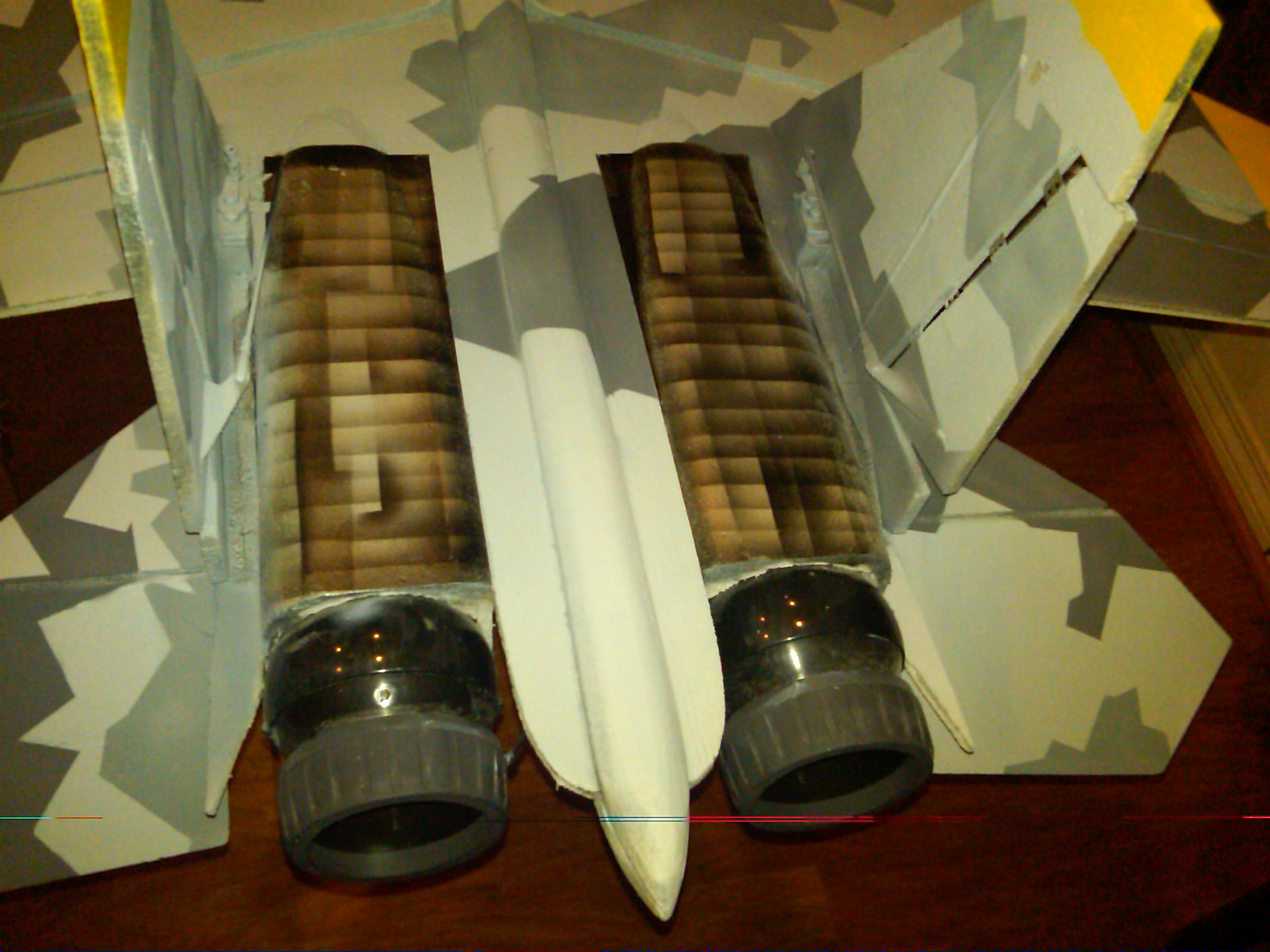

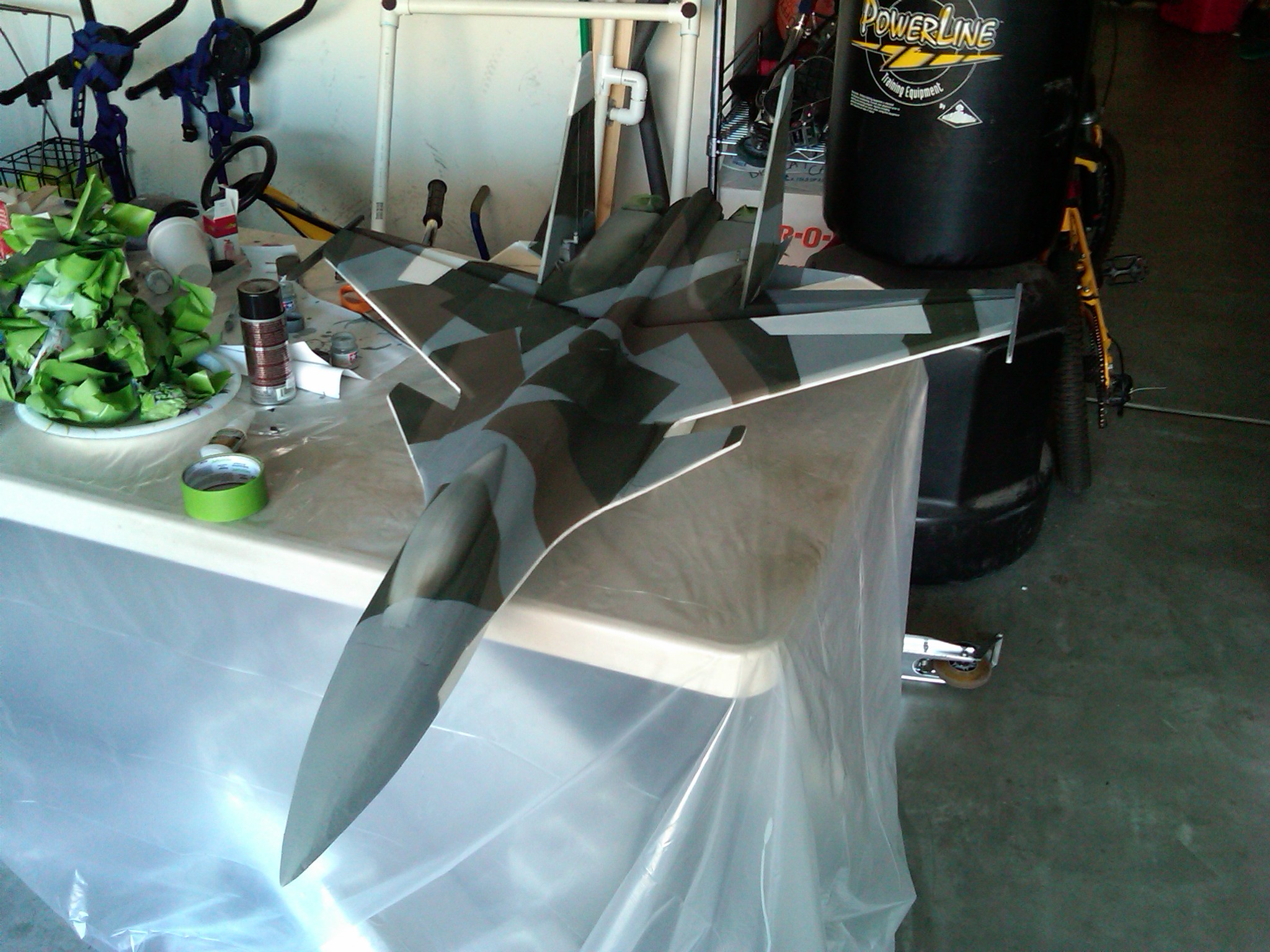

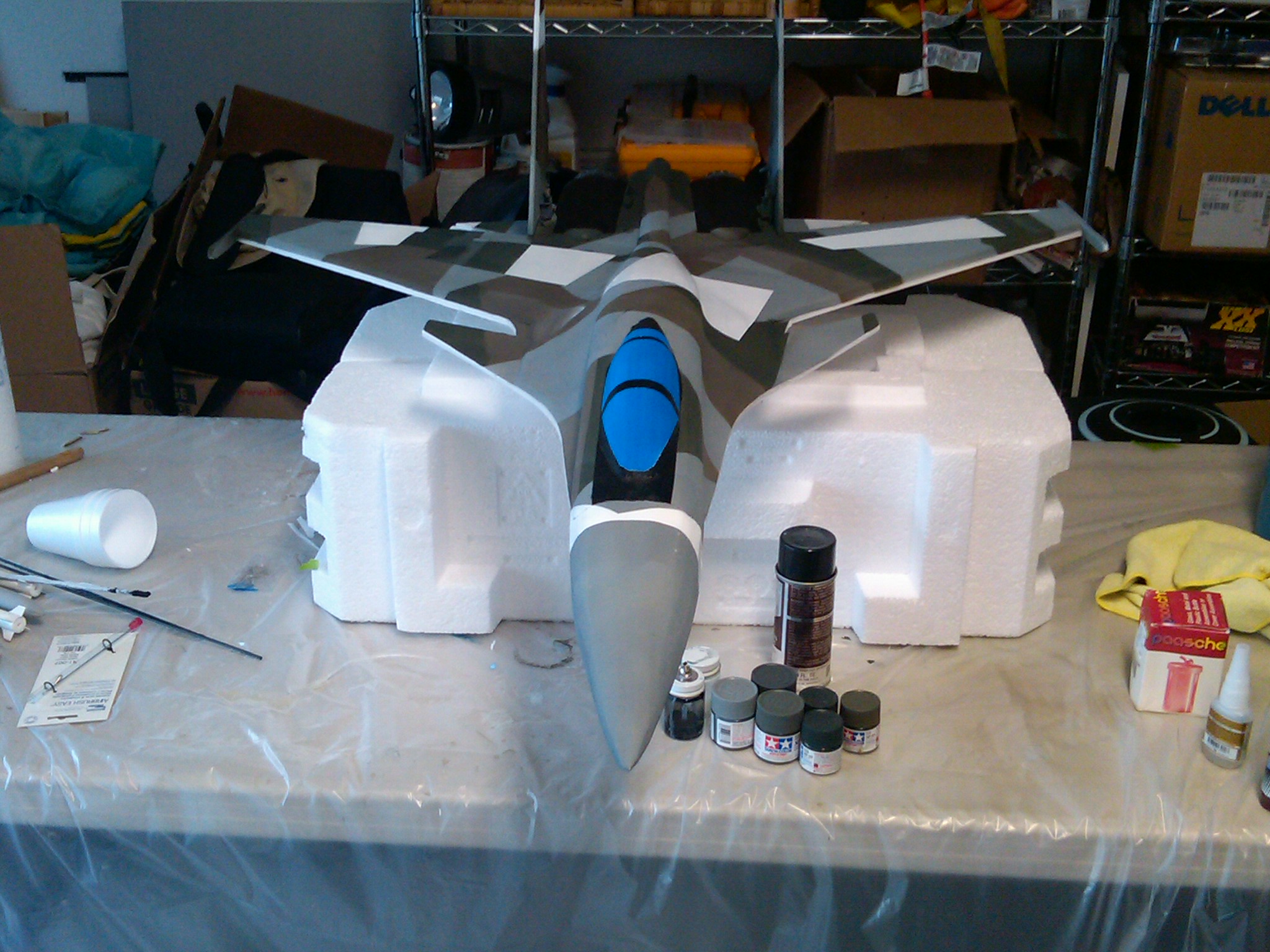

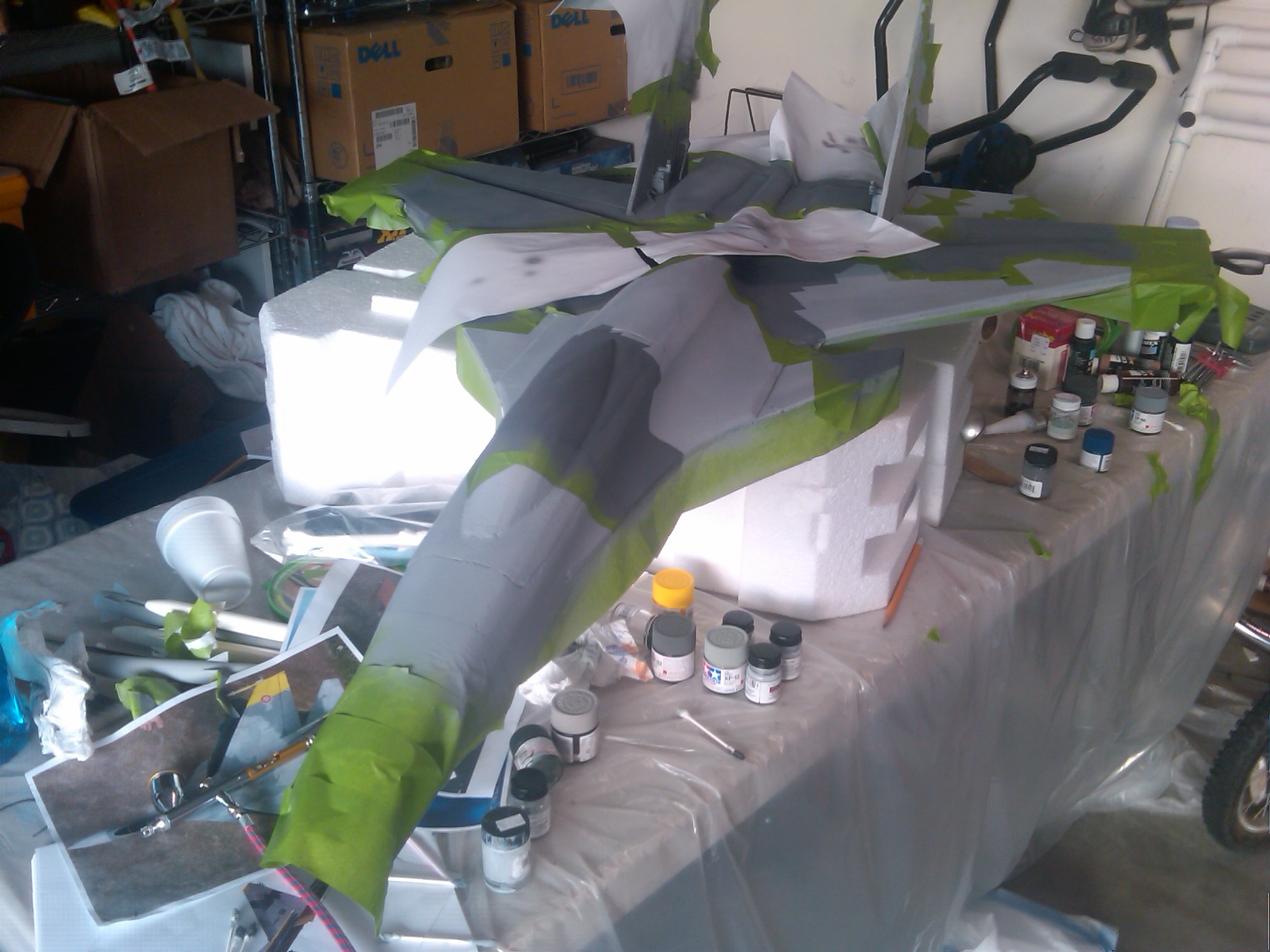

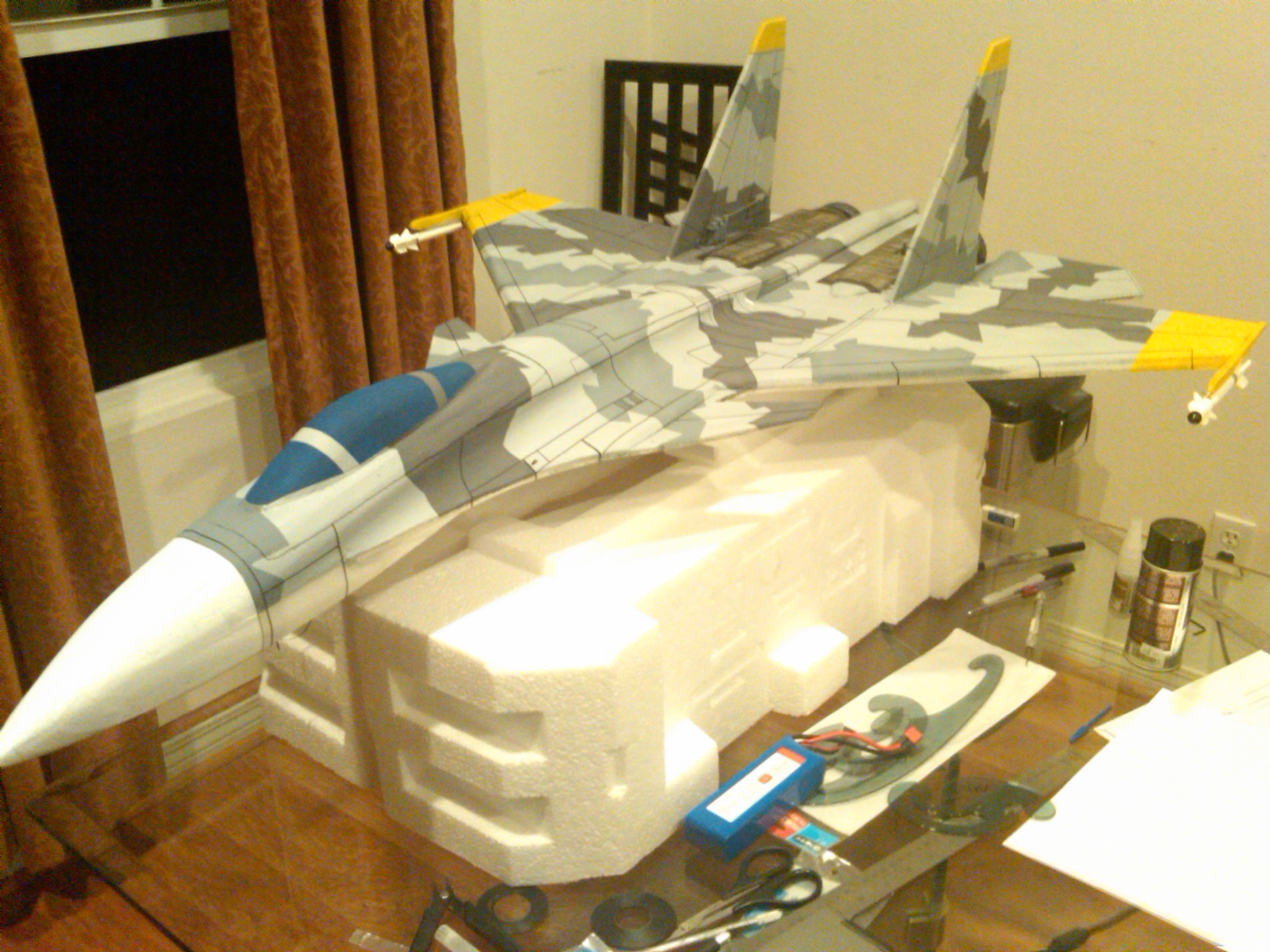

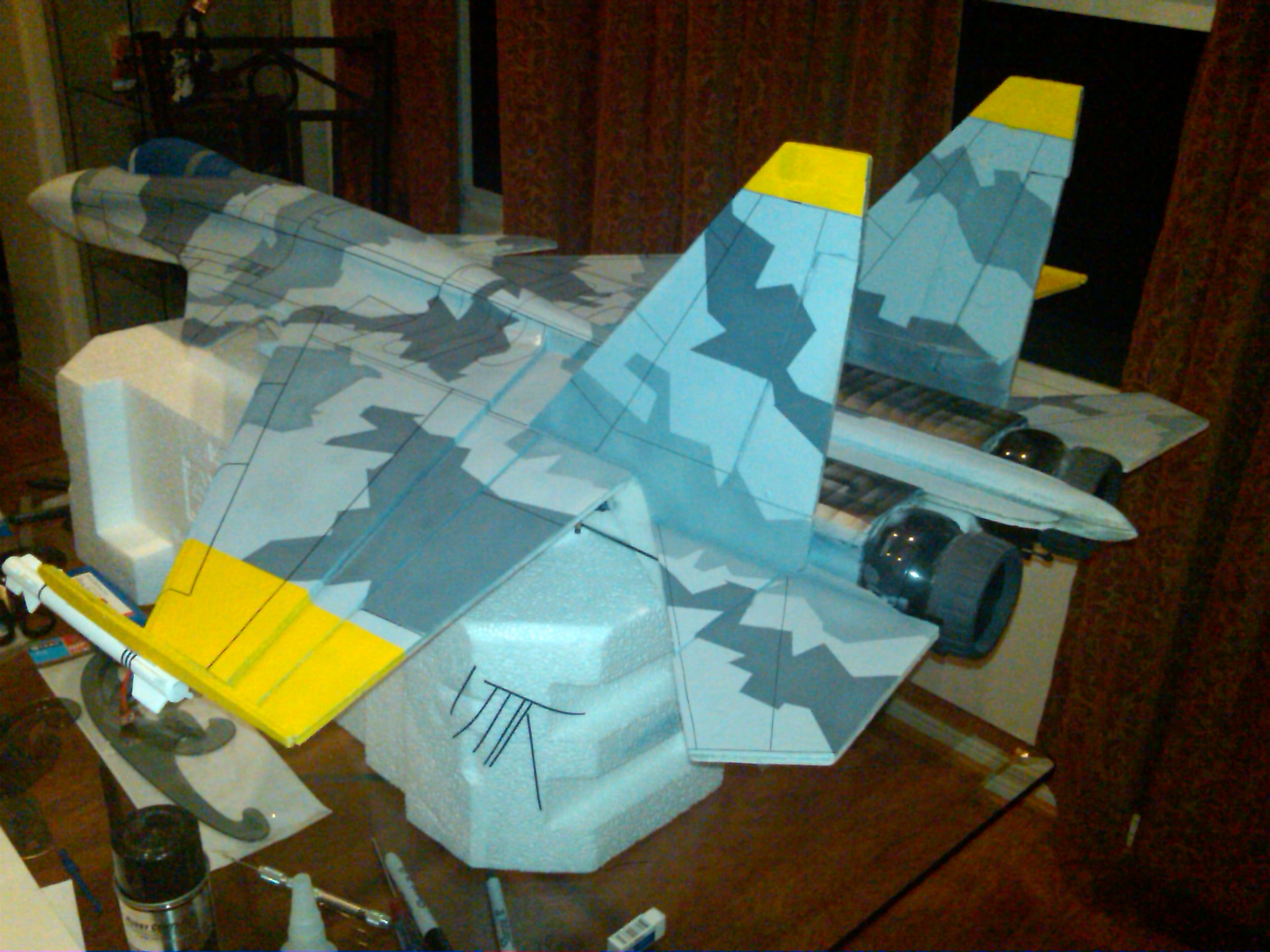

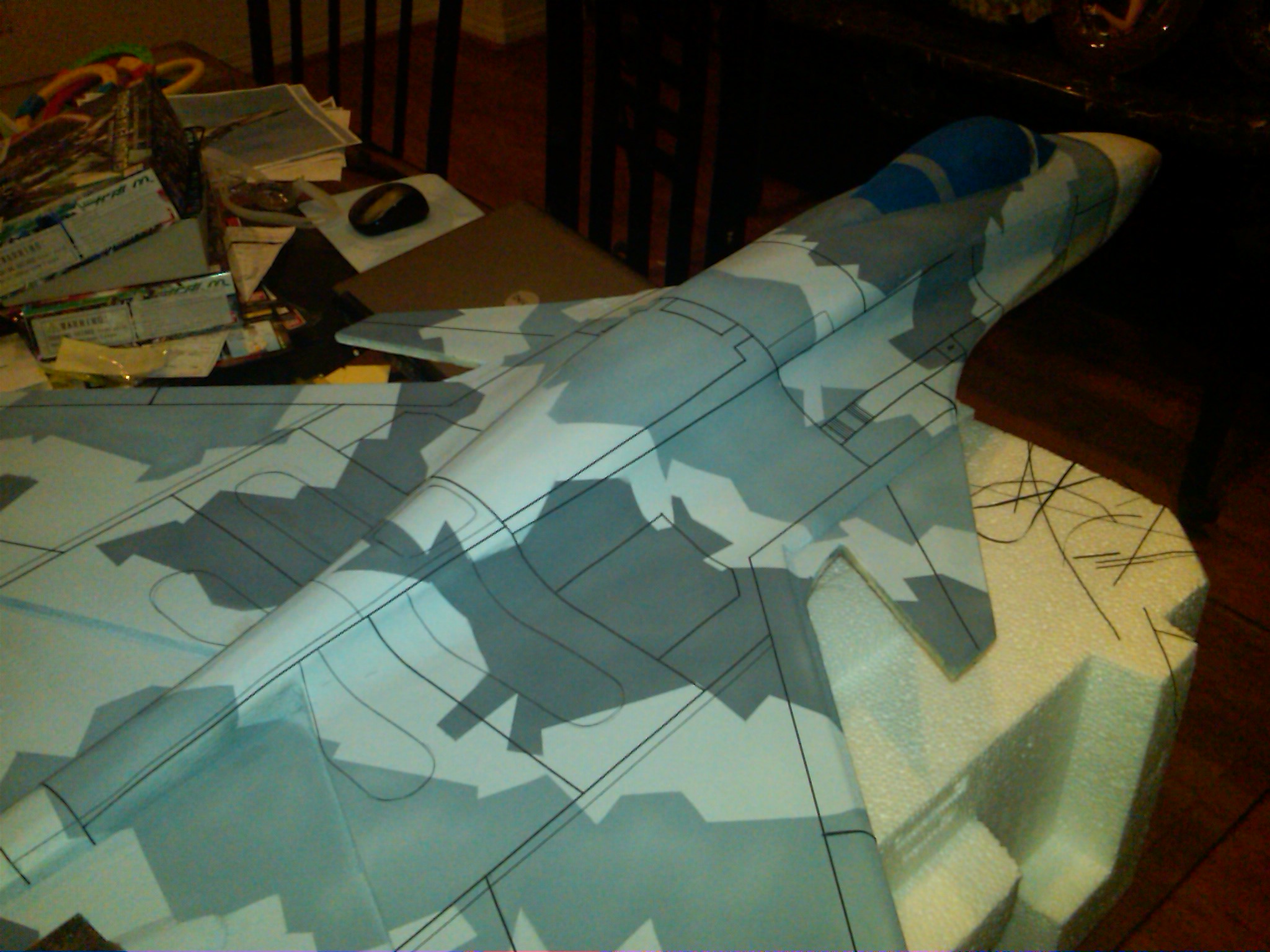

    More pictures of the paint job as it progresses.

    Attached files [​IMG] [​IMG] [​IMG] [​IMG]

  20. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    vicentel, very nice looking work....randy.

  21. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    WOW!!!! :dance3: This is one mega cool aircraft! :dance3:
    You have done an outstanding job with this build :doubleup:
    Thank you for sharing this awesome post!
    Keep up the good work
    Mark and Trish

  22. xtremeRCpilot

    xtremeRCpilot Member

    Offline
    Messages:
    736
    Trophy Points:
    16
    Location:
    Cleveland, Ohio
    This is an amazing project!! A labor of love for sure, Thanks for Sharing!! :doubleup:

    Cant wait to see this Bad Boy in action!
    John

  23. abummmm

    abummmm New Member

    Offline
    Messages:
    15
    Trophy Points:
    1
    Location:
    TOTOWA NJ
    love it nice work i made 1 170%

  24. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6
    Well, I didn't like my original paint scheme so I decided to strip it off and start over. Thank heavens for Windex! I decided to go with the Ace Combat Yellow 13 paint scheme. I'm mostly done now but you can see my progress.

    So far I've painted the top but left the belly white to save some time and weight. I've put it panel lines, missiles, and some engine detail. What I have left to do is create the markings (insignia, number, etc.), stick them on, clear coat the entire plane do some weathering <whew>. Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  25. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    I'm speechless. You're not going to fl it, right? :D Well, let me tell you this: WOW
