Shumate Su-27 EDF Conversion

Discussion in 'EDF Aircraft Plans' started by vicentel, Aug 15, 2011.

  1. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6
    Hey Guyz,

    I'm starting a new project. I'm building the Shumate Su-27. It is basically the same plane/plans as the Su-37 with a couple of omissions: No TV and no canards. The specs are as follows:

    wingspan: 30"
    edf: 2x 55mm EDFs
    motor: 2x 4300KV
    ESC: 2x 30Amp
    Battery: 3S 2200-2600 mAh 30C
    Servos: 2-elevon mix, 1-rudder Attached files Su-27 EDF Plans 100%.skp (1.6 MB)Â Su-27 Nose and Canopy.pdf (47.3 KB)Â

  2. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

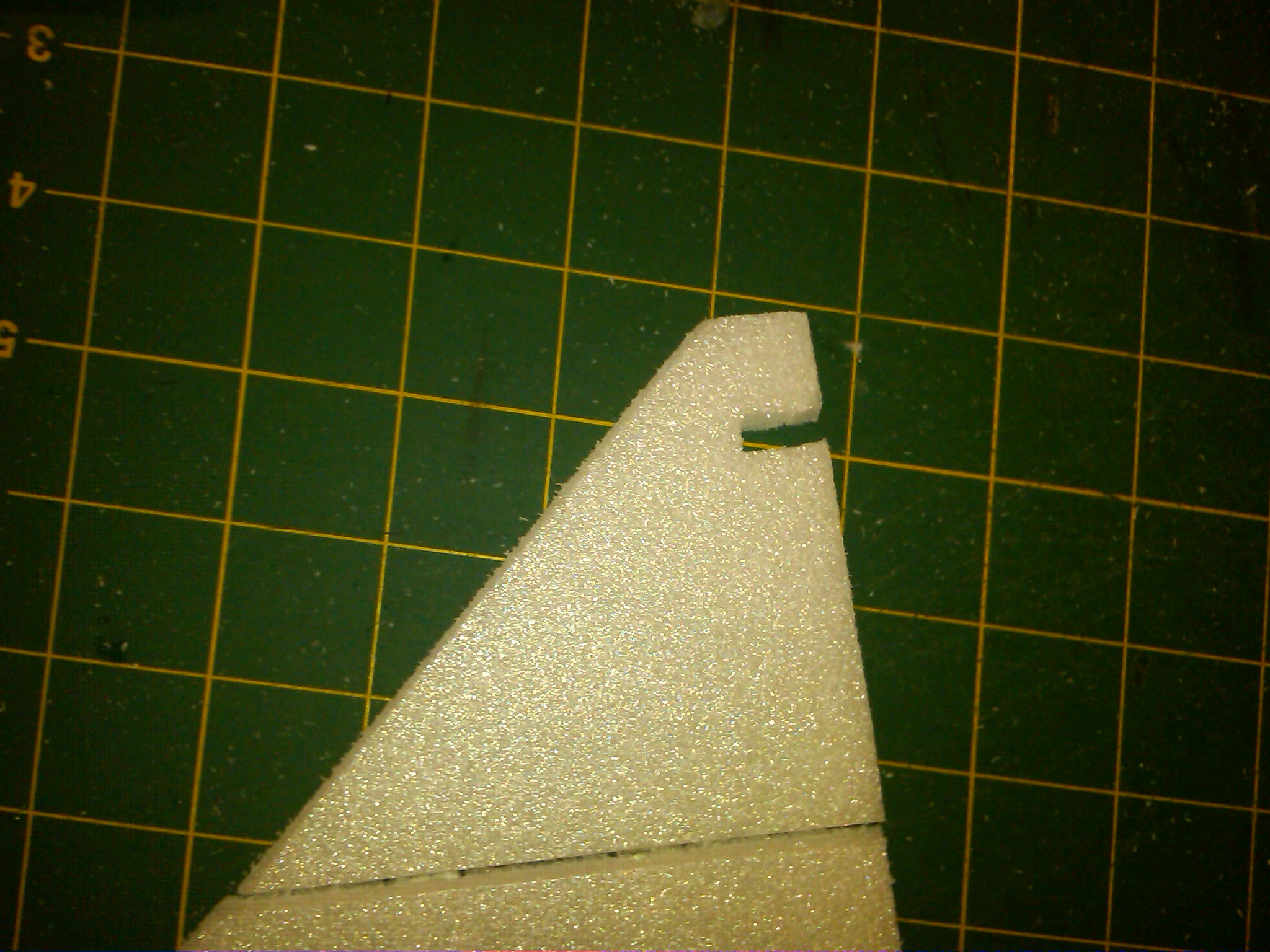

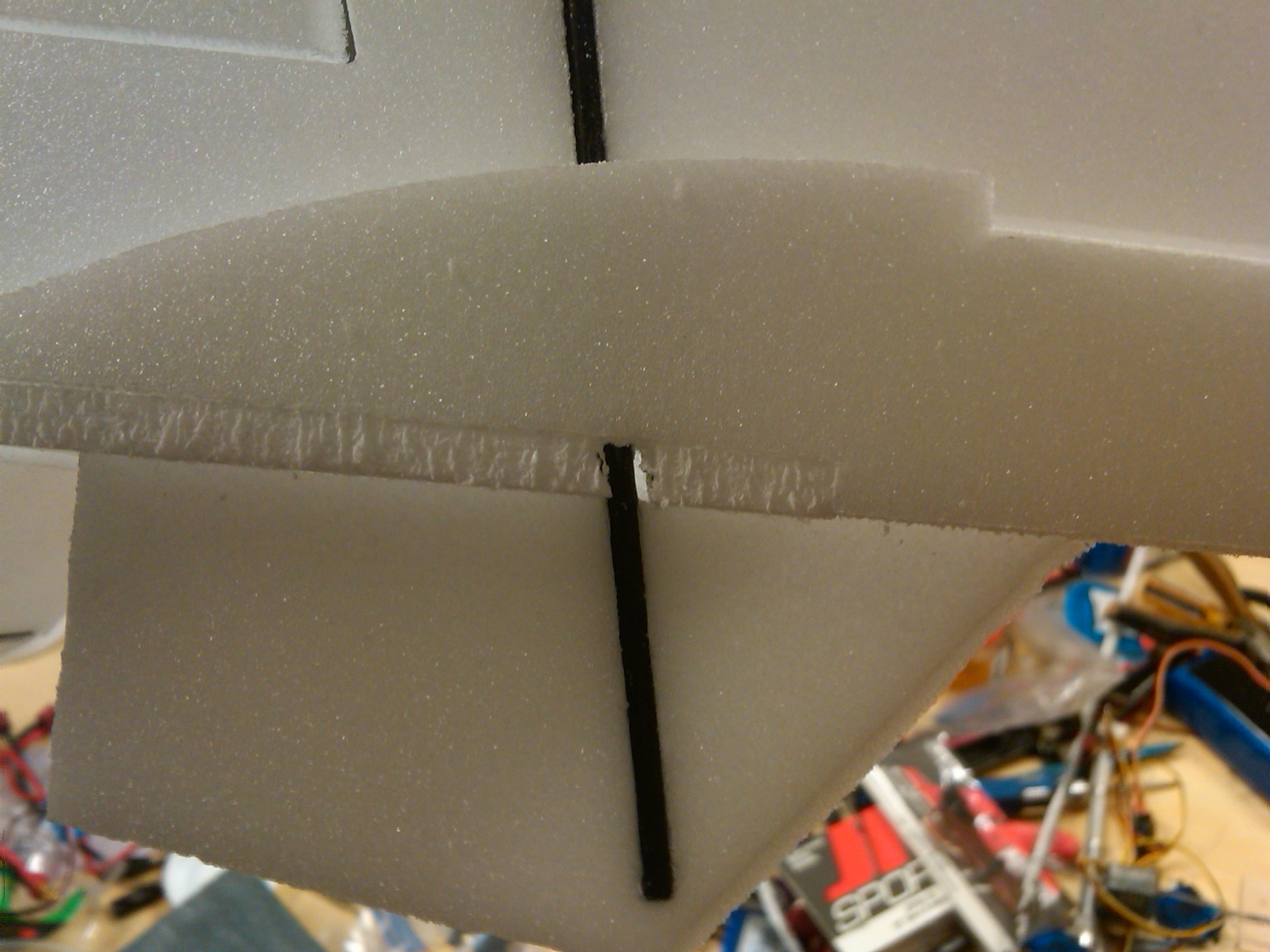

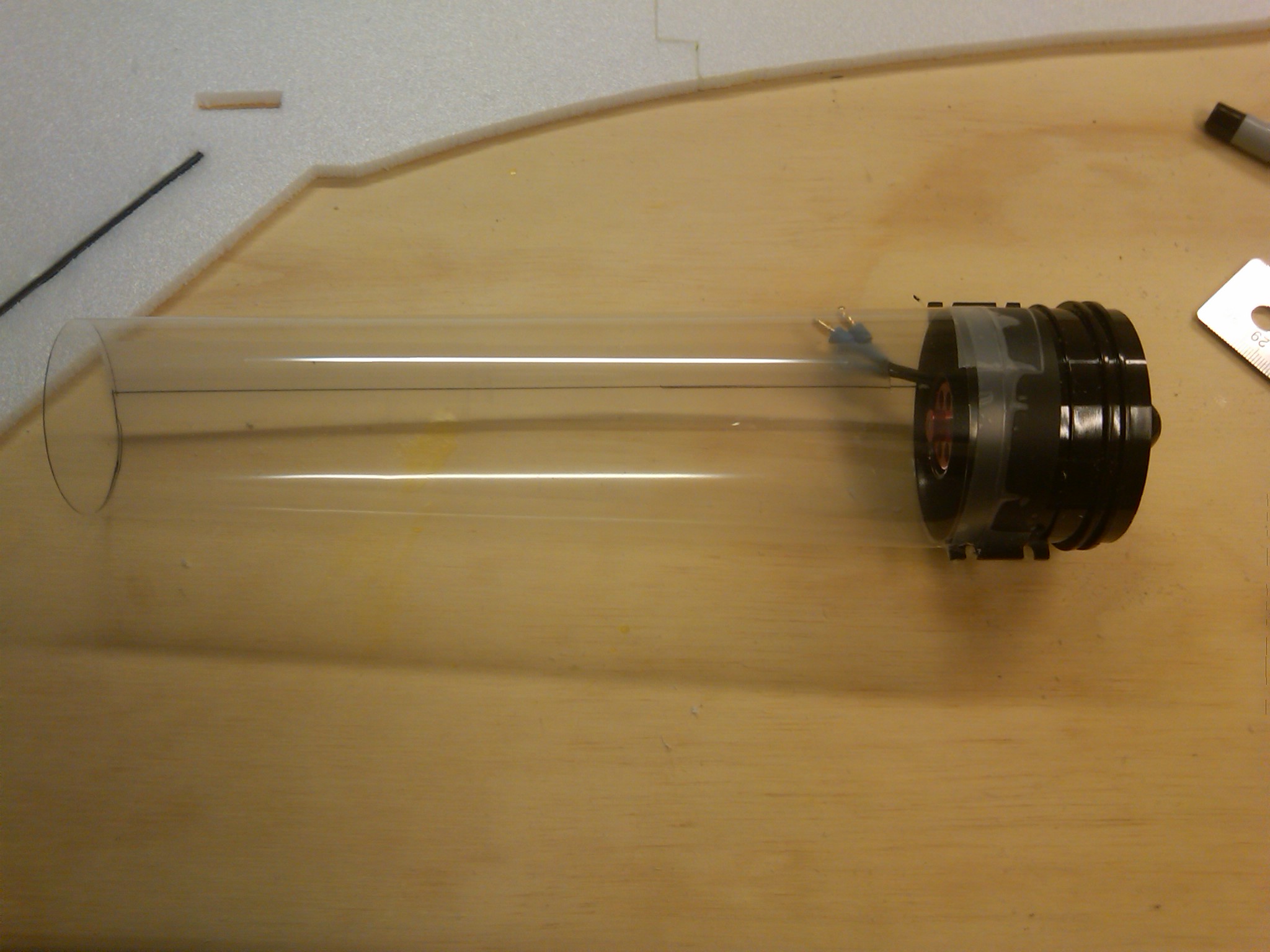

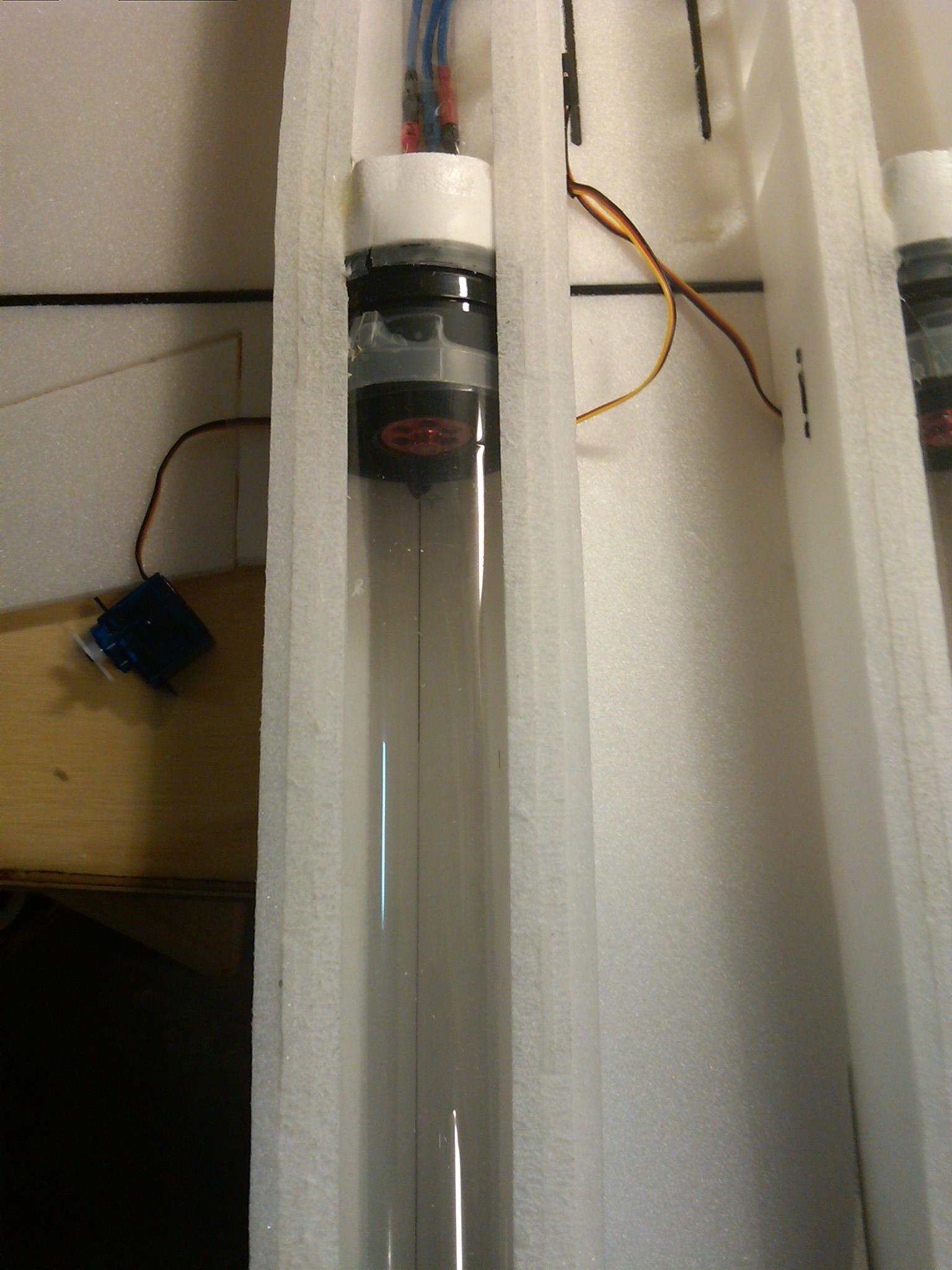

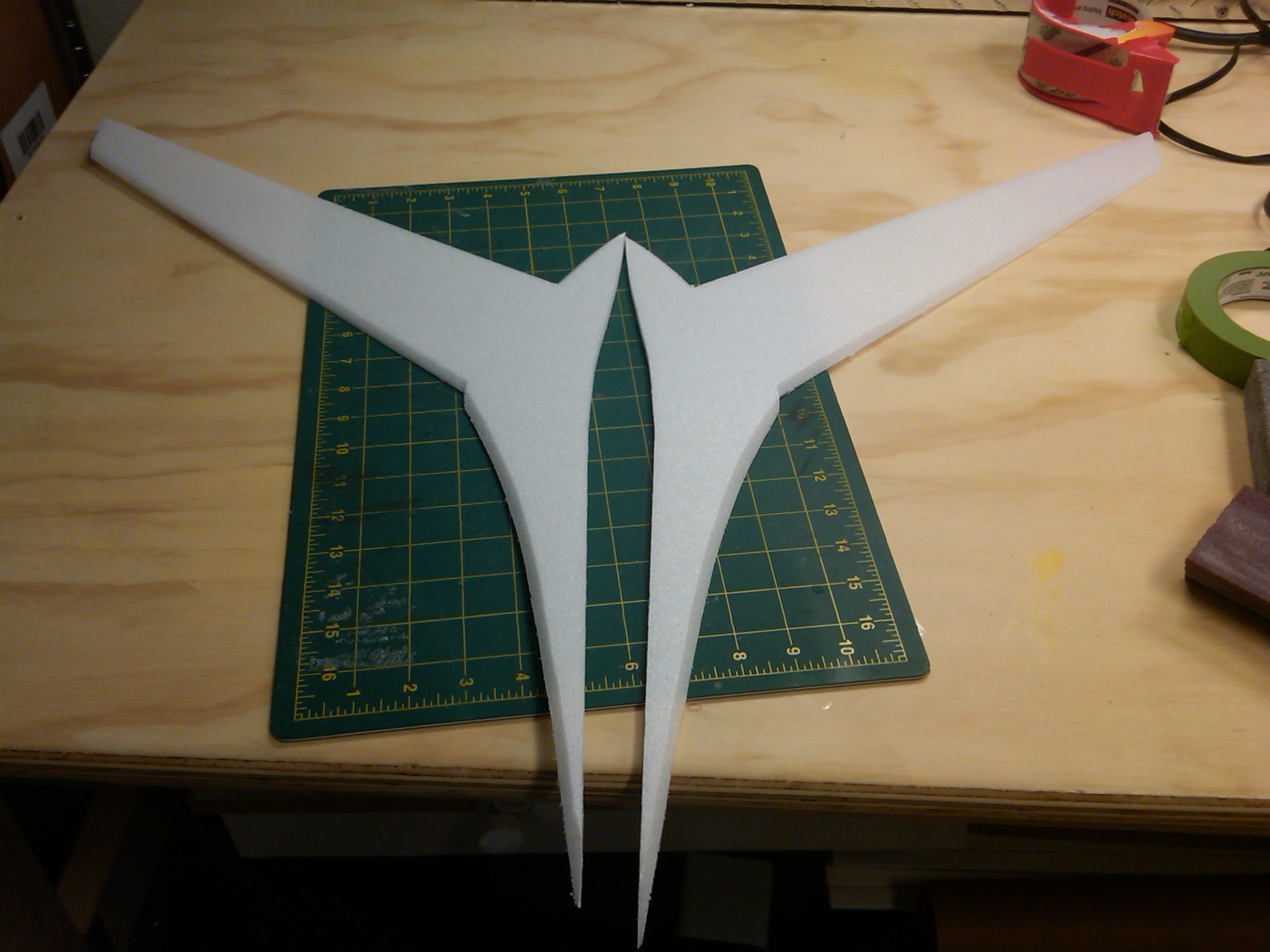

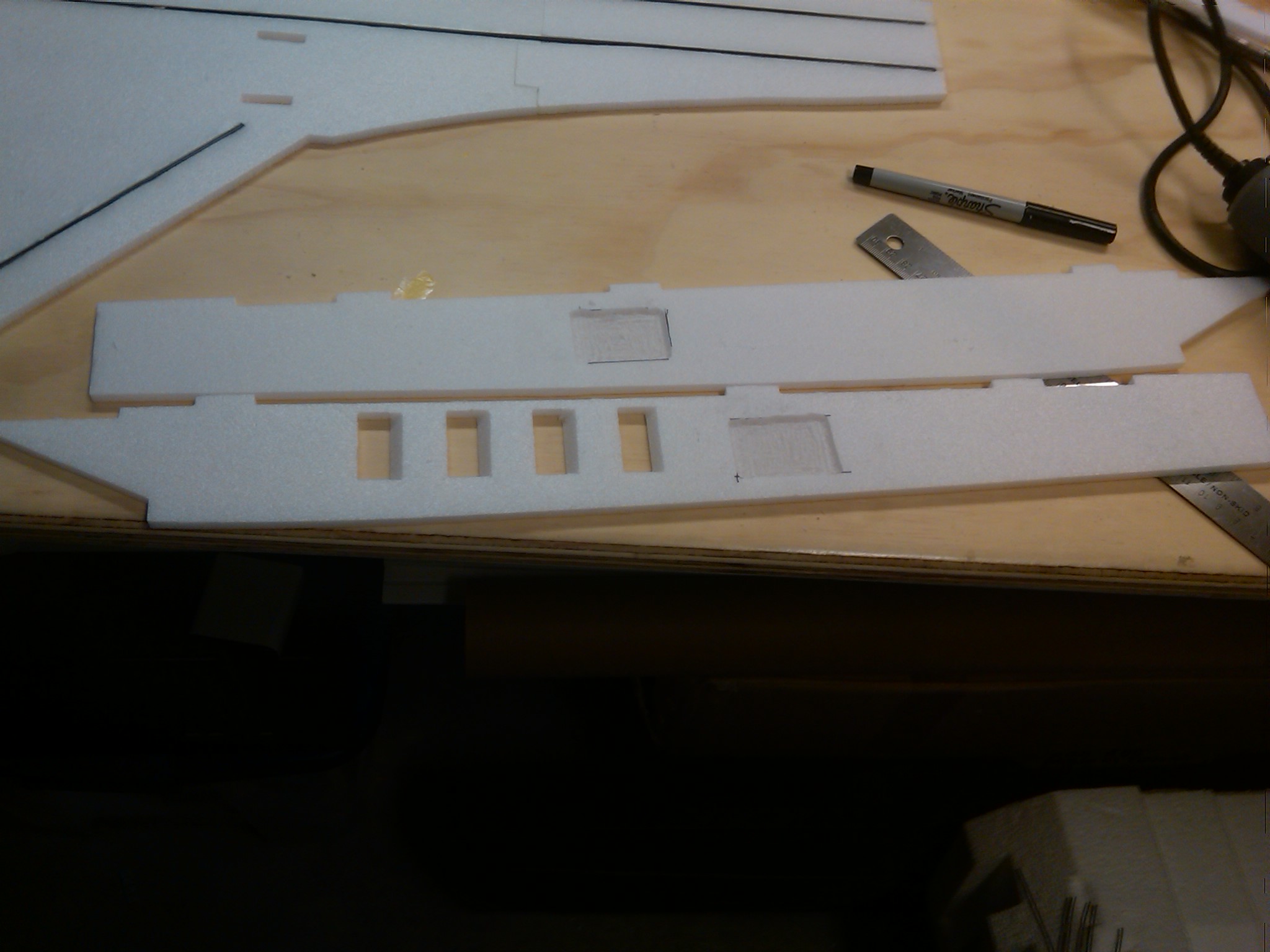

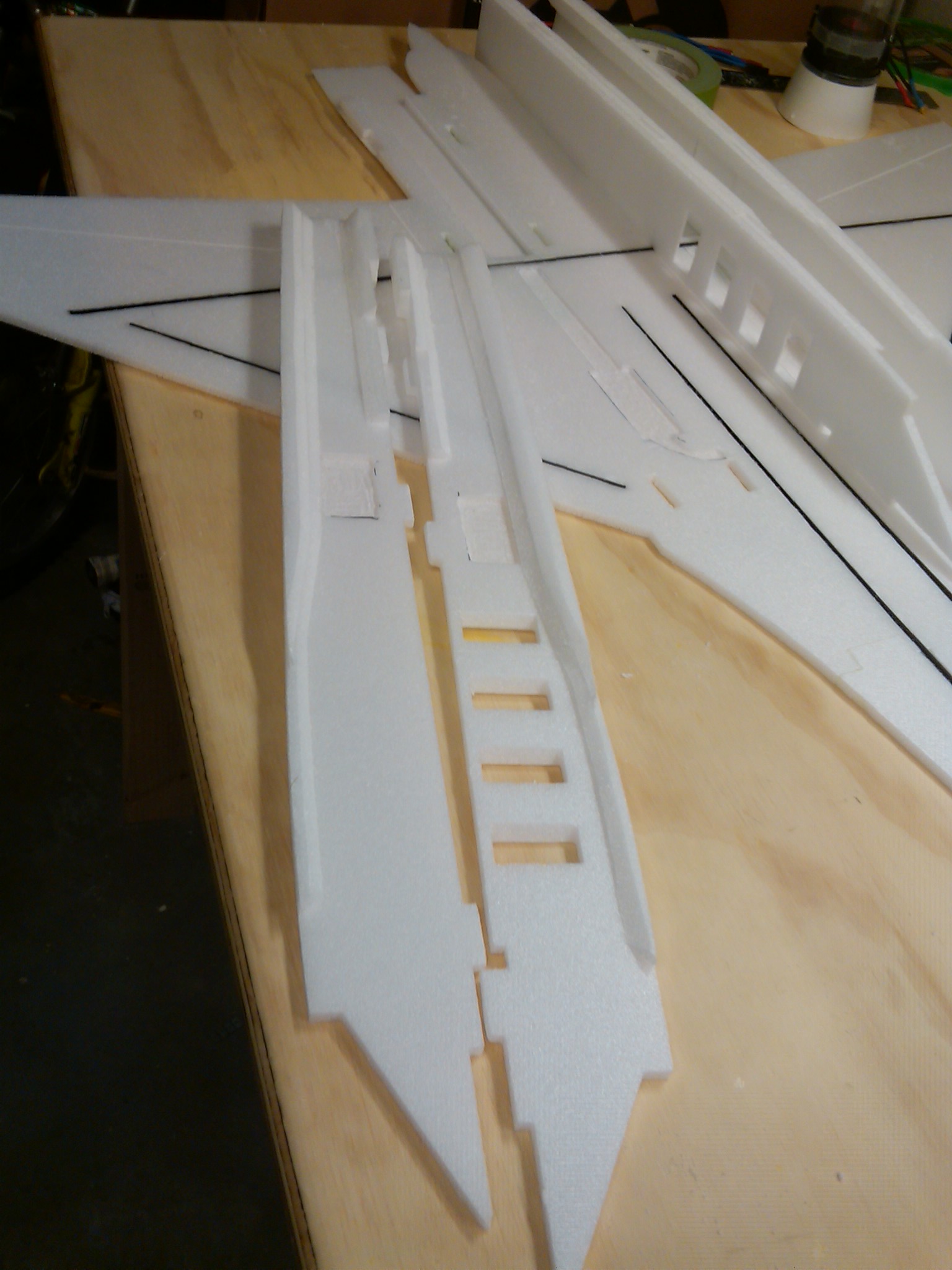

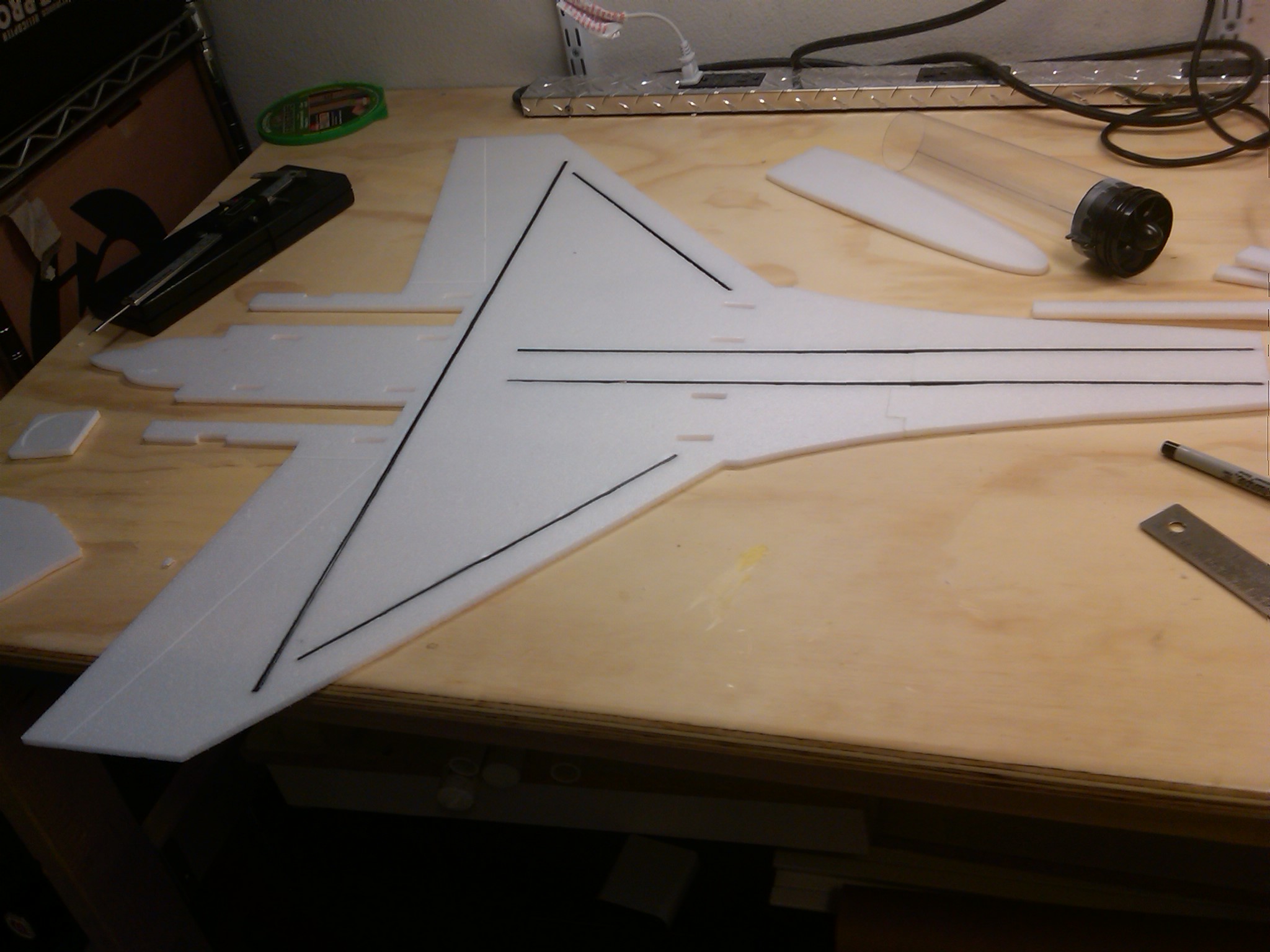

    Here are some pictures of the build. The process is very similar to the Su-37 build except of a couple of things...

    Attached files [​IMG] [​IMG] [​IMG]

  3. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

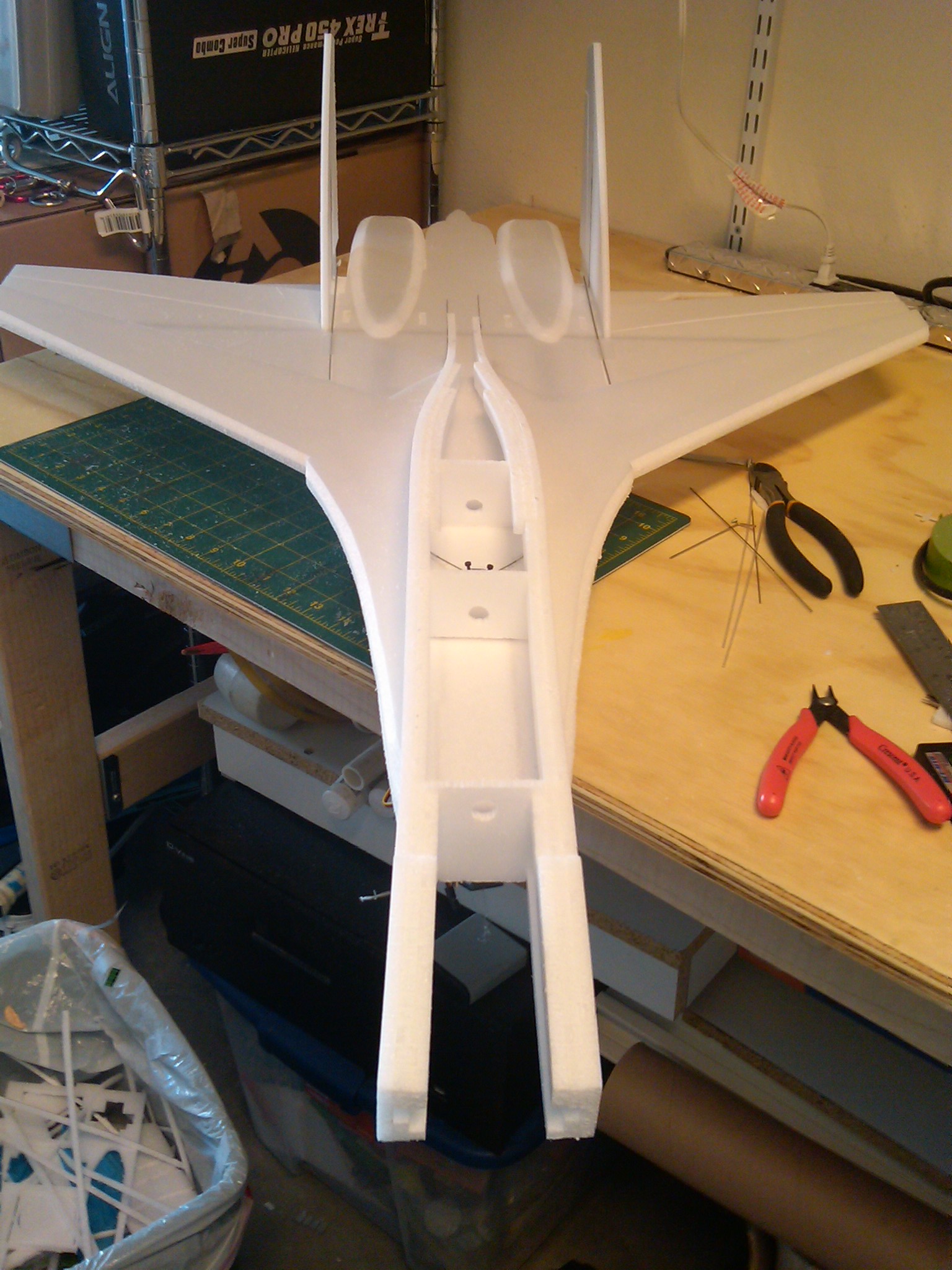

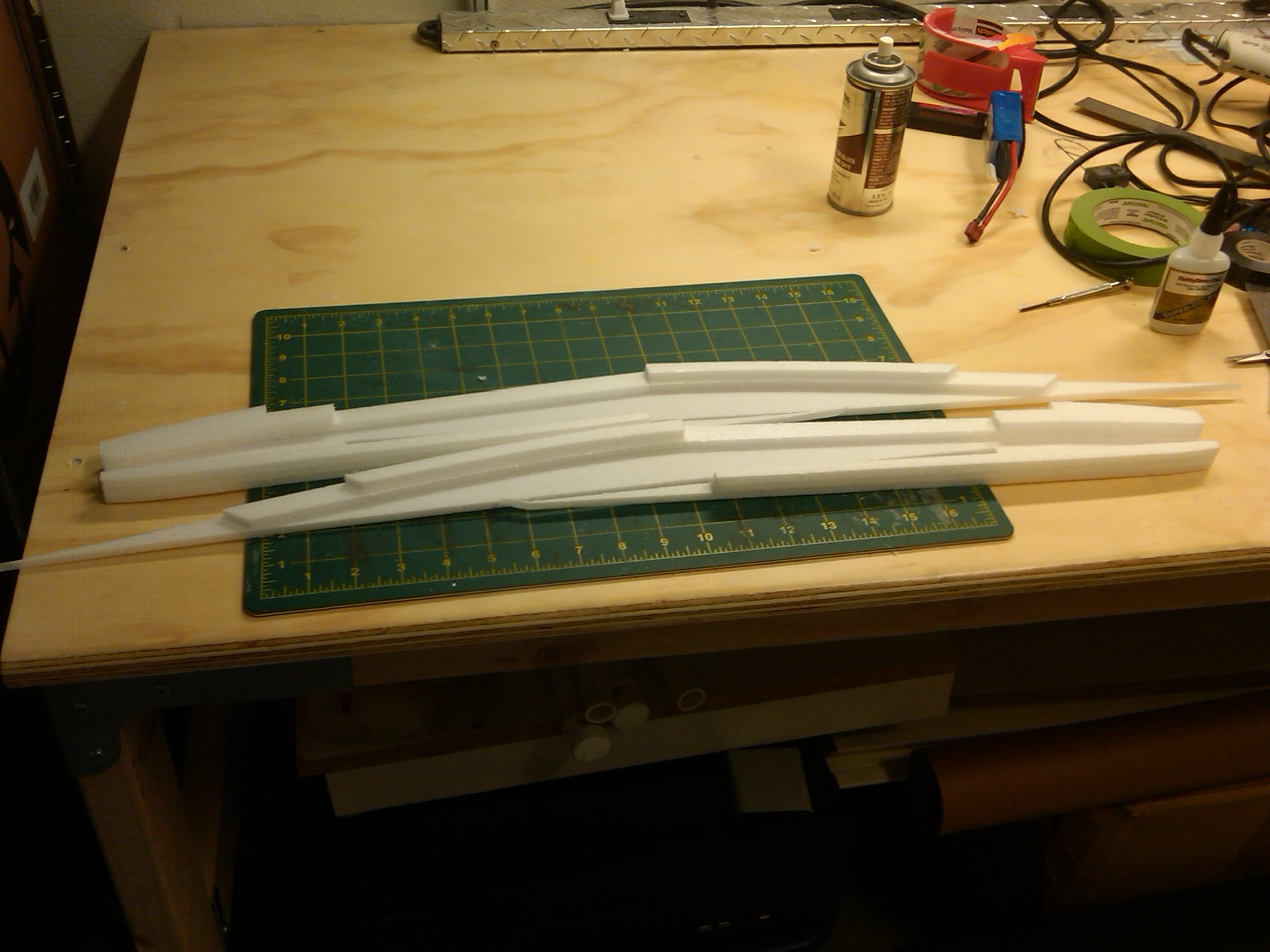

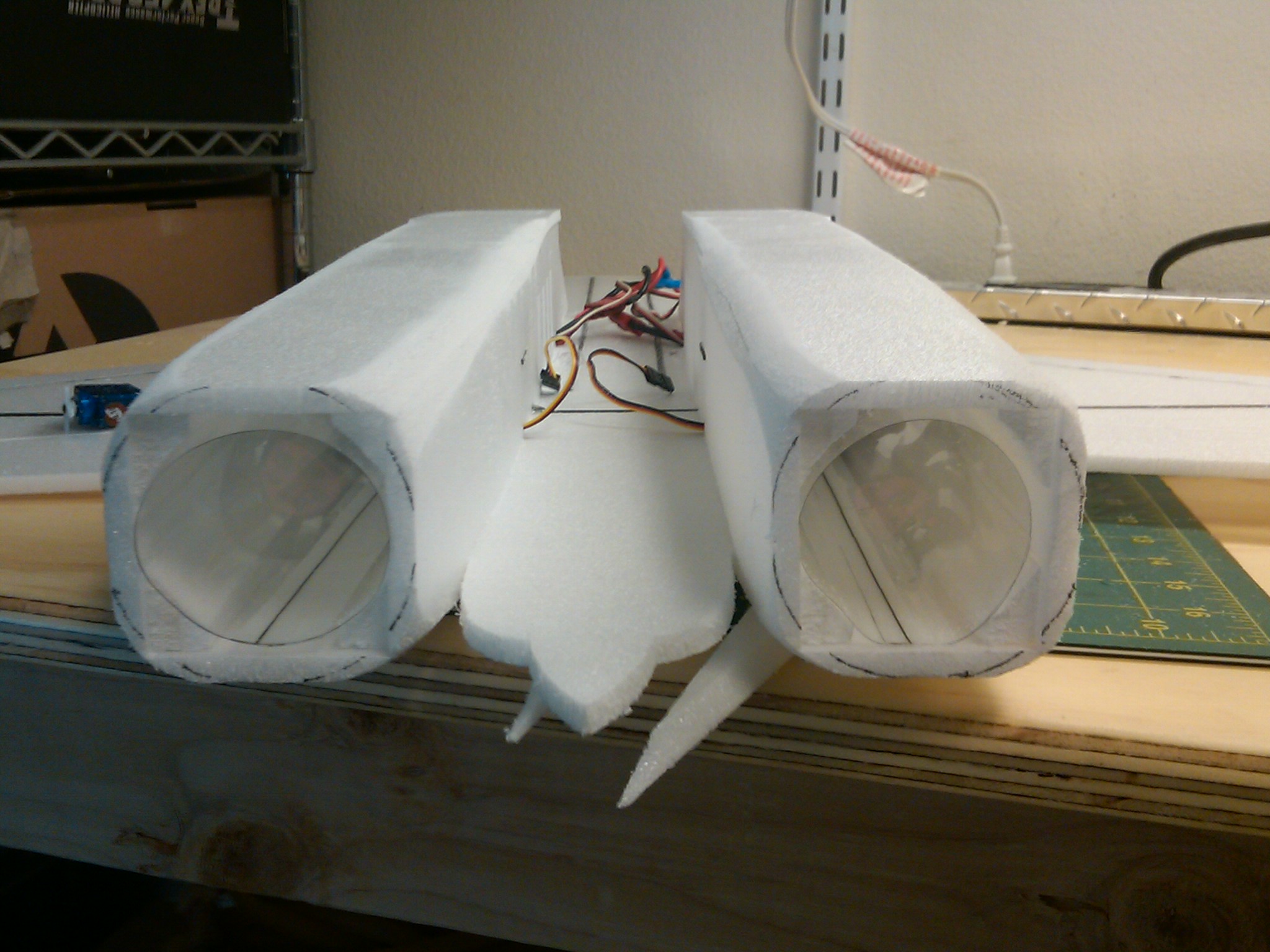

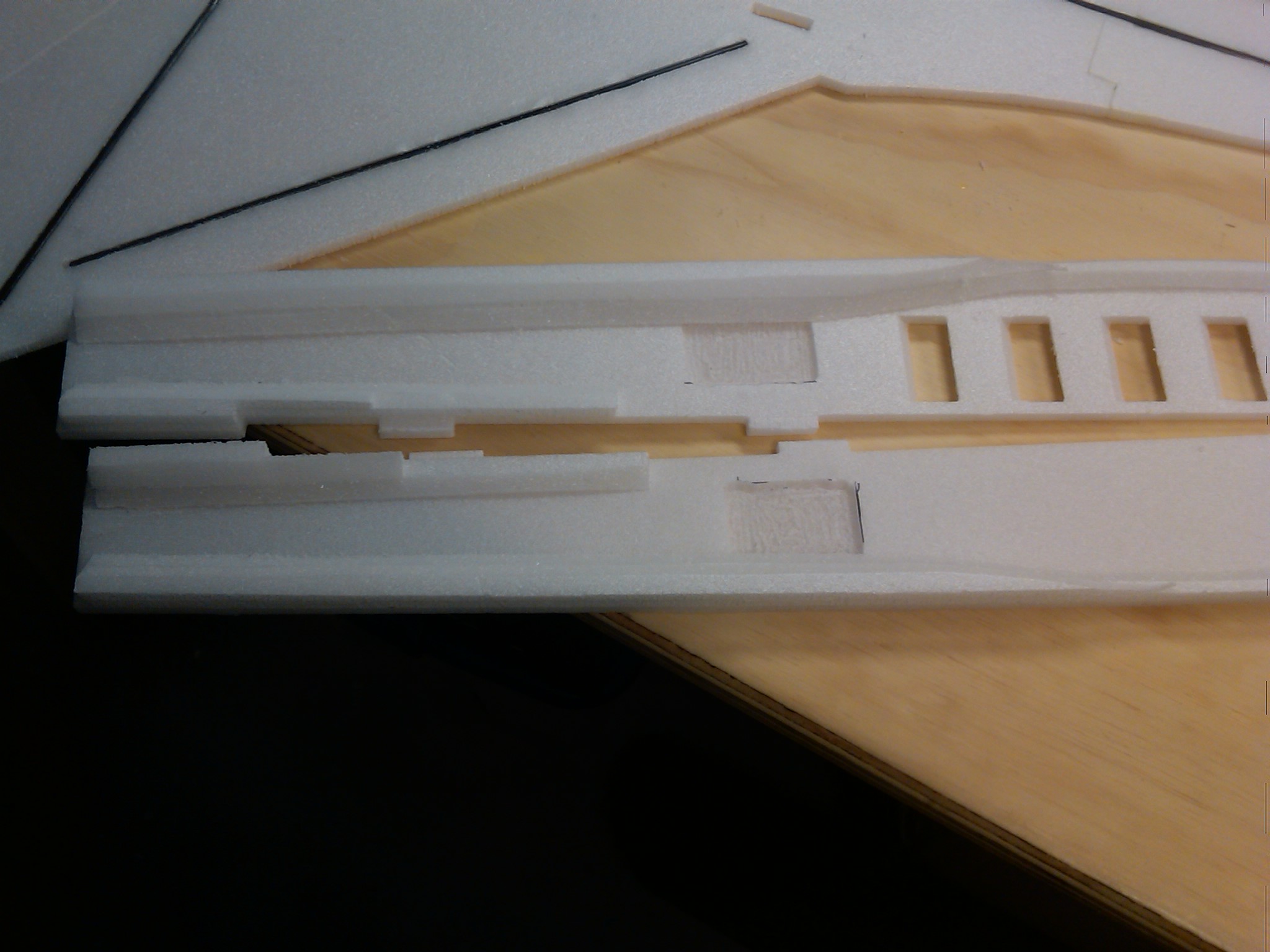

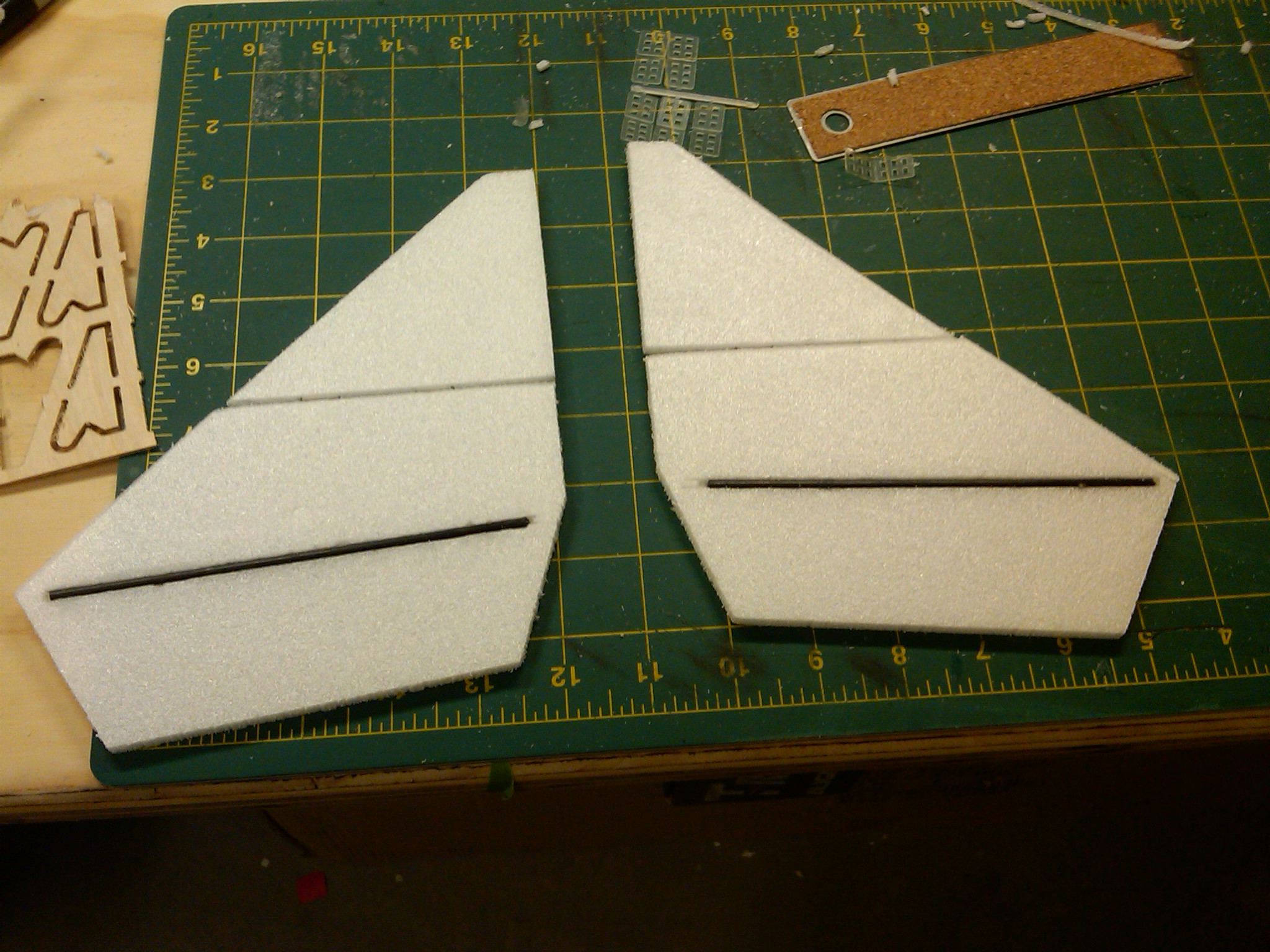

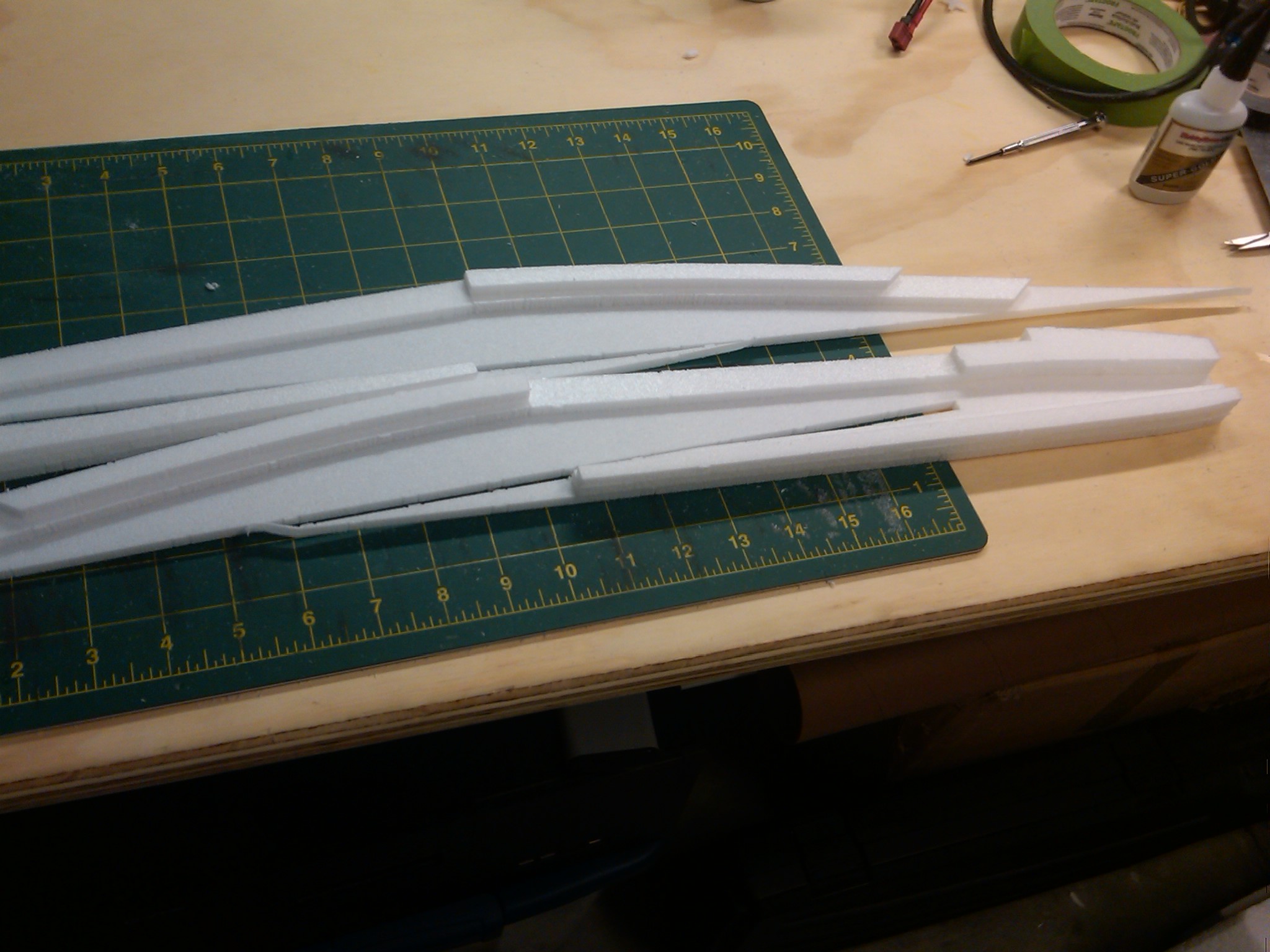

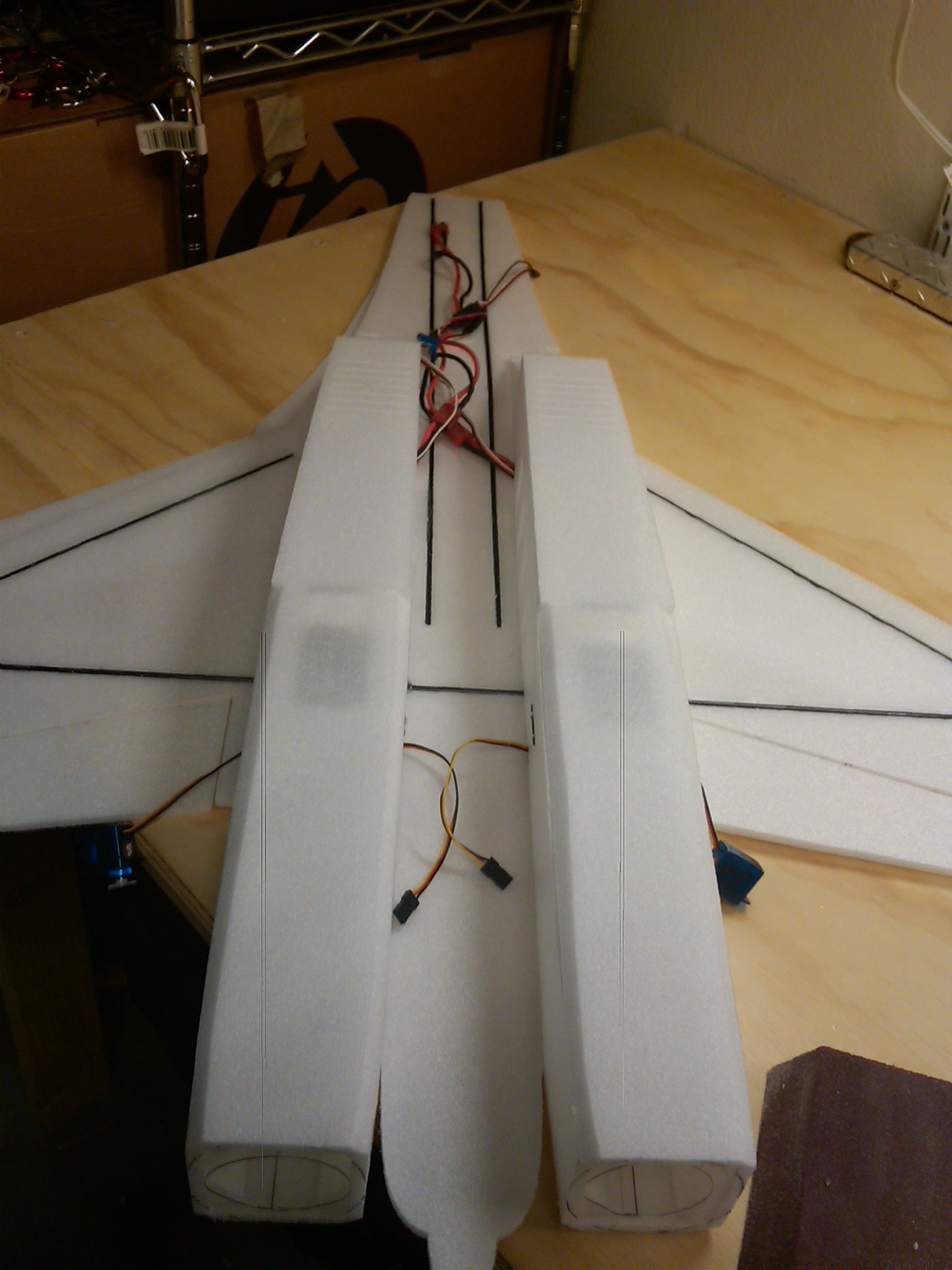

    Here some more pictures of the progress. Slow going. Lots of beveling and test fitting and sanding...

    Attached files [​IMG] [​IMG]

  4. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

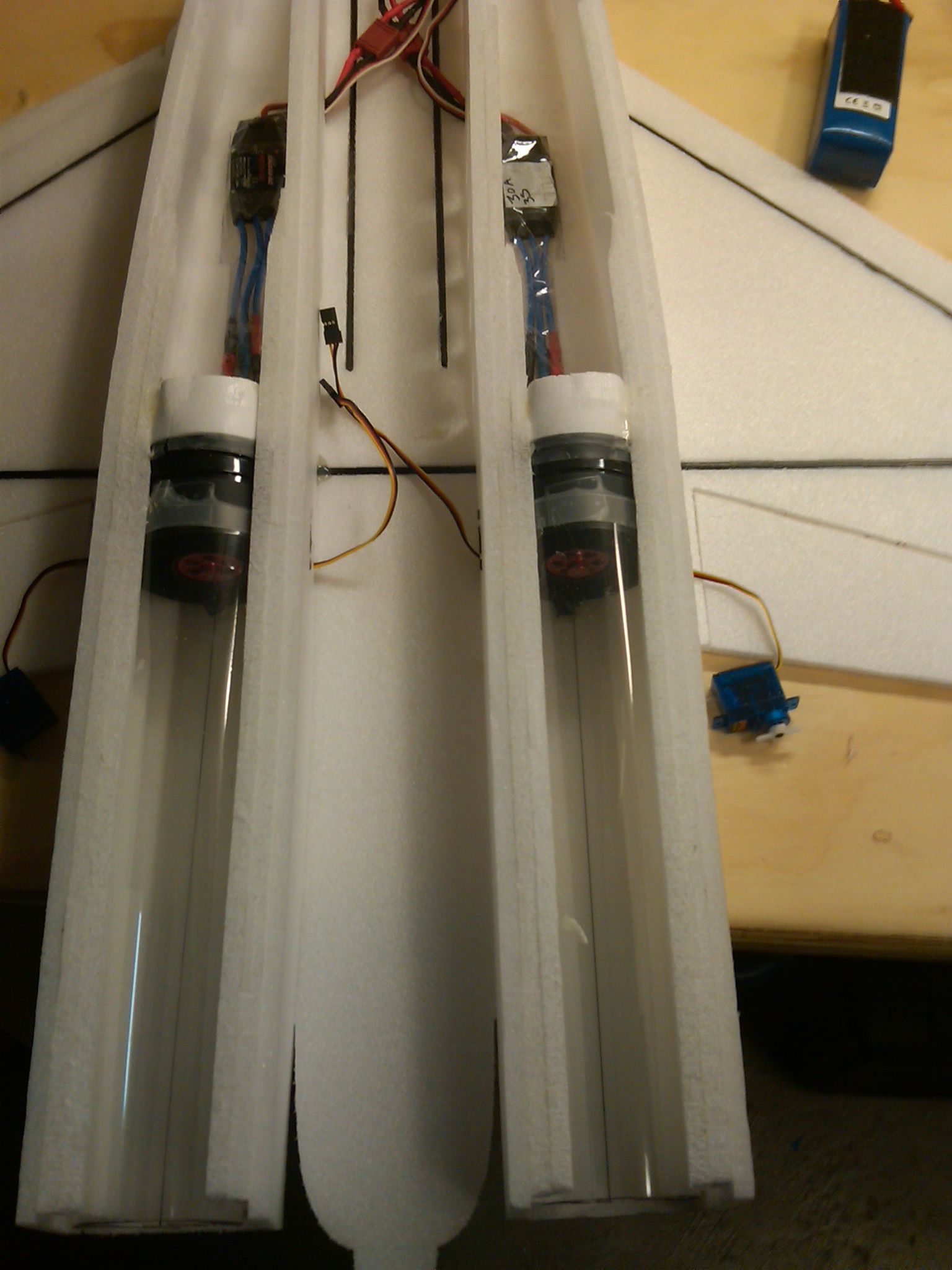

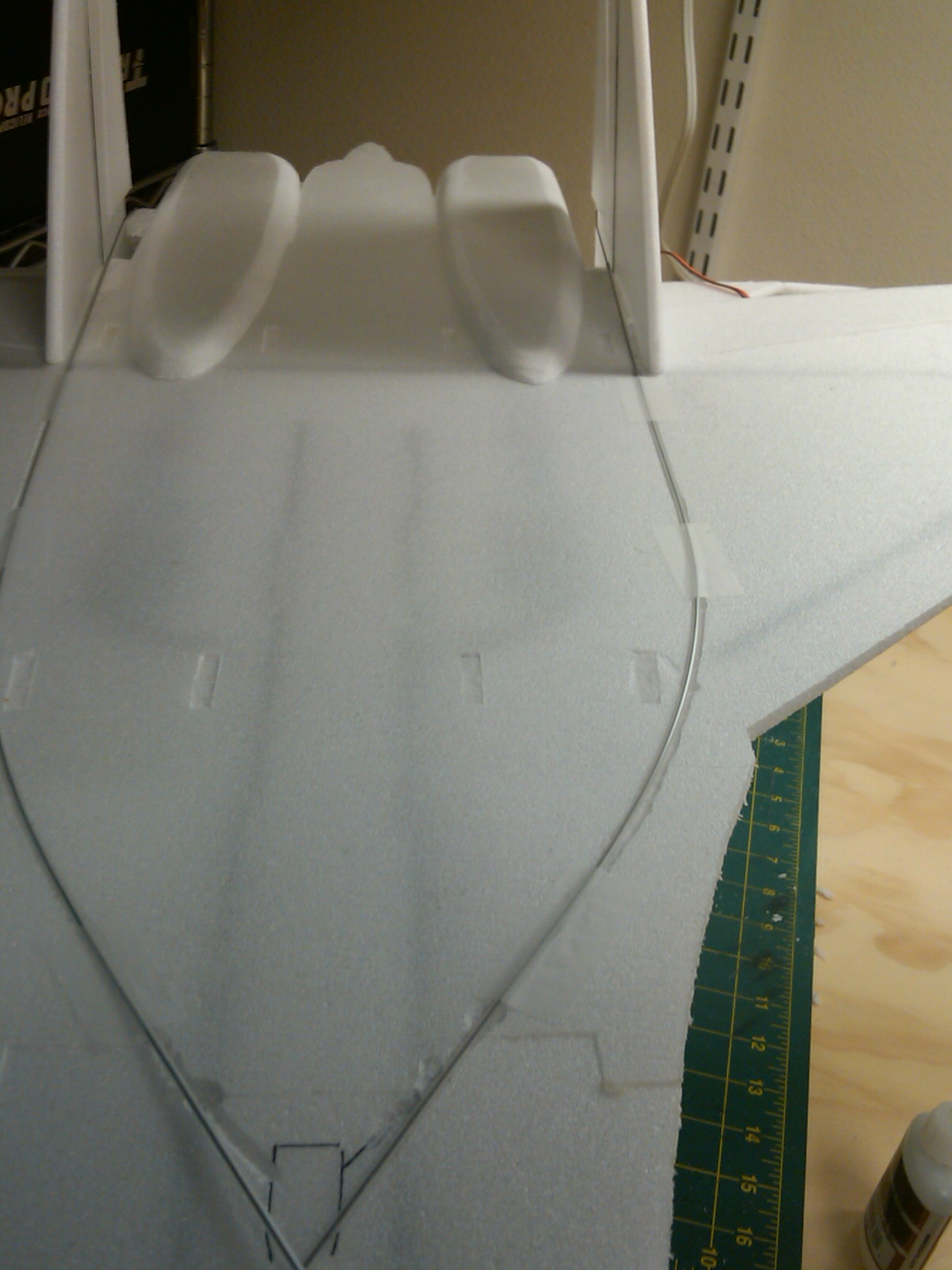

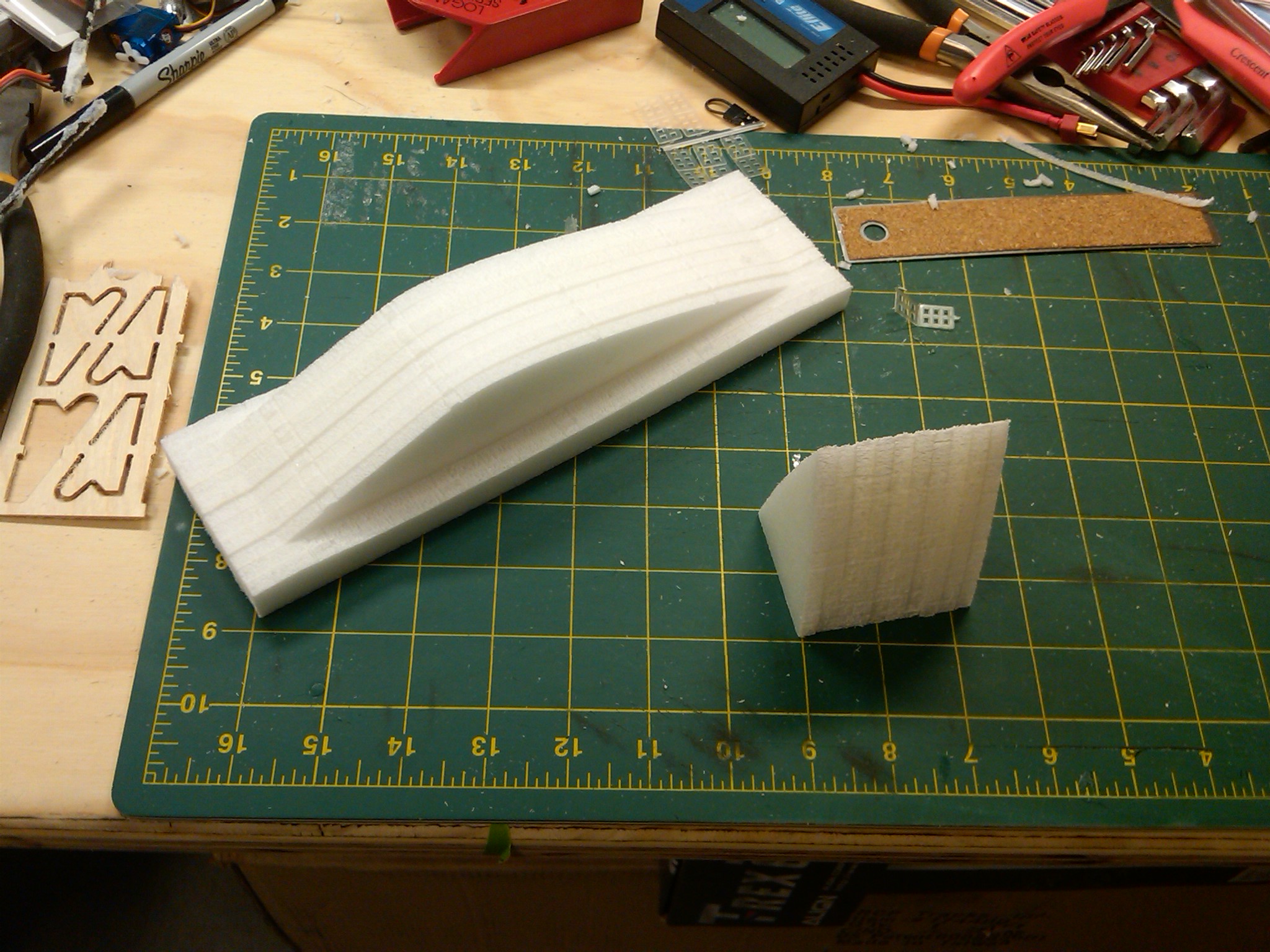

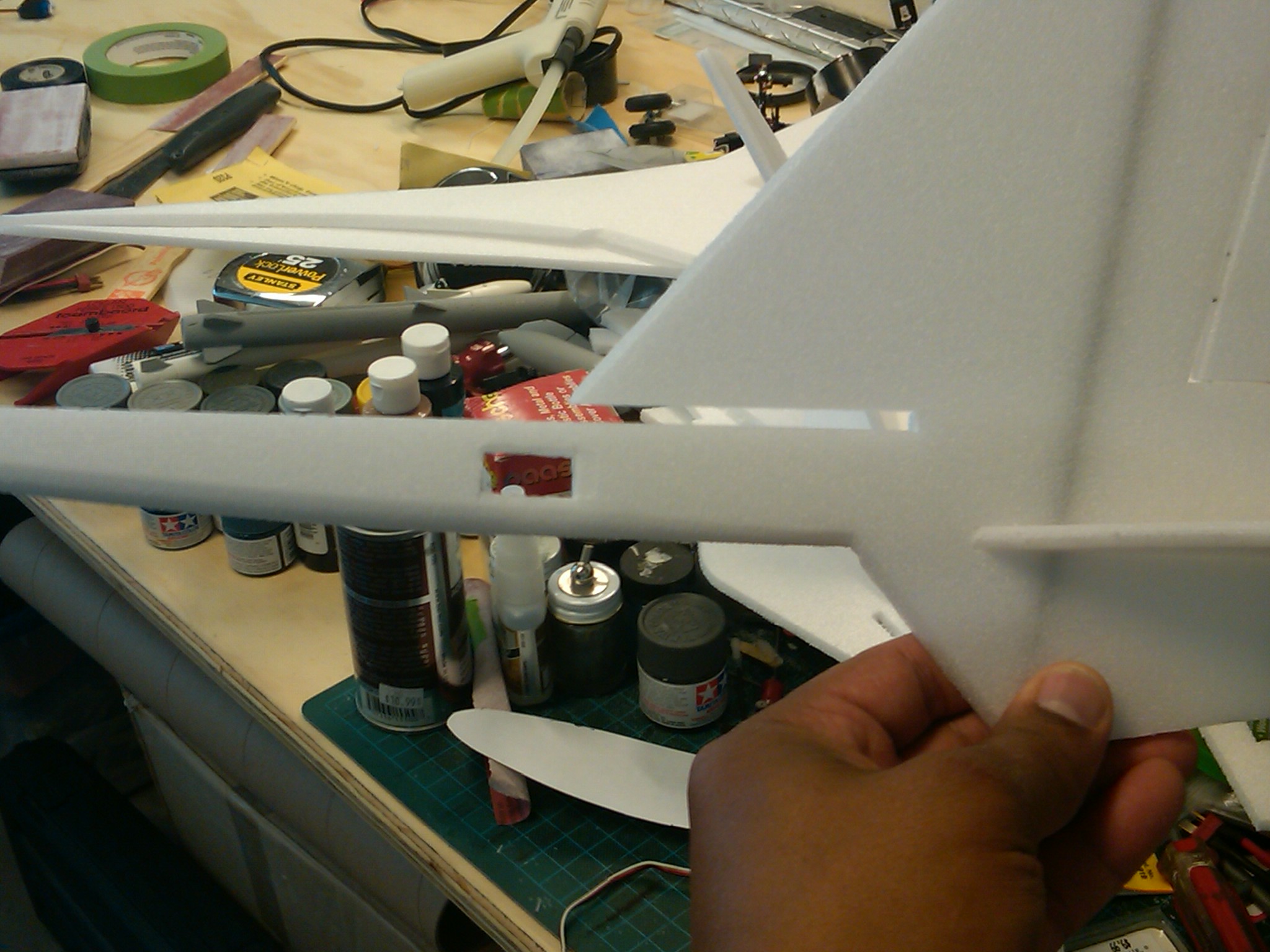

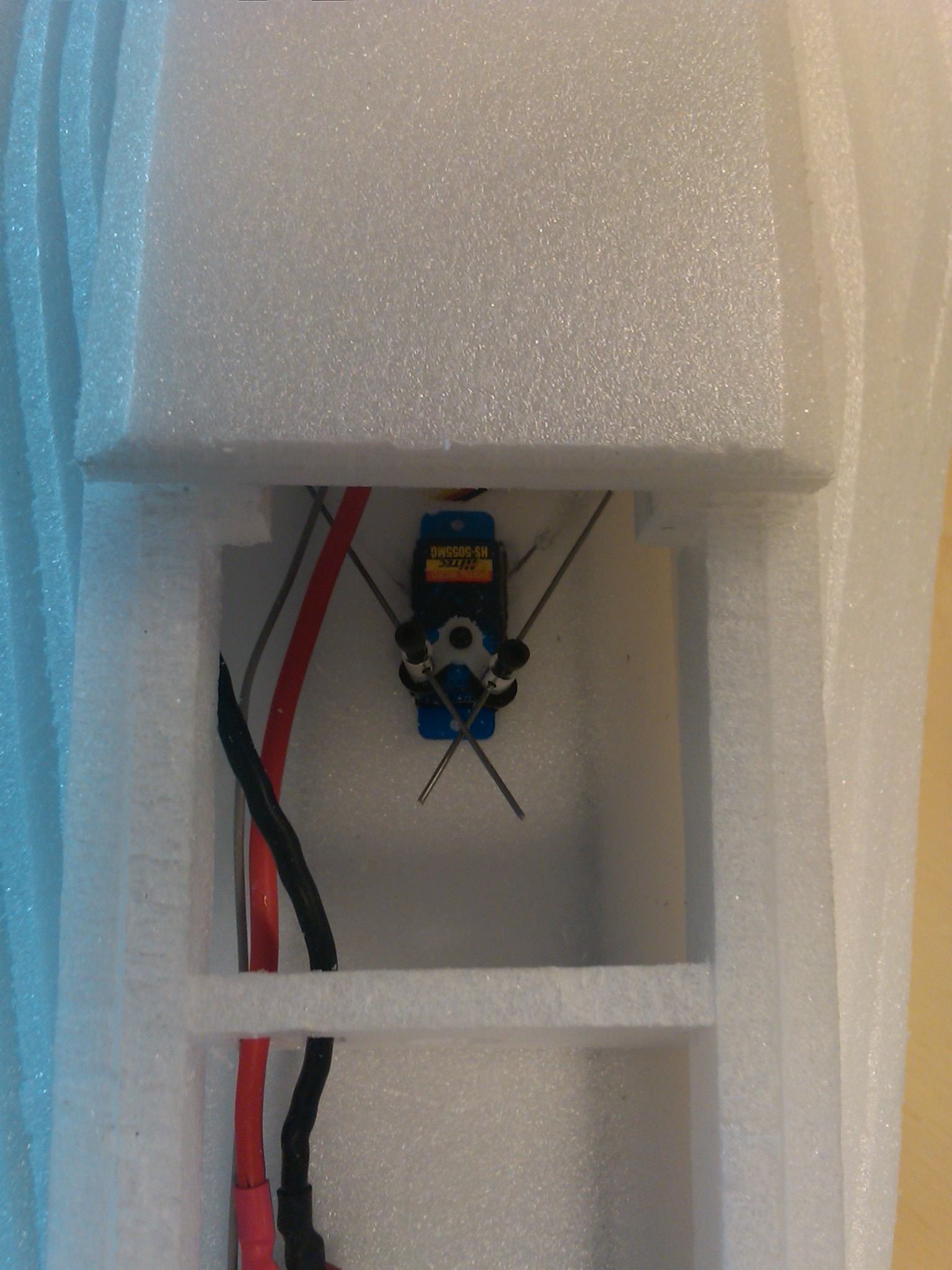

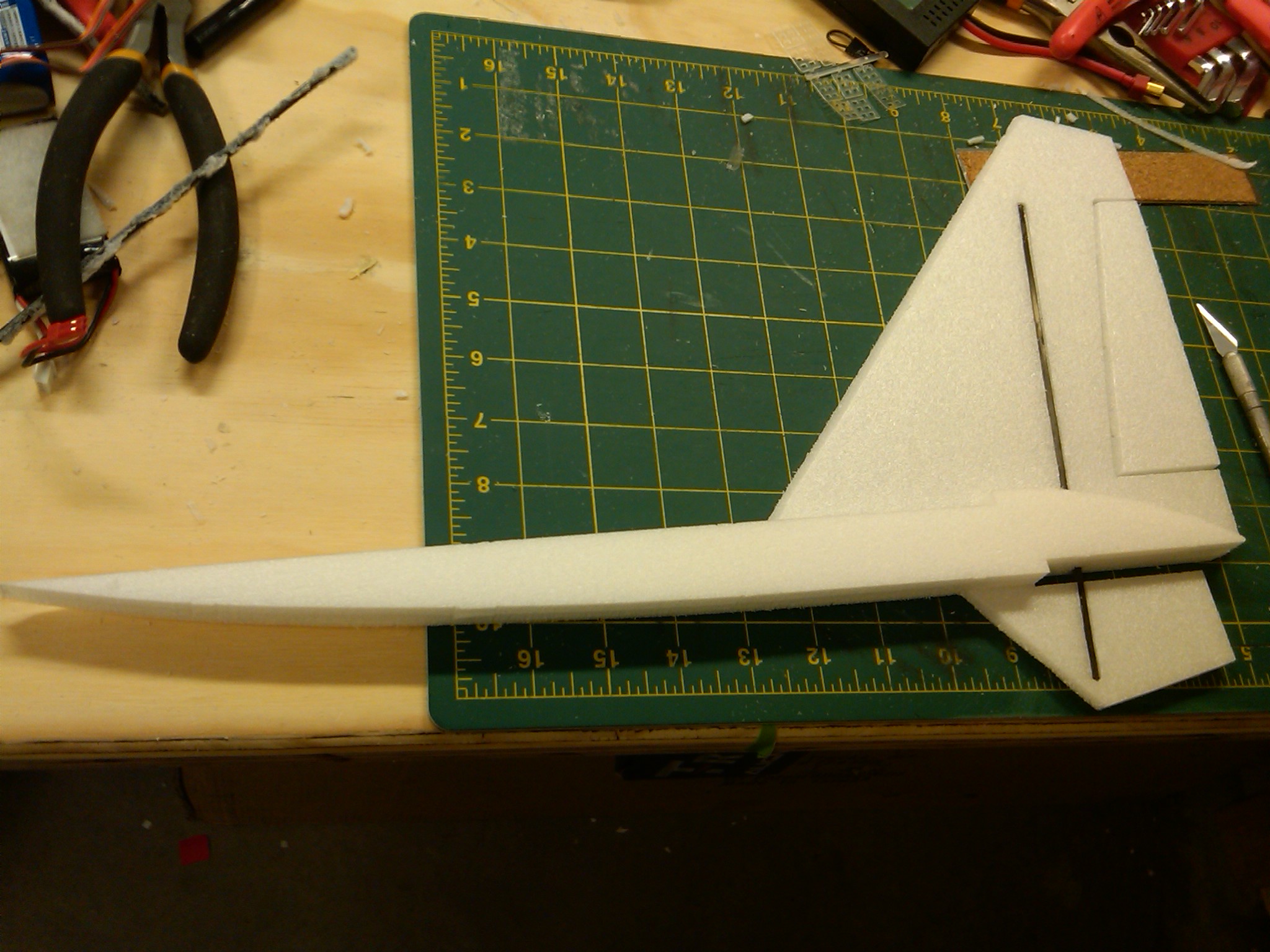

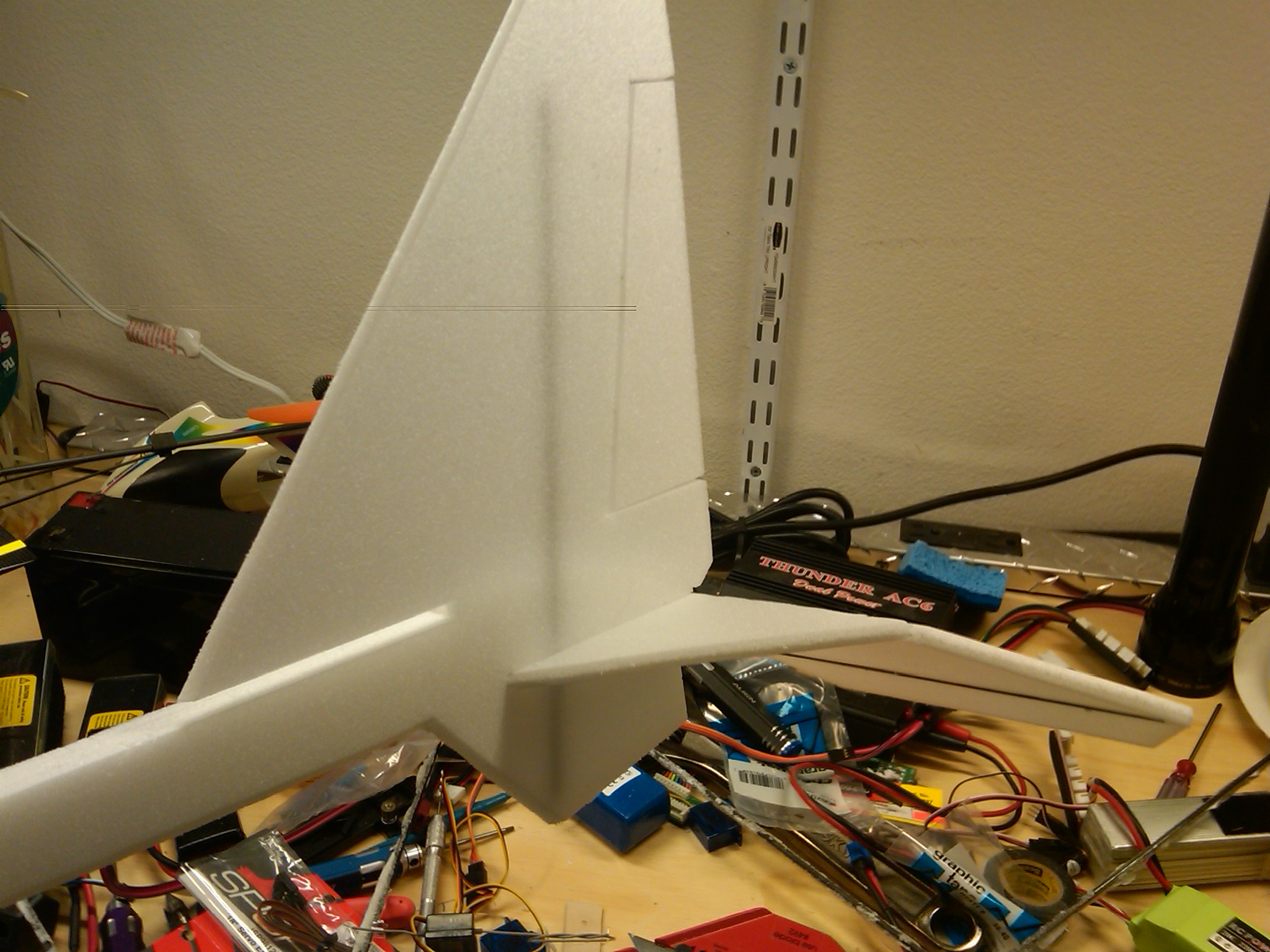

    Here are some more updated photos. Got the hinging done for the elevators and rudder. Almost done with the aileron hinges. Also laminated the nose cone and canopy, might as well get those out of the way.

    Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  5. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

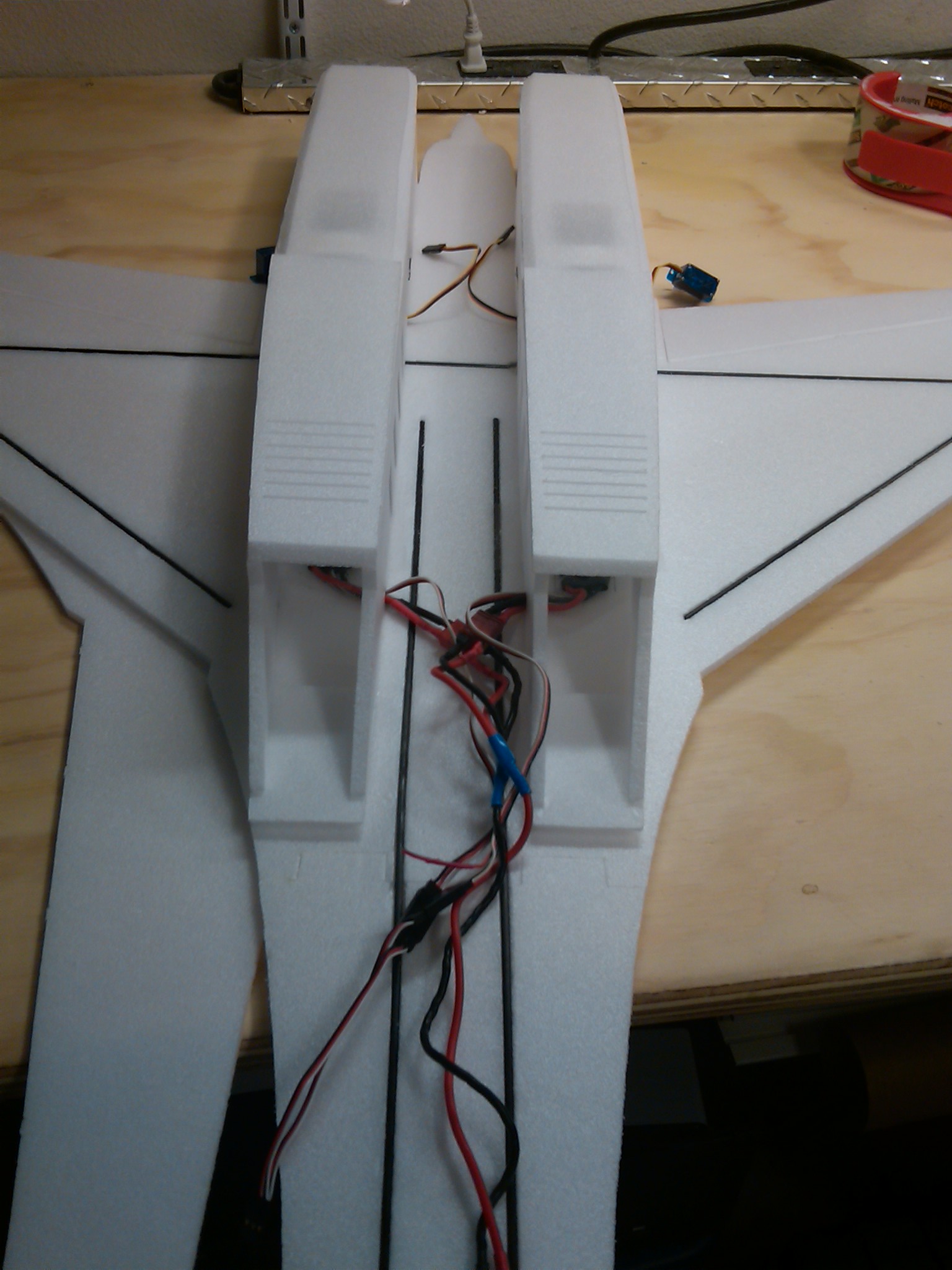

    Here are some more images of the build...

    Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  6. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    Nice work :good:

  7. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

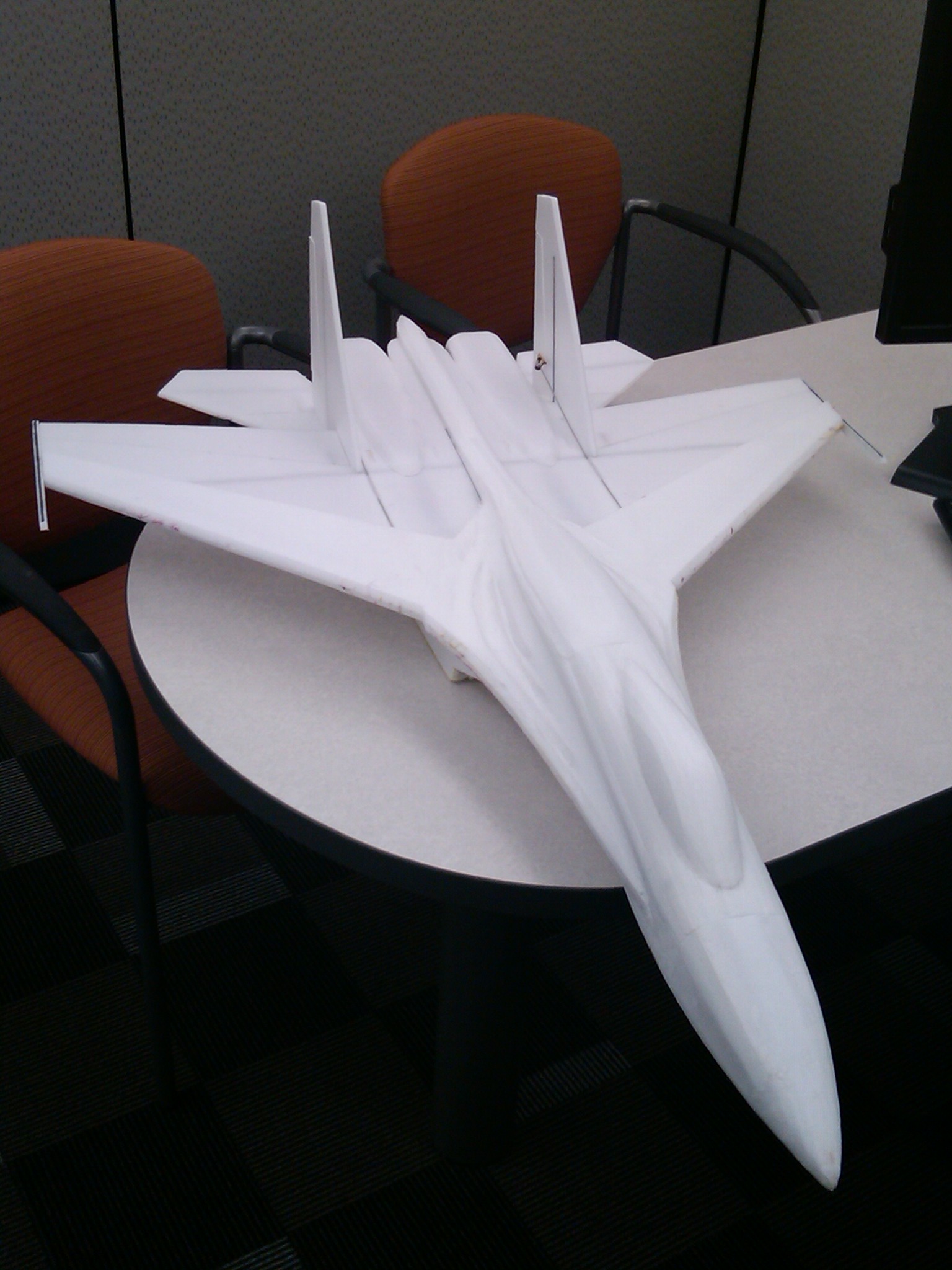

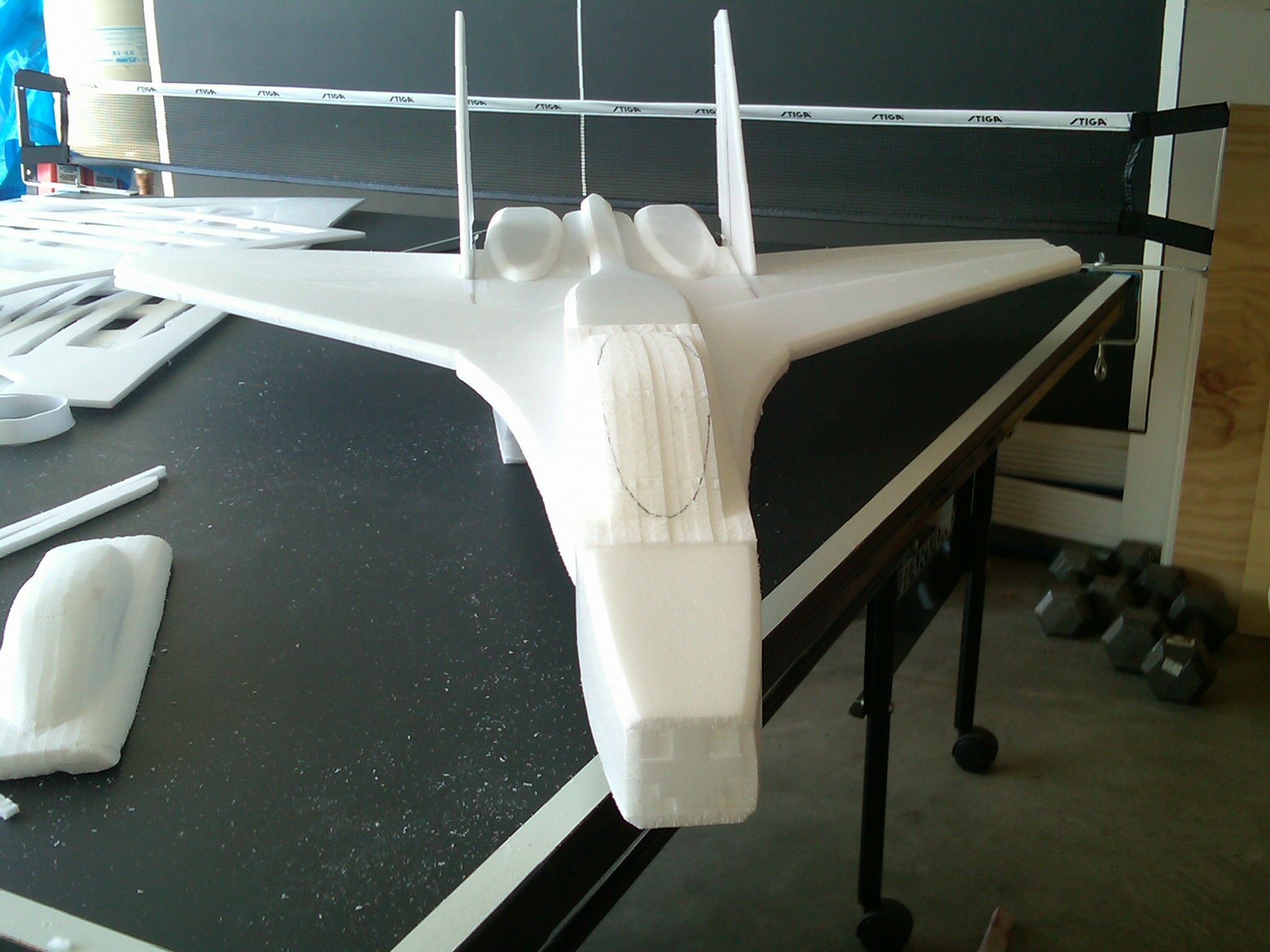

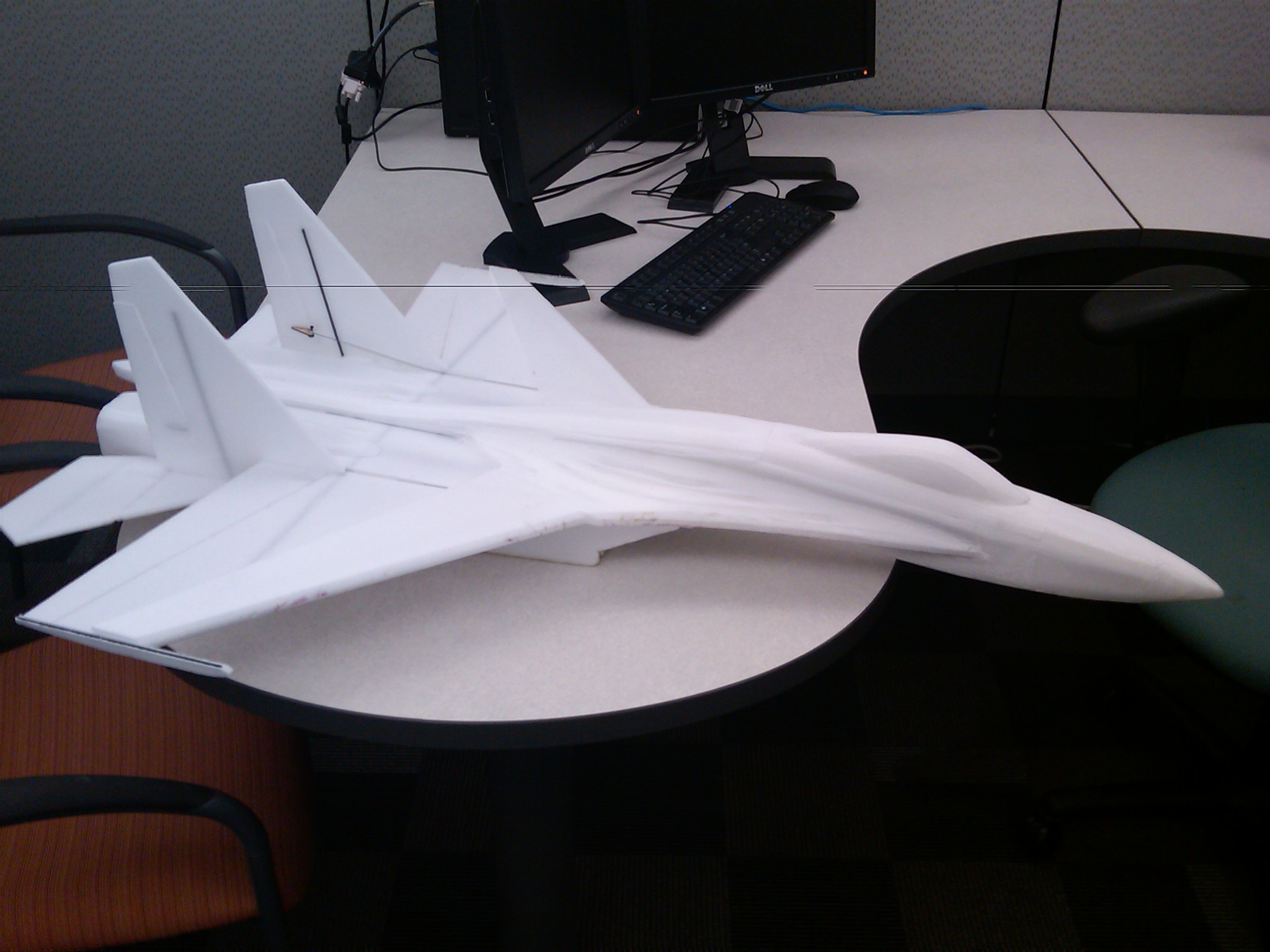

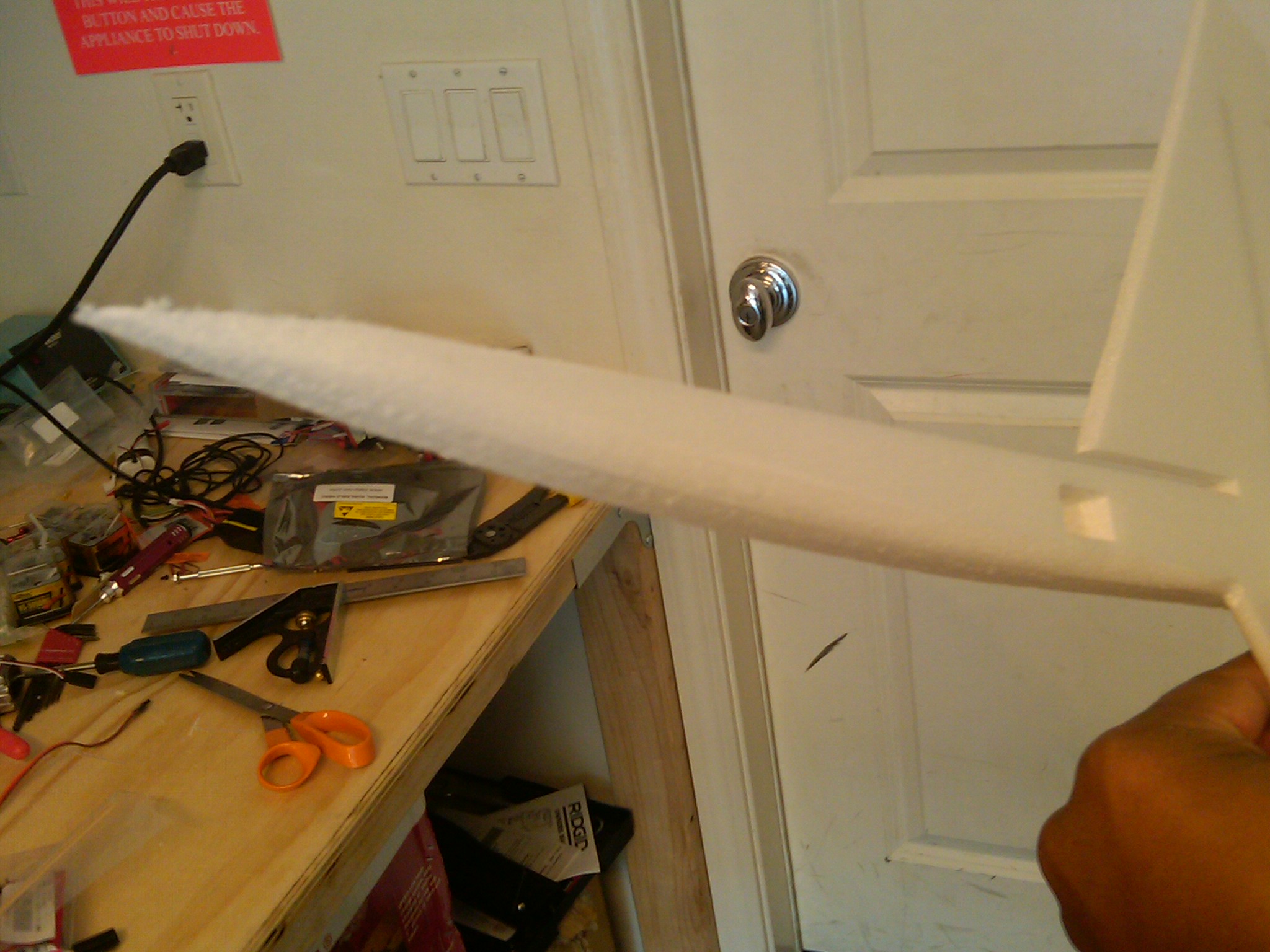

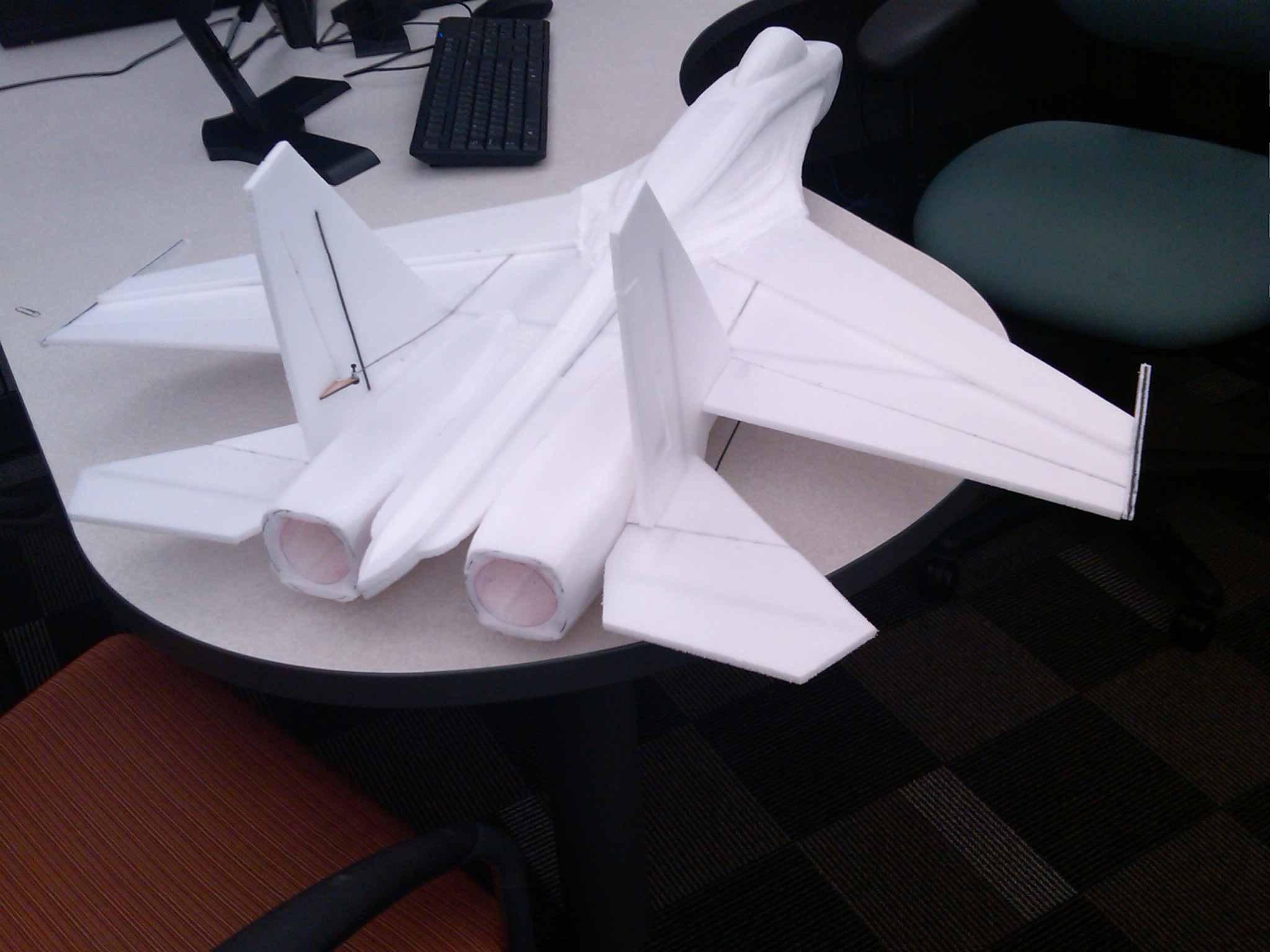

    Got around to start shaping the model after the maiden of course.

    Here is the video of the maiden flight. I have to keep reminding myself that this model does not have thrust vectoring (TV) and that I always have to be on the throttle and not bleed the speed off too much :nervous: . Funny the larger, heavier Su-37 version has TV and is so much MORE maneuverable. Just have to adjust my flying style :D .

    Attached files [​IMG] [​IMG] [​IMG]

  8. TigerPilot

    TigerPilot Well-Known Member

    Offline
    Messages:
    1,578
    Trophy Points:
    48
    Congrats on the maiden flight, vicentel. :doubleup: It looked a little twitchy to me. Maybe a little more nose heavy?

  9. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6
    It actually is a little nose heavy so I ended up moving the battery aft. The twitchiness is due to my dumb thumbs :D I was very nervous flying...perhaps increase the expo on my radio.

  10. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Good job vicentel! Expo is your friend. :)

  11. 66tbird

    66tbird Moderator Staff Member

    Offline
    Messages:
    431
    Trophy Points:
    18
    Location:
    Deserts of Arizona
    Nice clean build.

  12. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

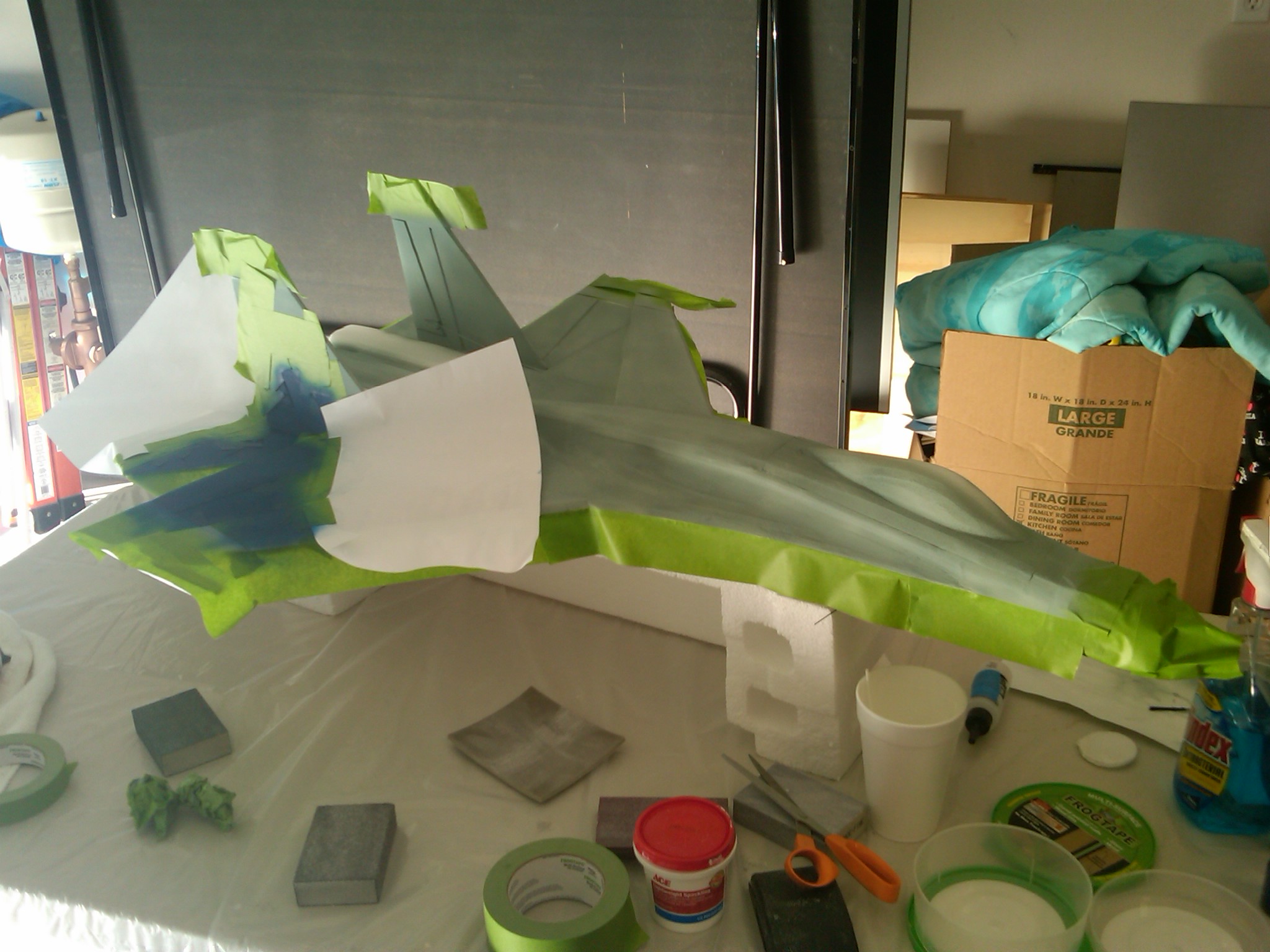

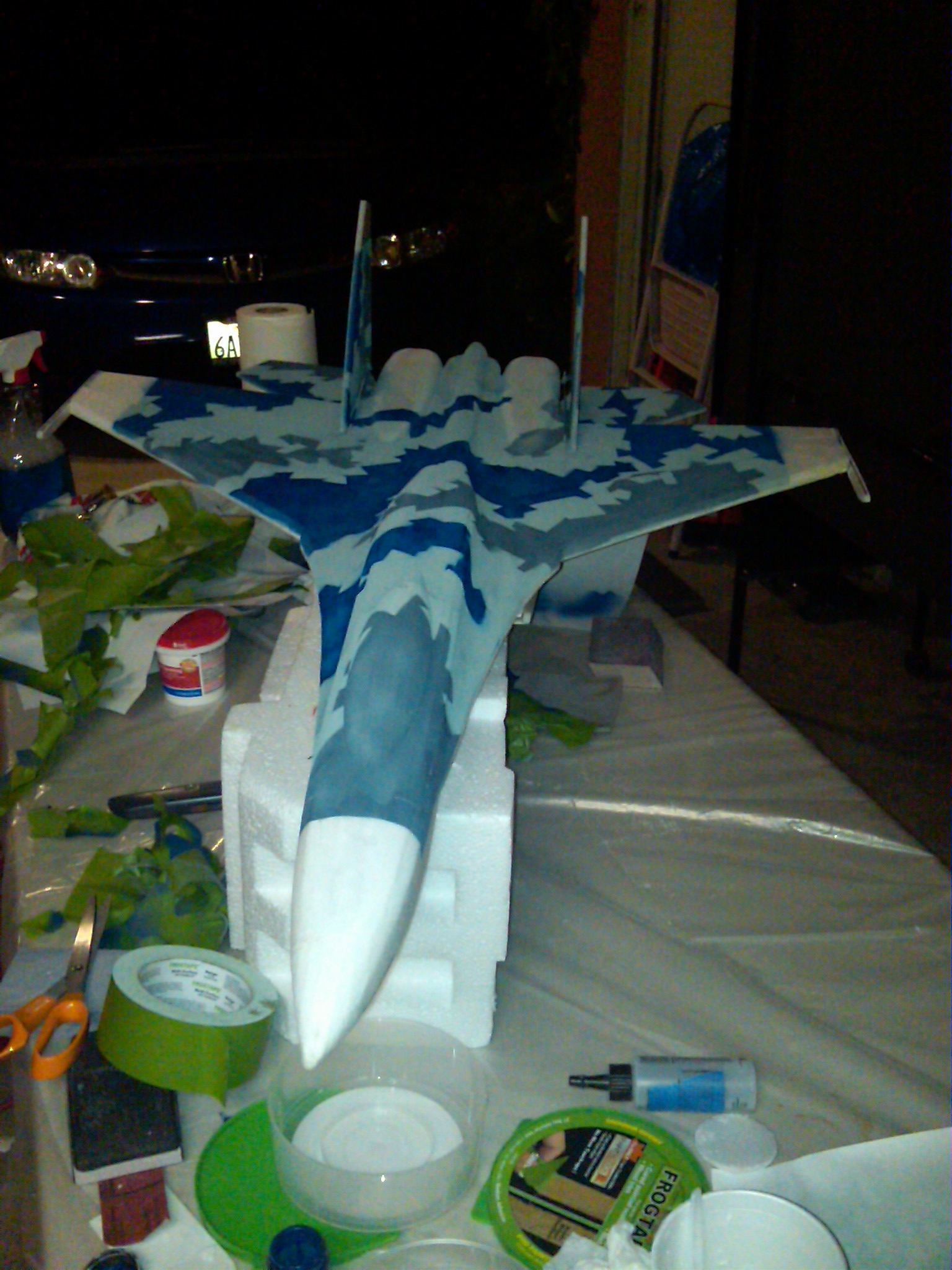

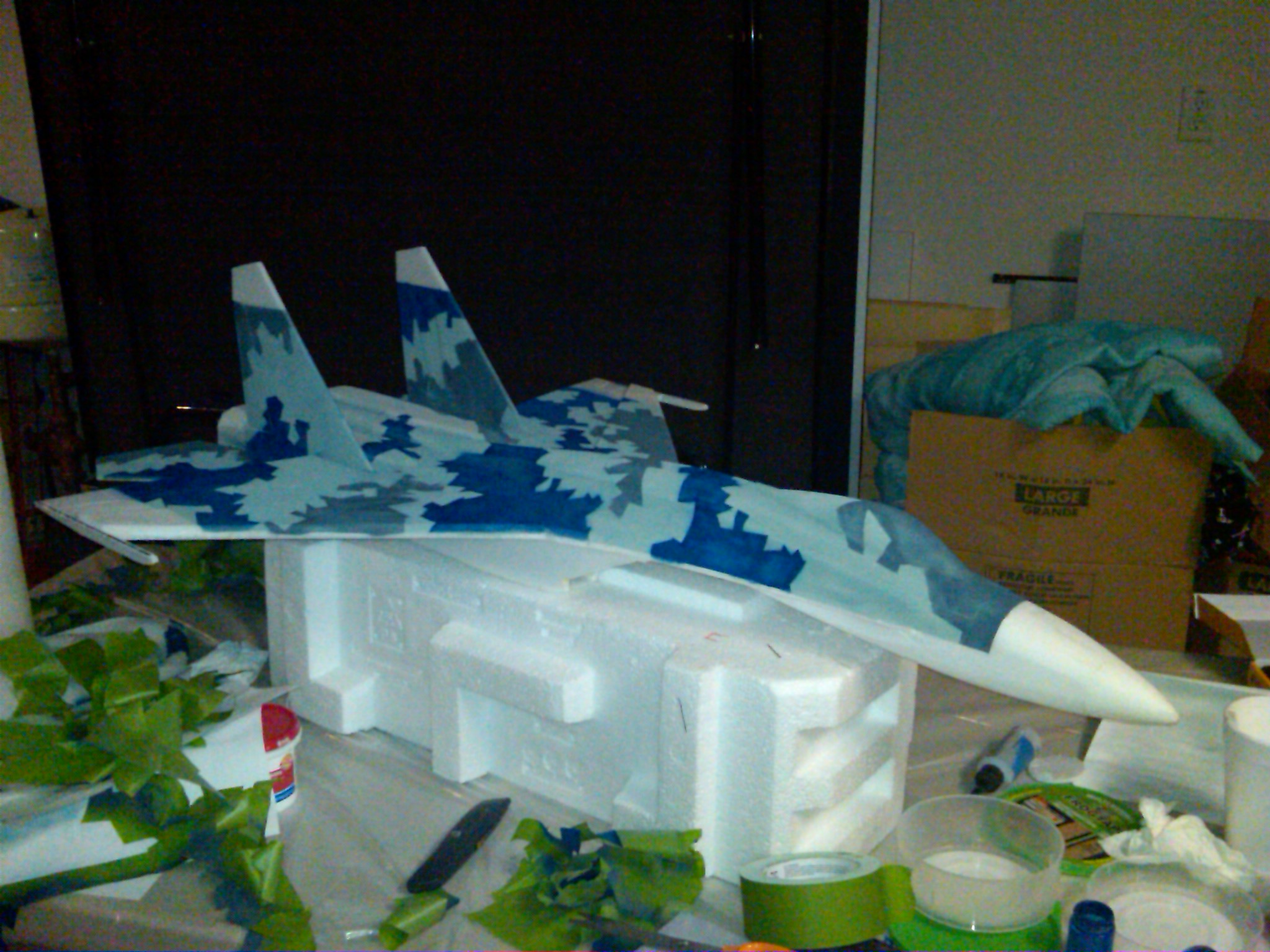

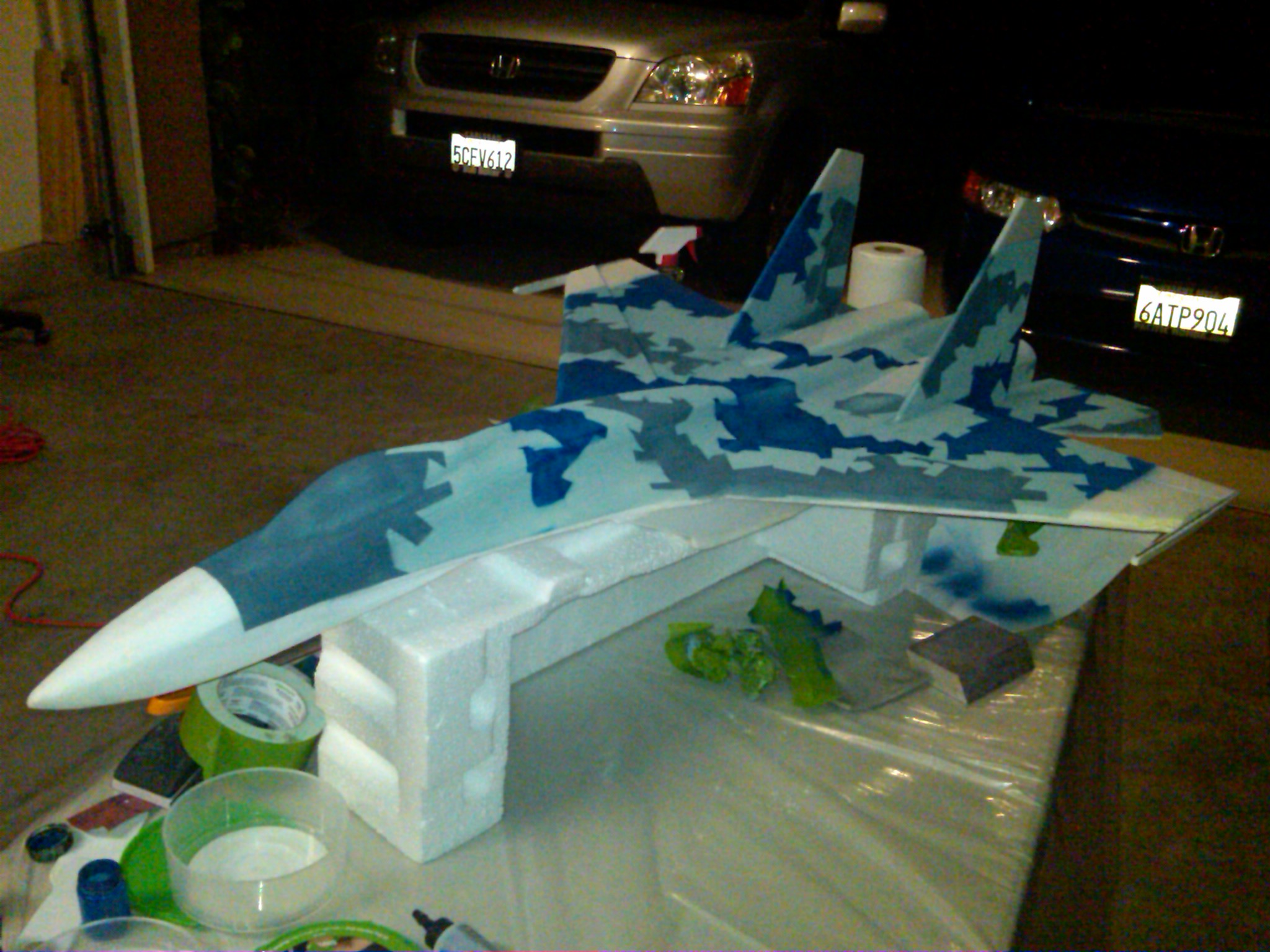

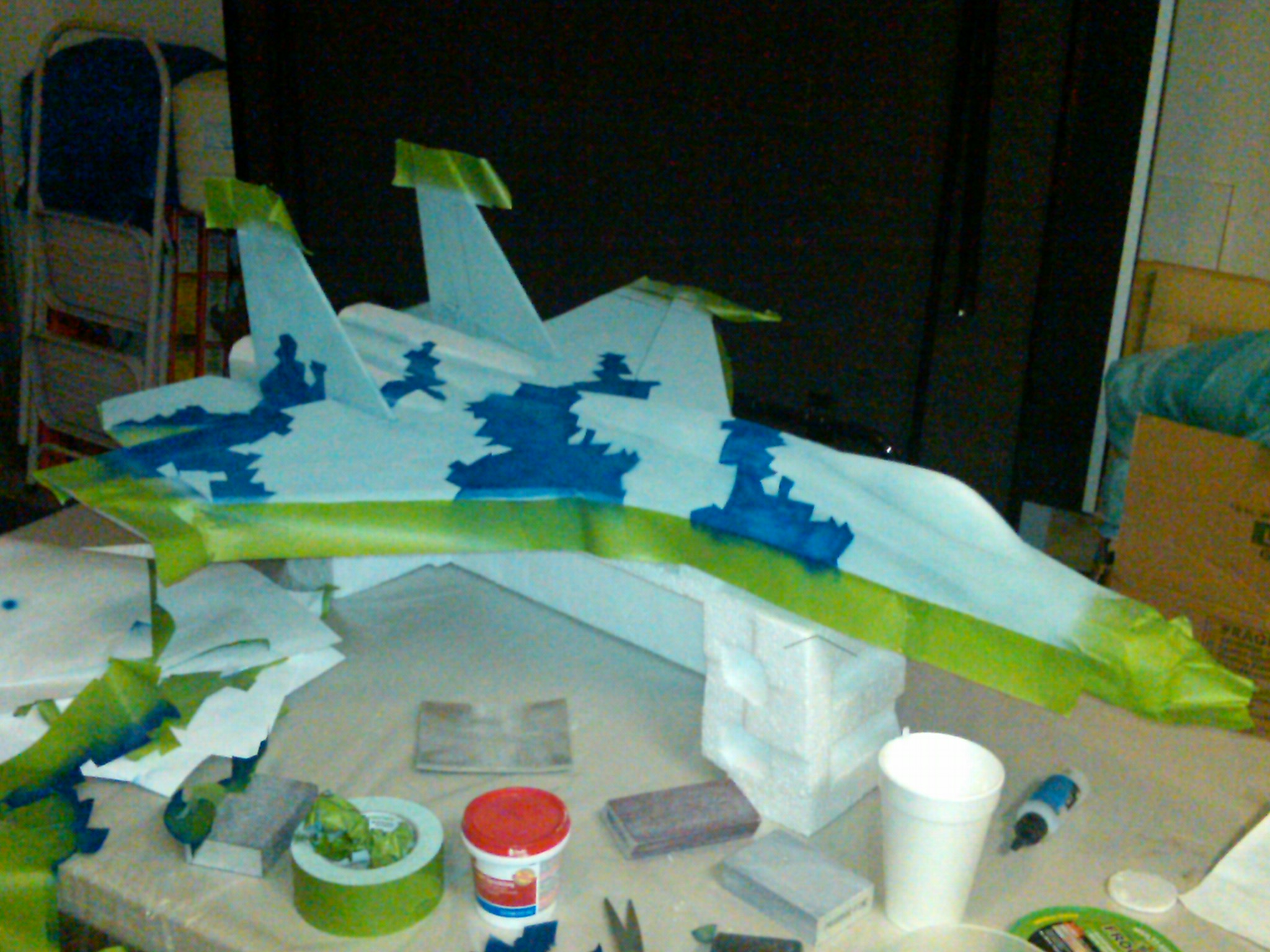

    I wanted to update the post with my painting progress.

    Vic Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  13. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6

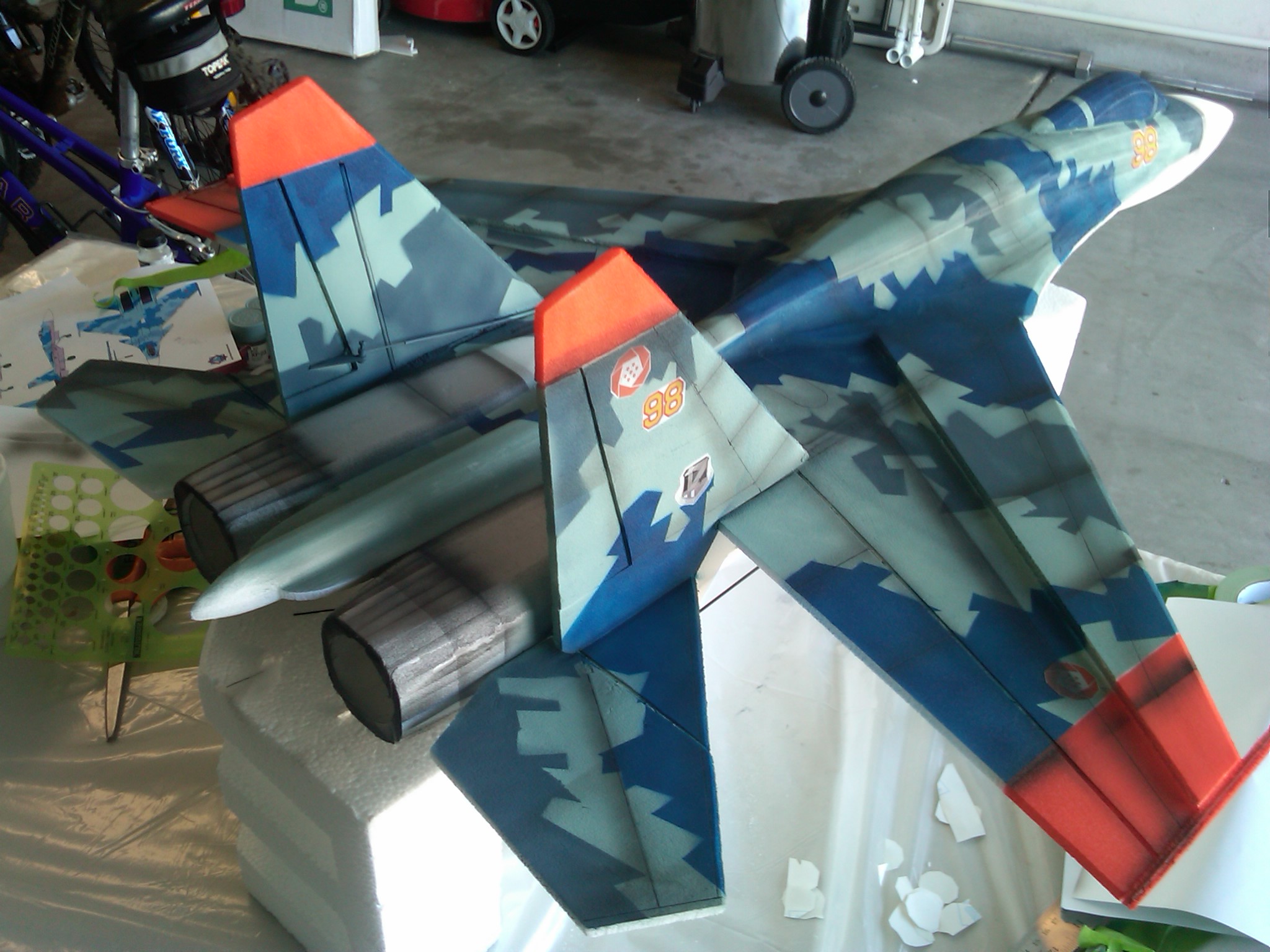

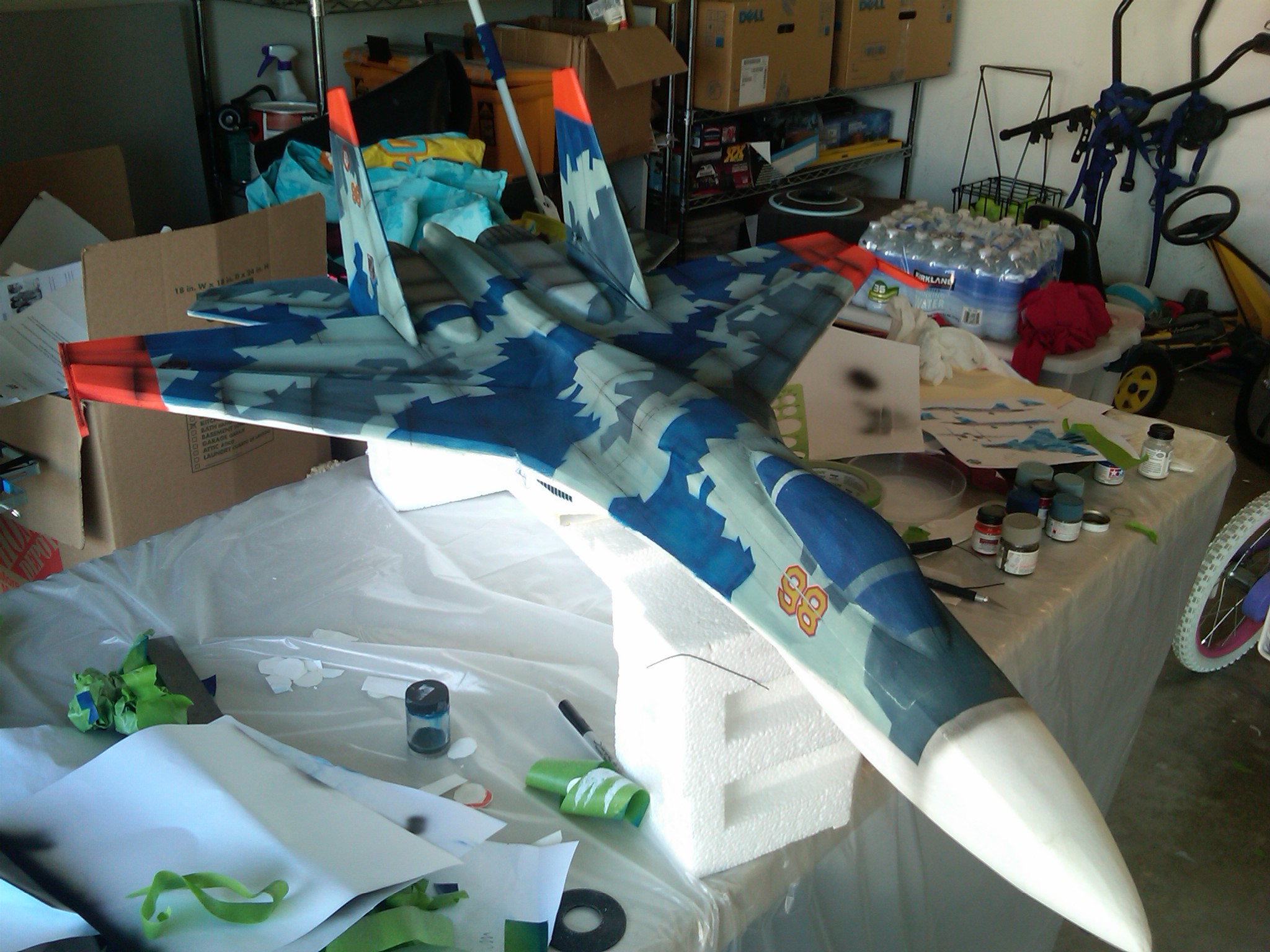

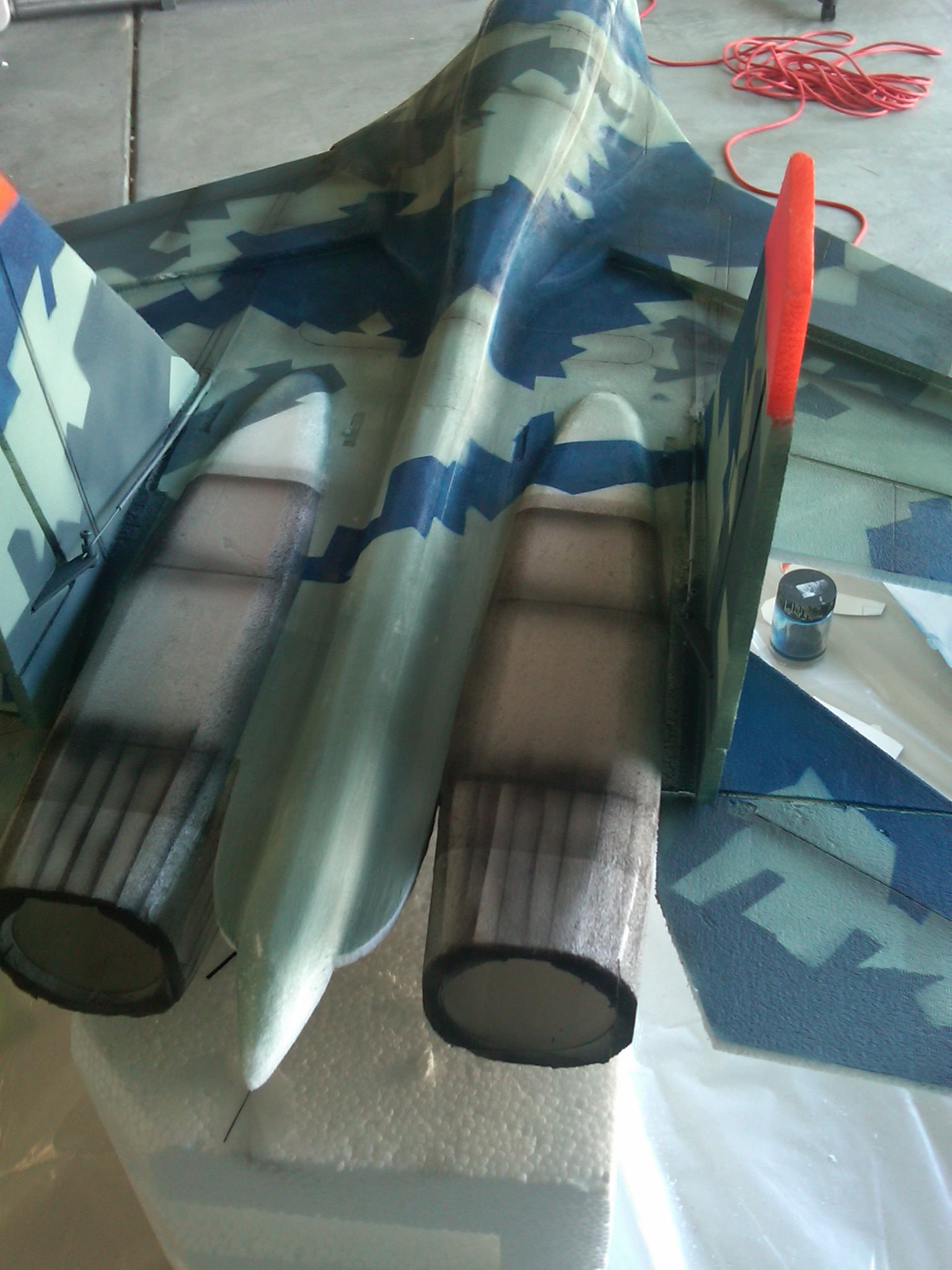

    Hey Guyz,

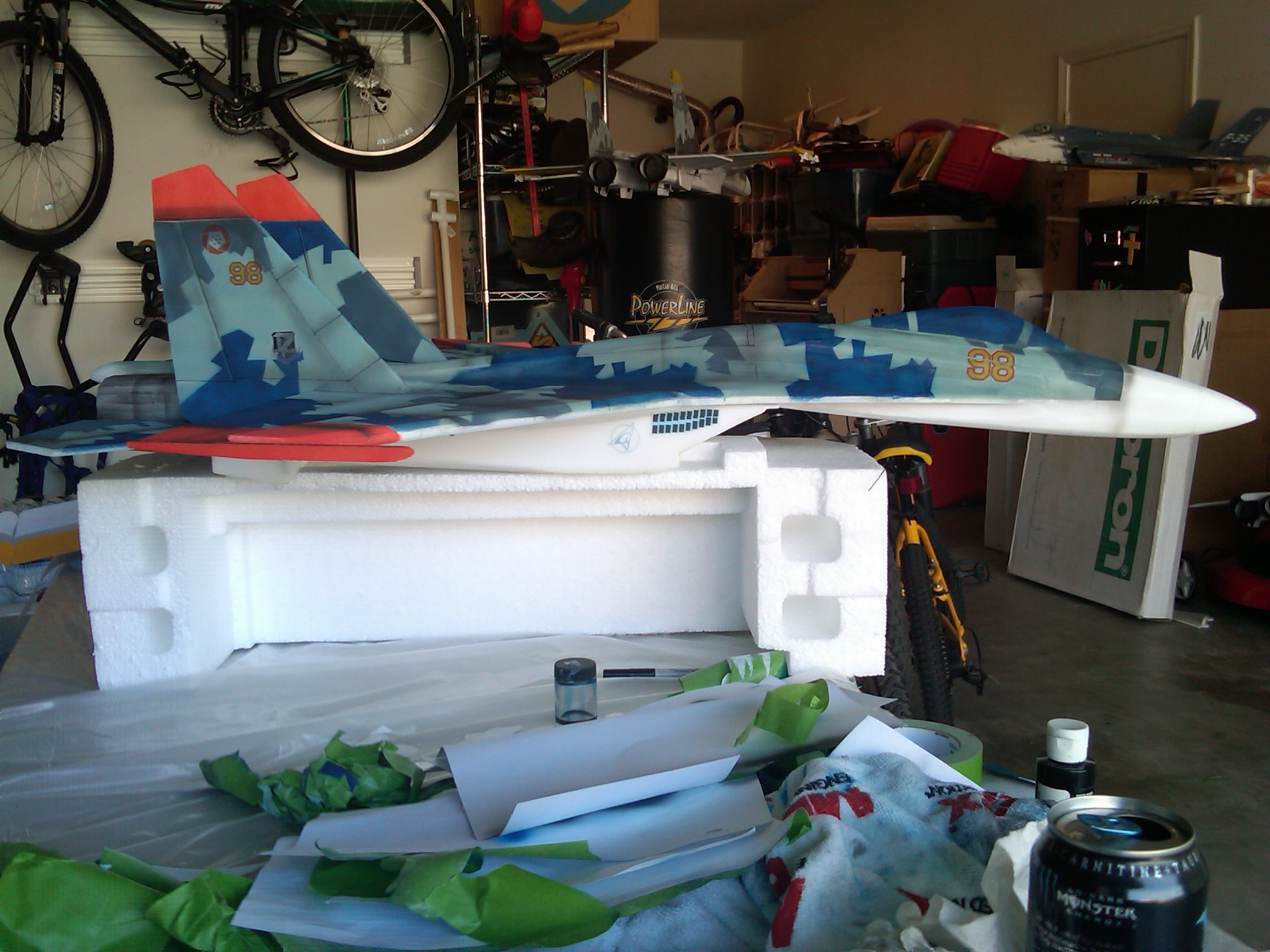

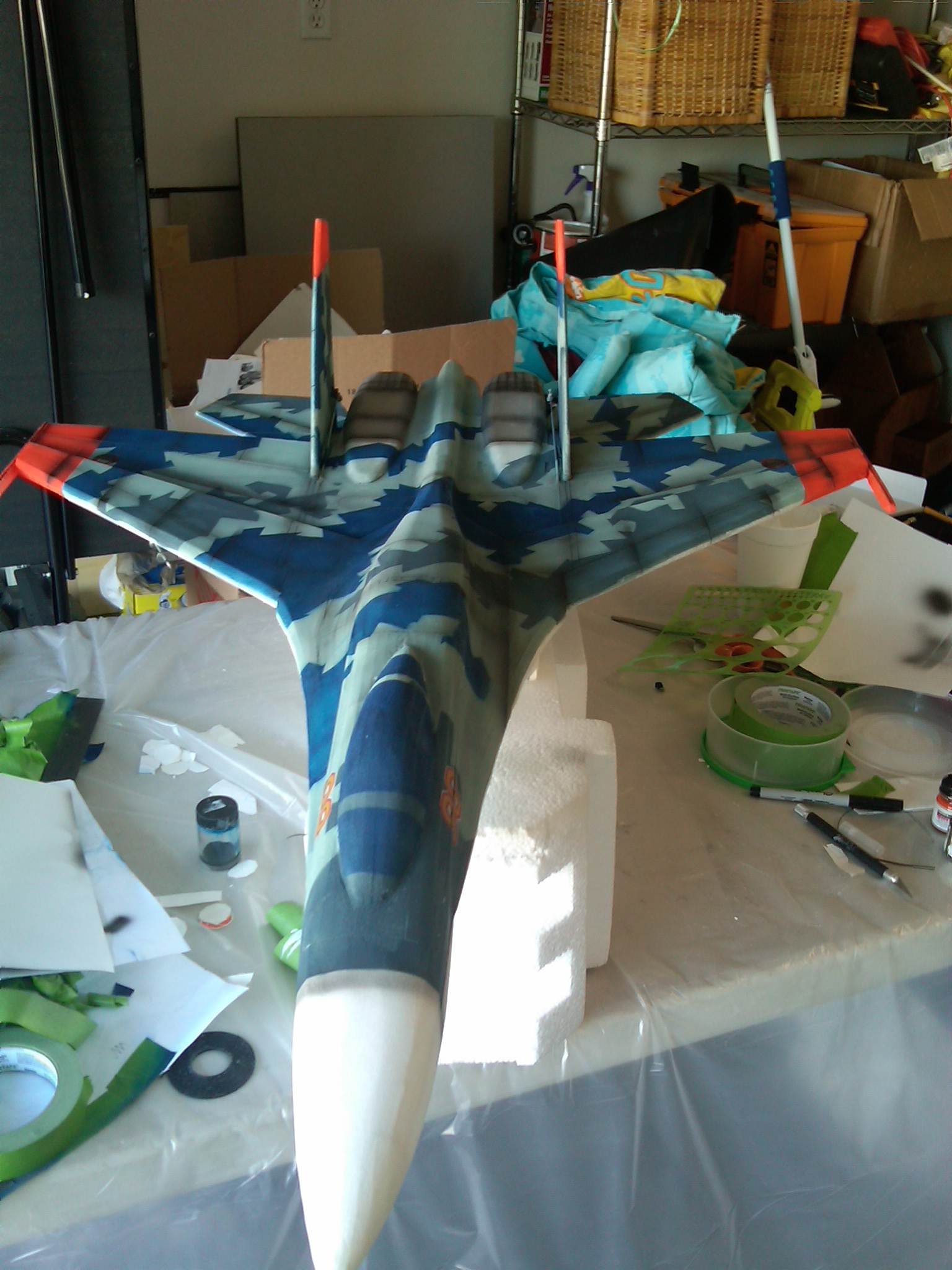

    Just a quick update on my progress. I've managed to get it all painted, panel lined, insignia'd, weathered and clear coated <whew>. Anyway since this will be my "beater" plane I wasn't as anal with this one as with my bigger Su-37. Unfortunately I have to go to a family gathering so I won't be able to film the flight but hopefully I will get some time soon. The plane itself is not a replica of any plane. I just liked the scheme of Yellow 13: grey with yellow highlights. So I decided to make this one blue with orange highlights. I'm calling it Orange 98. Hope you guys like it

    Thanks,
    Vic

    Design so nice I built it twice. Attached files [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

  14. thunder hawk

    thunder hawk Member

    Offline
    Messages:
    287
    Trophy Points:
    18
    Location:
    G.H. Boyd Systems, P.O. Box 235 Griffith, IN 46319
    vicentel you are a real artist in foam. :doubleup: :doubleup: :doubleup: :doubleup: :doubleup:

    Please post a video of the finished model flying.

    this is one great looking machine.
    Cheers.
    George :D

  15. vicentel

    vicentel Member

    Offline
    Messages:
    87
    Trophy Points:
    6
    Here is a video with Orange 98 painted. I know it starts off as the unpainted version but trust me, you'll want to continue watching the video :questions:

    Again thanks to all you guys for all your help, tips and tricks. I couldn't have done it without you. This was an awesome journey...and it's only going to get better :D
