    mark, your absolutely right about your thoughts....but when you make the thrust duct to small, the air velocity increases, as the thrust decreases. ther is a combination between the fastest air duct velocity, and the maximum thrust in ducted fan models. i maintained max thrust on my pyranha, as it has half power hoover power and can be hand launched.....also it has good top speed "fast air velocity" so it can achieve 150mph top speed. randy.

    rjarois, Apr 25, 2009
    #26
  2. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Cool Randy do have a pic of that pyranda? and how did you figure it out how much to taper the port? Also are you saying that you can hover and edf at half throttle?
    Mark

    kram242, Apr 25, 2009
    #27
  3. rjarois

    rjarois Moderator Staff Member

    Offline
    Messages:
    1,263
    Trophy Points:
    36
    Location:
    royal oak, michigan
    mark, i have video of my pyranha posted on my YouTube page.....you can get a e-flux calculator...i made my thrust tube small, and kept makin it bigger til i was happy with it. not very scientific here, lmao. here is a fan calculator
    http://www.s4a.ch/eflight/fancalc_e.htm
    randy.

    rjarois, Apr 25, 2009
    #28
  4. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Man that is really a cool java program thanks Randy
    BTW Trish and I are going to try to cut out a pair of Eagles tonight on a live show and build them up to fly tomorrow! :)
    Mark

    kram242, Apr 25, 2009
    #29
  5. Thewz

    Thewz Moderator

    Offline
    Messages:
    269
    Trophy Points:
    0
    Location:
    Temecula, CA
    Is the live cam going to be up today?

    Thewz, Apr 26, 2009
    #30
  6. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    We are trying to set it up for a build tonight

    kram242, Apr 26, 2009
    #31
  7. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18

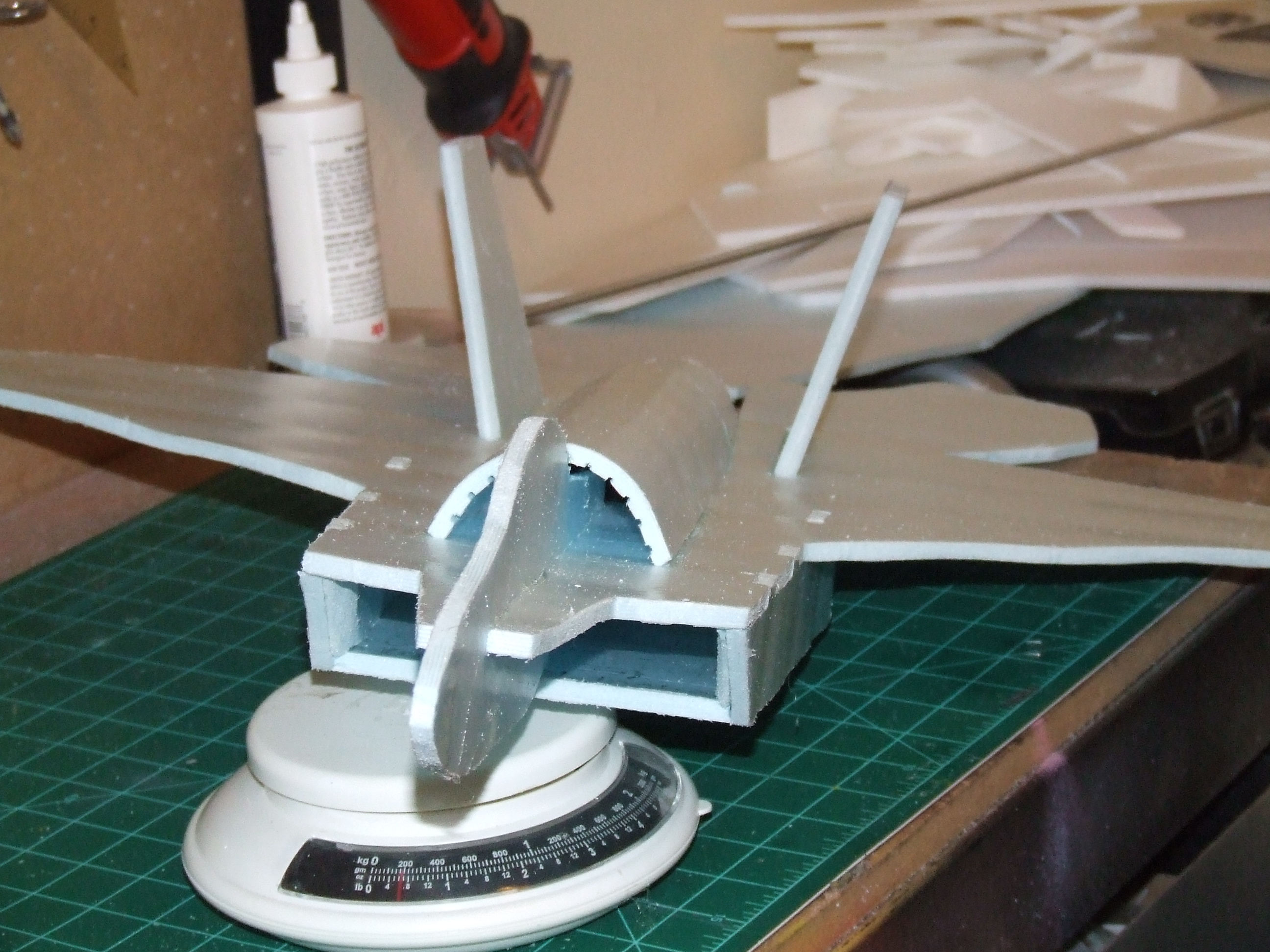

    Maiden went pretty good after the winds died last night :roll:
    I found some changes that needed made and am in the process of cutting a new one out, man i really need that upgrade :evil:
    I had to move the EDF unit forward for CG issues and will re-maiden hopefully tonight if i can get it done in time.
    Power seemed decent, top speed could be better though. Attached files [​IMG]

    Jnida63, Apr 27, 2009
    #32
  8. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18

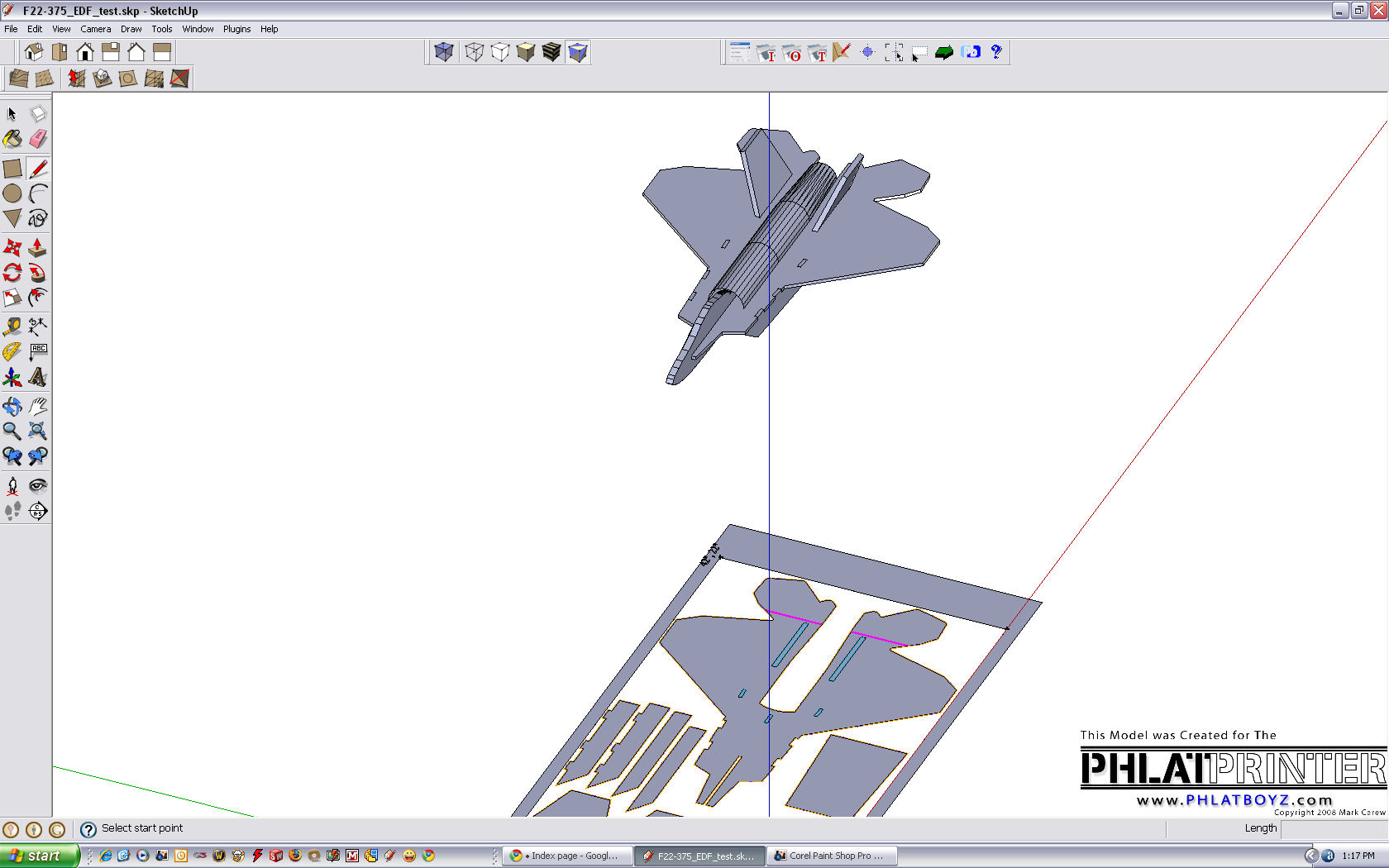

    Ok, I am pretty confident about the way this thing will fly now, I will post the files and once I work out the CG hopefully on Wednesday evening I will post best CG location.
    It is designed for 56mm fan unit (2.25 inches).
    I used a turnigy 4400kv motor with it.
    I also used a 1350 zippy 25C lipo, should be using at least an 1800 25C 3S pack.


    http://www.hobbycity.com/hobbycity/stor ... oduct=4198 Attached files [​IMG] F-22-EDF.rar (426.4 KB)Â

    Jnida63, Apr 28, 2009
    #33
  9. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    Jnida63,
    Glad to hear you got the parts :)
    Man this one came out cool looking bro! Are you thinking of doing a video for us guys to see it in action?
    Thanks for sharing this with everyone here
    Mark

    kram242, Apr 29, 2009
    #34
  10. Jnida63

    Jnida63 Member

    Offline
    Messages:
    749
    Trophy Points:
    18
    Hopefully i can find a video cam to take some video, mine is broken and the 1.5 upgrade is more important than a video camera right now)

    Jnida63, Apr 29, 2009
    #35
  11. kram242

    kram242 Administrator Staff Member

    Offline
    Messages:
    6,311
    Trophy Points:
    13
    Location:
    NJ
    lol that's the spirit :)
    Mark

    kram242, Apr 30, 2009
    #36
