Welcome to The Phlatforum PhlatPrinter III

SketchUp 2014 - SketchUcam Bugs

Discussion in 'SketchUcam Bugs' started by kram242, Mar 1, 2014.

Page 2 of 2
  1. TDR

    TDR New Member

    Offline
    Messages:
    2
    Trophy Points:
    1
    Swarfer, your patience and helpfulness are saintly. Seriously. Thanks so much for the thoughtful response!

    TDR, Mar 31, 2014
    #26
  2. Shawn House

    Shawn House New Member

    Offline
    Messages:
    1
    Trophy Points:
    1
    I need help... In sketch up 2014 i tried installing SketchUcam and all looks well until I open the parameters window and it is all white.

    Shawn House, May 28, 2014
    #27
  3. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    what version did you install (you can see the version in the Gcode output)?
    what OS are you using?
    did you read all the install instructions?

    swarfer, May 29, 2014
    #28
  4. Ringo Davis

    Ringo Davis Member

    Offline
    Messages:
    60
    Trophy Points:
    8
    I have a sketchup drawing on 1 of the pieces will not generate cnc code. I can do an outside cut and tabs on it. It all fits in the safe area, but when I click generate all I get is
    %
    (Generated by SketchUcam {1.1d})
    (File: Airboat_dtfb.skp)
    (Bit diameter: 1/8")
    (Feed rate: 80"/min)
    (Plunge Feed rate: 100"/min)
    (Material Thickness: 13/64")
    (Material length: 18" X width: 28")
    (Overhead Gantry: false)
    (Retract feed rate NOT limited to plunge feed rate)
    (Optimization is ON)
    (www.PhlatBoyz.com)
    G90 G20 G49
    M3 S15000
    G0 Z0.1250
    G0 X0 Y0 (home)
    M05
    M30
    %

    Any ideas?

    Ringo Davis, May 30, 2014
    #29
  5. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida
    Seeing the actual file will help a lot. Without seeing it one suggestion is to make sure the part is on the zero plane in the Z axis.

    3DMON, May 30, 2014
    #30
  6. britton

    britton New Member

    Offline
    Messages:
    10
    Trophy Points:
    1
    Location:
    Santa Fe, NM
    I'm having the same problem. I even installed a whole new setup on my laptop. Same thing. It makes a file with not gcode in it. The Gplot shows what you have above with not graphic or Gcode

    britton, May 30, 2014
    #31
  7. britton

    britton New Member

    Offline
    Messages:
    10
    Trophy Points:
    1
    Location:
    Santa Fe, NM
    I got it working. After a whole day messing with it. This time I copied my project to the clipboard and then abandoned the project and started a new one. Pasted from the clipboard then clicked on one of the components. right clicked edit component. left clicked the face. control-C. exit out of component edit. Control-V. Placed it in the working area. Phlaten edge was working funny. But I got some gcode this time.

    britton, May 30, 2014
    #32
  8. britton

    britton New Member

    Offline
    Messages:
    10
    Trophy Points:
    1
    Location:
    Santa Fe, NM
    Maybe someone can figure out what I did wrong?


    Attached Files:

    britton, May 31, 2014
    #33
  9. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    do not make 'components'.
    creating groups will set the order of cuts, but components are not understood.

    swarfer, May 31, 2014
    #34
  10. britton

    britton New Member

    Offline
    Messages:
    10
    Trophy Points:
    1
    Location:
    Santa Fe, NM
    I'm not sure what you mean. My use of components identifies the part. Then I group components together. When I make cuts, I just use a copy of the face. Could this be what I'm doing wrong? Can the part be too complicated for sketchucam? I'm using version 1.1d


    Attached Files:

    britton, May 31, 2014
    #35
  11. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    I'm saying that if you want SketchUcam to generate cuts, then the cuts cannot be part, or around, a component.
    draw a plain square, put a cut around it, generate Gcode. works ok.
    make the square into a component -> no Gcode

    swarfer, May 31, 2014
    #36
  12. britton

    britton New Member

    Offline
    Messages:
    10
    Trophy Points:
    1
    Location:
    Santa Fe, NM
    Yea. Well. Be it as it may, Nothing in the cutting area is part of a component. Has anyone looked at my file? Just wondering.

    britton, May 31, 2014
    #37
  13. 3DMON

    3DMON Moderator Staff Member

    Offline
    Messages:
    2,380
    Trophy Points:
    38
    Location:
    Sebastian, Florida

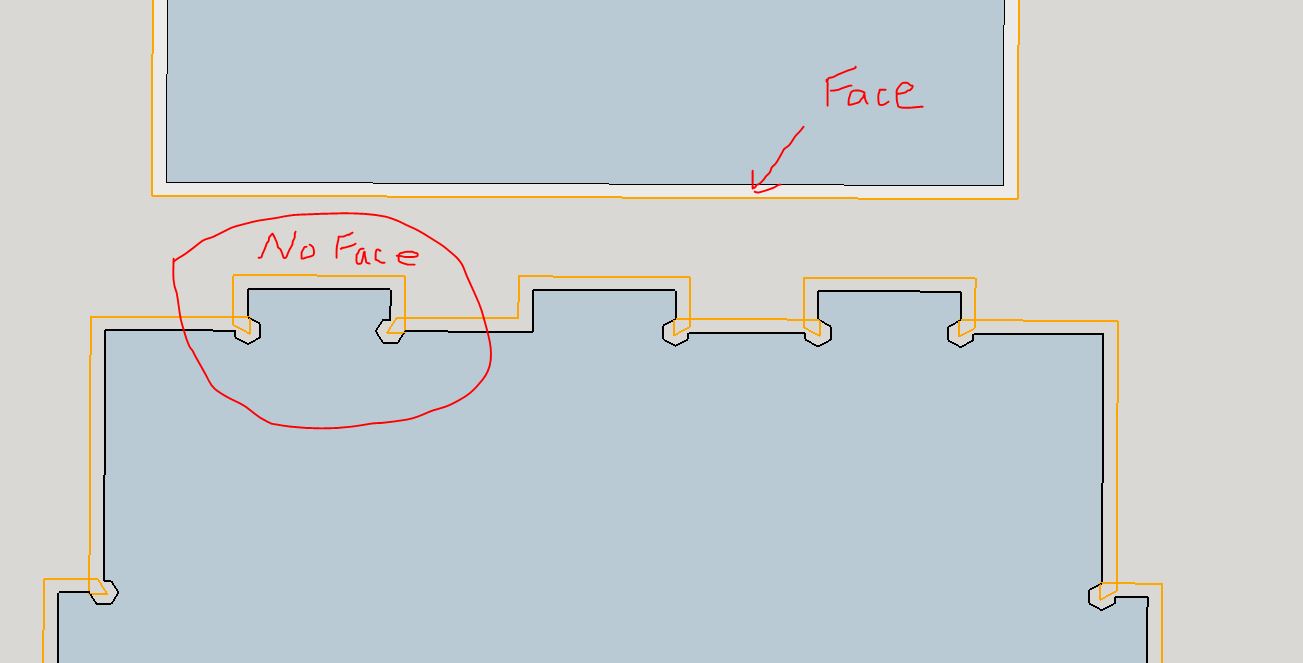

    You should use the phlatbone tool to make the dog bones. The funny geometry in your corners is causing the problem. It is making it so the outside cut line cannot make a face like the square I made above it.

    If you used the phlatbone tool it would not have done this.


    Attached Files:

    3DMON, May 31, 2014
    #38
  14. britton

    britton New Member

    Offline
    Messages:
    10
    Trophy Points:
    1
    Location:
    Santa Fe, NM
    Yea. Well. Be it as it may, Nothing in the cutting area is part of a component. Has anyone look

    britton, May 31, 2014
    #39
  15. britton

    britton New Member

    Offline
    Messages:
    10
    Trophy Points:
    1
    Location:
    Santa Fe, NM
    Thank you sir. That makes sense. Let me try that.

    I don't know you, but I know your awesome.

    britton, May 31, 2014
    #40
  16. swarfer

    swarfer Moderator Staff Member

    Offline
    Messages:
    808
    Trophy Points:
    28
    Location:
    Grahamstown, South Africa
    Agreed. install 1.1e-beta4 too, the dogbones are even better since they now generate fewer line segments the offset cuts and gcode are much cleaner and quicker to cut too.

    I tried to look at your file, but it is V2014 and I only have V8 on this machine, not insurmountable but a big enough hurdle to create a delay.

    swarfer, Jun 1, 2014
    #41
